Unlocking Efficiency: A Deep Dive into Thin-Wall Bushings & Bearings

In the world of mechanical design and engineering, optimizing for space, weight, and cost without sacrificing performance is a constant challenge. When rotational or linear motion needs to be facilitated smoothly and reliably within tight constraints, thin-wall bushings (often called thin-walled bearings or bushes) emerge as a powerful solution.

But what exactly are they, and when are they the right choice? Too often, they’re mentioned superficially. Let’s go deeper than just “they save space” and explore the nuances, materials, advantages, and critical considerations of using thin-wall bushings.

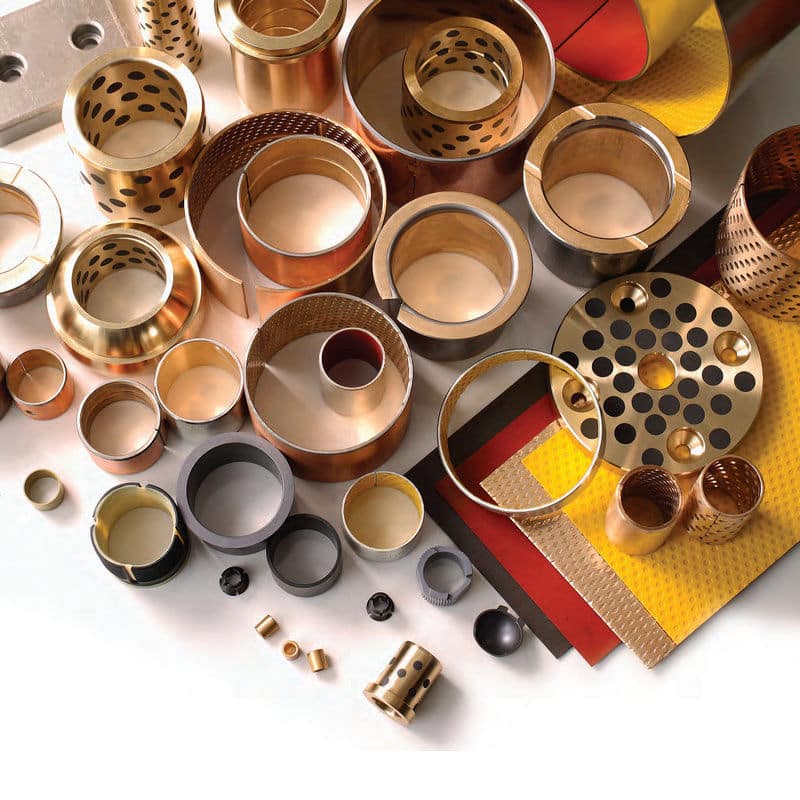

What Exactly Are Thin-Wall Bushings?

At their core, bushings are a type of plain bearing. Unlike rolling-element bearings (like ball or roller bearings), plain bearings rely on sliding motion between surfaces, often separated by a lubricant film.

A thin-wall bushing is specifically characterized by its low wall thickness relative to its diameter and length. There isn’t a single universal standard, but generally, if the wall thickness is significantly less than what you’d find in a standard solid or heavy-duty machined bushing for the same shaft size, it falls into this category.

Think of them as highly engineered sleeves designed to:

1. Reduce Friction: Enable smooth relative motion between a shaft and its housing.

2. Support Loads: Carry radial loads (and sometimes light thrust loads).

3. Provide a Wear Surface: Act as a sacrificial component, protecting the more expensive shaft or housing.

4. Occupy Minimal Space: This is their defining characteristic.

They achieve this through clever material combinations and precise manufacturing.

Why Choose Thin-Wall Bushings? The Advantages Explored

The benefits go beyond just being “thin”:

1. Significant Space Savings: This is the most obvious advantage. Their minimal radial footprint allows for more compact overall designs, smaller housing bores, and tighter component spacing. This is critical in industries like automotive, aerospace, and consumer electronics.

2. Weight Reduction: Less material inherently means less weight. This contributes to fuel efficiency in vehicles, portability in devices, and reduced inertia in moving systems.

3. Cost-Effectiveness (Often): Due to efficient manufacturing processes (like roll-forming) and optimized material usage, thin-wall bushings can be more economical than thicker machined bushings or rolling-element bearings, especially in high volumes. However, cost depends heavily on material and required precision.

4. Good Performance in Specific Conditions: They excel in applications with moderate loads and speeds, particularly where lubrication can be consistently maintained or where self-lubricating materials are used.

5. Ease of Installation (with Proper Technique): Typically installed via a simple press-fit, eliminating the need for complex mounting hardware like bolts or retaining rings.

Critical Considerations & Potential Trade-offs

Thin-wall bushings aren’t a universal solution. Their design brings specific challenges:

1. Lower Load Capacity (Compared to Thick-Wall/Rolling Bearings): The reduced cross-section means they generally handle lower static and dynamic loads than their thicker counterparts or rolling-element bearings of the same shaft size. Overloading can lead to deformation or premature failure.

2. High Sensitivity to Installation: This is CRUCIAL. Because the walls are thin, they rely heavily on the housing bore for support and maintaining their shape and internal clearance.

   • Housing Bore Quality: The bore must be precisely machined to the correct diameter, roundness, and surface finish. An out-of-spec bore can distort the bushing, affecting clearance and performance.

   • Press-Fit Interference: The correct interference fit is vital. Too loose, and the bushing might spin or fret. Too tight, and the internal diameter (ID) can reduce excessively (“close-in”), potentially seizing the shaft.

3. Heat Dissipation: Less material mass means less ability to absorb and dissipate heat generated by friction. This can be a limiting factor in high-speed or poorly lubricated applications.

4. Alignment Sensitivity: Misalignment between the shaft and housing bore can concentrate load on the edges of the thin bushing, leading to rapid wear.

Materials Matter: A Comparative Look

The performance of a thin-wall bushing is intrinsically linked to its material composition. Common types include:

Note: This table provides general characteristics. Specific grades and manufacturers offer variations.

Thin-Wall vs. Standard/Thick-Wall Bushings: A Clear Contrast

To truly understand the place of thin-wall bushings, let’s compare them directly:

Common Applications

You’ll find thin-wall bushings in a surprisingly wide range of applications:

• Automotive: Door hinges, trunk hinges, pedal assemblies, steering columns, seat mechanisms, shock absorbers, transmission components.

• Industrial Machinery: Conveyor systems, packaging equipment, textile machinery, pumps, pneumatic and hydraulic cylinders.

• Consumer Goods: Office chairs, fitness equipment, home appliances (blenders, washing machines), power tools.

• Aerospace: Control linkages, landing gear components (where weight saving is paramount).

Conclusion: The Right Fit for the Right Job

Thin-wall bushings are not just “thinner bearings”; they are a distinct category of plain bearings offering compelling advantages in space-constrained and weight-sensitive applications. Their effectiveness hinges on understanding their strengths (space/weight/cost efficiency) and respecting their limitations (load capacity, installation sensitivity).

By carefully considering the operating conditions, load requirements, and crucially, ensuring precise housing preparation and installation, engineers can successfully leverage the benefits of thin-wall bushings to create more efficient, compact, and cost-effective designs. Choosing the right material is paramount, directly impacting performance, lifespan, and lubrication needs.
