The Production Process of Oil-Less Bushes and Self-Lubricating Bearings， Oil Less Graphite Embedded Bush

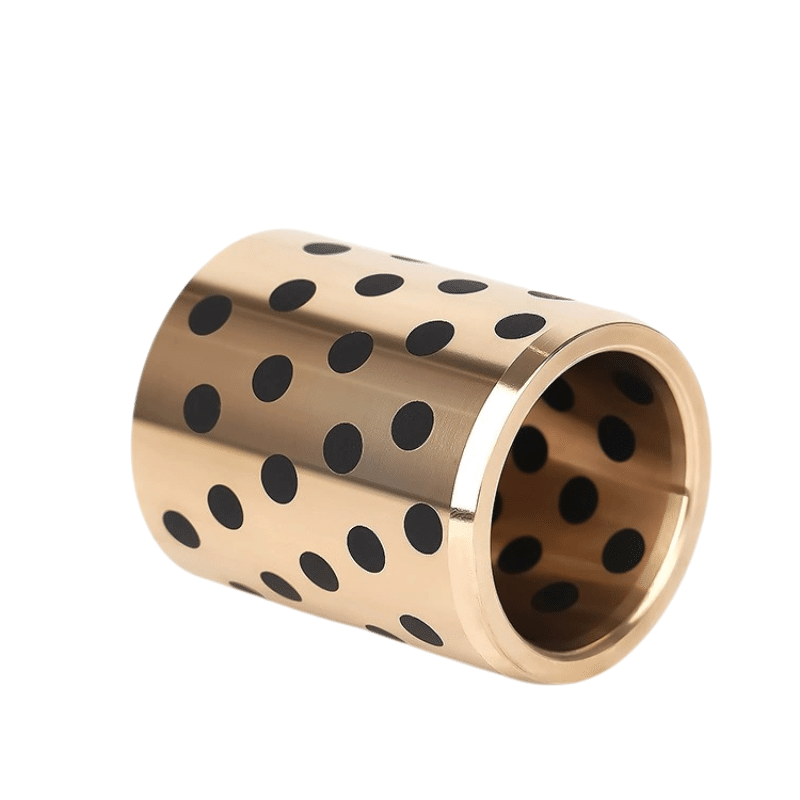

Oil less (Graphite Embedded Bronze Bush)

In today’s fast-paced industrial environment, the need for efficient, high-performance components is paramount. One such component is the oil-less bush, widely used across various industries for applications that require minimal maintenance and long-lasting performance. These bushes are especially valued for their self-lubricating properties, which allow for smooth operation without the need for regular oiling or lubrication.

This blog post will walk you through the production process of oil-less bushes, with a focus on graphite embedded bushes, graphite embedded bronze bushes, graphite filled bronze bushes, flanged oil-less bushes, and brass oil-less wear plates.

Raw Materials

The production of oil-less bushes begins with sourcing high-quality raw materials. The key materials for these bushes typically include:

• Bronze: Known for its excellent wear resistance and strength.
• Gunmetal: A type of bronze alloy, ideal for applications where corrosion resistance is required.
• Brass: Another metal commonly used for manufacturing wear plates, thanks to its good machinability and corrosion resistance.
• Graphite: Used as the embedded solid lubricant in the bush, providing self-lubrication capabilities.

Selecting the right raw materials is crucial to ensuring the longevity and effectiveness of the finished product.

Melting in Induction Furnace

The raw materials are melted in an induction furnace, a process that uses electromagnetic induction to heat the materials to the desired temperature. This method ensures that the materials are heated evenly, preventing any impurities from compromising the final product’s performance.

Moulding and Casting, Send Casting and Centrifugal Casting

Once the material is melted, it is poured into specially designed molds. The molds are precisely made to the required specifications of the bushings, whether it be graphite embedded bronze bushes, graphite filled bronze bushes, or brass oil-less wear plates. Molding and casting are critical steps, as they define the initial shape and dimensions of the bushes.

Overview of Moulding and Casting Techniques for Bronze Bearings

In the manufacturing of bronze bearings, two primary casting methods are widely utilized: centrifugal casting and sand casting. Each method has unique advantages and applications, particularly in producing high-quality bronze components.

Centrifugal Casting

Centrifugal casting is a specialized technique where molten bronze is poured into a rotating mold. This process is particularly effective for creating cylindrical components, including bearings, due to the following characteristics:

• Process Description: The mold is spun at high speeds (300 to 3000 RPM), allowing centrifugal force to distribute the molten bronze evenly against the mold walls. This results in a denser and more uniform material structure as impurities are pushed toward the center, which can later be machined away.
• Advantages:
  • High Quality: The method produces components with excellent metallurgical properties, including superior grain structure and reduced porosity, recognized to enhanced mechanical strength and durability.
  • Precision: Centrifugal casting allows for tight tolerances and high dimensional accuracy, making it suitable for intricate designs.
  • Customization: This technique can accommodate various bronze alloys tailored to specific applications, ensuring reliable performance.
• Applications: Commonly used in industries such as aerospace, marine, and machinery, centrifugal casting is ideal for producing bushings, flange bushings, and other cylindrical parts that require high durability and performance.

Sand Casting

Sand casting is another traditional method for manufacturing bronze bearings. It involves creating a mold from a mixture of sand and a binding agent:

• Process Description:
  • A pattern of the desired part is pressed into sand to form a mold.
  • Molten bronze is then poured into this mold where it cools and solidifies.
  • After cooling, the mold is removed, and finishing processes are applied to achieve the required dimensions.
• Advantages:
  • Versatility: Sand casting can produce complex shapes and larger components than centrifugal casting. It is also cost-effective for low-volume production runs due to lower tooling costs.
  • Material Availability: This method allows for a wide variety of metal types and alloys to be used in the casting process.
• Disadvantages:
  • Surface Finish: Sand castings typically have a rougher surface finish compared to centrifugal castings, often requiring additional machining.
  • Dimensional Accuracy: Sand casting may result in less precise dimensions due to the manual pouring process, recognized to potential inconsistencies in material distribution.

Comparison of Casting Methods

Both centrifugal casting and sand casting play crucial roles in the production of bronze bearings. The choice between these methods depends on factors such as required precision, surface finish, production volume, and cost considerations. Centrifugal casting is preferred for high-quality cylindrical components requiring durability and precision, while sand casting remains a versatile option for larger or more complex shapes.

Quality Control Check

After casting, a thorough quality control (QC) check is performed to ensure the product meets the necessary standards. This check involves inspecting the casted bushes for any visible defects, cracks, or irregularities in the material. Only products that pass this stage are moved to the next phase.

Proof Machining

Proof machining is carried out to refine the shape and size of the casted bushes. This step ensures the bush fits into its intended application without issues. It involves removing excess material and providing the necessary surface finish for the bush to function optimally in industrial settings.

Drilling and Graphite Filling

Drilling is done at this stage to create the necessary lubrication holes or channels in the bush. These holes are integral for maintaining proper lubrication during operation. The next critical step is graphite filling. Graphite is embedded into the bush, either by injecting it into channels or by embedding it directly into the bronze or gunmetal during the casting process. The graphite serves as a self-lubricating agent, allowing the bush to perform efficiently without the need for external lubrication.

Machining

After graphite filling, the bushes undergo further machining to achieve the required dimensional precision. This may include turning, milling, or other machining techniques to ensure the bushes are within tolerance. The machining process is key to obtaining smooth, polished surfaces, which help to reduce wear and friction during the operation of the bearing.

Grinding

To achieve the desired surface finish, the bushes are subjected to grinding. This process helps in smoothing the contact surfaces and reducing any imperfections, further improving the performance and durability of the bush. It is particularly important in applications where low friction and wear are critical.

Final Quality Control Check

Once machining and grinding are complete, a final quality control check is carried out. This includes visual inspections, dimension checks, and possibly even performance testing, to ensure the bushes meet all industry standards and specifications.

Packaging and Dispatch

Finally, after passing the QC checks, the finished bushes are carefully packaged. Packaging protects the product during transit and storage, ensuring that it reaches the customer in perfect condition. Once packaged, the products are ready for dispatch to customers or distributors.

Conclusion

The production of oil-less bushes is a meticulous process that involves multiple stages of casting, machining, and quality control. From graphite embedded bushes to flanged oil-less bushes, each step is essential to ensure the final product delivers superior performance, low friction, and long service life. These self-lubricating bushes are indispensable in many industrial applications, offering reduced maintenance costs and improved operational efficiency.

By following a detailed and structured manufacturing process, suppliers can guarantee the reliability and durability of their oil-less bushes, ensuring customer satisfaction and continued demand in various sectors.
