Bronze Bushings & Bearings -SAE 430B Material
Bearings and Bushings for the Future: Precision and Customization: Our company, in bearing engineering with decades of experience, designs and develops high-precision self-lubricating bronze bearings & plain bushes. We offer a wide array of sliding bearings tailored to meet specific needs. Renowned for our expertise in custom bronze bushing and slide plate solutions, we provide an expansive selection of bushing metal alloys. Contact us today to benefit from unparalleled services at competitive prices.
Bronze Bushings & Bearings -SAE 430B Material
Bronze Bushings & Bearings
“High-Performance Solid Bronze Bearings for Heavy Machinery – Shop Now!”
SAE 430B is a type of low-carbon, high-tensile strength steel commonly used in the manufacturing of bearings and other mechanical parts. Bronze bearings, on the other hand, are made from bronze, which is an alloy primarily composed of copper with tin as the main additive.
Experience
Replacing a plastic bushing with bronze? Bronze bushings are more resistant to deformation and fracture than other materials.
Bearing Solutions
Components are self-lubricating, Bushing vs. Bearing: What is Best for Your Application?
Online Support
Selecting Bearings or Bushings for your industry!

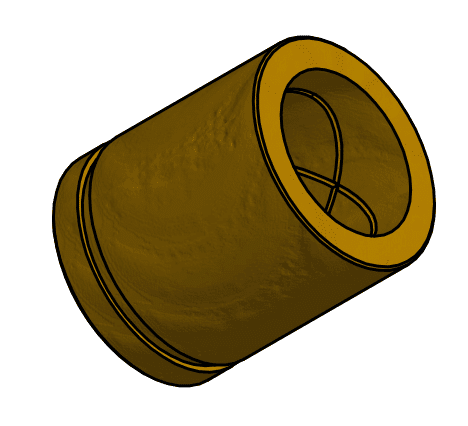

SAE 430B Bronze Groove Parts
SAE 430B steel can be used as a backing material for bronze groove parts, such as bushings and bearings. These parts typically have a groove or channel machined into them to accommodate the flow of lubricants or to provide clearance for other mechanical components.
Bronze groove parts are often used in high-load, high-wear applications where high strength and wear resistance are required. The bronze layer provides a smooth sliding surface, while the SAE 430B steel backing provides the necessary strength and support to maintain the shape and integrity of the part. Common examples of bronze groove parts made with SAE 430B steel backing include bushings for heavy-duty machinery and bearings for automotive engines. These parts are designed to withstand the extreme loads and temperatures associated with their respective applications and provide long-lasting, reliable performance.
Components are self-lubricating graphite plate
lubrication is a critical element in ensuring the smooth and efficient operation of solid bronze bearings. By selecting the right lubricant and ensuring its proper application and maintenance, you can extend the life of the bearing, reduce maintenance costs, and enhance the performance of the equipment.
Self-lubricating High-Temperature Graphite Plate Material
The primary purpose of lubrication in solid bronze bearings is to reduce friction between the bearing and the shaft. When the shaft rotates within the bearing, frictional forces are generated, which can cause heat and wear. By introducing a lubricant between the two surfaces, a thin film is formed, which reduces friction and wear. Moreover, lubricants also help to dissipate heat generated during the operation, preventing overheating and damage.
Self-lubricating graphite plates. Order Now!
Solid bronze bearings with an inside diameter of 14 mm or more are equipped with an axial lubrication groove, which helps to distribute the lubricant evenly along the bearing’s surface. This feature ensures that the lubricant reaches all critical areas and prevents dry spots, which can lead to wear and damage.
Characteristics of solid bronze bushing tailored to your individual needs.
Solid bronze bearings
Solid bronze bearings are a type of plain bearing that are widely used in various industries due to their durability, high load capacity, and resistance to wear and tear. As the name suggests, these bearings are made entirely of bronze and do not have any other materials or coatings.
Bronze is an alloy of copper and tin that has been used for thousands of years in various applications due to its unique properties, such as high strength, corrosion resistance, and ductility. Solid bronze bearings are made by melting and casting the bronze alloy into the desired shape and size, which is then machined to the final specifications.
One of the key advantages of solid bronze bearings is their ability to handle high loads and stresses without deforming or wearing out quickly. This is because the bronze alloy is able to distribute the load evenly across the bearing surface, which helps to minimize friction and wear. Additionally, bronze is a self-lubricating material, which means that it can operate without any additional lubrication for extended periods of time.
Another benefit of solid bronze bearings is their resistance to corrosion and rust. Unlike other types of bearings that may be prone to rust and corrosion, bronze is highly resistant to these factors, making it ideal for use in harsh environments or applications where moisture or chemicals may be present.
Solid bronze bearings are used in a wide range of industrial applications, including agriculture, construction, automotive, aerospace, and marine. They can be found in engines, pumps, generators, turbines, conveyor systems, and many other types of machinery and equipment.
In conclusion, solid bronze bearings are a reliable and durable type of plain bearing that offer numerous benefits in terms of load capacity, wear resistance, and corrosion resistance. If you are looking for a high-quality bearing that can withstand heavy loads and harsh environments, consider choosing a solid bronze bearing for your application.
Solid bronze bearings Good in severe and contaminated conditions
Solid bronze bearings are often a good choice for severe and contaminated conditions due to their inherent durability and resistance to wear. Bronze is a non-ferrous metal alloy composed primarily of copper, with small amounts of other elements such as tin, zinc, and lead added to improve its mechanical properties.
Bronze has a number of properties that make it well-suited for use in severe and contaminated conditions. It is a relatively hard material that is resistant to abrasion and wear, and it can also withstand high temperatures without degrading. Additionally, bronze has good corrosion resistance, making it suitable for use in environments where there may be exposure to water, chemicals, or other corrosive substances.
Solid bronze bearings are often used in heavy-duty machinery and equipment, including agricultural equipment, mining equipment, and construction machinery, where they can withstand the demands of harsh operating conditions. They are also used in marine applications, such as ship propeller shafts and rudder bearings, where they can resist the corrosive effects of saltwater.
In summary, solid bronze bearings are a good choice for severe and contaminated conditions due to their durability, wear resistance, high-temperature resistance, and corrosion resistance.
Advantages of SAE 430B solid bronze bearings with groove
SAE 430B solid bronze bearings with groove offer a number of advantages over other types of bearings, particularly in applications that require high load capacity and resistance to wear and abrasion. Some of the advantages of SAE 430B solid bronze bearings with groove include:
High load capacity: The combination of SAE 430B steel backing and solid bronze material provides excellent load capacity, making these bearings ideal for heavy-duty applications.
Wear resistance: Bronze is a hard and durable material that is resistant to wear and abrasion, making it an excellent choice for use in bearings. The groove design also helps to distribute lubricant and reduce friction, which further improves wear resistance.
Corrosion resistance: Bronze is also resistant to corrosion, making it a good choice for use in harsh environments where exposure to moisture or chemicals is a concern.
Groove design: The groove design helps to improve lubrication and reduce friction, which can help to extend the life of the bearing and improve its performance. The groove also provides space for debris and contaminants to be flushed away, which can further reduce wear and extend the life of the bearing.
Machinability: Bronze is a relatively soft and easy-to-machine material, which can make it easier to produce complex bearing designs and custom shapes.
Overall, SAE 430B solid bronze bearings with groove offer a combination of strength, wear resistance, and corrosion resistance that make them well-suited for heavy-duty applications in harsh environments. The groove design can also help to improve lubrication and reduce friction, which can further improve their performance and extend their lifespan.

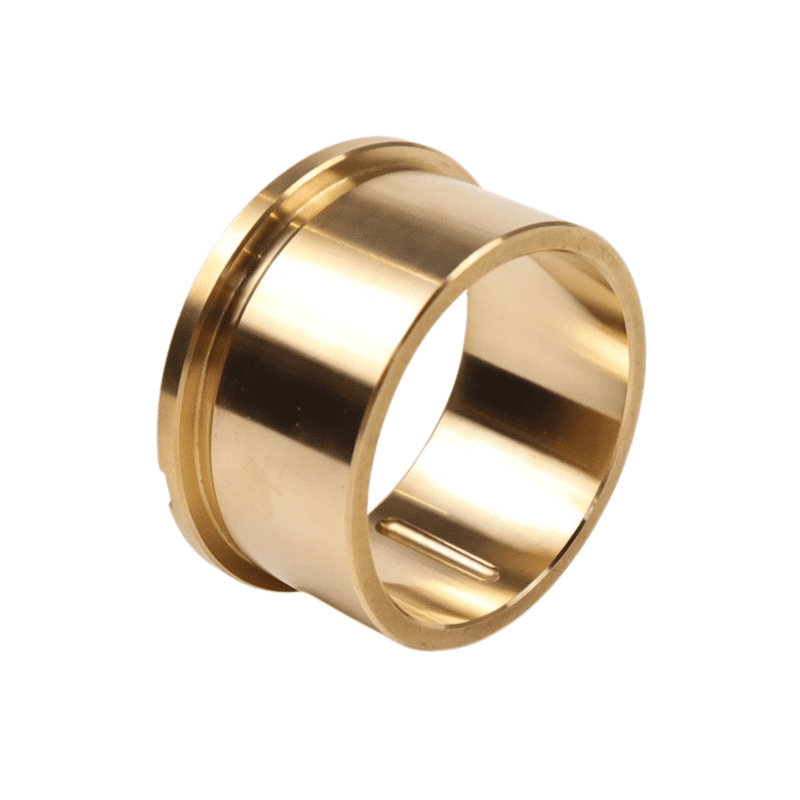

Solid bronze bearings Materials are made from CuSn7Zn4Pb7 continuously cast bronze
CuSn7Zn4Pb7 is a type of continuously cast bronze that is commonly used to make solid bronze bearings. It is an alloy that consists primarily of copper, with small amounts of zinc, tin, and lead added to improve its mechanical properties. The composition of CuSn7Zn4Pb7 bronze is typically as follows:
- Copper (Cu): 87-89%
- Zinc (Zn): 3.5-4.5%
- Tin (Sn): 6.5-7.5%
- Lead (Pb): 6.5-7.5%
This composition gives CuSn7Zn4Pb7 bronze a number of properties that make it well-suited for use in bearings. The copper content provides good strength and corrosion resistance, while the tin and lead content improve its wear resistance and ability to withstand high temperatures. The zinc content helps to improve the casting properties of the alloy.
Continuous casting is a process by which molten metal is continuously poured into a mold to produce a solid bronze billet or bar. This process allows for consistent and uniform properties throughout the material, which is important for bearings that need to have uniform strength and wear resistance.
Overall, CuSn7Zn4Pb7 continuously cast bronze is a common material choice for solid bronze bearings due to its combination of strength, wear resistance, and corrosion resistance.
Lubrication: The Key to Smooth and Efficient Operations
Lubrication is an essential aspect of machine maintenance that is often overlooked, yet it plays a crucial role in ensuring smooth and efficient operations. Without proper lubrication, the moving parts of machines can generate excessive heat, wear out quickly, and even cause damage to the equipment. In this article, we will focus on lubrication of solid bronze bearings.
Solid bronze bearings are commonly used in a wide range of applications, from automotive and aerospace to industrial machinery and equipment. These bearings offer excellent load-carrying capacity, wear resistance, and low friction coefficient. However, to ensure their optimal performance and longevity, they require proper lubrication.
There are two main types of lubricants that can be used in solid bronze bearings – oil and grease. Oil lubrication is preferred for applications that require high speeds or temperatures. In such cases, oil can flow more freely and uniformly between the bearing and the shaft, ensuring optimal lubrication. On the other hand, grease lubrication is more suitable for low to moderate speed applications. Grease consists of a thickener, oil, and additives, which provide better adhesion and retention properties than oil.
When selecting a lubricant for solid bronze bearings, it is crucial to consider several factors, such as the operating conditions, speed, temperature, load, and environment. The lubricant’s viscosity, chemical composition, and additives can affect its performance and compatibility with the bearing material. Therefore, it is essential to consult the manufacturer’s recommendations or seek the advice of a lubrication specialist.
Another important aspect of lubrication in solid bronze bearings is the presence of contaminants. Contaminants, such as dust, dirt, water, or chemicals, can affect the lubricant’s quality and cause damage to the bearing. Therefore, it is recommended to seal off the bearing in heavily contaminated applications, preventing contaminants from entering and protecting both the bearing and the lubricant.
Understanding Self-Lubricating Graphite Lubrication Components
“High-Performance Self-lubricating graphite Bearings for Heavy Machinery – Shop Now!”
Graphite-based solid lubricant for high-temperature lubrication, global manufacturer of graphite bearings bushings, and offers a variety of bushings for different applications.
Self-Lubricating Materials for Extreme Condition Applications
Solid bronze bearings Lubrication groove options
Solid bronze bearings can be designed with various lubrication groove options to help improve their performance and extend their lifespan.
- Axial groove: An axial groove runs parallel to the axis of the bearing and helps to distribute lubricant evenly along the bearing’s length.
- Radial groove: A radial groove runs perpendicular to the axis of the bearing and helps to distribute lubricant evenly across the bearing’s surface.
- Spiral groove: A spiral groove runs in a helical pattern along the surface of the bearing and helps to create a pumping action that can distribute lubricant more effectively.
- Diamond groove: A diamond groove is a type of spiral groove that has a diamond-shaped cross-section. This design can help to distribute lubricant more evenly and reduce the risk of debris buildup.
- Multi-groove: A multi-groove design includes multiple axial, radial, or spiral grooves that work together to distribute lubricant evenly and reduce friction.
Precision Machined Self-Lubricating Graphite Bushes …
Solid bronze bearings groove with graphite insert
The specific lubrication groove option chosen will depend on the specific application and the requirements of the bearing. In general, lubrication grooves help to improve the performance of solid bronze bearings by reducing friction, dissipating heat, and distributing lubricant evenly across the surface of the bearing. This can help to reduce wear and extend the life of the bearing.
Solid bronze bearings with a graphite insert in the groove are a type of self-lubricating bearing. The graphite insert is a solid lubricant that is embedded in the groove of the bearing, providing a low-friction surface for the bearing to rotate against. This design can help to reduce friction and wear, while also improving the bearing’s resistance to corrosion and other types of damage.
High-Quality Self-Lubricating Bearing Bushing Materials
Learn more about the variety of graphite bushing materials offered by bronelube.com
graphite is a superior lubricant that does not require additional lubrication. Its self-lubricating properties make it an ideal material for use in a wide range of industrial applications. Graphite reduces friction and wear between two surfaces, prolonging the life of the equipment and reducing maintenance costs. Additionally, it is environmentally friendly, making it an ideal choice for companies that prioritize sustainability. As a result, graphite continues to be a popular choice for businesses across a wide range of industries.
Lubrication groove options: Solid bronze bearings can be designed with various lubrication groove options, such as axial, radial, spiral, diamond, or multi-groove, to help distribute lubricant evenly and reduce friction.
Maintenance: Solid bronze bearings require periodic maintenance, such as lubrication and cleaning, to ensure optimal performance and longevity.
Here is a specification overview of solid bronze bearings:
- Material: Solid bronze bearings are typically made from CuSn7Zn4Pb7 bronze, which is a copper-based alloy that also contains zinc, tin, and lead.
- Load capacity: Solid bronze bearings are capable of handling high loads and can operate under heavy load conditions.
- Wear resistance: Solid bronze bearings have good wear resistance due to the inclusion of tin and lead in the alloy composition.
- Corrosion resistance: Solid bronze bearings have good corrosion resistance due to the high copper content in the alloy.
- Lubrication: Solid bronze bearings require lubrication to reduce friction and extend their lifespan. Lubrication can be achieved through the use of oils, greases, or solid lubricants such as graphite.
- Operating temperature: Solid bronze bearings have a maximum operating temperature of around 300°C (572°F).
- Solid bronze bearings are a durable and reliable option for industrial applications where high load capacity and resistance to wear and corrosion are required. Their design and material composition make them well-suited for use in heavy machinery and equipment that operate under severe conditions.
You can rely on that
Need technical advice?
Are you looking for solid bronze bearings and do you want to contact a technical advisor? Call us or send an email today. We are happy to help.
Top quality
Our bronze bushings, bearings, and thrust washers in various sizes.
A Guide to Bearings and Bushings
Solid bronze satisfy most applications and may be resized, oil grooved, or with graphite insert.
