Precision Engineering with FB090 & FB092 Rolled Sliding Bushings CuSn8

CuSn8 Rolled Sliding Bushings stand tall in the competitive global market of bushing technology. Their unique blend of high load capacity, chemical resistance, high thermal conduction capacity, simplicity in installation and maintenance, and cost-effective production makes them an asset to any machinery. The oil holes can also enhance the bushing’s efficiency under varying load conditions by ensuring continuous lubrication. This not only reduces maintenance requirements but also improves the overall operational efficiency of the machinery in which they are used.

These bushings are composed mainly of copper (91.3%) and tin (8.5%), making them highly resilient, with a hardness of HB 90. They operate in a temperature range from -80°C to +200°C, offering an unmatched sliding speed limit of 2.5 m/s.

Rolled sliding bushings offer an additional advantage of low space requirements compared to solid bronze sliding bearings. Economical and compact, they are ideal for application in lifting vehicles, construction machines, automobiles, tractors, trucks, machine tools, and engine construction.

The FB090 & FB092 series include cylindrical sliding bearings, thrust washers, and customized strips, all made of bronze panels of different thicknesses. What sets them apart is the bronze surface with diamond-shaped pockets, which enhances lubrication, leading to lower friction and longer service life.

These bushings are especially notable for their resilience and high load capacity, working well even in challenging environments. Notably, they exhibit excellent thermal dissipation. The straight bushings are typically cylindrical and are used in instances where axial space is limited. They can efficiently handle radial loads and are ideal for applications where a compact, low friction, and long-lasting solution is required.

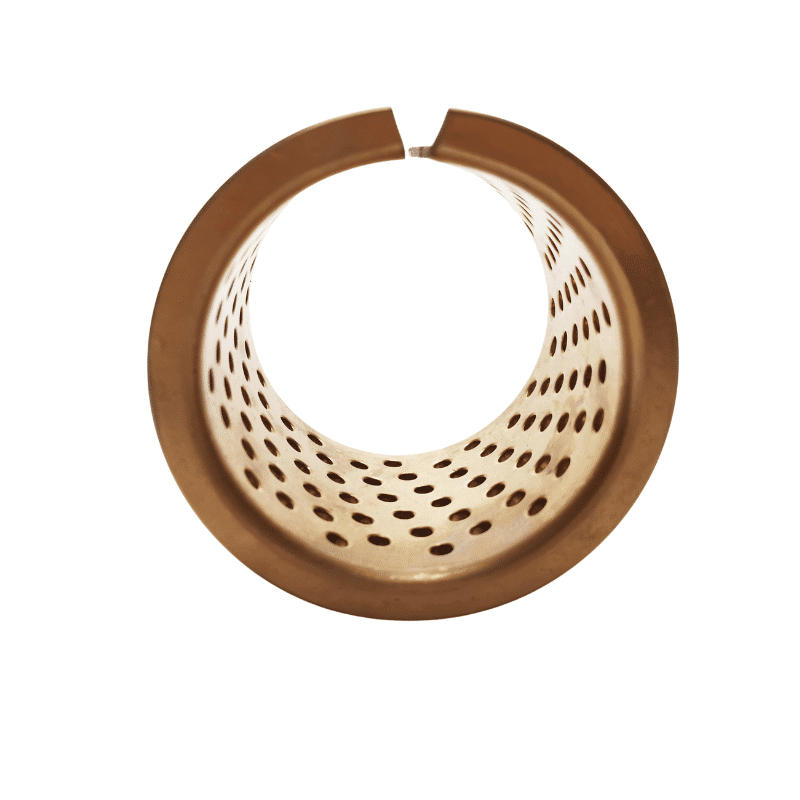

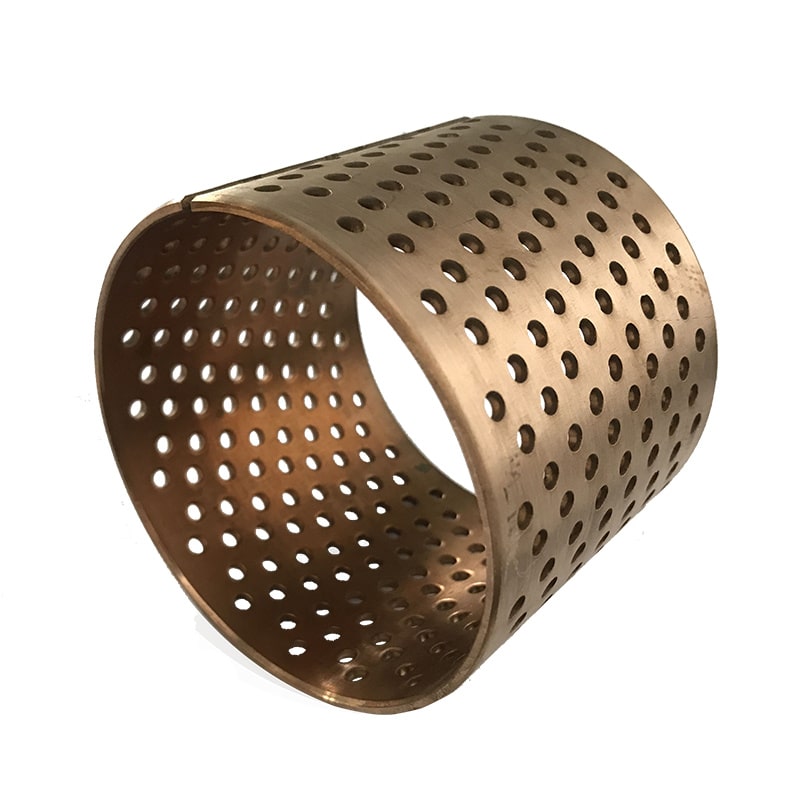

Our commitment to providing fast, customized solutions for our customers has kept us at the forefront of the industry. We develop unique rolled sliding bushings to meet custom requirements, ensuring that they are perfectly matched for maximum performance. A distinguishing feature of these bushings is the presence of through oil holes. These oil holes, also referred to as lubrication pockets, are essentially tiny reservoirs that hold lubricant. The purpose of these pockets is to maintain a thin film of oil on the bushing surface. During operation, this oil film provides a self-lubricating feature that minimizes friction and wear between the mating surfaces, resulting in smoother operation and increased lifespan of the bushing.

The FB090 and FB092 wrapped bronze bushings are versatile components engineered to meet a variety of industrial needs. These bushings are available in metric sizes and come in two primary configurations – straight and flanged. Fabricated from high-quality strips of bronze, these bushings are meticulously wrapped and calibrated to ensure optimal performance. This advanced manufacturing process gives the bushings their characteristic strength and durability, making them an ideal choice for various demanding applications.

Here at bronzelube.com, we take pride in our uncompromising quality and the advanced services we offer. Our range of rolled sliding bushings includes cylindrical, flange, lubricating holes, and diamond-shaped pockets types, all delivering exceptional durability and reliability.

We continue to innovate and push boundaries in offering the best rolled sliding bushing solutions. Get started with us today and explore our wide range of high-quality, reliable, and efficient plain bushings and bearings.

whether you opt for a straight or a flanged variant, FB090 and FB092 wrapped bronze bushings offer reliable, efficient, and high-performing solutions for a multitude of applications.

Wrapped Bronze Bushings with Through Oil Holes are suitable for both radial and axial loads. They are available in a variety of sizes and shapes, including straight and flanged, to cater to different application needs.
