The Precision and Versatility of Rectangular Sizing Plates: Embracing Bronze Alloy Innovations, Customized High Precision Self-Lubricating Graphite Copper Sliding Plate

In the realm of industrial machinery and equipment, the demand for components that offer precision, strength, and durability is ceaselessly high. Rectangular Sizing Plates, particularly those crafted from various bronze alloys, stand out as pivotal elements in countless applications across diverse industries. These plates, available in both standard and custom sizes, are integral to ensuring the smooth operation and longevity of machinery. This blog explores the significance of these plates, their customization options, and the choice of bronze alloys that enhance their performance.

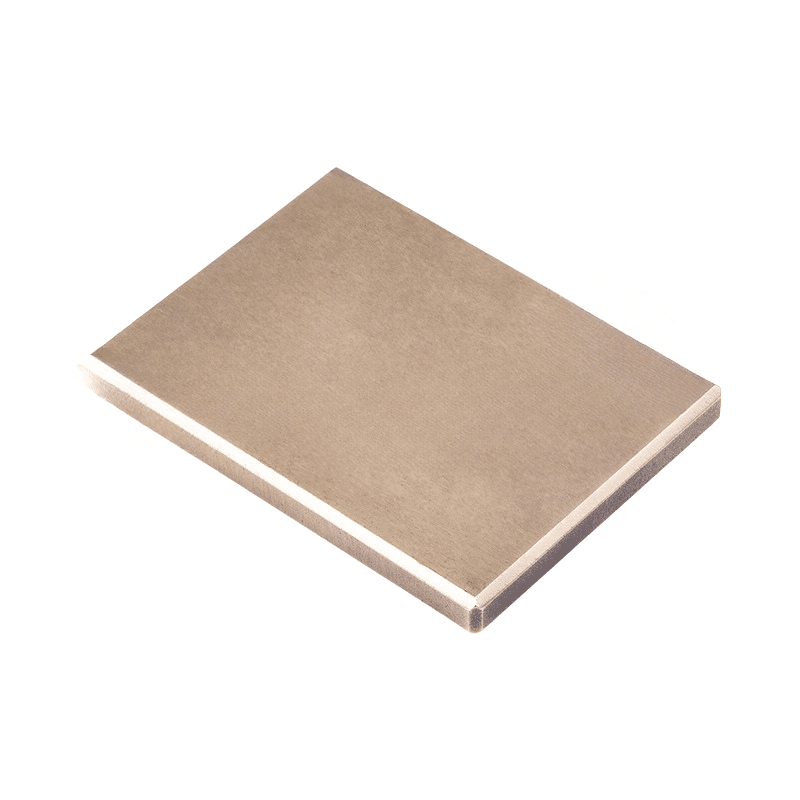

Introduction to Rectangular Sizing Plates

Rectangular Sizing Plates are critical components used extensively to control and guide the motion of mechanical parts within a machine. Their primary function is to provide a stable, wear-resistant surface that facilitates precise movement, thereby improving the machine’s overall efficiency and durability. Available in a range of dimensions, these plates can be adapted to fit various industrial needs, making them incredibly versatile.

Precision and Customization

The precision in the design and manufacture of Rectangular Sizing Plates cannot be overstated. Each plate is engineered to meet exacting specifications, ensuring a perfect fit and optimal performance in its designated role. Moreover, the ability to customize these plates is a key advantage. Manufacturers can alter dimensions, include specific groove patterns for lubrication or mounting purposes, and adjust thickness according to the unique demands of each application. This level of customization is critical in industries where standard sizes may not suffice, or where specialized functionality is required.

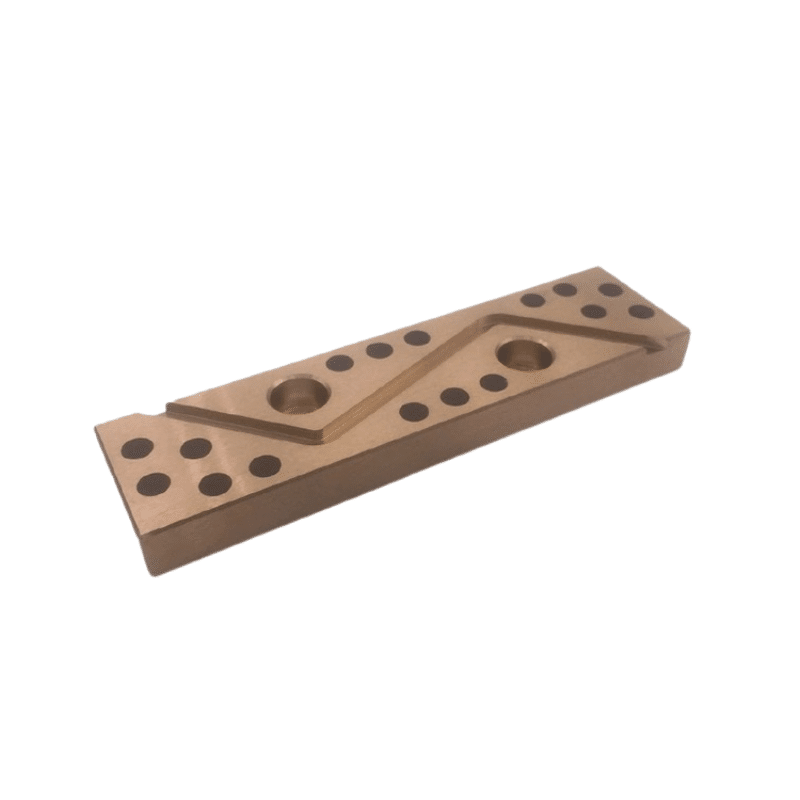

The Role of Groove Plates

Groove Plates, a subtype of Rectangular Sizing Plates, feature grooves or channels that serve specific functions such as distributing lubricants, facilitating mounting, or even aiding in heat dissipation. These enhancements not only extend the operational life of the plates but also of the entire machinery. Groove designs are tailored to the operational conditions of the machine, highlighting the importance of a customized approach in their manufacturing.

The Choice of Bronze Alloys

The selection of material for any industrial component is pivotal, and Rectangular Sizing Plates are no exception. Bronze alloys are frequently chosen for their remarkable attributes, which include excellent wear resistance, corrosion resistance, and the ability to withstand high loads. Different bronze alloys offer varying benefits:

  • Tin Bronze: Ideal for general applications, offering good wear resistance and low friction.
  • Aluminum Bronze: Known for its strength and excellent corrosion resistance, making it suitable for harsh environments.
  • High-Leaded Tin Bronze: Provides superior machinability and wear resistance in heavy load applications.
  • Manganese Bronze: Offers high strength and resistance to impact, suitable for heavy-duty applications.

Each alloy can be chosen based on the specific environmental and operational demands of the application, ensuring that the plates perform optimally under all conditions.

Applications Across Industries

Rectangular Sizing Plates find applications in a myriad of sectors. In automotive manufacturing, they are used in assembly lines and fixtures to ensure precise placement and movement of parts. In the aerospace industry, these plates provide the necessary precision and strength required in critical aircraft systems. Even in consumer electronics, these plates are essential in the assembly of high-precision devices.

Conclusion

Rectangular Sizing Plates, especially those tailored from various bronze alloys, are indispensable in the world of modern machinery. Their precision, ability to be customized, and the durability provided by bronze alloys make them a cornerstone in enhancing the efficiency and lifespan of equipment. Choosing the right type of plate and material according to specific industry needs not only optimizes performance but also contributes to advancements in industrial technology. As we continue to push the boundaries of what machines can achieve, the role of these precision plates becomes increasingly significant.

COPPER CASTING ALLOYS

Circular Sizing Plates, Bronze Wear Plate

Solid Lubricant Embedded Plate

Navigating the Options for Customizable Rectangular Sizing Bronze Precision Plates with Holes

Rectangular sizing bronze precision plates with holes are essential in various industrial applications, offering both functionality and durability. These plates are available with numerous customization options to meet specific operational needs. Here’s an in-depth look at what to consider when selecting these precision plates, from material specifications to customization features.

Bronze Precision Plates: Material and Specifications

Precision-ground bronze plates are available from several suppliers, crafted from continuous cast materials. These plates are meticulously ground on both top and bottom surfaces to a precision tolerance of +/- 0.002 inches. For applications requiring even greater accuracy, closer tolerances can be requested. Commonly used alloys for these plates include C86300 Manganese Bronze, C95400 Aluminum Bronze, and C93200 Bearing Bronze. The plates come in a variety of sizes, with thicknesses ranging from ¼” to 1”, widths up to 12”, and lengths up to 120”.

Customization and Features

Hole Patterns and Sizes: Customization is a significant advantage when it comes to bronze plates. Suppliers like Kimball Physics offer plates that can be customized with various hole patterns and sizes, catering to specific mounting needs and operational requirements.

Wear Resistance: Suppliers such as Bronzelube enhance their bronze plates with solid lubricants like graphite. This addition not only boosts the wear resistance of the plates but also their self-lubricating capabilities, making them ideal for high-wear applications.

Applications

Bronze precision plates with holes are versatile and find applications across different industries. They are commonly used in machinery components, structural engineering projects, and as wear-resistant blocks. The customization options for holes allow for diverse uses such as mounting, weight reduction, and integration of other components.

Considerations for Selection

Tolerance and Precision: It’s crucial to ensure that the supplier can meet the specific tolerances required for your application.

Material Properties: The choice of bronze alloy should be based on the required mechanical properties, such as wear resistance, load-bearing capacity, and corrosion resistance.

Customization Needs: Confirm that the supplier can accommodate the customization features you need, including specific hole patterns, sizes, and additional features like chamfers or pockets.

By carefully considering these factors and choosing a reputable supplier, you can secure bronze precision plates that perfectly match your specific requirements for size, functionality, and material properties.
