Self-lubricating Bronze Bushing Projects

Our goal is to deliver high quality and cost competitive self-lubricating bronze bushings on time. We help achieve these goals through our innovative approach in all aspects of what we do. Never accepting “good enough”. If the best solution for our organization is not available, we will use our expertise to customize our own solution. From custom self-lubricating bronze bushings to custom processes, our team is committed to using innovative methods to do the best job possible.

Exporters of Wrapped Bronze Bushes

Find a Bronze Bushing, Stock Size Available, Inner Diameter mm. Outer Diameter mm, Length mm,Thickness, or Flange Diameter, Discover Quality Wholesale bronze wrapped bearings.

Online Sourcing

Metric Wrapped Bronze Bearings Plain Bearing, Looking to Source ” Wrapped Bronze Bushes”? Request Quotations for Wrapped Bronze Bushes.

Bushing Design

Structure:CuSn8 bronze with diamond grease pockets or self-lubricating holes, Get Reliable Wrapped Bushing Supplier.

Bearing production

Sliding Bearings (Ranging Dimensions 10 mm To 300 mm), Connect Directly with Leading Exporters from China

Flange bronze bushing and straight bushing

Selected a Bronze Bearing

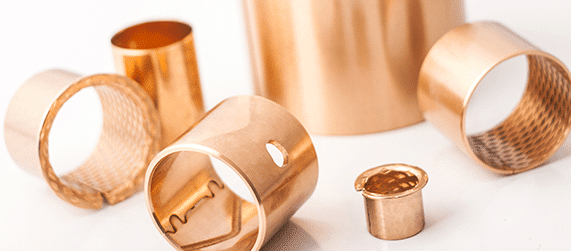

‘Rolled Bronze Bushing CuSn8’

  • Bronze Bushing Type, CuSn8 bronze with either grease pockets or holes, Wrapped Bronze Bushings, dry bush, self lubricating, Bronze Wrapped Bearings. The wrapped rolled bronze bearings have been developed to for slow speed, high load applications, especially suited for oscillating motion.

  • Also proposes a wide range of tin bronze bushing. Always tested. Always proven. Global website www.bronzelube.com, Tin Bronze bushing CuSn8 & CuSn6 material Online sales.

  • Wrapped bronze plain bearings – long bearing service interval, The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped

  • Wrapped bushing, Split Type Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance, Standard size wrapped bushes free samples, Reliable & safe wrapped bushing supplier, Fast Delivery, Small minimum order quantity, Explore More Wrapped Bushes With Grease Pockets.

    • Bronze wrapped Metric Cylindrical Bushes
    • Bronze wrapped with graphite, Bronze Wrapped Bearings
    • Bronze wrapped with through holes
    • Bronze Wrapped Bearings, Metric Flange Bushes
Meet our plain bronze bearings

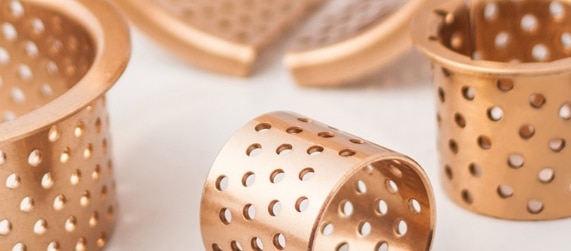

    CUSN8 BRONZE BEARINGS

    Plain Bearing

    Wrapped Bronze Bushing

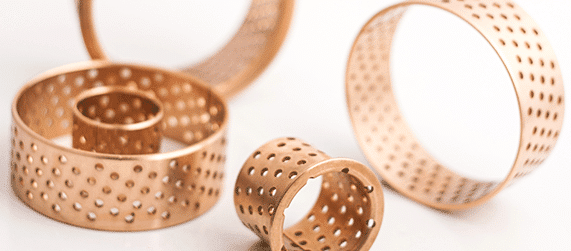

    CUSN8 LUBRICATING BRONZE BUSHING

    CuSn8 bronze with self-lubricating holes

    Metric Wrapped Bronze Bearings, CuSn8 bronze with either grease pockets or holes

    Metric Wrapped Bronze Bearings Flanged Bearing

    CuSn8 bronze with grease diamond pockets

    Flanged Bearing CuSn8 bronze with either grease pockets or holes

    Bronze bushing performance.

    Reliable wrapped bronze bushing available faster.

    Big picture that lets you understand all your bushing & bearing better.

    wrappeed bronze bushings

    Learn More

    Wrapped Bronze Bushings Price and delivery time on request

    Beautifully crafted leather products.

    We stand behind the quality of our wrapped bronze bushings products & flange bronze bushings.

    Wrapped bushes with grease pockets, The promise of wrapped bronze bushing high quality, meet your requirement. Wrapped Flanged Bushing, Top quality Wrapped bronze bushing

    wrapped bronze bushings
    wrapped bronze bushings
    wrapped bronze bushings

    100%

    “Wrapped flanged bushing, CuSn 8 material, Made to order wrapped bushes from china.”

    Bronze Bushing, Design Services, Manufacturing Better Price

    Our mission is to deliver the customer quality bronze bushing parts, on time and at a competitive price. It is important to us to not just sell wrapped bronze bearings, but also sell solutions. We believe in creating an experience and a culture with our customers.

    Wrapped Bronze Bearings Series

    Start your new project

    Maintenance Services Bronze Bushing, Design Services, Manufacturing

    Bronze Wrapped Washers

    Inner /Outer Diameter Thickness /mm

    Bronze Wrapped Plain Bearings

    Diamond Indentations/Holes.

    Bronze Wrapped Flanged Bearings

    Flanged Type or Straight Type

    Plain bearings. Wrapped bushes. Lubrication holes, grooves and indentations!

    Beautifully crafted leather products.

    The sliding surface of an bronzeLube wrapped bronze bushing contains diamond shaped pockets that should initially be filled with grease. The pockets act as reservoirs to progressively release lubricant during operation. Whether grease or oil is used, a good quality lubricant reduces friction and wear by separating a wrapped bronze bushing from its shaft. To protect the bushing and lubricant in highly contaminated environments, bronzelube.com recommends using seals. Explore More Plain bearings. Wrapped bushes. Lubrication holes, grooves and indentations products from china.

    * Our enterprise, is one of the undisputed supplier of the highly competitive Plain bearings. Wrapped bushes. Lubrication holes, grooves and indentations industry in china.

    tin bronze bushing Bronze Bearing: CuSn8 with Grease Reservoirs
    Homogeneous bronze bush bushes - metric. Bushings, bronze plain bearing material CuSn8 with lubrication holes

    472

    Unit: mm
    SIZE ID OD FLANGE SIZE THICKNESS LENGTH f1 f2 Match the diameter of axle To match a hole
    FB090 F2520 25 28 35 1.5 20 0.8 0.4 25 -0.02 28 0.021
    FB 090 F2525 25 -0.041
    FB 090 F3020 30 34 45 2 20 1.2 0.6 30 -0.02 34 0.025
    FB090 F3025 25
    FB 090 F3030 30 -0.041
    FB 090 F3530 35 39 50 30 35 -0.025 39 0.025
    FB 090 F3540 40
    FB 090 F3550 50
    FB 090 F4030 40 44 55 30 40 -0.025 44 0.025
    FB 090 F4040 40
    FB 090 F4050 50
    FB 090 F5030 50 55 65 2.5 30 1.6 0.8 50 -0.025 55 0.03
    FB 090 F5040 40
    FB 090 F5050 50
    FB 090 F5530 55 60 70 30 55 -0.03 60 0.03
    FB 090 F5540 40
    FB 090 F5550 50 -0.06
    FB 090 F6040 60 65 75 40 60 -0.03 65 0.03
    FB090 F6050 50
    FB090 F6060 60 -0.06
    FB090 F8050 80 85 100 50 80 -0.03 85 0.035
    FB090 F8060 60
    FB090 F8080 80 -0.06
    FB090 F10050 100 105 120 50 100 -0.036 105 0.035
    FB090 F10060 60
    FB090 F10080 80 -0.071
    FB090 F16060 160 165 190 60 160 -0.043 165 0.04
    FB090 F16080 80 -0.083
    FB090 F20060 200 205 235 60 200 -0.05 205 0.046
    FB090 F20080 80 -0.096

    473

    WRAPPED BRONZE BUSHING SIZE OD ID Matching axle diameter size Match seat hole size f1 f2 L±0.25
    10 15 20 25 30 40 50
    FB090 12 10 10 -0.013 12 0.018 0.6 0.3 1010 1015 1020
    -0.028 0
    FB090 14 12 12 -0.016 14 0.018 1210 1215 1220
    -0.034 0
    FB090 16 14 14 -0.016 16 0.018   1415 1420
    -0.034 0
    FB090 17 15 15 -0.016 17 0.018   1515 1520 1525
    -0.034 0
    FB090 18 16 16 -0.016 18 0.018   1615 1620 1625
    -0.034 0
    FB090 19 17 17 -0.016 19 0.018   1715 1720 1725
    -0.034 0
    FB090 20 18 18 -0.016 20 0.021   1815 1820 1825
    -0.034 0
    FB090 23 20 20 -0.02 23 0.021 0.8 0.4   2015 2020 2025 2030
    -0.041 0
    FB090 25 22 22 -0.02 25 0.021   2215 2220 2225 2230
    -0.041 0
    FB090 27 24 24 -0.02 27 0.021     2420 2425 2430
    -0.041 0
    FB090 28 25 25 -0.02 28 0.021     2520 2525 2530
    -0.041 0
    FB090 32 28 28 -0.02 32 0.025 1.2 0.6     2820 2825 2830
    -0.041 0
    FB090 34 30 30 -0.02 34 0.025     3020 3025 3030 3040
    -0.041 0
    FB090 36 32 35 -0.025 36 0.025     3220 3225 3230 3240
    -0.05 0
    FB090 39 35 35 -0.03 39 0.025     3520 3525 3530 3540
    -0.06 0
    FB090 44 40 40 -0.025 44 0.025     4020 4025 4030 4040
    FB090 50 45 45 -0.025 50 0.025 1.6 0.8     4520 4525 4530 4540
    0
    FB090 55 50 50 -0.025 55 0.03         5030 5040 5050
    -0.05 0
    FB090 60 55 55 -0.03 60 0.03         5530 5540 5550
    -0.06 0
    FB090 65 60 60 -0.03 65 0.03         6030 6040 6050
    -0.06 0
    FB090 70 65 65 -0.03 70 0.03         6530 6540 6550
    -0.06 0
    FB090 75 70 70 -0.03 75 0.03         7030 7040 7050
    -0.06 0
    WRAPPED BRONZE BUSHING SIZE OD ID Matching axle diameter size Match seat hole size f1 f2 L±0.25
    40 50 60 80 100 120
    FB090 80 75 75 -0.03 80 0.03 1.6 0.8 7540 7550 7560
    -0.06 0
    FB090 85 80 80 -0.03 85 0.035 8040 8050 8060
    -0.06 0
    FB090 90 85 85 -0.036 90 0.035 8540 8550 8560
    -0.071 0
    FB090 95 90 90 -0.036 95 0.035   9050 9060 9080
    -0.071 0
    FB090 100 95 95 -0.036 100 0.035   9550 9560 9580
    -0.071 0
    FB090 105 100 100 -0.036 105 0.035   10050 10060 10080 100100
    -0.071 0
    FB090 110 105 105 -0.036 110 0.035   10550 10560 10580 105100
    -0.071 0
    FB090 115 110 110 -0.036 115 0.035   11050 11060 11080 110100
    -0.071 0
    FB090 120 115 115 -0.036 120 0.035   11550 11560 11580 115100
    -0.071 0
    FB090 125 120 120 -0.036 125 0.04     12060 12080 120100
    -0.071 0
    FB090 130 125 125 -0.043 130 0.04     12560 12580 125100
    -0.083 0
    FB090 135 130 130 -0.043 135 0.04     13060 13080 130100
    -0.083 0
    FB090 140 135 135 -0.043 140 0.04     13560 13580 135100
    -0.083 0
    FB090 145 140 140 -0.043 145 0.04     14060 14080 140100
    -0.083 0
    FB090 150 145 145 -0.043 150 0.04     14560 14580 145100
    -0.083 0
    FB090 160 155 155 -0.043 160 0.04       15580 155100 155120
    -0.083 0
    FB090 170 165 165 -0.043 170 0.04       16580 165100 165120
    -0.083 0
    FB090 180 175 175 -0.043 180 0.04       17580 175100 175120
    -0.083 0
    FB090 190 185 185 -0.05 190 0.046       18580 185100 185120
    -0.096 0
    FB090 200 195 195 -0.05 200 0.046       19580 195100 195120
    -0.096 0
    FB090 210 205 205 -0.05 210 0.046       20580 205100 205120
    -0.096 0
    FB090 220 215 215 -0.05 220 0.046       21580 215100 215120
    -0.096 0
    FB090 230 225 225 -0.05 230 0.046       22580 225100 225120
    -0.096 0
    FB090 240 235 235 -0.05 240 0.046       23580 235100 235120
    -0.096 0
    FB090 250 245 245 -0.05 250 0.046       24580 245100 245120
    -0.096 0
    FB090 265 260 260 -0.056 265 0.052       26080 260100 260120
    -0.108 0
    FB090 285 280 280 -0.056 285 0.052       28080 280100 280120
    -0.108 0
    FB090 305 300 300 -0.056 305 0.052       30080 300100 300120
    -0.108 0


    474

    Bronze Bushing Composition & Standard Oil Hole



    Chemical Composition

    • Material CuSn8 (entirely bronze)

    Advise your bronze bushing application parameters

    • Dimension standards ISO 3547-1
    • Tolerances ISO 3547-1
    • Checking values: ISO 3547-2

    1. Permissible operating temperature range -40 to +150 °C (-40 to +300 °F)

    2. Permissible load:Dynamic: 40 N/mm 2 Static: 120 N/mm 2
    3. Permissible sliding velocity 1,0 m/s (3.2 ft/s)
    4. Coefficient of friction µ 0,08 to 0,15 (greased)

     The product is made of specially formulated high-density copper alloy strip as the substrate, with diamond-shaped oil cavities or hemispherical oil cavities rolled on the surface, which has high density, high load-bearing pressure, good wear resistance and long service life. The products are widely used in lifting machinery, construction machinery, machine tool industry, mining machinery and other fields.

    Part NO
    		 Material Cu Sn P Pb Zn
    SLIDING BERINGS CuSn8 91.3% 8.5% 0.2% / /

    Looking for something specific bronze bearings?

    Bronze Wrapped Bearings MANUFACTURER

    Diamond Indentations,Oil Indentations/Holes for Metric Wrapped Bronze Bearings Plain Bearing & Bronze Wrapped Washers!
