The Ultimate Guide to Wrapped Bronze Bushings: CuSn8 Custom Bushing Design

When it comes to high-performance, low-maintenance bearings, wrapped bronze bushings are a top choice for industries ranging from construction and agriculture to automotive and heavy machinery. Among the various materials available, CuSn8 bronze stands out for its exceptional properties, making it a reliable option for demanding applications. In this blog post, we’ll dive deep into the world of CuSn8 wrapped bronze bushings, exploring their materials, features, applications, and benefits.

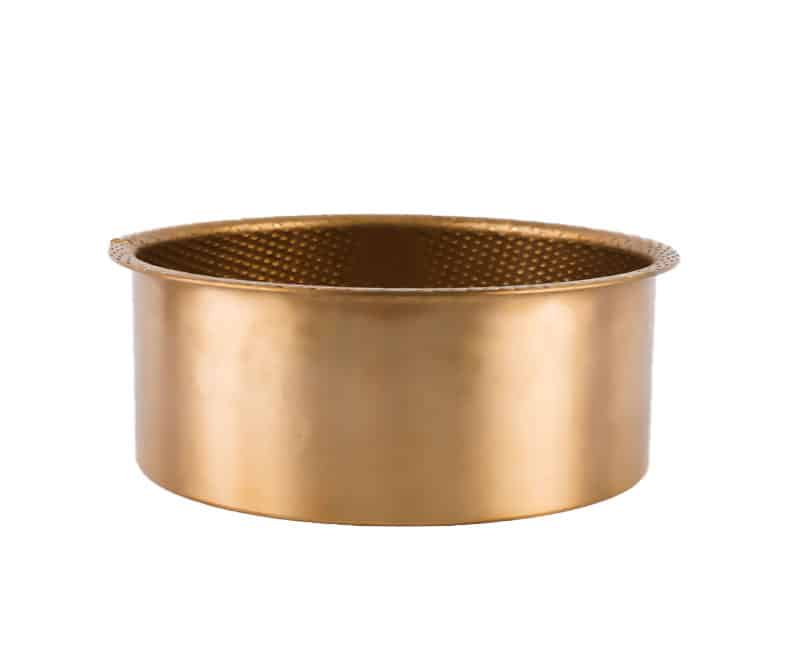

What is a Wrapped Bronze Bushing?

A wrapped bronze bushing is a type of bearing made from rolled phosphor bronze alloy, typically CuSn8 or CuSn6P. These bushings are designed to handle slow, heavy loads and are particularly well-suited for oscillating movements. Their versatility and durability make them ideal for industries such as construction, mining, agriculture, and automotive.

Material Composition: CuSn8 Bronze

The CuSn8 bronze used in wrapped bushings is a high-quality alloy with the following composition:

  • Copper (Cu): Balance
  • Tin (Sn): 8.5%
  • Phosphorus (P): 0.2%

This combination provides excellent load capacity, thermal conductivity, and chemical resistance, making it a robust material for bushings. For specific applications, CuSn6P is also available as an alternative material.

Key Features of CuSn8 Wrapped Bronze Bushings

  1. High Load Capacity:
    Designed to withstand heavy loads, these bushings are perfect for slow-moving, high-pressure applications.
  2. Low Maintenance:

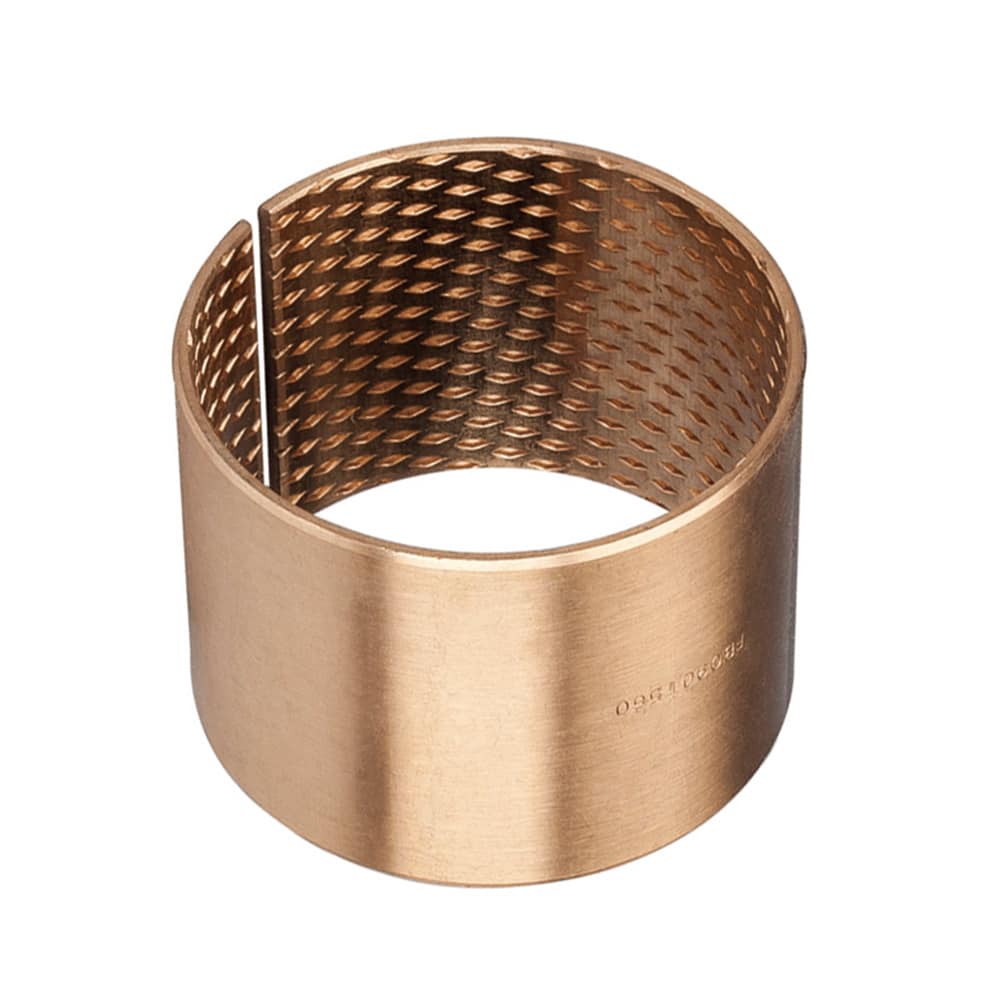

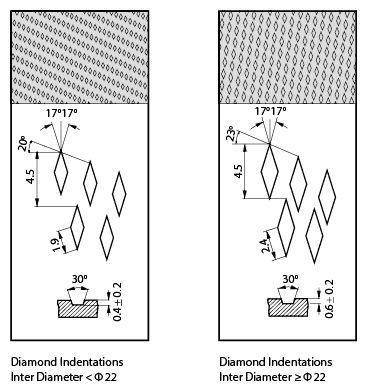

    The diamond pockets or grease holes in the bushings act as lubrication depots, reducing the need for frequent maintenance.
  3. Thermal Conductivity:
    CuSn8 bronze offers high thermal conductivity, ensuring efficient heat dissipation during operation.
  4. Corrosion Resistance:
    The material’s chemical resistance makes it suitable for harsh environments, including water-lubrication conditions.
  5. Customizable Design:
    Available in customized sizes and configurations, these bushings can be tailored to meet specific requirements.
  6. Long Operating Life:
    With low friction and excellent wear resistance, CuSn8 bushings provide a long service life, even in demanding conditions.

Applications of Wrapped Bronze Bushings

CuSn8 wrapped bronze bushings are widely used in industries that require reliable, low-maintenance bearings. Some common applications include:

  • Agricultural Machinery:
    Ideal for heavy-duty equipment like tractors and harvesters.
  • Construction Equipment:
    Suitable for cranes, excavators, and other heavy machinery.
  • Automotive Industry:
    Used in brakes, suspension systems, and other components.
  • Mining and Quarrying:
    Perfect for equipment operating under extreme conditions.
  • Plastic Injection Machines:
    Ensures smooth operation and longevity in manufacturing processes.

Technical Specifications

  • Specific Load Capacity:
    Static: < 120 N/mm² | Dynamic: < 40 N/mm²
  • Temperature Range:
    -40°C to +250°C
  • Sliding Speed:
    ≤ 2.5 m/s
  • Friction Value:
    0.05 to 0.12 (depending on lubrication)
  • Shaft Material:
    Steel (hardened or untempered) with a surface roughness ≤ Ra 0.8

Maintenance and Mounting Tips

  1. Initial Lubrication:
    Apply grease during installation to ensure smooth operation.
  2. Periodic Lubrication:
    Regularly grease or oil the bushings to maintain performance.
  3. Mounting Advice:
    • Use a force-fitting mandrel for installation.
    • Apply grease on the outer surface of the bushing for easier press-fitting.
    • Ensure proper chamfering of housing and shaft for alignment.

Why Choose CuSn8 Wrapped Bronze Bushings?

  • Cost-Effective:
    Thin-walled design reduces material costs while maintaining high performance.
  • Versatile:
    Suitable for a wide range of applications and industries.
  • Reliable:
    Proven performance in harsh and demanding environments.
  • Customizable:
    Available in various sizes, configurations, and lubrication options.

Explore More with Bronzelube.com

At Bronzelube, we specialize in providing high-quality wrapped bronze bushings made from CuSn8 and other premium materials. Our products are designed to meet international standards (ISO, DIN) and are trusted by customers worldwide. Whether you need standard sizes or custom designs, we’ve got you covered.

Highlights of Our Service:

  • Customized sizes and small order quantities accepted.
  • Fast delivery and competitive pricing.
  • Expert advice and excellent customer service.

Conclusion

CuSn8 wrapped bronze bushings are a reliable, low-maintenance solution for industries that demand high performance and durability. With their excellent load capacity, thermal conductivity, and corrosion resistance, these bushings are a cost-effective choice for a wide range of applications. Whether you’re in construction, agriculture, or automotive, Bronzelube is your trusted partner for high-quality bronze bearings.
