Learn how self-lubricating wrapped brass bushings have been proven to deliver a longer service life than oil-impregnated sintered bronze bearings. Choose from our selection of brass bushings in a wide range of styles and sizes. Straight Bushing Low-Maintenance Bronze (CuSn8)/Bronze Bushing. In stock and ready to ship.
Trusted
Brass Bushing Manufacturer
Sliding bearings Worldwide shipping available. Your Trusted Self Lubricating Brass Bearings Manufacturers
professional
Brass Bushing Supplier
Switch to Bronze Bearing – Wrapped Bushing, Buy bushings online, Self-lubricating Wrapped Bearings Size
Self Lubricating Bearings
Focus
Bushings – Plain Bearings – Sleeve Bearings, Besides our online Bronze Bushing Wrapped Bearing Type, other online bearing catalogs are also available.
High Quality
Brass Bushing
Deep cultivation in the self lubricating bearings industry just for the continuous production of high-quality sliding bearings.
Bronze Bearing company
Bronze Bearings Manufacturer
A portion of our products are based on traditional bronze bearings that require lubrication where friction occurs. We machine self lubricating bronze bearings according to customers’ drawings. Bronze is still the main material used in the production of friction bearings. The range of alloys developed and the variety of lubricants available make it possible to use them in a wide range of operating conditions. In order to meet the widest range of applications, the main ways of casting bronze bushings are continuous casting and centrifugal casting bronze casting, offering a variety of copper alloy materials for copper bearings, from which we have selected the most important alloys. c93200 tin bronze, lead bronze, c95400 aluminum bronze and c86300 high tensile brass. However, thanks to this cooperation, it is also possible to produce copper bearings in other alloys when necessary, which were not previously custom size bronze bearings.
Product Quality Index
Energy Generation
Bushings & Bearings – Sleeve, Flange, Thrust，always ready to adapt as your business needs
SOLID PLAIN BEARING ADIN ISO 3547： Solid sliding bearing made of tin bronze CuSn8 according to DIN 17662 with lubrication pockets, for oil or grease lubrication. Brass sleeve bearings are maintenance-free, easy to install, have very good wear resistance and are impervious to dirt, dust, and lint. Made In China Bronze CuSn8 or CuSn6 bushing manufacturing process guarantees or exceeds OEM specifications for high precision wrapped bronze slide bearings.
bronze rolled Brass Bushing structure
However, Wrapped bronze bushing bushings are not prone to these problems because of the bronze rolled bearing structure characteristics and applications. Wrapped bronze bushings are made of CuSn8, a tin bronze alloy, with diamond-shaped oil cavities rolled on the surface to store grease, which has good fatigue strength and load-bearing capacity, corrosion resistance and anti-wear. Widely used in agricultural machinery, construction machinery, engineering machinery and other high load and low speed occasions. Make wrapped bronze bushing and brass bearings maintain the strength of the bearing and resistance to high force and edge load. When motion occurs, a very small amount of solid lubricant is released into the micromachining of the shaft to help reduce the coefficient of friction. The material can also withstand long-term temperatures of -40 to 150°C. Brass Bushing products are used in construction machinery, automotive braking system machine tool industry, etc.

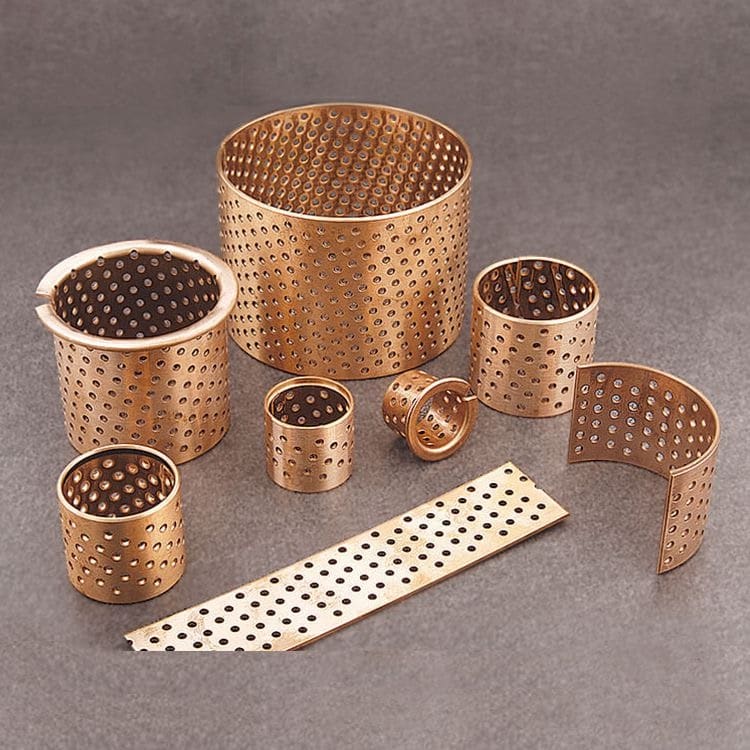

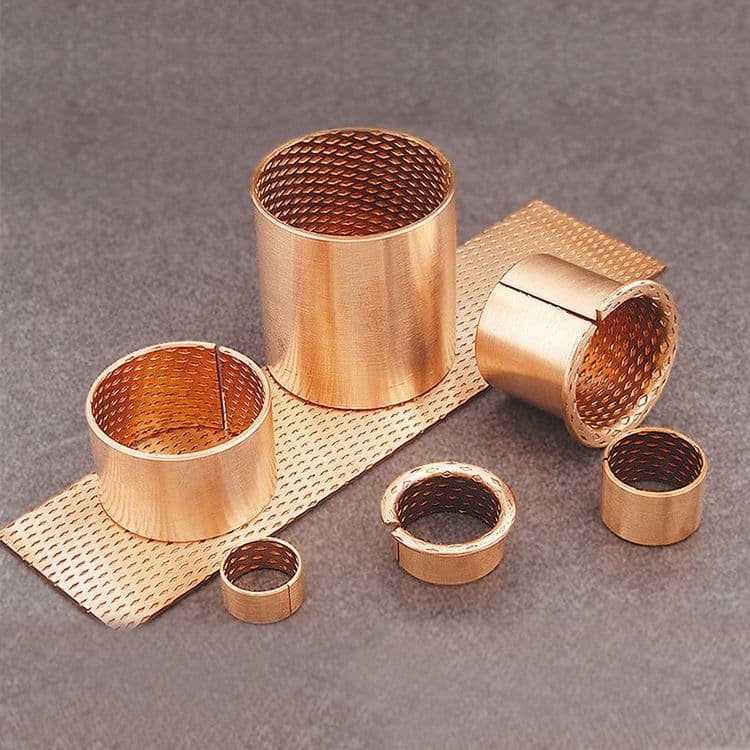

Wrapped bronze Bearings & bushings
Wrapped bronze bush and brass bearing construction: Oil-impregnated bronze bearings rely on a capillary action to create a lubricating oil film. High speed and rotational motion are both required to draw the oil out and maintain a full film of lubricant. Shaft oscillation, slow speed and intermittent use can all inhibit this process. If movement stops, the oil on the surface of the bearing dries up. This can lead to squeaking and an increase in the coefficient of friction. High temperatures can also break down the oil. Other disadvantages include low chemical resistance and sensitivity to dirt, edge pressure and impacts.
Brass Bushing Benefits
We are a recognized supplier of plain and flanged bearings worldwide, offering a vast inventory of bearings in various dimensions and styles to meet your specific needs. Our extensive product line includes bushings, thrust washers, and sliding plates, among others.
Brass bushing benefits include low wear rates, quiet operation, high load capacity, and resistance to chemicals, dust, UV and corrosion. A wide range of Brass bushing materials are now available to meet the requirements of virtually any application.

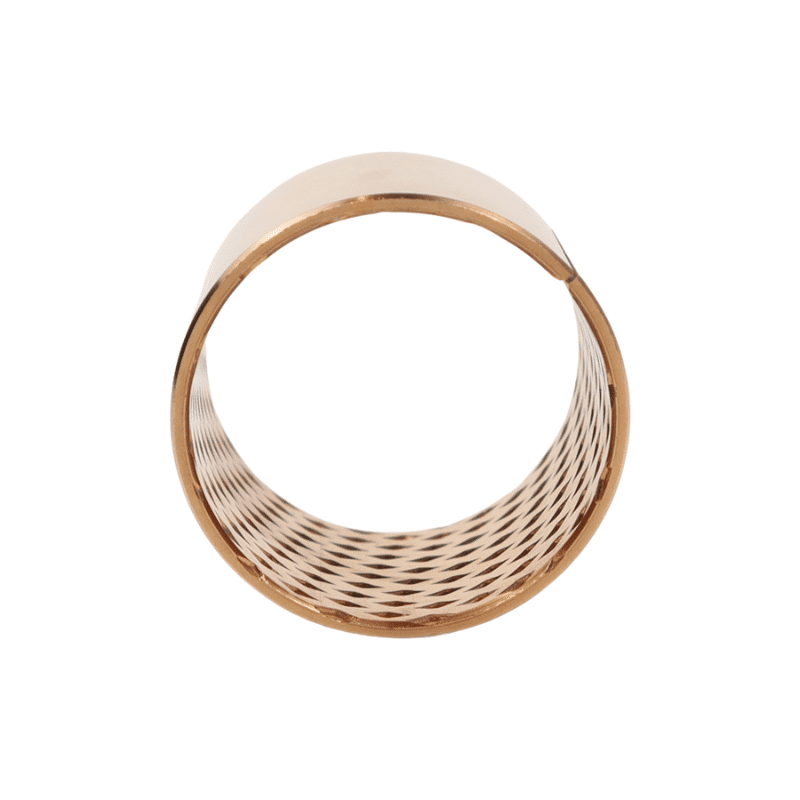

Bronze rolled bearings with rolled diamond shaped surfaces act as a grease reservoir, it has good fatigue strength and load carrying capacity, corrosion resistance and wear resistance. In practice, depending on the operating conditions, the substrate can be made of different grades of alloy and the surface can be machined into other forms of oil holes and oil grooves.
Choosing the right Brass Bushing
Choosing the right shaft for your bearing material is critical because the life of the bearing is affected by the relative motion.
Rough shafts are too abrasive and will slowly wear the surface of the bearing as it moves. Very smooth shafts will result in higher wear rates because proper lubrication of the shaft can be a challenge.

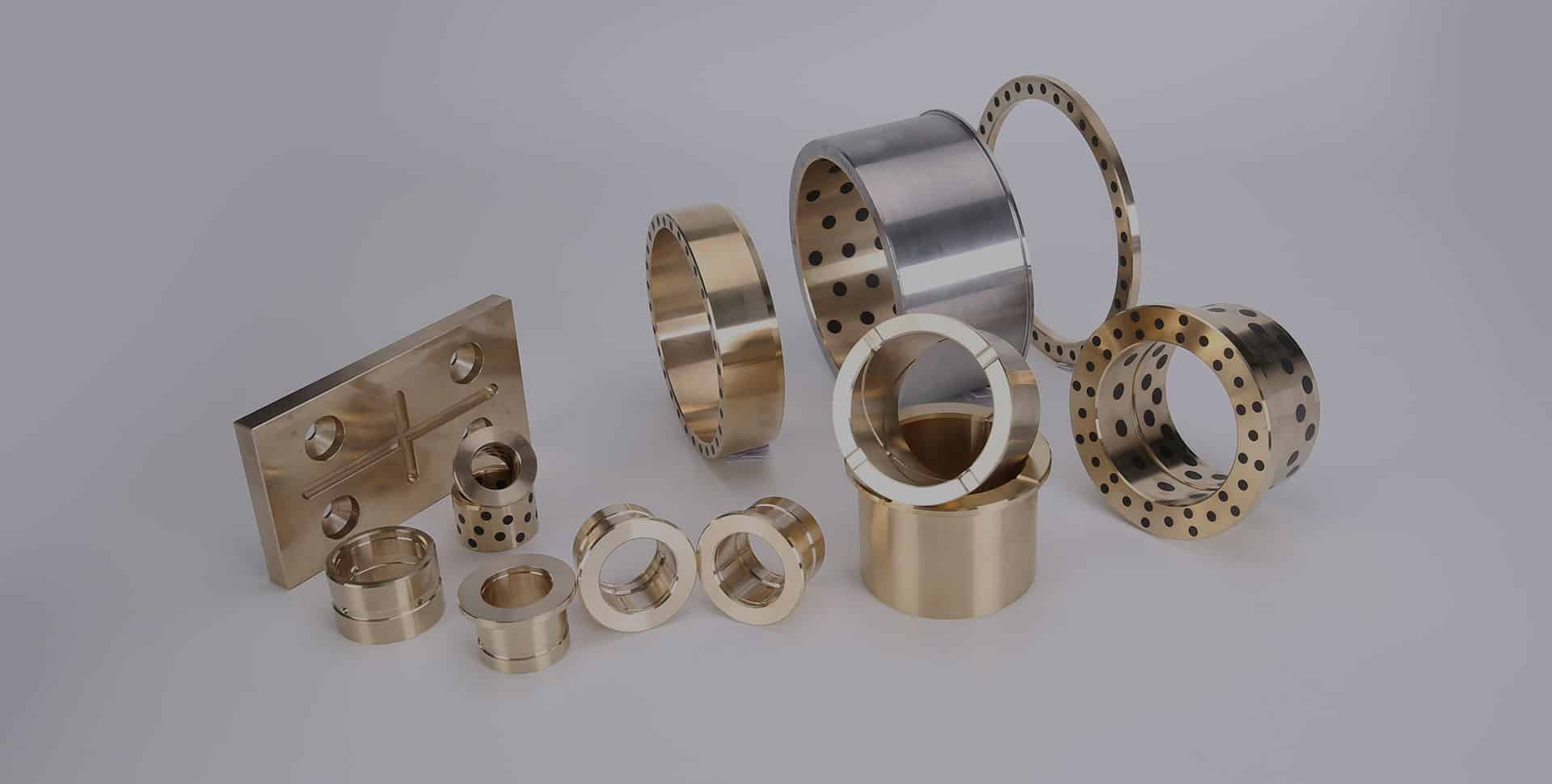

Wrapped bronze bushings Solid Lubricant Inlaid Brass Bearing have the advantage of preventing grease leakage, prolonging lubrication time, and preventing the penetration of dust, sand, and other substances. The product is widely used in agricultural machinery, construction machinery, engineering machinery, etc.
taxation planning
Eiusmod tempor incididunt ipsum ut labore dolore magna aliqua. Ut enim minim veniam duisy ipsum sed quis.
Sleeve Brass Bearings
High-density bronze rolled into a shaped or spherical oil bag, oil cavity special synthetic internal surface to reduce wear and prolong the use of time and good anti-corrosion function. Wrapped Bronze Brass Bushing Has Been Proven To Last Longer Than Oil-Impregnated Sintered Bronze Bearings, Saving Users Up To 60% In Maintenance Costs. Processing Machinery, Fitness Equipment, And Pumps And Valves. Our wrapped bronze bushings are widely used in agricultural machinery, construction machinery, engineering machinery and so on.
Our strengths is our ability to provide customized bearings based on customer drawings and specifications. Our team of experienced engineers and technicians can work with you to design and manufacture bearings that meet your exact requirements. We also offer a wide selection of standard bearings for those who do not require customization.
Discuss your project with a bearings expert
Wrapped Brass Bushing has the advantages of low coefficient of friction and good wear resistance, and can work under oil-free or oil less conditions. The product is widely used in starter motor lifter, construction machinery, car, truck, tractor, etc. Technology as the first quality for this we have been hard at work. Available brass bushings: straight bushings, thrust washers, flanged bushings, shaft tiles, slide plates, steel bushing assemblies.
We understand that timing is critical in many industries, which is why we offer quick turnaround times and reliable shipping to ensure that you receive your bearings in a timely manner. Our logistics capabilities enable us to efficiently manage inventory and handle orders of all sizes.
Discuss your project with a bearings expert
- save a lot of copper, save the working hours of turning bronze sleeve.
- its light weight and low cost compared with turned bushings and rolling bearings.
- can be processed in the friction surface of a variety of cavities, pits, storage of certain grease, extended refueling time is five times the copper sleeve.
- extremely high load-bearing capacity, especially for rough friction surfaces.
Customized Bronze Bushings and Bearings
We specialize in manufacturing bronze bearings tailored to your specifications, offering a variety of sizes, whether in metric or inch dimensions.

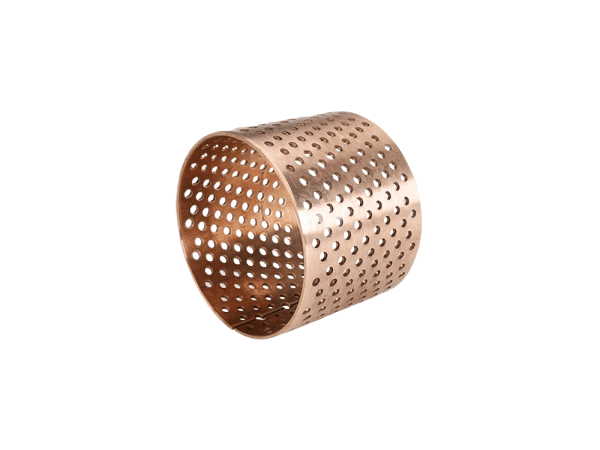

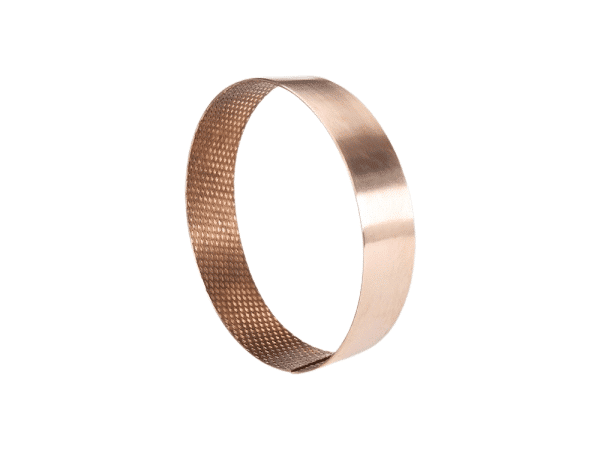

Wrapped Bronze Bushings
Our wrapped bronze bushings are primarily composed of CuSn8, a high-strength bronze alloy made from copper and tin. The ‘wrapped’ designation refers to the bronze material encasing a metal backing, such as steel, creating a robust composite structure that leverages the metal’s strength alongside the bronze’s lubricating properties. These bushings are ideally suited for high-load, low-speed applications like automotive suspensions, hydraulic systems, and industrial machinery.
Types of Bronze Bushings

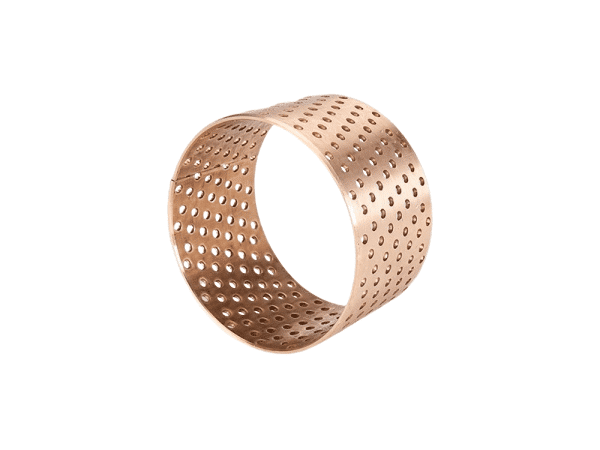

- Cylindrical Bushes: Commonly used, these can be customized to non-standard dimensions to meet unique application needs.

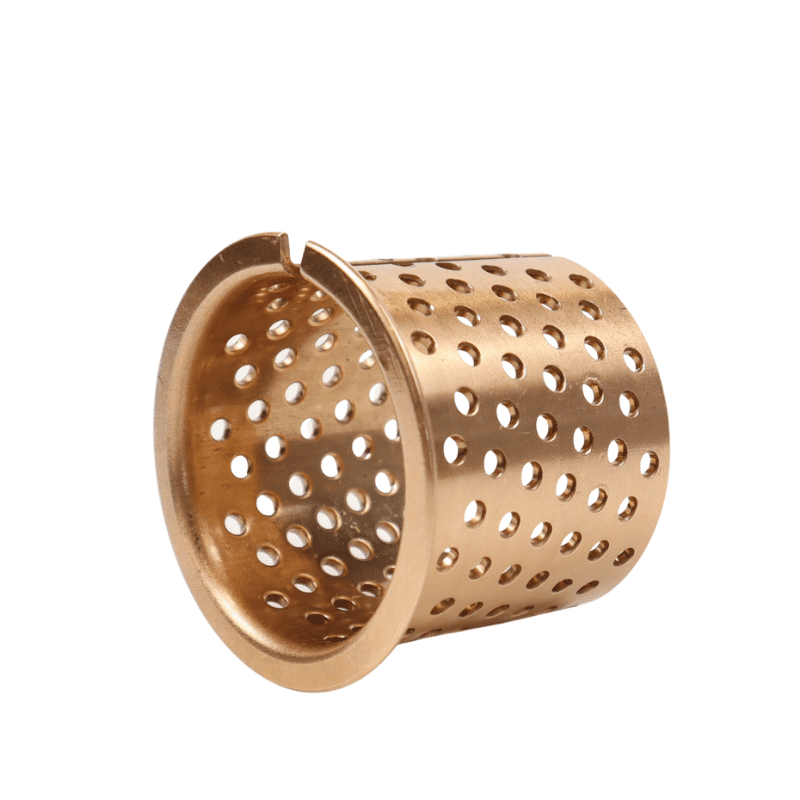

- Flanged Bushes: These include an additional flange at one end for secure mounting.

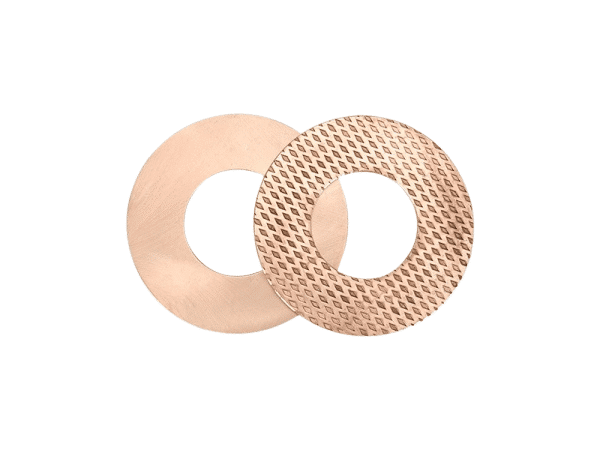

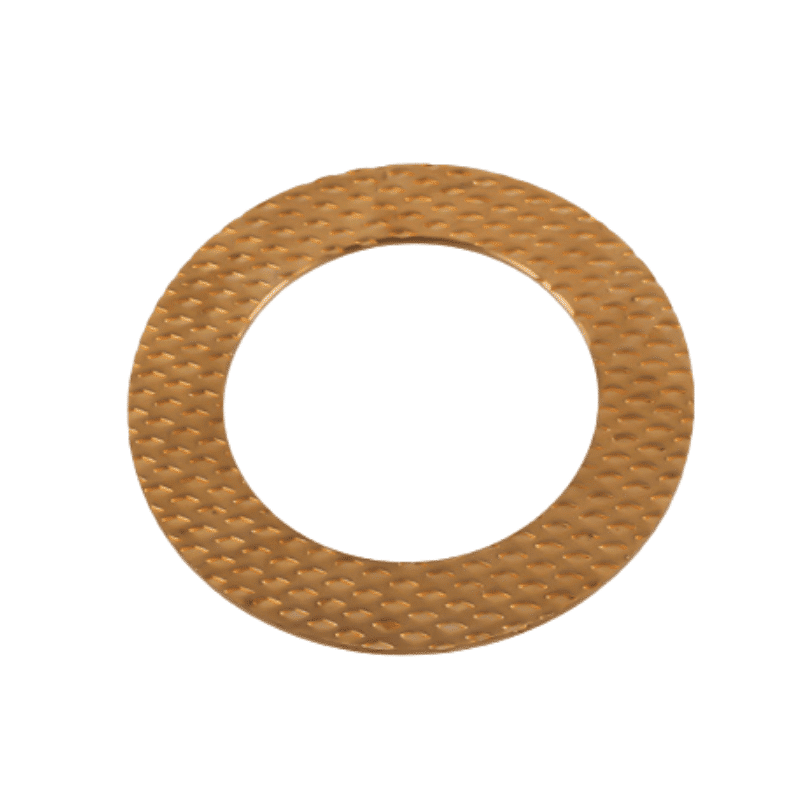

- Sliding Plates: Made from CuSn8 with lubrication indents, these are designed for linear motion applications and can be customized in various sizes.
We also offer tailored bearing designs with specific features such as unique shapes, sizes, materials, and specialized lubrication systems to precisely fit your requirements.

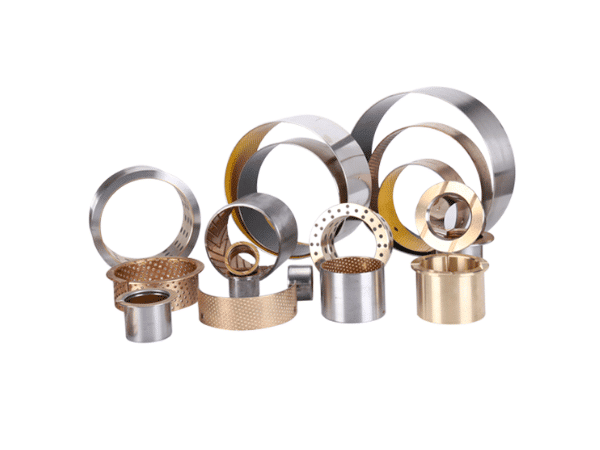

Explore Our Bronze Bearing Selection
As a manufacturer and supplier, we offer an extensive range of bronze bushings and sleeve bearings. Our inventory includes thousands of standard and custom options like cast bronze sleeve bearings, sintered bronze bushings, and flanged bushings in alloys like C93200, C95400, C86300, and CuSn8. These are available with or without internal grease grooves. Our manufacturing processes include turning, boring, broaching, grooving, facing, milling, drilling, grinding, and de-burring.
The 090 series wrapped bronze bearings are made from cold formable, homogenous bronze (CuSn8) and come standard with diamond-shaped lubrication indents on the bearing surface. These indents act as lubricant reservoirs to build a lubricating film quickly at startup, reducing initial friction. This design is especially suited for the construction and agricultural sectors, where equipment often experiences high loads and slow movements.
Bronze Bearings – Exceptional Quality at Wholesale Prices
Our precision bronze bushing products are competitively priced and of high quality. These self-lubricating metric bushings are designed for conditions involving heavy loads and low speeds, such as in agricultural, construction, and engineering machinery.
Bronze Bearing Advantages
- Self-Lubricating: Features like lubrication indents provide consistent lubrication and reduce maintenance.
- Easy Installation: Inner sides can be machined for a perfect fit.
- High Load Capacity: Designed to withstand heavy loads.
- Thermal Conductivity: Excellent heat dissipation properties.
- Chemical Resistance: Resistant to various environmental conditions.
- Compact Design: Minimizes space requirements.
For additional information on our products or to browse more offerings, please visit bronzelube.com. Whether you need standard bushings or a customized solution, we’re here to provide high-quality bronze bushings suited for your specific applications.
Bronze Bearings and Bronze Sleeve Bushings made of CuSn8
with Grease Reservoirs for Long Term Lubrication
Bronze Bearings made of CuSn8 with Grease Reservoirs
Bronze bearings and bronze sleeve bushings made of CuSn8 are commonly used in applications that require high strength, corrosion resistance, and good wear properties. CuSn8 is a high-strength copper alloy that is well-suited for use in bearings and bushings due to its excellent wear resistance and low friction coefficient.
One common feature of bronze bearings and bushings made of CuSn8 is the presence of grease reservoirs, which allow for long-term lubrication of the bearing surfaces. Grease reservoirs are typically located on the inner surface of the bearing or bushing, and they are designed to hold a small amount of lubricant that can be released gradually over time to keep the bearing surfaces lubricated.
When properly designed and maintained, bronze bearings and bushings with grease reservoirs can provide excellent long-term performance and reduce the need for frequent lubrication. However, it is important to note that the effectiveness of these bearings and bushings depends on a variety of factors, including the type and viscosity of the lubricant used, the load and speed of the application, and the operating environment (e.g., temperature, humidity, and contamination).
In general, bronze bearings and bushings made of CuSn8 are a reliable choice for many applications that require high strength and good wear resistance. With the addition of grease reservoirs, they can provide even better long-term performance and reduce the need for frequent maintenance.

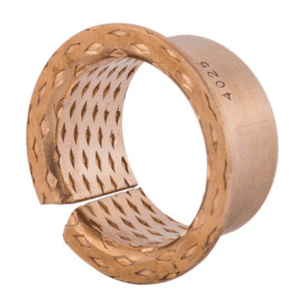

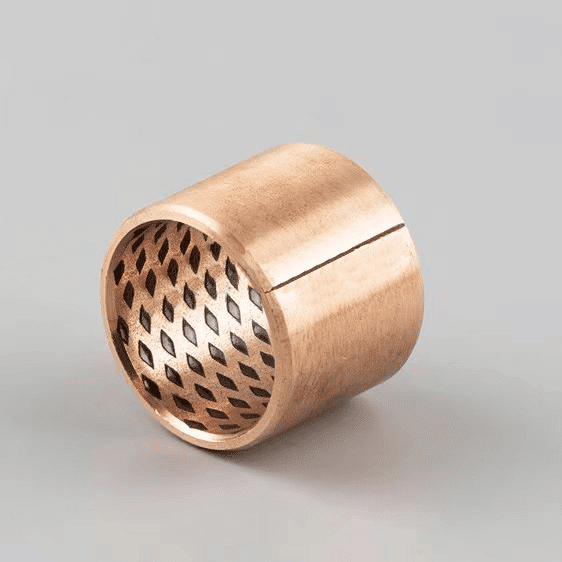

Bronze Bearings made of CuSn8 with Lubrication Indents
Bronze bearings and bronze sleeve bushings are widely used in various industrial applications due to their excellent wear resistance, high strength, and corrosion resistance. CuSn8 is a popular material for these components due to its high copper content, which gives it superior mechanical properties.
One of the most important features of bronze bearings and bushings is their ability to provide long-term lubrication without the need for external lubricants. This is achieved through the use of lubrication indents, which are small depressions on the bearing or bushing surface that hold lubricating oil.
When in use, the lubricating oil is released from the indents and forms a thin film between the bearing or bushing surface and the mating surface. This film acts as a lubricant, reducing friction and wear and extending the life of the component.
Bronze bearings and bushings with lubrication indents are particularly useful in applications where there is limited or no access for regular lubrication. They are commonly used in heavy-duty machinery, such as mining equipment, hydraulic cylinders, and turbines, where they can withstand high loads and extreme temperatures.
In addition to their excellent mechanical properties and self-lubricating capability, bronze bearings and bushings are also known for their low coefficient of friction, good thermal conductivity, and resistance to corrosion and wear. They are easy to machine and can be manufactured to precise tolerances, making them ideal for use in high-precision applications.
Overall, bronze bearings and bushings made of CuSn8 with lubrication indents offer an excellent combination of strength, durability, and self-lubrication. They are a reliable choice for many industrial applications where long service life and low maintenance are essential.
Self-Lubricating Wrapped Bronze Bushings Solutions!
Self-Lubricating Bushings Suppliers
Wrapped Bronze Bearings, CuSn6.5P, CuSn8P, Diamond oil pocket.
Wrapped bronze bushing suppliers & exporters in china: General industrial machinery and heavy industrial facilities. Self-Lubricating Wrapped Bronze Bushings Solutions!Self-lubricating multilayer composite bearing is a rolling sliding bearing made of steel plate (copper plate and aluminum plate can also be used), sintered spherical bronze powder in the middle, rolled PTFE, or other wear-resistant materials on the surface. It has the characteristics of small friction coefficient, good wear resistance, corrosion resistance, and oil-free lubrication. Using this composite bushings product can reduce the cost, reduce the mechanical volume, avoid the phenomenon of shaft bite and reduce the mechanical noise, etc. The composite bushings products have been widely used in the sliding parts of various machinery, such as printing machines, elevators, spinning machines, tobacco machines, fitness equipment, hydraulic trucks, micromotors, solenoid valves, automobiles, motorcycles, and agricultural and forestry machinery.
- Boundary lubricated bearing is based on a steel plate (copper plate and aluminum plate can also be used), intermediate sintered spherical bronze powder, surface rolling modified polyformaldehyde (POM), and contains oil pit. It is suitable for room temperature, low speed, and medium load place, replacing the traditional copper bushing not only reduces the cost but also prolongs the service life. When used in a rolling mill, it can save refueling frequency and simplify the replacement procedure. The boundary lubricated bearings products have been widely used in automobile chassis, forging and pressing machine tools, metallurgy mining machinery, construction machinery, hydropower, steel rolling industry, and other fields.
- Wrapped bronze bushings use the special formula of high-density copper alloy strip as the matrix, the surface can be rolled diamond or hemispherical oil hole, oil groove according to customer requirements. It has the advantages of high density, large bearing capacity, good abrasion resistance, long service life, etc., and can replace the traditional casting copper sleeve, which can reduce the mechanical volume and reduce the cost. It has been widely used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry, and mining machinery, and can also be made into bearing bush, flanged shaft sleeve, thrust gasket, and ball bowl, etc.
- These three kinds of bearings belong to the category of self-lubricating sliding bearings, which are all made by wind. The wall thickness varies from 0.5mm to 3mm
For any kind of inquiry, Please email us today!
Technical data Solid plain bearings
Properties for all types of motion
Bronze bushes for grease or oil-lubricated applications
resistant to many chemical substances
good sliding properties
low friction
low wear
high load capacity
low space requirement
Advantages: cost-effective alternative to machined plain bearings
low maintenance
ready for installation
RoHS compliant
REACH compliant
Fields of application
Vehicle construction
Mechanical engineering
Household machines
Office machines
Agricultural machinery
Construction machinery
Electrical appliances
Material CuSn8/CuSn8P with lubrication pockets
Tolerances housing H7 – shaft f7
maximum surface pressure [N/mm²] static: 120 – dynamic: 40
maximum PV value [N/mm² m/s] lubricated: 2.8
coefficient of friction 0.08 to 0.25 (depending on application)
max. sliding speed [m/s] lubricated: 2.0
Temperature range [ºC] -100 to +200
Coefficient of thermal expansion [K-1] 15 x 10-6
Thermal conductivity [W/(mK)] 60
Types of Flanged bushing, cylindrical bushing
Sintered metal plain bearing
Solid plain bearing
Plain bearing, Solid lubricant plain bearing
Multilayer plain bearing
Downloads
Technical questionnaire for plain bearing design
ISO tolerances for shaft and bores
We will be pleased to advise you:
To the online store for plain bearings
Plain bearings online store
To the online store for plain bearings
Wrapped Bearings Standard Tolerance
|
Standard Dia. |
O.D.Size |
Housing Bore |
I.D.Size |
Matching Shaft Diameter |
|---|---|---|---|---|
|
10~18 |
+0.065 +0.030 |
+0.018 0 |
+0.046 0 |
– 0.016 – 0.043 |
|
18~30 |
+0.075 +0.035 |
+0.021 0 |
+0.052 0 |
– 0.020 – 0.020 |
|
30~50 |
+0.085 +0.045 |
+0.025 0 |
+0.062 0 |
– 0.025 – 0.064 |
|
50~80 |
+0.100 +0.055 |
+0.030 0 |
+0.074 0 |
– 0.030 – 0.076 |
|
80~120 |
+0.120 +0.070 |
+0.035 0 |
+0.087 0 |
– 0.036 – 0.090 |
|
120~180 |
+0.170 +0.100 |
+0.400 0 |
+0.100 0 |
– 0.043 – 0.106 |
|
180~250 |
+0.210 +0.130 |
+0.046 0 |
+0.115 0 |
– 0.050 – 0.122 |
|
250~315 |
+0.260 +0.170 |
+0.052 0 |
+0.130 0 |
– 0.056 – 0.137 |
.
Our capabilities include component design, self-lubricating bronze bearings material selection, prototype, production, and manufacturing.
Wrapped bronze bushings are made entirely from phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with only a very low level of impurities.
Custom Plain Bearings Components
Components manufactured to your exact specifications
Sliding Bearing Materials
Improve & extend the performance of plain bearing & bushings, Self-lubricating composite for high load, low speed applications.
Ask The Expert
Engineering assistance & self-lubricating material selection support.
Engineered Self-lubricating Bearing Solutions
Your engineering partner from prototype to production
Plain Bearings Technical Library
Bronze bushing is made from high-grade alloy, hot rolled, phosphorous tin bronze.
SOLID PLAIN BEARINGS | DIN ISO 4379 AND 3547
Solid plain bearings, also known as classic plain bearings, are turned from copper alloys. Parameters such as fit selection, material alloy, the lubricant to be used and the appropriate lubrication grooves are important guidelines for production.
Oil or grease lubrication is necessary for this type of plain bearings.
Engineered Plain Bushing Solutions
Engineering Assistance | Material Selection | Component Geometry
Request for quotation.
Special dimensions are available on request
Bronze Bushing Size Chart, Wrapped Bronze Bushing Dimensions
| d | D | L0-0.40 | ||||||||||||||
| f1 | f2 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| 10 | 12 | 1010 | 1015 | 1020 | ||||||||||||
| 12 | 14 | 0.5 | 1210 | 1215 | 1220 | |||||||||||
| 14 | 16 | 1410 | 1415 | 1420 | 1425 | |||||||||||
| 15 | 17 | 1510 | 1515 | 1520 | 1525 | |||||||||||
| 16 | 18 | 1610 | 1615 | 1620 | 1625 | |||||||||||
| 18 | 20 | 0.3 | 1810 | 1815 | 1820 | 1825 | ||||||||||
| 20 | 23 | 2010 | 2015 | 2020 | 2025 | |||||||||||
| 22 | 25 | 0.4 | 2210 | 2215 | 2220 | 2225 | 2230 | |||||||||
| 24 | 27 | 2415 | 2420 | 2425 | 2430 | |||||||||||
| 25 | 28 | 2515 | 2520 | 2525 | 2530 | |||||||||||
| 28 | 31 | 0.8 | 2815 | 2820 | 2825 | 2830 | ||||||||||
| 30 | 34 | 3015 | 3020 | 3025 | 3030 | 3035 | 3040 | |||||||||
| 32 | 36 | 1 | 0.6 | 3215 | 3220 | 3225 | 3230 | 3235 | 3240 | |||||||
| 35 | 39 | 3515 | 3520 | 3525 | 3530 | 3535 | 3540 | |||||||||
| 40 | 44 | 4020 | 4025 | 4030 | 4035 | 4040 | 4050 | |||||||||
| 45 | 50 | 4520 | 4525 | 4530 | 4535 | 4540 | 4550 | 5060 | ||||||||
| 50 | 55 | 1.2 | 0.8 | 5020 | 5025 | 5030 | 5035 | 5040 | 5050 | 5560 | ||||||
| 55 | 60 | 5520 | 5525 | 5530 | 5535 | 5540 | 5550 | 6060 | ||||||||
| 60 | 65 | 6025 | 6030 | 6035 | 6040 | 6050 | 6560 | 6070 | ||||||||
| 65 | 70 | 6530 | 6535 | 6540 | 6550 | 7060 | 6570 | |||||||||
| 70 | 75 | 7030 | 7035 | 7040 | 7050 | 7560 | 7070 | 7080 | ||||||||
| 75 | 80 | 7530 | 7535 | 7540 | 7550 | 8060 | 7570 | 7580 | ||||||||
| 80 | 85 | 8030 | 8035 | 8040 | 8050 | 8560 | 8070 | 8080 | ||||||||
| 85 | 90 | 1.4 | 8530 | 8535 | 8540 | 8550 | 9060 | 8570 | 8580 | 8590 | ||||||
| 90 | 95 | 9030 | 9035 | 9040 | 9050 | 9560 | 9070 | 9080 | 9090 | |||||||
| 95 | 100 | 0.8 | 9540 | 9550 | 9570 | 9580 | 9590 | 95100 | ||||||||
| d | D | L0-0.40 | ||||||||||||||
| f1 | f2 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |||||
| 100 | 105 | 10015 | 10060 | 10070 | 10080 | 10090 | 100100 | |||||||||
| 105 | 110 | 1.8 | 10550 | 10560 | 10570 | 10580 | 11590 | 105100 | ||||||||
| 110 | 115 | 11050 | 11060 | 11070 | 11080 | 11090 | 110100 | |||||||||
| 115 | 120 | 11550 | 11560 | 11570 | 11580 | 11590 | 115100 | |||||||||
| 120 | 125 | 12060 | 12070 | 12080 | 12090 | 120100 | ||||||||||
| 125 | 130 | 12560 | 12570 | 12580 | 12590 | 125100 | ||||||||||
| 130 | 135 | 13060 | 13070 | 13080 | 13090 | 130100 | ||||||||||
| 135 | 140 | 13560 | 13570 | 13580 | 13590 | 135100 | ||||||||||
| 140 | 145 | 14060 | 14070 | 14080 | 14090 | 140100 | ||||||||||
| 145 | 150 | 14560 | 14570 | 14580 | 14590 | 145100 | ||||||||||
| 150 | 155 | 15060 | 15070 | 15080 | 15090 | 150100 | ||||||||||
| 155 | 160 | 15560 | 15570 | 15580 | 15590 | 155100 | ||||||||||
| 160 | 165 | 16060 | 16070 | 16080 | 16090 | 160100 | ||||||||||
| 165 | 170 | 16560 | 16570 | 16580 | 16590 | 165100 | ||||||||||
| 170 | 175 | 17060 | 17070 | 17080 | 17090 | 170100 | ||||||||||
| 175 | 180 | 17560 | 17570 | 17580 | 17590 | 175100 | ||||||||||
| 180 | 185 | 18060 | 18070 | 18080 | 18090 | 180100 | ||||||||||
| 185 | 190 | 18560 | 18570 | 18580 | 18590 | 185100 | ||||||||||
| 190 | 195 | 19060 | 19070 | 19080 | 19090 | 190100 | ||||||||||
| 195 | 200 | 19560 | 19570 | 19580 | 19590 | 195100 | ||||||||||
| 200 | 205 | 20060 | 20070 | 20080 | 20090 | 200100 | ||||||||||
| 205 | 215 | 20560 | 20570 | 20580 | 20590 | 205100 | ||||||||||
| 215 | 225 | 21560 | 21570 | 21580 | 21590 | 215100 | ||||||||||
| 225 | 230 | 22560 | 22570 | 22580 | 22590 | 225100 | ||||||||||
| 230 | 240 | 23060 | 23070 | 23080 | 23090 | 230100 | ||||||||||
| 240 | 250 | 1.4 | 24060 | 24070 | 24080 | 24090 | 240100 | |||||||||
| 250 | 260 | 1.4 | 1.8 | 25060 | 25070 | 25080 | 25090 | 250100 | ||||||||
| 260 | 270 | 26060 | 26070 | 26080 | 26090 | 260100 | ||||||||||
| 270 | 280 | 27060 | 27070 | 27080 | 27090 | 270100 | ||||||||||
| 280 | 290 | 28060 | 28070 | 28080 | 28090 | 280100 | ||||||||||
| 290 | 300 | 29060 | 29070 | 29080 | 29090 | 290100 | ||||||||||
| 300 | 305 | 30060 | 30070 | 30080 | 30090 | 300100 | ||||||||||
Homogeneous Bronze Bearing
Wrapped Brass Bushing
Wrapped bronze straight bushing, Switch to Bimetal Bearing – Steel Bronze Alloy, We understand the needs of customers and provide competitive and innovative solutions for self-lubricating brass bushing, thereby creating more value for customers. Our employees need to – live up to the company’s values. continued development.
Huge Bronze Bearing Selection
Quality design and supply of Plain Bearings and Engineering materials: Wrapped bronze bushings are available in metric sizes as straight or flanged bushings. Bronze bushings industry. Self-lubricating bearings experience, the professional manufacture, and sale of oilless lubrication bearings. Short & Reliable Delivery. Safety Quality Assurance.
Bronze Bushing Supply –
Wrapped Bronze Bearing
They are wrapped from strips and calibrated. These bronze bearings have been developed to for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture and automotive industries.
Always self-lubricating, Always long-lasting
Self-Lubricating Bronze Bearings,Tech up, Cost down.
Wrapped bronze brass bushings are particularly well suited for applications where high levels of contamination make re-lubrication necessary. The sliding surface of these bushings contains diamond shaped pockets that serve as reservoirs to progressively release lubricant during operation and, therefore, initially need to be filled with grease. Wrapped bronze bushing offers a wide range of both straight and flanged wrapped bronze bushings. Copper bushings – series CuSn8 – are produced using special composition and high-density copper, for better loading capacity and higher fatigue resistance. These bushings are widely used in agricultural and industrial machinery. Bushings belonging to series wrapped bronze bearings are available in metrical and inches dimensions, in agreement with DIN 1494 and ISO 3547.
Submit an inquiry
Small minimum order cost or quantity, Savings potential up to 40%.
Custom Bushings
We Offer Our Vast Inventory of High-Quality Bronze Wrapped Bushings. Search Catalog. View Sleeve Bearings Type. Order Online.
Advantages of wrapped bronze bushings include:
- insensitive to contaminated environments
- resistant to shock loads and vibrations at slow speeds
- good resistance to corrosive environments
Wrapped bronze bushings are well suited for machinery that operates in highly contaminated environments and where shock loads and/or vibrations occur. Application area examples for wrapped bronze bushings are:
- agricultural machinery
- hoisting equipment
- construction machinery
- forestry machinery
Brass Bushing Design & Online Solutions
Design & build completely custom layouts
“We believe in being more than just an agricultural machinery bushing manufacturer. We provide parts, service, and support for your new metal bronze bushings. Our limited warranties will give you the confidence you need to purchase new equipment. We have self-lubricating bearing catalog for our bushing products, so you never have to worry if something goes wrong. We even have a service department that you can contact whenever there’s a problem.”
High-performance Bronze Brass Bearings
Beautifully crafted leather products.
Bronze Bushing，The tin-bronze alloy CuSn8 for the material, surface rolling rhombic oil hole, since the role of storage grease, which has good fatigue strength and load-carrying capacity, corrosion resistance, wear resistance. Widely used in agricultural machinery, construction machinery, construction machinery and other high-load low-speed occasions. In addition to our high-quality bronze bushing and efficient logistics, we are committed to providing exceptional customer service. Our knowledgeable staff is available to assist with any questions or concerns you may have, and we strive to build long-term relationships with our customers based on trust and reliability.
Request a custom wrapped bronze bearings prototype:
We offer bearings in various materials, including bronze, brass, and steel, and our bearing bushing are tested to ensure that they meet industry standards for quality and performance.
Design & custom bronze bearings
Beautifully crafted leather products.
Flange Bearings, Cost-effective, Excellent price, In Stock & Ready To Ship – Get It When You Need It! Your strategic global partner in sliding bearing technology. Self-lubricated bearings, Made in China “Check Out Our Online Wrapped Bronze Bearing Catalog With More Than 10,000 Bushings With Full Size & Cad Drawings Available For Download – Ask A Free Quote!”

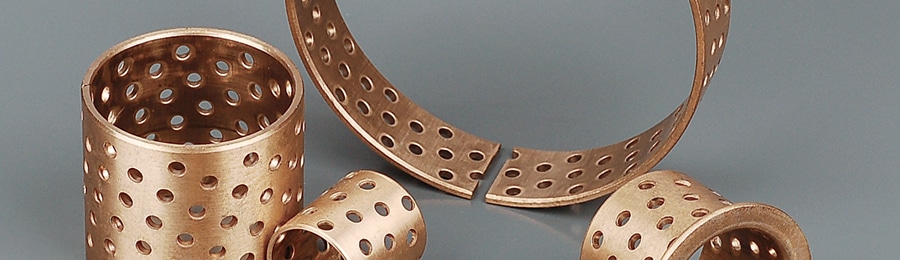

Bronze bearings made of CuSn8 with lubrication indents are a versatile and reliable solution for a wide range of industrial applications. These bearings are known for their excellent wear resistance, high strength, and corrosion resistance, and are widely used in heavy-duty machinery, such as mining equipment, hydraulic cylinders, and turbines.
One of the key advantages of these bearings is their self-lubricating capability, which is achieved through the use of lubrication indents on the bearing surface. When in use, the lubricating oil is released from the indents and forms a thin film between the bearing surface and the mating surface, reducing friction and wear.
Reduce maintenance costs
STRUCTURE
Monometallic bearing material CuSn8 with lubrication indents
CHARACTERISTICS
Bronze Bearing material made of solid bronze strip with indents for lubrication. Good wear resistance, suitable for rough conditions. Optimum performance under relatively high loads and low speeds.
-
Wrapped Bronze Bearing Cu Sn P rest 7~9% 0.2~0.4%
Long-lasting, self-lubricating wrapped bronze
Wrapped Bronze Bushing Design & Solutions, Mainly Focused on Supply Bearing Bushing and Projects. bronzelube.com is dedicated to providing high-performance wrapped bronze bushing parts for any application. Wrapped Bronze Bushing Flange Size, Metric Size Wrapped Bronze Bushing, Customer Satisfaction, Unique and Different.
we are a recognized supplier of plain and flanged bearings worldwide, offering a vast inventory of bearings in various dimensions and styles. We are committed to providing exceptional customer service, quick turnaround times, and reliable shipping to ensure that our customers receive their bearings in a timely manner. Contact us today to learn more about our products and services.
Bronze Wrapped Plain Bearings Repeatable performance, predictable costs.
Wrapped Bearings Design, Made-To-Order
Self-lubricating Bronze Bushings-High Quality Factory Price, Design & Production of Wrapped Bronze Bearings. Wrapped bronze bushing is used in cranes, construction machines, mining machines, agricultural machines, forest machines, etc.

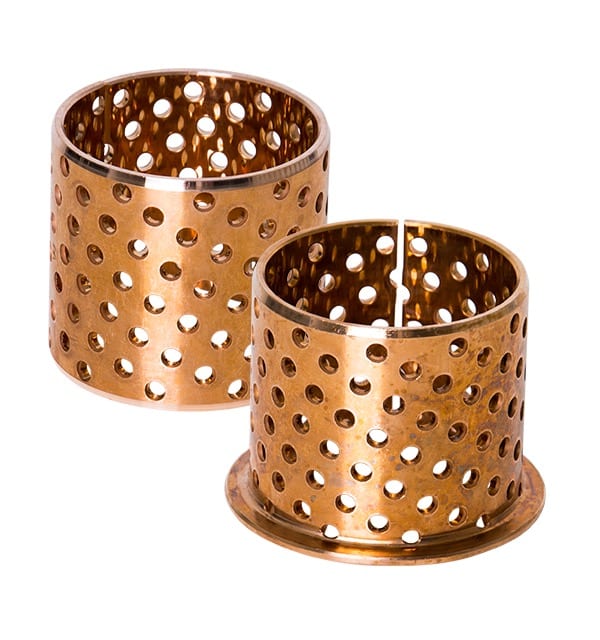

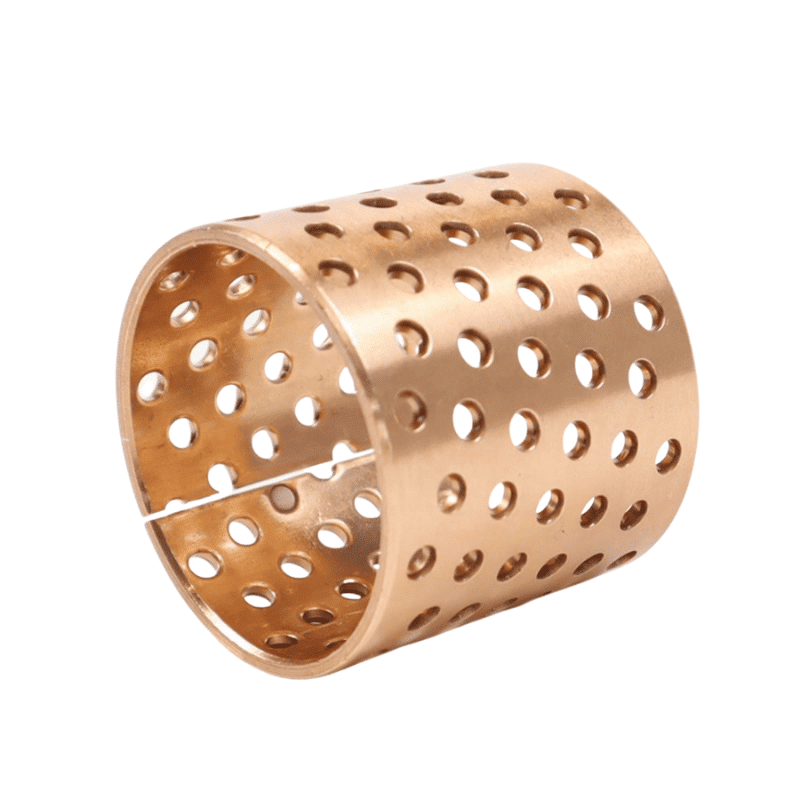

Wrapped bronze bushings are a type of self-lubricating bearing made of a single piece of bronze that is formed into a cylindrical shape. The bearing surface has pockets or grooves that are filled with solid lubricant, such as graphite or PTFE. As the bearing operates, the solid lubricant is released onto the contact surfaces, reducing friction and wear. These bearings are known for their high load capacity, resistance to corrosion, and adaptability to various temperatures and environmental conditions. Key features to identify wrapped bronze bushings:
- Single-piece bronze construction
- Pockets or grooves filled with solid lubricant on the bearing surface
- High load capacity and resistance to corrosion
High quality wrapped bearings
Wrapped Bearings type available in standard dimensions. Particularly suitable for harsh environments where frequent maintenance is not possible.
Availability
Wrapped Bearings forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized Wrapped Bearings designs.

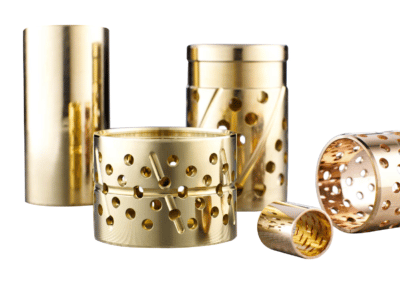

Custom Bushings & Bearings - Sleeve, Flange, Thrust- Graphite Plugs
We provide self-lubricating bearing solutions for all industries. How to distinguish self-lubricated multiplayer composite bearing, boundary lubricated bearing and wrapped bronze bushings...Solid lubricant for low friction performance: The bearing's working surface is machined with holes that are filled with solid lubricant, such as graphite, in a specific ratio. This solid lubricant reduces friction and wear, improving the bearing's overall performance and lifespan. Under dry friction conditions, the solid lubricant quickly transfers to the mating surface, forming an effective solid lubricant film that minimizes friction and wear. Competitive pricing for graphite impregnated bronze bearings: We strive to offer our customers high-quality graphite impregnated bronze bearings at competitive prices. Our efficient manufacturing processes and strategic sourcing of materials enable us to provide cost-effective solutions without compromising on quality or performance. To get a quote on graphite impregnated bronze bearings, follow these steps: Determine the required dimensions and specifications for your bearings, such as inner diameter, outer diameter, length, and any special features. Contact us with your specifications and any relevant drawings or documentation. Receive a quote for the graphite impregnated bronze bearings, including pricing, lead time, and any additional information related to the production process. Confirm your order and provide the necessary information for us to proceed with the manufacturing of your bearings. Contact us today to discuss your bearing requirements and get a competitive quote for high-quality graphite impregnated bronze bearings. Our knowledgeable and friendly team is always ready to assist you in finding the ideal bearing solution for your specific application.

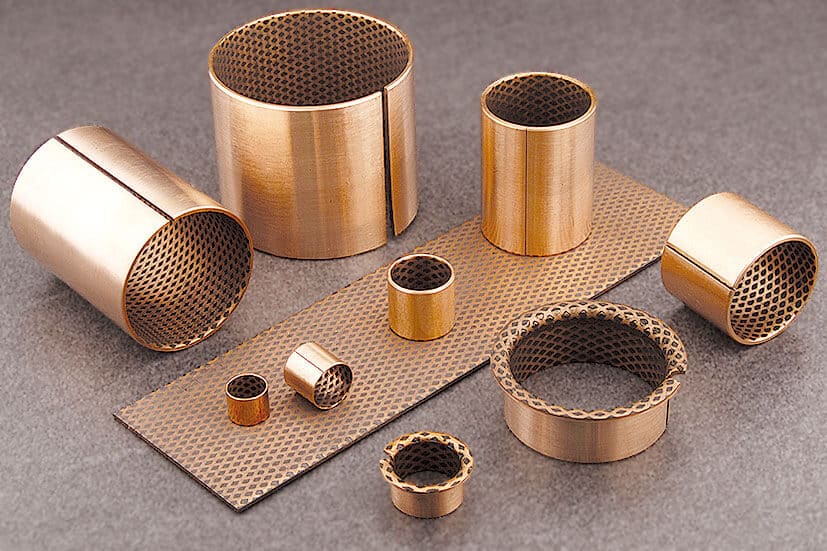

Solid Brass Bushing With Graphite, Ready-to-install reduce maintenance costs
“Graphite Impregnated Bronze Bearing Prices – Find Competitive Bronze Bearings Prices!” Graphite impregnated bronze bearings are an excellent solution for applications that require high load carrying capacity and low friction under dry friction conditions. These bearings are made from a high-strength copper alloy and feature solid lubricant-filled holes in the working surface, offering both durability and low friction performance.
High-strength copper alloy provides excellent load-carrying capacity: The base material of graphite impregnated bronze bearings is a high-strength copper alloy, which ensures the bearings can handle heavy loads and withstand harsh operating conditions. This makes them suitable for various applications across multiple industries, such as construction, agriculture, and heavy machinery.
Our capabilities include component design, self-lubricating bronze bearings material selection, prototype, production, and manufacturing.
Free Bearing Catalog:
To assist you in selecting the most appropriate CuSn8 bronze bearings for your specific needs, we provide a comprehensive and user-friendly bearing catalog, which includes:
- Detailed product specifications: Get access to essential information, such as dimensions, tolerances, load capacities, and temperature ranges for each bearing type.
- Material properties: Learn about the key characteristics of CuSn8 bronze alloy, such as its composition, mechanical properties, and corrosion resistance.
- Application examples: Discover various real-world applications where our CuSn8 bronze bearings have been successfully implemented, providing valuable insights into their potential uses.
- Selection guide: Benefit from a step-by-step guide to help you choose the most suitable bearing based on your specific requirements, ensuring optimal performance and longevity.
- Installation and maintenance tips: Get expert advice on how to properly install, maintain, and prolong the service life of your CuSn8 bronze bearings.
The Most Trusted and Reliable Supplier of Bearing Brand Products:
As a recognized supplier of bearing brand products, we are committed to providing our customers with top-quality bearings and exceptional customer service. Our key strengths include:
- Extensive product range: We offer a wide variety of CuSn8 bronze bearings, as well as other bearing materials and types, to cater to diverse application needs.
- Customization capabilities: Our experienced team can produce custom bearings based on your unique specifications, ensuring a perfect fit for your application.
- Quality assurance: We adhere to strict quality control measures throughout the manufacturing process, guaranteeing the reliability and performance of our bearings.
- Competitive pricing: Our efficient production processes and strategic material sourcing enable us to offer high-quality bearings at competitive prices.
- Fast delivery: With our well-stocked inventory and streamlined order processing, we can promptly fulfill orders and ensure timely delivery of our products.
Wrapped bronze bushings are made entirely from phosphor bronze CuSn8, which is known for its high purity and minimal impurities. This alloy provides excellent mechanical properties, wear resistance, and corrosion resistance, making it an ideal material for sliding bearings.
Custom Plain Bearings Components:
We specialize in manufacturing custom plain bearings components tailored to your exact specifications. Our customization capabilities include:
- Custom dimensions: We can produce bearings in various sizes, shapes, and specifications to meet your specific requirements.
- Unique material combinations: We can manufacture bearings using different materials, such as bronze, steel, and various polymer composites, depending on your application needs.
- Special features: We can incorporate additional features like lubrication grooves, lubrication holes, flanges, or mounting holes to suit your particular design.
- High precision machining: Our advanced machining equipment and skilled technicians ensure that custom bearings are produced to tight tolerances for optimal performance and reliability.
Improve & extend the performance of plain bearing & bushings, Self-lubricating composite for high load, low speed applications.
Ask The Expert
Engineering assistance & self-lubricating material selection support.
Engineered Self-lubricating Bearing Solutions:
As your engineering partner, we specialize in providing custom-engineered self-lubricating bearing solutions tailored to your specific needs. Our expertise spans from prototype development to full-scale production, ensuring a seamless transition throughout the entire process.
Your Engineering Partner from Prototype to Production:
- Design consultation: We work closely with you to understand your application requirements and recommend the most suitable self-lubricating bearing solution.
- Prototype development: Our team creates prototype bearings to validate the design and performance, enabling you to make any necessary adjustments before moving to full-scale production.
- Manufacturing optimization: We leverage our state-of-the-art machinery and skilled technicians to ensure efficient and cost-effective production of your self-lubricating bearings.
- Quality control: We implement rigorous quality control measures at every stage of the production process to guarantee the reliability and performance of our bearings.
- After-sales support: Our commitment to customer satisfaction extends beyond the sale, as we offer ongoing technical support and guidance to help you get the most out of your self-lubricating bearings.
Plain Bearings Technical Library:
Our comprehensive technical library provides valuable resources and information related to plain bearings, including:
- Material specifications: In-depth information on various bearing materials, such as CuSn8 bronze, steel-backed PTFE composite, and steel-backed POM composite.
- Design guidelines: Expert advice on designing and selecting the most appropriate self-lubricating bearing solution for your application.
- Installation and maintenance tips: Best practices for installing, maintaining, and prolonging the service life of your plain bearings.
- Troubleshooting guides: Practical solutions for addressing common issues and challenges associated with plain bearings.
- Case studies: Real-world examples showcasing the successful implementation of our self-lubricating bearing solutions across various industries and applications.
Bronze Bushing Made from High-Grade Alloy:
Our bronze bushings are made from a high-grade, hot-rolled phosphorous tin bronze alloy, ensuring exceptional durability, wear resistance, and corrosion resistance. This material is ideal for a wide range of applications, particularly those requiring heavy loads or harsh operating conditions.
Contact us today to discuss your bearing requirements and explore our extensive range of engineered self-lubricating bearing solutions. Our knowledgeable and friendly team is always ready to help you find the perfect bearing solution for your application.
Sliding Bearing Materials:
Apart from CuSn8 wrapped bronze bushings, we offer a variety of sliding bearing materials to cater to different application requirements. Some of the most common materials include:
- Steel-backed PTFE composite: These self-lubricating bearings consist of a steel backing with a layer of PTFE composite material, offering low friction, high wear resistance, and maintenance-free operation.
- Steel-backed POM composite: These bearings feature a steel backing with a layer of POM (polyacetal) composite material. They are suitable for low-speed, medium-load applications and can replace traditional copper sleeves.
- Bimetal bearings: These bearings consist of a steel or bronze backing with a layer of a different metal alloy, such as aluminum, tin, or lead, to provide specific properties like improved wear resistance, heat dissipation, or load-carrying capacity.
- Solid lubricant bearings: These bearings are made from a solid metal or polymer material, such as graphite or MoS2, which acts as a lubricant under operating conditions, offering excellent performance in extreme temperatures or challenging environments.
By offering a wide range of sliding bearing materials and customization capabilities, we can provide you with the perfect bearing solution tailored to your specific application needs. Contact us today to discuss your requirements and receive expert guidance on selecting the most suitable bearing material and design.
Engineered Plain Bushing Solutions
Engineering Assistance | Material Selection | Component Geometry
Request for quotation.
Wrapped Bronze Bearings, CuSn6.5P, CuSn8P, Diamond oil pocket.
Wrapped bronze bushing suppliers & exporters in china: General industrial machinery and heavy industrial facilities. Self-Lubricating Wrapped Bronze Bushings Solutions!
- Self-lubricating multilayer composite bearing is a rolling sliding bearing made of steel plate (copper plate and aluminum plate can also be used), sintered spherical bronze powder in the middle, rolled PTFE, or other wear-resistant materials on the surface. It has the characteristics of small friction coefficient, good wear resistance, corrosion resistance, and oil-free lubrication. Using this composite bushings product can reduce the cost, reduce the mechanical volume, avoid the phenomenon of shaft bite and reduce the mechanical noise, etc. The composite bushings products have been widely used in the sliding parts of various machinery, such as printing machines, elevators, spinning machines, tobacco machines, fitness equipment, hydraulic trucks, micromotors, solenoid valves, automobiles, motorcycles, and agricultural and forestry machinery.
- Boundary lubricated bearing is based on a steel plate (copper plate and aluminum plate can also be used), intermediate sintered spherical bronze powder, surface rolling modified polyformaldehyde (POM), and contains oil pit. It is suitable for room temperature, low speed, and medium load place, replacing the traditional copper bushing not only reduces the cost but also prolongs the service life. When used in a rolling mill, it can save refueling frequency and simplify the replacement procedure. The boundary lubricated bearings products have been widely used in automobile chassis, forging and pressing machine tools, metallurgy mining machinery, construction machinery, hydropower, steel rolling industry, and other fields.
- Wrapped bronze bushings use the special formula of high-density copper alloy strip as the matrix, the surface can be rolled diamond or hemispherical oil hole, oil groove according to customer requirements. It has the advantages of high density, large bearing capacity, good abrasion resistance, long service life, etc., and can replace the traditional casting copper sleeve, which can reduce the mechanical volume and reduce the cost. It has been widely used in lifting machinery, construction machinery, automobile tractor chassis, machine tool industry, and mining machinery, and can also be made into bearing bush, flanged shaft sleeve, thrust gasket, and ball bowl, etc.
- These three kinds of bearings belong to the category of self-lubricating sliding bearings, which are all made by wind. The wall thickness varies from 0.5mm to 3mm.
Wrapped bronze bearings, also known as bronze bushings, are widely used in various industries, including construction machinery, agricultural machinery, and more, due to their durability, high load capacity, and resistance to corrosion.
Manufacturing Capability:
At our facility, we focus on delivering superior quality wrapped bronze bearings at competitive prices. Our manufacturing capabilities include:
- Material Selection: We use high-quality bronze materials, such as CuSn8 or CuSn6.5, for the production of wrapped bronze bearings, ensuring excellent mechanical properties and corrosion resistance.
- Precision Machining: Our advanced machining equipment and skilled technicians ensure that the wrapped bronze bearings are produced to tight tolerances, providing a precise fit and reliable performance in various applications.
- Customization: We can manufacture wrapped bronze bearings in various sizes, shapes, and specifications to meet the unique requirements of our clients. Our team can also design custom bearings based on specific application needs.
- Lubrication Options: Wrapped bronze bearings can be supplied with or without lubrication grooves and holes, depending on the application requirements. Our team can recommend the most suitable lubrication method to ensure optimal performance and longevity.
- Quality Control: We implement strict quality control measures throughout the manufacturing process, from material selection to final inspection. Our quality control system ensures that all wrapped bronze bearings meet or exceed industry standards and customer expectations.
- Fast Turnaround: With our efficient production processes and well-stocked inventory, we can quickly produce and deliver wrapped bronze bearings, even for large orders or urgent requests.
- Competitive Pricing: Our streamlined manufacturing processes and cost-effective material sourcing enable us to offer wrapped bronze bearings at competitive prices without compromising quality.
In summary, our manufacturing capabilities allow us to produce high-quality wrapped bronze bearings at competitive prices. We are committed to meeting the unique requirements of our clients and ensuring that our products deliver reliable performance in various applications, such as construction machinery and agricultural machinery.
Special dimensions for wrapped bronze bushings can be manufactured upon request to meet your specific requirements. To help you determine the appropriate size for your application, refer to the general size chart below. Keep in mind that this is only a guideline, and custom sizes can be produced based on your unique specifications.
Wrapped Bronze Bushing Size Chart:
| d | D | L0-0.40 | ||||||||||||||
| f1 | f2 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| 10 | 12 | 1010 | 1015 | 1020 | ||||||||||||
| 12 | 14 | 0.5 | 1210 | 1215 | 1220 | |||||||||||
| 14 | 16 | 1410 | 1415 | 1420 | 1425 | |||||||||||
| 15 | 17 | 1510 | 1515 | 1520 | 1525 | |||||||||||
| 16 | 18 | 1610 | 1615 | 1620 | 1625 | |||||||||||
| 18 | 20 | 0.3 | 1810 | 1815 | 1820 | 1825 | ||||||||||
| 20 | 23 | 2010 | 2015 | 2020 | 2025 | |||||||||||
| 22 | 25 | 0.4 | 2210 | 2215 | 2220 | 2225 | 2230 | |||||||||
| 24 | 27 | 2415 | 2420 | 2425 | 2430 | |||||||||||
| 25 | 28 | 2515 | 2520 | 2525 | 2530 | |||||||||||
| 28 | 31 | 0.8 | 2815 | 2820 | 2825 | 2830 | ||||||||||
| 30 | 34 | 3015 | 3020 | 3025 | 3030 | 3035 | 3040 | |||||||||
| 32 | 36 | 1 | 0.6 | 3215 | 3220 | 3225 | 3230 | 3235 | 3240 | |||||||
| 35 | 39 | 3515 | 3520 | 3525 | 3530 | 3535 | 3540 | |||||||||
| 40 | 44 | 4020 | 4025 | 4030 | 4035 | 4040 | 4050 | |||||||||
| 45 | 50 | 4520 | 4525 | 4530 | 4535 | 4540 | 4550 | 5060 | ||||||||
| 50 | 55 | 1.2 | 0.8 | 5020 | 5025 | 5030 | 5035 | 5040 | 5050 | 5560 | ||||||
| 55 | 60 | 5520 | 5525 | 5530 | 5535 | 5540 | 5550 | 6060 | ||||||||
| 60 | 65 | 6025 | 6030 | 6035 | 6040 | 6050 | 6560 | 6070 | ||||||||
| 65 | 70 | 6530 | 6535 | 6540 | 6550 | 7060 | 6570 | |||||||||
| 70 | 75 | 7030 | 7035 | 7040 | 7050 | 7560 | 7070 | 7080 | ||||||||
| 75 | 80 | 7530 | 7535 | 7540 | 7550 | 8060 | 7570 | 7580 | ||||||||
| 80 | 85 | 8030 | 8035 | 8040 | 8050 | 8560 | 8070 | 8080 | ||||||||
| 85 | 90 | 1.4 | 8530 | 8535 | 8540 | 8550 | 9060 | 8570 | 8580 | 8590 | ||||||
| 90 | 95 | 9030 | 9035 | 9040 | 9050 | 9560 | 9070 | 9080 | 9090 | |||||||
| 95 | 100 | 0.8 | 9540 | 9550 | 9570 | 9580 | 9590 | 95100 | ||||||||
| d | D | L0-0.40 | ||||||||||||||
| f1 | f2 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |||||
| 100 | 105 | 10015 | 10060 | 10070 | 10080 | 10090 | 100100 | |||||||||
| 105 | 110 | 1.8 | 10550 | 10560 | 10570 | 10580 | 11590 | 105100 | ||||||||
| 110 | 115 | 11050 | 11060 | 11070 | 11080 | 11090 | 110100 | |||||||||
| 115 | 120 | 11550 | 11560 | 11570 | 11580 | 11590 | 115100 | |||||||||
| 120 | 125 | 12060 | 12070 | 12080 | 12090 | 120100 | ||||||||||
| 125 | 130 | 12560 | 12570 | 12580 | 12590 | 125100 | ||||||||||
| 130 | 135 | 13060 | 13070 | 13080 | 13090 | 130100 | ||||||||||
| 135 | 140 | 13560 | 13570 | 13580 | 13590 | 135100 | ||||||||||
| 140 | 145 | 14060 | 14070 | 14080 | 14090 | 140100 | ||||||||||
| 145 | 150 | 14560 | 14570 | 14580 | 14590 | 145100 | ||||||||||
| 150 | 155 | 15060 | 15070 | 15080 | 15090 | 150100 | ||||||||||
| 155 | 160 | 15560 | 15570 | 15580 | 15590 | 155100 | ||||||||||
| 160 | 165 | 16060 | 16070 | 16080 | 16090 | 160100 | ||||||||||
| 165 | 170 | 16560 | 16570 | 16580 | 16590 | 165100 | ||||||||||
| 170 | 175 | 17060 | 17070 | 17080 | 17090 | 170100 | ||||||||||
| 175 | 180 | 17560 | 17570 | 17580 | 17590 | 175100 | ||||||||||
| 180 | 185 | 18060 | 18070 | 18080 | 18090 | 180100 | ||||||||||
| 185 | 190 | 18560 | 18570 | 18580 | 18590 | 185100 | ||||||||||
| 190 | 195 | 19060 | 19070 | 19080 | 19090 | 190100 | ||||||||||
| 195 | 200 | 19560 | 19570 | 19580 | 19590 | 195100 | ||||||||||
| 200 | 205 | 20060 | 20070 | 20080 | 20090 | 200100 | ||||||||||
| 205 | 215 | 20560 | 20570 | 20580 | 20590 | 205100 | ||||||||||
| 215 | 225 | 21560 | 21570 | 21580 | 21590 | 215100 | ||||||||||
| 225 | 230 | 22560 | 22570 | 22580 | 22590 | 225100 | ||||||||||
| 230 | 240 | 23060 | 23070 | 23080 | 23090 | 230100 | ||||||||||
| 240 | 250 | 1.4 | 24060 | 24070 | 24080 | 24090 | 240100 | |||||||||
| 250 | 260 | 1.4 | 1.8 | 25060 | 25070 | 25080 | 25090 | 250100 | ||||||||
| 260 | 270 | 26060 | 26070 | 26080 | 26090 | 260100 | ||||||||||
| 270 | 280 | 27060 | 27070 | 27080 | 27090 | 270100 | ||||||||||
| 280 | 290 | 28060 | 28070 | 28080 | 28090 | 280100 | ||||||||||
| 290 | 300 | 29060 | 29070 | 29080 | 29090 | 290100 | ||||||||||
| 300 | 305 | 30060 | 30070 | 30080 | 30090 | 300100 | ||||||||||
Note: This size chart is provided for reference only. The actual sizes may vary based on your specific application and requirements.
To request special dimensions for wrapped bronze bushings, follow these steps:
- Determine the desired inner diameter (ID), outer diameter (OD), and length (L) for your custom bushing.
- Specify any additional requirements, such as lubrication grooves, lubrication holes, or other custom features.
- Contact the manufacturer or supplier with your specifications, along with any relevant drawings or documentation.
- Obtain a quote for the custom bushings, including the cost, lead time, and any additional information related to the production process.
- Confirm your order and provide the necessary information for the manufacturer or supplier to proceed with the production of your custom wrapped bronze bushings.
By following these steps, you can request special dimensions for your wrapped bronze bushings and ensure that they meet the unique requirements of your application.
Plain bearing – Standard or custom made parts
Bushing Bearing Supplier, Self-Lubricating Metal Catalog
Our range of CuSn8 bronze bearings, made from rolled phosphor bronze alloy material, offers exceptional versatility and is well-suited for a wide variety of applications. These bearings are known for their excellent wear resistance, high load capacity, and impressive corrosion resistance, making them an ideal choice for many industries and use cases.
Call us
Wrapped Bronze Bearing
