As a tin bronze bushing manufacturer, bronzelube.com produce almost all possible dimensions. Tailored Solutions.Cost-Effective Prices. Made In China. Small Minimum Order Quantities. Highlights: Standard Dimensions, Short Periods Of Delivery, Tailored Solutions.
The various bronze bearings bushing types, its designs and variants are described in the following: Solid tin bronze bushings
Flanged bronze bearing, Proven Integrity. Delivering Value.
Huge bearing bushing selection
Mold and Die Components Logo. Quick Quote · Products · Wear Plates · Wear Strips · Bushings · Pins, Guide Posts, Ejectors · Gibs and T-Slides .
Selecting Your Correct Bronze Bearing Materials tailored to your needs.

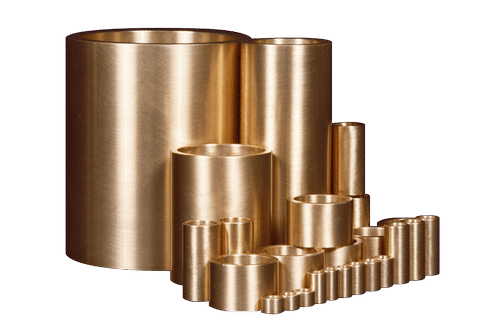

Solid Bronze Straight bushings and Flanged bushings
Solid bronze bushings come in two primary types: straight (cylindrical) and flanged. Both types are designed to provide reliable support and stability for shafts in various applications.
Solid bronze straight bushings are cylindrical in shape, with a straight bore that is designed to fit snugly around a shaft. They are typically used in applications where the bushing will be pressed into a housing or bore, and where there is little or no axial movement of the shaft.
Flanged bronze bushings, on the other hand, have a flange that extends from one end of the bushing. The flange serves as a retaining feature that helps to keep the bushing in place, preventing it from sliding out of the housing or bore. Flanged bushings are commonly used in applications where there is some axial movement of the shaft, or where the bushing may be subjected to lateral forces.
Both types of solid bronze bushings are suitable for use in applications that involve oscillating, rotating, and linear movements. They are designed to accommodate radial loads and provide resistance to wear and corrosion.
The choice between solid bronze straight bushings and flanged bushings will depend on the specific application requirements, such as the amount of axial movement, the need for retaining features, and the overall design of the equipment.
Tin Bronze Bearing & Bushing
Tin bronze bushings are a type of industrial component made from an alloy of copper, tin, and other metals. They are commonly used in a wide range of applications due to their excellent mechanical properties and resistance to wear and corrosion.
Tin bronze is an alloy of copper, tin, and other metals that is known for its high strength, toughness, and resistance to wear and corrosion. This makes it an ideal material for use in bushings, which are subjected to constant pressure and friction. Tin bronze bushings offer excellent performance in harsh environments, as the tin content provides resistance to corrosion and the high strength of the bronze ensures that the bushings will maintain their shape and integrity over time.
Tin bronze bushings are commonly used in industrial applications such as machinery, pumps, valves, and bearings. They provide a smooth and low friction surface between two moving parts, reducing wear and tear on the components and improving their overall performance and longevity. In addition, the resistance to corrosion of the tin bronze material ensures that the bushings will remain functional even in harsh environments.
The manufacturing process of tin bronze bushings involves casting the tin bronze material into the desired shape and then undergoing a series of precision machining operations to ensure that the finished product meets the exact specifications required for the intended application. The bushings are then subjected to rigorous testing to ensure their strength, durability, and resistance to wear and corrosion, and only those that meet the required standards are accepted for use in industrial applications.
In conclusion, tin bronze bushings are an essential component in many industrial applications, providing excellent mechanical properties, low friction, and resistance to wear and corrosion. With their high strength and durability, these bushings are an excellent investment for industries looking for reliable and long-lasting components.
Tin Bronze Bushings Characteristics
- Tin bronze bushing has Low maintenance frequency;
- Tin bronze bearings are suitable for low speed and heavy load occasions;
- Tin bronze bushes can also be used under severe conditions of high temperature & low temperature;
- Tin bronze bushing parts is thinner and saves space;
- Tin bronze parts can be used for linear motion and rotary motion at the same time.
Lead bronze bushes are a type of bearing designed to support rotational applications. They are typically used in machinery, automotive, and other industrial applications. They are made from a bronze alloy that contains a significant amount of lead, which gives these bearings good machinability, low friction properties, and excellent wear resistance.
Self-lubricating bearing. Self-lubricating bearings are unique because they have material properties that create a thin film of lubricant at the bearing surface, reducing friction and wear without the need for external lubrication. They are ideal for applications where maintenance is difficult or impossible, and where high levels of dirt, dust, or other environmental factors might contaminate traditional lubricants.
Plain shaft bearing refers to a basic type of bearing that directly supports a rotating shaft without any rolling elements (like balls or rollers found in other types of bearings). They are typically sleeve-shaped (cylindrical) and allow the shaft to slide (rotate) within them. These types of bearings are also known as “journal bearings” or “sleeve bearings”. They can be made of various materials, but lead bronze is a popular choice due to its durability and low friction properties.
Please note that specific product details such as dimensions, load capacity, etc. would vary depending on the manufacturer’s specifications. So, if you’re planning to use any of these bushings in a project, it’s crucial to ensure the product’s specifications match your application needs.
C93200 Alloy – SAE 660 – C93200 / C932 – Stocked Alloy
Tin Bronze Bushing cylindrical bushes with bronze alloy according to ISO 4379 & ISO 4380, special parts according to ISO, DIN or customer design, special alloys. C93200 Leaded Tin Bronze Cast Alloy, In Stock, Call For Custom Quote. Tin bronze is strong and hard and has very high ductility. This combination of properties gives them a high load-carrying capacity, good wear resistance! C93200 bronze alloy bearings are a type of industrial component used in a variety of applications due to their exceptional properties. Made from a combination of copper, tin, lead, and other metals, C93200 bronze alloy offers a unique combination of strength, wear resistance, and corrosion resistance.
C93200 bronze alloy is a high-quality material that is known for its strength, toughness, and resistance to wear and corrosion. It is an excellent choice for use in bearings, which are subjected to constant pressure and friction. C93200 bronze alloy bearings offer excellent performance in harsh environments, as the lead content provides added lubrication and the high strength of the bronze ensures that the bearings will maintain their shape and integrity over time.
C93200 bronze alloy bearings are commonly used in industrial applications such as machinery, pumps, valves, and bearings. They provide a smooth and low friction surface between two moving parts, reducing wear and tear on the components and improving their overall performance and longevity. In addition, the resistance to corrosion of the C93200 bronze alloy material ensures that the bearings will remain functional even in harsh environments.
The manufacturing process of C93200 bronze alloy bearings involves casting the bronze material into the desired shape and then undergoing a series of precision machining operations to ensure that the finished product meets the exact specifications required for the intended application. The bearings are then subjected to rigorous testing to ensure their strength, durability, and resistance to wear and corrosion, and only those that meet the required standards are accepted for use in industrial applications.
In conclusion, C93200 bronze alloy bearings are an essential component in many industrial applications, providing excellent mechanical properties, low friction, and resistance to wear and corrosion. With their high strength and durability, these bearings are an excellent investment for industries looking for reliable and long-lasting components.
Applications: Industrial – Selecting Bronze Bearing Materials
Leading Supplier Of High Quality Brass, Copper & Bronze Products. Contact Us Today!
Bronze bearings are a popular choice for use in industrial applications due to their unique combination of properties. These properties include high strength, good wear resistance, and excellent corrosion resistance, making bronze bearings ideal for use in harsh environments. When selecting bronze bearing materials, it is important to consider the specific requirements of the application, such as operating conditions, load requirements, and any potential exposure to corrosive substances.
One of the most important considerations when selecting bronze bearing materials is the operating conditions. If the bearings will be exposed to high temperatures, high loads, or heavy shock loads, it is important to select a bronze material with high strength and good wear resistance. Additionally, if the application will be subjected to high speeds, a bronze material with good lubrication properties may be necessary.
Another important factor to consider is the potential exposure to corrosive substances. If the bearings will be exposed to chemicals or other corrosive substances, it is important to select a bronze material with excellent corrosion resistance. Some bronze alloys, such as C93200 bronze alloy, are specifically designed for use in harsh environments and offer excellent resistance to corrosion.
When selecting bronze bearing materials, it is also important to consider the manufacturing process. Some bronze alloys may be easier to manufacture, resulting in lower costs and quicker delivery times. Additionally, the manufacturing process can also impact the strength and durability of the bearings, so it is important to choose a material that can be manufactured to meet the exact specifications required for the application.
In conclusion, selecting the right bronze bearing materials for industrial applications is a critical decision that requires careful consideration of the specific requirements of the application. By taking into account operating conditions, load requirements, exposure to corrosive substances, and the manufacturing process, you can ensure that you select the right bronze bearing materials to meet your needs.
Why is tin used tin bronze?
Tin’s principal function is to strengthen these bronze alloys. Tin bronze is strong and hard and has very high ductility. This combination of properties gives them a high load-carrying capacity, good wear resistance, and the ability to withstand pounding. Tin is used in tin bronze bushing because of its unique properties that make it ideal for use in industrial applications. Tin bronze, also known as tin-bronze or tin-copper bronze, is an alloy made from copper, tin, and other metals that provides a combination of strength, hardness, and corrosion resistance.
The tin content in tin bronze provides a number of important benefits that make it an ideal material for use in bushings. First, tin improves the corrosion resistance of the bronze, making it ideal for use in harsh environments where the bearings may be exposed to moisture, chemicals, or other corrosive substances. This helps to ensure that the bushings will remain functional over a long period of time.
Second, tin also increases the hardness and strength of the bronze, making it ideal for use in high-load applications where the bushings are subjected to heavy loads and high stress. This increased strength helps to prevent the bushings from becoming deformed or damaged over time, which can impact the performance of the machinery and equipment in which they are used.
Finally, tin can also provide improved lubrication properties, reducing friction and wear between the moving parts in the machinery. This not only helps to extend the life of the bushings, but it can also improve the overall performance and efficiency of the equipment in which they are used.
In conclusion, tin is used in tin bronze bushings because of its unique combination of properties that make it ideal for use in industrial applications. With its excellent corrosion resistance, increased strength and hardness, and improved lubrication properties, tin bronze is a versatile and reliable material that provides long-lasting performance and durability in even the harshest environments.
Tin Bronze Bushing & Solid Bronze Flange Bearing – CuSn7Zn4Pb7-C
Beautifully crafted leather products.
Tin Bronze Bushing & Flange Bronze Bearings
- Base Material: Tin Bronze, CuSn7Zn4Pb7-C
-
Insensitive to dirty environments
- Resistant to impact loads and vibrations at low speeds
- Operate with lower quality shaft finish
- Good corrosion resistance
Get First Tin Bronze Bushing Consultation Online Today!
Bronze Sleeve Bearing: This is another name for a solid bronze bushing that is designed to slide over a shaft, creating a low-friction surface for the shaft to rotate on. Solid bronze bearing Tin Bronze Bushing benefits: Conventional bearing material for lubricated applications in general engineering applications. Suitable for oil and grease lubrication.
CuSn7Zn4Pb7 Solid bronze flanged bushing

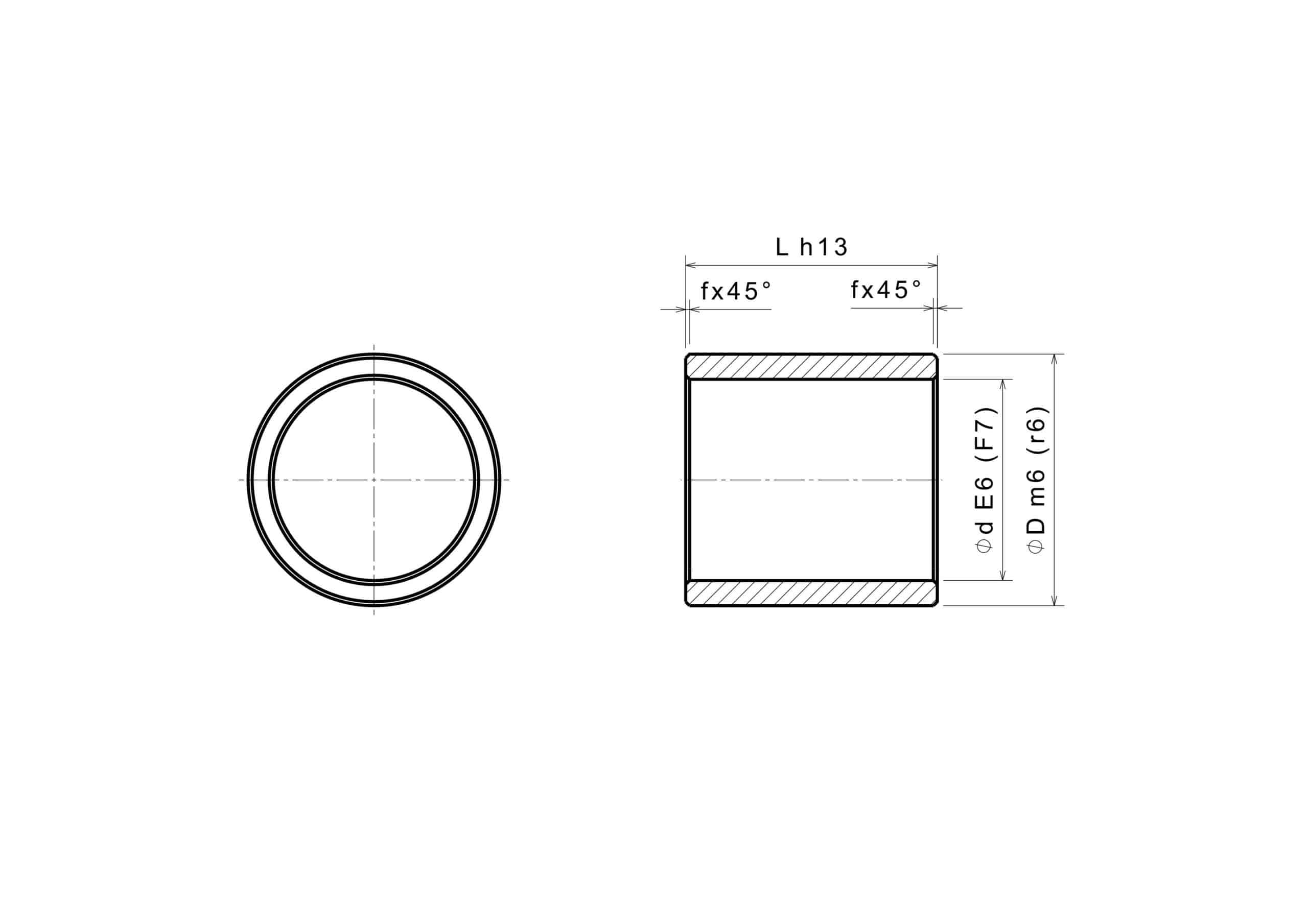

CuSn7Zn4Pb7 Solid bronze straight bushings
Bronzelube is a well-known manufacturer of high-quality bearings, seals, and other components for various industries. Bronzelube produces a range of solid bronze straight bushings that are designed to provide reliable performance and durability in tough operating conditions.
The Bronzelube solid bronze straight bushings are made from high-strength bronze material that provides excellent resistance to wear, corrosion, and fatigue. These bushings can accommodate both radial and axial loads and are suitable for use in applications that involve oscillating, rotating, and linear movements.
The Bronzelube solid bronze straight bushings are available in various sizes, shapes, and styles to meet different application requirements. They can be supplied with or without lubrication holes and grooves, and they can be ordered with a range of coatings and finishes to enhance their performance and resistance to corrosion.
Bronzelube solid bronze straight bushings are commonly used in heavy machinery, construction equipment, automotive, and agricultural applications, where they provide reliable and long-lasting performance. If you have any further questions about Bronzelube solid bronze straight bushings, please feel free to ask.
- Insensitive to dirty environments
- Resistant to impact loads and vibrations at low speeds
- Operate with lower-quality shaft finish
- Good corrosion resistance
Solid bronze straight bushings are designed to withstand tough operating conditions and are suitable for use in applications that involve oscillating, rotating, and linear movements, where they can accommodate radial loads. These bushings are made from solid bronze, which is a material known for its strength, durability, and resistance to wear and corrosion.
The cylindrical shape of the bushing allows it to fit into a housing, where it can be secured in place using a press fit or locking mechanism. The inside diameter of the bushing is designed to fit snugly around a shaft, providing support and stability as the shaft moves back and forth.
Solid bronze straight bushings are commonly used in applications such as machinery, automotive, construction equipment, and agriculture, where they can help to reduce friction and wear, and extend the service life of equipment. If you have any specific questions or requirements regarding solid bronze straight bushings, feel free to ask and I’ll do my best to assist you.

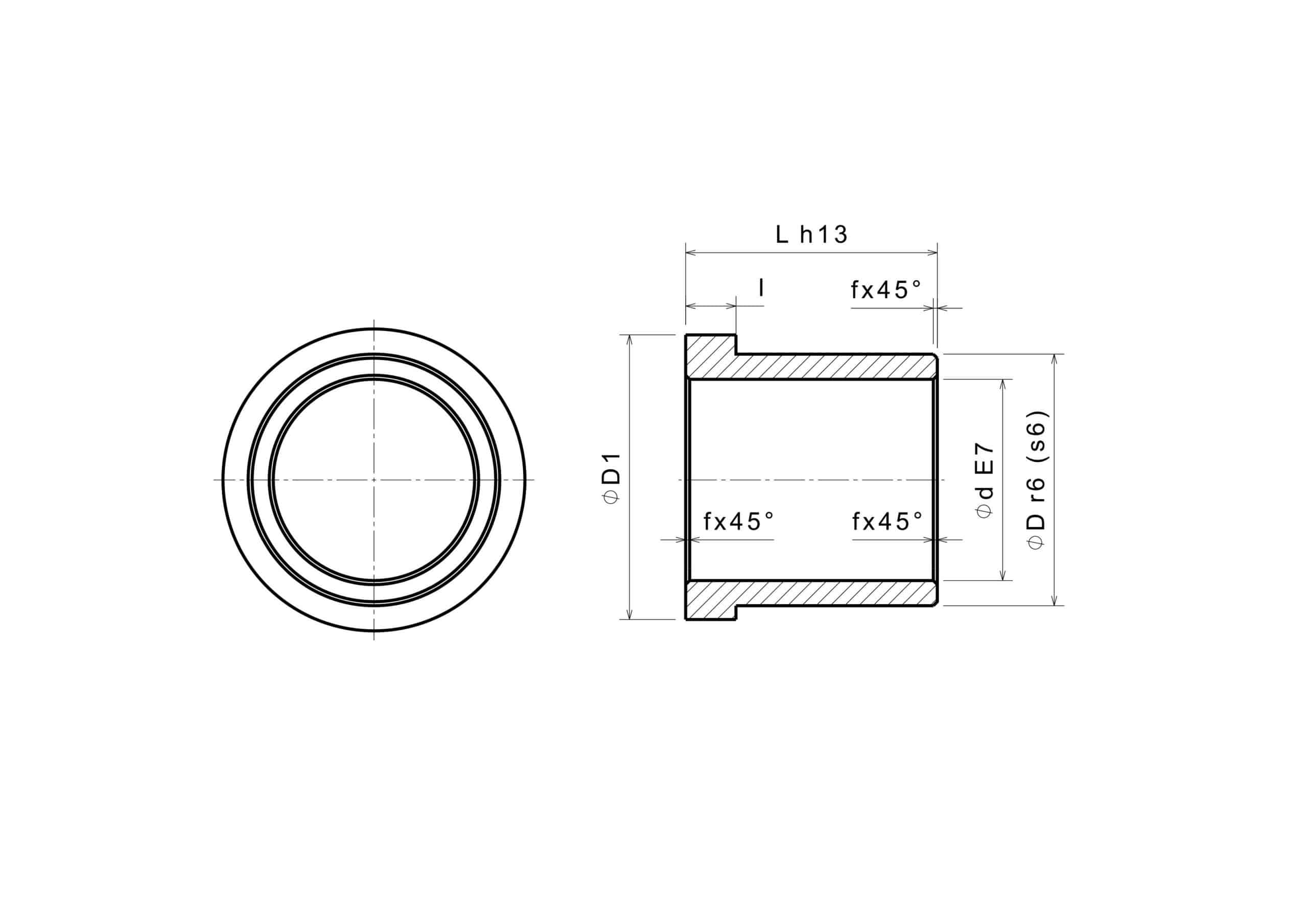

CuSn7Zn4Pb7 Solid bronze flanged bushing
CuSn7Zn4Pb7 is a type of solid bronze material that is often used in the manufacturing of bushings. It is also commonly known as SAE 660 bronze or bearing bronze.
The composition of CuSn7Zn4Pb7 is as follows:
- Copper (Cu): 83-87%
- Tin (Sn): 6.5-7.5%
- Zinc (Zn): 3-5%
- Lead (Pb): 6-8%
This composition provides excellent wear resistance, high load-bearing capacity, and good thermal conductivity. The addition of lead helps to improve the machinability of the material.
A flanged bushing made from CuSn7Zn4Pb7 would be well-suited for use in applications where there is a high level of friction, such as in heavy machinery or automotive engines. The flange helps to provide additional stability and support, and can also help to prevent the bushing from shifting or rotating under heavy loads.
Overall, CuSn7Zn4Pb7 is a high-quality material that is often chosen for its durability and strength in industrial and manufacturing applications.

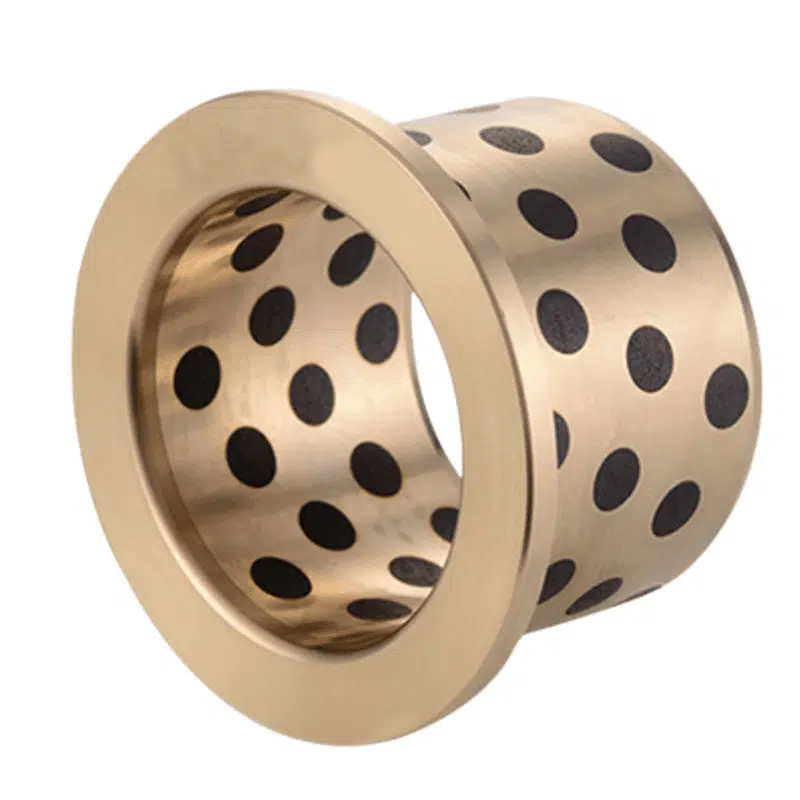

C93200 Self-lubricating plugged graphite bearing
C93200 Self-lubricating plugged graphite bearing is a type of plain bearing made from a bronze alloy material and infused with graphite particles. The graphite particles provide a self-lubricating property to the bearing, reducing the need for external lubrication. This type of bearing is typically used in applications where lubrication is difficult or where maintenance is not practical. Some of the common applications for C93200 self-lubricating plugged graphite bearings include pumps, valves, and gearboxes in the chemical and petrochemical industries. These bearings are designed to withstand high loads and high temperatures, making them an ideal choice for harsh operating conditions.
Tin Bronze Bushes Selection
The selection of a tin bronze bearing is a critical step that can greatly impact the performance and longevity of the bearing. Here are some important factors to consider when selecting a tin bronze bearing:
Load and speed requirements: The load and speed requirements of the bearing should be taken into consideration to determine the size, shape, and composition of the bearing.
Environmental conditions: Consider the environmental conditions in which the bearing will be used, such as temperature, humidity, and exposure to corrosive substances. Choose a tin bronze composition that is well-suited to these conditions.
Wear resistance: Tin bronze bearings are known for their excellent wear resistance, but the level of wear resistance can vary depending on the composition of the bearing. Choose a composition that provides the level of wear resistance required for the application.
Hardness: The hardness of the bearing can impact its performance, so it is important to choose a composition that provides the required hardness for the application.
Cost: Tin bronze bearings can vary in cost, depending on the composition and the size and shape of the bearing. Consider the cost of the bearing in relation to the overall cost of the application and choose a bearing that provides the best balance of cost and performance.
Availability: Consider the availability of the desired tin bronze bearing, as some compositions may be more readily available than others.
By taking these factors into consideration, you can select a tin bronze bearing that provides the performance, longevity, and cost-effectiveness required for your application.
Tin Bronze Bearings,
Plain Bearing: This is a broad term that refers to any type of bearing that does not use rolling elements. Solid bronze bushings are an example of a plain bearing. Tin Bronze Bushing Worldwide Shipping!
Tin Bronze Bearings is a high performance bearing material that is widely used in industry and aerospace. It has excellent corrosion resistance, good wear resistance and high strength, making it one of the preferred bearing materials.
Tin Bronze Bearings are particularly suitable for use in harsh environments, such as high temperature and high humidity environments. It also has good electrical conductivity and resistance to electrolytic corrosion, which can improve the efficiency and life of equipment.
Tin bronze bearings, also known as tin-bronze alloys, are commonly used in applications that require high wear resistance and good bearing properties. They are made by combining copper and tin in specific proportions to achieve desired properties.
The United States Standard for tin bronze bearings typically refers to a set of specifications that ensure the quality and performance of these bearings. The specifications cover aspects such as material composition, dimensional accuracy, surface finish, and other performance criteria. The exact specifications may vary depending on the intended application and industry standards.
It is important to use bearings that meet the United States Standard, as this helps ensure that the bearings will perform as expected and provide a long service life. In some cases, using bearings that do not meet these standards may result in reduced performance, shorter service life, or even failure.
Trusted Bronze Bushes Supplier
If you are looking for a trusted supplier of bronze bushes, there are a number of options available to you. choosing a supplier include the quality of the bronze bushes we offer,
and trusted suppliers of bronze bushes we are known for offering a wide range of industrial products, including bronze bushes. They have a reputation for providing high-quality products and excellent customer service.
We offers a large selection of bronze bushes, as well as a wide range of other industrial products. We are known for providing competitive prices and good customer service.
Supplier of industrial products, including bronze bushes. We are known for our large selection of products and our commitment to providing high-quality products and excellent customer service.
online offers a wide range of industrial products, including bronze bushes. We are known for their competitive prices and convenient shopping experience. including suppliers of bronze bushes. You can use this site to find suppliers that meet your specific needs and compare prices and services.
When choosing a supplier, it is important to do your research and compare prices and services to find the one that best meets your needs.
C93200 Bronze (SAE 660) – Order Online, Bushings & Bearings, C932 Bronze – Custom Cut to Size Options
TIN BRONZE ALLOY BUSHING LEADED GUNMETAL BEARINGS CuSn5ZnPb5, C93200 Alloy (SAE660) – C93200 Alloy / C932 Alloy
Copper bronze bushing & bearings: Most often an alloy of bronze with tin, aluminum or manganese bronze, these alloys have high corrosive resistance, making them ideal for marine applications.
ASTM B505 C83600 Bearings. Positioning of lubrication groove at different running conditions, rotating movement. From Bearings to Architecture to Marine Applications, We Have the Bronze You Need.
Quality custom machine parts online sales — bronze and beyond:https://www.bronzelube.com/
Custom Machined Bushing.We Stock and Manufacture Solutions.For Machine parts with an inside diameter of ≥ 8mm. For larger sizes ≤ 400 mm to be agreed with the order.
We offers an integrated production from the raw material and casting right through to the end product according to the clients’ designs with complete traceability and full certification.
CHARACTERISTICS
Bronze Bearing is a CuSn5Pb5Zn5 tin-bronze based product. The surface is machined with groove type.
The closest international standards are the ASTM B505 C83600 and the CuSn5ZnPb (Rg5).High Lead Tin Bearing Bronze Self-lubricating Products
MATERIAL AND COMPOSITION
Support material Bronze (CuSn5ZnPb5) with groove
Chemical composition |
||
| % min. | % max. | |
| Cu | 83,0 | 87,0 |
| Ni | 2,0 | |
| P | 0,10 | |
| Pb | 4,0 | 6,0 |
| Sn | 4,0 | 6,0 |
| Zn | 4,0 | 6,0 |
| Al | 0,01 | |
| Fe | 0,3 | |
| S | 0,10 | |
| Sb | 0,25 | |
| Si | 0,01 | |
TIN BRONZE BUSHINGS AVAILABILITY
Tin Bronze Bearing forms available in standard dimensions: Metric (mm) Imperial (inch) Bushing
Metric bearings & imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
TIN BRONZE BEARING SHAPES & FORMS
- Cylindrical bushes
- Flanged bushes
- Thrust washers
- Flanged washers
- Sliding plates
RANGE OF APPLICATION
Tin bronze bushings is applied in abrasive environment conditions with heavy loads and medium running speeds, for example in the light industry, for machining tools and casting lines, etc.
SPECIAL MANUFACTURING
* For higher requirements – e.g. higher temperature ranges – different materials are available in this category.Special dimensions are available on request
C93200 Alloy (SAE660) – C93200 Alloy / C932 Alloy
Bushings & Bearings, We have C93200 Bronze in Solid Bearing, Bushing, Castings. Get a quote today or order online! Cast Bronze C93200 (also known as SAE 660) is a type of plain bearing material. It is a high-leaded tin bronze, which is made up of copper, tin, lead, and zinc. The material has good machinability, castability, and resistance to wear and corrosion.
Plain bearings are a type of bearing that are used to support rotating shafts. They consist of a smooth metal surface that is in direct contact with the shaft, allowing for low-friction movement. Cast bronze C93200 sleeves are commonly used as plain bearings in various applications, such as pumps, valves, and gearboxes. The high tin content in Cast Bronze C93200 provides it with good antifriction properties, making it a suitable material for use in high-load, low-speed applications. The lead content in the material helps to reduce friction and improve wear resistance. The material also has good resistance to corrosion, making it suitable for use in a variety of environments. In summary, Cast Bronze C93200 is a popular material for use in plain bearings due to its good antifriction properties, wear resistance, and corrosion resistance.
