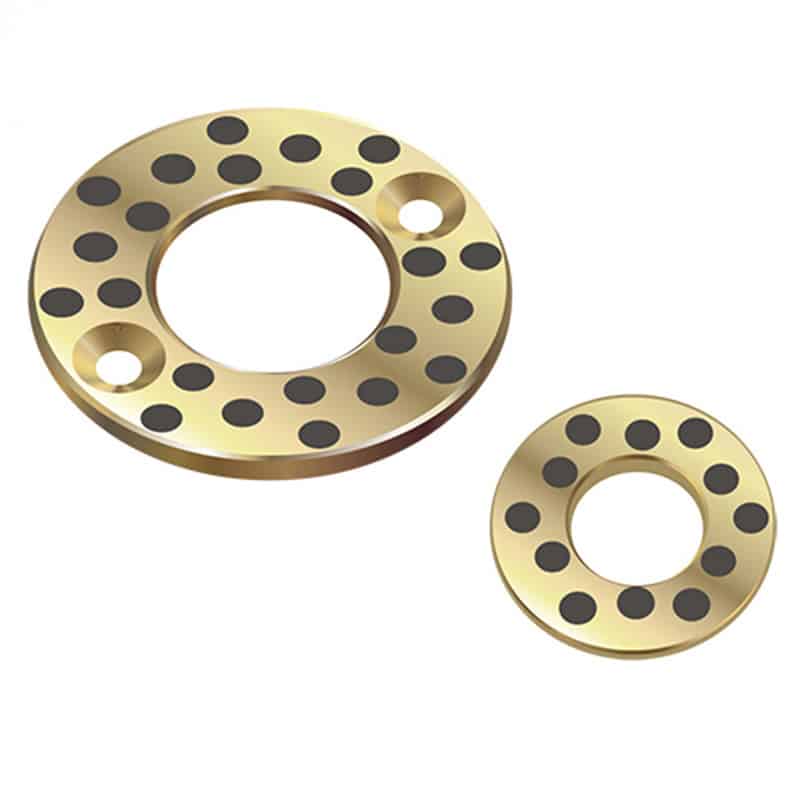

SPW Oilless Thrust Washer with Graphite Plugs Material Bronze alloy CuZn25Al5Mn4Fe3 + Graphite plugs.

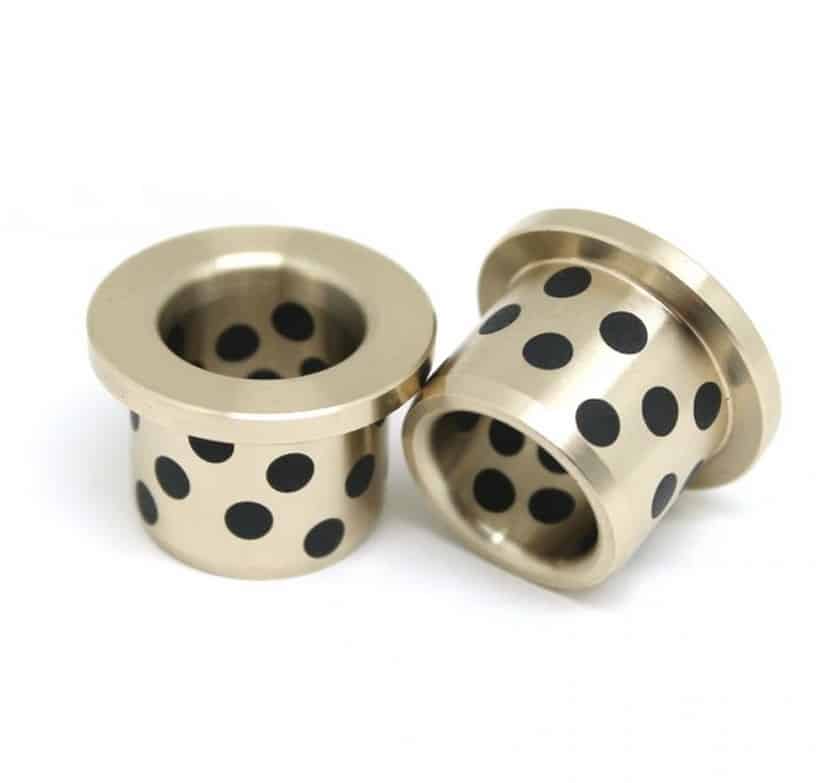

Compound bearing (flanged bushing type ) with low friction characteristics and that optimize metal properties such as strength and dimensional stability.
The Quality Company of High Performance, Quality, Oil-free and Maintenance-free Bearings for Various industries.
SAE 841 Oil Impregnated Sintered Bronze, sae 841 bronze equivalent
Saves You Time & Money In Research, Design & Production Costs. E-mail Now! Copper Alloy Bars , Plates & Parts Specialists For Manufacturing & Machining Of All Types. Custom Solutions. Quality Products & Parts. Expert Customer Service.
Oiles bearings feature self-lubricating functions and demonstrate high performance, which normal plain bearings cannot provide, for fluid lubrication, boundary lubrication, and dry friction fields.
- No requirement of a lubricating system, lubrica- tion holes, or oil grooves
- Reduction of running costs
- Maintenance free
- Reduction of design time
- Lubricating oil recycling and environmental protection
BUSHINGS TYPE
Bearing bush forms available in standard dimensions.

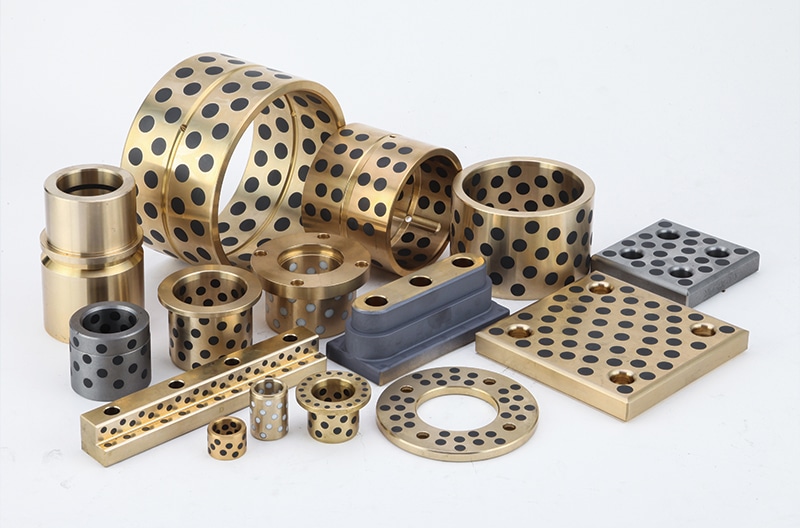

Bushing Bearing type made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs.
OILES 500
- Self-lubricating bronze components with fixed built-in lubricants.
- The components are maintenance-free, and get lubrication from the built-in lubrication plugs.
The bearings offer many advantages
- Cope with high loads at low speeds
- Big range of standard dimensions
- Wide working-temperature range
- Long service life
- Maintenance-free
- Anti-corrosion properties and chemical resistance
- Withstand alternating sliding directions, oscillating movements and frequent starts and stops
Technical instructions:
- Maximum permissible surface pressure 55 – 160 N/mm2 (static)
- Maximum permissible surface pressure 30 – 90 N/mm2 (dynamic)
- Minimum working temperature -40°C
- Maximum working temperature +80°C to +400°C
- Maximum sliding speed 0.5 m/s
Solid lubricants:
Three different kinds of solid lubricants are available, two of which are based on graphite and one on PTFE. They are produced by compression which gives plugs with high density and good lubrication properties.
View our range of self-lubricating bearing bushes, oilless bushings. Buy online today for great prices and fast delivery.

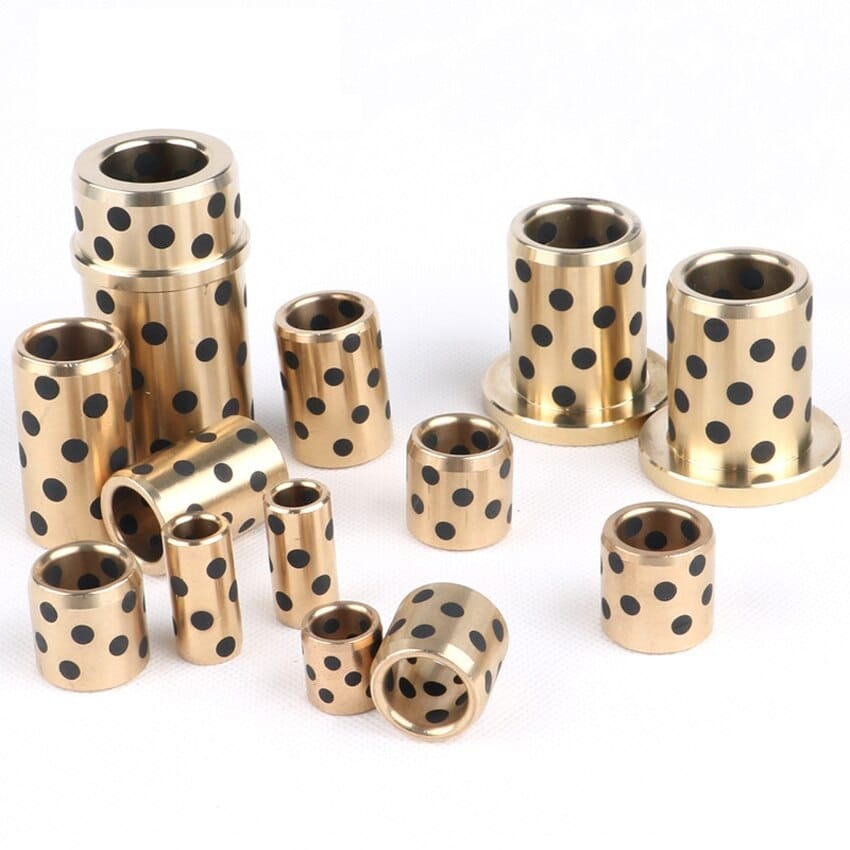

Standard cylindrical bushing sizes
| Oiles 500 Bushings | I.D.: Φd | O.D.: ΦD | Length: L |
| Oilless Bush-061008 | 6 | 10 | 8 |
| Oilless Bush-061010 | 6 | 10 | 10 |
| Oilless Bush-061012 | 6 | 10 | 12 |
| Oilless Bush-081208 | 8 | 12 | 8 |
| Oilless Bush-081210 | 8 | 12 | 10 |
| Oilless Bush-081212 | 8 | 12 | 12 |
| Oilless Bush-081215 | 8 | 12 | 15 |
| Oilless Bush-101408 | 10 | 14 | 8 |
| Oilless Bush-101410 | 10 | 14 | 10 |
| Oilless Bush-101412 | 10 | 14 | 12 |
| Oilless Bush-101415 | 10 | 14 | 15 |
| Oilless Bush-101420 | 10 | 14 | 20 |
| Oilless Bush-121808 | 12 | 18 | 8 |
| Oilless Bush-121810 | 12 | 18 | 10 |
| Oilless Bush-121812 | 12 | 18 | 12 |
| Oilless Bush-121815 | 12 | 18 | 15 |
| Oilless Bush-121816 | 12 | 18 | 16 |
| Oilless Bush-121819 | 12 | 18 | 19 |
| Oilless Bush-121820 | 12 | 18 | 20 |
| Oilless Bush-121825 | 12 | 18 | 25 |
| Oilless Bush-121830 | 12 | 18 | 30 |
| Oilless Bush-131910 | 13 | 19 | 10 |
| Oilless Bush-131912 | 13 | 19 | 12 |
| Oilless Bush-131915 | 13 | 19 | 15 |
| Oilless Bush-131920 | 13 | 19 | 20 |
| Oilless Bush-131925 | 13 | 19 | 25 |
| Oilless Bush-131930 | 13 | 19 | 30 |
| Oilless Bush-142010 | 14 | 20 | 10 |
| Oilless Bush-142012 | 14 | 20 | 12 |
| Oilless Bush-142015 | 14 | 20 | 15 |
| Oilless Bush-142020 | 14 | 20 | 20 |
| Oilless Bush-142025 | 14 | 20 | 25 |
| Oilless Bush-142030 | 14 | 20 | 30 |
| Oilless Bush-152110 | 15 | 21 | 10 |
| Oilless Bush-152112 | 15 | 21 | 12 |
| Oilless Bush-152115 | 15 | 21 | 15 |
| Oilless Bush-152116 | 15 | 21 | 16 |
| Oilless Bush-152120 | 15 | 21 | 20 |
| Oilless Bush-152125 | 15 | 21 | 25 |
| Oilless Bush-152130 | 15 | 21 | 30 |
| Oilless Bush-152135 | 15 | 21 | 35 |
| Oilless Bush-152140 | 15 | 21 | 40 |
| Oilless Bush-162210 | 16 | 22 | 10 |
| Oilless Bush-162212 | 16 | 22 | 12 |
| Oilless Bush-162215 | 16 | 22 | 15 |
| Oilless Bush-162216 | 16 | 22 | 16 |
| Oilless Bush-162219 | 16 | 22 | 19 |
| Oilless Bush-162220 | 16 | 22 | 20 |
| Oilless Bush-162225 | 16 | 22 | 25 |
| Oilless Bush-162230 | 16 | 22 | 30 |
| Oilless Bush-162235 | 16 | 22 | 35 |
| Oilless Bush-162240 | 16 | 22 | 40 |
| Oilless Bush-172315 | 17 | 23 | 15 |
| Oilless Bush-182410 | 18 | 24 | 10 |
| Oilless Bush-182412 | 18 | 24 | 12 |
| Oilless Bush-182415 | 18 | 24 | 15 |
| Oilless Bush-182416 | 18 | 24 | 16 |
| Oilless Bush-182420 | 18 | 24 | 20 |
| Oilless Bush-182425 | 18 | 24 | 25 |
| Oilless Bush-182430 | 18 | 24 | 30 |
| Oilless Bush-182435 | 18 | 24 | 35 |
| Oilless Bush-182440 | 18 | 24 | 40 |
| Oilless Bush-192615 | 19 | 26 | 15 |
| Oilless Bush-192620 | 19 | 26 | 20 |
| Oilless Bush-202810 | 20 | 28 | 10 |
| Oilless Bush-202812 | 20 | 28 | 12 |
| Oilless Bush-202815 | 20 | 28 | 15 |
| Oilless Bush-202816 | 20 | 28 | 16 |
| Oilless Bush-202819 | 20 | 28 | 19 |
| Oilless Bush-202820 | 20 | 28 | 20 |
| Oilless Bush-202825 | 20 | 28 | 25 |
| Oilless Bush-202830 | 20 | 28 | 30 |
| Oilless Bush-202835 | 20 | 28 | 35 |
| Oilless Bush-202840 | 20 | 28 | 40 |
| Oilless Bush-202850 | 20 | 28 | 50 |
| Oilless Bush-203010 | 20 | 30 | 10 |
| Oilless Bush-203012 | 20 | 30 | 12 |
| Oilless Bush-203015 | 20 | 30 | 15 |
| Oilless Bush-203016 | 20 | 30 | 16 |
| Oilless Bush-203020 | 20 | 30 | 20 |
| Oilless Bush-203025 | 20 | 30 | 25 |
| Oilless Bush-203030 | 20 | 30 | 30 |
| Oilless Bush-203035 | 20 | 30 | 35 |
| Oilless Bush-203040 | 20 | 30 | 40 |
| Oilless Bush-203050 | 20 | 30 | 50 |
| Oilless Bush-223212 | 22 | 32 | 12 |
| Oilless Bush-223215 | 22 | 32 | 15 |
| Oilless Bush-223220 | 22 | 32 | 20 |
| Oilless Bush-223225 | 22 | 32 | 25 |
| Oilless Bush-253312 | 25 | 33 | 12 |
| Oilless Bush-253315 | 25 | 33 | 15 |
| Oilless Bush-253316 | 25 | 33 | 16 |
| Oilless Bush-253320 | 25 | 33 | 20 |
| Oilless Bush-253325 | 25 | 33 | 25 |
| Oilless Bush-253330 | 25 | 33 | 30 |
| Oilless Bush-253335 | 25 | 33 | 35 |
| Oilless Bush-253340 | 25 | 33 | 40 |
| Oilless Bush-253350 | 25 | 33 | 50 |
| Oilless Bush-253360 | 25 | 33 | 60 |
| Oilless Bush-253512 | 25 | 35 | 12 |
| Oilless Bush-253515 | 25 | 35 | 15 |
| Oilless Bush-253516 | 25 | 35 | 16 |
| Oilless Bush-253520 | 25 | 35 | 20 |
| Oilless Bush-253525 | 25 | 35 | 25 |
| Oilless Bush-253530 | 25 | 35 | 30 |
| Oilless Bush-253535 | 25 | 35 | 35 |
| Oilless Bush-253540 | 25 | 35 | 40 |
| Oilless Bush-253550 | 25 | 35 | 50 |
| Oilless Bush-253560 | 25 | 35 | 60 |
| Oilless Bush-283820 | 28 | 38 | 20 |
| Oilless Bush-283825 | 28 | 38 | 25 |
| Oilless Bush-283830 | 28 | 38 | 30 |
| Oilless Bush-283840 | 28 | 38 | 40 |
| Oilless Bush-303812 | 30 | 38 | 12 |
| Oilless Bush-303815 | 30 | 38 | 15 |
| Oilless Bush-303820 | 30 | 38 | 20 |
| Oilless Bush-303825 | 30 | 38 | 25 |
| Oilless Bush-303830 | 30 | 38 | 30 |
| Oilless Bush-303835 | 30 | 38 | 35 |
| Oilless Bush-303840 | 30 | 38 | 40 |
| Oilless Bush-303850 | 30 | 38 | 50 |
| Oilless Bush-303860 | 30 | 38 | 60 |
| Oilless Bush-304012 | 30 | 40 | 12 |
| Oilless Bush-304015 | 30 | 40 | 15 |
| Oilless Bush-304020 | 30 | 40 | 20 |
| Oilless Bush-304025 | 30 | 40 | 25 |
| Oilless Bush-304030 | 30 | 40 | 30 |
| Oilless Bush-304035 | 30 | 40 | 35 |
| Oilless Bush-304040 | 30 | 40 | 40 |
| Oilless Bush-304050 | 30 | 40 | 50 |
| Oilless Bush-304060 | 30 | 40 | 60 |
| Oilless Bush-314030 | 31.5 | 40 | 30 |
| Oilless Bush-314040 | 31.5 | 40 | 40 |
| Oilless Bush-324220 | 32 | 42 | 20 |
| Oilless Bush-324230 | 32 | 42 | 30 |
| Oilless Bush-324240 | 32 | 42 | 40 |
| Oilless Bush-354420 | 35 | 44 | 20 |
| Oilless Bush-354425 | 35 | 44 | 25 |
| Oilless Bush-354430 | 35 | 44 | 30 |
| Oilless Bush-354435 | 35 | 44 | 35 |
| Oilless Bush-354440 | 35 | 44 | 40 |
| Oilless Bush-354450 | 35 | 44 | 50 |
| Oilless Bush-354460 | 35 | 44 | 60 |
| Oilless Bush-354520 | 35 | 45 | 20 |
| Oilless Bush-354525 | 35 | 45 | 25 |
| Oilless Bush-354530 | 35 | 45 | 30 |
| Oilless Bush-354535 | 35 | 45 | 35 |
| Oilless Bush-354540 | 35 | 45 | 40 |
| Oilless Bush-354550 | 35 | 45 | 50 |
| Oilless Bush-354560 | 35 | 45 | 60 |
| Oilless Bush-384840 | 38 | 48 | 40 |
| Oilless Bush-405015 | 40 | 50 | 15 |
| Oilless Bush-405020 | 40 | 50 | 20 |
| Oilless Bush-405025 | 40 | 50 | 25 |
| Oilless Bush-405030 | 40 | 50 | 30 |
| Oilless Bush-405035 | 40 | 50 | 35 |
| Oilless Bush-405040 | 40 | 50 | 40 |
| Oilless Bush-405050 | 40 | 50 | 50 |
| Oilless Bush-405060 | 40 | 50 | 60 |
| Oilless Bush-405070 | 40 | 50 | 70 |
| Oilless Bush-405080 | 40 | 50 | 80 |
| Oilless Bush-405515 | 40 | 55 | 15 |
| Oilless Bush-405530 | 40 | 55 | 30 |
| Oilless Bush-405535 | 40 | 55 | 35 |
| Oilless Bush-405540 | 40 | 55 | 40 |
| Oilless Bush-405550 | 40 | 55 | 50 |
| Oilless Bush-405560 | 40 | 55 | 60 |
| Oilless Bush-455530 | 45 | 55 | 30 |
| Oilless Bush-455535 | 45 | 55 | 35 |
| Oilless Bush-455540 | 45 | 55 | 40 |
| Oilless Bush-455550 | 45 | 55 | 50 |
| Oilless Bush-455560 | 45 | 55 | 60 |
| Oilless Bush-455630 | 45 | 56 | 30 |
| Oilless Bush-455635 | 45 | 56 | 35 |
| Oilless Bush-455640 | 45 | 56 | 40 |
| Oilless Bush-455650 | 45 | 56 | 50 |
| Oilless Bush-455660 | 45 | 56 | 60 |
| Oilless Bush-456030 | 45 | 60 | 30 |
| Oilless Bush-456035 | 45 | 60 | 35 |
| Oilless Bush-456040 | 45 | 60 | 40 |
| Oilless Bush-456050 | 45 | 60 | 50 |
| Oilless Bush-456060 | 45 | 60 | 60 |
| Oilless Bush-456070 | 45 | 60 | 70 |
| Oilless Bush-456080 | 45 | 60 | 80 |
| Oilless Bush-506020 | 50 | 60 | 20 |
| Oilless Bush-506030 | 50 | 60 | 30 |
| Oilless Bush-506035 | 50 | 60 | 35 |
| Oilless Bush-506040 | 50 | 60 | 40 |
| Oilless Bush-506050 | 50 | 60 | 50 |
| Oilless Bush-506060 | 50 | 60 | 60 |
| Oilless Bush-506070 | 50 | 60 | 70 |
| Oilless Bush-506080 | 50 | 60 | 80 |
| Oilless Bush-506230 | 50 | 62 | 30 |
| Oilless Bush-506235 | 50 | 62 | 35 |
| Oilless Bush-506240 | 50 | 62 | 40 |
| Oilless Bush-506250 | 50 | 62 | 50 |
| Oilless Bush-506260 | 50 | 62 | 60 |
| Oilless Bush-506270 | 50 | 62 | 70 |
| Oilless Bush-506280 | 50 | 62 | 80 |
| Oilless Bush-506530 | 50 | 65 | 30 |
| Oilless Bush-506540 | 50 | 65 | 40 |
| Oilless Bush-506550 | 50 | 65 | 50 |
| Oilless Bush-506560 | 50 | 65 | 60 |
| Oilless Bush-506570 | 50 | 65 | 70 |
| Oilless Bush-506580 | 50 | 65 | 80 |
| Oilless Bush-5065100 | 50 | 65 | 100 |
| Oilless Bush-557030 | 55 | 70 | 30 |
| Oilless Bush-557035 | 55 | 70 | 35 |
| Oilless Bush-557040 | 55 | 70 | 40 |
| Oilless Bush-557050 | 55 | 70 | 50 |
| Oilless Bush-557060 | 55 | 70 | 60 |
| Oilless Bush-557070 | 55 | 70 | 70 |
| Oilless Bush-607430 | 60 | 74 | 30 |
| Oilless Bush-607435 | 60 | 74 | 35 |
| Oilless Bush-607440 | 60 | 74 | 40 |
| Oilless Bush-607450 | 60 | 74 | 50 |
| Oilless Bush-607460 | 60 | 74 | 60 |
| Oilless Bush-607470 | 60 | 74 | 70 |
| Oilless Bush-607480 | 60 | 74 | 80 |
| Oilless Bush-607530 | 60 | 75 | 30 |
| Oilless Bush-607535 | 60 | 75 | 35 |
| Oilless Bush-607540 | 60 | 75 | 40 |
| Oilless Bush-607550 | 60 | 75 | 50 |
| Oilless Bush-607560 | 60 | 75 | 60 |
| Oilless Bush-607570 | 60 | 75 | 70 |
| Oilless Bush-607580 | 60 | 75 | 80 |
| Oilless Bush-6075100 | 60 | 75 | 100 |
| Oilless Bush-637560 | 63 | 75 | 60 |
| Oilless Bush-637570 | 63 | 75 | 70 |
| Oilless Bush-637580 | 63 | 75 | 80 |
| Oilless Bush-658040 | 65 | 80 | 40 |
| Oilless Bush-658050 | 65 | 80 | 50 |
| Oilless Bush-658060 | 65 | 80 | 60 |
| Oilless Bush-658070 | 65 | 80 | 70 |
| Oilless Bush-658080 | 65 | 80 | 80 |
| Oilless Bush-708530 | 70 | 85 | 30 |
| Oilless Bush-708535 | 70 | 85 | 35 |
| Oilless Bush-708540 | 70 | 85 | 40 |
| Oilless Bush-708550 | 70 | 85 | 50 |
| Oilless Bush-708560 | 70 | 85 | 60 |
| Oilless Bush-708570 | 70 | 85 | 70 |
| Oilless Bush-708580 | 70 | 85 | 80 |
| Oilless Bush-7085100 | 70 | 85 | 100 |
| Oilless Bush-709050 | 70 | 90 | 50 |
| Oilless Bush-709060 | 70 | 90 | 60 |
| Oilless Bush-709070 | 70 | 90 | 70 |
| Oilless Bush-709080 | 70 | 90 | 80 |
| Oilless Bush-759050 | 75 | 90 | 50 |
| Oilless Bush-759060 | 75 | 90 | 60 |
| Oilless Bush-759070 | 75 | 90 | 70 |
| Oilless Bush-759080 | 75 | 90 | 80 |
| Oilless Bush-7590100 | 75 | 90 | 100 |
| Oilless Bush-759560 | 75 | 95 | 60 |
| Oilless Bush-759570 | 75 | 95 | 70 |
| Oilless Bush-759580 | 75 | 95 | 80 |
| Oilless Bush-7595100 | 75 | 95 | 100 |
| Oilless Bush-809640 | 80 | 96 | 40 |
| Oilless Bush-809650 | 80 | 96 | 50 |
| Oilless Bush-809660 | 80 | 96 | 60 |
| Oilless Bush-809670 | 80 | 96 | 70 |
| Oilless Bush-809680 | 80 | 96 | 80 |
| Oilless Bush-8096100 | 80 | 96 | 100 |
| Oilless Bush-8096120 | 80 | 96 | 120 |
| Oilless Bush-8010040 | 80 | 100 | 40 |
| Oilless Bush-8010050 | 80 | 100 | 50 |
| Oilless Bush-8010060 | 80 | 100 | 60 |
| Oilless Bush-8010070 | 80 | 100 | 70 |
| Oilless Bush-8010080 | 80 | 100 | 80 |
| Oilless Bush-80100100 | 80 | 100 | 100 |
| Oilless Bush-80100120 | 80 | 100 | 120 |
| Oilless Bush-80100140 | 80 | 100 | 140 |
| Oilless Bush-8510060 | 85 | 100 | 60 |
| Oilless Bush-8510080 | 85 | 100 | 80 |
| Oilless Bush-9011050 | 90 | 110 | 50 |
| Oilless Bush-9011060 | 90 | 110 | 60 |
| Oilless Bush-9011080 | 90 | 110 | 80 |
| Oilless Bush-9011090 | 90 | 110 | 90 |
| Oilless Bush-90110100 | 90 | 110 | 100 |
| Oilless Bush-90110120 | 90 | 110 | 120 |
| Oilless Bush-10012050 | 100 | 120 | 50 |
| Oilless Bush-10012060 | 100 | 120 | 60 |
| Oilless Bush-10012070 | 100 | 120 | 70 |
| Oilless Bush-10012080 | 100 | 120 | 80 |
| Oilless Bush-10012090 | 100 | 120 | 90 |
| Oilless Bush-100120100 | 100 | 120 | 100 |
| Oilless Bush-100120120 | 100 | 120 | 120 |
| Oilless Bush-100120140 | 100 | 120 | 140 |
| Oilless Bush-11013050 | 110 | 130 | 50 |
| Oilless Bush-11013070 | 110 | 130 | 70 |
| Oilless Bush-11013080 | 110 | 130 | 80 |
| Oilless Bush-110130100 | 110 | 130 | 100 |
| Oilless Bush-110130120 | 110 | 130 | 120 |
| Oilless Bush-12014070 | 120 | 140 | 70 |
| Oilless Bush-12014080 | 120 | 140 | 80 |
| Oilless Bush-12014090 | 120 | 140 | 90 |
| Oilless Bush-120140100 | 120 | 140 | 100 |
| Oilless Bush-120140120 | 120 | 140 | 120 |
| Oilless Bush-120140140 | 120 | 140 | 140 |
| Oilless Bush-125145100 | 125 | 145 | 100 |
| Oilless Bush-125145120 | 125 | 145 | 120 |
| Oilless Bush-13015080 | 130 | 150 | 80 |
| Oilless Bush-130150100 | 130 | 150 | 100 |
| Oilless Bush-130150130 | 130 | 150 | 130 |
| Oilless Bush-140160100 | 140 | 160 | 100 |
| Oilless Bush-140160140 | 140 | 160 | 140 |
| Oilless Bush-15017080 | 150 | 170 | 80 |
| Oilless Bush-150170100 | 150 | 170 | 100 |
| Oilless Bush-150170150 | 150 | 170 | 150 |
| Oilless Bush-16018080 | 160 | 180 | 80 |
| Oilless Bush-160180100 | 160 | 180 | 100 |
| Oilless Bush-160180150 | 160 | 180 | 150 |
| Oilless Bush-170190100 | 170 | 190 | 100 |
| Oilless Bush-170190150 | 170 | 190 | 150 |
| Oilless Bush-180200100 | 180 | 200 | 100 |
| Oilless Bush-180200150 | 180 | 200 | 150 |
| Oilless Bush-190210100 | 190 | 210 | 100 |
| Oilless Bush-190210150 | 190 | 210 | 150 |
| Oilless Bush-200230150 | 200 | 230 | 150 |
| Oilless Bush-200230200 | 200 | 230 | 200 |
Standard bearing bush sizes (with flanges)
| Oiles 500 Flange Bushings | I.D.: Φd | O.D.: ΦD | Frange: ΦF | Frange Thickness: t | Length: L |
| Flange Oilless Bush-0610 | 6 | 10 | 16 | 2 | 10 |
| Flange Oilless Bush-0612 | 6 | 10 | 16 | 2 | 12 |
| Flange Oilless Bush-0810 | 8 | 12 | 20 | 2 | 10 |
| Flange Oilless Bush-0812 | 8 | 12 | 20 | 2 | 12 |
| Flange Oilless Bush-0815 | 8 | 12 | 20 | 2 | 15 |
| Flange Oilless Bush-1010 | 10 | 14 | 22 | 2 | 10 |
| Flange Oilless Bush-1012 | 10 | 14 | 22 | 2 | 12 |
| Flange Oilless Bush-1015 | 10 | 14 | 22 | 2 | 15 |
| Flange Oilless Bush-1017 | 10 | 14 | 22 | 2 | 17 |
| Flange Oilless Bush-1020 | 10 | 14 | 22 | 2 | 20 |
| Flange Oilless Bush-1210 | 12 | 18 | 25 | 3 | 10 |
| Flange Oilless Bush-1212 | 12 | 18 | 25 | 3 | 12 |
| Flange Oilless Bush-1215 | 12 | 18 | 25 | 3 | 15 |
| Flange Oilless Bush-1220 | 12 | 18 | 25 | 3 | 20 |
| Flange Oilless Bush-1225 | 12 | 18 | 25 | 3 | 25 |
| Flange Oilless Bush-1230 | 12 | 18 | 25 | 3 | 30 |
| Flange Oilless Bush-1310 | 13 | 19 | 26 | 3 | 10 |
| Flange Oilless Bush-1312 | 13 | 19 | 26 | 3 | 12 |
| Flange Oilless Bush-1315 | 13 | 19 | 26 | 3 | 15 |
| Flange Oilless Bush-1320 | 13 | 19 | 26 | 3 | 20 |
| Flange Oilless Bush-1325 | 13 | 19 | 26 | 3 | 25 |
| Flange Oilless Bush-1330 | 13 | 19 | 26 | 3 | 30 |
| Flange Oilless Bush-1415 | 14 | 20 | 27 | 3 | 15 |
| Flange Oilless Bush-1420 | 14 | 20 | 27 | 3 | 20 |
| Flange Oilless Bush-1425 | 14 | 20 | 27 | 3 | 25 |
| Flange Oilless Bush-1510 | 15 | 21 | 28 | 3 | 10 |
| Flange Oilless Bush-1512 | 15 | 21 | 28 | 3 | 12 |
| Flange Oilless Bush-1515 | 15 | 21 | 28 | 3 | 15 |
| Flange Oilless Bush-1520 | 15 | 21 | 28 | 3 | 20 |
| Flange Oilless Bush-1525 | 15 | 21 | 28 | 3 | 25 |
| Flange Oilless Bush-1530 | 15 | 21 | 28 | 3 | 30 |
| Flange Oilless Bush-1612 | 16 | 22 | 29 | 3 | 12 |
| Flange Oilless Bush-1615 | 16 | 22 | 29 | 3 | 15 |
| Flange Oilless Bush-1618 | 16 | 22 | 29 | 3 | 18 |
| Flange Oilless Bush-1620 | 16 | 22 | 29 | 3 | 20 |
| Flange Oilless Bush-1623 | 16 | 22 | 29 | 3 | 23 |
| Flange Oilless Bush-1625 | 16 | 22 | 29 | 3 | 25 |
| Flange Oilless Bush-1630 | 16 | 22 | 29 | 3 | 30 |
| Flange Oilless Bush-1635 | 16 | 22 | 29 | 3 | 35 |
| Flange Oilless Bush-1640 | 16 | 22 | 29 | 3 | 40 |
| Flange Oilless Bush-1815 | 18 | 24 | 32 | 3 | 15 |
| Flange Oilless Bush-1820 | 18 | 24 | 32 | 3 | 20 |
| Flange Oilless Bush-1825 | 18 | 24 | 32 | 3 | 25 |
| Flange Oilless Bush-1830 | 18 | 24 | 32 | 3 | 30 |
| Flange Oilless Bush-1835 | 18 | 24 | 32 | 3 | 35 |
| Flange Oilless Bush-1840 | 18 | 24 | 32 | 3 | 40 |
| Flange Oilless Bush-2015 | 20 | 30 | 40 | 5 | 15 |
| Flange Oilless Bush-2020 | 20 | 30 | 40 | 5 | 20 |
| Flange Oilless Bush-2025 | 20 | 30 | 40 | 5 | 25 |
| Flange Oilless Bush-2030 | 20 | 30 | 40 | 5 | 30 |
| Flange Oilless Bush-2035 | 20 | 30 | 40 | 5 | 35 |
| Flange Oilless Bush-2040 | 20 | 30 | 40 | 5 | 40 |
| Flange Oilless Bush-2515 | 25 | 35 | 45 | 5 | 15 |
| Flange Oilless Bush-2520 | 25 | 35 | 45 | 5 | 20 |
| Flange Oilless Bush-2525 | 25 | 35 | 45 | 5 | 25 |
| Flange Oilless Bush-2530 | 25 | 35 | 45 | 5 | 30 |
| Flange Oilless Bush-2535 | 25 | 35 | 45 | 5 | 35 |
| Flange Oilless Bush-2540 | 25 | 35 | 45 | 5 | 40 |
| Flange Oilless Bush-2550 | 25 | 35 | 45 | 5 | 50 |
| Flange Oilless Bush-3020 | 30 | 40 | 50 | 5 | 20 |
| Flange Oilless Bush-3025 | 30 | 40 | 50 | 5 | 25 |
| Flange Oilless Bush-3030 | 30 | 40 | 50 | 5 | 30 |
| Flange Oilless Bush-3035 | 30 | 40 | 50 | 5 | 35 |
| Flange Oilless Bush-3040 | 30 | 40 | 50 | 5 | 40 |
| Flange Oilless Bush-3050 | 30 | 40 | 50 | 5 | 50 |
| Flange Oilless Bush-3120 | 31.5 | 40 | 50 | 5 | 20 |
| Flange Oilless Bush-3130 | 31.5 | 40 | 50 | 5 | 30 |
| Flange Oilless Bush-3135 | 31.5 | 40 | 50 | 5 | 35 |
| Flange Oilless Bush-3140 | 31.5 | 40 | 50 | 5 | 40 |
| Flange Oilless Bush-3520 | 35 | 45 | 60 | 5 | 20 |
| Flange Oilless Bush-3525 | 35 | 45 | 60 | 5 | 25 |
| Flange Oilless Bush-3530 | 35 | 45 | 60 | 5 | 30 |
| Flange Oilless Bush-3535 | 35 | 45 | 60 | 5 | 35 |
| Flange Oilless Bush-3540 | 35 | 45 | 60 | 5 | 40 |
| Flange Oilless Bush-3550 | 35 | 45 | 60 | 5 | 50 |
| Flange Oilless Bush-4020 | 40 | 50 | 65 | 5 | 20 |
| Flange Oilless Bush-4025 | 40 | 50 | 65 | 5 | 25 |
| Flange Oilless Bush-4030 | 40 | 50 | 65 | 5 | 30 |
| Flange Oilless Bush-4035 | 40 | 50 | 65 | 5 | 35 |
| Flange Oilless Bush-4040 | 40 | 50 | 65 | 5 | 40 |
| Flange Oilless Bush-4050 | 40 | 50 | 65 | 5 | 50 |
| Flange Oilless Bush-4530 | 45 | 55 | 70 | 5 | 30 |
| Flange Oilless Bush-4535 | 45 | 55 | 70 | 5 | 35 |
| Flange Oilless Bush-4540 | 45 | 55 | 70 | 5 | 40 |
| Flange Oilless Bush-4550 | 45 | 55 | 70 | 5 | 50 |
| Flange Oilless Bush-4560 | 45 | 55 | 70 | 5 | 60 |
| Flange Oilless Bush-5030 | 50 | 60 | 75 | 5 | 30 |
| Flange Oilless Bush-5035 | 50 | 60 | 75 | 5 | 35 |
| Flange Oilless Bush-5040 | 50 | 60 | 75 | 5 | 40 |
| Flange Oilless Bush-5050 | 50 | 60 | 75 | 5 | 50 |
| Flange Oilless Bush-5060 | 50 | 60 | 75 | 5 | 60 |
| Flange Oilless Bush-5540 | 55 | 65 | 80 | 5 | 40 |
| Flange Oilless Bush-5560 | 55 | 65 | 80 | 5 | 60 |
| Flange Oilless Bush-6040 | 60 | 75 | 90 | 7.5 | 40 |
| Flange Oilless Bush-6050 | 60 | 75 | 90 | 7.5 | 50 |
| Flange Oilless Bush-6060 | 60 | 75 | 90 | 7.5 | 60 |
| Flange Oilless Bush-6080 | 60 | 75 | 90 | 7.5 | 80 |
| Flange Oilless Bush-6367 | 63 | 75 | 85 | 7.5 | 67.5 |
| Flange Oilless Bush-6560 | 65 | 80 | 95 | 7.5 | 60 |
| Flange Oilless Bush-7050 | 70 | 85 | 105 | 7.5 | 50 |
| Flange Oilless Bush-7080 | 70 | 85 | 105 | 7.5 | 80 |
| Flange Oilless Bush-7560 | 75 | 90 | 110 | 7.5 | 60 |
| Flange Oilless Bush-8060 | 80 | 100 | 120 | 10 | 60 |
| Flange Oilless Bush-8080 | 80 | 100 | 120 | 10 | 80 |
| Flange Oilless Bush-80100 | 80 | 100 | 120 | 10 | 100 |
| Flange Oilless Bush-9060 | 90 | 110 | 130 | 10 | 60 |
| Flange Oilless Bush-9080 | 90 | 110 | 130 | 10 | 80 |
| Flange Oilless Bush-10080 | 100 | 120 | 150 | 10 | 80 |
| Flange Oilless Bush-100100 | 100 | 120 | 150 | 10 | 100 |
| Flange Oilless Bush-12080 | 120 | 140 | 170 | 10 | 80 |
| Flange Oilless Bush-120100 | 120 | 140 | 170 | 10 | 100 |
| Flange Oilless Bush-13080 | 130 | 150 | 180 | 10 | 80 |
| Flange Oilless Bush-130100 | 130 | 150 | 180 | 10 | 100 |
| Flange Oilless Bush-14080 | 140 | 160 | 190 | 10 | 80 |
| Flange Oilless Bush-140100 | 140 | 160 | 190 | 10 | 100 |
| Flange Oilless Bush-150100 | 150 | 170 | 200 | 10 | 100 |
| Flange Oilless Bush-150120 | 150 | 170 | 200 | 10 | 120 |
| Flange Oilless Bush-160100 | 160 | 180 | 210 | 10 | 100 |
| Flange Oilless Bush-160120 | 160 | 180 | 210 | 10 | 120 |
Standard THRUST WASHER sizes
| Oiles 500 Thrust Washer | I.D.: Φd | O.D.: ΦD | Thickness: T | Position of Mounting hole: P.C.D | Number of Hole | Countersunk Screw |
| Oilless Washer-0603 | 6.2 | 25 | 3 | 15 | 2 | M3 |
| Oilless Washer-0803 | 8.2 | 28 | 3 | 18 | 2 | M3 |
| Oilless Washer-1003 | 10.2 | 30 | 3 | 20 | 2 | M3 |
| Oilless Washer-1203 | 12.2 | 40 | 3 | 28 | 2 | M3 |
| Oilless Washer-1203N | 12.2 | 40 | 3 | – | – | – |
| Oilless Washer-1303 | 13.2 | 40 | 3 | 28 | 2 | M3 |
| Oilless Washer-1403 | 14.2 | 40 | 3 | 28 | 2 | M3 |
| Oilless Washer-1503 | 15.2 | 50 | 3 | 35 | 2 | M3 |
| Oilless Washer-1603 | 16.2 | 50 | 3 | 35 | 2 | M3 |
| Oilless Washer-1603N | 16.2 | 50 | 3 | – | – | – |
| Oilless Washer-1803 | 18.2 | 50 | 3 | 35 | 2 | M3 |
| Oilless Washer-2005 | 20.2 | 50 | 5 | 35 | 2 | M5 |
| Oilless Washer-2505 | 25.2 | 55 | 5 | 40 | 2 | M5 |
| Oilless Washer-2505N | 25.2 | 55 | 5 | – | – | – |
| Oilless Washer-3005 | 30.2 | 60 | 5 | 45 | 2 | M5 |
| Oilless Washer-3005N | 30.2 | 60 | 5 | – | – | – |
| Oilless Washer-3505 | 35.2 | 70 | 5 | 50 | 2 | M5 |
| Oilless Washer-4007 | 40.2 | 80 | 7 | 60 | 2 | M6 |
| Oilless Washer-4507 | 45.2 | 90 | 7 | 70 | 2 | M6 |
| Oilless Washer-5008 | 50.3 | 100 | 8 | 75 | 4 | M6 |
| Oilless Washer-5508 | 55.3 | 110 | 8 | 85 | 4 | M6 |
| Oilless Washer-6008 | 60.3 | 120 | 8 | 90 | 4 | M8 |
| Oilless Washer-6508 | 65.3 | 125 | 8 | 95 | 4 | M8 |
| Oilless Washer-7010 | 70.3 | 130 | 10 | 100 | 4 | M8 |
| Oilless Washer-7510 | 75.3 | 140 | 10 | 110 | 4 | M8 |
| Oilless Washer-8010 | 80.3 | 150 | 10 | 120 | 4 | M8 |
| Oilless Washer-9010 | 90.5 | 170 | 10 | 140 | 4 | M10 |
| Oilless Washer-10010 | 100.5 | 190 | 10 | 160 | 4 | M10 |
| Oilless Washer-12010 | 120.5 | 200 | 10 | 175 | 4 | M10 |
Standard THRUST BUSHINGS sizes
| Oiles 500Thrust Bushings | I.D.: Φd | O.D.: ΦD | Frange: ΦF | Frange Thickness: t | Length: L |
| Thrust Bushing SPFG-0611 | 6 | 10 | 20 | 3 | 11 |
| Thrust Bushing SPFG-0813 | 8 | 12 | 25 | 3 | 13 |
| Thrust Bushing SPFG-1013 | 10 | 14 | 25 | 3 | 13 |
| Thrust Bushing SPFG-1018 | 10 | 14 | 25 | 3 | 18 |
| Thrust Bushing SPFG-1211 | 12 | 18 | 30 | 3 | 11 |
| Thrust Bushing SPFG-1218 | 12 | 18 | 30 | 3 | 18 |
| Thrust Bushing SPFG-1223 | 12 | 18 | 30 | 3 | 23 |
| Thrust Bushing SPFG-1313 | 13 | 19 | 30 | 3 | 13 |
| Thrust Bushing SPFG-1318 | 13 | 19 | 30 | 3 | 18 |
| Thrust Bushing SPFG-1323 | 13 | 19 | 30 | 3 | 23 |
| Thrust Bushing SPFG-1513 | 15 | 21 | 35 | 3 | 13 |
| Thrust Bushing SPFG-1518 | 15 | 21 | 35 | 3 | 18 |
| Thrust Bushing SPFG-1523 | 15 | 21 | 35 | 3 | 23 |
| Thrust Bushing SPFG-1613 | 16 | 22 | 35 | 3 | 13 |
| Thrust Bushing SPFG-1618 | 16 | 22 | 35 | 3 | 18 |
| Thrust Bushing SPFG-1623 | 16 | 22 | 35 | 3 | 23 |
| Thrust Bushing SPFG-1818 | 18 | 24 | 40 | 3 | 18 |
| Thrust Bushing SPFG-1823 | 18 | 24 | 40 | 3 | 23 |
| Thrust Bushing SPFG-2020 | 20 | 28 | 45 | 5 | 20 |
| Thrust Bushing SPFG-2025 | 20 | 28 | 45 | 5 | 25 |
| Thrust Bushing SPFG-2520 | 25 | 33 | 50 | 5 | 20 |
| Thrust Bushing SPFG-2525 | 25 | 33 | 50 | 5 | 25 |
| Thrust Bushing SPFG-3020 | 30 | 38 | 55 | 5 | 20 |
| Thrust Bushing SPFG-3025 | 30 | 38 | 55 | 5 | 25 |
| Thrust Bushing SPFG-3035 | 30 | 38 | 55 | 5 | 35 |
| Thrust Bushing SPFG-3520 | 35 | 44 | 65 | 5 | 20 |
| Thrust Bushing SPFG-3525 | 35 | 44 | 65 | 5 | 25 |
| Thrust Bushing SPFG-3535 | 35 | 44 | 65 | 5 | 35 |
| Thrust Bushing SPFG-4027 | 40 | 50 | 70 | 7 | 27 |
| Thrust Bushing SPFG-4037 | 40 | 50 | 70 | 7 | 37 |
| Thrust Bushing SPFG-4047 | 40 | 50 | 70 | 7 | 47 |
| Thrust Bushing SPFG-5038 | 50 | 62 | 90 | 8 | 38 |
| Thrust Bushing SPFG-5048 | 50 | 62 | 90 | 8 | 48 |
| Thrust Bushing SPFG-5058 | 50 | 62 | 90 | 8 | 58 |
| Thrust Bushing SPFG-6038 | 60 | 74 | 110 | 8 | 38 |
| Thrust Bushing SPFG-6048 | 60 | 74 | 110 | 8 | 48 |
| Thrust Bushing SPFG-6058 | 60 | 74 | 110 | 8 | 58 |
| Thrust Bushing SPFG-6068 | 60 | 74 | 110 | 8 | 68 |
| Thrust Bushing SPFG-7050 | 70 | 85 | 120 | 10 | 50 |
| Thrust Bushing SPFG-7080 | 70 | 85 | 120 | 10 | 80 |
| Thrust Bushing SPFG-8060 | 80 | 96 | 140 | 10 | 60 |
| Thrust Bushing SPFG-8090 | 80 | 96 | 140 | 10 | 90 |
| Oiles 500 Thrust Washer | I.D.: Φd | O.D.: ΦD | Thickness: T | Position of Mounting hole: P.C.D | Number of Hole | Countersunk Screw |
| Thrust Washer SPW-0603 | 6.2 | 25 | 3 | 15 | 2 | M3 |
| Thrust Washer SPW-0803 | 8.2 | 28 | 3 | 18 | 2 | M3 |
| Thrust Washer SPW-1003 | 10.2 | 30 | 3 | 20 | 2 | M3 |
| Thrust Washer SPW-1203 | 12.2 | 40 | 3 | 28 | 2 | M3 |
| Thrust Washer SPW-1203N | 12.2 | 40 | 3 | – | – | – |
| Thrust Washer SPW-1303 | 13.2 | 40 | 3 | 28 | 2 | M3 |
| Thrust Washer SPW-1403 | 14.2 | 40 | 3 | 28 | 2 | M3 |
| Thrust Washer SPW-1503 | 15.2 | 50 | 3 | 35 | 2 | M3 |
| Thrust Washer SPW-1603 | 16.2 | 50 | 3 | 35 | 2 | M3 |
| Thrust Washer SPW-1603N | 16.2 | 50 | 3 | – | – | – |
| Thrust Washer SPW-1803 | 18.2 | 50 | 3 | 35 | 2 | M3 |
| Thrust Washer SPW-2005 | 20.2 | 50 | 5 | 35 | 2 | M5 |
| Thrust Washer SPW-2505 | 25.2 | 55 | 5 | 40 | 2 | M5 |
| Thrust Washer SPW-2505N | 25.2 | 55 | 5 | – | – | – |
| Thrust Washer SPW-3005 | 30.2 | 60 | 5 | 45 | 2 | M5 |
| Thrust Washer SPW-3005N | 30.2 | 60 | 5 | – | – | – |
| Thrust Washer SPW-3505 | 35.2 | 70 | 5 | 50 | 2 | M5 |
| Thrust Washer SPW-4007 | 40.2 | 80 | 7 | 60 | 2 | M6 |
| Thrust Washer SPW-4507 | 45.2 | 90 | 7 | 70 | 2 | M6 |
| Thrust Washer SPW-5008 | 50.3 | 100 | 8 | 75 | 4 | M6 |
| Thrust Washer SPW-5508 | 55.3 | 110 | 8 | 85 | 4 | M6 |
| Thrust Washer SPW-6008 | 60.3 | 120 | 8 | 90 | 4 | M8 |
| Thrust Washer SPW-6508 | 65.3 | 125 | 8 | 95 | 4 | M8 |
| Thrust Washer SPW-7010 | 70.3 | 130 | 10 | 100 | 4 | M8 |
| Thrust Washer SPW-7510 | 75.3 | 140 | 10 | 110 | 4 | M8 |
| Thrust Washer SPW-8010 | 80.3 | 150 | 10 | 120 | 4 | M8 |
| Thrust Washer SPW-9010 | 90.5 | 170 | 10 | 140 | 4 | M10 |
| Thrust Washer SPW-10010 | 100.5 | 190 | 10 | 160 | 4 | M10 |
| Thrust Washer SPW-12010 | 120.5 | 200 | 10 | 175 | 4 | M10 |
High-strength brass bearings with embedded solid lubricant, Metallic bearings having been used widely
Alternatives Oiles 500SP1-SL1 Bushings SPB
The Oiles 500SP1 series are self-lubricating bushing bearings composed of high strength bronze alloy bases made with advanced casting technology and embedded solid lubricants. They may be combined with various types of solid lubricants according to the conditions of use.
(Examples) I.D. is 25mm, O.D. is 33mm, and length is 20mm.
| SPB-061008 | 6 | 10 | 8 |
|---|---|---|---|
| SPB-061010 | 6 | 10 | 10 |
| SPB-061012 | 6 | 10 | 12 |
| SPB-081208 | 8 | 12 | 8 |
| SPB-081210 | 8 | 12 | 10 |
| SPB-081212 | 8 | 12 | 12 |
| SPB-081215 | 8 | 12 | 15 |
| SPB-101408 | 10 | 14 | 8 |
| SPB-101410 | 10 | 14 | 10 |
| SPB-101412 | 10 | 14 | 12 |
| SPB-101415 | 10 | 14 | 15 |
| SPB-101420 | 10 | 14 | 20 |
| SPB-121808 | 12 | 18 | 8 |
| SPB-121810 | 12 | 18 | 10 |
| SPB-121812 | 12 | 18 | 12 |
| SPB-121815 | 12 | 18 | 15 |
| SPB-121816 | 12 | 18 | 16 |
| SPB-121819 | 12 | 18 | 19 |
| SPB-121820 | 12 | 18 | 20 |
| SPB-121825 | 12 | 18 | 25 |
| SPB-121830 | 12 | 18 | 30 |
| SPB-131910 | 13 | 19 | 10 |
| SPB-131912 | 13 | 19 | 12 |
| SPB-131915 | 13 | 19 | 15 |
| SPB-131920 | 13 | 19 | 20 |
| SPB-131925 | 13 | 19 | 25 |
| SPB-131930 | 13 | 19 | 30 |
| SPB-142010 | 14 | 20 | 10 |
| SPB-142012 | 14 | 20 | 12 |
| SPB-142015 | 14 | 20 | 15 |
| SPB-142020 | 14 | 20 | 20 |
| SPB-142025 | 14 | 20 | 25 |
| SPB-142030 | 14 | 20 | 30 |
| SPB-152110 | 15 | 21 | 10 |
| SPB-152112 | 15 | 21 | 12 |
| SPB-152115 | 15 | 21 | 15 |
| SPB-152116 | 15 | 21 | 16 |
| SPB-152120 | 15 | 21 | 20 |
| SPB-152125 | 15 | 21 | 25 |
| SPB-152130 | 15 | 21 | 30 |
| SPB-152135 | 15 | 21 | 35 |
| SPB-152140 | 15 | 21 | 40 |
| SPB-162210 | 16 | 22 | 10 |
| SPB-162212 | 16 | 22 | 12 |
| SPB-162215 | 16 | 22 | 15 |
| SPB-162216 | 16 | 22 | 16 |
| SPB-162219 | 16 | 22 | 19 |
| SPB-162220 | 16 | 22 | 20 |
| SPB-162225 | 16 | 22 | 25 |
| SPB-162230 | 16 | 22 | 30 |
| SPB-162235 | 16 | 22 | 35 |
| SPB-162240 | 16 | 22 | 40 |
| SPB-172315 | 17 | 23 | 15 |
| SPB-182410 | 18 | 24 | 10 |
| SPB-182412 | 18 | 24 | 12 |
| SPB-182415 | 18 | 24 | 15 |
| SPB-182416 | 18 | 24 | 16 |
| SPB-182420 | 18 | 24 | 20 |
| SPB-182425 | 18 | 24 | 25 |
| SPB-182430 | 18 | 24 | 30 |
| SPB-182435 | 18 | 24 | 35 |
| SPB-182440 | 18 | 24 | 40 |
| SPB-192615 | 19 | 26 | 15 |
| SPB-192620 | 19 | 26 | 20 |
| SPB-202810 | 20 | 28 | 10 |
| SPB-202812 | 20 | 28 | 12 |
| SPB-202815 | 20 | 28 | 15 |
| SPB-202816 | 20 | 28 | 16 |
| SPB-202819 | 20 | 28 | 19 |
| SPB-202820 | 20 | 28 | 20 |
| SPB-202825 | 20 | 28 | 25 |
| SPB-202830 | 20 | 28 | 30 |
| SPB-202835 | 20 | 28 | 35 |
| SPB-202840 | 20 | 28 | 40 |
| SPB-202850 | 20 | 28 | 50 |
| SPB-203010 | 20 | 30 | 10 |
| SPB-203012 | 20 | 30 | 12 |
| SPB-203015 | 20 | 30 | 15 |
| SPB-203016 | 20 | 30 | 16 |
| SPB-203020 | 20 | 30 | 20 |
| SPB-203025 | 20 | 30 | 25 |
| SPB-203030 | 20 | 30 | 30 |
| SPB-203035 | 20 | 30 | 35 |
| SPB-203040 | 20 | 30 | 40 |
| SPB-203050 | 20 | 30 | 50 |
| SPB-223212 | 22 | 32 | 12 |
| SPB-223215 | 22 | 32 | 15 |
| SPB-223220 | 22 | 32 | 20 |
| SPB-223225 | 22 | 32 | 25 |
| SPB-253312 | 25 | 33 | 12 |
| SPB-253315 | 25 | 33 | 15 |
| SPB-253316 | 25 | 33 | 16 |
| SPB-253320 | 25 | 33 | 20 |
| SPB-253325 | 25 | 33 | 25 |
| SPB-253330 | 25 | 33 | 30 |
| SPB-253335 | 25 | 33 | 35 |
| SPB-253340 | 25 | 33 | 40 |
| SPB-253350 | 25 | 33 | 50 |
| SPB-253360 | 25 | 33 | 60 |
| SPB-253512 | 25 | 35 | 12 |
| SPB-253515 | 25 | 35 | 15 |
| SPB-253516 | 25 | 35 | 16 |
| SPB-253520 | 25 | 35 | 20 |
| SPB-253525 | 25 | 35 | 25 |
| SPB-253530 | 25 | 35 | 30 |
| SPB-253535 | 25 | 35 | 35 |
| SPB-253540 | 25 | 35 | 40 |
| SPB-253550 | 25 | 35 | 50 |
| SPB-253560 | 25 | 35 | 60 |
| SPB-283820 | 28 | 38 | 20 |
| SPB-283825 | 28 | 38 | 25 |
| SPB-283830 | 28 | 38 | 30 |
| SPB-283840 | 28 | 38 | 40 |
| SPB-303812 | 30 | 38 | 12 |
| SPB-303815 | 30 | 38 | 15 |
| SPB-303820 | 30 | 38 | 20 |
| SPB-303825 | 30 | 38 | 25 |
| SPB-303830 | 30 | 38 | 30 |
| SPB-303835 | 30 | 38 | 35 |
| SPB-303840 | 30 | 38 | 40 |
| SPB-303850 | 30 | 38 | 50 |
| SPB-303860 | 30 | 38 | 60 |
| SPB-304012 | 30 | 40 | 12 |
| SPB-304015 | 30 | 40 | 15 |
| SPB-304020 | 30 | 40 | 20 |
| SPB-304025 | 30 | 40 | 25 |
| SPB-304030 | 30 | 40 | 30 |
| SPB-304035 | 30 | 40 | 35 |
| SPB-304040 | 30 | 40 | 40 |
| SPB-304050 | 30 | 40 | 50 |
| SPB-304060 | 30 | 40 | 60 |
| SPB-314030 | 31.5 | 40 | 30 |
| SPB-314040 | 31.5 | 40 | 40 |
| SPB-324220 | 32 | 42 | 20 |
| SPB-324230 | 32 | 42 | 30 |
| SPB-324240 | 32 | 42 | 40 |
| SPB-354420 | 35 | 44 | 20 |
| SPB-354425 | 35 | 44 | 25 |
| SPB-354430 | 35 | 44 | 30 |
| SPB-354435 | 35 | 44 | 35 |
| SPB-354440 | 35 | 44 | 40 |
| SPB-354450 | 35 | 44 | 50 |
| SPB-354460 | 35 | 44 | 60 |
| SPB-354520 | 35 | 45 | 20 |
| SPB-354525 | 35 | 45 | 25 |
| SPB-354530 | 35 | 45 | 30 |
| SPB-354535 | 35 | 45 | 35 |
| SPB-354540 | 35 | 45 | 40 |
| SPB-354550 | 35 | 45 | 50 |
| SPB-354560 | 35 | 45 | 60 |
| SPB-384840 | 38 | 48 | 40 |
| SPB-405015 | 40 | 50 | 15 |
| SPB-405020 | 40 | 50 | 20 |
| SPB-405025 | 40 | 50 | 25 |
| SPB-405030 | 40 | 50 | 30 |
| SPB-405035 | 40 | 50 | 35 |
| SPB-405040 | 40 | 50 | 40 |
| SPB-405050 | 40 | 50 | 50 |
| SPB-405060 | 40 | 50 | 60 |
| SPB-405070 | 40 | 50 | 70 |
| SPB-405080 | 40 | 50 | 80 |
| SPB-405515 | 40 | 55 | 15 |
| SPB-405530 | 40 | 55 | 30 |
| SPB-405535 | 40 | 55 | 35 |
| SPB-405540 | 40 | 55 | 40 |
| SPB-405550 | 40 | 55 | 50 |
| SPB-405560 | 40 | 55 | 60 |
| SPB-455530 | 45 | 55 | 30 |
| SPB-455535 | 45 | 55 | 35 |
| SPB-455540 | 45 | 55 | 40 |
| SPB-455550 | 45 | 55 | 50 |
| SPB-455560 | 45 | 55 | 60 |
| SPB-455630 | 45 | 56 | 30 |
| SPB-455635 | 45 | 56 | 35 |
| SPB-455640 | 45 | 56 | 40 |
| SPB-455650 | 45 | 56 | 50 |
| SPB-455660 | 45 | 56 | 60 |
| SPB-456030 | 45 | 60 | 30 |
| SPB-456035 | 45 | 60 | 35 |
| SPB-456040 | 45 | 60 | 40 |
| SPB-456050 | 45 | 60 | 50 |
| SPB-456060 | 45 | 60 | 60 |
| SPB-456070 | 45 | 60 | 70 |
| SPB-456080 | 45 | 60 | 80 |
| SPB-506020 | 50 | 60 | 20 |
| SPB-506030 | 50 | 60 | 30 |
| SPB-506035 | 50 | 60 | 35 |
| SPB-506040 | 50 | 60 | 40 |
| SPB-506050 | 50 | 60 | 50 |
| SPB-506060 | 50 | 60 | 60 |
| SPB-506070 | 50 | 60 | 70 |
| SPB-506080 | 50 | 60 | 80 |
| SPB-506230 | 50 | 62 | 30 |
| SPB-506235 | 50 | 62 | 35 |
| SPB-506240 | 50 | 62 | 40 |
| SPB-506250 | 50 | 62 | 50 |
| SPB-506260 | 50 | 62 | 60 |
| SPB-506270 | 50 | 62 | 70 |
| SPB-506280 | 50 | 62 | 80 |
| SPB-506530 | 50 | 65 | 30 |
| SPB-506540 | 50 | 65 | 40 |
| SPB-506550 | 50 | 65 | 50 |
| SPB-506560 | 50 | 65 | 60 |
| SPB-506570 | 50 | 65 | 70 |
| SPB-506580 | 50 | 65 | 80 |
| SPB-5065100 | 50 | 65 | 100 |
| SPB-557030 | 55 | 70 | 30 |
| SPB-557035 | 55 | 70 | 35 |
| SPB-557040 | 55 | 70 | 40 |
| SPB-557050 | 55 | 70 | 50 |
| SPB-557060 | 55 | 70 | 60 |
| SPB-557070 | 55 | 70 | 70 |
| SPB-607430 | 60 | 74 | 30 |
| SPB-607435 | 60 | 74 | 35 |
| SPB-607440 | 60 | 74 | 40 |
| SPB-607450 | 60 | 74 | 50 |
| SPB-607460 | 60 | 74 | 60 |
| SPB-607470 | 60 | 74 | 70 |
| SPB-607480 | 60 | 74 | 80 |
| SPB-607530 | 60 | 75 | 30 |
| SPB-607535 | 60 | 75 | 35 |
| SPB-607540 | 60 | 75 | 40 |
| SPB-607550 | 60 | 75 | 50 |
| SPB-607560 | 60 | 75 | 60 |
| SPB-607570 | 60 | 75 | 70 |
| SPB-607580 | 60 | 75 | 80 |
| SPB-6075100 | 60 | 75 | 100 |
| SPB-637560 | 63 | 75 | 60 |
| SPB-637570 | 63 | 75 | 70 |
| SPB-637580 | 63 | 75 | 80 |
| SPB-658040 | 65 | 80 | 40 |
| SPB-658050 | 65 | 80 | 50 |
| SPB-658060 | 65 | 80 | 60 |
| SPB-658070 | 65 | 80 | 70 |
| SPB-658080 | 65 | 80 | 80 |
| SPB-708530 | 70 | 85 | 30 |
| SPB-708535 | 70 | 85 | 35 |
| SPB-708540 | 70 | 85 | 40 |
| SPB-708550 | 70 | 85 | 50 |
| SPB-708560 | 70 | 85 | 60 |
| SPB-708570 | 70 | 85 | 70 |
| SPB-708580 | 70 | 85 | 80 |
| SPB-7085100 | 70 | 85 | 100 |
| SPB-709050 | 70 | 90 | 50 |
| SPB-709060 | 70 | 90 | 60 |
| SPB-709070 | 70 | 90 | 70 |
| SPB-709080 | 70 | 90 | 80 |
| SPB-759050 | 75 | 90 | 50 |
| SPB-759060 | 75 | 90 | 60 |
| SPB-759070 | 75 | 90 | 70 |
| SPB-759080 | 75 | 90 | 80 |
| SPB-7590100 | 75 | 90 | 100 |
| SPB-759560 | 75 | 95 | 60 |
| SPB-759570 | 75 | 95 | 70 |
| SPB-759580 | 75 | 95 | 80 |
| SPB-7595100 | 75 | 95 | 100 |
| SPB-809640 | 80 | 96 | 40 |
| SPB-809650 | 80 | 96 | 50 |
| SPB-809660 | 80 | 96 | 60 |
| SPB-809670 | 80 | 96 | 70 |
| SPB-809680 | 80 | 96 | 80 |
| SPB-8096100 | 80 | 96 | 100 |
| SPB-8096120 | 80 | 96 | 120 |
| SPB-8010040 | 80 | 100 | 40 |
| SPB-8010050 | 80 | 100 | 50 |
| SPB-8010060 | 80 | 100 | 60 |
| SPB-8010070 | 80 | 100 | 70 |
| SPB-8010080 | 80 | 100 | 80 |
| SPB-80100100 | 80 | 100 | 100 |
| SPB-80100120 | 80 | 100 | 120 |
| SPB-80100140 | 80 | 100 | 140 |
| SPB-8510060 | 85 | 100 | 60 |
| SPB-8510080 | 85 | 100 | 80 |
| SPB-9011050 | 90 | 110 | 50 |
| SPB-9011060 | 90 | 110 | 60 |
| SPB-9011080 | 90 | 110 | 80 |
| SPB-9011090 | 90 | 110 | 90 |
| SPB-90110100 | 90 | 110 | 100 |
| SPB-90110120 | 90 | 110 | 120 |
| SPB-10012050 | 100 | 120 | 50 |
| SPB-10012060 | 100 | 120 | 60 |
| SPB-10012070 | 100 | 120 | 70 |
| SPB-10012080 | 100 | 120 | 80 |
| SPB-10012090 | 100 | 120 | 90 |
| SPB-100120100 | 100 | 120 | 100 |
| SPB-100120120 | 100 | 120 | 120 |
| SPB-100120140 | 100 | 120 | 140 |
| SPB-11013050 | 110 | 130 | 50 |
| SPB-11013070 | 110 | 130 | 70 |
| SPB-11013080 | 110 | 130 | 80 |
| SPB-110130100 | 110 | 130 | 100 |
| SPB-110130120 | 110 | 130 | 120 |
| SPB-12014070 | 120 | 140 | 70 |
| SPB-12014080 | 120 | 140 | 80 |
| SPB-12014090 | 120 | 140 | 90 |
| SPB-120140100 | 120 | 140 | 100 |
| SPB-120140120 | 120 | 140 | 120 |
| SPB-120140140 | 120 | 140 | 140 |
| SPB-125145100 | 125 | 145 | 100 |
| SPB-125145120 | 125 | 145 | 120 |
| SPB-13015080 | 130 | 150 | 80 |
| SPB-130150100 | 130 | 150 | 100 |
| SPB-130150130 | 130 | 150 | 130 |
| SPB-140160100 | 140 | 160 | 100 |
| SPB-140160140 | 140 | 160 | 140 |
| SPB-15017080 | 150 | 170 | 80 |
| SPB-150170100 | 150 | 170 | 100 |
| SPB-150170150 | 150 | 170 | 150 |
| SPB-16018080 | 160 | 180 | 80 |
| SPB-160180100 | 160 | 180 | 100 |
| SPB-160180150 | 160 | 180 | 150 |
| SPB-170190100 | 170 | 190 | 100 |
| SPB-170190150 | 170 | 190 | 150 |
| SPB-180200100 | 180 | 200 | 100 |
| SPB-180200150 | 180 | 200 | 150 |
| SPB-190210100 | 190 | 210 | 100 |
| SPB-190210150 | 190 | 210 | 150 |
| SPB-200230150 | 200 | 230 | 150 |
| SPB-200230200 | 200 | 230 | 200 |
Flange Bushings SPF
(Examples) I.D. is 50mm and length is 30mm.
SPF – 5030
| OILES 500SP1-SL1 Frange Bushings | I.D.: Φd | O.D.: ΦD | Frange: ΦF | Frange Thickness: t | Length: L |
|---|---|---|---|---|---|
| SPF-0610 | 6 | 10 | 16 | 2 | 10 |
| SPF-0612 | 6 | 10 | 16 | 2 | 12 |
| SPF-0810 | 8 | 12 | 20 | 2 | 10 |
| SPF-0812 | 8 | 12 | 20 | 2 | 12 |
| SPF-0815 | 8 | 12 | 20 | 2 | 15 |
| SPF-1010 | 10 | 14 | 22 | 2 | 10 |
| SPF-1012 | 10 | 14 | 22 | 2 | 12 |
| SPF-1015 | 10 | 14 | 22 | 2 | 15 |
| SPF-1017 | 10 | 14 | 22 | 2 | 17 |
| SPF-1020 | 10 | 14 | 22 | 2 | 20 |
| SPF-1210 | 12 | 18 | 25 | 3 | 10 |
| SPF-1212 | 12 | 18 | 25 | 3 | 12 |
| SPF-1215 | 12 | 18 | 25 | 3 | 15 |
| SPF-1220 | 12 | 18 | 25 | 3 | 20 |
| SPF-1225 | 12 | 18 | 25 | 3 | 25 |
| SPF-1230 | 12 | 18 | 25 | 3 | 30 |
| SPF-1310 | 13 | 19 | 26 | 3 | 10 |
| SPF-1312 | 13 | 19 | 26 | 3 | 12 |
| SPF-1315 | 13 | 19 | 26 | 3 | 15 |
| SPF-1320 | 13 | 19 | 26 | 3 | 20 |
| SPF-1325 | 13 | 19 | 26 | 3 | 25 |
| SPF-1330 | 13 | 19 | 26 | 3 | 30 |
| SPF-1415 | 14 | 20 | 27 | 3 | 15 |
| SPF-1420 | 14 | 20 | 27 | 3 | 20 |
| SPF-1425 | 14 | 20 | 27 | 3 | 25 |
| SPF-1510 | 15 | 21 | 28 | 3 | 10 |
| SPF-1512 | 15 | 21 | 28 | 3 | 12 |
| SPF-1515 | 15 | 21 | 28 | 3 | 15 |
| SPF-1520 | 15 | 21 | 28 | 3 | 20 |
| SPF-1525 | 15 | 21 | 28 | 3 | 25 |
| SPF-1530 | 15 | 21 | 28 | 3 | 30 |
| SPF-1612 | 16 | 22 | 29 | 3 | 12 |
| SPF-1615 | 16 | 22 | 29 | 3 | 15 |
| SPF-1618 | 16 | 22 | 29 | 3 | 18 |
| SPF-1620 | 16 | 22 | 29 | 3 | 20 |
| SPF-1623 | 16 | 22 | 29 | 3 | 23 |
| SPF-1625 | 16 | 22 | 29 | 3 | 25 |
| SPF-1630 | 16 | 22 | 29 | 3 | 30 |
| SPF-1635 | 16 | 22 | 29 | 3 | 35 |
| SPF-1640 | 16 | 22 | 29 | 3 | 40 |
| SPF-1815 | 18 | 24 | 32 | 3 | 15 |
| SPF-1820 | 18 | 24 | 32 | 3 | 20 |
| SPF-1825 | 18 | 24 | 32 | 3 | 25 |
| SPF-1830 | 18 | 24 | 32 | 3 | 30 |
| SPF-1835 | 18 | 24 | 32 | 3 | 35 |
| SPF-1840 | 18 | 24 | 32 | 3 | 40 |
| SPF-2015 | 20 | 30 | 40 | 5 | 15 |
| SPF-2020 | 20 | 30 | 40 | 5 | 20 |
| SPF-2025 | 20 | 30 | 40 | 5 | 25 |
| SPF-2030 | 20 | 30 | 40 | 5 | 30 |
| SPF-2035 | 20 | 30 | 40 | 5 | 35 |
| SPF-2040 | 20 | 30 | 40 | 5 | 40 |
| SPF-2515 | 25 | 35 | 45 | 5 | 15 |
| SPF-2520 | 25 | 35 | 45 | 5 | 20 |
| SPF-2525 | 25 | 35 | 45 | 5 | 25 |
| SPF-2530 | 25 | 35 | 45 | 5 | 30 |
| SPF-2535 | 25 | 35 | 45 | 5 | 35 |
| SPF-2540 | 25 | 35 | 45 | 5 | 40 |
| SPF-2550 | 25 | 35 | 45 | 5 | 50 |
| SPF-3020 | 30 | 40 | 50 | 5 | 20 |
| SPF-3025 | 30 | 40 | 50 | 5 | 25 |
| SPF-3030 | 30 | 40 | 50 | 5 | 30 |
| SPF-3035 | 30 | 40 | 50 | 5 | 35 |
| SPF-3040 | 30 | 40 | 50 | 5 | 40 |
| SPF-3050 | 30 | 40 | 50 | 5 | 50 |
| SPF-3120 | 31.5 | 40 | 50 | 5 | 20 |
| SPF-3130 | 31.5 | 40 | 50 | 5 | 30 |
| SPF-3135 | 31.5 | 40 | 50 | 5 | 35 |
| SPF-3140 | 31.5 | 40 | 50 | 5 | 40 |
| SPF-3520 | 35 | 45 | 60 | 5 | 20 |
| SPF-3525 | 35 | 45 | 60 | 5 | 25 |
| SPF-3530 | 35 | 45 | 60 | 5 | 30 |
| SPF-3535 | 35 | 45 | 60 | 5 | 35 |
| SPF-3540 | 35 | 45 | 60 | 5 | 40 |
| SPF-3550 | 35 | 45 | 60 | 5 | 50 |
| SPF-4020 | 40 | 50 | 65 | 5 | 20 |
| SPF-4025 | 40 | 50 | 65 | 5 | 25 |
| SPF-4030 | 40 | 50 | 65 | 5 | 30 |
| SPF-4035 | 40 | 50 | 65 | 5 | 35 |
| SPF-4040 | 40 | 50 | 65 | 5 | 40 |
| SPF-4050 | 40 | 50 | 65 | 5 | 50 |
| SPF-4530 | 45 | 55 | 70 | 5 | 30 |
| SPF-4535 | 45 | 55 | 70 | 5 | 35 |
| SPF-4540 | 45 | 55 | 70 | 5 | 40 |
| SPF-4550 | 45 | 55 | 70 | 5 | 50 |
| SPF-4560 | 45 | 55 | 70 | 5 | 60 |
| SPF-5030 | 50 | 60 | 75 | 5 | 30 |
| SPF-5035 | 50 | 60 | 75 | 5 | 35 |
| SPF-5040 | 50 | 60 | 75 | 5 | 40 |
| SPF-5050 | 50 | 60 | 75 | 5 | 50 |
| SPF-5060 | 50 | 60 | 75 | 5 | 60 |
| SPF-5540 | 55 | 65 | 80 | 5 | 40 |
| SPF-5560 | 55 | 65 | 80 | 5 | 60 |
| SPF-6040 | 60 | 75 | 90 | 7.5 | 40 |
| SPF-6050 | 60 | 75 | 90 | 7.5 | 50 |
| SPF-6060 | 60 | 75 | 90 | 7.5 | 60 |
| SPF-6080 | 60 | 75 | 90 | 7.5 | 80 |
| SPF-6367 | 63 | 75 | 85 | 7.5 | 67.5 |
| SPF-6560 | 65 | 80 | 95 | 7.5 | 60 |
| SPF-7050 | 70 | 85 | 105 | 7.5 | 50 |
| SPF-7080 | 70 | 85 | 105 | 7.5 | 80 |
| SPF-7560 | 75 | 90 | 110 | 7.5 | 60 |
| SPF-8060 | 80 | 100 | 120 | 10 | 60 |
| SPF-8080 | 80 | 100 | 120 | 10 | 80 |
| SPF-80100 | 80 | 100 | 120 | 10 | 100 |
| SPF-9060 | 90 | 110 | 130 | 10 | 60 |
| SPF-9080 | 90 | 110 | 130 | 10 | 80 |
| SPF-10080 | 100 | 120 | 150 | 10 | 80 |
| SPF-100100 | 100 | 120 | 150 | 10 | 100 |
| SPF-12080 | 120 | 140 | 170 | 10 | 80 |
| SPF-120100 | 120 | 140 | 170 | 10 | 100 |
| SPF-13080 | 130 | 150 | 180 | 10 | 80 |
| SPF-130100 | 130 | 150 | 180 | 10 | 100 |
| SPF-14080 | 140 | 160 | 190 | 10 | 80 |
| SPF-140100 | 140 | 160 | 190 | 10 | 100 |
| SPF-150100 | 150 | 170 | 200 | 10 | 100 |
| SPF-150120 | 150 | 170 | 200 | 10 | 120 |
| SPF-160100 | 160 | 180 | 210 | 10 | 100 |
| SPF-160120 | 160 | 180 | 210 | 10 | 120 |
Machining
Self-lubricating bushing bearing range, offers a variety of specifications to meet different use conditions. Strong wear resistance and stable performance. More deals. Stable supplier. Fast delivery. Attentive service: www.bronzelube.com offers oiles bearing catalog in many varieties from expert suppliers.
Customized Solutions
Find self-lubricating bushings at www.bronzelube.com today. Shop oilless thrust bushings and a variety of lubricating bushings products online at www.bronzelube.com, Discover the complete self-lubricating bronze thrust bushings portfolio
Customized For Unique Requirements
Choose from our selection of oilless bushings in a wide range of styles and sizes. In stock and ready to ship. Bearings incorporate high quality copper alloy based metals with engineered solid lubricate.
Reduce the unplanned downtime.
Choose from our selection of thrust bushings, including plugged graphite thrust bearings, dry-running thrust bearings, and more. In stock and ready to ship.
PLAIN OILLESS BUSH
The right bush bearing solution for every application.
Industry
Automotive
Marine
Medical
Agriculture
Construction
Buying Brass Thrust Washer Bearings Parts Now, Always tested. Always proven. Always Bronzelube.com
Thrust washer bearings are flat bearings that are typically inserted between a rotating component and a stationary component, and function to keep the rotating component in place by providing it with something to rub up against if it begins to move laterally. oilless thrust washer bearings are made from self-lubricating metal bronze materials that promote maintenance-free, dry operation for a wide range of applications and axial load requirements. All of our self-lubricating materials are rigorously tested ensure long service life and high wear-rates, especially within highly-corrosive or harsh environments where typical metal thrust washer bearings would corrode and fail, causing unplanned downtime.
