Long-lasting, self-lubricating Du Bushing Alternatives
Made with self-lubricating and maintenance-free sliding PTFE material. Browse and shop all Du Metal-Polymer Anti-Friction Plain Bearings products. Specialist in Plain Du Bushes Bearing Technology. Self Lubricating Bushes Manufacturer. self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions …
Excellent Price
performance ratio
Self-lubricating, maintenance-free metal bushing bearings, Most popular bushing du bushing material worldwide.
professional
bushing Supplier
Metal Du bushing bearings deliver a longer service life than oil- impregnated sintered bronze bushings. Low coefficients of friction in dry operation.
self-lubricating Bushes bearings
Focus
Self-Lubricating Engineered Metallic Bushing, Low friction and wear resistance in engineering metal bushing.
Cost-effective
Bushing Price
Metal PTFE bushing components with longer service life, Self-lubricating Materials Market. Get the du bushing catalog online.
PTFE Machined Parts – Bushings, Spacers, Bearings
PTFE-lined, metal-backed bushings, Self-lubricated technology
Self Lubricated Bushings (Copper, Steel And PTFE Coated Bushing: PTFE Seal – High-Performance Materials, Our PTFE Bearing Bushing Provide Outstanding Chemical Resistance & Electrical Insulation Performance. Steel bushings with PTFE layer inside, Rolled composite bushing: steel backing with PTFE sliding layer Coated Bushings – The Replacement Of DU Bearings. Contact Us To Get More Information. We’ll Get Back To You Soon.
Metal-polymer composite bushing. Self-lubricating bushing.
Good wear, low friction performance Ideal for lubricated applications
Product Quality Index
Energy Generation
Wear Resistant Du Type Bushing Made of High-Performance Metal Polymers
Special PTFE Bushing For Heavy-Duty Use, Wear-Resistant Plain DU Bush Bearing & Thrust Washer Easy To Assemble. Sleeve bearing with flange, mm, thrust washer Low coefficient of friction at low load applications, Universal resistance to chemicals, High compressive strength, Very low moisture absorption! Small order piece available.
low friction coefficient Bushing, PTFE Machined Parts – Bushings, Thrust Washer, Plain Bearings
Oil-free bushings： Since bearings typically receive a lot of frictional resistance and generate heat, lubricants such as oil or grease are used to prevent seizure or abnormal wear that may result from this frictional heat. Lubrication-free bushings do not require lubrication because the bearing body has a lubrication structure that is achieved by a lubricant or embedded solid lubricant or similar in the bearing body. Because they do not require lubricant, lubrication-free bushings are often used in applications such as precision machinery that are difficult to replenish with lubricant and in equipment that has a poor affinity for oil. They also significantly reduce maintenance costs by eliminating the need for periodic lubrication and enabling long-term stable operation. Lubrication-free bushings are available in a variety of shapes and can be used for different applications as needed. Examples include straight pipe bushings, annular bushings, flange bushings and housing bushings. PTFE Resin (Polytetrafluoroethylene) and having back metal.
robotic arms & Du Bushing parts, Rolled composite bushing:

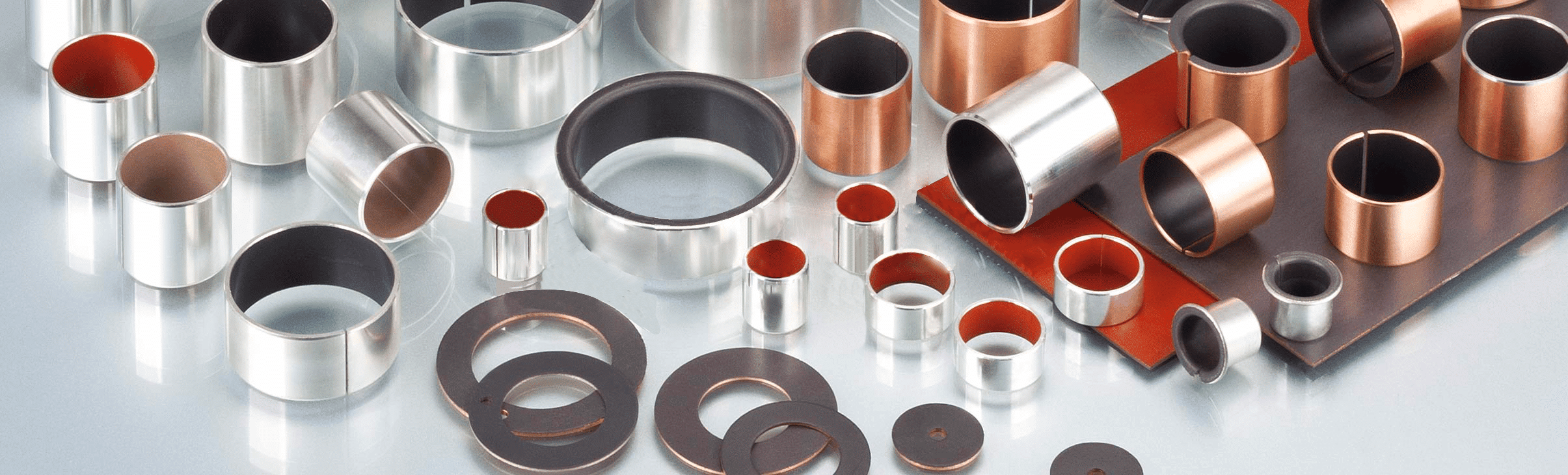

steel backing with PTFE sliding layer Coated Bushings
Rolled composite bushing: steel backing with PTFE sliding layer Coated Bushings Improved Energy Efficiency, Extended Service Life, Zero Maintenance and Quick Assembly.
Features: Can be used with oil free, thin wall, lightweight. Shows stable low friction coefficient under high load low speed condition, and excellent in wear resistance.
Special oilless bushing for Build robotic arm components. Use our self-lubricating bushing bearings designer tool to configure according to your requirements and applications. Special bushing & oilless bearings for industrial & colloborative robots. Custom size bushings now available. Bushing applications & tested for guaranteed service life.
taxation planning
Eiusmod tempor incididunt ipsum ut labore dolore magna aliqua. Ut enim minim veniam duisy ipsum sed quis.
Maintenance-free, self-lubricating Du Alternatives Bushing, PTFE-lined, metal-backed bushings
Machined Custom Plain Bearing & Du Bushing, Thrust Bearings, Slide Plate & Other Nonstandard Shapes & Dimensions. Maintenance-Free, Self-Lubricating & Dry-Running Operation. Steel Backed Bushing Resists Temperatures Up To 260℃. Reduce Downtime & Increase Service Life Of Du Type Bush. Metal-Polymer Anti-Friction Plain Bearings Supplier, Self-Lubricating Bushings Offer Very Good Wear And Low Friction Performance Over A Wide Range Of Loads, Speeds And Temperatures In Dry Running Conditions … Working Temperature Range: -200 to 280°C, Materials Tetrafluoride Multi-Layered Ethylene Resin with Back Metal.
plain bearings and Du bushings, High-performance Self-lubricating bushing
Standard Size Du Type Bushes From Stock. Self-Lubricating, Quiet, Light And Cost-Effective Price. Increase Bushing Bearing Bushing Service Life, Reduce Costs And Eliminate External Lubrication. Ready-To-Install Bearing Du Type Bushes With Small Minimum Order Quantity. PTFE Resin (Polytetrafluoroethylene) and having back metal！Flanged Bushing, Can be used without oil, has thin walls, and is lightweight, and allows for a more compact size. PTFE-lined bearings are chemical resistant and nonabrasive. They have a ceramic coating for added corrosion resistance.
CUSTOM COMPOSITE BEARINGS SOLUTIONS FOR YOUR APPLICATION AND PRODUCTION COMPANIES.
Potential Applications Design With Self-Lubricating Bearings. Need More Information? Contact One Of Our Sliding Bearings Experts. PTFE Bushes - Provide OEM Service Self-lubricating DU Type Bushes. The types of bushes from similar with Daido Japan, and from split bushings in Germany. PTFE Composite Bushings: Other Reference Daemar Garlock Ina- Permaglide SKF Federal Mogul Glycodur TH Bushing Dry Slide Bearing PAPZ- P10 PC-Z PGZ
Sliding Bearings Design Innovation Into Your Exploration Save cost For DU bushing replacement
Self-lubricating and maintenance-free, composite bushing bearings provide an ideal solution for many agricultural applications. Manufacturers of agricultural machinery and farming implements count on metallic composite polymer bushing bearings to deliver excellent load capacities, lower weight, resistance to corrosion and other benefits, making agricultural equipment operate easier, longer, and better. Leading agricultural equipment manufacturers and their suppliers trust our composite bearings to deliver the performance demanded by the agricultural industry.
Our Sliding Bearing Services, What and Where
Metric and Imperial sizes. Cylindrical Bushes. Flanged Bushes, Combine the custom du bushes bearings services and you will have a Du bushing bearing product which delivers high performance for a lifetime and is guaranteed to save you time and money each and every day. Offering Carbon Steel DU Bushes!
Bearings & Bushings Solutions
Design Longer Bushing Bearing Lifetime Into Your Equipment
Better Lubricated Performance For Your Next Project
Bushing Manufacturer – Call Our Team of Experts
Beautifully crafted leather products.
Our comprehensive understanding of the self-lubricating bearings products and solutions we provide ensure you enjoy the high performance, great value and save your cost. At www.bronzelube.com we apply innovative and customer focused thinking to deliver the latest plain bearing technology solutions. High Performance PTFE bushing bearing – For Extreme Conditions – Request A Sample, Browse Now At Low Price – Custom Bushing Manufacturer. DU type bushes is the highest performance self-lubricating bearing material available anywhere. It offers a combination of properties and capabilities unmatched by any other self-lubricating bearing material and, consequently, has the broadest application range.
PTFE Machined Parts – Bushings, Washer, Plain Bearings
Beautifully crafted leather products.
PTFE Composite Bearings, a low friction bearing material that has excellent Wear and low friction properties to suit various speeds, loads and temperature requirements. Under lubricated conditions, the material is also very good application. This new material has applications in lifting, pneumatic, medical, agricultural, scientific and office equipment, hydraulic pumps, hydraulic motors, textile equipment and Thousands of drying furnaces, etc. have applications. In addition, the gate chain, the ship starts Heavy machinery, car wipers and other outdoor equipment, information transmission systems, food handling and packaging equipment. RED PTFE COMPOSITE BEARINGS are metal-plastic composites covered with sliding layers and filled on the sintered copper layer, the two layers are bound to the antimagnetic solid On the bronze back, it can be very good against seawater corrosion.
Types of Plain Bearings (Bushings)
Metric & Imperial Bushings – Self-Lubricating Bearings
Sliding material & DU bushing type selection guides
Bearings and Bushings are Made from what Metal?
PTFE Lined Wrapped Bearings – The Ideal Choice For Industrial Engineers & Specialists. Our PTFE Bearings Series Features Metric & Imperial Plain, Flanged, Washers & Strip Options. Steel Backed Bearing Strip. Flanged Bearings. Self-lubricating Bearing Washers. Cylindrical and flanged bushings are standard fabrication. All special designs are available at short notice! Self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running. Maintenance-free – wrapped composite sliding bearing steel/graphite bronze, Du Bushes Alternatives!
Maintenance-free, plain bearings!
Ready to growth your business? split bushings Style Bushes – DU Bushes Type Alternatives, Innovative and quality bearing custom design! PTFE Bushings, Bearings, Guide Bush, Washers,Thrust Washer, and more. We can make custom Steel Backed PTFE Machined Parts to your specifications or drawings. Fast Delivery.
Contact One Of Our Bushing Bearings Experts
Du Bushing Alternatives Supplier, Du bearing definition: The structure of the bushing bearings consists of a rigid steel DU bushing or corrosion-resistant bronze backing (DU-B), which provides mechanical strength, while a porous sintered bronze interlayer impregnated with a homogeneous mixture of PTFE and lead provides low friction and high wear resistance. Excelled in manufacturing durable, trusted Metal Bearings – Metal Bushings and Bearings bearings around the globe. Self-lubricating split bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running
Self-Lubricating Bearings, Pre-lubricated Bearings
We Are Bearing Supplier, Pleased to Meet You. PTFE Bushes Manufacturer – High Quality, Factory Price. For the material …plain PTFE type bush bearings, Steel backed, sintered bronze on the surface, Rolled composite bushing: steel backing with PTFE sliding layer impregnated, outside of bush will be TIN flash plated. Plain Metric Bushes –Rolled composite bushing: steel backing with PTFE sliding layer Types. Composite Material. High Static Load Capacity. Strives to Offer Cost-saving, Stable Performance Bearings and Bushings. Contact Us.
Metal-Polymer Self-lubricating and Maintenance-free Bearing Solutions
Beautifully crafted leather products.
Explore our dependable and innovative bushing bearings solutions, tailored to meet your needs. We specialize in crafting custom split bushings-style bearing washers and bushings, utilizing advanced PTFE technology. As a renowned PTFE Bush manufacturer, we are dedicated to delivering top-notch and cost-effective flanged bushings, ensuring you receive the best value in China. Our DU Type Split Bearing Bushes, lined with PTFE, are a popular choice in the machinery industry, offering a versatile range of dimensions (Inside Diameter x Outside Diameter x Length) to fit various applications. Our metal-polymer composite bushing and DU self-lubricating bushings are designed for optimal performance in lubricated settings, making them an ideal choice for a range of applications. We take pride in being a recognized manufacturer, supplier, and exporter of PTFE Bushes, offering round-the-clock customer support, competitive pricing, and a commitment to quality. Our comprehensive selection includes both flanged and straight bushings in all DU types, available in a variety of materials and sizes to suit your specific needs. With fast delivery, custom fabrication options, certified quality, and direct supply from a seasoned provider, we are your go-to source for high-performance self-lubricating bearings. Discover more about our metal machined parts and PTFE bushings – the ultimate in self-lubricating metal polymer solutions, known for their exceptionally low friction and high wear resistance. Visit us at www.bronzelube.com for more information.
Plain & Self-Lubricating Bearings
Multi-layer, Straight Bushing, Plain Bearings & Thrust Washers, Sintered Bronze with PTFE, Application for hydraulic seals bushes, cylinders bushings, DU Bushings. With a steel roller bushes, Composite product consisting of three layers: steel-backed metal layer, sintered bronze layer and filler added tetrafluoroethylene resin layer, these bushings possess excellent wearability and tremendous compressive strength.
steel Composite bushes
Steel backed Bushing, PTFE Bushes, POM Bushes are used in applications where standard metal bearings cannot be employed due to high coefficients of friction and where other bearings fail due to high loads or temperatures. Steel backed composite bushes bearings offer dry-running, self-lubrication. Metric Cylindrical Bushes Supplier.
Contact an bushing bearings expert
Contact viiplus.com
Do you have a special application in which you use self-lubricating bushings plain bearings?
Learn More
Plain & Self-Lubricating Du Alternative Bearings Supplier
Oil-free bearings (oil-free bushings) have demonstrated their dominance in various fields as sliding bearings that “reduce grease usage and grease operation” and “can be used without grease”. We deal with a wide range of oil-free bearing bushings, including application products such as sliders, substrates and plates made of the same material as oil-free bearings, and oil-free bearings themselves (category name: oil-free bushings/gaskets). The Oil Free Bushing – Multi-Layered, Straight, PTFE Multi-layer, Shouldered specifications and dimensions of some bushing parts may not be fully covered. For exact details, refer to manufacturer catalogs. Quality, Well-made Bearings and Bushings. View Our Products. Get A Quote Today. High Quality Guaranteed. Worldwide On-time Shipping. View Our Bushing Products. Contact Us Today. Extreme Stable & Durable. Oilless Self-lubricating! Standard & Made-To-Order Bronze Bushings And Related Bearing Products. PTFE Bearings, Bronze Backed Bushing. Flanged Bushes Metal-Polymer Anti-Friction Self Lubricating Plain Bearings.
Cylindrical Bushes & Flange Bushes
Metric Size & Inch Size
Straight bushing Maintenance-free Bronze/PTFE Series
Straight bushings are an essential component in many mechanical applications, providing smooth and efficient movement between two parts. The maintenance-free Bronze/PTFE series of straight bushings offers a reliable and cost-effective solution for applications that require low friction, high wear resistance, and long service life.
The Bronze/PTFE series of straight bushings features a bronze substrate with a layer of PTFE (polytetrafluoroethylene) on the sliding surface. PTFE is a low-friction material that provides excellent wear resistance and lubrication properties, making it an ideal material for use in bearings and bushings. The Bronze substrate provides the necessary strength and durability to withstand high loads and stresses.
The maintenance-free design of the Bronze/PTFE series of straight bushings eliminates the need for external lubrication, reducing maintenance costs and downtime. The PTFE layer provides a self-lubricating surface that ensures smooth and efficient movement between the two parts. The bushings are also highly resistant to wear and corrosion, ensuring long service life and reducing the need for frequent replacements.
The Bronze/PTFE series of straight bushings is commonly used in a wide range of applications, including in the automotive, industrial, and agricultural sectors. They are often used in applications that require high load capacities and low friction, such as in machinery, conveyor systems, and packaging equipment.
To ensure optimal performance and long service life, it is important to follow proper maintenance procedures for the Bronze/PTFE series of straight bushings. Regular inspection and cleaning can help prevent buildup of dirt, debris, and other contaminants that can cause premature wear and damage to the bushings. It is also important to ensure that the bushings are properly lubricated during initial installation and replacement.
In summary, the maintenance-free Bronze/PTFE series of straight bushings offers a reliable and cost-effective solution for applications that require low friction, high wear resistance, and long service life. The self-lubricating PTFE layer ensures smooth and efficient movement between two parts, while the Bronze substrate provides the necessary strength and durability to withstand high loads and stresses. Proper maintenance and care can help ensure optimal performance and long service life.
steel backed ptfe lined bushings
Lead-free bushing bearings, Self-Lubrication Bushes.
One Conversation, Countless Solutions， Comprehensive new application guide
To provide customers with a faster and easier way to identify the right product for their application, we have launched a new, comprehensive catalog and application guide covering all of the company’s bearing types and materials. It helps customers make initial selections and is followed up by expert application engineers to ensure the best choice.
Self-lubricating oil-free bearing technology
STEEL BACKED PTFE BUSHING is a plain bearing with a steel base sintered with a porous tin bronze material. The pores are filled with polytetrafluoroethylene (PTFE) and other additives that reduce friction and wear, which makes it suitable for applications with high demands on service life. For continuous operation in high-load applications, such as joints in construction machinery, we offer metal polymer bushing, a plain bearing with a steel base, and a polyoxymethylene (POM) top layer that is firmly bonded to the sintered bronze. A recognized global provider of products and services for manufacturers and repairers of plain bearing bushings for the automotive, light, medium, and heavy commercial vehicles and equipment, marine, rail, power generation, and industrial markets. The company’s products and services improve fuel economy, reduce emissions and enhance vehicle safety.
Our plain bearings technical know-how is at the heart of our specialism.
DU self-lubricating bushings offer excellent wear and low friction performance over a wide range of loads, speeds, and temperatures in dry running conditions.
DU – Self-lubricated plain bearing. Carbon steel shell with sintered bronze layer filled with PTFE. Sometimes referred to as a ‘Wrapped Bush’ or ‘split bushings Bush’
The high-performance self-lubricating bearing material
DU Type bushes consist of three bonded layers: A steel backing strip and a porous bronze matrix, impregnated and overlaid with the PTFE/ lead bearing material.
- PTFE 0.01~0.03mm
- Porous bronze 0.2~0.3 mm
- Steel / Bronze backing 0.7~2.3 mm
- Tin-plating 0.005mm or copper plating 0.008mm
DU sliding dry bearing gives you the widest application range of any self-lubricating bearing.
A unique, composite bearing material
Characteristics and application of modified polytetrafluoroethylene
PTFE is one of the best corrosion resistant materials in the world, so it is known as “the king of plastics”.Because of its high and low temperature resistance, resistance to chemical corrosion and weathering resistance, low friction coefficient, excellent electrical insulation, self-lubrication and non adhesive and so on the excellent properties of other materials can not replace in compressor oil chemical industry, aerospace, automobile, electron, semiconductor, medical, architecture, textile industry, food industry and other industry plays an important role.
But pure PTFE itself also has some limitations, can not fully cover a variety of application conditions, so the modification (filling) treatment of PTFE to improve its performance, to meet a wider range of industrial needs.
The filling medium usually includes: glass fiber, barium sulfate, carbon fiber, copper powder and lubricant (graphite, molybdenum disulfide), etc., generally filling modified with high compressive strength, wear resistance, good thermal conductivity and low thermal expansion, lower friction coefficient, cold flow resistance and creep resistance and other properties.But because the filling medium is different, the number is different, its characteristics will also change to some extent, can be customized according to the actual needs.
Widely used in the production of gaskets, valve seats, bearings, sliders, piston rings, insulation sleeve, oil-free lubrication seals, etc.
Viiplus as self-lubricating bearing industry brand, has always been committed to become the world famous self-lubricating bearing solution and its suppliers, rely on independent research and development advantages, key development, expansion of the application of new material and new focus to the study of fluorine plastic material production, better expanded the product line, providing customers with solutions of various kinds of industrial demand.
To provide customers with bearing solutions to various industrial needs.
The modified PTFE products developed and produced by VIIPLUS have the characteristics of good creep resistance, chemical corrosion resistance, cold flow resistance and chemical corrosion resistance.
PTFE thrust washer, sleeve bearing bushings
- By adding different medium fillers to improve the bearing performance of some aspects of the thrust washer, so that it can be applied to a wider range of fields.
- By adding different medium fillers to improve the performance of bushings & bearings material, it can be reprocessed into a variety of products to meet the actual needs.
- The polytetrafluoroethylene resin and a variety of fillers (carbon fiber, copper powder, molybdenum dioxide and other lubricating materials) after mixing by molding, sintering, turning, and then through the single side of the nano treatment.It has the advantages of high strength, wear resistance, good thermal conductivity, reduced thermal expansion, good sliding action and so on.
We have always been customer-oriented, and always adhere to the mission of becoming a high-quality self-lubricating bearing and its solutions supplier and strive for it.We can further customize bearing solutions according to the specific needs of customers to meet a wider range of industrial needs.
PTFE lined wrapped bearings are suitable for dry running, low friction, low wear applications. These wrapped bearings have excellent sliding characteristics forming a transfer film that can protect the mating metal surface.
- DU requires no lubrication
- Provides maintenance free operation
- DU has a high capability
- DU exhibits low wear rate
- Seizure resistant
- Suitable for temperatures from -200 to +280 °C
- High static and dynamic load capacity
- Good frictional properties with negligible stick-slip
- Resists solvents
- No water absorption and therefore dimensionally stable
- DU is electrically conductive and shows no electrostatic effects
- DU has good embedability and is tolerant of dusty environments
- Compact and light
- DU bearings are prefinished and require no machining after assembly
DU Bushes – Metric Size – Cylindrical Type
| Items | Sizes | ID | OD | L |
| 0606 DU | 06x08x06mm | 6 | 8 | 6 |
| 0608 DU | 06x08x08mm | 6 | 8 | 8 |
| 0808 DU | 08x10x08mm | 8 | 10 | 8 |
| 0810 DU | 08x10x10mm | 8 | 10 | 10 |
| 0812 DU | 08x10x12mm | 8 | 10 | 12 |
| 1008 DU | 10x12x08mm | 10 | 12 | 8 |
| 1010 DU | 10x12x10mm | 10 | 12 | 10 |
| 1012 DU | 10x12x12mm | 10 | 12 | 12 |
| 1015 DU | 10x12x15mm | 10 | 12 | 15 |
| 1208 DU | 12x14x08mm | 12 | 14 | 8 |
| 1210 DU | 12x14x10mm | 12 | 14 | 10 |
| 1212 DU | 12x14x12mm | 12 | 14 | 12 |
| 1215 DU | 12x14x15mm | 12 | 14 | 15 |
| 1220 DU | 12x14x20mm | 12 | 14 | 20 |
| 1410 DU | 14x16x10mm | 14 | 16 | 10 |
| 1415 DU | 14x16x15mm | 14 | 16 | 15 |
| 1420 DU | 14x16x20mm | 14 | 16 | 20 |
| 1425 DU | 14x16x25mm | 14 | 16 | 25 |
| 1515 DU | 15x17x15mm | 15 | 17 | 15 |
| 1520 DU | 15x17x20mm | 15 | 17 | 20 |
| 1615 DU | 16x18x15mm | 16 | 18 | 15 |
| 1620 DU | 16x18x20mm | 16 | 18 | 20 |
| 1815 DU | 18x20x15mm | 18 | 20 | 15 |
| 1820 DU | 18x20x20mm | 18 | 20 | 20 |
| 1825 DU | 18x20x25mm | 18 | 20 | 25 |
| 2015 DU | 20x23x15mm | 20 | 23 | 15 |
| 2025 DU | 20x23x25mm | 20 | 23 | 25 |
| 2030 DU | 20x23x30mm | 20 | 23 | 30 |
| 2220 DU | 22x25x20mm | 22 | 25 | 20 |
| 2225 DU | 22x25x25mm | 22 | 25 | 25 |
| 2230 DU | 22x25x30mm | 22 | 25 | 30 |
| 2430 DU | 24x27x30mm | 24 | 27 | 30 |
| 2515 DU | 25x28x15mm | 25 | 28 | 15 |
| 2520 DU | 25x28x20mm | 25 | 28 | 20 |
| 2525 DU | 25x28x25mm | 25 | 28 | 25 |
| 2530 DU | 25x28x30mm | 25 | 28 | 30 |
| 2540 DU | 25x28x40mm | 25 | 28 | 40 |
| 2545 DU | 25x28x45mm | 25 | 28 | 45 |
| 2550 DU | 25x28x50mm | 25 | 28 | 50 |
| 2820 DU | 28x32x20mm | 28 | 32 | 20 |
| 2830 DU | 28x32x30mm | 28 | 32 | 30 |
| 3015 DU | 30x34x15mm | 30 | 34 | 15 |
| 3020 DU | 30x24x20mm | 30 | 24 | 20 |
| 3025 DU | 30x34x25mm | 30 | 34 | 25 |
| 3030 DU | 30x34x30mm | 30 | 34 | 30 |
| 3035 DU | 30x34x35mm | 30 | 34 | 35 |
| 3040 DU | 30x34x40mm | 30 | 34 | 40 |
| 3520 DU | 35x39x20mm | 35 | 39 | 20 |
| 3530 DU | 35x39x30mm | 35 | 39 | 30 |
| 3540 DU | 35x39x40mm | 35 | 39 | 40 |
| 3550 DU | 35x39x50mm | 35 | 39 | 50 |
| 3840 DU | 38x42x40mm | 38 | 42 | 40 |
| 4020 DU | 40x44x20mm | 40 | 44 | 20 |
| 4025 DU | 40x44x25mm | 40 | 44 | 25 |
| 4030 DU | 40x44x30mm | 40 | 44 | 30 |
| 4040 DU | 40x44x40mm | 40 | 44 | 40 |
| 4050 DU | 40x44x50mm | 40 | 44 | 50 |
| 4520 DU | 45x50x20mm | 45 | 50 | 20 |
| 4530 DU | 45x50x30mm | 45 | 50 | 30 |
| 5020 DU | 50x55x20mm | 50 | 55 | 20 |
| 5030 DU | 50x55x30mm | 50 | 55 | 30 |
| 5040 DU | 50x55x40mm | 50 | 55 | 40 |
| 5050 DU | 50x55x50mm | 50 | 55 | 50 |
| 5055 DU | 50x55x55mm | 50 | 55 | 55 |
| 5060 DU | 50x55x60mm | 50 | 55 | 60 |
| 5530 DU | 55x60x30mm | 55 | 60 | 30 |
| 6030 DU | 60x65x30mm | 60 | 65 | 30 |
| 6040 DU | 60x65x40mm | 60 | 65 | 40 |
| 6050 DU | 60x65x50mm | 60 | 65 | 50 |
| 6055 DU | 60x65x55mm | 60 | 65 | 55 |
| 6060 DU | 60x65x60mm | 60 | 65 | 60 |
| 7070 DU | 70x75x70mm | 70 | 75 | 70 |
| 8060 DU | 80x85x60mm | 80 | 85 | 60 |
| 8580 DU | 85x90x80mm | 85 | 90 | 80 |
| 9580 DU | 95x100x80mm | 95 | 100 | 80 |
DU Bushes – Metric Size – Cylindrical Type
| Part No. | Di (mm) | Do (mm) | B (mm) | Housing | Shaft | Di,a max in H7 (mm) | Di,a min in H7 (mm) | Clearance max. (mm) | Clearance min. (mm) |
| 0205DU BUSHES | 2 | 3.5 | 5 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
| 0303DU BUSHES | 3 | 4.5 | 3 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0305DU BUSHES | 3 | 4.5 | 5 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0306DU BUSHES | 3 | 4.5 | 6 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
| 0403DU BUSHES | 4 | 5.5 | 3 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0404DU BUSHES | 4 | 5.5 | 4 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0406DU BUSHES | 4 | 5.5 | 6 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0410DU BUSHES | 4 | 5.5 | 10 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
| 0505DU BUSHES | 5 | 7 | 5 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0508DU BUSHES | 5 | 7 | 8 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0510DU BUSHES | 5 | 7 | 10 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
| 0604DU BUSHES | 6 | 8 | 4 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0606DU BUSHES | 6 | 8 | 6 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0608DU BUSHES | 6 | 8 | 8 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0610DU BUSHES | 6 | 8 | 10 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
| 0705DU BUSHES | 7 | 9 | 5 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
| 0710DU BUSHES | 7 | 9 | 10 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
| 0806DU BUSHES | 8 | 10 | 6 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0808DU BUSHES | 8 | 10 | 8 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0810DU BUSHES | 8 | 10 | 10 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 0812DU BUSHES | 8 | 10 | 12 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
| 1006DU BUSHES | 10 | 12 | 6 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1008DU BUSHES | 10 | 12 | 8 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1010DU BUSHES | 10 | 12 | 10 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1012DU BUSHES | 10 | 12 | 12 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1015DU BUSHES | 10 | 12 | 15 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1020DU BUSHES | 10 | 12 | 20 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
| 1208DU BUSHES | 12 | 14 | 8 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1210DU BUSHES | 12 | 14 | 10 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1212DU BUSHES | 12 | 14 | 12 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1215DU BUSHES | 12 | 14 | 15 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1220DU BUSHES | 12 | 14 | 20 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1225DU BUSHES | 12 | 14 | 25 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
| 1310DU BUSHES | 13 | 15 | 10 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
| 1320DU BUSHES | 13 | 15 | 20 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
| 1405DU BUSHES | 14 | 16 | 5 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1410DU BUSHES | 14 | 16 | 10 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1412DU BUSHES | 14 | 16 | 12 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1415DU BUSHES | 14 | 16 | 15 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1420DU BUSHES | 14 | 16 | 20 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1425DU BUSHES | 14 | 16 | 25 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
| 1510DU BUSHES | 15 | 17 | 10 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1512DU BUSHES | 15 | 17 | 12 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1515DU BUSHES | 15 | 17 | 15 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1520DU BUSHES | 15 | 17 | 20 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1525DU BUSHES | 15 | 17 | 25 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
| 1610DU BUSHES | 16 | 18 | 10 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1612DU BUSHES | 16 | 18 | 12 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1615DU BUSHES | 16 | 18 | 15 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1620DU BUSHES | 16 | 18 | 20 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1625DU BUSHES | 16 | 18 | 25 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
| 1720DU BUSHES | 17 | 19 | 20 | H7 | f7 | 17.061 | 16.99 | 0.095 | 0.006 |
| 1810DU BUSHES | 18 | 20 | 10 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1815DU BUSHES | 18 | 20 | 15 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1820DU BUSHES | 18 | 20 | 20 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 1825DU BUSHES | 18 | 20 | 25 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
| 2010DU BUSHES | 20 | 23 | 10 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2015DU BUSHES | 20 | 23 | 15 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2020DU BUSHES | 20 | 23 | 20 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2025DU BUSHES | 20 | 23 | 25 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2030DU BUSHES | 20 | 23 | 30 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
| 2215DU BUSHES | 22 | 25 | 15 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2220DU BUSHES | 22 | 25 | 20 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2225DU BUSHES | 22 | 25 | 25 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2230DU BUSHES | 22 | 25 | 30 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
| 2415DU BUSHES | 24 | 27 | 15 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2420DU BUSHES | 24 | 27 | 20 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2425DU BUSHES | 24 | 27 | 25 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2430DU BUSHES | 24 | 27 | 30 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
| 2515DU BUSHES | 25 | 28 | 15 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2520DU BUSHES | 25 | 28 | 20 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2525DU BUSHES | 25 | 28 | 25 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2530DU BUSHES | 25 | 28 | 30 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2550DU BUSHES | 25 | 28 | 50 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
| 2815DU BUSHES | 28 | 32 | 15 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2820DU BUSHES | 28 | 32 | 20 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2825DU BUSHES | 28 | 32 | 25 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 2830DU BUSHES | 28 | 32 | 30 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
| 3010DU BUSHES | 30 | 34 | 10 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3015DU BUSHES | 30 | 34 | 15 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3020DU BUSHES | 30 | 34 | 20 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3025DU BUSHES | 30 | 34 | 25 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3030DU BUSHES | 30 | 34 | 30 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3040DU BUSHES | 30 | 34 | 40 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
| 3220DU BUSHES | 32 | 36 | 20 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3230DU BUSHES | 32 | 36 | 30 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3240DU BUSHES | 32 | 36 | 40 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
| 3520DU BUSHES | 35 | 39 | 20 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3530DU BUSHES | 35 | 39 | 30 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3535DU BUSHES | 35 | 39 | 35 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3540DU BUSHES | 35 | 39 | 40 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3550DU BUSHES | 35 | 39 | 50 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
| 3720DU BUSHES | 37 | 41 | 20 | H7 | f7 | 37.085 | 36.99 | 0.135 | 0.015 |
| 4020DU BUSHES | 40 | 44 | 20 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4030DU BUSHES | 40 | 44 | 30 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4040DU BUSHES | 40 | 44 | 40 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4050DU BUSHES | 40 | 44 | 50 | H7 | f7 | 40.085 | 39.99 | 0.135 | 0.015 |
| 4520DU BUSHES | 45 | 50 | 20 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4530DU BUSHES | 45 | 50 | 30 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4540DU BUSHES | 45 | 50 | 40 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4545DU BUSHES | 45 | 50 | 45 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 4550DU BUSHES | 45 | 50 | 50 | H7 | f7 | 45.105 | 44.99 | 0.155 | 0.015 |
| 5020DU BUSHES | 50 | 55 | 20 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5030DU BUSHES | 50 | 55 | 30 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5040DU BUSHES | 50 | 55 | 40 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5050DU BUSHES | 50 | 55 | 50 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5060DU BUSHES | 50 | 55 | 60 | H7 | f7 | 50.11 | 49.99 | 0.16 | 0.015 |
| 5520DU BUSHES | 55 | 60 | 20 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5525DU BUSHES | 55 | 60 | 25 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5530DU BUSHES | 55 | 60 | 30 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5540DU BUSHES | 55 | 60 | 40 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5550DU BUSHES | 55 | 60 | 50 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5555DU BUSHES | 55 | 60 | 55 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 5560DU BUSHES | 55 | 60 | 60 | H7 | f7 | 55.11 | 54.99 | 0.17 | 0.02 |
| 6020DU BUSHES | 60 | 65 | 20 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6030DU BUSHES | 60 | 65 | 30 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6040DU BUSHES | 60 | 65 | 40 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6050DU BUSHES | 60 | 65 | 50 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6060DU BUSHES | 60 | 65 | 60 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6070DU BUSHES | 60 | 65 | 70 | H7 | f7 | 60.11 | 59.99 | 0.17 | 0.02 |
| 6530DU BUSHES | 65 | 70 | 30 | H7 | f7 | 65.11 | 64.99 | 0.17 | 0.02 |
| 6550DU BUSHES | 65 | 70 | 50 | H7 | f7 | 65.11 | 64.99 | 0.17 | 0.02 |
| 6570DU BUSHES | 65 | 70 | 70 | H7 | f7 | 65.11 | 64.99 | 0.17 | 0.02 |
| 7040DU BUSHES | 70 | 75 | 40 | H7 | f7 | 70.11 | 69.99 | 0.17 | 0.02 |
| 7050DU BUSHES | 70 | 75 | 50 | H7 | f7 | 70.11 | 69.99 | 0.17 | 0.02 |
| 7070DU BUSHES | 70 | 75 | 70 | H7 | f7 | 70.11 | 69.99 | 0.17 | 0.02 |
| 7560DU BUSHES | 75 | 80 | 60 | H7 | f7 | 75.11 | 74.99 | 0.17 | 0.02 |
| 7580DU BUSHES | 75 | 80 | 80 | H7 | f7 | 75.11 | 74.99 | 0.17 | 0.02 |
| 8040DU BUSHES | 80 | 85 | 40 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 8060DU BUSHES | 80 | 85 | 60 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 8080DU BUSHES | 80 | 85 | 80 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 80100DU BUSHES | 80 | 85 | 100 | H7 | h8 | 80.155 | 80.02 | 0.201 | 0.02 |
| 8530DU BUSHES | 85 | 90 | 30 | H7 | h8 | 85.155 | 85.02 | 0.209 | 0.02 |
| 8560DU BUSHES | 85 | 90 | 60 | H7 | h8 | 85.155 | 85.02 | 0.209 | 0.02 |
| 85100DU BUSHES | 85 | 90 | 100 | H7 | h8 | 85.155 | 85.02 | 0.209 | 0.02 |
| 9060DU BUSHES | 90 | 95 | 60 | H7 | h8 | 90.155 | 90.02 | 0.209 | 0.02 |
| 90100DU BUSHES | 90 | 95 | 100 | H7 | h8 | 90.155 | 90.02 | 0.209 | 0.02 |
| 9560DU BUSHES | 95 | 100 | 60 | H7 | h8 | 95.155 | 95.02 | 0.209 | 0.02 |
| 95100DU BUSHES | 95 | 100 | 100 | H7 | h8 | 95.155 | 95.02 | 0.209 | 0.02 |
| 10050DU BUSHES | 100 | 105 | 50 | H7 | h8 | 100.155 | 100.02 | 0.209 | 0.02 |
| 10060DU BUSHES | 100 | 105 | 60 | H7 | h8 | 100.155 | 100.02 | 0.209 | 0.02 |
| 100115DU BUSHES | 100 | 105 | 115 | H7 | h8 | 100.155 | 100.02 | 0.209 | 0.02 |
| 10560DU BUSHES | 105 | 110 | 60 | H7 | h8 | 105.155 | 105.02 | 0.209 | 0.02 |
| 105115DU BUSHES | 105 | 110 | 115 | H7 | h8 | 105.155 | 105.02 | 0.209 | 0.02 |
| 11060DU BUSHES | 110 | 115 | 60 | H7 | h8 | 110.155 | 110.02 | 0.209 | 0.02 |
| 110115DU BUSHES | 110 | 115 | 115 | H7 | h8 | 110.155 | 110.02 | 0.209 | 0.02 |
| 11550DU BUSHES | 115 | 120 | 50 | H7 | h8 | 115.155 | 115.02 | 0.209 | 0.02 |
| 11570DU BUSHES | 115 | 120 | 70 | H7 | h8 | 115.155 | 115.02 | 0.209 | 0.02 |
| 12050DU BUSHES | 120 | 125 | 50 | H7 | h8 | 120.21 | 120.07 | 0.264 | 0.07 |
| 12060DU BUSHES | 120 | 125 | 60 | H7 | h8 | 120.21 | 120.07 | 0.264 | 0.07 |
| 120100DU BUSHES | 120 | 125 | 100 | H7 | h8 | 120.21 | 120.07 | 0.264 | 0.07 |
| 125100DU BUSHES | 125 | 130 | 100 | H7 | h8 | 125.21 | 125.07 | 0.273 | 0.07 |
| 13060DU BUSHES | 130 | 135 | 60 | H7 | h8 | 130.21 | 130.07 | 0.273 | 0.07 |
| 130100DU BUSHES | 130 | 135 | 100 | H7 | h8 | 130.21 | 130.07 | 0.273 | 0.07 |
| 13560DU BUSHES | 135 | 140 | 60 | H7 | h8 | 135.21 | 135.07 | 0.273 | 0.07 |
| 13580DU BUSHES | 135 | 140 | 80 | H7 | h8 | 135.21 | 135.07 | 0.273 | 0.07 |
| 14060DU BUSHES | 140 | 145 | 60 | H7 | h8 | 140.21 | 140.07 | 0.273 | 0.07 |
| 140100DU BUSHES | 140 | 145 | 100 | H7 | h8 | 140.21 | 140.07 | 0.273 | 0.07 |
| 15060DU BUSHES | 150 | 155 | 60 | H7 | h8 | 150.21 | 150.07 | 0.273 | 0.07 |
| 15080DU BUSHES | 150 | 155 | 80 | H7 | h8 | 150.21 | 150.07 | 0.273 | 0.07 |
| 150100DU BUSHES | 150 | 155 | 100 | H7 | h8 | 150.21 | 150.07 | 0.273 | 0.07 |
| 16080DU BUSHES | 160 | 165 | 80 | H7 | h8 | 160.21 | 160.07 | 0.273 | 0.07 |
| 160100DU BUSHES | 160 | 165 | 100 | H7 | h8 | 160.21 | 160.07 | 0.273 | 0.07 |
| 180100DU BUSHES | 180 | 185 | 100 | H7 | h8 | 180.216 | 180.07 | 0.279 | 0.07 |
| 200100DU BUSHES | 200 | 205 | 100 | H7 | h8 | 200.216 | 200.07 | 0.288 | 0.07 |
| 210100DU BUSHES | 210 | 215 | 100 | H7 | h8 | 210.216 | 210.07 | 0.288 | 0.07 |
| 220100DU BUSHES | 220 | 225 | 100 | H7 | h8 | 220.216 | 220.07 | 0.288 | 0.07 |
| 250100DU BUSHES | 250 | 255 | 100 | H7 | h8 | 250.222 | 250.07 | 0.294 | 0.07 |
| 300100DU BUSHES | 300 | 305 | 100 | H7 | h8 | 300.222 | 300.07 | 0.303 | 0.07 |
self-lubricating bearing bushing
“We Make Industry More Powerful, Metal-Polymer Plain Composite Bushing Bearings, Du Bushes Alternatives.”
Metal Bushes, Lubricating Bushing
Browse, get a quote and order products easily in slide bushes eCatalog
Sliding material and bushing type selection guides for bushings, thrust washers … characteristics of the different bearing types and sliding materials. Bearings View Our Full Range. Learn more! Contact Our Friendly Team Today On Hand To Answer Any Questions. We Strives to Offer Cost-saving, Stable Performance Bearings and Bushings. Contact Us. 100% Quality Guaranteed. Worldwide On-time Shipping. View Our Products. Contact Us
Du bushing – Oilless Self-lubricating Tech
24/7 emergency callout
