OIL IMPREGNATED SAE 841 SINTERED BRONZE: A Deep Dive into Modern Engineering Marvels, Oil Impregnated Powder Metal Bronze Bearings Inch Sizes (Sleeve Type)

In the vast world of engineering materials, there are few that stand out for their unique attributes and applications. One such material is the SAE 841 sintered bronze. This bronze variant, often used for sleeve bushings and self-lubricating bearing flanges, is a testament to the advancements in material science and its pivotal role in modern machinery and equipment. Understanding Oil Impregnated Bronze Bushings

Cast bronze bushings have been a mainstay in the engineering world, but the advent of oil-impregnated bronze bushings has brought about a paradigm shift. These bushings are not only self-lubricating but are also virtually maintenance-free.

Oil-Impregnated Bronze Bushings

What is SAE 841 Sintered Bronze?, Oil Impregnated PowderMetal Bronze Bearings Inch Sizes (Fanged Type)

specializing in Oil-Impregnated Bronze Bushings, Because we believe in possibilities

SAE 841 refers to a specific type of sintered bronze. The term ‘sintered’ relates to the method of manufacture, wherein powdered bronze is compressed under high pressure and then heated (but not to the point of liquefaction) to form a solid piece. This process allows for the creation of a porous material, which can then be impregnated with oil to enhance its lubricating properties.

The primary constituents of SAE 841 sintered bronze are:

  • Approximately 87-90% copper
  • 10% tin
  • Minor amounts of other elements.

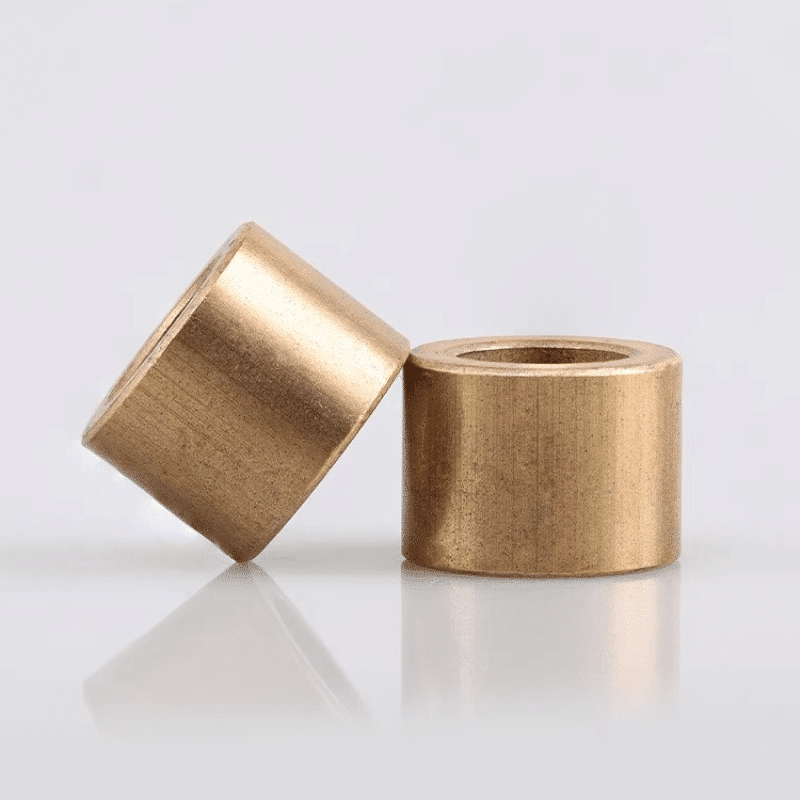

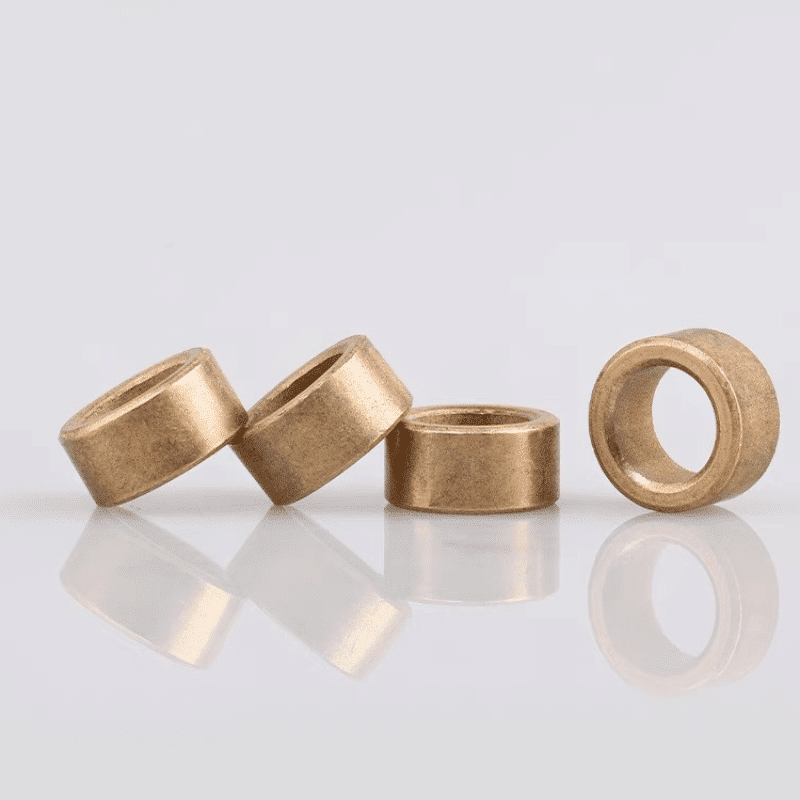

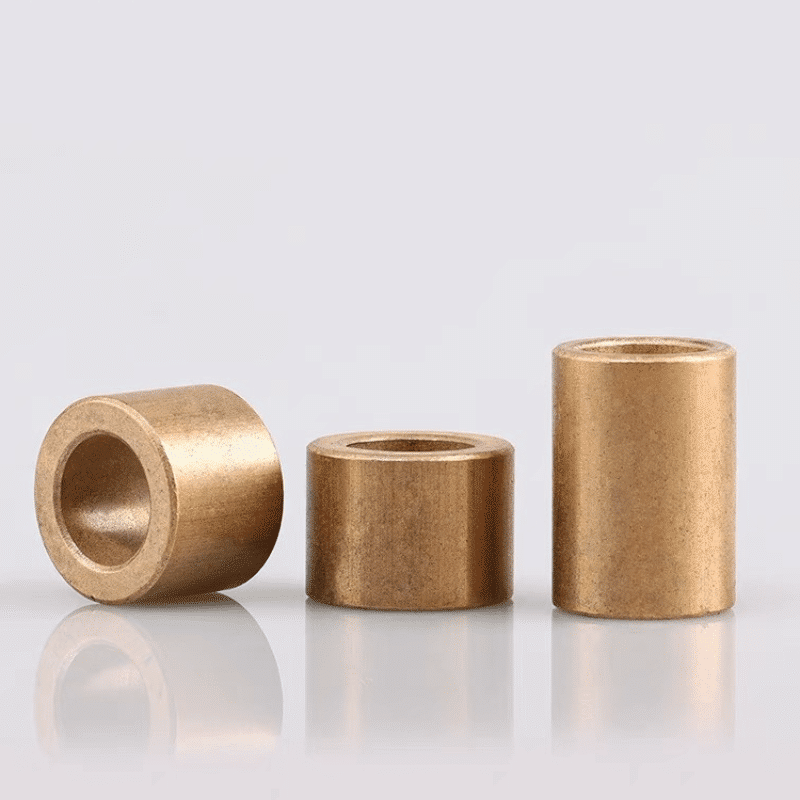

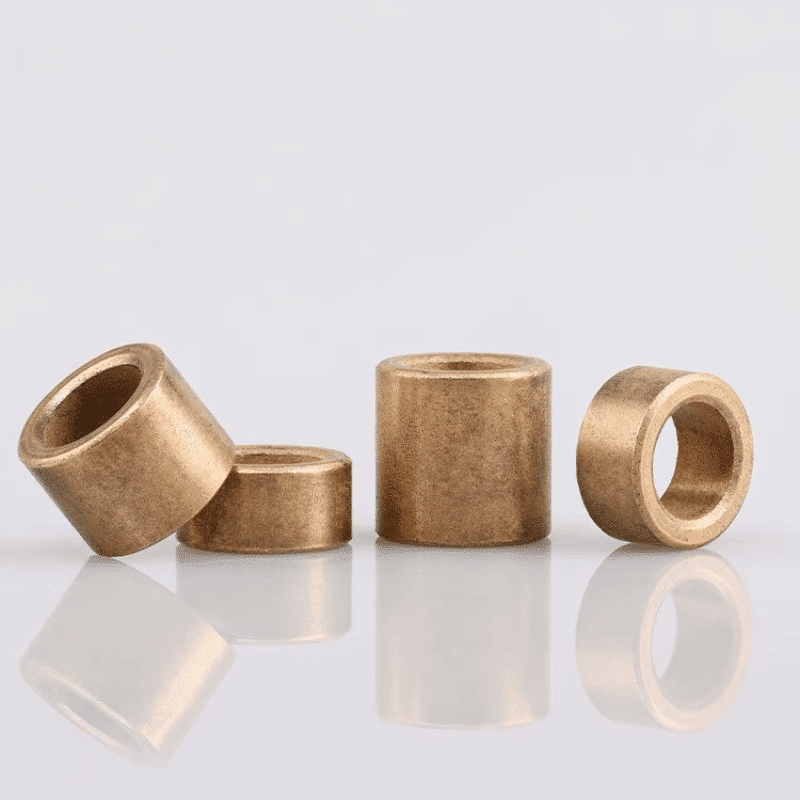

sintered bronze bush

SAE 841 Sintered Brass Bushes: A Bushing Designed For a Lifetime of Self-Lubrication

SAE 841 is an oil-impregnated bronze material commonly used for manufacturing bearings and other components requiring self-lubricating properties. Here are some key details about SAE 841, SAE 841 oil-impregnated bronze, and SAE 841 bronze bushings:

SAE 841 Oil-Impregnated Bronze:

SAE 841 is a powder metallurgy material composed of copper powder, tin powder, and graphite powder, typically containing around 87-90% copper, approximately 9.5-10.5% tin, iron not exceeding 1.0%, and phosphorus (P) not exceeding 1.75%. This material boasts excellent electrical conductivity, minimal heat generation ensuring safety, and robust fatigue resistance. SAE 841 oil-impregnated bronze is used for medium-speed, heavy-load bearings, with a maximum operating temperature of up to 250°C. It exhibits self-aligning properties, insensitivity to misalignment, uniform bearing stress distribution, high load-bearing capacity, and can withstand radial loads while being self-lubricating and maintenance-free.

SAE 841 Bronze Bushings:

Bronze bushings are a type of bearing that can be oil-impregnated to reduce wear and provide lubrication. These self-lubricating bronze bushings are manufactured through powder metallurgy, where metal powders are mixed, molded, heated in a furnace to bond the particles, then machined to size and oil-impregnated for lubrication or corrosion resistance. The operating temperature range of SAE 841 bronze bushings ranges from -20°F to +220°F, typically packed in plastic bags to retain oil content.

Applications of SAE 841:

SAE 841 finds wide applications in fabricating parts subjected to friction under medium loads and medium sliding speeds, such as wear-resistant washers, bearings, sleeves, and turbines. It’s also suitable for springs, computer connectors, mobile phone connectors, high-tech industry connectors, switches, electronic products, electrical, aerospace, aviation, mechanical bearings, vibration plates, and other accessories. Other Characteristics of SAE 841:

SAE 841 boasts high corrosion resistance, wear resistance, and does not spark upon impact, making it ideal for high safety requirement environments. The material also exhibits good heat treatment characteristics and heat resistance, capable of withstanding extreme temperatures without deformation or melting, suitable for automotive and industrial applications. Manufacturing Advantages of SAE 841:

Powder metallurgy methods enhance material utilization, typically exceeding 95%, and enable the integration of manufacturing several components. The material density is controllable, and the surface finish after molding is excellent, facilitating easy demolding.

These details, based on your provided search results, outline the characteristics and applications of SAE 841 oil-impregnated bronze and its bronze bushings.



In the realm of mechanical engineering and design, the choice of materials can make or break the efficiency and longevity of components. Amidst the plethora of materials available, the Oil Impregnated SAE 841 Sintered Bronze stands out, especially when it comes to bushings. Here, we’ll explore the intricacies of this material, its production, and its unmatched properties that make it an industry favorite.

Decoding the SAE 841 Sintered Bronze

Firstly, it’s essential to understand the nomenclature:

SAE: This stands for the Society of Automotive Engineers, which sets standards for various materials and their properties.

841: This is the specific standard number for this type of sintered bronze.

Sintered Bronze: This refers to bronze that’s been produced through a process called sintering. Instead of melting and casting the metal, sintering involves compacting the powdered form of metal under high pressure and then heating it, allowing the particles to bond together.

Characteristics of SAE 841 Sintered Bronze

Composition: Predominantly, the material comprises 87-90% copper, with about 10% tin. There might be trace amounts of other elements, but these two are the primary constituents.

Porous Nature: The sintering process endows this material with a unique porous structure. These interconnected pores act as reservoirs for lubricating oil, giving the material its self-lubricating property.

Self-Lubrication: When the bushing is under load and the temperature rises slightly, the oil stored in the pores seeps out to lubricate the component, reducing friction. Once the load is removed and the component cools, the oil is re-absorbed back into the pores, ensuring a continuous lubrication cycle.

Production Process

Powder Production: The base metals, primarily copper and tin, are first converted into a fine powder.

Compaction: This powder is then compacted under high pressure in molds to give it the desired shape, like that of a bushing.

Sintering: The compacted part is then heated in a controlled environment. This process allows the particles to bond without fully melting the material.

Oil Impregnation: Once sintered and cooled, the component is immersed in lubricating oil. Due to its porous nature, the bronze component absorbs the oil, filling its pores.

Applications and Benefits

Durability: The combination of copper and tin, along with the self-lubricating property, ensures that components made of SAE 841 sintered bronze are highly durable and resistant to wear.

Maintenance-Free: Given its self-lubricating nature, components made of this material require minimal to no maintenance, reducing long-term costs and downtimes.

Versatility: From automotive parts to industrial machinery and household appliances, the applications of SAE 841 sintered bronze are vast.

Conclusion

In the age of innovation and the pursuit of efficiency, materials like the Oil Impregnated SAE 841 Sintered Bronze Brass Bushes are at the forefront. They embody the spirit of modern engineering: durable, efficient, and designed to serve for a lifetime.



Property/Specification Value/Description

Material Bronze Base SAE841 ; ASTM B438-70 GR1 SINT A50 ; CuSn663 ; CuSn9010

Working Temperature -100ºC ~ +200ºC

Density & Gravity 6.4-7.5g/cm³

Oil Impregnation Rate 18% – 23%

Graphite Content Rate 1% – 3% Max

Hardness HB (PM Bronze) 30~70

Performance up to 10 MPa

Maximum PV Value 2.45 N/mm²•m/s

Maximum Load Capacity 150 N/mm²

Working Speed 2.5 m/s

Type of Shape Cylinder ; Flange ; Spherical (with Ring)

This chart concisely presents the key specifications and characteristics of the 663 bearing sintered bronze sleeve bushing, making it easy for engineers and decision-makers to reference and understand the material’s properties.

When it comes to designing machinery or any mechanical system, the efficiency and lifespan of moving parts are critical. Among the myriad of components that contribute to this, flanged brass bushes made from SAE 841 sintered bronze play a pivotal role. Here, we delve into the specifics of these custom-sized components and their significance in modern engineering applications.

Understanding SAE 841 Sintered Bronze

SAE 841 is a standard set by the Society of Automotive Engineers (SAE) for a specific type of sintered bronze. This material is developed using powder metallurgy, wherein powdered bronze is compressed under high pressure and then heated, facilitating particle bonding without full melting. Post-sintering, these components are oil-impregnated to enhance their self-lubricating properties.

Features of SAE 841 Sintered Bronze Flanged Brass Bushes

  1. Customizability: Custom-sized flanged bushes can be manufactured to fit specific applications, ensuring optimal performance and fit.
  2. Self-Lubricating: Due to the oil impregnation, these bushes release a thin layer of oil under load, reducing friction and ensuring smooth operations.
  3. Durability: The combination of copper (87-90%) and tin (10%) in the SAE 841 offers exceptional wear resistance, extending the component’s lifespan.
  4. Temperature Resilience: With a working temperature range of -100ºC to +200ºC, these bushes can operate under varied environmental conditions.
  5. Versatility: They can be used in a wide range of industries and applications, from automotive to heavy machinery.

Applications of Custom Size Flanged Brass Bushes

  • Automotive: Used in gear assemblies, transmission systems, and other areas where there’s a need for rotational motion with minimal friction.
  • Industrial Machinery: Common in conveyor systems, rotational parts of heavy machines, and in areas requiring durable components.
  • Aerospace: Their durability and self-lubricating properties make them ideal for parts that are difficult to access for regular maintenance.
  • Home Appliances: Used in rotational parts of appliances like washing machines, mixers, and more.

Benefits of Custom Sizing

  1. Optimal Fit: Custom sizes ensure that the bush fits perfectly into the designated space, ensuring maximum efficiency.
  2. Reduced Wear and Tear: A perfect fit means less unnecessary movement, leading to reduced wear and tear.
  3. Cost-Effective: By reducing the need for regular maintenance and replacements, custom-sized bushes can lead to significant long-term savings.

Conclusion

SAE 841 Sintered Bronze flanged brass bushes, especially when custom-sized, offer unparalleled benefits in terms of durability, efficiency, and cost-effectiveness. Their widespread application across industries is a testament to their reliability and the advanced material science that goes into their production. As we move towards an era of precision engineering, such components will undoubtedly be at the forefront of innovation.



In the landscape of machinery and equipment, the emphasis on components that offer superior performance, longevity, and efficiency has never been higher. Among the champions of this arena are the oil impregnated bronze bearings made to the SAE 841 standard. But what makes them stand out? Let’s dive deep into the world of powder metal bearings and understand the prowess of SAE 841.

An Introduction to Powder Metal Bearings

Powder metallurgy is a manufacturing process where metal powders are compacted into desired shapes and then heated (sintered) to bond the particles together without melting the entire structure. This process produces parts with a unique porous structure, which is ideal for oil impregnation.

The Marvel of SAE 841 Oil Impregnated Bronze Bearings

1. Composition:

SAE 841 bronze bearings are primarily composed of 87-90% copper and 10% tin. This combination offers excellent anti-friction and wear-resistance properties.

2. Self-Lubrication:

The porosity resulting from the sintering process allows these bearings to be impregnated with oil. Under operational loads and temperatures, the oil is released from the pores to provide lubrication. When the bearing cools down or is not under load, the oil is re-absorbed, ready to be used again. This self-lubrication feature minimizes maintenance requirements and extends the bearing’s life.

3. Density & Versatility:

With a density ranging between 6.4-7.5g/cm³, these bearings can handle a variety of loads. Moreover, their self-lubricating feature makes them suitable for applications where regular lubrication might be challenging.

4. Environmental Resilience:

SAE 841 bearings can operate efficiently in a temperature range of -100ºC to +200ºC, making them versatile for various environmental conditions.

Applications and Benefits

Wide Range of Industries: From automotive to home appliances, from industrial machines to aerospace components, these bearings find applications wherever there’s a need for rotational or sliding motion.

Durability & Maintenance: The inherent self-lubricating property drastically reduces wear, resulting in longer operational life and reduced maintenance intervals.

Cost-Effective: In the long run, the reduced need for replacements and maintenance can lead to significant cost savings.

Conclusion

Oil Impregnated Bronze Bearings, especially those conforming to the SAE 841 standard, represent the pinnacle of powder metal technology. They embody the perfect blend of material science and engineering, offering solutions that are efficient, durable, and cost-effective. As industries continue to evolve and demand more from their components, materials and technologies like SAE 841 will be at the forefront, driving progress and innovation.



In the intricate world of industrial machinery and components, precision and reliability are paramount. It’s not just about choosing a part; it’s about choosing the right part. That’s where we come in. As proud suppliers of SAE 841 oil-impregnated bronze bushings, we’re here to shed light on the superior qualities of these components and why they should be your top choice.

What Are SAE 841 Oil-Impregnated Bronze Bushings?

SAE 841 refers to the Society of Automotive Engineers’ specification for oil-impregnated bronze bearings. These bushings are crafted from a blend of metals, primarily copper and tin, resulting in a bronze alloy. What sets them apart is the unique process of oil impregnation, which allows these bearings to be self-lubricating.

Why Choose SAE 841 Bushings?

Self-Lubrication: Thanks to the oil impregnation process, these bushings reduce the need for frequent maintenance. They release lubrication when under load, ensuring smooth operation and reducing wear and tear.

Durability: Bronze is renowned for its strength and resistance to wear, making these bushings ideal for high-load and high-speed applications.

Corrosion Resistance: The nature of the alloy ensures resistance to many common corrosive agents, extending the life of your machinery and reducing downtime.

Versatility: These bushings are perfect for a wide range of applications, from automotive to industrial machinery and beyond.

Our Commitment

As a leading supplier, our commitment goes beyond just providing a product. We ensure:

Quality Assurance: Every bushing meets the stringent SAE 841 standards.

Expertise: Our team is on hand to offer guidance, ensuring you choose the right component for your needs.

Efficient Delivery: We understand the urgency of industrial demands and ensure prompt delivery to keep your operations running smoothly.

Conclusion

When it comes to bearings and bushings, it’s essential to choose quality and reliability. With SAE 841 oil-impregnated bronze bushings, you’re not just making a choice; you’re making an investment in the longevity and efficiency of your machinery. Reach out to us today, and let’s embark on a journey of excellence together.

Oil Impregnated PowderMetal Bronze Bearings Custom Sizes (Sleeve Type), Custom-made Oil-Impregnated Bronze Bushings machine parts: you ask, we machine it
