Trusted Bearing Bush Supplier in China
One-stop solutions provider of quality wrapped bearings to clients all over the world. A Perforated Collar Bush made from CuSn8P is a type of bearing that is designed to reduce friction and wear in mechanical applications. It is made from a durable and wear-resistant bronze alloy and features a collar to keep it in place within its housing. The perforations in the bushing are filled with lubricant to further reduce friction and extend the life of the bushing.
Perforated Collar Bush
Select your wrapped pre-Lubricated bushing size
Delivery on time, every time
Morbi lobortis netus ac eget at montes.
Wrapped perforated collar bush bearings Supplier
Explore Our Range Of Pre-Lubricated Bushing & Bearing, All Available From Stock. Buy Online. A Perforated Collar Bush made from CuSn8P (also known as Phosphor Bronze) is a type of bushing or bearing that is commonly used in various mechanical applications. The term “perforated” refers to the small holes or perforations in the bushing, which are typically filled with lubricant to reduce friction and wear during operation.
CuSn8P, or Phosphor Bronze, is a type of bronze alloy that contains a small amount of phosphorus. The phosphorus increases the wear resistance and stiffness of the bronze, making it an excellent material for bushings and bearings. It also has good corrosion resistance and is able to withstand high loads and speeds, making it suitable for demanding applications.
The collar of the bushing refers to a flange or rim that is designed to keep the bushing in place within its housing. This can help to prevent axial movement and ensure that the bushing remains correctly aligned during operation.To improve your overall experience with us, we have our in-house repair and maintenance team to service your bushings & bearings.
Contact an bushing bearings expert
Contact www.bronzelube.com
Do you have a special application in which you use self-lubricating bushings plain bearings?
Learn More
Maintenance-free, long-lasting and economical
Search Bronze Sliding Bearings, Composite Bushings, Wrapped Bearings
Wrapped bronze bearings, featuring a perforated collar bush design, offer a lightweight, low-maintenance solution ideal for various applications. These bearings are notable for their low wear and friction coefficient, ensuring durability and efficiency. Viiplus, a recognized manufacturer in China, specializes in custom bronze bushes, including the 092 model with through holes, catering to diverse requirements. Emphasizing technical innovation and cost reduction, these maintenance-free wrapped bearings are available in both standard and flanged bushing designs, compliant with DIN 1494 / ISO 3547 standards. Customers can explore a vast stock of these bearings on Bronzelube.com, with the option for immediate worldwide shipping. Viiplus’s commitment to building top-quality bearings is evident in their offer of up to 40% off on plain bearing rates, providing a customizable bushing experience with a free quote service. Contact Viiplus today for a tailored solution in bronze bushing technology.
Viiplus offers a broad range of sizes, forms and materials in Perforated Collar Bush

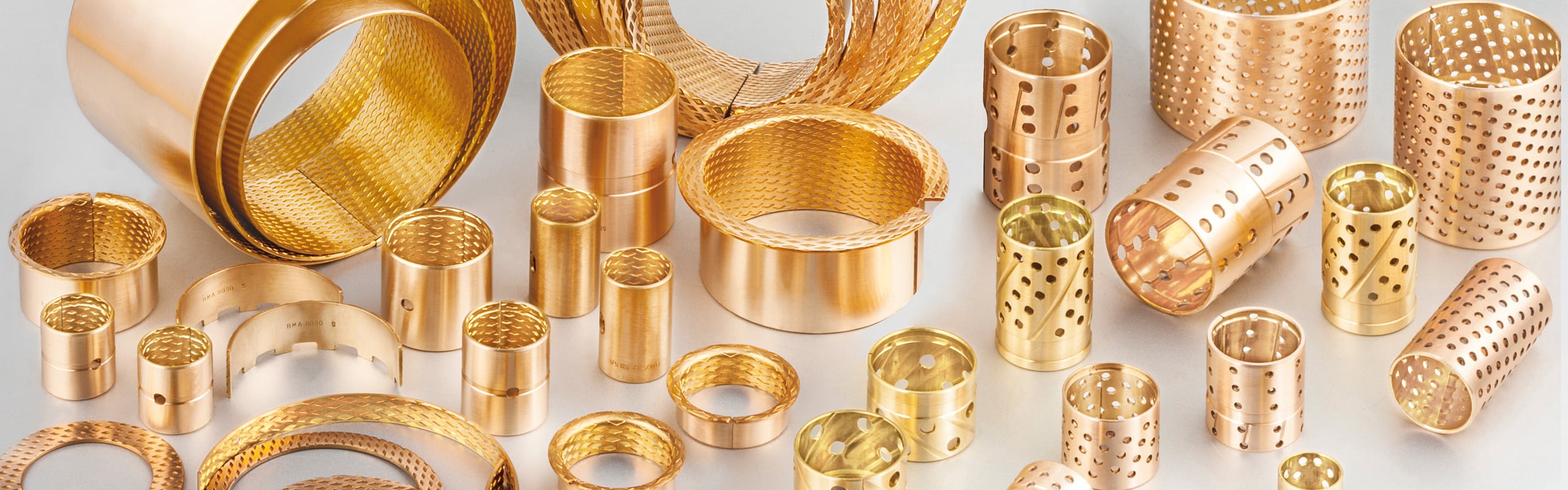

Wrapped bronze perforated bearings
The pre-lubricated bearings do not require relubrication during the application and service life.
Our range of wrapped bronze bearings, made from rolled phosphor bronze alloy CuSn8, are extremely versatile and well suited to a wide range of applications. These bronze bearings have been designed to handle low speeds and high loads, are especially suited for oscillating movements and are ideal for construction, mining, agriculture and automotive applications.
The working surface is laminated with perforated holes. During assembly or during operation, the recesses can be filled with grease or oil, which acts as a reserve, providing excellent long-term lubrication.
The bronze bearings are produced from a phosphor bronze alloy rolled tape which is tough and has an excellent finish. The composition of the material is as follows:
Cu – Balance
Sn – 8.5%
P – 0.2%
Wrapped bronze bushing with through holes
Perforated Collar Bush is a bronze material for the die, processing a uniform and orderly injection hole, the bearing made of thin-walled bearings, lubricating grease after assembly and then sets up the end face seal and use. The bearing has a large amount of oil, easy installation, the advantages of small size design and can replace the use of copper sets, can significantly reduce costs.
1. Easy of fitting and lubricate
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Extended service life and lubrication intervals than normal 090 type bearings
8. Free selection of lubricants
9. Collection of dust and rub off particles in the holes. Initial pre-lubrication at assembly is required…
Typical Application
Wrapped bronze bushing with through holes 092 is suitable for high load, lower speed application like construction, transport and agriculture machinery etc.
Material: CuSn8P (DIN 17662)
Bronze bearings made of CuSn8 with through-holes
CuSn8 with composition (Sn:8%, P<0.05%, Cu:Rest)
Material properties | |
Specific load capacity static | ≤ 120 [N/mm2] bei max. 0,01 m/s |
Specific load capacity dynamic | ≤ 40 [N/mm2] bei max. 2,0 m/s |
Sliding speed | ≤ 2.5 [m/s] depending on lubrication |
Friction value | 0.05 [µ] to 0.20 [µ] depending on lubrication |
Temperature strain | – 40 [°C] to + 250 [°C] |
Max. PV-value | 2.8 [N/mm² x m/s] |
Physical and Mechanical Properties
Technical Data
Data | Code | 092 |
Material | CuSn8P(Qsn8-0.3) | |
Applications | Products are widely used in agricultural machinery, construction machinery, engineering machinery. | |
Density g/cm³ | 8.8 | |
Max Load Capacity N/mm² | 120 | |
Max Line Speed V | Grease Lubrication m/s | 2.5 |
PV Value Limit | Grease Lubrication N/mm²·m/s | 2.8 |
Tensile Strength N/mm² | >460 | |
Yield Strength N/mm² | >280 | |
Hardness HB | 90~150 | |
Friction Coefficient u | 0.06~0.15 | |
Mating Axis | Hardness HRC | ≥50 |
Roughness Ra | 0.4~1.0 | |
Working Temperature ℃ | -40~+150 | |
Thermal Conductivity W/mk | 58 | |
Coefficient Of Linear Xpansion | 18.5×10-6/K | |
In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements. |
Wrapped bronze bushings with through holes – Metric size
Product | Bearing Type | Shaft Dia., Nominal (d) (mm) | Bearing Outside Diameter, Nominal(Do) (mm) | Bearing Length, Nominal (B) (mm) | Wall Thickness (S3) (mm) |
Wrapped bronze bushing092 1010 | straight | 10 | 12 | 10 | 1 |
Wrapped bronze bushing092 1015 | straight | 10 | 12 | 15 | 1 |
Wrapped bronze bushing092 1020 | straight | 10 | 12 | 20 | 1 |
Wrapped bronze bushing092 1210 | straight | 12 | 14 | 10 | 1 |
Wrapped bronze bushing092 1215 | straight | 12 | 14 | 15 | 1 |
Wrapped bronze bushing092 1220 | straight | 12 | 14 | 20 | 1 |
Wrapped bronze bushing092 1410 | straight | 14 | 16 | 10 | 1 |
Wrapped bronze bushing092 1415 | straight | 14 | 16 | 15 | 1 |
Wrapped bronze bushing092 1420 | straight | 14 | 16 | 20 | 1 |
Wrapped bronze bushing092 1425 | straight | 14 | 16 | 25 | 1 |
Wrapped bronze bushing092 1510 | straight | 15 | 17 | 10 | 1 |
Wrapped bronze bushing092 1515 | straight | 15 | 17 | 15 | 1 |
Wrapped bronze bushing092 1520 | straight | 15 | 17 | 20 | 1 |
Wrapped bronze bushing092 1525 | straight | 15 | 17 | 25 | 1 |
Wrapped bronze bushing092 1610 | straight | 16 | 18 | 10 | 1 |
Wrapped bronze bushing092 1615 | straight | 16 | 18 | 15 | 1 |
Wrapped bronze bushing092 1620 | straight | 16 | 18 | 20 | 1 |
Wrapped bronze bushing092 1625 | straight | 16 | 18 | 25 | 1 |
Wrapped bronze bushing092 1810 | straight | 18 | 20 | 10 | 1 |
Wrapped bronze bushing092 1815 | straight | 18 | 20 | 15 | 1 |
Wrapped bronze bushing092 1820 | straight | 18 | 20 | 20 | 1 |
Wrapped bronze bushing092 1825 | straight | 18 | 20 | 25 | 1 |
Wrapped bronze bushing092 2010 | straight | 20 | 23 | 10 | 1.5 |
Wrapped bronze bushing092 2015 | straight | 20 | 23 | 15 | 1.5 |
Wrapped bronze bushing092 2020 | straight | 20 | 23 | 20 | 1.5 |
Wrapped bronze bushing092 2025 | straight | 20 | 23 | 25 | 1.5 |
Wrapped bronze bushing092 2210 | straight | 22 | 25 | 10 | 1.5 |
Wrapped bronze bushing092 2215 | straight | 22 | 25 | 15 | 1.5 |
Wrapped bronze bushing092 2220 | straight | 22 | 25 | 20 | 1.5 |
Wrapped bronze bushing092 2225 | straight | 22 | 25 | 25 | 1.5 |
Wrapped bronze bushing092 2230 | straight | 22 | 25 | 30 | 1.5 |
Wrapped bronze bushing092 2410 | straight | 24 | 27 | 10 | 1.5 |
Wrapped bronze bushing092 2415 | straight | 24 | 27 | 15 | 1.5 |
Wrapped bronze bushing092 2420 | straight | 24 | 27 | 20 | 1.5 |
Wrapped bronze bushing092 2425 | straight | 24 | 27 | 25 | 1.5 |
Wrapped bronze bushing092 2430 | straight | 24 | 27 | 30 | 1.5 |
Wrapped bronze bushing092 2515 | straight | 25 | 28 | 15 | 1.5 |
Wrapped bronze bushing092 2520 | straight | 25 | 28 | 20 | 1.5 |
Wrapped bronze bushing092 2525 | straight | 25 | 28 | 25 | 1.5 |
Wrapped bronze bushing092 2530 | straight | 25 | 28 | 30 | 1.5 |
Wrapped bronze bushing092 2815 | straight | 28 | 32 | 15 | 2 |
Wrapped bronze bushing092 2820 | straight | 28 | 32 | 20 | 2 |
Wrapped bronze bushing092 2825 | straight | 28 | 32 | 25 | 2 |
Wrapped bronze bushing092 2830 | straight | 28 | 32 | 30 | 2 |
Wrapped bronze bushing092 3015 | straight | 30 | 34 | 15 | 2 |
Wrapped bronze bushing092 3020 | straight | 30 | 34 | 20 | 2 |
Wrapped bronze bushing092 3025 | straight | 30 | 34 | 25 | 2 |
Wrapped bronze bushing092 3030 | straight | 30 | 34 | 30 | 2 |
Wrapped bronze bushing092 3035 | straight | 30 | 34 | 35 | 2 |
Wrapped bronze bushing092 3040 | straight | 30 | 34 | 40 | 2 |
Wrapped bronze bushing092 3215 | straight | 32 | 36 | 15 | 2 |
Wrapped bronze bushing092 3220 | straight | 32 | 36 | 20 | 2 |
Wrapped bronze bushing092 3225 | straight | 32 | 36 | 25 | 2 |
Wrapped bronze bushing092 3230 | straight | 32 | 36 | 30 | 2 |
Wrapped bronze bushing092 3235 | straight | 32 | 36 | 35 | 2 |
Wrapped bronze bushing092 3240 | straight | 32 | 36 | 40 | 2 |
Wrapped bronze bushing092 3520 | straight | 35 | 39 | 20 | 2 |
Wrapped bronze bushing092 3525 | straight | 35 | 39 | 25 | 2 |
Wrapped bronze bushing092 3530 | straight | 35 | 39 | 30 | 2 |
Wrapped bronze bushing092 3540 | straight | 35 | 39 | 40 | 2 |
Wrapped bronze bushing092 4020 | straight | 40 | 44 | 20 | 2 |
Wrapped bronze bushing092 4025 | straight | 40 | 44 | 25 | 2 |
Wrapped bronze bushing092 4030 | straight | 40 | 44 | 30 | 2 |
Wrapped bronze bushing092 4035 | straight | 40 | 44 | 35 | 2 |
Wrapped bronze bushing092 4040 | straight | 40 | 44 | 40 | 2 |
Wrapped bronze bushing092 4050 | straight | 40 | 44 | 50 | 2 |
Wrapped bronze bushing092 4520 | straight | 45 | 50 | 20 | 2.5 |
Wrapped bronze bushing092 4525 | straight | 45 | 50 | 25 | 2.5 |
Wrapped bronze bushing092 4530 | straight | 45 | 50 | 30 | 2.5 |
Wrapped bronze bushing092 4535 | straight | 45 | 50 | 35 | 2.5 |
Wrapped bronze bushing092 4540 | straight | 45 | 50 | 40 | 2.5 |
Wrapped bronze bushing092 4550 | straight | 45 | 50 | 50 | 2.5 |
Wrapped bronze bushing092 5020 | straight | 50 | 55 | 20 | 2.5 |
Wrapped bronze bushing092 5025 | straight | 50 | 55 | 25 | 2.5 |
Wrapped bronze bushing092 5030 | straight | 50 | 55 | 30 | 2.5 |
Wrapped bronze bushing092 5035 | straight | 50 | 55 | 35 | 2.5 |
Wrapped bronze bushing092 5040 | straight | 50 | 55 | 40 | 2.5 |
Wrapped bronze bushing092 5050 | straight | 50 | 55 | 50 | 2.5 |
Wrapped bronze bushing092 5060 | straight | 50 | 55 | 60 | 2.5 |
Wrapped bronze bushing092 5520 | straight | 55 | 60 | 20 | 2.5 |
Wrapped bronze bushing092 5525 | straight | 55 | 60 | 25 | 2.5 |
Wrapped bronze bushing092 5530 | straight | 55 | 60 | 30 | 2.5 |
Wrapped bronze bushing092 5535 | straight | 55 | 60 | 35 | 2.5 |
Wrapped bronze bushing092 5540 | straight | 55 | 60 | 40 | 2.5 |
Wrapped bronze bushing092 5550 | straight | 55 | 60 | 50 | 2.5 |
Wrapped bronze bushing092 5560 | straight | 55 | 60 | 60 | 2.5 |
Wrapped bronze bushing092 6025 | straight | 60 | 65 | 25 | 2.5 |
Wrapped bronze bushing092 6030 | straight | 60 | 65 | 30 | 2.5 |
Wrapped bronze bushing092 6035 | straight | 60 | 65 | 35 | 2.5 |
Wrapped bronze bushing092 6040 | straight | 60 | 65 | 40 | 2.5 |
Wrapped bronze bushing092 6050 | straight | 60 | 65 | 50 | 2.5 |
Wrapped bronze bushing092 6060 | straight | 60 | 65 | 60 | 2.5 |
Wrapped bronze bushing092 6070 | straight | 60 | 65 | 70 | 2.5 |
Wrapped bronze bushing092 6530 | straight | 65 | 70 | 30 | 2.5 |
Wrapped bronze bushing092 6535 | straight | 65 | 70 | 35 | 2.5 |
Wrapped bronze bushing092 6540 | straight | 65 | 70 | 40 | 2.5 |
Wrapped bronze bushing092 6550 | straight | 65 | 70 | 50 | 2.5 |
Wrapped bronze bushing092 6560 | straight | 65 | 70 | 60 | 2.5 |
Wrapped bronze bushing092 6570 | straight | 65 | 70 | 70 | 2.5 |
Wrapped bronze bushing092 7030 | straight | 70 | 75 | 30 | 2.5 |
Wrapped bronze bushing092 7035 | straight | 70 | 75 | 35 | 2.5 |
Wrapped bronze bushing092 7040 | straight | 70 | 75 | 40 | 2.5 |
Wrapped bronze bushing092 7050 | straight | 70 | 75 | 50 | 2.5 |
Wrapped bronze bushing092 7060 | straight | 70 | 75 | 60 | 2.5 |
Wrapped bronze bushing092 7070 | straight | 70 | 75 | 80 | 2.5 |
Wrapped bronze bushing092 7530 | straight | 75 | 80 | 30 | 2.5 |
Wrapped bronze bushing092 7535 | straight | 75 | 80 | 35 | 2.5 |
Wrapped bronze bushing092 7540 | straight | 75 | 80 | 40 | 2.5 |
Wrapped bronze bushing092 7550 | straight | 75 | 80 | 50 | 2.5 |
Wrapped bronze bushing092 7560 | straight | 75 | 80 | 60 | 2.5 |
Wrapped bronze bushing092 7570 | straight | 75 | 80 | 70 | 2.5 |
Wrapped bronze bushing092 8030 | straight | 80 | 85 | 30 | 2.5 |
Wrapped bronze bushing092 8035 | straight | 80 | 85 | 35 | 2.5 |
Wrapped bronze bushing092 8040 | straight | 80 | 85 | 40 | 2.5 |
Wrapped bronze bushing092 8050 | straight | 80 | 85 | 50 | 2.5 |
Wrapped bronze bushing092 8060 | straight | 80 | 85 | 60 | 2.5 |
Wrapped bronze bushing092 8070 | straight | 80 | 85 | 70 | 2.5 |
Wrapped bronze bushing092 8530 | straight | 85 | 90 | 30 | 2.5 |
Wrapped bronze bushing092 8535 | straight | 85 | 90 | 35 | 2.5 |
Wrapped bronze bushing092 8540 | straight | 85 | 90 | 40 | 2.5 |
Wrapped bronze bushing092 8550 | straight | 85 | 90 | 50 | 2.5 |
Wrapped bronze bushing092 8560 | straight | 85 | 90 | 60 | 2.5 |
Wrapped bronze bushing092 8570 | straight | 85 | 90 | 70 | 2.5 |
Wrapped bronze bushing092 8580 | straight | 85 | 90 | 80 | 2.5 |
Wrapped bronze bushing092 8590 | straight | 85 | 90 | 90 | 2.5 |
Wrapped bronze bushing092 9030 | straight | 90 | 95 | 30 | 2.5 |
Wrapped bronze bushing092 9035 | straight | 90 | 95 | 35 | 2.5 |
Wrapped bronze bushing092 9040 | straight | 90 | 95 | 40 | 2.5 |
Wrapped bronze bushing092 9050 | straight | 90 | 95 | 50 | 2.5 |
Wrapped bronze bushing092 9060 | straight | 90 | 95 | 60 | 2.5 |
Wrapped bronze bushing092 9070 | straight | 90 | 95 | 70 | 2.5 |
Wrapped bronze bushing092 9080 | straight | 90 | 95 | 80 | 2.5 |
Wrapped bronze bushing092 9090 | straight | 90 | 95 | 100 | 2.5 |
Wrapped bronze bushing092 9540 | straight | 95 | 100 | 40 | 2.5 |
Wrapped bronze bushing092 9550 | straight | 95 | 100 | 50 | 2.5 |
Wrapped bronze bushing092 9560 | straight | 95 | 100 | 60 | 2.5 |
Wrapped bronze bushing092 9570 | straight | 95 | 100 | 70 | 2.5 |
Wrapped bronze bushing092 9580 | straight | 95 | 100 | 80 | 2.5 |
Wrapped bronze bushing092 9590 | straight | 95 | 100 | 90 | 2.5 |
Wrapped bronze bushing092 95100 | straight | 95 | 100 | 100 | 2.5 |
Wrapped bronze bushing092 10050 | straight | 100 | 105 | 50 | 2.5 |
Wrapped bronze bushing092 10060 | straight | 100 | 105 | 60 | 2.5 |
Wrapped bronze bushing092 10070 | straight | 100 | 105 | 70 | 2.5 |
Wrapped bronze bushing092 10080 | straight | 100 | 105 | 80 | 2.5 |
Wrapped bronze bushing092 10090 | straight | 100 | 105 | 90 | 2.5 |
Wrapped bronze bushing092 100100 | straight | 100 | 105 | 100 | 2.5 |
Wrapped bronze bushing092 10550 | straight | 105 | 110 | 50 | 2.5 |
Wrapped bronze bushing092 10560 | straight | 105 | 110 | 60 | 2.5 |
Wrapped bronze bushing092 10570 | straight | 105 | 110 | 70 | 2.5 |
Wrapped bronze bushing092 10580 | straight | 105 | 110 | 80 | 2.5 |
Wrapped bronze bushing092 10590 | straight | 105 | 110 | 90 | 2.5 |
Wrapped bronze bushing092 105100 | straight | 105 | 110 | 100 | 2.5 |
Wrapped bronze bushing092 11050 | straight | 110 | 115 | 50 | 2.5 |
Wrapped bronze bushing092 11060 | straight | 110 | 115 | 60 | 2.5 |
Wrapped bronze bushing092 11070 | straight | 110 | 115 | 70 | 2.5 |
Wrapped bronze bushing092 11080 | straight | 110 | 115 | 80 | 2.5 |
Wrapped bronze bushing092 11090 | straight | 110 | 115 | 90 | 2.5 |
Wrapped bronze bushing092 110100 | straight | 110 | 115 | 100 | 2.5 |
Wrapped bronze bushing092 11550 | straight | 115 | 120 | 50 | 2.5 |
Wrapped bronze bushing092 11560 | straight | 115 | 120 | 60 | 2.5 |
Wrapped bronze bushing092 11570 | straight | 115 | 120 | 70 | 2.5 |
Wrapped bronze bushing092 11580 | straight | 115 | 120 | 80 | 2.5 |
Wrapped bronze bushing092 11590 | straight | 115 | 120 | 90 | 2.5 |
Wrapped bronze bushing092 115100 | straight | 115 | 120 | 100 | 2.5 |
Wrapped bronze bushing092 12060 | straight | 120 | 125 | 60 | 2.5 |
Wrapped bronze bushing092 12070 | straight | 120 | 125 | 70 | 2.5 |
Wrapped bronze bushing092 12080 | straight | 120 | 125 | 80 | 2.5 |
Wrapped bronze bushing092 12090 | straight | 120 | 125 | 90 | 2.5 |
Wrapped bronze bushing092 120100 | straight | 120 | 125 | 100 | 2.5 |
Wrapped bronze bushing092 12560 | straight | 125 | 130 | 60 | 2.5 |
Wrapped bronze bushing092 12570 | straight | 125 | 130 | 70 | 2.5 |
Wrapped bronze bushing092 12580 | straight | 125 | 130 | 80 | 2.5 |
Wrapped bronze bushing092 12590 | straight | 125 | 130 | 90 | 2.5 |
Wrapped bronze bushing092 125100 | straight | 125 | 130 | 100 | 2.5 |
Wrapped bronze bushing092 13060 | straight | 130 | 135 | 60 | 2.5 |
Wrapped bronze bushing092 13070 | straight | 130 | 135 | 70 | 2.5 |
Wrapped bronze bushing092 13080 | straight | 130 | 135 | 80 | 2.5 |
Wrapped bronze bushing092 13090 | straight | 130 | 135 | 90 | 2.5 |
Wrapped bronze bushing092 130100 | straight | 130 | 135 | 100 | 2.5 |
Wrapped bronze bushing092 13560 | straight | 135 | 140 | 60 | 2.5 |
Wrapped bronze bushing092 13570 | straight | 135 | 140 | 70 | 2.5 |
Wrapped bronze bushing092 13580 | straight | 135 | 140 | 80 | 2.5 |
Wrapped bronze bushing092 13590 | straight | 135 | 140 | 90 | 2.5 |
Wrapped bronze bushing092 135100 | straight | 135 | 140 | 100 | 2.5 |
Wrapped bronze bushing092 14060 | straight | 140 | 145 | 60 | 2.5 |
Wrapped bronze bushing092 14070 | straight | 140 | 145 | 70 | 2.5 |
Wrapped bronze bushing092 14080 | straight | 140 | 145 | 80 | 2.5 |
Wrapped bronze bushing092 14090 | straight | 140 | 145 | 90 | 2.5 |
Wrapped bronze bushing092 140100 | straight | 140 | 145 | 100 | 2.5 |
Wrapped bronze bushing092 14560 | straight | 145 | 150 | 60 | 2.5 |
Wrapped bronze bushing092 14570 | straight | 145 | 150 | 70 | 2.5 |
Wrapped bronze bushing092 14580 | straight | 145 | 150 | 80 | 2.5 |
Wrapped bronze bushing092 14590 | straight | 145 | 150 | 90 | 2.5 |
Wrapped bronze bushing092 145100 | straight | 145 | 150 | 100 | 2.5 |
Wrapped bronze bushing092 15060 | straight | 150 | 155 | 60 | 2.5 |
Wrapped bronze bushing092 15070 | straight | 150 | 155 | 70 | 2.5 |
Wrapped bronze bushing092 15080 | straight | 150 | 155 | 80 | 2.5 |
Wrapped bronze bushing092 15090 | straight | 150 | 155 | 90 | 2.5 |
Wrapped bronze bushing092 150100 | straight | 150 | 155 | 100 | 2.5 |
Wrapped bronze bushing092 15560 | straight | 155 | 160 | 60 | 2.5 |
Wrapped bronze bushing092 15570 | straight | 155 | 160 | 70 | 2.5 |
Wrapped bronze bushing092 15580 | straight | 155 | 160 | 80 | 2.5 |
Wrapped bronze bushing092 15590 | straight | 155 | 160 | 90 | 2.5 |
Wrapped bronze bushing092 155100 | straight | 155 | 160 | 100 | 2.5 |
Wrapped bronze bushing092 16060 | straight | 160 | 165 | 60 | 2.5 |
Wrapped bronze bushing092 16070 | straight | 160 | 165 | 70 | 2.5 |
Wrapped bronze bushing092 16080 | straight | 160 | 165 | 80 | 2.5 |
Wrapped bronze bushing092 16090 | straight | 160 | 165 | 90 | 2.5 |
Wrapped bronze bushing092 160100 | straight | 160 | 165 | 100 | 2.5 |
Wrapped bronze bushing092 16560 | straight | 165 | 170 | 60 | 2.5 |
Wrapped bronze bushing092 16570 | straight | 165 | 170 | 70 | 2.5 |
Wrapped bronze bushing092 16580 | straight | 165 | 170 | 80 | 2.5 |
Wrapped bronze bushing092 16590 | straight | 165 | 170 | 90 | 2.5 |
Wrapped bronze bushing092 165100 | straight | 165 | 170 | 100 | 2.5 |
Wrapped bronze bushing092 17060 | straight | 170 | 175 | 60 | 2.5 |
Wrapped bronze bushing092 17070 | straight | 170 | 175 | 70 | 2.5 |
Wrapped bronze bushing092 17080 | straight | 170 | 175 | 80 | 2.5 |
Wrapped bronze bushing092 17090 | straight | 170 | 175 | 90 | 2.5 |
Wrapped bronze bushing092 170100 | straight | 170 | 175 | 100 | 2.5 |
Wrapped bronze bushing092 17560 | straight | 175 | 180 | 60 | 2.5 |
Wrapped bronze bushing092 17570 | straight | 175 | 180 | 70 | 2.5 |
Wrapped bronze bushing092 17580 | straight | 175 | 180 | 80 | 2.5 |
Wrapped bronze bushing092 17590 | straight | 175 | 180 | 90 | 2.5 |
Wrapped bronze bushing092 175100 | straight | 175 | 180 | 100 | 2.5 |
Wrapped bronze bushing092 18060 | straight | 180 | 185 | 60 | 2.5 |
Wrapped bronze bushing092 18070 | straight | 180 | 185 | 70 | 2.5 |
Wrapped bronze bushing092 18080 | straight | 180 | 185 | 80 | 2.5 |
Wrapped bronze bushing092 18090 | straight | 180 | 185 | 90 | 2.5 |
Wrapped bronze bushing092 180100 | straight | 180 | 185 | 100 | 2.5 |
Wrapped bronze bushing092 18560 | straight | 185 | 190 | 60 | 2.5 |
Wrapped bronze bushing092 18570 | straight | 185 | 190 | 70 | 2.5 |
Wrapped bronze bushing092 18580 | straight | 185 | 190 | 80 | 2.5 |
Wrapped bronze bushing092 18590 | straight | 185 | 190 | 90 | 2.5 |
Wrapped bronze bushing092 185100 | straight | 185 | 190 | 100 | 2.5 |
Wrapped bronze bushing092 19060 | straight | 190 | 195 | 60 | 2.5 |
Wrapped bronze bushing092 19070 | straight | 190 | 195 | 70 | 2.5 |
Wrapped bronze bushing092 19080 | straight | 190 | 195 | 80 | 2.5 |
Wrapped bronze bushing092 19090 | straight | 190 | 195 | 90 | 2.5 |
Wrapped bronze bushing092 190100 | straight | 190 | 195 | 100 | 2.5 |
Wrapped bronze bushing092 19560 | straight | 195 | 200 | 60 | 2.5 |
Wrapped bronze bushing092 19570 | straight | 195 | 200 | 70 | 2.5 |
Wrapped bronze bushing092 19580 | straight | 195 | 200 | 80 | 2.5 |
Wrapped bronze bushing092 19590 | straight | 195 | 200 | 90 | 2.5 |
Wrapped bronze bushing092 195100 | straight | 195 | 200 | 100 | 2.5 |
Wrapped bronze bushing092 20060 | straight | 200 | 205 | 60 | 2.5 |
Wrapped bronze bushing092 20070 | straight | 200 | 205 | 70 | 2.5 |
Wrapped bronze bushing092 20080 | straight | 200 | 205 | 80 | 2.5 |
Wrapped bronze bushing092 20090 | straight | 200 | 205 | 90 | 2.5 |
Wrapped bronze bushing092 200100 | straight | 200 | 205 | 100 | 2.5 |
Wrapped bronze bushing092 20560 | straight | 205 | 210 | 60 | 2.5 |
Wrapped bronze bushing092 20570 | straight | 205 | 210 | 70 | 2.5 |
Wrapped bronze bushing092 20580 | straight | 205 | 210 | 80 | 2.5 |
Wrapped bronze bushing092 20590 | straight | 205 | 210 | 90 | 2.5 |
Wrapped bronze bushing092 205100 | straight | 205 | 210 | 100 | 2.5 |
Wrapped bronze bushing092 21060 | straight | 210 | 215 | 60 | 2.5 |
Wrapped bronze bushing092 21070 | straight | 210 | 215 | 70 | 2.5 |
Wrapped bronze bushing092 21080 | straight | 210 | 215 | 80 | 2.5 |
Wrapped bronze bushing092 21090 | straight | 210 | 215 | 90 | 2.5 |
Wrapped bronze bushing092 210100 | straight | 210 | 215 | 100 | 2.5 |
Wrapped bronze bushing092 21560 | straight | 215 | 220 | 60 | 2.5 |
Wrapped bronze bushing092 21570 | straight | 215 | 220 | 70 | 2.5 |
Wrapped bronze bushing092 21580 | straight | 215 | 220 | 80 | 2.5 |
Wrapped bronze bushing092 21590 | straight | 215 | 220 | 90 | 2.5 |
Wrapped bronze bushing092 215100 | straight | 215 | 220 | 100 | 2.5 |
Wrapped bronze bushing092 22060 | straight | 220 | 225 | 60 | 2.5 |
Wrapped bronze bushing092 22070 | straight | 220 | 225 | 70 | 2.5 |
Wrapped bronze bushing092 22080 | straight | 220 | 225 | 80 | 2.5 |
Wrapped bronze bushing092 22090 | straight | 220 | 225 | 90 | 2.5 |
Wrapped bronze bushing092 220100 | straight | 220 | 225 | 100 | 2.5 |
Wrapped bronze bushing092 22560 | straight | 225 | 230 | 60 | 2.5 |
Wrapped bronze bushing092 22570 | straight | 225 | 230 | 70 | 2.5 |
Wrapped bronze bushing092 22580 | straight | 225 | 230 | 80 | 2.5 |
Wrapped bronze bushing092 22590 | straight | 225 | 230 | 90 | 2.5 |
Wrapped bronze bushing092 225100 | straight | 225 | 230 | 100 | 2.5 |
Wrapped bronze bushing092 23060 | straight | 230 | 235 | 60 | 2.5 |
Wrapped bronze bushing092 23070 | straight | 230 | 235 | 70 | 2.5 |
Wrapped bronze bushing092 23080 | straight | 230 | 235 | 80 | 2.5 |
Wrapped bronze bushing092 23090 | straight | 230 | 235 | 90 | 2.5 |
Wrapped bronze bushing092 230100 | straight | 230 | 235 | 100 | 2.5 |
Wrapped bronze bushing092 24060 | straight | 240 | 245 | 60 | 2.5 |
Wrapped bronze bushing092 24070 | straight | 240 | 245 | 70 | 2.5 |
Wrapped bronze bushing092 24080 | straight | 240 | 245 | 80 | 2.5 |
Wrapped bronze bushing092 24090 | straight | 240 | 245 | 90 | 2.5 |
Wrapped bronze bushing092 240100 | straight | 240 | 245 | 100 | 2.5 |
Wrapped bronze bushing092 25060 | straight | 250 | 255 | 60 | 2.5 |
Wrapped bronze bushing092 25070 | straight | 250 | 255 | 70 | 2.5 |
Wrapped bronze bushing092 25080 | straight | 250 | 255 | 80 | 2.5 |
Wrapped bronze bushing092 25090 | straight | 250 | 255 | 90 | 2.5 |
Wrapped bronze bushing092 250100 | straight | 250 | 255 | 100 | 2.5 |
Wrapped bronze bushing092 26060 | straight | 260 | 265 | 60 | 2.5 |
Wrapped bronze bushing092 26070 | straight | 260 | 265 | 70 | 2.5 |
Wrapped bronze bushing092 26080 | straight | 260 | 265 | 80 | 2.5 |
Wrapped bronze bushing092 26090 | straight | 260 | 265 | 90 | 2.5 |
Wrapped bronze bushing092 260100 | straight | 260 | 265 | 100 | 2.5 |
Wrapped bronze bushing092 27060 | straight | 270 | 275 | 60 | 2.5 |
Wrapped bronze bushing092 27070 | straight | 270 | 275 | 70 | 2.5 |
Wrapped bronze bushing092 27080 | straight | 270 | 275 | 80 | 2.5 |
Wrapped bronze bushing092 27090 | straight | 270 | 275 | 90 | 2.5 |
Wrapped bronze bushing092 270100 | straight | 270 | 275 | 100 | 2.5 |
Wrapped bronze bushing092 28060 | straight | 280 | 285 | 60 | 2.5 |
Wrapped bronze bushing092 28070 | straight | 280 | 285 | 70 | 2.5 |
Wrapped bronze bushing092 28080 | straight | 280 | 285 | 80 | 2.5 |
Wrapped bronze bushing092 28090 | straight | 280 | 285 | 90 | 2.5 |
Wrapped bronze bushing092 280100 | straight | 280 | 285 | 100 | 2.5 |
Wrapped bronze bushing092 29060 | straight | 290 | 295 | 60 | 2.5 |
Wrapped bronze bushing092 29070 | straight | 290 | 295 | 70 | 2.5 |
Wrapped bronze bushing092 29080 | straight | 290 | 295 | 80 | 2.5 |
Wrapped bronze bushing092 29090 | straight | 290 | 295 | 90 | 2.5 |
Wrapped bronze bushing092 290100 | straight | 290 | 295 | 100 | 2.5 |
Wrapped bronze bushing092 30060 | straight | 300 | 305 | 60 | 2.5 |
Wrapped bronze bushing092 30070 | straight | 300 | 305 | 70 | 2.5 |
Wrapped bronze bushing092 30080 | straight | 300 | 305 | 80 | 2.5 |
Wrapped bronze bushing092 30090 | straight | 300 | 305 | 90 | 2.5 |
Wrapped bronze bushing092 300100 | straight | 300 | 305 | 100 | 2.5 |
Wrapped bronze bushing092 F2515 | flanged | 25 | 28 | 15 | 1.5 |
Wrapped bronze bushing092 F2520 | flanged | 25 | 28 | 20 | 1.5 |
Wrapped bronze bushing092 F2525 | flanged | 25 | 28 | 25 | 1.5 |
Wrapped bronze bushing092 F3020 | flanged | 30 | 34 | 20 | 2 |
Wrapped bronze bushing092 F3025 | flanged | 30 | 34 | 25 | 2 |
Wrapped bronze bushing092 F3030 | flanged | 30 | 34 | 30 | 2 |
Wrapped bronze bushing092 F3520 | flanged | 35 | 39 | 20 | 2 |
Wrapped bronze bushing092 F3525 | flanged | 35 | 39 | 25 | 2 |
Wrapped bronze bushing092 F3530 | flanged | 35 | 39 | 30 | 2 |
Wrapped bronze bushing092 F3535 | flanged | 35 | 39 | 35 | 2 |
Wrapped bronze bushing092 F4025 | flanged | 40 | 44 | 25 | 2 |
Wrapped bronze bushing092 F4030 | flanged | 40 | 44 | 30 | 2 |
Wrapped bronze bushing092 F4035 | flanged | 40 | 44 | 35 | 2 |
Wrapped bronze bushing092 F4040 | flanged | 40 | 44 | 40 | 2 |
Wrapped bronze bushing092 F4530 | flanged | 45 | 50 | 30 | 2.5 |
Wrapped bronze bushing092 F4535 | flanged | 45 | 50 | 35 | 2.5 |
Wrapped bronze bushing092 F4540 | flanged | 45 | 50 | 40 | 2.5 |
Wrapped bronze bushing092 F4550 | flanged | 45 | 50 | 50 | 2.5 |
Wrapped bronze bushing092 F5030 | flanged | 50 | 55 | 30 | 2.5 |
Wrapped bronze bushing092 F5035 | flanged | 50 | 55 | 35 | 2.5 |
Wrapped bronze bushing092 F5040 | flanged | 50 | 55 | 40 | 2.5 |
Wrapped bronze bushing092 F5050 | flanged | 50 | 55 | 50 | 2.5 |
Wrapped bronze bushing092 F5530 | flanged | 55 | 60 | 30 | 2.5 |
Wrapped bronze bushing092 F5535 | flanged | 55 | 60 | 35 | 2.5 |
Wrapped bronze bushing092 F5540 | flanged | 55 | 60 | 40 | 2.5 |
Wrapped bronze bushing092 F5550 | flanged | 55 | 60 | 50 | 2.5 |
Wrapped bronze bushing092 F6030 | flanged | 60 | 65 | 30 | 2.5 |
Wrapped bronze bushing092 F6035 | flanged | 60 | 65 | 35 | 2.5 |
Wrapped bronze bushing092 F6040 | flanged | 60 | 65 | 40 | 2.5 |
Wrapped bronze bushing092 F6050 | flanged | 60 | 65 | 50 | 2.5 |
Wrapped bronze bushing092 F6060 | flanged | 60 | 65 | 60 | 2.5 |
Wrapped bronze bushing092 F6530 | flanged | 65 | 70 | 30 | 2.5 |
Wrapped bronze bushing092 F6535 | flanged | 65 | 70 | 35 | 2.5 |
Wrapped bronze bushing092 F6540 | flanged | 65 | 70 | 40 | 2.5 |
Wrapped bronze bushing092 F6550 | flanged | 65 | 70 | 50 | 2.5 |
Wrapped bronze bushing092 F6560 | flanged | 65 | 70 | 60 | 2.5 |
Wrapped bronze bushing092 F7035 | flanged | 70 | 75 | 35 | 2.5 |
Wrapped bronze bushing092 F7040 | flanged | 70 | 75 | 40 | 2.5 |
Wrapped bronze bushing092 F7050 | flanged | 70 | 75 | 50 | 2.5 |
Wrapped bronze bushing092 F7060 | flanged | 70 | 75 | 60 | 2.5 |
Wrapped bronze bushing092 F7070 | flanged | 70 | 75 | 80 | 2.5 |
Wrapped bronze bushing092 F7535 | flanged | 75 | 80 | 35 | 2.5 |
Wrapped bronze bushing092 F7540 | flanged | 75 | 80 | 40 | 2.5 |
Wrapped bronze bushing092 F7550 | flanged | 75 | 80 | 50 | 2.5 |
Wrapped bronze bushing092 F7560 | flanged | 75 | 80 | 60 | 2.5 |
Wrapped bronze bushing092 F7570 | flanged | 75 | 80 | 70 | 2.5 |
Wrapped bronze bushing092 F8035 | flanged | 80 | 85 | 35 | 2.5 |
Wrapped bronze bushing092 F8040 | flanged | 80 | 85 | 40 | 2.5 |
Wrapped bronze bushing092 F8050 | flanged | 80 | 85 | 50 | 2.5 |
Wrapped bronze bushing092 F8060 | flanged | 80 | 85 | 60 | 2.5 |
Wrapped bronze bushing092 F8070 | flanged | 80 | 85 | 70 | 2.5 |
Wrapped bronze bushing092 F8080 | flanged | 80 | 85 | 80 | 2.5 |
Wrapped bronze bushing092 F9050 | flanged | 90 | 95 | 50 | 2.5 |
Wrapped bronze bushing092 F9060 | flanged | 90 | 95 | 60 | 2.5 |
Wrapped bronze bushing092 F9070 | flanged | 90 | 95 | 70 | 2.5 |
Wrapped bronze bushing092 F9080 | flanged | 90 | 95 | 80 | 2.5 |
Wrapped bronze bushing092 F9090 | flanged | 90 | 95 | 100 | 2.5 |
Wrapped bronze bushing092 F10050 | flanged | 100 | 105 | 50 | 2.5 |
Wrapped bronze bushing092 F10060 | flanged | 100 | 105 | 60 | 2.5 |
Wrapped bronze bushing092 F10070 | flanged | 100 | 105 | 70 | 2.5 |
Wrapped bronze bushing092 F10080 | flanged | 100 | 105 | 80 | 2.5 |
Wrapped bronze bushing092 F10090 | flanged | 100 | 105 | 90 | 2.5 |
Wrapped bronze bushing092 F11050 | flanged | 110 | 115 | 50 | 2.5 |
Wrapped bronze bushing092 F11060 | flanged | 110 | 115 | 60 | 2.5 |
Wrapped bronze bushing092 F11070 | flanged | 110 | 115 | 70 | 2.5 |
Wrapped bronze bushing092 F11080 | flanged | 110 | 115 | 80 | 2.5 |
Wrapped bronze bushing092 F11090 | flanged | 110 | 115 | 90 | 2.5 |
Wrapped bronze bushing092 F12060 | flanged | 120 | 125 | 60 | 2.5 |
Wrapped bronze bushing092 F12070 | flanged | 120 | 125 | 70 | 2.5 |
Wrapped bronze bushing092 F12080 | flanged | 120 | 125 | 80 | 2.5 |
Wrapped bronze bushing092 F12090 | flanged | 120 | 125 | 90 | 2.5 |
Wrapped bronze bushing092 F13060 | flanged | 130 | 135 | 60 | 2.5 |
Wrapped bronze bushing092 F13070 | flanged | 130 | 135 | 70 | 2.5 |
Wrapped bronze bushing092 F13080 | flanged | 130 | 135 | 80 | 2.5 |
Wrapped bronze bushing092 F13090 | flanged | 130 | 135 | 90 | 2.5 |
Wrapped bronze bushing092 F14060 | flanged | 140 | 145 | 60 | 2.5 |
Wrapped bronze bushing092 F14070 | flanged | 140 | 145 | 70 | 2.5 |
Wrapped bronze bushing092 F14080 | flanged | 140 | 145 | 80 | 2.5 |
Wrapped bronze bushing092 F14090 | flanged | 140 | 145 | 90 | 2.5 |
Wrapped bronze bushing092 F15060 | flanged | 150 | 155 | 60 | 2.5 |
Wrapped bronze bushing092 F15070 | flanged | 150 | 155 | 70 | 2.5 |
Wrapped bronze bushing092 F15080 | flanged | 150 | 155 | 80 | 2.5 |
Wrapped bronze bushing092 F15090 | flanged | 150 | 155 | 90 | 2.5 |
Wrapped bronze bushing092 F16060 | flanged | 160 | 165 | 60 | 2.5 |
Wrapped bronze bushing092 F16070 | flanged | 160 | 165 | 70 | 2.5 |
Wrapped bronze bushing092 F16080 | flanged | 160 | 165 | 80 | 2.5 |
Wrapped bronze bushing092 F16090 | flanged | 160 | 165 | 90 | 2.5 |
Wrapped bronze bushing092 F17060 | flanged | 170 | 175 | 60 | 2.5 |
Wrapped bronze bushing092 F17070 | flanged | 170 | 175 | 70 | 2.5 |
Wrapped bronze bushing092 F17080 | flanged | 170 | 175 | 80 | 2.5 |
Wrapped bronze bushing092 F17090 | flanged | 170 | 175 | 90 | 2.5 |
Wrapped bronze bushing092 F18060 | flanged | 180 | 185 | 60 | 2.5 |
Wrapped bronze bushing092 F18070 | flanged | 180 | 185 | 70 | 2.5 |
Wrapped bronze bushing092 F18080 | flanged | 180 | 185 | 80 | 2.5 |
Wrapped bronze bushing092 F18090 | flanged | 180 | 185 | 90 | 2.5 |
Wrapped bronze bushing092 F19060 | flanged | 190 | 195 | 60 | 2.5 |
Wrapped bronze bushing092 F19070 | flanged | 190 | 195 | 70 | 2.5 |
Wrapped bronze bushing092 F19080 | flanged | 190 | 195 | 80 | 2.5 |
Wrapped bronze bushing092 F19090 | flanged | 190 | 195 | 90 | 2.5 |
Wrapped bronze bushing092 F20060 | flanged | 200 | 205 | 60 | 2.5 |
Wrapped bronze bushing092 F20070 | flanged | 200 | 205 | 70 | 2.5 |
Wrapped bronze bushing092 F20080 | flanged | 200 | 205 | 80 | 2.5 |
Wrapped bronze bushing092 F20090 | flanged | 200 | 205 | 90 | 2.5 |
Wrapped bronze bushing092 F22560 | flanged | 225 | 230 | 60 | 2.5 |
Wrapped bronze bushing092 F22570 | flanged | 225 | 230 | 70 | 2.5 |
Wrapped bronze bushing092 F22580 | flanged | 225 | 230 | 80 | 2.5 |
Wrapped bronze bushing092 F22590 | flanged | 225 | 230 | 90 | 2.5 |
Wrapped bronze bushing092 F25060 | flanged | 250 | 255 | 60 | 2.5 |
Wrapped bronze bushing092 F25070 | flanged | 250 | 255 | 70 | 2.5 |
Wrapped bronze bushing092 F25080 | flanged | 250 | 255 | 80 | 2.5 |
Wrapped bronze bushing092 F25090 | flanged | 250 | 255 | 90 | 2.5 |
Wrapped bronze bushing092 F26560 | flanged | 265 | 270 | 60 | 2.5 |
Wrapped bronze bushing092 F26570 | flanged | 265 | 270 | 70 | 2.5 |
Wrapped bronze bushing092 F26580 | flanged | 265 | 270 | 80 | 2.5 |
Wrapped bronze bushing092 F26590 | flanged | 265 | 270 | 90 | 2.5 |
Wrapped bronze bushing092 F28560 | flanged | 285 | 285 | 60 | 2.5 |
Wrapped bronze bushing092 F28570 | flanged | 285 | 285 | 70 | 2.5 |
Wrapped bronze bushing092 F28580 | flanged | 285 | 285 | 80 | 2.5 |
Wrapped bronze bushing092 F28590 | flanged | 285 | 285 | 90 | 2.5 |
Wrapped bronze bushing092 F30060 | flanged | 300 | 305 | 60 | 2.5 |
Wrapped bronze bushing092 F30070 | flanged | 300 | 305 | 70 | 2.5 |
Wrapped bronze bushing092 F30080 | flanged | 300 | 305 | 80 | 2.5 |
Wrapped bronze bushing092 F30090 | flanged | 300 | 305 | 90 | 2.5 |
Contact us for any inquiry you may need.
