Oilless 2000 Bushing Project

Make Oilless 2000 Bushing Unique And Different, Sintered multi-layer bearings with dispersed solid lubricant

Self-lubricating & Maintenance-free

Oilles 2000 Sintered multi-layer bearings with dispersed solid lubricant. Bronzelube.com provide high-quality oilless 2000 bushing solutions for small-scale procurement Clients without Middleman. Experience of over 10 years of successful projects on creating unique and different oilless bushing designs all over the world. A solid lubricant has been dispersed to allow for use in any movement direction and achieves excellent performance in micro movements as well.

Oilless 2000 Bushing Supplier

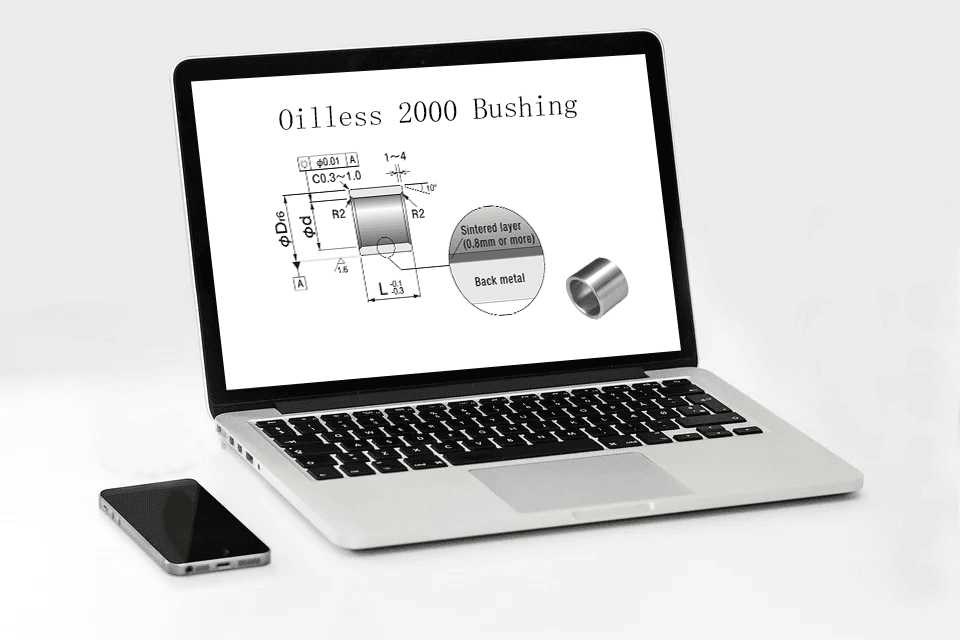

Oilless 2000 bushing is a multi-layer bearing composed of a special friction surface and a supporting metal steel backing material. The sintered layer is made of special copper alloy powder and graphite-based solid lubricant dispersed and sintered, and is treated with oil.

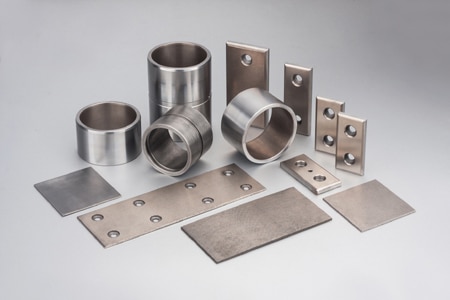

Oilless 2000 Bushing

Learn More oilless 2000 bUSHINGS ONLINE

oilless & sliding bearin

Sintered multi-layer bearings with dispersed solid lubricant, Solid lubricant distributed Sintering

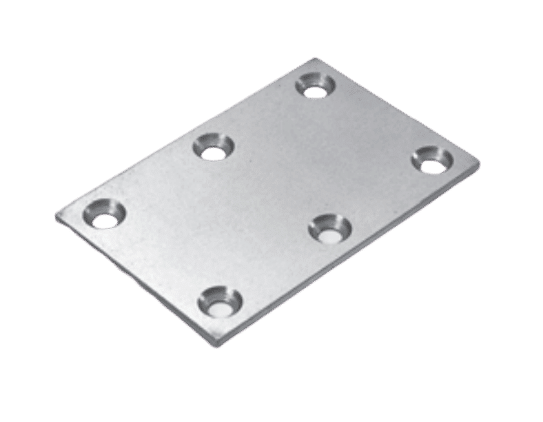

Oilless & sliding bearing 2000 Bushing, CWT Oilles 2000 Wear Plates 5mm Thickness, Wear Plates 10mm Thickness, Oiles 2000 Wear Plates 10mm Thickness (2 hole type), Oiles 2000 Wear Plates, Wear Plate, General Purpose Plate, #2000 (CWP), A solid lubricant has been dispersed to allow for use in any movement direction and achieves excellent performance in micro movements as well.

  • Dispersed solid lubricant allows motions in any direction and offers superior performance for minute movements.

  • Serviceable without the need for lubrication.

  • Features superior load resistance, speed characteristics, and wear resistance.

  • Standard products and plates for additional machining are available in various sizes.

oilless 2000 bushing
85%

Product Quality Index

92%

Energy Generation

we help grow your business rapidly – Oilless Bushing Official Site – Join Today And Get 50% Off – bronzelube.com

OILES #2000 is a composite composite bearing with a special sintered material on the sliding surface and a stainless steel metal base material. In the sintered layer, a solid lubricant with graphite as the main body is dispersed and sintered on a special copper alloy with oil treatment. The product has the characteristics of low friction coefficient, self-lubrication, high wear resistance, self-repair, high toughness, high density, high temperature resistance, etc. .

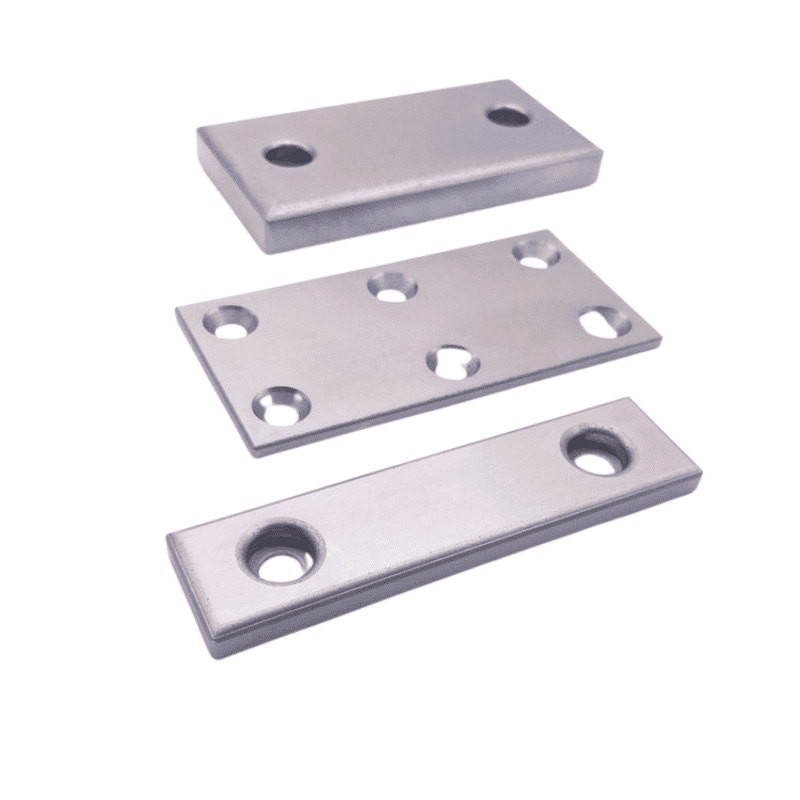

Self-lubricating oilless slide plate 2000# sintered alloy self-lubricating mold guide plate

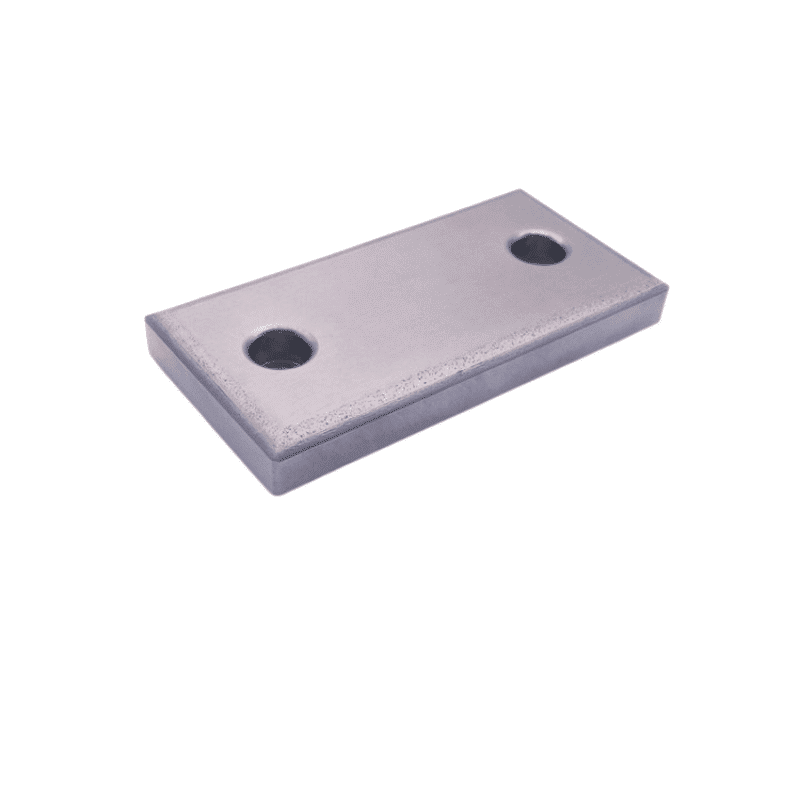

Self-lubricating slide plate 2000# sintered alloy self-lubricating mold guide plate

Oilless Self-lubricating Solid lubricant distributed Sintering Plate

Yoga takes you into the present moment. The only place where life exists.

Oilless Plate with Graphite Plugs Material Bronze alloy CuZn25Al5Mn4Fe3 + Graphite plugs. Free CAD models – Oilless bush, Solid lubricant distributed Sintering, 2000 Wear Plate Thin Wall 5 mm Type (CWT) Plate, Self-lubricating slide plate 2000# sintered alloy self-lubricating mold guide plate, Small Minimum order quantity Volume Discount! A solid lubricant has been dispersed to allow for use in any movement direction and achieves excellent performance in micro movements as well.

Support your different needs.

Positioning Oilless Bushing Leadership.

We have strong engineers and good processes in place, as well as a state-of-the-art dynamometer testing facility.

oilless 2000 bushing

Learn More

Oilless 2000 Bushing
Oilless 2000 Bushing
Oilless 2000 Bushing
Oiles #2000 Bushing | online sourcing- Select, configure, order

Oilless 2000 bushing designed completed reliably from production to delivery.

With a strong supply capacity in China, we are able to offer an extensive range Oilless bushings products to every industry, which include bronze bushing, self-lubricating bearings, plugged bronze graphite bushing, and more.

Oilless 2000 Bushing Material

  • Steel backing + sintered bronze powder with graphites

Self-lubricating, oil-free, maintenance-free friction pair, environmentally friendly new material.Oilless Bushing 2000 has been widely used in high load with lower friction and good wear resistance requested mechanical parts where oil given is difficult such as automotive die wear plate, industrial robots, injection wear plate, injection tie-bar bushes, construction machines self-lubricating bearings etc.

Top Quality Oilless Bushes

The promise of oilless 2000 bushing high quality, meet your requirement.

Oilless 2000 Bushing

Small minimum order value & quantity, fast delivery.

Design Your Slide Plate Size

Solid lubricant distributed Sintering self-lubricating Plate Size

Part Number Width W Length L
(mm) (mm)
Oilless 2000 Plate CWT-100100 100 100
Oilless 2000 Plate CWT-100125 100 125
Oilless 2000 Plate CWT-100150 100 150
Oilless 2000 Plate CWT-22100 22 100
Oilless 2000 Plate CWT-22150 22 150
Oilless 2000 Plate CWT-2250 22 50
Oilless 2000 Plate CWT-2275 22 75
Oilless 2000 Plate CWT-28100 28 100
Oilless 2000 Plate CWT-28150 28 150
Oilless 2000 Plate CWT-2850 28 50
Oilless 2000 Plate CWT-2875 28 75
Oilless 2000 Plate CWT-38100 38 100
Oilless 2000 Plate CWT-38150 38 150
Oilless 2000 Plate CWT-3850 38 50
Oilless 2000 Plate CWT-3875 38 75
Oilless 2000 Plate CWT-48100 48 100
Oilless 2000 Plate CWT-48150 48 150
Oilless 2000 Plate CWT-4875 48 75
Oilless 2000 Plate CWT-75100 75 100
Oilless 2000 Plate CWT-75125 75 125
Oilless 2000 Plate CWT-75150 75 150
Oilless 2000 Plate CWT-7575 75 75

Solid lubricant distributed Sintering

Oilless 2000 Bushing Properties

Lubricating Condition No Lubricating Lubricate regularly
Operating Temperature range ℃ -40~+120
Max. Pressure P N/mm2
{kgf/cm2}
24.5、49(73.5)
{250、500(750)}
Max. Speed V m/s
{m/min}
0.50、1.00
{30、60}
Max. PV Value N/mm2・m/s
{kgf/cm2・m/min}
1.63、2.45
{1,000、1,500}

Get Your First Consultation

Oilless Slide Plate

“#2000 Wear Plate Thin Wall 5 mm Type, Start Your Best & Correct Oilless 2000 Bushing Solution.”

Oilless steel bronze bushing

  • ● Applicable in self-lubricating state.
  • ● Outstanding load durability, velocity characteristics and wear resistance.
  • ● Available of standard products with various sizes and plates for additional machining.

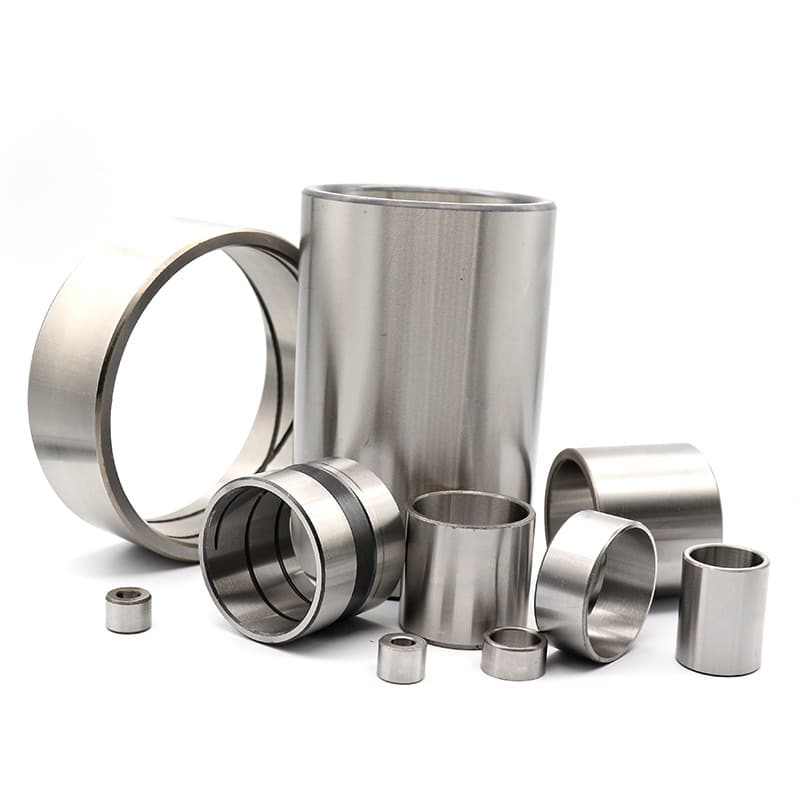

oilless bushing1

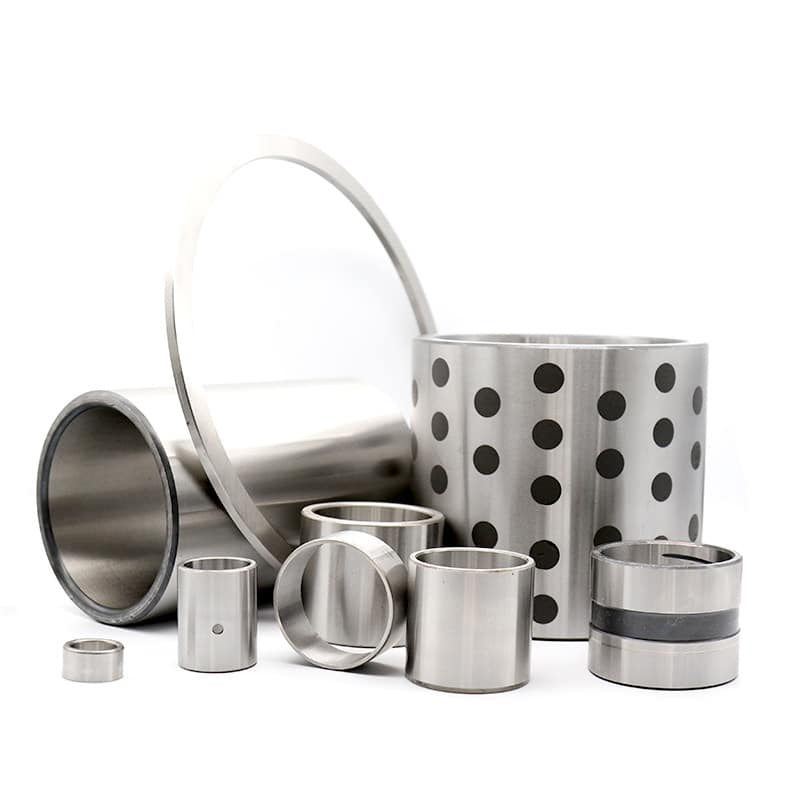

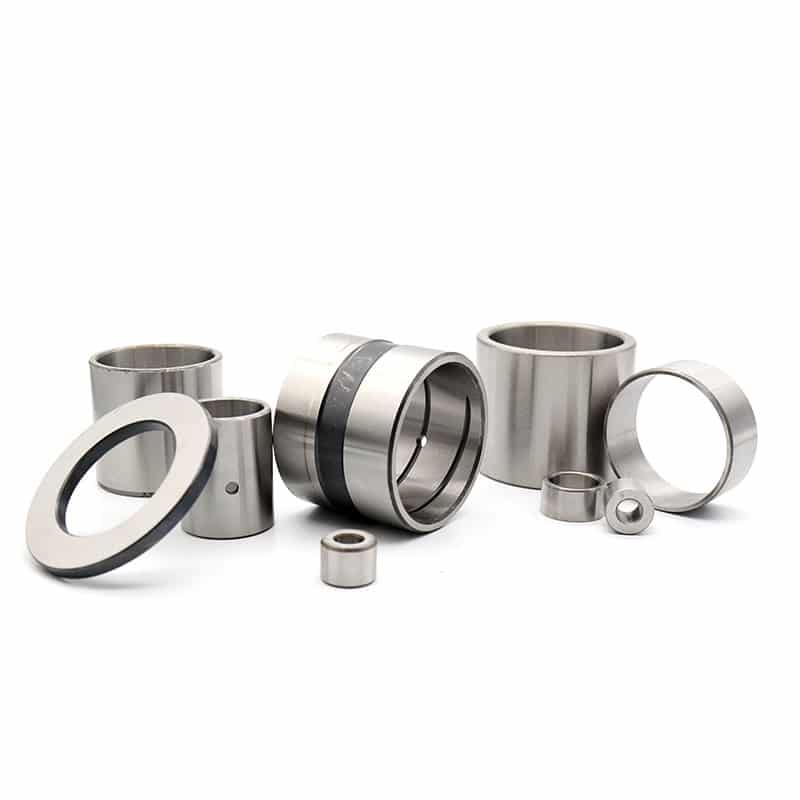

oilless bushing2

Custom Bearings Size, Oilless Metal Sliding Materials

We constantly study new oilless materials and new steel bronze bushing products development. Oilless Metal Sliding Materials ; Spherical Bush, Bush Standard type. Oilless Bush manufacturers & suppliers!

Oilless Bush – Self Lubricating Bush – Factory Price

Save your purchasing oilless 2000 bushing cost for your project. Always tested. Always proven. Global website www.bronzelube.com

Wear Plate Thin Wall 5 mm Type

Start your new project

Oilless 2000 Bushes Production, Oilless 2000 Plate Online Sales. Customized logo, custom oilless 2000 bushing service.

Oilless Solutions

Slide Bearing & Plate Solutions

Custom Solutions

Oilless 2000 Bushings Bearing

Oilless 2000 Bushings Bearing with excellent wear resistance and applicable in any sliding directions.

Bronzelube provide oilless 2000 bushings the following excellent services.

High-strength brass bearings with embedded solid lubricant

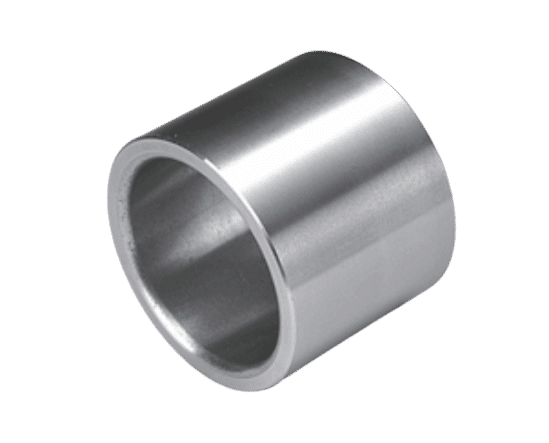

  • Oilles 2000 Bushings (High Precision type).

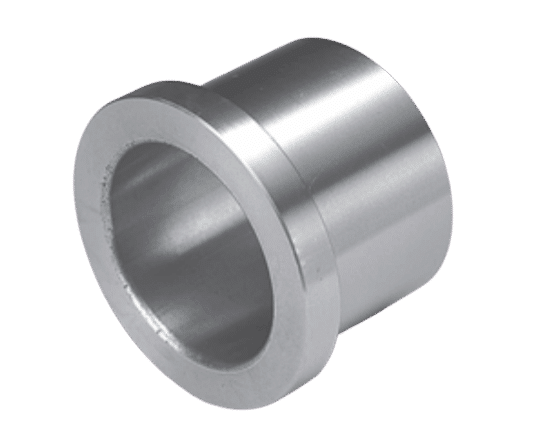

  • Oilles 2000 Flange Bushings (High Precision type).

Complex oilless 2000 bushing quality control solutions

We have several senior oilless 2000 bushing designers, pattern designers. Welcome merchants both domestic and overseas to place bulk oilless 2000 bushings orders with supplied designs and samples.

Oilless 2000 Bushing Characteristics

  • The small-size dispersed solid lubricant can be used under friction conditions in any direction of motion, and has good fretting resistance.
  • It can be used without oil.
  • Good load resistance, abrasion resistance, and good speed characteristics.
  • Various sizes of standard products and semi-finished products are available.

Oilless Bearing Application

Oilless 2000 bushing has the ability of dust resistance, corrosion resistance and impact resistance. It has good performance in the use process of injection molding machine, automobile stamping mold, tire mold, construction machinery (excavator, rotary drilling rig, etc.)

* Our enterprise, is one of the undisputed supplier of the highly competitive bulk order oilless 2000 bushing industry in china.

Oilless 2000 Bushings Bearing

Steel backed sintered bearing

bimetallic bearing material

Bimetallic bearing material, based on steel backing, and a layer of copper sinter, which is composed of special copper powder with solid lubricants (major ingredient is graphite) dispersed, acts as wear resistant surface and processed through oil-impregnating treatment.
