Oilless Bush #500 Spherical Bearing, 500 Spherical Bearings Unit bearings
Spherical Graphite Oiles Bush Bearing, High tensile brass based / solid lubricant embedded! Oiles bearings are a type of mechanical component commonly used to support and reduce friction in rotating parts. These bearings rely on lubricating oil to create a smooth surface between the bearing and the shaft. The Oiles 500 spherical bearings represent a class of self-aligning bearings that are particularly suited for handling high loads. These bearings are uniquely structured, comprising Oiles 500SP inner races and outer races made from high carbon chromium bearing steel. A notable feature of these outer races is their coating of molybdenum disulfide, enhancing their durability and performance. Additionally, these outer races are designed in two separate parts, allowing them to be securely attached using snap rings. This design choice not only facilitates ease of installation but also ensures a reliable and sturdy assembly, making these bearings ideal for demanding applications where precision and strength are paramount.
- Lubrication Method: Lubrication Free
- Spherical Bearing Type: Standard
- Main Body Material: Chrome Molybdenum Steel
- Ball Material: Brass
Oiles Bush Bearing Solution.
Oiles Bearing | Self-lubricating Bearings
Graphite copper sleeve self-lubricating bearing wear-resistant copper guide sleeve oil-free bushing processing custom， We’re experts in self-lubricating bronze bushings. This product adheres to the ISO Standard E type bearings, ensuring it meets international dimensions and compatibility requirements. It is distinguished by its high precision, a key attribute for applications requiring exacting standards. Additionally, it is especially suitable for use in situations involving large oscillating angles during circumferential oscillating motions. A significant advantage of this product is its maintenance-free nature; it does not require lubrication, which simplifies upkeep and reduces operational costs. Furthermore, it boasts an exceptionally long service life, underlining its reliability and durability in various applications. This combination of features makes it an ideal choice for a wide range of mechanical and engineering applications.
Price & Delivery Time on Request. Metric & Inch Size. Stronger. By Oilles Bush Design.
Oiles 500 For high load and low speed
Black
Friday
Bronze Bearing Bushing Provider

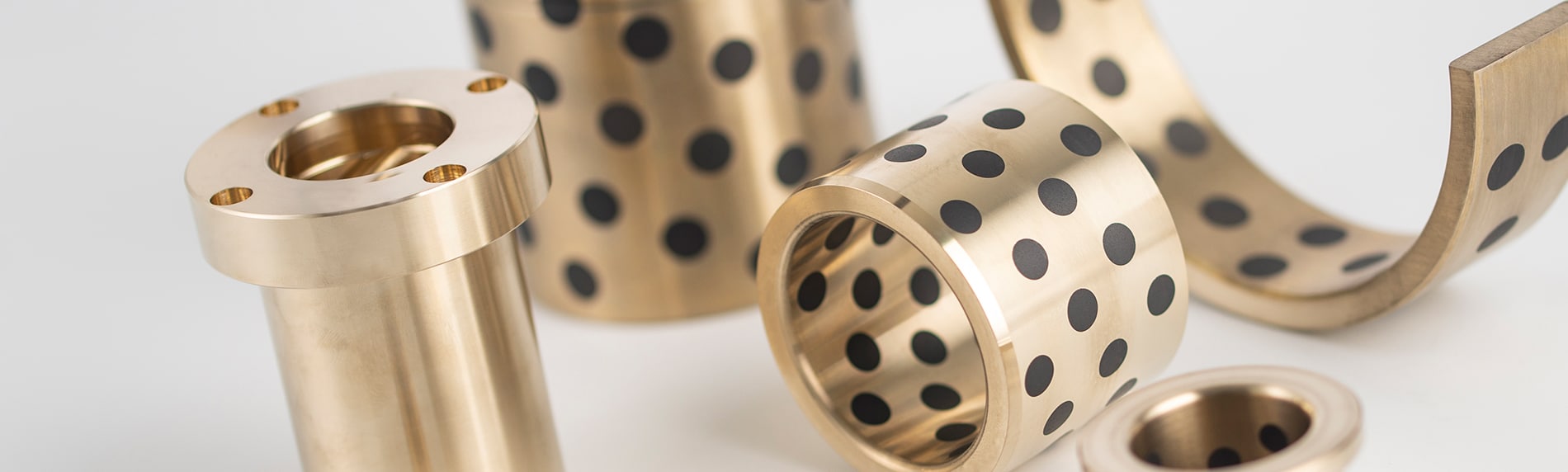

Bronze Graphite bearings, manufactured by Oiles Corporation, are oil-impregnated bearings designed for minimal friction and wear, ideal for high-load and high-speed applications. Made from sintered bronze infused with lubricating oil, these self-lubricating bearings ensure smooth and reliable performance over extended use. Commonly used in industrial machinery, automotive components, and other mechanical systems, Oiles 500 bearings offer efficient and long-lasting performance. Visit www.bronzelube.com to explore oil-free bushing products, download CAD data or catalogs, and place orders with prompt delivery and fair prices. Offering a wide inventory, flexible shipping options, and excellent customer support, the Oiles bushing series features high-strength brass alloy bases with embedded solid graphite for superior wear resistance compared to standard plain bearings. Custom sizes and components, including SAE 841 bronze equivalents, are available upon request. Achieve high performance, reduced costs, and extended lifespan with these self-lubricating bearings.
Oiles #500SP Bushings, available from our selection, are meticulously designed for easy configuration and ordering, ensuring timely delivery and competitive pricing. These self-lubricating bearings are crafted from a robust brass alloy, utilizing cutting-edge casting techniques, and are integrated with solid lubricants for enhanced performance. Depending on usage conditions, these bearings can be customized with various types of solid lubricants. Key features include:
Self-lubricating capability for oil-free operation. Exceptional performance under high load and low-speed conditions. Ideal for applications where maintenance-free usage, high load capacity, or high temperatures render traditional bearings unsuitable.
Oilless Bush Provider
We guarantee the high quality in oilless bushings, tailored to meet your specific needs.
Oiles 500 Bush Varieties

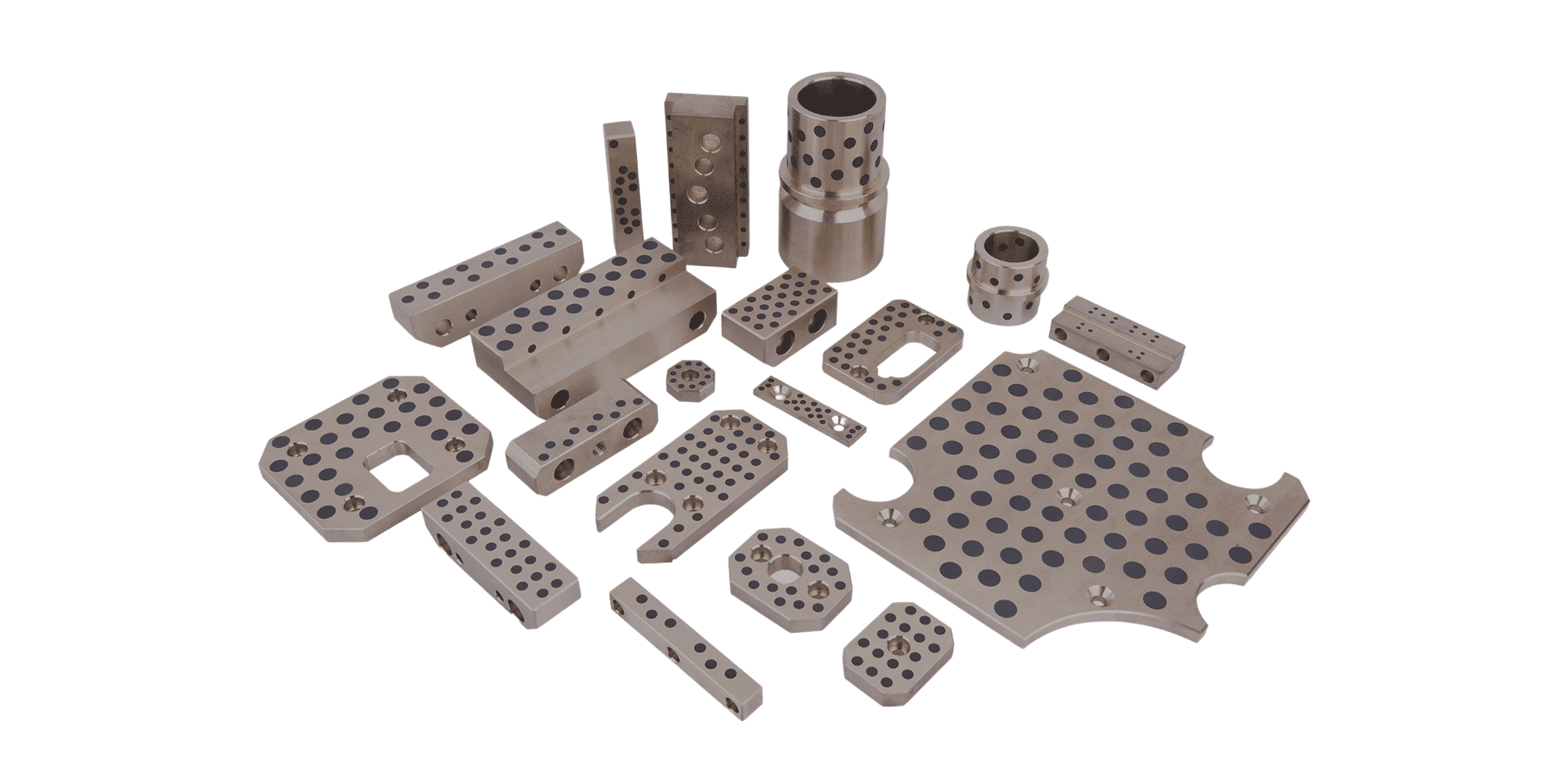

Our range includes cylindrical bushings, wear plate, flanged bushings, and guide bush, all standard in fabrication.
SELF-LUBRICATING BUSHING ONLINE
BUSH AND BEARING PRODUCTION
“Order Plain Bearings Oiles Bush 500 Custom Made Online ” oil-free bearing parts
Switch from Bronze Bushing – Oilless Lubricating Parts, Get A Better Deal On Bulk Bronze Bushing. Quality China Oiles Bush Products. Bronze Bushings at Good Price in China. Find here Graphite Plugged Bushes, Oilless Bushes manufacturers, suppliers, and exporters. Metallic Bearings: Durable and versatile, metallic bearings offer longer lifespans and maintenance-free performance. Some are designed to function effectively under extreme conditions, such as high temperatures or underwater environments. Self-lubricating bronze components feature built-in lubrication plugs, ensuring maintenance-free operation.
High-strength Brass Bearings with embedded solid lubricant
Reliable and Safe Oilless Bush Manufacturer & Supplier | Bronze Bushings Factory Direct with Fast Shipping
Leading Manufacturer and Supplier in China with Guaranteed Quality and Service. Specializing in oilless bushings, graphite bearings, bronze graphite bearings, press die bushings, die guide bushings, and plastic mold bushings. Advanced technology and quality assurance at factory prices. Contact us now!
Oil Free Bushing – Metal, Straight and Shouldered Type
Reliable and prompt delivery. High-quality, factory-priced self-lubricating bearings made from high-strength brass alloy using advanced casting technology with embedded solids.
Oiless Bush Short offers high-quality, self-lubricating bushing bearings at factory prices with fast and reliable delivery. Designed with strong wear resistance and stable performance, these products cater to various usage needs. Customers benefit from competitive deals, a steady supply, prompt shipping, and excellent service.
Explore a wide range of oiles bearings at www.bronzelube.com, crafted by expert suppliers using premium copper alloy-based metals and advanced solid lubricants.
Online Sourcing for High-Performance Self-Lubricating Mild Steel Bearings
High-performance self-lubricating bearings with mild steel bushings, ideal for industrial applications, are available at www.bronzelube.com. Benefits include free CAD downloads, short lead times, competitive pricing, and low minimum order requirements.
* Our enterprise, is one of the undisputed supplier of the highly plain bearing bushing oiles 500 industry in china.
The Ideal Plain Bush Oilless Bearing for Any Application
Industry
Automotive
Marine
Medical
Agriculture
Construction
Diverse Range of Products for Various Applications

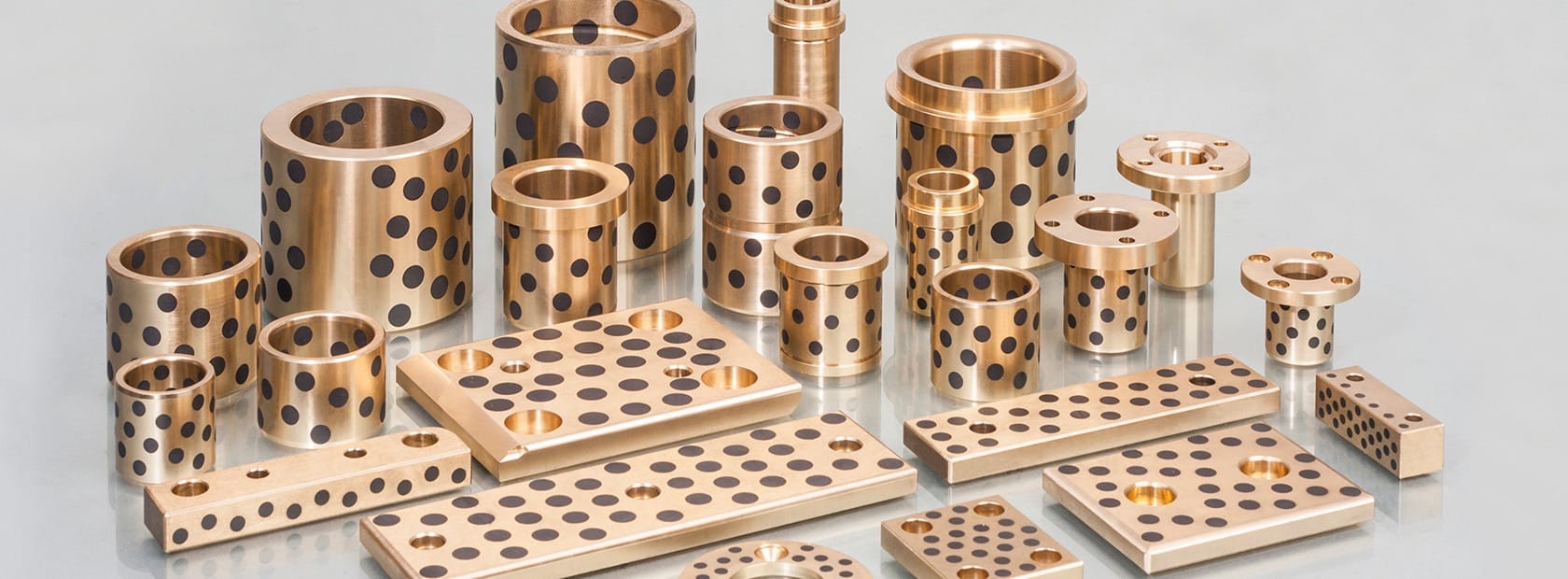

The product range of OILES Metallic Bearings is extensive, catering to diverse needs within various sectors. This range includes:
- Cylindrical Bushings: Ideal for standard bearing applications, offering smooth motion and high load-bearing capacity.
- Flanged Bushings: These bearings come with a flange for easy mounting, suitable for applications where axial loads are prevalent.

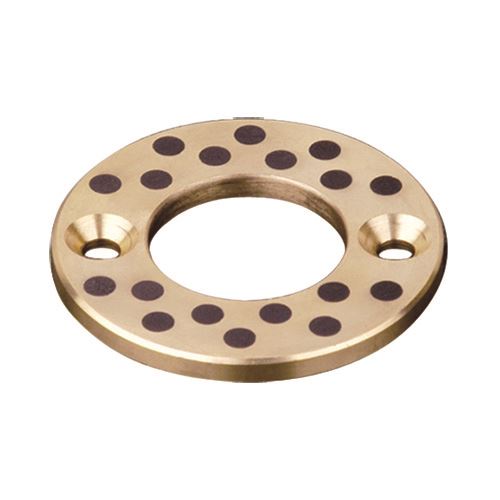

- Thrust Washers and Thrust Plates: Specifically designed for applications involving axial loads, these components ensure smooth movement and reduce wear.

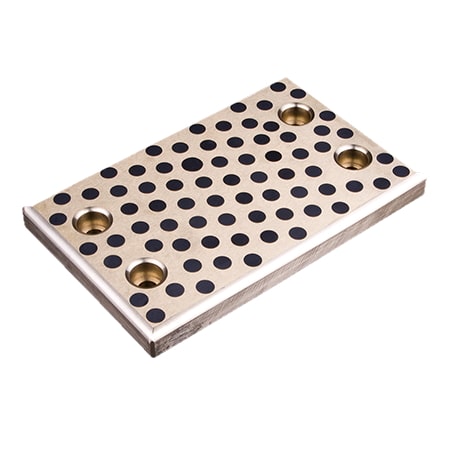

- Bar, Plate, and Tube for Machining: These materials are provided for custom applications, allowing for bespoke bearing solutions tailored to specific requirements.
- Other Specialized Bearings: Catering to unique and specialized needs across various industries.
A Future-Forward Bearing Solution
Metallic bearings, particularly those from OILES, stand at the forefront of bearing technology, offering a combination of longevity, minimal maintenance, and adaptability to challenging environments. Their versatility and high performance make them a go-to solution for industries seeking reliable and efficient bearing options.
Flanged Type | Oil Free Bushings Type, Select, configure, order. delivers punctually and offers fair prices.
Find your ideal self-lubricating bearings in wide range of materials in Metal, Plastic, Multilayer and Sintered bronze.
The term “Oilfree Cylindrical Industrial Bearing Bushing Brass 500SP SPB” refers to a specific type of bearing used in various industrial applications. Here’s a breakdown of the terms for better understanding:
- Oilfree: This means the bearing does not require oil for lubrication. Such bearings typically use a different type of material or design that eliminates the need for oil, which can reduce maintenance costs and effort.
- Cylindrical: This describes the shape of the bearing. Cylindrical bearings are common and offer a simple and effective design.
- Industrial: This implies that the bearing is designed for use in industrial applications, which typically require higher durability and performance standards than bearings used in lighter duty applications.
- Bearing Bushing: A bearing bushing, or simply a bushing, is a type of bearing that provides a sliding interface between two parts. Bushings are often used in machinery where a rotating part interfaces with a stationary part.
- Brass: This is the material the bearing is made from. Brass is commonly used in bearings because it offers a good balance between cost, durability, and friction properties.
- 500SP SPB: This seems to be a specific model or type of the bearing. The exact meaning can vary depending on the manufacturer. Typically, these codes refer to specific design features, sizes, or other specifications unique to that model.
Remember, it’s always a good idea to consult the manufacturer or a knowledgeable source for specific information about a particular bearing model or type.
Compound bearing (flanged bushing type ) with low friction characteristics and that optimize metal properties such as strength and dimensional stability.
The Quality Company of High Performance, Quality, Oil-free and Maintenance-free Bearings for Various industries.
SAE 841 Oil Impregnated Sintered Bronze, sae 841 bronze equivalent
Saves You Time & Money In Research, Design & Production Costs. E-mail Now! Copper Alloy Bars , Plates & Parts Specialists For Manufacturing & Machining Of All Types. Custom Solutions. Quality Products & Parts. Expert Customer Service.
Oiles bearings feature self-lubricating functions and demonstrate high performance, which normal plain bearings cannot provide, for fluid lubrication, boundary lubrication, and dry friction fields.
- No requirement of a lubricating system, lubrica- tion holes, or oil grooves
- Reduction of running costs
- Maintenance free
- Reduction of design time
- Lubricating oil recycling and environmental protection
BUSHINGS TYPE
Bearing bush forms available in standard dimensions.

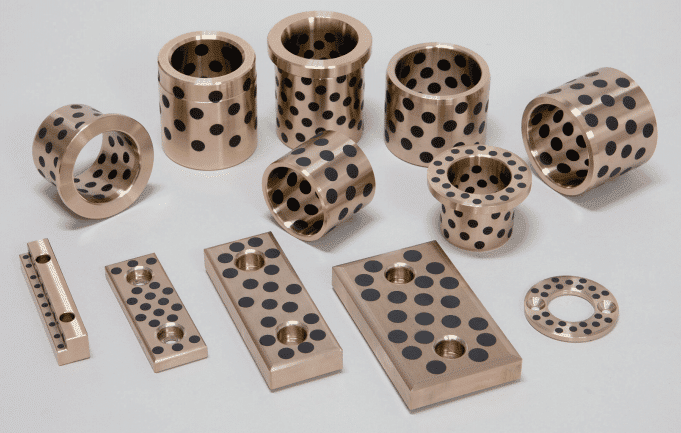

Bushing Bearing type made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs.

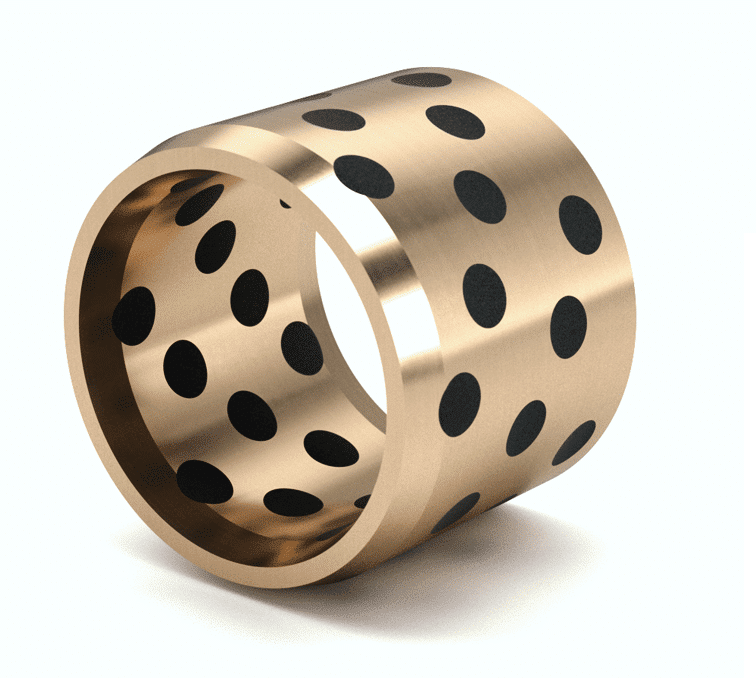

OILES 500 Bearing Bushing

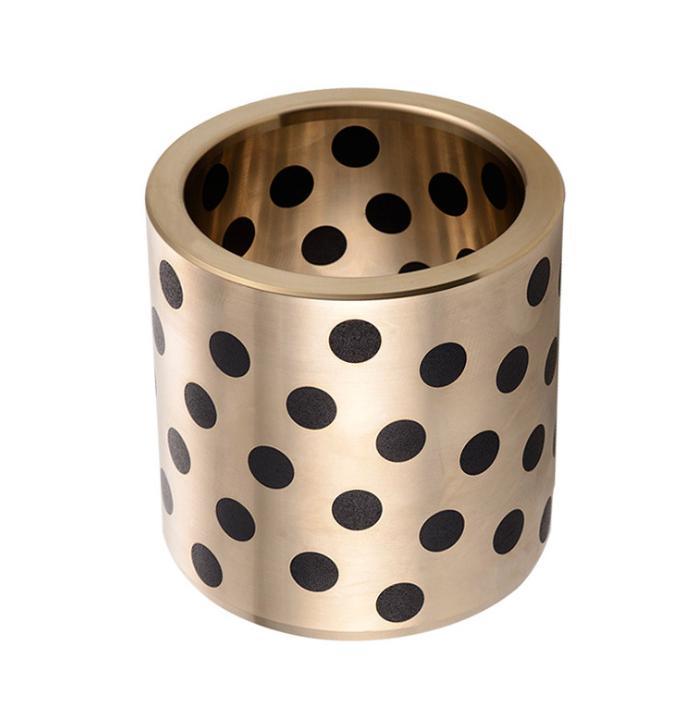

An oilless 500 bearing bushing is a type of self-lubricating bearing that is designed to operate without the need for additional lubrication, such as oil or grease. The “500” in the name refers to the maximum operating temperature of the bushing, which is typically around 500 degrees Fahrenheit (260 degrees Celsius).
Oilless 500 bearing bushings are commonly used in high-temperature and high-load applications, where traditional lubricants may break down or evaporate, causing premature wear and failure of the bearing. They are made from materials such as bronze, graphite, or other self-lubricating materials, which provide a low-friction surface for the bearing to rotate on.
Overall, oilless 500 bearing bushings are a durable and reliable option for applications where traditional lubrication methods may not be effective or practical.
- Self-lubricating bronze components with fixed built-in lubricants.
- The components are maintenance-free, and get lubrication from the built-in lubrication plugs.
The bearings offer many advantages
- Cope with high loads at low speeds
- Big range of standard dimensions
- Wide working-temperature range
- Long service life
- Maintenance-free
- Anti-corrosion properties and chemical resistance
- Withstand alternating sliding directions, oscillating movements and frequent starts and stops
Technical instructions:
- Maximum permissible surface pressure 55 – 160 N/mm2 (static)
- Maximum permissible surface pressure 30 – 90 N/mm2 (dynamic)
- Minimum working temperature -40°C
- Maximum working temperature +80°C to +400°C
- Maximum sliding speed 0.5 m/s
Solid lubricants:
Three different kinds of solid lubricants are available, two of which are based on graphite and one on PTFE. They are produced by compression which gives plugs with high density and good lubrication properties.
View our range of self-lubricating bearing bushes, oilless bushings. Buy online today for great prices and fast delivery.
Standard cylindrical bushing sizes
| Oiles 500 Bushings | I.D.: Φd | O.D.: ΦD | Length: L |
| Oilless Bush-061008 | 6 | 10 | 8 |
| Oilless Bush-061010 | 6 | 10 | 10 |
| Oilless Bush-061012 | 6 | 10 | 12 |
| Oilless Bush-081208 | 8 | 12 | 8 |
| Oilless Bush-081210 | 8 | 12 | 10 |
| Oilless Bush-081212 | 8 | 12 | 12 |
| Oilless Bush-081215 | 8 | 12 | 15 |
| Oilless Bush-101408 | 10 | 14 | 8 |
| Oilless Bush-101410 | 10 | 14 | 10 |
| Oilless Bush-101412 | 10 | 14 | 12 |
| Oilless Bush-101415 | 10 | 14 | 15 |
| Oilless Bush-101420 | 10 | 14 | 20 |
| Oilless Bush-121808 | 12 | 18 | 8 |
| Oilless Bush-121810 | 12 | 18 | 10 |
| Oilless Bush-121812 | 12 | 18 | 12 |
| Oilless Bush-121815 | 12 | 18 | 15 |
| Oilless Bush-121816 | 12 | 18 | 16 |
| Oilless Bush-121819 | 12 | 18 | 19 |
| Oilless Bush-121820 | 12 | 18 | 20 |
| Oilless Bush-121825 | 12 | 18 | 25 |
| Oilless Bush-121830 | 12 | 18 | 30 |
| Oilless Bush-131910 | 13 | 19 | 10 |
| Oilless Bush-131912 | 13 | 19 | 12 |
| Oilless Bush-131915 | 13 | 19 | 15 |
| Oilless Bush-131920 | 13 | 19 | 20 |
| Oilless Bush-131925 | 13 | 19 | 25 |
| Oilless Bush-131930 | 13 | 19 | 30 |
| Oilless Bush-142010 | 14 | 20 | 10 |
| Oilless Bush-142012 | 14 | 20 | 12 |
| Oilless Bush-142015 | 14 | 20 | 15 |
| Oilless Bush-142020 | 14 | 20 | 20 |
| Oilless Bush-142025 | 14 | 20 | 25 |
| Oilless Bush-142030 | 14 | 20 | 30 |
| Oilless Bush-152110 | 15 | 21 | 10 |
| Oilless Bush-152112 | 15 | 21 | 12 |
| Oilless Bush-152115 | 15 | 21 | 15 |
| Oilless Bush-152116 | 15 | 21 | 16 |
| Oilless Bush-152120 | 15 | 21 | 20 |
| Oilless Bush-152125 | 15 | 21 | 25 |
| Oilless Bush-152130 | 15 | 21 | 30 |
| Oilless Bush-152135 | 15 | 21 | 35 |
| Oilless Bush-152140 | 15 | 21 | 40 |
| Oilless Bush-162210 | 16 | 22 | 10 |
| Oilless Bush-162212 | 16 | 22 | 12 |
| Oilless Bush-162215 | 16 | 22 | 15 |
| Oilless Bush-162216 | 16 | 22 | 16 |
| Oilless Bush-162219 | 16 | 22 | 19 |
| Oilless Bush-162220 | 16 | 22 | 20 |
| Oilless Bush-162225 | 16 | 22 | 25 |
| Oilless Bush-162230 | 16 | 22 | 30 |
| Oilless Bush-162235 | 16 | 22 | 35 |
| Oilless Bush-162240 | 16 | 22 | 40 |
| Oilless Bush-172315 | 17 | 23 | 15 |
| Oilless Bush-182410 | 18 | 24 | 10 |
| Oilless Bush-182412 | 18 | 24 | 12 |
| Oilless Bush-182415 | 18 | 24 | 15 |
| Oilless Bush-182416 | 18 | 24 | 16 |
| Oilless Bush-182420 | 18 | 24 | 20 |
| Oilless Bush-182425 | 18 | 24 | 25 |
| Oilless Bush-182430 | 18 | 24 | 30 |
| Oilless Bush-182435 | 18 | 24 | 35 |
| Oilless Bush-182440 | 18 | 24 | 40 |
| Oilless Bush-192615 | 19 | 26 | 15 |
| Oilless Bush-192620 | 19 | 26 | 20 |
| Oilless Bush-202810 | 20 | 28 | 10 |
| Oilless Bush-202812 | 20 | 28 | 12 |
| Oilless Bush-202815 | 20 | 28 | 15 |
| Oilless Bush-202816 | 20 | 28 | 16 |
| Oilless Bush-202819 | 20 | 28 | 19 |
| Oilless Bush-202820 | 20 | 28 | 20 |
| Oilless Bush-202825 | 20 | 28 | 25 |
| Oilless Bush-202830 | 20 | 28 | 30 |
| Oilless Bush-202835 | 20 | 28 | 35 |
| Oilless Bush-202840 | 20 | 28 | 40 |
| Oilless Bush-202850 | 20 | 28 | 50 |
| Oilless Bush-203010 | 20 | 30 | 10 |
| Oilless Bush-203012 | 20 | 30 | 12 |
| Oilless Bush-203015 | 20 | 30 | 15 |
| Oilless Bush-203016 | 20 | 30 | 16 |
| Oilless Bush-203020 | 20 | 30 | 20 |
| Oilless Bush-203025 | 20 | 30 | 25 |
| Oilless Bush-203030 | 20 | 30 | 30 |
| Oilless Bush-203035 | 20 | 30 | 35 |
| Oilless Bush-203040 | 20 | 30 | 40 |
| Oilless Bush-203050 | 20 | 30 | 50 |
| Oilless Bush-223212 | 22 | 32 | 12 |
| Oilless Bush-223215 | 22 | 32 | 15 |
| Oilless Bush-223220 | 22 | 32 | 20 |
| Oilless Bush-223225 | 22 | 32 | 25 |
| Oilless Bush-253312 | 25 | 33 | 12 |
| Oilless Bush-253315 | 25 | 33 | 15 |
| Oilless Bush-253316 | 25 | 33 | 16 |
| Oilless Bush-253320 | 25 | 33 | 20 |
| Oilless Bush-253325 | 25 | 33 | 25 |
| Oilless Bush-253330 | 25 | 33 | 30 |
| Oilless Bush-253335 | 25 | 33 | 35 |
| Oilless Bush-253340 | 25 | 33 | 40 |
| Oilless Bush-253350 | 25 | 33 | 50 |
| Oilless Bush-253360 | 25 | 33 | 60 |
| Oilless Bush-253512 | 25 | 35 | 12 |
| Oilless Bush-253515 | 25 | 35 | 15 |
| Oilless Bush-253516 | 25 | 35 | 16 |
| Oilless Bush-253520 | 25 | 35 | 20 |
| Oilless Bush-253525 | 25 | 35 | 25 |
| Oilless Bush-253530 | 25 | 35 | 30 |
| Oilless Bush-253535 | 25 | 35 | 35 |
| Oilless Bush-253540 | 25 | 35 | 40 |
| Oilless Bush-253550 | 25 | 35 | 50 |
| Oilless Bush-253560 | 25 | 35 | 60 |
| Oilless Bush-283820 | 28 | 38 | 20 |
| Oilless Bush-283825 | 28 | 38 | 25 |
| Oilless Bush-283830 | 28 | 38 | 30 |
| Oilless Bush-283840 | 28 | 38 | 40 |
| Oilless Bush-303812 | 30 | 38 | 12 |
| Oilless Bush-303815 | 30 | 38 | 15 |
| Oilless Bush-303820 | 30 | 38 | 20 |
| Oilless Bush-303825 | 30 | 38 | 25 |
| Oilless Bush-303830 | 30 | 38 | 30 |
| Oilless Bush-303835 | 30 | 38 | 35 |
| Oilless Bush-303840 | 30 | 38 | 40 |
| Oilless Bush-303850 | 30 | 38 | 50 |
| Oilless Bush-303860 | 30 | 38 | 60 |
| Oilless Bush-304012 | 30 | 40 | 12 |
| Oilless Bush-304015 | 30 | 40 | 15 |
| Oilless Bush-304020 | 30 | 40 | 20 |
| Oilless Bush-304025 | 30 | 40 | 25 |
| Oilless Bush-304030 | 30 | 40 | 30 |
| Oilless Bush-304035 | 30 | 40 | 35 |
| Oilless Bush-304040 | 30 | 40 | 40 |
| Oilless Bush-304050 | 30 | 40 | 50 |
| Oilless Bush-304060 | 30 | 40 | 60 |
| Oilless Bush-314030 | 31.5 | 40 | 30 |
| Oilless Bush-314040 | 31.5 | 40 | 40 |
| Oilless Bush-324220 | 32 | 42 | 20 |
| Oilless Bush-324230 | 32 | 42 | 30 |
| Oilless Bush-324240 | 32 | 42 | 40 |
| Oilless Bush-354420 | 35 | 44 | 20 |
| Oilless Bush-354425 | 35 | 44 | 25 |
| Oilless Bush-354430 | 35 | 44 | 30 |
| Oilless Bush-354435 | 35 | 44 | 35 |
| Oilless Bush-354440 | 35 | 44 | 40 |
| Oilless Bush-354450 | 35 | 44 | 50 |
| Oilless Bush-354460 | 35 | 44 | 60 |
| Oilless Bush-354520 | 35 | 45 | 20 |
| Oilless Bush-354525 | 35 | 45 | 25 |
| Oilless Bush-354530 | 35 | 45 | 30 |
| Oilless Bush-354535 | 35 | 45 | 35 |
| Oilless Bush-354540 | 35 | 45 | 40 |
| Oilless Bush-354550 | 35 | 45 | 50 |
| Oilless Bush-354560 | 35 | 45 | 60 |
| Oilless Bush-384840 | 38 | 48 | 40 |
| Oilless Bush-405015 | 40 | 50 | 15 |
| Oilless Bush-405020 | 40 | 50 | 20 |
| Oilless Bush-405025 | 40 | 50 | 25 |
| Oilless Bush-405030 | 40 | 50 | 30 |
| Oilless Bush-405035 | 40 | 50 | 35 |
| Oilless Bush-405040 | 40 | 50 | 40 |
| Oilless Bush-405050 | 40 | 50 | 50 |
| Oilless Bush-405060 | 40 | 50 | 60 |
| Oilless Bush-405070 | 40 | 50 | 70 |
| Oilless Bush-405080 | 40 | 50 | 80 |
| Oilless Bush-405515 | 40 | 55 | 15 |
| Oilless Bush-405530 | 40 | 55 | 30 |
| Oilless Bush-405535 | 40 | 55 | 35 |
| Oilless Bush-405540 | 40 | 55 | 40 |
| Oilless Bush-405550 | 40 | 55 | 50 |
| Oilless Bush-405560 | 40 | 55 | 60 |
| Oilless Bush-455530 | 45 | 55 | 30 |
| Oilless Bush-455535 | 45 | 55 | 35 |
| Oilless Bush-455540 | 45 | 55 | 40 |
| Oilless Bush-455550 | 45 | 55 | 50 |
| Oilless Bush-455560 | 45 | 55 | 60 |
| Oilless Bush-455630 | 45 | 56 | 30 |
| Oilless Bush-455635 | 45 | 56 | 35 |
| Oilless Bush-455640 | 45 | 56 | 40 |
| Oilless Bush-455650 | 45 | 56 | 50 |
| Oilless Bush-455660 | 45 | 56 | 60 |
| Oilless Bush-456030 | 45 | 60 | 30 |
| Oilless Bush-456035 | 45 | 60 | 35 |
| Oilless Bush-456040 | 45 | 60 | 40 |
| Oilless Bush-456050 | 45 | 60 | 50 |
| Oilless Bush-456060 | 45 | 60 | 60 |
| Oilless Bush-456070 | 45 | 60 | 70 |
| Oilless Bush-456080 | 45 | 60 | 80 |
| Oilless Bush-506020 | 50 | 60 | 20 |
| Oilless Bush-506030 | 50 | 60 | 30 |
| Oilless Bush-506035 | 50 | 60 | 35 |
| Oilless Bush-506040 | 50 | 60 | 40 |
| Oilless Bush-506050 | 50 | 60 | 50 |
| Oilless Bush-506060 | 50 | 60 | 60 |
| Oilless Bush-506070 | 50 | 60 | 70 |
| Oilless Bush-506080 | 50 | 60 | 80 |
| Oilless Bush-506230 | 50 | 62 | 30 |
| Oilless Bush-506235 | 50 | 62 | 35 |
| Oilless Bush-506240 | 50 | 62 | 40 |
| Oilless Bush-506250 | 50 | 62 | 50 |
| Oilless Bush-506260 | 50 | 62 | 60 |
| Oilless Bush-506270 | 50 | 62 | 70 |
| Oilless Bush-506280 | 50 | 62 | 80 |
| Oilless Bush-506530 | 50 | 65 | 30 |
| Oilless Bush-506540 | 50 | 65 | 40 |
| Oilless Bush-506550 | 50 | 65 | 50 |
| Oilless Bush-506560 | 50 | 65 | 60 |
| Oilless Bush-506570 | 50 | 65 | 70 |
| Oilless Bush-506580 | 50 | 65 | 80 |
| Oilless Bush-5065100 | 50 | 65 | 100 |
| Oilless Bush-557030 | 55 | 70 | 30 |
| Oilless Bush-557035 | 55 | 70 | 35 |
| Oilless Bush-557040 | 55 | 70 | 40 |
| Oilless Bush-557050 | 55 | 70 | 50 |
| Oilless Bush-557060 | 55 | 70 | 60 |
| Oilless Bush-557070 | 55 | 70 | 70 |
| Oilless Bush-607430 | 60 | 74 | 30 |
| Oilless Bush-607435 | 60 | 74 | 35 |
| Oilless Bush-607440 | 60 | 74 | 40 |
| Oilless Bush-607450 | 60 | 74 | 50 |
| Oilless Bush-607460 | 60 | 74 | 60 |
| Oilless Bush-607470 | 60 | 74 | 70 |
| Oilless Bush-607480 | 60 | 74 | 80 |
| Oilless Bush-607530 | 60 | 75 | 30 |
| Oilless Bush-607535 | 60 | 75 | 35 |
| Oilless Bush-607540 | 60 | 75 | 40 |
| Oilless Bush-607550 | 60 | 75 | 50 |
| Oilless Bush-607560 | 60 | 75 | 60 |
| Oilless Bush-607570 | 60 | 75 | 70 |
| Oilless Bush-607580 | 60 | 75 | 80 |
| Oilless Bush-6075100 | 60 | 75 | 100 |
| Oilless Bush-637560 | 63 | 75 | 60 |
| Oilless Bush-637570 | 63 | 75 | 70 |
| Oilless Bush-637580 | 63 | 75 | 80 |
| Oilless Bush-658040 | 65 | 80 | 40 |
| Oilless Bush-658050 | 65 | 80 | 50 |
| Oilless Bush-658060 | 65 | 80 | 60 |
| Oilless Bush-658070 | 65 | 80 | 70 |
| Oilless Bush-658080 | 65 | 80 | 80 |
| Oilless Bush-708530 | 70 | 85 | 30 |
| Oilless Bush-708535 | 70 | 85 | 35 |
| Oilless Bush-708540 | 70 | 85 | 40 |
| Oilless Bush-708550 | 70 | 85 | 50 |
| Oilless Bush-708560 | 70 | 85 | 60 |
| Oilless Bush-708570 | 70 | 85 | 70 |
| Oilless Bush-708580 | 70 | 85 | 80 |
| Oilless Bush-7085100 | 70 | 85 | 100 |
| Oilless Bush-709050 | 70 | 90 | 50 |
| Oilless Bush-709060 | 70 | 90 | 60 |
| Oilless Bush-709070 | 70 | 90 | 70 |
| Oilless Bush-709080 | 70 | 90 | 80 |
| Oilless Bush-759050 | 75 | 90 | 50 |
| Oilless Bush-759060 | 75 | 90 | 60 |
| Oilless Bush-759070 | 75 | 90 | 70 |
| Oilless Bush-759080 | 75 | 90 | 80 |
| Oilless Bush-7590100 | 75 | 90 | 100 |
| Oilless Bush-759560 | 75 | 95 | 60 |
| Oilless Bush-759570 | 75 | 95 | 70 |
| Oilless Bush-759580 | 75 | 95 | 80 |
| Oilless Bush-7595100 | 75 | 95 | 100 |
| Oilless Bush-809640 | 80 | 96 | 40 |
| Oilless Bush-809650 | 80 | 96 | 50 |
| Oilless Bush-809660 | 80 | 96 | 60 |
| Oilless Bush-809670 | 80 | 96 | 70 |
| Oilless Bush-809680 | 80 | 96 | 80 |
| Oilless Bush-8096100 | 80 | 96 | 100 |
| Oilless Bush-8096120 | 80 | 96 | 120 |
| Oilless Bush-8010040 | 80 | 100 | 40 |
| Oilless Bush-8010050 | 80 | 100 | 50 |
| Oilless Bush-8010060 | 80 | 100 | 60 |
| Oilless Bush-8010070 | 80 | 100 | 70 |
| Oilless Bush-8010080 | 80 | 100 | 80 |
| Oilless Bush-80100100 | 80 | 100 | 100 |
| Oilless Bush-80100120 | 80 | 100 | 120 |
| Oilless Bush-80100140 | 80 | 100 | 140 |
| Oilless Bush-8510060 | 85 | 100 | 60 |
| Oilless Bush-8510080 | 85 | 100 | 80 |
| Oilless Bush-9011050 | 90 | 110 | 50 |
| Oilless Bush-9011060 | 90 | 110 | 60 |
| Oilless Bush-9011080 | 90 | 110 | 80 |
| Oilless Bush-9011090 | 90 | 110 | 90 |
| Oilless Bush-90110100 | 90 | 110 | 100 |
| Oilless Bush-90110120 | 90 | 110 | 120 |
| Oilless Bush-10012050 | 100 | 120 | 50 |
| Oilless Bush-10012060 | 100 | 120 | 60 |
| Oilless Bush-10012070 | 100 | 120 | 70 |
| Oilless Bush-10012080 | 100 | 120 | 80 |
| Oilless Bush-10012090 | 100 | 120 | 90 |
| Oilless Bush-100120100 | 100 | 120 | 100 |
| Oilless Bush-100120120 | 100 | 120 | 120 |
| Oilless Bush-100120140 | 100 | 120 | 140 |
| Oilless Bush-11013050 | 110 | 130 | 50 |
| Oilless Bush-11013070 | 110 | 130 | 70 |
| Oilless Bush-11013080 | 110 | 130 | 80 |
| Oilless Bush-110130100 | 110 | 130 | 100 |
| Oilless Bush-110130120 | 110 | 130 | 120 |
| Oilless Bush-12014070 | 120 | 140 | 70 |
| Oilless Bush-12014080 | 120 | 140 | 80 |
| Oilless Bush-12014090 | 120 | 140 | 90 |
| Oilless Bush-120140100 | 120 | 140 | 100 |
| Oilless Bush-120140120 | 120 | 140 | 120 |
| Oilless Bush-120140140 | 120 | 140 | 140 |
| Oilless Bush-125145100 | 125 | 145 | 100 |
| Oilless Bush-125145120 | 125 | 145 | 120 |
| Oilless Bush-13015080 | 130 | 150 | 80 |
| Oilless Bush-130150100 | 130 | 150 | 100 |
| Oilless Bush-130150130 | 130 | 150 | 130 |
| Oilless Bush-140160100 | 140 | 160 | 100 |
| Oilless Bush-140160140 | 140 | 160 | 140 |
| Oilless Bush-15017080 | 150 | 170 | 80 |
| Oilless Bush-150170100 | 150 | 170 | 100 |
| Oilless Bush-150170150 | 150 | 170 | 150 |
| Oilless Bush-16018080 | 160 | 180 | 80 |
| Oilless Bush-160180100 | 160 | 180 | 100 |
| Oilless Bush-160180150 | 160 | 180 | 150 |
| Oilless Bush-170190100 | 170 | 190 | 100 |
| Oilless Bush-170190150 | 170 | 190 | 150 |
| Oilless Bush-180200100 | 180 | 200 | 100 |
| Oilless Bush-180200150 | 180 | 200 | 150 |
| Oilless Bush-190210100 | 190 | 210 | 100 |
| Oilless Bush-190210150 | 190 | 210 | 150 |
| Oilless Bush-200230150 | 200 | 230 | 150 |
| Oilless Bush-200230200 | 200 | 230 | 200 |
Standard bearing bush sizes (with flanges)
| Oiles 500 Flange Bushings | I.D.: Φd | O.D.: ΦD | Frange: ΦF | Frange Thickness: t | Length: L |
| Flange Oilless Bush-0610 | 6 | 10 | 16 | 2 | 10 |
| Flange Oilless Bush-0612 | 6 | 10 | 16 | 2 | 12 |
| Flange Oilless Bush-0810 | 8 | 12 | 20 | 2 | 10 |
| Flange Oilless Bush-0812 | 8 | 12 | 20 | 2 | 12 |
| Flange Oilless Bush-0815 | 8 | 12 | 20 | 2 | 15 |
| Flange Oilless Bush-1010 | 10 | 14 | 22 | 2 | 10 |
| Flange Oilless Bush-1012 | 10 | 14 | 22 | 2 | 12 |
| Flange Oilless Bush-1015 | 10 | 14 | 22 | 2 | 15 |
| Flange Oilless Bush-1017 | 10 | 14 | 22 | 2 | 17 |
| Flange Oilless Bush-1020 | 10 | 14 | 22 | 2 | 20 |
| Flange Oilless Bush-1210 | 12 | 18 | 25 | 3 | 10 |
| Flange Oilless Bush-1212 | 12 | 18 | 25 | 3 | 12 |
| Flange Oilless Bush-1215 | 12 | 18 | 25 | 3 | 15 |
| Flange Oilless Bush-1220 | 12 | 18 | 25 | 3 | 20 |
| Flange Oilless Bush-1225 | 12 | 18 | 25 | 3 | 25 |
| Flange Oilless Bush-1230 | 12 | 18 | 25 | 3 | 30 |
| Flange Oilless Bush-1310 | 13 | 19 | 26 | 3 | 10 |
| Flange Oilless Bush-1312 | 13 | 19 | 26 | 3 | 12 |
| Flange Oilless Bush-1315 | 13 | 19 | 26 | 3 | 15 |
| Flange Oilless Bush-1320 | 13 | 19 | 26 | 3 | 20 |
| Flange Oilless Bush-1325 | 13 | 19 | 26 | 3 | 25 |
| Flange Oilless Bush-1330 | 13 | 19 | 26 | 3 | 30 |
| Flange Oilless Bush-1415 | 14 | 20 | 27 | 3 | 15 |
| Flange Oilless Bush-1420 | 14 | 20 | 27 | 3 | 20 |
| Flange Oilless Bush-1425 | 14 | 20 | 27 | 3 | 25 |
| Flange Oilless Bush-1510 | 15 | 21 | 28 | 3 | 10 |
| Flange Oilless Bush-1512 | 15 | 21 | 28 | 3 | 12 |
| Flange Oilless Bush-1515 | 15 | 21 | 28 | 3 | 15 |
| Flange Oilless Bush-1520 | 15 | 21 | 28 | 3 | 20 |
| Flange Oilless Bush-1525 | 15 | 21 | 28 | 3 | 25 |
| Flange Oilless Bush-1530 | 15 | 21 | 28 | 3 | 30 |
| Flange Oilless Bush-1612 | 16 | 22 | 29 | 3 | 12 |
| Flange Oilless Bush-1615 | 16 | 22 | 29 | 3 | 15 |
| Flange Oilless Bush-1618 | 16 | 22 | 29 | 3 | 18 |
| Flange Oilless Bush-1620 | 16 | 22 | 29 | 3 | 20 |
| Flange Oilless Bush-1623 | 16 | 22 | 29 | 3 | 23 |
| Flange Oilless Bush-1625 | 16 | 22 | 29 | 3 | 25 |
| Flange Oilless Bush-1630 | 16 | 22 | 29 | 3 | 30 |
| Flange Oilless Bush-1635 | 16 | 22 | 29 | 3 | 35 |
| Flange Oilless Bush-1640 | 16 | 22 | 29 | 3 | 40 |
| Flange Oilless Bush-1815 | 18 | 24 | 32 | 3 | 15 |
| Flange Oilless Bush-1820 | 18 | 24 | 32 | 3 | 20 |
| Flange Oilless Bush-1825 | 18 | 24 | 32 | 3 | 25 |
| Flange Oilless Bush-1830 | 18 | 24 | 32 | 3 | 30 |
| Flange Oilless Bush-1835 | 18 | 24 | 32 | 3 | 35 |
| Flange Oilless Bush-1840 | 18 | 24 | 32 | 3 | 40 |
| Flange Oilless Bush-2015 | 20 | 30 | 40 | 5 | 15 |
| Flange Oilless Bush-2020 | 20 | 30 | 40 | 5 | 20 |
| Flange Oilless Bush-2025 | 20 | 30 | 40 | 5 | 25 |
| Flange Oilless Bush-2030 | 20 | 30 | 40 | 5 | 30 |
| Flange Oilless Bush-2035 | 20 | 30 | 40 | 5 | 35 |
| Flange Oilless Bush-2040 | 20 | 30 | 40 | 5 | 40 |
| Flange Oilless Bush-2515 | 25 | 35 | 45 | 5 | 15 |
| Flange Oilless Bush-2520 | 25 | 35 | 45 | 5 | 20 |
| Flange Oilless Bush-2525 | 25 | 35 | 45 | 5 | 25 |
| Flange Oilless Bush-2530 | 25 | 35 | 45 | 5 | 30 |
| Flange Oilless Bush-2535 | 25 | 35 | 45 | 5 | 35 |
| Flange Oilless Bush-2540 | 25 | 35 | 45 | 5 | 40 |
| Flange Oilless Bush-2550 | 25 | 35 | 45 | 5 | 50 |
| Flange Oilless Bush-3020 | 30 | 40 | 50 | 5 | 20 |
| Flange Oilless Bush-3025 | 30 | 40 | 50 | 5 | 25 |
| Flange Oilless Bush-3030 | 30 | 40 | 50 | 5 | 30 |
| Flange Oilless Bush-3035 | 30 | 40 | 50 | 5 | 35 |
| Flange Oilless Bush-3040 | 30 | 40 | 50 | 5 | 40 |
| Flange Oilless Bush-3050 | 30 | 40 | 50 | 5 | 50 |
| Flange Oilless Bush-3120 | 31.5 | 40 | 50 | 5 | 20 |
| Flange Oilless Bush-3130 | 31.5 | 40 | 50 | 5 | 30 |
| Flange Oilless Bush-3135 | 31.5 | 40 | 50 | 5 | 35 |
| Flange Oilless Bush-3140 | 31.5 | 40 | 50 | 5 | 40 |
| Flange Oilless Bush-3520 | 35 | 45 | 60 | 5 | 20 |
| Flange Oilless Bush-3525 | 35 | 45 | 60 | 5 | 25 |
| Flange Oilless Bush-3530 | 35 | 45 | 60 | 5 | 30 |
| Flange Oilless Bush-3535 | 35 | 45 | 60 | 5 | 35 |
| Flange Oilless Bush-3540 | 35 | 45 | 60 | 5 | 40 |
| Flange Oilless Bush-3550 | 35 | 45 | 60 | 5 | 50 |
| Flange Oilless Bush-4020 | 40 | 50 | 65 | 5 | 20 |
| Flange Oilless Bush-4025 | 40 | 50 | 65 | 5 | 25 |
| Flange Oilless Bush-4030 | 40 | 50 | 65 | 5 | 30 |
| Flange Oilless Bush-4035 | 40 | 50 | 65 | 5 | 35 |
| Flange Oilless Bush-4040 | 40 | 50 | 65 | 5 | 40 |
| Flange Oilless Bush-4050 | 40 | 50 | 65 | 5 | 50 |
| Flange Oilless Bush-4530 | 45 | 55 | 70 | 5 | 30 |
| Flange Oilless Bush-4535 | 45 | 55 | 70 | 5 | 35 |
| Flange Oilless Bush-4540 | 45 | 55 | 70 | 5 | 40 |
| Flange Oilless Bush-4550 | 45 | 55 | 70 | 5 | 50 |
| Flange Oilless Bush-4560 | 45 | 55 | 70 | 5 | 60 |
| Flange Oilless Bush-5030 | 50 | 60 | 75 | 5 | 30 |
| Flange Oilless Bush-5035 | 50 | 60 | 75 | 5 | 35 |
| Flange Oilless Bush-5040 | 50 | 60 | 75 | 5 | 40 |
| Flange Oilless Bush-5050 | 50 | 60 | 75 | 5 | 50 |
| Flange Oilless Bush-5060 | 50 | 60 | 75 | 5 | 60 |
| Flange Oilless Bush-5540 | 55 | 65 | 80 | 5 | 40 |
| Flange Oilless Bush-5560 | 55 | 65 | 80 | 5 | 60 |
| Flange Oilless Bush-6040 | 60 | 75 | 90 | 7.5 | 40 |
| Flange Oilless Bush-6050 | 60 | 75 | 90 | 7.5 | 50 |
| Flange Oilless Bush-6060 | 60 | 75 | 90 | 7.5 | 60 |
| Flange Oilless Bush-6080 | 60 | 75 | 90 | 7.5 | 80 |
| Flange Oilless Bush-6367 | 63 | 75 | 85 | 7.5 | 67.5 |
| Flange Oilless Bush-6560 | 65 | 80 | 95 | 7.5 | 60 |
| Flange Oilless Bush-7050 | 70 | 85 | 105 | 7.5 | 50 |
| Flange Oilless Bush-7080 | 70 | 85 | 105 | 7.5 | 80 |
| Flange Oilless Bush-7560 | 75 | 90 | 110 | 7.5 | 60 |
| Flange Oilless Bush-8060 | 80 | 100 | 120 | 10 | 60 |
| Flange Oilless Bush-8080 | 80 | 100 | 120 | 10 | 80 |
| Flange Oilless Bush-80100 | 80 | 100 | 120 | 10 | 100 |
| Flange Oilless Bush-9060 | 90 | 110 | 130 | 10 | 60 |
| Flange Oilless Bush-9080 | 90 | 110 | 130 | 10 | 80 |
| Flange Oilless Bush-10080 | 100 | 120 | 150 | 10 | 80 |
| Flange Oilless Bush-100100 | 100 | 120 | 150 | 10 | 100 |
| Flange Oilless Bush-12080 | 120 | 140 | 170 | 10 | 80 |
| Flange Oilless Bush-120100 | 120 | 140 | 170 | 10 | 100 |
| Flange Oilless Bush-13080 | 130 | 150 | 180 | 10 | 80 |
| Flange Oilless Bush-130100 | 130 | 150 | 180 | 10 | 100 |
| Flange Oilless Bush-14080 | 140 | 160 | 190 | 10 | 80 |
| Flange Oilless Bush-140100 | 140 | 160 | 190 | 10 | 100 |
| Flange Oilless Bush-150100 | 150 | 170 | 200 | 10 | 100 |
| Flange Oilless Bush-150120 | 150 | 170 | 200 | 10 | 120 |
| Flange Oilless Bush-160100 | 160 | 180 | 210 | 10 | 100 |
| Flange Oilless Bush-160120 | 160 | 180 | 210 | 10 | 120 |
Standard THRUST WASHER sizes
| Oiles 500 Thrust Washer | I.D.: Φd | O.D.: ΦD | Thickness: T | Position of Mounting hole: P.C.D | Number of Hole | Countersunk Screw |
| Oilless Washer-0603 | 6.2 | 25 | 3 | 15 | 2 | M3 |
| Oilless Washer-0803 | 8.2 | 28 | 3 | 18 | 2 | M3 |
| Oilless Washer-1003 | 10.2 | 30 | 3 | 20 | 2 | M3 |
| Oilless Washer-1203 | 12.2 | 40 | 3 | 28 | 2 | M3 |
| Oilless Washer-1203N | 12.2 | 40 | 3 | – | – | – |
| Oilless Washer-1303 | 13.2 | 40 | 3 | 28 | 2 | M3 |
| Oilless Washer-1403 | 14.2 | 40 | 3 | 28 | 2 | M3 |
| Oilless Washer-1503 | 15.2 | 50 | 3 | 35 | 2 | M3 |
| Oilless Washer-1603 | 16.2 | 50 | 3 | 35 | 2 | M3 |
| Oilless Washer-1603N | 16.2 | 50 | 3 | – | – | – |
| Oilless Washer-1803 | 18.2 | 50 | 3 | 35 | 2 | M3 |
| Oilless Washer-2005 | 20.2 | 50 | 5 | 35 | 2 | M5 |
| Oilless Washer-2505 | 25.2 | 55 | 5 | 40 | 2 | M5 |
| Oilless Washer-2505N | 25.2 | 55 | 5 | – | – | – |
| Oilless Washer-3005 | 30.2 | 60 | 5 | 45 | 2 | M5 |
| Oilless Washer-3005N | 30.2 | 60 | 5 | – | – | – |
| Oilless Washer-3505 | 35.2 | 70 | 5 | 50 | 2 | M5 |
| Oilless Washer-4007 | 40.2 | 80 | 7 | 60 | 2 | M6 |
| Oilless Washer-4507 | 45.2 | 90 | 7 | 70 | 2 | M6 |
| Oilless Washer-5008 | 50.3 | 100 | 8 | 75 | 4 | M6 |
| Oilless Washer-5508 | 55.3 | 110 | 8 | 85 | 4 | M6 |
| Oilless Washer-6008 | 60.3 | 120 | 8 | 90 | 4 | M8 |
| Oilless Washer-6508 | 65.3 | 125 | 8 | 95 | 4 | M8 |
| Oilless Washer-7010 | 70.3 | 130 | 10 | 100 | 4 | M8 |
| Oilless Washer-7510 | 75.3 | 140 | 10 | 110 | 4 | M8 |
| Oilless Washer-8010 | 80.3 | 150 | 10 | 120 | 4 | M8 |
| Oilless Washer-9010 | 90.5 | 170 | 10 | 140 | 4 | M10 |
| Oilless Washer-10010 | 100.5 | 190 | 10 | 160 | 4 | M10 |
| Oilless Washer-12010 | 120.5 | 200 | 10 | 175 | 4 | M10 |
High-strength brass bearings with embedded solid lubricant, Metallic bearings having been used widely
Alternatives Oiles 500SP1-SL1 Bushings SPB
The Oiles 500SP1 series are self-lubricating bushing bearings composed of high strength bronze alloy bases made with advanced casting technology and embedded solid lubricants. They may be combined with various types of solid lubricants according to the conditions of use.
(Examples) I.D. is 25mm, O.D. is 33mm, and length is 20mm.
| SPB-061008 | 6 | 10 | 8 |
|---|---|---|---|
| SPB-061010 | 6 | 10 | 10 |
| SPB-061012 | 6 | 10 | 12 |
| SPB-081208 | 8 | 12 | 8 |
| SPB-081210 | 8 | 12 | 10 |
| SPB-081212 | 8 | 12 | 12 |
| SPB-081215 | 8 | 12 | 15 |
| SPB-101408 | 10 | 14 | 8 |
| SPB-101410 | 10 | 14 | 10 |
| SPB-101412 | 10 | 14 | 12 |
| SPB-101415 | 10 | 14 | 15 |
| SPB-101420 | 10 | 14 | 20 |
| SPB-121808 | 12 | 18 | 8 |
| SPB-121810 | 12 | 18 | 10 |
| SPB-121812 | 12 | 18 | 12 |
| SPB-121815 | 12 | 18 | 15 |
| SPB-121816 | 12 | 18 | 16 |
| SPB-121819 | 12 | 18 | 19 |
| SPB-121820 | 12 | 18 | 20 |
| SPB-121825 | 12 | 18 | 25 |
| SPB-121830 | 12 | 18 | 30 |
| SPB-131910 | 13 | 19 | 10 |
| SPB-131912 | 13 | 19 | 12 |
| SPB-131915 | 13 | 19 | 15 |
| SPB-131920 | 13 | 19 | 20 |
| SPB-131925 | 13 | 19 | 25 |
| SPB-131930 | 13 | 19 | 30 |
| SPB-142010 | 14 | 20 | 10 |
| SPB-142012 | 14 | 20 | 12 |
| SPB-142015 | 14 | 20 | 15 |
| SPB-142020 | 14 | 20 | 20 |
| SPB-142025 | 14 | 20 | 25 |
| SPB-142030 | 14 | 20 | 30 |
| SPB-152110 | 15 | 21 | 10 |
| SPB-152112 | 15 | 21 | 12 |
| SPB-152115 | 15 | 21 | 15 |
| SPB-152116 | 15 | 21 | 16 |
| SPB-152120 | 15 | 21 | 20 |
| SPB-152125 | 15 | 21 | 25 |
| SPB-152130 | 15 | 21 | 30 |
| SPB-152135 | 15 | 21 | 35 |
| SPB-152140 | 15 | 21 | 40 |
| SPB-162210 | 16 | 22 | 10 |
| SPB-162212 | 16 | 22 | 12 |
| SPB-162215 | 16 | 22 | 15 |
| SPB-162216 | 16 | 22 | 16 |
| SPB-162219 | 16 | 22 | 19 |
| SPB-162220 | 16 | 22 | 20 |
| SPB-162225 | 16 | 22 | 25 |
| SPB-162230 | 16 | 22 | 30 |
| SPB-162235 | 16 | 22 | 35 |
| SPB-162240 | 16 | 22 | 40 |
| SPB-172315 | 17 | 23 | 15 |
| SPB-182410 | 18 | 24 | 10 |
| SPB-182412 | 18 | 24 | 12 |
| SPB-182415 | 18 | 24 | 15 |
| SPB-182416 | 18 | 24 | 16 |
| SPB-182420 | 18 | 24 | 20 |
| SPB-182425 | 18 | 24 | 25 |
| SPB-182430 | 18 | 24 | 30 |
| SPB-182435 | 18 | 24 | 35 |
| SPB-182440 | 18 | 24 | 40 |
| SPB-192615 | 19 | 26 | 15 |
| SPB-192620 | 19 | 26 | 20 |
| SPB-202810 | 20 | 28 | 10 |
| SPB-202812 | 20 | 28 | 12 |
| SPB-202815 | 20 | 28 | 15 |
| SPB-202816 | 20 | 28 | 16 |
| SPB-202819 | 20 | 28 | 19 |
| SPB-202820 | 20 | 28 | 20 |
| SPB-202825 | 20 | 28 | 25 |
| SPB-202830 | 20 | 28 | 30 |
| SPB-202835 | 20 | 28 | 35 |
| SPB-202840 | 20 | 28 | 40 |
| SPB-202850 | 20 | 28 | 50 |
| SPB-203010 | 20 | 30 | 10 |
| SPB-203012 | 20 | 30 | 12 |
| SPB-203015 | 20 | 30 | 15 |
| SPB-203016 | 20 | 30 | 16 |
| SPB-203020 | 20 | 30 | 20 |
| SPB-203025 | 20 | 30 | 25 |
| SPB-203030 | 20 | 30 | 30 |
| SPB-203035 | 20 | 30 | 35 |
| SPB-203040 | 20 | 30 | 40 |
| SPB-203050 | 20 | 30 | 50 |
| SPB-223212 | 22 | 32 | 12 |
| SPB-223215 | 22 | 32 | 15 |
| SPB-223220 | 22 | 32 | 20 |
| SPB-223225 | 22 | 32 | 25 |
| SPB-253312 | 25 | 33 | 12 |
| SPB-253315 | 25 | 33 | 15 |
| SPB-253316 | 25 | 33 | 16 |
| SPB-253320 | 25 | 33 | 20 |
| SPB-253325 | 25 | 33 | 25 |
| SPB-253330 | 25 | 33 | 30 |
| SPB-253335 | 25 | 33 | 35 |
| SPB-253340 | 25 | 33 | 40 |
| SPB-253350 | 25 | 33 | 50 |
| SPB-253360 | 25 | 33 | 60 |
| SPB-253512 | 25 | 35 | 12 |
| SPB-253515 | 25 | 35 | 15 |
| SPB-253516 | 25 | 35 | 16 |
| SPB-253520 | 25 | 35 | 20 |
| SPB-253525 | 25 | 35 | 25 |
| SPB-253530 | 25 | 35 | 30 |
| SPB-253535 | 25 | 35 | 35 |
| SPB-253540 | 25 | 35 | 40 |
| SPB-253550 | 25 | 35 | 50 |
| SPB-253560 | 25 | 35 | 60 |
| SPB-283820 | 28 | 38 | 20 |
| SPB-283825 | 28 | 38 | 25 |
| SPB-283830 | 28 | 38 | 30 |
| SPB-283840 | 28 | 38 | 40 |
| SPB-303812 | 30 | 38 | 12 |
| SPB-303815 | 30 | 38 | 15 |
| SPB-303820 | 30 | 38 | 20 |
| SPB-303825 | 30 | 38 | 25 |
| SPB-303830 | 30 | 38 | 30 |
| SPB-303835 | 30 | 38 | 35 |
| SPB-303840 | 30 | 38 | 40 |
| SPB-303850 | 30 | 38 | 50 |
| SPB-303860 | 30 | 38 | 60 |
| SPB-304012 | 30 | 40 | 12 |
| SPB-304015 | 30 | 40 | 15 |
| SPB-304020 | 30 | 40 | 20 |
| SPB-304025 | 30 | 40 | 25 |
| SPB-304030 | 30 | 40 | 30 |
| SPB-304035 | 30 | 40 | 35 |
| SPB-304040 | 30 | 40 | 40 |
| SPB-304050 | 30 | 40 | 50 |
| SPB-304060 | 30 | 40 | 60 |
| SPB-314030 | 31.5 | 40 | 30 |
| SPB-314040 | 31.5 | 40 | 40 |
| SPB-324220 | 32 | 42 | 20 |
| SPB-324230 | 32 | 42 | 30 |
| SPB-324240 | 32 | 42 | 40 |
| SPB-354420 | 35 | 44 | 20 |
| SPB-354425 | 35 | 44 | 25 |
| SPB-354430 | 35 | 44 | 30 |
| SPB-354435 | 35 | 44 | 35 |
| SPB-354440 | 35 | 44 | 40 |
| SPB-354450 | 35 | 44 | 50 |
| SPB-354460 | 35 | 44 | 60 |
| SPB-354520 | 35 | 45 | 20 |
| SPB-354525 | 35 | 45 | 25 |
| SPB-354530 | 35 | 45 | 30 |
| SPB-354535 | 35 | 45 | 35 |
| SPB-354540 | 35 | 45 | 40 |
| SPB-354550 | 35 | 45 | 50 |
| SPB-354560 | 35 | 45 | 60 |
| SPB-384840 | 38 | 48 | 40 |
| SPB-405015 | 40 | 50 | 15 |
| SPB-405020 | 40 | 50 | 20 |
| SPB-405025 | 40 | 50 | 25 |
| SPB-405030 | 40 | 50 | 30 |
| SPB-405035 | 40 | 50 | 35 |
| SPB-405040 | 40 | 50 | 40 |
| SPB-405050 | 40 | 50 | 50 |
| SPB-405060 | 40 | 50 | 60 |
| SPB-405070 | 40 | 50 | 70 |
| SPB-405080 | 40 | 50 | 80 |
| SPB-405515 | 40 | 55 | 15 |
| SPB-405530 | 40 | 55 | 30 |
| SPB-405535 | 40 | 55 | 35 |
| SPB-405540 | 40 | 55 | 40 |
| SPB-405550 | 40 | 55 | 50 |
| SPB-405560 | 40 | 55 | 60 |
| SPB-455530 | 45 | 55 | 30 |
| SPB-455535 | 45 | 55 | 35 |
| SPB-455540 | 45 | 55 | 40 |
| SPB-455550 | 45 | 55 | 50 |
| SPB-455560 | 45 | 55 | 60 |
| SPB-455630 | 45 | 56 | 30 |
| SPB-455635 | 45 | 56 | 35 |
| SPB-455640 | 45 | 56 | 40 |
| SPB-455650 | 45 | 56 | 50 |
| SPB-455660 | 45 | 56 | 60 |
| SPB-456030 | 45 | 60 | 30 |
| SPB-456035 | 45 | 60 | 35 |
| SPB-456040 | 45 | 60 | 40 |
| SPB-456050 | 45 | 60 | 50 |
| SPB-456060 | 45 | 60 | 60 |
| SPB-456070 | 45 | 60 | 70 |
| SPB-456080 | 45 | 60 | 80 |
| SPB-506020 | 50 | 60 | 20 |
| SPB-506030 | 50 | 60 | 30 |
| SPB-506035 | 50 | 60 | 35 |
| SPB-506040 | 50 | 60 | 40 |
| SPB-506050 | 50 | 60 | 50 |
| SPB-506060 | 50 | 60 | 60 |
| SPB-506070 | 50 | 60 | 70 |
| SPB-506080 | 50 | 60 | 80 |
| SPB-506230 | 50 | 62 | 30 |
| SPB-506235 | 50 | 62 | 35 |
| SPB-506240 | 50 | 62 | 40 |
| SPB-506250 | 50 | 62 | 50 |
| SPB-506260 | 50 | 62 | 60 |
| SPB-506270 | 50 | 62 | 70 |
| SPB-506280 | 50 | 62 | 80 |
| SPB-506530 | 50 | 65 | 30 |
| SPB-506540 | 50 | 65 | 40 |
| SPB-506550 | 50 | 65 | 50 |
| SPB-506560 | 50 | 65 | 60 |
| SPB-506570 | 50 | 65 | 70 |
| SPB-506580 | 50 | 65 | 80 |
| SPB-5065100 | 50 | 65 | 100 |
| SPB-557030 | 55 | 70 | 30 |
| SPB-557035 | 55 | 70 | 35 |
| SPB-557040 | 55 | 70 | 40 |
| SPB-557050 | 55 | 70 | 50 |
| SPB-557060 | 55 | 70 | 60 |
| SPB-557070 | 55 | 70 | 70 |
| SPB-607430 | 60 | 74 | 30 |
| SPB-607435 | 60 | 74 | 35 |
| SPB-607440 | 60 | 74 | 40 |
| SPB-607450 | 60 | 74 | 50 |
| SPB-607460 | 60 | 74 | 60 |
| SPB-607470 | 60 | 74 | 70 |
| SPB-607480 | 60 | 74 | 80 |
| SPB-607530 | 60 | 75 | 30 |
| SPB-607535 | 60 | 75 | 35 |
| SPB-607540 | 60 | 75 | 40 |
| SPB-607550 | 60 | 75 | 50 |
| SPB-607560 | 60 | 75 | 60 |
| SPB-607570 | 60 | 75 | 70 |
| SPB-607580 | 60 | 75 | 80 |
| SPB-6075100 | 60 | 75 | 100 |
| SPB-637560 | 63 | 75 | 60 |
| SPB-637570 | 63 | 75 | 70 |
| SPB-637580 | 63 | 75 | 80 |
| SPB-658040 | 65 | 80 | 40 |
| SPB-658050 | 65 | 80 | 50 |
| SPB-658060 | 65 | 80 | 60 |
| SPB-658070 | 65 | 80 | 70 |
| SPB-658080 | 65 | 80 | 80 |
| SPB-708530 | 70 | 85 | 30 |
| SPB-708535 | 70 | 85 | 35 |
| SPB-708540 | 70 | 85 | 40 |
| SPB-708550 | 70 | 85 | 50 |
| SPB-708560 | 70 | 85 | 60 |
| SPB-708570 | 70 | 85 | 70 |
| SPB-708580 | 70 | 85 | 80 |
| SPB-7085100 | 70 | 85 | 100 |
| SPB-709050 | 70 | 90 | 50 |
| SPB-709060 | 70 | 90 | 60 |
| SPB-709070 | 70 | 90 | 70 |
| SPB-709080 | 70 | 90 | 80 |
| SPB-759050 | 75 | 90 | 50 |
| SPB-759060 | 75 | 90 | 60 |
| SPB-759070 | 75 | 90 | 70 |
| SPB-759080 | 75 | 90 | 80 |
| SPB-7590100 | 75 | 90 | 100 |
| SPB-759560 | 75 | 95 | 60 |
| SPB-759570 | 75 | 95 | 70 |
| SPB-759580 | 75 | 95 | 80 |
| SPB-7595100 | 75 | 95 | 100 |
| SPB-809640 | 80 | 96 | 40 |
| SPB-809650 | 80 | 96 | 50 |
| SPB-809660 | 80 | 96 | 60 |
| SPB-809670 | 80 | 96 | 70 |
| SPB-809680 | 80 | 96 | 80 |
| SPB-8096100 | 80 | 96 | 100 |
| SPB-8096120 | 80 | 96 | 120 |
| SPB-8010040 | 80 | 100 | 40 |
| SPB-8010050 | 80 | 100 | 50 |
| SPB-8010060 | 80 | 100 | 60 |
| SPB-8010070 | 80 | 100 | 70 |
| SPB-8010080 | 80 | 100 | 80 |
| SPB-80100100 | 80 | 100 | 100 |
| SPB-80100120 | 80 | 100 | 120 |
| SPB-80100140 | 80 | 100 | 140 |
| SPB-8510060 | 85 | 100 | 60 |
| SPB-8510080 | 85 | 100 | 80 |
| SPB-9011050 | 90 | 110 | 50 |
| SPB-9011060 | 90 | 110 | 60 |
| SPB-9011080 | 90 | 110 | 80 |
| SPB-9011090 | 90 | 110 | 90 |
| SPB-90110100 | 90 | 110 | 100 |
| SPB-90110120 | 90 | 110 | 120 |
| SPB-10012050 | 100 | 120 | 50 |
| SPB-10012060 | 100 | 120 | 60 |
| SPB-10012070 | 100 | 120 | 70 |
| SPB-10012080 | 100 | 120 | 80 |
| SPB-10012090 | 100 | 120 | 90 |
| SPB-100120100 | 100 | 120 | 100 |
| SPB-100120120 | 100 | 120 | 120 |
| SPB-100120140 | 100 | 120 | 140 |
| SPB-11013050 | 110 | 130 | 50 |
| SPB-11013070 | 110 | 130 | 70 |
| SPB-11013080 | 110 | 130 | 80 |
| SPB-110130100 | 110 | 130 | 100 |
| SPB-110130120 | 110 | 130 | 120 |
| SPB-12014070 | 120 | 140 | 70 |
| SPB-12014080 | 120 | 140 | 80 |
| SPB-12014090 | 120 | 140 | 90 |
| SPB-120140100 | 120 | 140 | 100 |
| SPB-120140120 | 120 | 140 | 120 |
| SPB-120140140 | 120 | 140 | 140 |
| SPB-125145100 | 125 | 145 | 100 |
| SPB-125145120 | 125 | 145 | 120 |
| SPB-13015080 | 130 | 150 | 80 |
| SPB-130150100 | 130 | 150 | 100 |
| SPB-130150130 | 130 | 150 | 130 |
| SPB-140160100 | 140 | 160 | 100 |
| SPB-140160140 | 140 | 160 | 140 |
| SPB-15017080 | 150 | 170 | 80 |
| SPB-150170100 | 150 | 170 | 100 |
| SPB-150170150 | 150 | 170 | 150 |
| SPB-16018080 | 160 | 180 | 80 |
| SPB-160180100 | 160 | 180 | 100 |
| SPB-160180150 | 160 | 180 | 150 |
| SPB-170190100 | 170 | 190 | 100 |
| SPB-170190150 | 170 | 190 | 150 |
| SPB-180200100 | 180 | 200 | 100 |
| SPB-180200150 | 180 | 200 | 150 |
| SPB-190210100 | 190 | 210 | 100 |
| SPB-190210150 | 190 | 210 | 150 |
| SPB-200230150 | 200 | 230 | 150 |
| SPB-200230200 | 200 | 230 | 200 |
Flange Bushings SPF
(Examples) I.D. is 50mm and length is 30mm.
SPF – 5030
| OILES 500SP1-SL1 Frange Bushings | I.D.: Φd | O.D.: ΦD | Frange: ΦF | Frange Thickness: t | Length: L |
|---|---|---|---|---|---|
| SPF-0610 | 6 | 10 | 16 | 2 | 10 |
| SPF-0612 | 6 | 10 | 16 | 2 | 12 |
| SPF-0810 | 8 | 12 | 20 | 2 | 10 |
| SPF-0812 | 8 | 12 | 20 | 2 | 12 |
| SPF-0815 | 8 | 12 | 20 | 2 | 15 |
| SPF-1010 | 10 | 14 | 22 | 2 | 10 |
| SPF-1012 | 10 | 14 | 22 | 2 | 12 |
| SPF-1015 | 10 | 14 | 22 | 2 | 15 |
| SPF-1017 | 10 | 14 | 22 | 2 | 17 |
| SPF-1020 | 10 | 14 | 22 | 2 | 20 |
| SPF-1210 | 12 | 18 | 25 | 3 | 10 |
| SPF-1212 | 12 | 18 | 25 | 3 | 12 |
| SPF-1215 | 12 | 18 | 25 | 3 | 15 |
| SPF-1220 | 12 | 18 | 25 | 3 | 20 |
| SPF-1225 | 12 | 18 | 25 | 3 | 25 |
| SPF-1230 | 12 | 18 | 25 | 3 | 30 |
| SPF-1310 | 13 | 19 | 26 | 3 | 10 |
| SPF-1312 | 13 | 19 | 26 | 3 | 12 |
| SPF-1315 | 13 | 19 | 26 | 3 | 15 |
| SPF-1320 | 13 | 19 | 26 | 3 | 20 |
| SPF-1325 | 13 | 19 | 26 | 3 | 25 |
| SPF-1330 | 13 | 19 | 26 | 3 | 30 |
| SPF-1415 | 14 | 20 | 27 | 3 | 15 |
| SPF-1420 | 14 | 20 | 27 | 3 | 20 |
| SPF-1425 | 14 | 20 | 27 | 3 | 25 |
| SPF-1510 | 15 | 21 | 28 | 3 | 10 |
| SPF-1512 | 15 | 21 | 28 | 3 | 12 |
| SPF-1515 | 15 | 21 | 28 | 3 | 15 |
| SPF-1520 | 15 | 21 | 28 | 3 | 20 |
| SPF-1525 | 15 | 21 | 28 | 3 | 25 |
| SPF-1530 | 15 | 21 | 28 | 3 | 30 |
| SPF-1612 | 16 | 22 | 29 | 3 | 12 |
| SPF-1615 | 16 | 22 | 29 | 3 | 15 |
| SPF-1618 | 16 | 22 | 29 | 3 | 18 |
| SPF-1620 | 16 | 22 | 29 | 3 | 20 |
| SPF-1623 | 16 | 22 | 29 | 3 | 23 |
| SPF-1625 | 16 | 22 | 29 | 3 | 25 |
| SPF-1630 | 16 | 22 | 29 | 3 | 30 |
| SPF-1635 | 16 | 22 | 29 | 3 | 35 |
| SPF-1640 | 16 | 22 | 29 | 3 | 40 |
| SPF-1815 | 18 | 24 | 32 | 3 | 15 |
| SPF-1820 | 18 | 24 | 32 | 3 | 20 |
| SPF-1825 | 18 | 24 | 32 | 3 | 25 |
| SPF-1830 | 18 | 24 | 32 | 3 | 30 |
| SPF-1835 | 18 | 24 | 32 | 3 | 35 |
| SPF-1840 | 18 | 24 | 32 | 3 | 40 |
| SPF-2015 | 20 | 30 | 40 | 5 | 15 |
| SPF-2020 | 20 | 30 | 40 | 5 | 20 |
| SPF-2025 | 20 | 30 | 40 | 5 | 25 |
| SPF-2030 | 20 | 30 | 40 | 5 | 30 |
| SPF-2035 | 20 | 30 | 40 | 5 | 35 |
| SPF-2040 | 20 | 30 | 40 | 5 | 40 |
| SPF-2515 | 25 | 35 | 45 | 5 | 15 |
| SPF-2520 | 25 | 35 | 45 | 5 | 20 |
| SPF-2525 | 25 | 35 | 45 | 5 | 25 |
| SPF-2530 | 25 | 35 | 45 | 5 | 30 |
| SPF-2535 | 25 | 35 | 45 | 5 | 35 |
| SPF-2540 | 25 | 35 | 45 | 5 | 40 |
| SPF-2550 | 25 | 35 | 45 | 5 | 50 |
| SPF-3020 | 30 | 40 | 50 | 5 | 20 |
| SPF-3025 | 30 | 40 | 50 | 5 | 25 |
| SPF-3030 | 30 | 40 | 50 | 5 | 30 |
| SPF-3035 | 30 | 40 | 50 | 5 | 35 |
| SPF-3040 | 30 | 40 | 50 | 5 | 40 |
| SPF-3050 | 30 | 40 | 50 | 5 | 50 |
| SPF-3120 | 31.5 | 40 | 50 | 5 | 20 |
| SPF-3130 | 31.5 | 40 | 50 | 5 | 30 |
| SPF-3135 | 31.5 | 40 | 50 | 5 | 35 |
| SPF-3140 | 31.5 | 40 | 50 | 5 | 40 |
| SPF-3520 | 35 | 45 | 60 | 5 | 20 |
| SPF-3525 | 35 | 45 | 60 | 5 | 25 |
| SPF-3530 | 35 | 45 | 60 | 5 | 30 |
| SPF-3535 | 35 | 45 | 60 | 5 | 35 |
| SPF-3540 | 35 | 45 | 60 | 5 | 40 |
| SPF-3550 | 35 | 45 | 60 | 5 | 50 |
| SPF-4020 | 40 | 50 | 65 | 5 | 20 |
| SPF-4025 | 40 | 50 | 65 | 5 | 25 |
| SPF-4030 | 40 | 50 | 65 | 5 | 30 |
| SPF-4035 | 40 | 50 | 65 | 5 | 35 |
| SPF-4040 | 40 | 50 | 65 | 5 | 40 |
| SPF-4050 | 40 | 50 | 65 | 5 | 50 |
| SPF-4530 | 45 | 55 | 70 | 5 | 30 |
| SPF-4535 | 45 | 55 | 70 | 5 | 35 |
| SPF-4540 | 45 | 55 | 70 | 5 | 40 |
| SPF-4550 | 45 | 55 | 70 | 5 | 50 |
| SPF-4560 | 45 | 55 | 70 | 5 | 60 |
| SPF-5030 | 50 | 60 | 75 | 5 | 30 |
| SPF-5035 | 50 | 60 | 75 | 5 | 35 |
| SPF-5040 | 50 | 60 | 75 | 5 | 40 |
| SPF-5050 | 50 | 60 | 75 | 5 | 50 |
| SPF-5060 | 50 | 60 | 75 | 5 | 60 |
| SPF-5540 | 55 | 65 | 80 | 5 | 40 |
| SPF-5560 | 55 | 65 | 80 | 5 | 60 |
| SPF-6040 | 60 | 75 | 90 | 7.5 | 40 |
| SPF-6050 | 60 | 75 | 90 | 7.5 | 50 |
| SPF-6060 | 60 | 75 | 90 | 7.5 | 60 |
| SPF-6080 | 60 | 75 | 90 | 7.5 | 80 |
| SPF-6367 | 63 | 75 | 85 | 7.5 | 67.5 |
| SPF-6560 | 65 | 80 | 95 | 7.5 | 60 |
| SPF-7050 | 70 | 85 | 105 | 7.5 | 50 |
| SPF-7080 | 70 | 85 | 105 | 7.5 | 80 |
| SPF-7560 | 75 | 90 | 110 | 7.5 | 60 |
| SPF-8060 | 80 | 100 | 120 | 10 | 60 |
| SPF-8080 | 80 | 100 | 120 | 10 | 80 |
| SPF-80100 | 80 | 100 | 120 | 10 | 100 |
| SPF-9060 | 90 | 110 | 130 | 10 | 60 |
| SPF-9080 | 90 | 110 | 130 | 10 | 80 |
| SPF-10080 | 100 | 120 | 150 | 10 | 80 |
| SPF-100100 | 100 | 120 | 150 | 10 | 100 |
| SPF-12080 | 120 | 140 | 170 | 10 | 80 |
| SPF-120100 | 120 | 140 | 170 | 10 | 100 |
| SPF-13080 | 130 | 150 | 180 | 10 | 80 |
| SPF-130100 | 130 | 150 | 180 | 10 | 100 |
| SPF-14080 | 140 | 160 | 190 | 10 | 80 |
| SPF-140100 | 140 | 160 | 190 | 10 | 100 |
| SPF-150100 | 150 | 170 | 200 | 10 | 100 |
| SPF-150120 | 150 | 170 | 200 | 10 | 120 |
| SPF-160100 | 160 | 180 | 210 | 10 | 100 |
| SPF-160120 | 160 | 180 | 210 | 10 | 120 |
“manufacturer of castings and machined components made of bronze. Manufacturing oilless units.”
