1. Polymer Lined Steel Bushing Series

The Polymer Lined Steel Bushing series features an innovative design which incorporates a hardened steel backing for robustness and durability, coupled with an inner lining of either Polytetrafluoroethylene (PTFE) or Polyoxymethylene (POM). This design results in a bushing that can withstand demanding conditions while providing excellent sliding characteristics and reducing friction.

1.1 Key Features:

Hardened Steel Backing: Provides robust support, enhancing the overall structural integrity of the bushing.

Inner lining of PTFE or POM: Known for their excellent low friction properties, PTFE and POM ensure smooth operation and a longer lifespan.

Various forms: These bushings are available in a range of forms including cylindrical, flanged, and thrust bushings to meet diverse application requirements.

These bushings are ideally suited to applications where maintenance is difficult and where high performance, longevity, and reduced maintenance are key considerations.

2. Metallic Bushing Series

The Metallic Bushing Series is specifically designed to handle high torque loads. These bushings are manufactured using metal alloys, resulting in a high-strength product that can resist extreme forces and torques. However, these bushings require lubrication maintenance to ensure optimal performance and longevity.

2.1 Key Features:

High Torque Load: These bushings are designed specifically to handle high torque loads, making them ideal for heavy-duty applications.

Lubrication Maintenance: To maintain optimal performance, regular lubrication of these bushings is required.

Various forms: Similar to the Polymer Lined Steel Bushing series, these bushings also come in cylindrical, flanged, and thrust forms, catering to a variety of applications.

The Metallic Bushing Series is ideally suited to applications where high torque loads are commonplace, and where the operating environment allows for regular maintenance.

In both bushing series, the availability of various forms allows for extensive flexibility, making it easier for engineers to choose the best-suited bushing for a specific application.

Certified manufacturer & distributor of standard & custom bearings including oilless or self-lubricating bearings. Slide bearings, wrapped bushing & sleeve metal bearings, PTFE sleeve bearings, spherical bearings & thrust bearings are available. Types of sleeve bearings include straight sleeve bearings, flange sleeve bearings, groove flange sleeve bearings & special sleeve bearings. Fast delivery.

Our PTFE-based metal-polymer materials offer exceptionally low friction and high wear. Superior PTFE and thermoplastic-based metal-polymer bearings.

VIIPLUS is a young, flexible and dynamic company that serves the entire local and foreign automotive industry successfully as a designer of self-lubricating bearings and exporter of bearing bushings, and aims to become one of the major players in the self-lubricating bearing industry.

Our expertise and experience in all products and processes is our basic source for finding different and creative solutions for the recognized companies in this industry.

We help create a world of motion with minimal friction losses through plain bearings and surface engineering. Our clients are in the United States, Germany, France, Brazil, Slovenia and Poland, Turkey, Russia, etc., working with customers around the world to provide efficient and environmentally sustainable custom tribological design solutions. Our engineers bring their expertise and passion for tribology to a wide range of industries including automotive, marine, mining and industrial manufacturing. To learn more about Surface Engineering Tribology, visit www.bronzelub.com. Our goal is always to provide Superior, high-quality solutions that meet customer needs, wherever those needs take our products. From bicycles to golf carts and pretty much everything in between; we offer the industry’s broadest range of high-performance products, Maintenance-free bearing solutions for a variety of applications: Oil & Gas, Automotive — Railway —Industrial, Energy！

Polymer Lined Steel Bushing Series: Modes of Lubrication

The Polymer Lined Steel Bushing series operates effectively in different lubrication conditions depending on the thickness of the lubricant film developed between the bearing and the mating surface. Understanding these lubrication modes can help optimize bearing performance and lifespan. The three primary modes of lubricated bearing operation are:

1. Hydrodynamic Lubrication

Hydrodynamic lubrication is a state where a full film of lubricant separates the bearing surface from the mating surface. The load is fully supported by this fluid film without any direct contact between the metal surfaces. This is often achieved when the bearing and the mating surface are moving at sufficient relative speed to create a pressurized lubricant film. Hydrodynamic lubrication results in minimal wear, allowing the bearing to have a longer service life.

However, this mode is difficult to maintain at lower speeds, during start-up, or shut-down where the speed may not be enough to sustain the lubricant film.

2. Mixed Film Lubrication

Mixed film lubrication is a transitional mode between hydrodynamic and boundary lubrication. It occurs when the speed or load conditions are such that a complete lubricating film can’t be maintained, and direct metal-to-metal contact occurs in spots. The lubrication state is thus ‘mixed’ since some areas are under hydrodynamic lubrication (full film separation) while others are experiencing direct contact. The aim is to maintain as much hydrodynamic lubrication as possible to minimize wear.

3. Boundary Lubrication

Boundary lubrication occurs when the lubricant film is not thick enough to completely separate the bearing and mating surfaces, and metal-to-metal contact occurs. The lubricant in this case provides a protective layer over the metal surfaces to reduce wear and friction during these contact instances. This mode of lubrication is often present at low speeds, high loads, or during start-up and shut-down.

The Polymer Lined Steel Bushing series, featuring an inner lining of PTFE or POM, is designed to function efficiently in all these lubrication conditions due to the self-lubricating properties of these materials. It is crucial to understand the operating conditions to select the right lubrication strategy for maintaining optimal bearing performance.

Custom manufacturer of metal, self-lubricating bearings that are pressed, sintered, and impregnated with oils. Made from graphite, diluted bronze, brass, carbon, and bronze-graphite. Serves the automotive, appliance, lawn and garden, marine, off-road vehicle and other industries.

Motion applications using POM bushing bearings can be found in every industry. Slow and fast applications, light and heavy applications, grinding and cleaning applications. Clean applications. Each industry has its own preference for the type of polymer grease bearing, such as sliding grease bush bearings, and each application has its own preference for types of bearings, such as Each industry has its own preference for sliding bearing types, such as plain bushing bearings, and each application has its own preference for specific variants, such as POM plain bearings. is a manufacturer of high quality POM plain bearings.

Bushings or Bimetal Bushings: POM plain bushing bearings are developed for lubrication applications and consist of three layers consisting of three layers: a steel bushing and a sintered bronze layer impregnated and covered with a polyoxymethylene (POM) grease bush bearing material.

The steel sleeve provides mechanical strength, while the sintered bronze layer ensures a strong bond between the grease bushings. The sintered bronze layer ensures a strong bond between the steel sleeve and the running layer. Running layer. POM plain bearings are developed for applications where grease is used. applications where the running surface is usually lubricated with a lubrication indentation pattern that serves as a reservoir for the grease.

Maintenance-free and self-lubricating bearings. Small minimum order. Ships in 24hrs. Plain Bearings Made From Self-Lubricating. Ships in 24 hrs. Types: Slide Bushing Bearings!

POM plain-bearing bushings are available in several different forms. These include steel sleeves or bearing sleeves.

• PTFE plain bearings
• Composite plain bearings
• Wrapped bronze plain bearings
• Bronze plain bearings
• Graphite bronze plain bearings
• Self-lubricating Bronze Plain Bearings

Applications of POM bushing bearings

• Engineering
• Agriculture
• Mechanical engineering
• Construction Engineering
• Marine engineering
• Inland shipping

Want to learn more about pom bushings bearings? Together with you, we turn technical challenges into tailor-made solutions. Therefore, the best service is our standard. Extensive polymer grease material knowledge is linked to extensive experience in specific applications. Extensive experience in applications. The result? A competitively priced and High-quality polymer grease bushing parts and components! Shop a large range of ptfe sleeve bearing.

Our range of Metallic and Self-Lubricating Bushings demonstrate exceptional performance in a variety of hydraulic applications, where oil-lubrication is commonly used. They excel in wear resistance and frictional performance, optimizing the overall operation and extending the lifespan of the machinery.

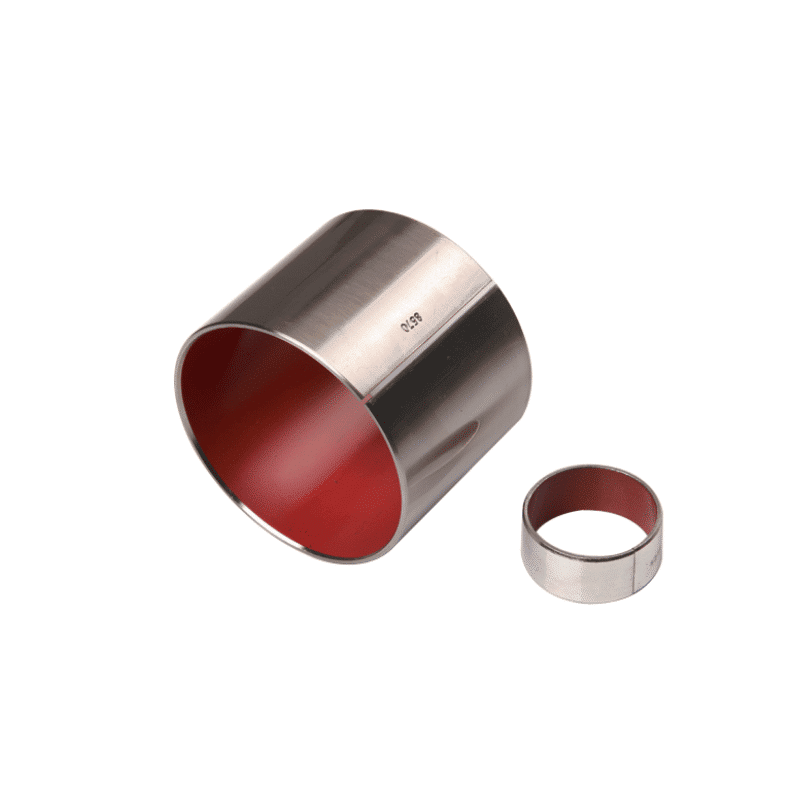

One of the key features that enables this superior performance is the utilization of Red Polytetrafluoroethylene (PTFE) in the production of our bushings. Red PTFE is known for its excellent wear resistance, particularly under steady load, oil-immersed boundary lubrication conditions.

Key Features in Hydraulic Applications:

Exceptional Wear Resistance: The Red PTFE lining in our bushings exhibits excellent wear resistance. This significantly reduces the frequency of bushing replacements, thereby lowering maintenance costs and downtime.

Optimal Frictional Performance: Our bushings show superior frictional performance, ensuring smooth operation in various hydraulic applications. This reduces the risk of overheating and component wear, and helps to increase the overall efficiency of the hydraulic system.

Performance in Oil-Lubricated Applications: The bushings perform exceptionally well in oil-lubricated applications, common in many hydraulic systems. They can withstand the boundary lubrication conditions that often occur in these systems, demonstrating high levels of reliability and durability.

Steady Load Capacity: Under steady load conditions, our bushings maintain their wear resistance and continue to operate effectively, making them ideal for applications with consistent operational demands.

Our Metallic and Self-Lubricating Bushings are a robust and efficient choice for hydraulic applications, providing reliability and performance that can enhance the overall operation of your hydraulic systems.
