Project Description
Solid bronze sliding bearing, maintenance-free
Top Quality
The promise of order bronze bearing high quality, meet your requirement.
Machined Solid Sliding Bearing
Small minimum order value & quantity, fast delivery.
Bronze Bearing Features
Overview Of Maintenance-free Solid Sliding Bearing.
Select the material of bronze bearing:
- Tin Bronze
- Lead Bronze
- Aluminium Bronze
- High Tensile Brass
Machined Solid Sliding Bronze Bushing Characteristics:
- Machined solid sliding bearings offer technically and economically favorable bearings solutions.
- High load capability, low weight and good corrosion resistance.
- The tolerance is much tighter than wrapped bronze bushes.
- All kinds of oil grooves can be choosed,lubricating by oil filled in the oil grooves.
We machine self lubricating bronze bearings according to clients’ drawings.
Self-lubricating Sliding Bearing Benefits:
- Reliability
- Maintenance-free
- High Performance
Availability
- Cylindrical bushing, flanged bushing, thrust washer and slide plate are standard fabrication.
- Special designs can be made according to your design.
Solid Sliding Bearing Technical Data |
|||||
| Material | Brass | Bronze | Bronze | Bronze | Bronze |
| CuZn25Al5 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuSn10Pb10 | |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8.9 |
| Yield pointN/mm2 | ＞450 | ＞90 | ＞260 | ＞150 | ＞100 |
| Tensile strengthN/mm2 | ＞750 | ＞200 | ＞600 | ＞260 | ＞210 |
| Elongation % | ＞12 | ＞15 | ＞10 | ＞8 | ＞8 |
| Hardness HB | ＞210 | ＞70 | ＞150 | ＞95 | ＞75 |
Bronze Bearing Suppliers – High Quality Factory Price
Bronze Bearing Production
Always tested. Always proven. Global website www.bronzelube.com
Sliding Bronze Bearing Online sales
Customized logo, custom buttons service.
Lots of experience, many benefits.
This bronze bearing bushing material is suitable for a wide range of applications.
- Huge variety of sliding bearing materials.
- Manufacture according to ISO 4379/DIN 1850.
- Adjustment to special requirements or in accordance with customer drawings.
We design the sliding bearing quality to meet custom’s request.
We make all bronze bearings based on customer designs. Every part of the component structure, including bronze alloy, bearing dimensions and other features such as grooves, are personalized to suit customer needs.
Solid bronze bushings are available in metric sizes as straight or flanged bushings.
* Our enterprise, is one of the undisputed supplier of the highly competitive order machined solid sliding bearing industry in china.
Explore More
More bronze bearing products from china
Bronze Bearings – Factory Direct & Fast Shipping
Machined solid sliding bearings,Huge variety of sliding bearing materials.Manufacture oil groove bronze bushings according to ISO 4379/DIN 1850.Any of our standard stock sizes of sleeve type bronze bearings are adaptable to grooving & graphite. Select the size you want, and add the lubricant of your choice. If not otherwise specified , the width and depth of oil grooves will be proportional to the wall thickness and the dimensions of the bearing contained within the bearing.
We manufactures special sliding bearings bushing according to your size. We adapt the sliding bearing to your requirements and to the possibilities of our machinery in operation.
Adjustment to special requirements or in accordance with customer drawings. Here you will find all information!www.bronzelube.com
Custom Manufacture sliding bearings
Manufacture to customer spec.Manufactured with high precision bearing parts,plugged graphite.
We design with CAD drawings & CNC manufacturing is done on state-of-the-art turning- and milling machines.
So you will get exactly self-lubricating bronze lube parts what you need.
Material
- The company can not only carry out the production of copper alloy material according to the Chinese national standard, but also carry out the production of copper alloy material according to the relevant standards of the United States, the European Union, Japan and other countries.
- Material process product specification product brand application field
SHAPES & FORMS
- Cylindrical bushings
- flange bushings

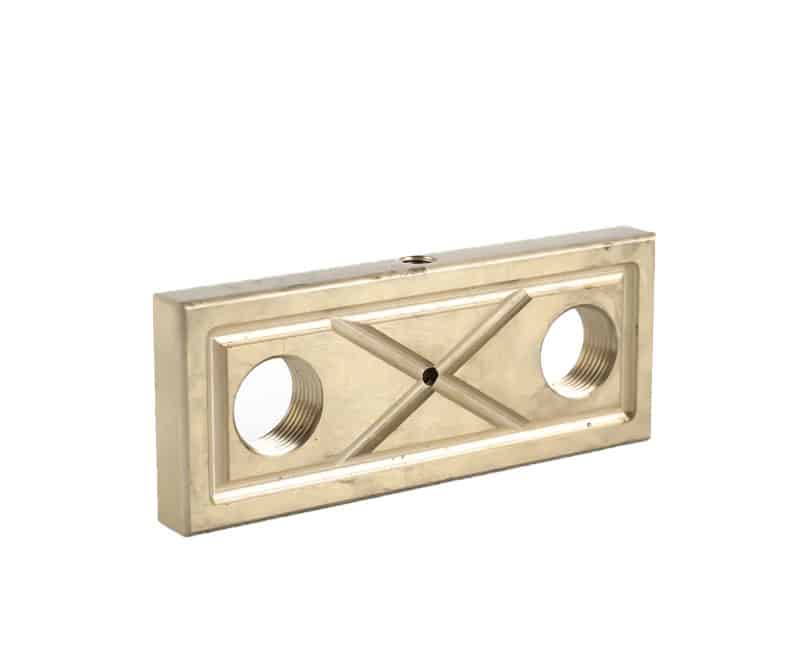

- Plates
- Washers
- Other Custom Bearings Parts
RANGE OF APPLICATION
Forest machinery, pump housing parts, cylinder bearings, shipping & container industry etc.
Sliding bearing & slide bar custom manufacture;Sliding Bearing,Customized Items,Bronze flange bearings with lubrication grooves.
REQUEST A QUOTE
Know what you’re looking for? Or need help figuring out what you need? Contact us today for a quote.
Characteristics for each material
| Material | Characteristics |
|---|---|
| Bronze | High corrosion resistance and relatively low frictional coefficient in seawater. Excellent pressure resistance, abrasion resistance, machinability, and mechanical characteristics. |
| Phosphorous bronze | Excellent corrosion resistance and abrasion resistance and has excellent hardness. Used as the machine parts like roller for making gear and worm gear. |
| Lead bronze | Suitable for soft shaft. Suitable for the part where high contact pressure is required. Excellent pressure resistance and abrasion resistance. |
| High Strength brass | Suitable for low and medium speed and high load. High strength and hardness. Excellent corrosion resistance and abrasion resistance in high load. |
| Aluminum bronze | Suitable for high temperature and repetitive load. High strength and tougness. Excellent corrosion resistance and heat resistance. |
