L-Gibs – Solid Bronze – Self-Lubricating – Metric, L-Gibs: Solid Bronze Self-Lubricating Components

L-Gibs are solid bronze self-lubricating components that offer excellent performance and reliability in various applications. With their unique properties, these self-lubricating gibs provide smooth sliding motion while reducing friction and wear. Let’s explore the features and benefits of L-Gibs:

  1. Self-Lubrication: L-Gibs are designed to operate without the need for external lubrication. They are manufactured using a solid bronze material infused with self-lubricating additives such as graphite or other solid lubricants. These additives are evenly distributed throughout the bronze matrix, ensuring a constant supply of lubrication during sliding operations.
  2. Friction Reduction: The self-lubricating properties of L-Gibs significantly reduce friction between mating surfaces. As the gib slides against another component, the solid lubricant particles are released, forming a lubricating film that minimizes direct metal-to-metal contact. This friction reduction improves efficiency, minimizes wear, and lowers the risk of stick-slip motion, resulting in smoother and quieter operation.
  3. Wear Resistance: L-Gibs offer excellent wear resistance, ensuring prolonged service life and reducing the need for frequent replacement. The combination of the solid bronze material and self-lubricating additives provides a protective layer that reduces friction and minimizes wear, even under high-load conditions. This durability makes L-Gibs ideal for applications that involve repetitive sliding motions.
  4. Maintenance-Free Operation: One of the key advantages of L-Gibs is their maintenance-free operation. The self-lubricating properties eliminate the need for regular lubrication, reducing downtime and maintenance costs. With L-Gibs, you can enjoy continuous, reliable performance without the need for frequent lubricant application.
  5. Corrosion Resistance: Bronze, the base material of L-Gibs, offers inherent corrosion resistance. This allows L-Gibs to withstand exposure to moisture, chemicals, and harsh environments without compromising their performance. The corrosion resistance of L-Gibs ensures long-term reliability, making them suitable for various applications across different industries.
  6. Versatile Applications: L-Gibs find application in a wide range of industries, including manufacturing, automotive, aerospace, and more. They are commonly used in sliding mechanisms, guide rails, and other applications that require low friction and high wear resistance. L-Gibs can be tailored to different sizes and shapes to fit specific requirements, offering versatility in design and implementation.
  7. Improved Efficiency: By utilizing L-Gibs in your machinery or equipment, you can improve overall efficiency. The reduced friction and wear translate into enhanced energy efficiency, reduced heat generation, and extended component life. This can result in improved productivity, reduced maintenance costs, and increased equipment uptime.

In conclusion, L-Gibs are solid bronze self-lubricating components that offer numerous advantages such as self-lubrication, friction reduction, wear resistance, and corrosion resistance. With their maintenance-free operation and versatility, L-Gibs provide reliable and efficient performance in various applications. Consider incorporating L-Gibs into your sliding mechanisms to benefit from their self-lubricating properties and enhance the longevity and efficiency of your equipment.

  1. The variety of sizes offered make custom gib and slide assembly construction fast and easy.
  2. During normal sliding action, graphite produces a lubricating film across the entire wear surface.
  3. It is recommended that a mist of light oil be wiped on sliding surface prior to assembly.
  4. One piece construction with pre-drilled and counterbored screw holes, machined complete.

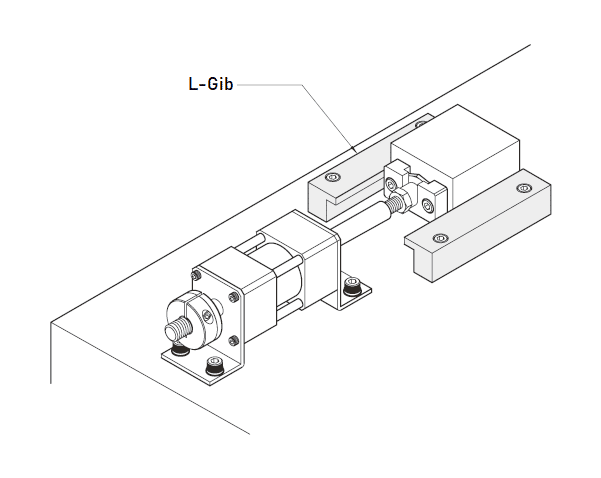

Self-Lubricating L-Gib Slide – Metric Size

Gibs and T-Sliders

Self-Lubricating L-Gib Slide provide a long-lasting wear surface for high-production molds using slides and cams.

L-Gib Slide are easy to machine and can be shaped to any configuration, requiring no special tools.

Gib assembly includes two L-gibs, a base plate and an optional T-slide. The base plate includes thru holes for easy assembly and fits into a pre-machined pocket.

These L-Gibs are made from steel and have been electroplated with bronze.

NOTES:

1. Tolerances are ±.010 unless otherwise indicated.
2. Graphic plug pattern varies by product size.

METRIC – SOLID BRONZE – SELF-LUBRICATING – L -GIB SLIDE
ITEM NUMBER ITEM NUMBER W A B C D E F G H J K QUANTITY M & S SIZE
+0.00–0.13 +0.025 –0.000 +0.025 –0.000 +0.00–0.13 ±0.127 M S
SLGM GIB SLIDE 15100 100 32 15 10 30 22 11 20 60 2 M10
SLGM GIB SLIDE 15150 150 55 55 3
SLGM GIB SLIDE 15200 200 55 50 55 4
SLGM GIB SLIDE 15250 250 70 70 70 4
SLGM GIB SLIDE 25200 200 50 25 22 45 28 14 55 50 55 4
SLGM GIB SLIDE 25250 250 70 70 70 4
SLGM GIB SLIDE 25300 300 65 65 65 65 5
SLGM GIB SLIDE 25350 350 80 75 75 80 5
Lead Time / Gib Manufacturer / CAD Data Type
  • Lamina Bronze Plated Die Bushings & Guide Pins (Inch & Metric)
  • Lamina Ball Bearing Pins & Bushings (Inch & Metric)
  • Lamina Bronze Plated Mold Bushings & Guide Pins (Inch & Metric)
  • Lamina Bronze Plated Wear Strips & L-Gibs (Standard & Self Lubricating)
Gibs and T-Sliders Characteristics
  • A low coefficient of friction provides a long-lasting wear surface
  • No pre-drilled holes equal mounting pattern flexibility
  • Close tolerance

Gib Slides Available in the following configurations:

  • Bronze no Holes
  • Bronze
  • Bronze w/Graphite no Holes
  • Bronze w/Graphite
Bronze With Self-lubricating Graphite Plugged
Product type
Gib Slides
Material
Bronze
Heel
No groove
Oil groove
Oil-free
Embedded lubricant
Graphit
Standard Copper Alloy + Graphite (Embedded)

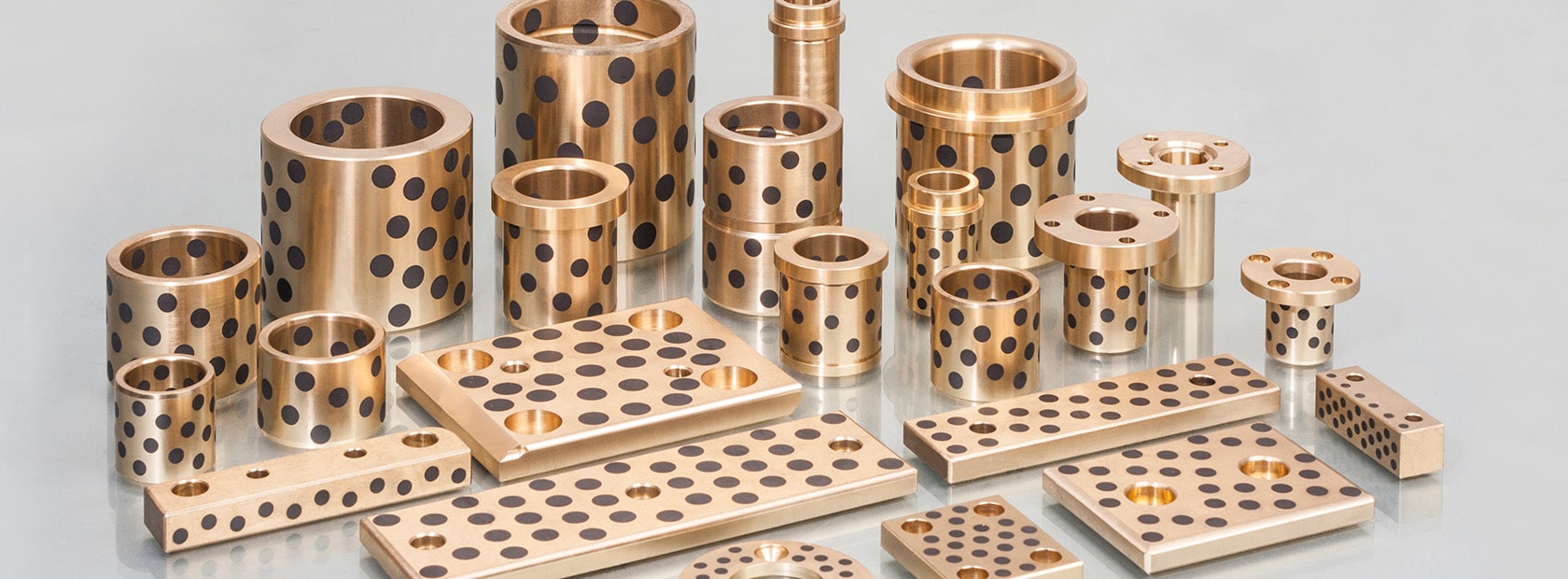

Bronze Solid Lubricant Graphite Plate

We can make all kinds of self-lubricating bushings according to your design.

Structure

  • High Strength brass alloy base+solid lubrcants

Properties For high operational demands (also impact load), oscillating movements, wear-resistant, unsusceptible to dirt, corrosion resistant, long length of life.

Graphite slide plate application

Graphite slide plate is widely used in successive casting machine, mineral mountain machinery, shipping, steam turbine etc

Availability

Cylindrical bushing, flanged bushing, thrust washer, standard slide plate, customzied graphite plate.

Slide bearing plate sintered bronze plate graphite wear plates

• Standardized assembly
• Wide variety of applications
• Easily installed in pre-machined pocket
• Reduces design and assembly time

Technical Data of graphite plates base material
Material CuZn25Al5Mn4Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn32Al5Ni3
Density 8 8.9 7.8 8.9 8
HB hardness >210 >70 >150 >95 >280
Tensile Strength N/mm2 >750 >200 >600 >260 >540
Yeild Strength N/mm2 >450 >90 >260 >150 >450
Elongation % >12 >15 >10 >8 >0.3
Coefficient of linear expansion 1.9×10-5/°C 1.8×10-5/°C 1.6×10-5/°C 18×10-5 /°C 1.8×10-5/°C
Max.temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
Max.load N/mm2 100 60 50 70 150
Max.speed(Dry) m/min 15 10 20 10 15
Max.PV N/mm2*m/min(Lubrication) 200 60 60 80 200
Compression deformation 300N/mm2 <0.01mm <0.05mm <0.04mm <0.05mm

Graphite plate metric size & inch size, graphite plate suppliers

Graphite plate at the cheap price in china

Leading Manufacturer of Graphite All Types & Quantities Available. Reasonable Price. Deliver on time. Professional service. Strict Quality Control.

Graphite slide plates have been developed for high load, low-speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as a lubricant.

Graphite bronze plates are available in metric and imperial sizes.

Graphite Plates Characteristics
  • Various materials can be chosen based on your design
  • Quick delivery date
  • Flexible design, simple, convenient and it can be used in all kinds of conditions
  • Cost-saving
  • Maintenance free

Gibs and T-Slides: Essential Components for Heavy Load Applications

Gibs and T-Slides are critical components in heavy load applications, including metal stamping dies, molds, special machines, and heavy equipment. These components are used to guide and control linear movement, ensuring that heavy loads are precisely and accurately positioned.

At Gibs and T-Slides, we specialize in manufacturing L-gibs, square gibs, and V-gibs, all of which are made of solid aluminum bronze. We also offer graphite gibs, which are available with or without self-lubricating graphite. These graphite gibs come in a broad range of standard inch and metric sizes, ensuring that we can meet the needs of a wide variety of applications.

Our graphite gibs are particularly well-suited to applications where lubrication is difficult or impossible, as the graphite provides a self-lubricating property that reduces friction and wear. This makes them ideal for use in applications where heavy loads are encountered and precision is essential.

In addition to our standard gibs, we also offer custom gibs that can be made to meet specific requirements. Our team of experts can work with customers to design and manufacture gibs in just about any size, ensuring that the component fits the application perfectly.

For customers who require specialized gibs for metal stamping dies, we offer a range of additional components that can be found in our Guide Components section. These components include cam gibs, guide pins, and bushings, all of which are designed to work together to ensure that the die is precisely and accurately positioned for each stamping operation.

slide bearing plate 932 PLATE

Gib Slides: Versatile Solutions for Various Applications

Gib slides are an essential component in many industrial applications, including plastics injection molds, special machines, and press gibbing. These components are used to guide and control linear movement in applications where heavy loads are encountered, ensuring precision and accuracy in each operation.

Our custom size gib slides are designed and manufactured to meet the specific requirements of each application, ensuring that the component fits perfectly and performs flawlessly. We use high-quality materials and advanced manufacturing processes to create custom gib slides that are durable, reliable, and efficient. We are a recognized supplier of gib slides and mold slides in China, offering high-quality products that meet the highest standards of precision and reliability. Our team of experts can work with you to determine the best gib slide size and configuration for your specific application, ensuring that you get the perfect component to meet your needs.

L-Gib Slides: Standard, Inch Size for Optimal Design Flexibility

L-Gib slides are a critical component in many industrial applications, including molds and special machines. we offer a wide range of L-Gib slides in standard, inch sizes, providing superior wear resistance and optimal design flexibility.

Our bronze-plated L-Gib mold slides are supplied without pre-drilled holes, allowing for optimal design flexibility and customization to meet the specific needs of each application. We also offer L-Gibs in plain and self-lubricating versions, both in metric and inch sizes. Our L-Gibs for Gib assemblies are available in inch sizes and made of oil-free copper, ensuring high-quality performance and durability. Additionally, our Gibs and T-Sliders come in standard and self-lubricating versions, providing a range of options to meet the specific needs of each application. Our L-Gibs are available in seven sizes without mounting holes, providing a wide range of options for various applications. We also offer self-lubricating L-Gibs with or without mounting holes, ensuring that we can meet the needs of any application. we are committed to providing high-quality components that meet the highest standards of precision and reliability. Our L-Gib slides are manufactured using advanced processes and high-quality materials, ensuring that they perform flawlessly even under heavy loads.

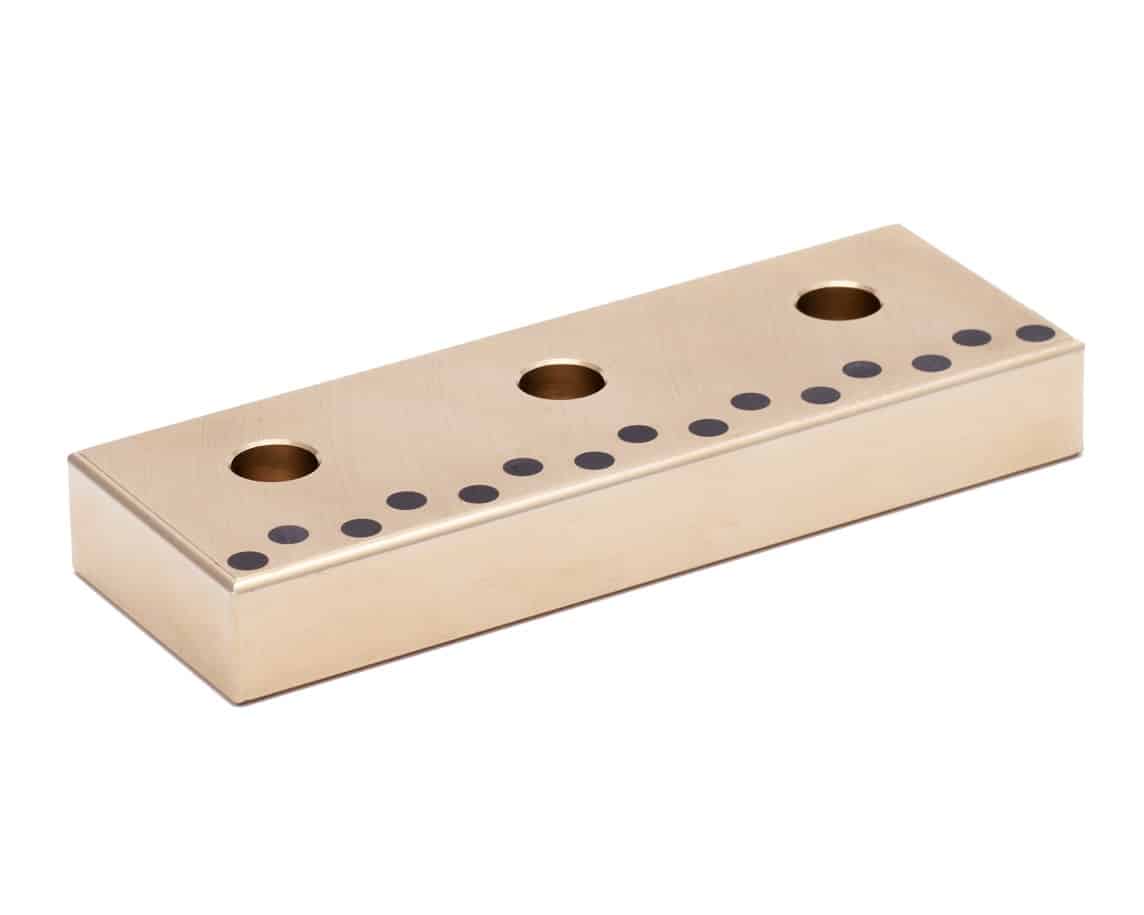

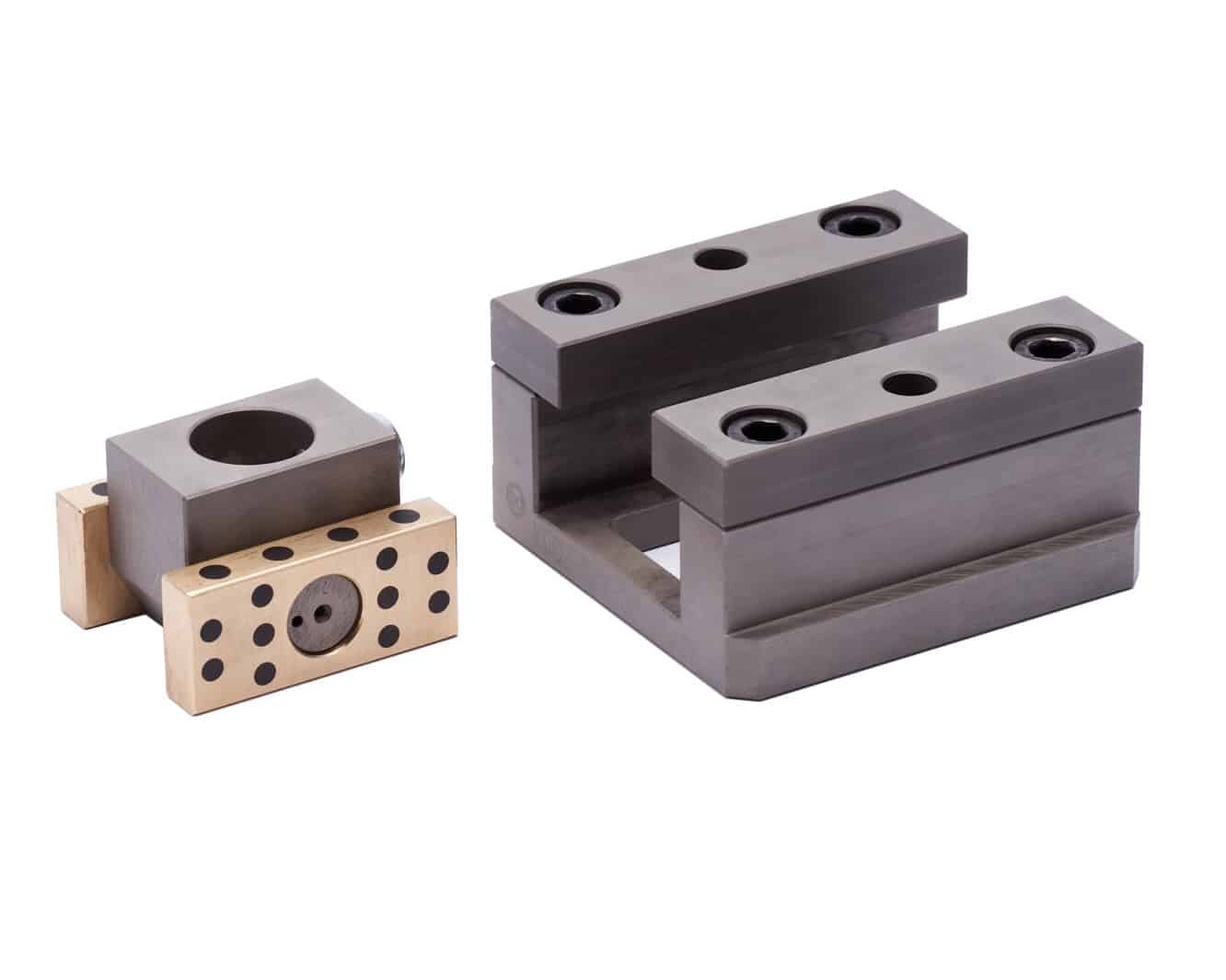

graphite slide plate

Custom sizes, bronze plate

We offer a variety of gib slides for different applications, including custom sizes, bronze plate with and without graphite plugs, and standard self-lubricating L-gibs with and without mounting holes. Our bronze standard bushings are also of high quality and are manufactured in China. Additionally, we offer aluminum bronze with self-lubricating graphite plugs, which are ideal for applications where lubrication is difficult or impossible. When choosing the correct stocked mold slides size for your needs, it is essential to consider the size and configuration of the mold, as well as the specific requirements of the application. Our L-gib slides are easy to machine and can be shaped to any configuration, requiring no special tools, making them an ideal choice for a wide range of applications.

graphite slide plate

Choosing the Right Stocked Mold Slides Size for Your Needs

For standard applications, we offer self-lubricating L-gibs with and without mounting holes, which are available in a range of sizes and configurations. These L-gibs are designed to provide smooth and precise linear movement, even under heavy loads. Stocked mold slides are a critical component in high-production molds, ensuring that the mold operates smoothly and efficiently. At Gibs and T-Slides, we offer a range of self-lubricating L-gib slides that provide a long-lasting wear surface for high-production molds using slides and cams.

graphite slide plate

Standard, metric, and custom plate configurations

In addition to standard applications, we also offer special slide applications for plastics injection molds, special machines, and press gibbing. These specialized gib slides are designed to meet the unique requirements of each application, ensuring that the component performs flawlessly and meets the highest standards of quality and precision. Our L-gib slides are made of lubrication-free copper alloy or bronze plated steel and embedded with graphite lubricant, ensuring smooth and precise linear movement even under heavy loads. These gib slides are available in standard, metric, and custom configurations, providing a wide range of options to meet the needs of any application.

Mold Slides Projects

Self-Lubricating Solid Bronze Gib & Mold Slides Solution

“bronzelube.com” manufactures L-gibs, square gibs and V-gibs, which are used to guide and control linear movement in applications where heavy loads are encountered: metal stamping dies, molds, special machines and heavy equipment of all types. We have a professional r & D team to produce high quality graphite bronze plates, gib slide,, graphite plugged self-lubricating bearings, etc. Graphite plate – High Quality and Best Price – www.bronzelube.com

Metric Self-Lubricating Bush – Gibs – Solid Bronze

Explore More metric wear strips & gib slides and wear plate products from china! L-Gib slides are an essential component in many industrial applications, providing precision and accuracy in each operation. We offer a wide range of L-Gib slides in standard, inch sizes, along with a range of other options to meet the specific needs of each application. Contact us today to learn more about our products and services, and how we can help you meet your industrial application needs.

We Can Economically Make Custom Plate & Bushings In Just About Any Size. Bronze Plates Made. Made in China

Bronze Bushings Available – Made In China ‘Self-Lubricating Plate Experience’, A Broad Range Of Inch And Metric Sizes, Customer Service Available.

  • Gibs and Bushings made by BronzeLube – Graphite or Grease Grooves, we offer a wide range of options for industrial applications, including L-gibs, square gibs, and V-gibs, all made of solid bronze. Our square gibs are also available in a finished version, providing a sleek look and improved performance.

  • Precision Bronze Plate, our range of gibs and T-slides provides a wide range of options for industrial applications, ensuring that we can meet the specific needs of each customer. Contact us today to learn more about our products and services, and how we can help you meet your industrial application needs.

  • We also offer laminated style L-gibs and metric L-gibs, providing a range of options to meet the specific needs of each application. Additionally, our V-gibs are available with or without graphite, providing a self-lubricating option for applications where lubrication is difficult or impossible.

Gib and Slide Assemblies – BronzeLube Mold and Die Products

Precision Bronze Bushings – Standard and Custom, Self Lubricating Bearing Exporter – High Quality, Factory Price

High-quality Mold Gib Assemblies

Mold Slides Production: Bushings made by BronzeLube – Graphite or Grease Grooves. Call us today! Quality bushings. Inch, metric and custom sizes. Made in China. Always tested. Always proven. Global website www.bronzelube.com, Ask for Help! Request a Quote. Get a Catalog!
