Custom L-gibs & Plate Manufacture – Customized Plate Solutions

Oil-Free Slide Plates, Custom solutions for your engineering needs.

Bronzelube’s L-gibs & plate are dimensionally equivalent to those made of bronze plated steel but are made of solid bronze – a far superior material. Used to guide and control slide movement, they come in a variety of sizes and can be ordered either with or without self-lubricating graphite or mounting holes. L-gibs are components used in various applications such as mold and die products, custom cams, and slides. They are typically made of materials like solid aluminum bronze, steel, or solid bronze, and may contain self-lubricating graphite or pre-drilled mounting holes. L-gibs are designed to guide and control slide movement, and their construction from durable materials ensures reliable and efficient performance!

Oilless slide plate Manufacturer
L-Gibs & V-Gibs
  • L-Gibs Standard: Premium quality for robust applications.
  • L-Gibs Laminated Style: Enhanced flexibility with a laminated design for specific needs.
  • L-Gibs – Metric: Tailored for metric requirements, ensuring precise fittings.
  • V-Gibs – Solid Bronze: Meticulously designed for those high-load applications.
  • V-Gibs with Graphite: Infused with self-lubricating graphite for seamless operations with minimal wear.
Oilless slide plate graphite plugged Copper Alloy, Continuous Casting as per ASTM B505 UNS C93200
Square Gibs & T-Slides

Solid Bronze Square Gibs: Crafted from solid bronze, ensuring durability and longevity. Finished Square Gibs: Ready-to-install, offering smooth operations right out of the box. Bronze T-Slides: Made from premium bronze, guaranteeing optimal performance and longevity. “ Self-Lubricating L-Gibs, Bronze material · Used with standard gib assemblies · Graphite plugs for greaseless applications !”

Gibs and T-Slides

Slide Plate Standard Components for Plastic Moulds

A slide plate is a linear bearing that may be part of the expansion joints of bridges, high temperature horizontal ducts of water-tube boilers and other mechanical or structural engineering applications. In each case one plate is fixed and the other slides on top as expansion or contraction occurs. Standard Components for Plastic Moulds. Slide Plate. Slide Plate Thickness. we understand the critical role that slide plates and wear pads play in the smooth, efficient, and long-lasting operation of machinery and structures. These components help minimize friction and prevent wear and tear, ensuring that your equipment performs at its best for longer.

Our products are not just off-the-shelf solutions. We believe that every business has unique needs, and we are committed to meeting them. That’s why we offer slide plates and wear pads that are tailored to your specific requirements.

  • Engineering wear plate, At Viiplus, we believe in precision and quality. Dive into our range of gibs and T-slides to find the perfect component that meets your equipment’s needs.

  • Technical Solutions For Factories & Plants, Whether you require standard sizes or have specific metric requirements, our catalog has something for every application.

  • Slide plate supplier, Whether you need slide plates for heavy machinery, structural steel, or piping systems, or wear pads for mechanical, civil, or structural applications, we have the expertise and capabilities to deliver exactly what you need. Our team of experienced engineers and fabricators use the highest quality materials and advanced manufacturing techniques to create components that are durable, reliable, and fit perfectly.

slide bearing plate Bucha e Placa Grafitada
85%

Product Quality Index

92%

Energy Generation

Self-lubricating Slide Plate, Bronze Graphite Plate – Graphite Plate Supplier

Self-lubricating Bronze Graphite Slide Plate is one of the main components of the sliding wedge device, and the movement of the Self-lubricating Bronze Graphite Slide Plate with the slide and the sliding wedge can change the direction of movement of the force transmitted by the press to match the direction of the working part of the feeler. The movement of the self-lubricating Bronze Graphite Slide Plate, the slide, and the slide plate can change the direction of force transfer to the press to match the direction of stamping of the working part of the tool. Oilless Sliding Wear Plate Graphite Plugged Bearing by Oilless Bearing Manufacturer. You can expect exceptional customer service, fast turnaround times, and competitive pricing. We are passionate about helping businesses improve their operations and reduce maintenance costs through our customized solutions. Contact us today to find out how our custom slide plates and wear pads can benefit your business.

JSL oilless plate
Oilless Plates V

Custom L-Gibs & Plate Injection Mold Bronze: Harnessing the Power of Solid Lubricant Copper Alloy for Efficiency and Reliability

Customized brass shaped parts slider plate CNC machine tools.: Specialist in customized slide plates and wear pads! In the design of large and medium-sized automobile punching dies, the sliding wedge device is often used to complete the punching, flanging, trimming and shaping processes in different directions for automobile coverings with a spatial three-dimensional surface, so as to simplify the process, reduce the cost and improve the efficiency. Bar is also an important part of the mill equipment, long-term high pressure, high temperature and corrosive working conditions, wear and corrosion, resulting in rolling system instability, affecting the quality of the rolled parts, while weakening the role of the guide. The severe working conditions require Self-lubricating Bronze Graphite Slide Plate to have good wear and corrosion resistance, in addition to good toughness to absorb impact loads. In order to improve the overall performance of Self-lubricating Bronze Graphite Slide Plate and to extend its service life. In the ever-evolving field of mechanical engineering and manufacturing, constant innovation is a cornerstone. For machinery to run efficiently, components must be robust, reliable, and tailored to their specific application. Among these crucial elements are L-gibs and plate injection mold bronze solid lubricant copper alloy bronze plated gib assemblies, otherwise known as self-lube slide shaped solid bronze plates. These intricate components, known for their durability and versatility, are commonly constructed from solid aluminum bronzeed partner for all your friction and wear protection needs.

L shape slide plate

Cam Slide Plate

Material : Bronze with Graphite, Die Guide Components, Slide Plate, Guide Bushing Flange Type, Guide Bushing … Standard Components for Press Die · Cam Units · Die Setting

Oilless Bronze Wear Plate Graphite

Graphite Plate

Copper Alloy CAM Slide Plate, Cam Units · Die Setting Components · Die Guide Components · Stripper and Pads

Bronze Wear Plate Graphite

Self-lubricating Slide Plate

Standard Slide Plate Components for Press Die Graphite Products, Slide Components · Cam Slide Components · Blanking Die Components · Pierce Components

SELF-LUBRICATING PLATE SOLUTIONS.

Solid lubricant bearing sliding plate slider oil-free lubrication guide plate wear-resistant block high force brass on the substrate, can also choose other grades of tin bronze, aluminum bronze, brass alloy as the substrate. Inlaid graphite or MoS2 solid lubricant on the substrate of a high-performance solid lubrication products. It breaks through the limitation of general copper-based wear-resistant plate relying on oil film lubrication. In the process of use, the solid lubrication is made to rub with the shaft through friction heat, forming the excellent condition of oil and powder coexisting lubrication, which not only protects the shaft from wear, but also makes the solid lubrication characteristics eternal. L-gibs are made of solid bronze. Our bronze can be ordered either with or without self-lubricating graphite or pre-drilled mounting holes. Used to guide and control linear movement, these components come in a variety of standard sizes. If a standard size won’t work for your application, we can easily make a custom size. Available in the following configurations:

  • Solid Bronze Plate
  • Bronze w/Graphite no Holes
  • Bronze w/Graphite & holes

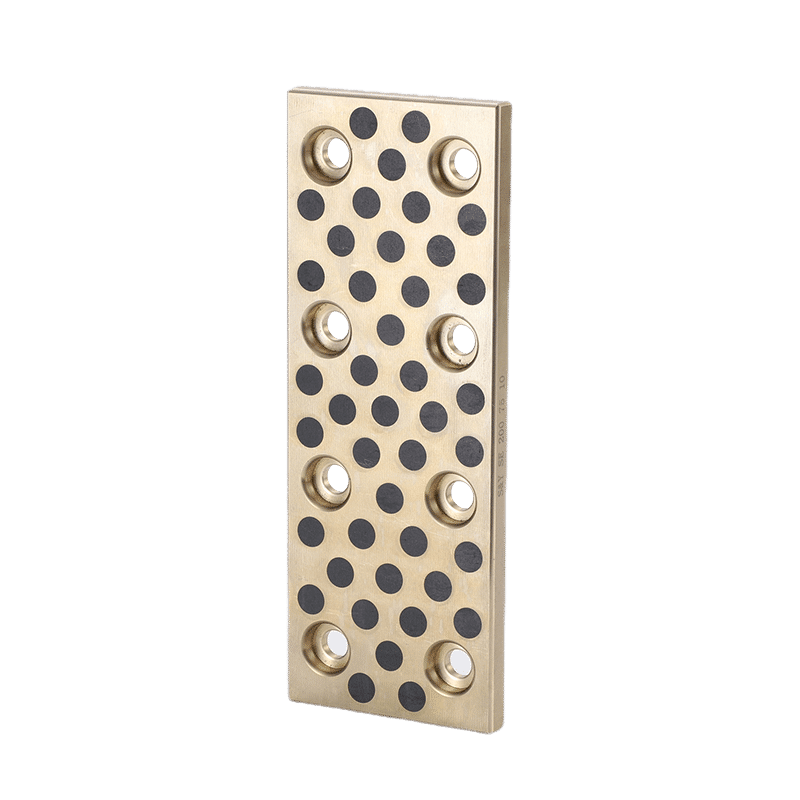

Graphite-impregnated bronze self-lubricating flat plate with countersunk holes.
  • L-Gibs – Solid Bronze Self-Lubricating – We offers free CAD design, short lead times, competitive pricing, and small minimum order …

  • Self-lubricating Wear Plate, Made of solid bronze plugged graphite, bronze wear plate are available in a broad range of standard inch and metric size…

  • Designers & Manufacturers of Bronze Plate Bearings, Bronze Bearings. “ Self-Lubricating L-Gibs For Gib Assemblies – Metric * Inch Size !”

Bronze Plugged Wear Plate Quality Production

Slide Bearing Wear Plate

We specialize in manufacturing slide plates and wear pads tailored to your individual needs.

L-Shaped Bronze Plugged Graphite Plate

An L-shaped bronze plugged graphite plate is a specialized graphite plate designed for heavy-duty applications requiring high load-bearing capacity and low friction.

The L-shaped plate consists of two sections at a right angle, forming an L shape. It is made of solid graphite, providing a low friction interface between surfaces. The plate is embedded with bronze plugs or inserts to enhance its load-bearing capacity.

The bronze plugs offer additional support, allowing the graphite plate to withstand high loads without deforming or breaking. They are typically evenly spaced to distribute the load evenly and prevent localized wear.

These L-shaped bronze plugged graphite plates are commonly used in heavy-duty machinery such as presses, stamping machines, and rolling mills. They provide a low friction surface and support heavy loads, performing well even in high-temperature environments due to graphite’s high thermal conductivity and resistance to high temperatures.

Overall, using L-shaped bronze plugged graphite plates can reduce maintenance costs, increase machine efficiency, and extend machinery lifespan.

Self-Lubricating Sliders: Lighter and Quieter

Linear movement is often required in applications such as metal stamping dies, molds, special machines, and heavy equipment. Linear movement is guided by gib components, ensuring smooth and accurate motion. The three most common types of gibs are L-gibs, square gibs, and V-gibs.

L-Gibs

L-gibs, named for their L-shaped design, are used in applications with heavy loads, such as metal stamping dies and molds. Made of hardened steel, they guide and control linear movement, providing a stable support surface essential for high precision.

L-gibs handle heavy loads without deformation due to their larger contact surface area, reducing stress and increasing resistance to deformation. Known for their high accuracy and long service life, L-gibs are ideal for applications requiring precision and reliability.

Square Gibs

Square gibs, or rectangular gibs, are used in heavy-duty applications. Made from materials like hardened steel or bronze, they guide and control linear movement, providing a stable support surface for linear guides. Their high load-bearing capacity, excellent wear resistance, and dimensional stability maintain accuracy and reduce maintenance.

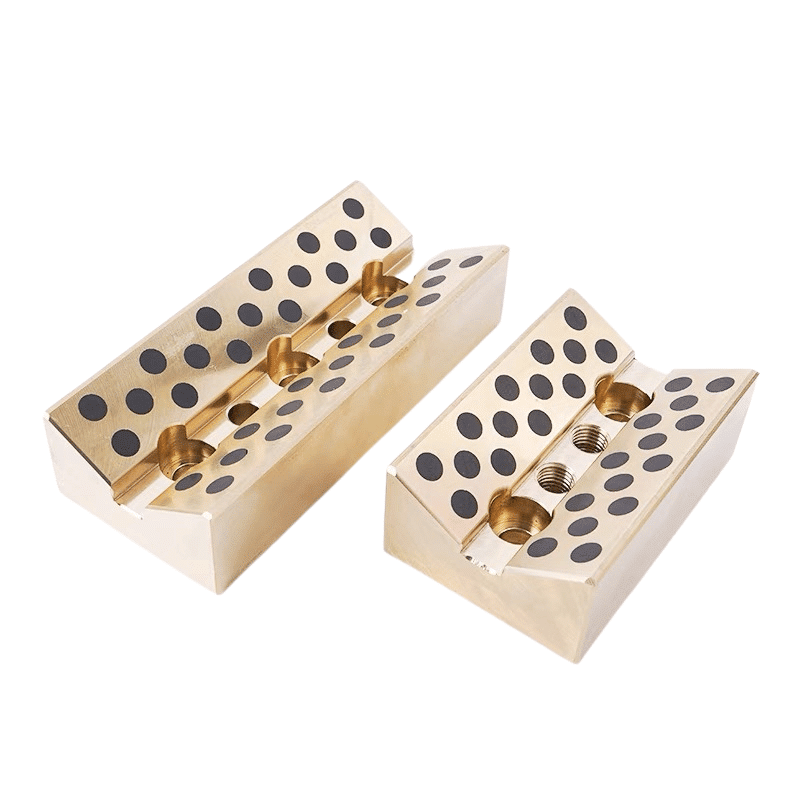

V-Gibs

V-gibs, with a V-shaped cross-section, are used in high precision applications like CNC machines. Made from hardened steel or bronze, they provide a stable support surface for linear guides. V-gibs can compensate for misalignment, ensuring accurate linear motion, and are known for their wear resistance and long service life.

In conclusion, L-gibs, square gibs, and V-gibs are crucial in applications requiring heavy loads and high precision linear motion. They provide accurate and stable support for linear guides, ensuring smooth and reliable movement.

Self-Lubricating Sliders in the Transportation Industry

Self-lubricating sliders are lighter and quieter, making them ideal for the transportation industry. A specialist supplier of construction and handling systems has been installing self-lubricating bearing components worldwide, thanks to efficient industrial production and engineering expertise.

These sliders meet low noise requirements and perform well in wet and salty environments. They are lighter than traditional products, corrosion-resistant, and maintenance-free.

Solution: Solid Aluminum Bronze Graphite Gibs

Solid aluminum bronze is known for its high strength, wear resistance, and durability. When infused with self-lubricating graphite particles, it forms graphite gibs that reduce friction and prolong machinery lifespan.

Graphite gibs are increasingly popular due to their ability to withstand high pressure, reduce wear, and improve efficiency. Available in standard and custom sizes, they are versatile for various machinery applications.

Custom gibs can be economically manufactured to fit specific needs. This involves collaborating with the manufacturer to determine requirements and producing gibs that meet those specifications.

Aside from graphite gibs, additional gibs support the stamping process in metal stamping dies. These gibs ensure the necessary guidance for dies during the stamping press.

In conclusion, solid aluminum bronze graphite gibs reduce friction, increase efficiency, and extend equipment lifespan. They are suitable for industries like manufacturing, aerospace, and automotive.

Customer Solution: Self-Lubricating Sliders

After research and testing, self-lubricating sliders were recommended, featuring:

  • Copper construction, lighter than traditional sliders
  • Corrosion-resistant and maintenance-free in wet/saltwater environments
  • Various sizes and shapes to meet silent operation needs

Our extensive mold expertise, ability to provide series production molds with conversion cavity plates, and handling complex designs have earned customer recognition. Our professionalism has enabled successful collaboration with customers to produce high-quality self-lubricating bearing products.

Regarding solid graphite as a self-lubricating element and brass graphite components, here are some key points and reference indices:

  1. Solid Graphite: Due to its unique layered structure and high melting point, solid graphite excels as a solid lubricant, particularly in complex environments. However, its poor oxidation resistance at high temperatures limits its application in high-temperature operations.

  2. Brass Graphite Composite: This material is created by incorporating graphite particles into a brass matrix, combining the excellent electrical and thermal conductivity of brass with the lubricating properties of graphite. It is widely used in electrical contact materials and pantograph slide plates.

  3. U and V Slides: These components can use self-lubricating materials to reduce friction and wear, enhancing the operational efficiency and lifespan of machinery.

  4. High-Speed Metal Parts: These parts generate significant frictional heat during operation. Using self-lubricating elements like solid graphite can reduce reliance on external lubricants, thus lowering maintenance costs and improving stability.

  5. Brass Graphite Parts: Through special processes such as electrodeposition, graphite is combined with brass to form a composite material with self-lubricating properties. This material excels in reducing friction and enhancing wear resistance.

  6. Non-Reactive Graphite/Brass Interface: By design, this interface can be transformed into a dual-interface structure with a reactive layer to improve the performance of the composite material.

  7. Lead-Free Graphite Brass: By using specific heat treatment processes, this composite material can achieve self-lubricating properties, which is crucial for enhancing the performance of mechanical parts under harsh conditions.

  8. Brass-Graphite Composite: The friction coefficient of this composite decreases with the increase in graphite content, indicating that the addition of graphite significantly enhances the self-lubricating properties of the material.

In summary, the application of solid graphite as a self-lubricating element in brass-based composites shows significant potential in reducing friction, improving wear resistance, and being suitable for high-speed metal parts.

Gibs and T-Slides by Viiplus: Precision Mold & Die Components


Precision Meets Durability Welcome to the home of Gibs and T-Slides, where Viiplus, a recognized manufacturer of precision mold and die components, brings you the finest in L-gibs, square gibs, and V-gibs. Engineered to perfection, our components ensure optimal guidance and control in linear movement applications, especially in environments with heavy loads.


Applications:

  • Metal Stamping Dies
  • Molds
  • Special Machines
  • Heavy Equipment of All Types

Materials & Specifications:

  • Solid Aluminum Bronze: Renowned for its strength and durability.
  • With or Without Self-lubricating Graphite: Offering seamless operation and reduced maintenance.
  • Standard & Custom Sizes: Our gibs are available in a vast array of standard inch and metric dimensions. For those unique needs, we also provide custom gibs tailored to almost any custom drawing size.

Explore More in the Guide Components Section! Delve deeper to discover more types of gibs, primarily catering to metal stamping dies.


Why Choose Viiplus?

  • Expertise: Years of experience in delivering top-notch mold and die components.
  • Custom Solutions: We understand that one size doesn’t fit all. Hence, we offer bespoke solutions for those special requirements.
  • Quality Assurance: Every product undergoes rigorous quality checks to ensure you get only the best.

Ready to Elevate Your Equipment’s Performance? Dive into our extensive range, or get in touch with our experts for tailored solutions.

[Browse Catalog] [Contact Us]

JUWP Oilless Wear Plate: Introducing the 650#+Graphite Slide Plate


In the world of industrial machinery, the continuous quest for efficiency, durability, and precision is paramount. For many applications, the need to reduce friction and wear without the constant application of lubricants has given rise to innovations that are changing the way industries operate. Enter the JUWP Oilless Wear Plate with its groundbreaking 650#+Graphite slide plate.

What is the JUWP Oilless Wear Plate?

The JUWP Oilless Wear Plate is an advanced component specifically designed to facilitate smooth movement in machinery without the need for frequent lubrication. This wear plate is an integral part of many machines, providing a surface that resists wear and tear while enabling seamless operation.

The 650#+Graphite Material: A Closer Look

The unique combination of material 650# along with Graphite is what sets this wear plate apart from its counterparts.

  • Material 650#: Known for its exceptional durability and resistance to wear, material 650# is a robust metal alloy that offers longevity. Its ability to withstand high pressures and temperatures makes it an excellent choice for industrial applications where the machinery is subject to rigorous use.
  • Graphite Slide Plate: Graphite is renowned for its self-lubricating properties. When integrated into a slide plate, graphite ensures a consistently smooth operation, reducing friction and eliminating the need for external lubricants. This not only cuts down maintenance time but also extends the lifespan of the machinery.

Benefits of the JUWP Oilless Wear Plate

  1. Extended Machinery Lifespan: The combination of durable material 650# and the self-lubricating properties of graphite ensures that machinery components experience less wear, recognized to a longer operational life.
  2. Reduced Maintenance Costs: With the self-lubricating feature of the graphite slide plate, the need for frequent lubrication is greatly minimized. This leads to significant savings in terms of maintenance costs and downtime.
  3. Environmentally Friendly: The reduction in the need for lubricants translates to less environmental impact. Fewer lubricants mean fewer chances of spills and less waste.
  4. Versatility: The JUWP Oilless Wear Plate is suitable for a wide range of applications across various industries, including automotive, aerospace, and manufacturing.
  5. Enhanced Performance: With reduced friction, machinery equipped with the JUWP Oilless Wear Plate tends to operate more efficiently, recognized to improved overall performance.

Conclusion

The JUWP Oilless Wear Plate, with its 650#+Graphite slide plate, is a testament to the advancements in the field of industrial machinery components. It encapsulates the need for efficiency, durability, and eco-friendliness, making it an essential component for modern-day machinery. Whether you’re in the business of manufacturing, aerospace, or any industry that requires machinery with moving parts, the JUWP Oilless Wear Plate is a game-changer that promises to redefine operational efficiency.

Custom L-Gibs & Plate Injection Mold Bronze: Harnessing the Power of Solid Lubricant Copper Alloy for Efficiency and Reliability

In the ever-evolving field of mechanical engineering and manufacturing, constant innovation is a cornerstone. For machinery to run efficiently, components must be robust, reliable, and tailored to their specific application. Among these crucial elements are L-gibs and plate injection mold bronze solid lubricant copper alloy bronze plated gib assemblies, otherwise known as self-lube slide shaped solid bronze plates. These intricate components, known for their durability and versatility, are commonly constructed from solid aluminum bronze.

Understanding L-Gibs and Plate Injection Mold Bronze

L-gibs are components utilized to guide and control linear movement within mechanical systems. Made to fit precisely, these parts are essential in reducing friction, wear, and potential jamming in machinery, ensuring smooth, efficient operations.

Bronze plate injection mold, on the other hand, is a technique utilized in the manufacturing of these components. This process involves injecting molten bronze into a mold to produce durable, corrosion-resistant components with excellent load-bearing properties. The solid lubricant copper alloy is introduced to further enhance these properties, resulting in an exceptionally robust and reliable component.

Customizing Your Aluminum Bronze Components

The beauty of these components lies in their versatility. Constructed from solid aluminum bronze, they offer superior corrosion resistance, a crucial feature for machinery operating in harsh or high-stress environments. The aluminum bronze material also provides exceptional load-bearing capability, making it perfect for heavy-duty applications.

These components can be ordered with or without self-lubricating graphite, depending on your specific needs. The inclusion of self-lubricating graphite in the component can significantly enhance its friction-reducing capabilities, providing smoother movement and extending the lifespan of your machinery.

If your system requires additional customization, pre-drilled mounting holes can be added to your order. These holes allow for easy installation and replacement, further enhancing the convenience of these components.

Steel is also an available option for those who need a more cost-effective, yet robust and reliable solution. It’s worth noting that while steel L-gibs can be customized with or without holes, they are not available with graphite.

Custom Sizes for Your Unique Needs

While these components come in a variety of standard sizes to suit most applications, we understand that some situations require unique solutions. If a standard size doesn’t meet your specific needs, custom-sized components can easily be made to fit. This level of customization ensures that regardless of your machinery or application, you can have L-gibs and plate injection mold bronze components that perfectly suit your requirements.

Conclusion

L-gibs & plate injection mold bronze solid lubricant copper alloy bronze plated gib assemblies are essential components in many mechanical systems. Their construction from solid aluminum bronze, coupled with customization options like the inclusion of self-lubricating graphite and pre-drilled holes, ensures they provide reliable, efficient performance.

Whether you’re looking for standard sizes or require custom components for a unique application, the versatility of these parts means you’ll always have the right component for the job. Enhance your machinery’s functionality, reduce wear, and extend its lifespan with these robust and reliable components.

L-Gibs Graphite Plates and the Future of Self-Lubricating Bearings

As machinery continues to evolve in sophistication, so too does the necessity for components that offer increased efficiency, decreased maintenance needs, and overall superior performance. At the forefront of this evolution are L-Gibs graphite plates and self-lubricating bearings. These seemingly simple components are set to become industry game-changers.

Understanding L-Gibs Graphite Plates

L-Gibs graphite plates are a remarkable invention used to reduce friction and wear between two surfaces in various machinery. The plates are made from solid graphite, a naturally occurring form of carbon renowned for its high lubricity and excellent thermal conductivity.

These plates are designed for applications involving a sliding or rolling motion between two surfaces, such as machinery requiring linear or reciprocating motion. When paired with a metal surface like a steel or aluminum guide, L-Gibs graphite plates act as a solid lubricant, providing a low-friction interface that minimizes wear on the metal surface.

Commonly found in industries that require precision movement and low friction like printing, packaging, and automotive, L-Gibs graphite plates can also handle heavy-duty applications involving substantial sliding or rolling motion. The use of these plates translates into reduced maintenance costs, increased machine efficiency, and a longer lifespan for the machinery.

The Emergence of Self-Lubricating Bearings

While L-Gibs graphite plates are transforming machinery at one end, self-lubricating bearings are revolutionizing another. Despite their benefits, these bearings are still misunderstood by many. Numerous companies continue to opt for high-priced imported bearings, copper sleeves, and similar products. However, self-lubricating bearings can completely replace these traditional products in machinery and the automotive industry.

For instance, they can effectively function in the guide sleeve on a cylinder, lifting rotation, sliding parts, and butterfly valve rotation. Moreover, they are cost-effective, potentially reducing production costs significantly. As more industries recognize the adaptability, wear resistance, and economic benefits of self-lubricating bearings, these components are poised to dominate the bearing industry.

Also known as composite bearings or oil-free sliding bearings, self-lubricating bearings boast several application characteristics and advantages. These bearings are crafted from high-quality low-carbon steel plates, with the middle layer comprising sintered spherical bronze powder. The surface is then rolled with a PTFE (polytetrafluoroethylene) and lead mixture, resulting in robust and reliable sliding bearings.

The Applications of Oil-Free Lubricating Bearings

The range of applications for oil-free self-lubricating bearings is impressively diverse. They are utilized in the sliding parts of various machines, including gear pumps, hydraulic components, pneumatic components, and printing machines. They’re also found in textile machines, tobacco machines, fitness machines, hydraulic trucks, micro motors, and automobiles, and even extend to agricultural and forestry machinery.

In conclusion, L-Gibs graphite plates and self-lubricating bearings are set to become pivotal components in machinery across a multitude of industries. Their ability to reduce friction, improve machinery efficiency, and decrease maintenance costs highlights the significant strides made in mechanical engineering and heralds a new era of advanced, efficient machinery components.

The Future of Machinery: Slide Plates, L-Gibs, and Self-Lubricating Bearings

Technological innovation and precision engineering have become the cornerstone of modern industry. Nowhere is this more evident than in the realm of mechanical components. Advancements in materials and engineering have given birth to high-performance components like L-Gibs, slide plates, and self-lubricating bearings. This article explores these elements and how they’re shaping the future of machinery.

Superior Slide Plates

Slide plates, a critical component for various machinery, are now available in an array of types including bronze graphite plates and high-temperature slide plates. These products are essential for reducing friction between moving parts, thus ensuring smoother, more efficient operation. Suppliers like bronzelube.com keep a ready stock of these essential components, making the sourcing process easy and fast for manufacturers.

Innovations in L-Gibs

L-Gibs have evolved significantly, with bronze now the preferred material due to its impressive wear resistance and high load-bearing properties. The innovative addition of self-lubricating graphite combines the advantages of both materials, providing an eco-friendly solution that requires little to no maintenance.

L-Gibs made from this combination can be tailored to different working environments and specific requirements, with options for oil grooves, oil holes, and pre-drilled mounting holes on the friction surface.

Custom-Made L-Gibs

Bespoke L-Gibs are now easily attainable. If a standard size doesn’t fit your machinery, customized sizes can be created. The flexibility offered by suppliers like bronzelube.com has made it easier than ever to obtain components that meet specific requirements.

Self-Lubricating L-Gibs and Wear Plates

Self-lubricating L-Gibs and wear plates are now available in materials like bronze with graphite. These components, essential for the operation of machines like stamping machinery and plastic machinery molds, are available with low minimum order quantities (MOQs), providing a cost-effective solution for manufacturers.

The Emergence of Cam Gibs

Cam gibs, integral components in metal stamping dies and other heavy-duty applications, are now made from solid aluminum bronze with self-lubricating graphite. These robust components are corrosion-resistant, ideal for harsh environments, and designed to withstand heavy forces. Manufacturers specializing in these high-quality cam gibs ensure that each component meets specific needs and requirements.

The Application Characteristics and Advantages of Self-Lubricating Bearings

Self-lubricating bearings, also known as oil-free or oil-less bearings, boast numerous advantages including:

  • A prolonged service life due to reduced friction and wear
  • Suitable for places with impossible or difficult refueling conditions
  • A moderate amount of elasticity that distributes stress across a wider contact surface, enhancing bearing capacity
  • Reduced machinery vibration and noise, resulting in a cleaner working environment
  • Protection for the grinding shaft due to the transfer film formed during operation

This new breed of bearings, like boundary lubrication bearings and solid inlay self-lubricating bushing bearing series, are suitable for applications that involve high load and low speed, or where hydrodynamic lubrication is challenging to achieve. They are ideal for various industries including automotive, metallurgical machinery, mining, water conservancy, construction, agricultural machinery, steel rolling equipment, and more.

In summary, components like slide plates, L-Gibs, and self-lubricating bearings are no longer just simple parts in a machine. They are becoming pivotal elements in machinery, recognized the way in technological advancement and precision engineering. The innovation and evolution of these components are set to shape the future of the mechanical industry for years to come.

Importance of Lip Cam and NAAMS Cam Gibs in Heavy-Duty Applications

Lip cam and NAAMS cam gibs, particularly those with a 13mm lip, play a vital role in heavy-duty machinery such as metal stamping dies. These components, which often go overlooked, contribute significantly to the durability, efficiency, and longevity of these machines.

The gibs are usually constructed from solid aluminum bronze or steel, both materials known for their strength and resilience. The gibs’ surfaces are flame-hardened, increasing their resistance to wear and tear and extending their service life. The introduction of self-lubricating graphite adds another layer of durability, reducing friction that might otherwise lead to premature wear.

One prominent manufacturer of these crucial components is SelfLube. With a commitment to quality and precision, SelfLube produces cam gibs that conform fully to NAAMS (North American Automotive Metric Standards) standards. These standards ensure consistency, reliability, and quality in automotive manufacturing, which are critical in heavy-duty applications.

Cam gibs designed with a 13mm lip offer additional support and stability to the cam mechanism. The lip structure helps these components withstand heavy forces, ensuring they maintain their shape and function without deformation or failure.

Therefore, when sourcing lip cam or NAAMS cam gibs with a 13mm lip, it’s crucial to select a reputable manufacturer. SelfLube, with its proven track record and dedication to high-quality components, stands out as an excellent choice. The company’s commitment to quality assurance ensures you get cam gibs that meet specific needs and requirements, thereby guaranteeing machinery efficiency and longevity.

In conclusion, components such as lip cam and NAAMS cam gibs are pivotal to heavy-duty machinery operation. While seemingly minor, these elements make a significant contribution to the overall functionality, durability, and performance of the machines in which they are installed. Therefore, understanding their role and ensuring their quality can greatly impact the efficiency and lifespan of heavy-duty applications.

The Role of L-Gibs Plugged Graphite Bronze Wear Plate Inch Size in Mold Components

High-quality mold components are pivotal for achieving precision and efficiency in manufacturing processes. One such crucial mold component is the L-Gibs Plugged Graphite Bronze Wear Plate, often measured in inch sizes for standardization.

L-Gibs, named for their distinctive ‘L’ shape, are specifically designed for molds, assisting in the control of linear movements within the machinery. They are made of solid bronze and embedded with graphite, a setup that ensures exceptional strength, durability, and lubricity.

The graphite used in these wear plates serves a dual purpose. Firstly, it acts as a self-lubricant, reducing friction between the moving parts of the machinery. This not only ensures smoother operations but also helps to prolong the lifespan of the machinery by minimizing wear and tear. Secondly, the graphite contributes to the thermal conductivity of the wear plate, aiding in heat dissipation and thereby reducing the risk of overheating.

One of the major advantages of L-Gibs wear plates is that they can be ordered with or without pre-drilled mounting holes, offering flexibility based on the specific requirements of the mold in question. The sizes are often standardized in inches, providing consistency and making it easier for manufacturers to find the perfect fit for their mold components.

In essence, the use of L-Gibs plugged graphite bronze wear plates in mold components brings about a host of benefits, including improved precision, reduced friction, extended machine lifespan, and greater operational efficiency. The choice to use these components, therefore, is an investment in the longevity and effectiveness of manufacturing processes. Whether you are designing a new mold or upgrading an existing one, consider incorporating L-Gibs plugged graphite bronze wear plates to enhance the performance and durability of your machinery.

GRAPHITE SLIDE PLATES SUPPLIER

Gibs And T-Slides L-Gibs – Mold & Die Products, L-Gibs Laminated Type, General Machinery Standard Parts For Plastic Machinery Mold Parts For Stamping Machinery Mold Standard Parts.
