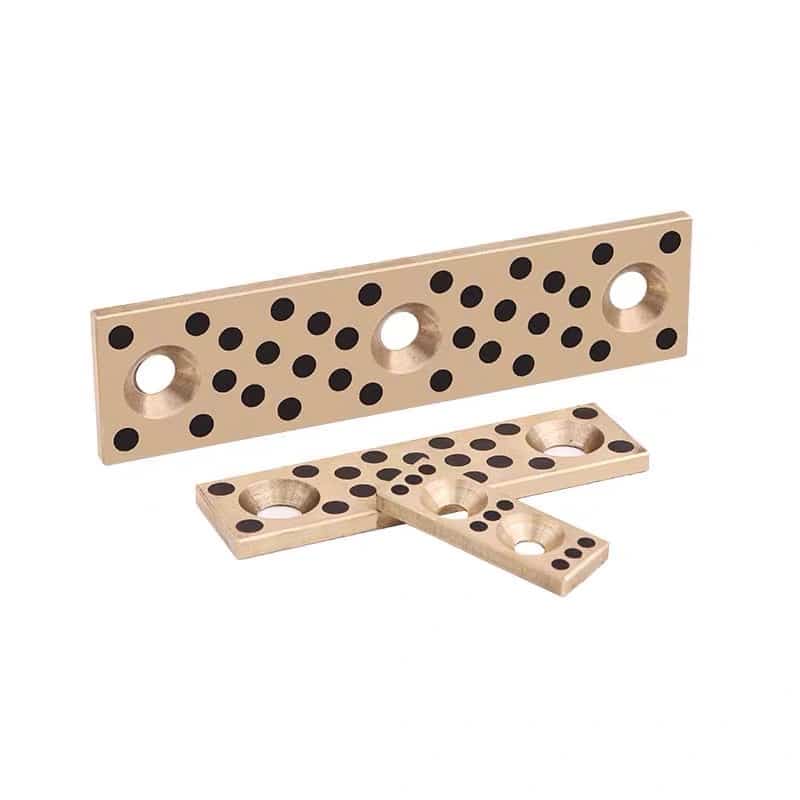

Graphite Slide Bearings
SURFACE WITH GRAPHITE INSERTS
We offer wholesale bronze graphite sliding plate replace the your parts. The bronze plate acts as the bearing surface, withstanding heavy loads, while the graphite inserts provide a solid, oil-free lubricant. These parts can be customized so that each part is designed for a specific use for a specific machine.
Product Quality Index
Energy Generation
Request or Download the Catalog
Graphite Bronze Plate Supplier, Excavator Parts Supplier – Used Excavator Parts
Beautifully crafted leather products.
China Graphite Bronze Plate – Manufacturers & Suppliers
Interactively procrastinate high-payoff content without backward-compatible data. Completely iterate covalent strategic theme areas via accurate e-markets. Graphite bronze bush and plate – Mold & Die Component Factory! STW SEW STLW Plate Design. Oil-Free Slide Plates, Copper Alloy Blank Type! Copper Alloy 10mm High Surface Pressure Type! The bronze plate acts as the bearing surface, withstanding heavy loads, while the graphite inserts provide a solid, oil-free lubricant. Higher life of sliding graphite plates, Extend bearing life using pads by switching to self-lubricating, wear-resistant sliding plates. These graphite sliders are able to move freely from side to side for fast and accurate loading. Graphite slide plate graphite pad bearings solve this problem by providing highly loaded pads that do not require lubrication, yet provide exceptionally long wear life. Request Quotations for Oilless Bushing.
Graphite Bronze Plate & Bushings
Your Trusted Self Lubricating Graphite Bronze Plates Manufacturers.
Wear plates are used to guide and control linear motion when there are heavy … C86300 bronze, C93200 Tin bronze or aluminum bronze, either with or without self-lubricating graphite.
Manufacturer of Oilless Wear Plate – Graphite Filled Bronze Wear Plate, Graphite Embedded Bronze Wear Plate, Graphite Impregnated Bronze Wear Plate!
Bronze Wear Plates – Graphite Plugs
Custom solutions for your engineering needs.
Find good price Self Lube Wear Plates & bronze bearing bronze grades & new supplier.
The Online Shop for Self Lube Wear Plates Graphite, for various graphite grades and plate. High quality – low prices. Reliable Service. Graphite Thrust Bearings – For High Temp Applications
Plates are essential components in a wide range of machinery and equipment, and are used to support and protect moving parts. Graphite bronze plates are a popular choice for heavy-duty applications, offering durability and low maintenance in even the harshest environments.
Graphite bronze plates are made from a combination of bronze and graphite, two materials with complementary properties. The bronze provides strength and durability, while the graphite offers self-lubricating properties, helping to reduce friction and wear between moving parts. This makes graphite bronze plates an ideal choice for heavy-duty applications, as they can withstand exposure to high loads and harsh conditions without losing their performance or effectiveness.
One of the main advantages of graphite bronze plates is their low-maintenance design. Unlike other plates that may require frequent lubrication or replacement, graphite bronze plates can provide a long-lasting solution that requires little maintenance. This is especially important in applications where machinery operates continuously, as it helps to reduce downtime and costs for businesses and organizations.
Another benefit of graphite bronze plates is their durability. The bronze material used in the plates is known for its strength and durability, making it ideal for use in heavy-duty applications. The graphite material also helps to reduce friction and wear between moving parts, further extending the lifespan of the machinery and equipment.
In addition to their low maintenance and durability, graphite bronze plates also offer excellent corrosion resistance. Bronze is naturally resistant to corrosion and oxidation, making it ideal for use in harsh environments where exposure to moisture, salt, and other substances can cause corrosion in other materials. The graphite material also helps to protect against corrosion by reducing friction and wear between moving parts.
There are several types of graphite bronze plates available, each designed for specific applications. For example, there are plates designed for high-speed applications, such as those used in machinery and equipment, and plates designed for heavy-load applications, such as those used in construction and mining.
In conclusion, graphite bronze plates are an excellent solution for heavy-duty applications, offering low maintenance, durability, and corrosion resistance in even the harshest environments. With their long lifespan and low-maintenance design, they are well-suited for use in a wide range of industries and applications, making them an essential component in many pieces of machinery and equipment.
Bronze plate size chart & list. Find your bronze wear strips “JSL” wear plate standard metric size
|
L type bronze plate: the base of the product is copper alloy, make full use of the wear resistance of copper material and the self-lubrication performance of solid lubricant, can be processed on the friction surface of various oil grooves and oil holes and inset solid lubricant, can adapt to different environmental working conditions, in the use of the process without refueling maintenance. Such as automobile production lines, household appliances, automobile stamping die, large metal extrusion equipment, hydraulic arc door, and so on. Provide wedge, concave-convex V-shaped block, L – shaped guide plate and other automotive mold standard parts. In addition to the following standard parts, can also be customized according to requirements;
Features and main materials of solid inlaid self-lubricating slides bronze wear plate
With the characteristics of high-temperature resistance and high load, it is widely used in the metallurgical industry, ship building industry, mining machinery, petroleum machinery, and power generation equipment.
Oil-free Bronze Graphite Plate Features:
1. It can work for a long time without oil lubrication.
2. Oil-free Graphite Wear Plates more suitable for heavy load and low self-lubricating sliding plate speed conditions, with good wear resistance and extremely low friction coefficient.
3. Oil-free Graphite Bronze Plate suitable for occasions where oil film is difficult to form such as reciprocating, rotating and intermittent motion.
4. Self Lube Wear Plates Has corrosion resistance and chemical resistance.
5. Oilless Bronze Plates Applicable to the temperature range of -40°-+300°.
6. Lubricated Plate Maintenance-free and long service life.
Some common lubrication methods of graphite copper sleeve/self-lubricating bronze wear plate & bearings?
Generally speaking, self-lubricating bronze wear plate to sliding bearings is no need to add lubricating oil or grease as a lubricant. Graphite copper sleeve, the matrix is copper, the lubricant is graphite, in the process of relative movement with the dual shaft, the graphite in the matrix is distributed between the copper sleeve and the dual shaft as a lubricant to form a lubrication film, so as to reduce the friction coefficient to achieve the effect of self-lubrication. Of course, if it is the graphite copper sleeve used in the ordinary environment, grease can be added to improve the service life and load capacity, and some special use of self-lubricating bearings, if grease will destroy the lubrication film, resulting in a reduced self-lubrication effect.
Selection and characteristics of oil-free self-lubricating graphite bronze bearing slide wear plate in casting
Selection and characteristics of oil-free self-lubricating graphite bronze bearing slide wear plate in casting:
Selection of oil-free self-lubricating graphite bronze bearing slide wear plate
In order to solve the lubrication problems of high temperature, low speed, heavy load, large dust, water shower and shock vibration in mechanical equipment, oil-free self-lubricating oilless slide bearings are selected.
1. The structure of the graphite bronze bearing slide wear plate Self-lubricating bearing is developed on the bimetal bearing of the metal friction surface of the bearing base, with holes of appropriate size and order, and embedded in molybdenum disulfide, graphite and other linear bearings to make a composite self-lubricating block inlaid on the metal sleeve , Made of composite bearings, the friction area of solid lubricants reaches 25-65%. Auto Bearing Model Query Software Bearing World
The solid self-lubricating block can work normally at a high temperature of 280°C. However, due to its low mechanical strength and weak graphite bronze bearing slide wear plate capacity of the copper bushing, it is easy to deform, and this defect can be suppressed by embedding it in the metal hole and groove, forming the metal part to play a bearing role, and the self-lubricating block to play a lubricating role. Auto Bearing Model Query Software Bearing World
The lubrication mechanism of this kind of self-lubricating graphite bronze bearing slide wear plate is that during the sliding friction between the shaft and the sleeve, a part of the molecules of the self-lubricating material is transferred to the metal surface of the shaft, filling the small unevenness and forming a relatively stable solid lubricating film. , causing the friction between the solid lubricating films to prevent the adhesive wear of the shaft and the sleeve. Auto Bearing Model Query Software Bearing World
This rational combination combines the respective complementary advantages of copper alloys and non-metallic wear-reducing materials, and is especially suitable for motion amplitudes in oil-free, high temperature, high load, low speed, anti-fouling, anti-corrosion, strong radiation environments, and It is used under special working conditions where it is impossible to add lubricating grease at all due to water or other solutions. Auto graphite bronze bearing slide wear plate Model Query Software Bearing World
2. The area occupied by the self-lubricating block is related to the running speed and the graphite bronze bearing slide wear plate strength. The running speed is low; the bearing strength is high, and the metal occupied area should be larger. Auto Bearing Model Query Software Bearing World
For example, the self-lubricating block of the traveling wheel bearing of the ingot-holding trolley occupies about 25% of the area. The shaft graphite bronze bearing slide wear plate of the ingot-pulling mechanism should be fully lubricated, and the pressure bearing strength is not large. The area of the self-lubricating block is about 65%. Auto Bearing Model Query Software Bearing World
3. Technical requirements for bushing materials. The bushing should be made of alloy copper. The bushing should have high hardness. Generally, heat treatment is required, and its hardness should not be lower than HRC45. Bearing Enterprise Navigation
4. The geometry and inlay requirements of the self-lubricating block. The shape of the self-lubricating block is cylindrical and rectangular. The self-lubricating block can be cylindrical according to the size of the occupied area, otherwise, it can be rectangular. Regardless of the shape, it must be securely mounted to prevent it from falling off during operation. Bearing Enterprise Navigation
5. The matching clearance between the bushing and the shaft The linear expansion coefficient of the self-lubricating block is about 10 times that of steel. In order to adapt to the temperature change of the graphite bronze bearing slide wear plate, the gap between the shaft and the bushing is increased from 0.032 to 0.15MM to 0.45 to 0.5MM from the original four-stage dynamic fit of metal parts (D4/DC4). Bearing Enterprise Navigation
The self-lubricating block protrudes from the bushing metal by 0.2-0.4MM on one side of the friction pair. In this way, the graphite bronze bearing slide wear plate will be fully lubricated during the initial running-in period of operation and reduce the consumption of power dragging power.
6. Advantages of oil-free self-lubricating graphite bronze bearing slide wear plate
A. No oil lubrication or less oil lubrication, suitable for places where it is impossible to refuel or it is difficult to refuel, and can be used with no or little maintenance; car graphite bronze bearing slide wear plate model query system
B. Good wear resistance, small friction coefficient and long service life; automobile graphite bronze bearing slide wear plate model query system
C. It has an appropriate amount of elasticity and plasticity, which can distribute the stress on a wider contact surface and improve the graphite bronze bearing slide wear plate capacity of the bearing; the automobile bearing model query system
D. The static and dynamic friction coefficients are similar, which can eliminate the crawling at low speed, thereby ensuring the working accuracy of the machine; the automobile graphite bronze bearing slide wear plate model query system
E. It can reduce vibration, reduce noise, prevent pollution and improve working conditions of machinery; automobile graphite bronze bearing slide wear plate model query system
F. A transfer film can be formed during operation, which protects the grinding shaft and has no shaft bite phenomenon; car graphite bronze bearing slide wear plate model query system
G. The hardness of the grinding shaft is low, and the unconditioned shaft can be used, thereby reducing the processing difficulty of the related parts; the automobile graphite bronze bearing slide wear plate model query system
H, thin-walled structure, light weight, can reduce the mechanical volume; automobile graphite bronze bearing slide wear plate model query system
I. The bushing material is brass, which can be used in corrosive medium. Automobile graphite bronze bearing slide wear plate model query system
We manufacturer bronze wear plate surface With Graphite Inserts tailored to your individual needs.
Graphite Sliding Plates
Self-Lube Graphite Sliding Plates: A Durable and Low-Maintenance Solution for Heavy-Duty Applications
Sliding plates are essential components in a wide range of machinery and equipment, and are used to reduce friction and wear between moving parts. Self-lube graphite sliding plates are a popular choice for heavy-duty applications, offering durability and low maintenance in even the harshest environments.
Self-lube graphite sliding plates are designed with a self-lubricating layer made from graphite, a naturally lubricating material. This helps to reduce friction between the sliding plate and other components, which helps to protect against wear and tear and prolong the life of the machinery and equipment. The self-lubricating layer is designed to be durable and low-maintenance, making it ideal for use in heavy-duty applications.
One of the main advantages of self-lube graphite sliding plates is their low-maintenance design. Unlike other sliding plates that may require frequent lubrication or replacement, self-lube graphite sliding plates can provide a long-lasting solution that requires little maintenance. This is especially important in applications where machinery operates continuously, as it helps to reduce downtime and costs for businesses and organizations.
Another benefit of self-lube graphite sliding plates is their durability. The graphite material used in the self-lubricating layer is designed to withstand exposure to harsh environments and conditions without losing its performance or effectiveness. This means that self-lube graphite sliding plates require less maintenance and replacement compared to other materials, further reducing downtime and costs for businesses and organizations.
In addition to their low maintenance and durability, self-lube graphite sliding plates also offer excellent corrosion resistance. Graphite is naturally resistant to corrosion and oxidation, making it ideal for use in harsh environments where exposure to moisture, salt, and other substances can cause corrosion in other materials. This makes self-lube graphite sliding plates an excellent choice for marine and offshore applications, as well as other industries where exposure to harsh environments is a concern.
There are several types of self-lube graphite sliding plates available, each designed for specific applications. For example, there are sliding plates designed for high-speed applications, such as those used in machinery and equipment, and sliding plates designed for heavy-load applications, such as those used in construction and mining.
In conclusion, self-lube graphite sliding plates are an excellent solution for heavy-duty applications, offering low maintenance, durability, and corrosion resistance in even the harshest environments. With their long lifespan and low-maintenance design, they are well-suited for use in a wide range of industries and applications, making them an essential component in many pieces of machinery and equipment.
Using the best materials around, What is graphite bronze plate bearing?
What is graphite bronze plate bearing? Graphite lubricated bearings are graphite plugged bronze bushings. Graphite is a naturally occurring oily mineral that does not require any additional fluids to reduce friction, which is why it is the best material for making bushings.
Graphite also has the highest temperature resistance of any metal, retaining its structure and shape at temperatures up to 5,000°F.
Machined graphite is often used in high heat situations, such as load capacity systems, where oil, grease and metal oxidize.
Graphite bronze plate bearings greatly extend the temperature and chemical range of mechanical activity.
Some graphite slider bearings perform well in low temperature environments because graphite is not sensitive to thermal shock damage.
Bearings manufactured by bronzelube.com are most commonly found in the food, beverage, medical and pharmaceutical industries.
Our graphite bronze plate bearings also have good temperature stability and chemical resistance.
This characteristic allows them to operate in a variety of conditions such as underwater, in space, underground, and in liquids, gases and vacuums.
High-quality Bronze Plate & How are graphite bronze plate bearings made?
How are graphite bronze plate bearings made? Graphite bronze plate bearing china supplier, bronze wear plate exporter, self-lubricating bronze wear plate manufacturer, can withstand higher temperatures than lubricants, which start to carbonize at temperatures over 200 degrees Celsius. Graphite bronze plate bearings are manufactured using an extrusion process that includes a mixture of softened graphite powder and additives, which are then forced through a hollow profile. They are typically formed like standard bushings with a round profile, thin walls and a hollow interior. Our graphite bearings are usually smooth, of uniform thickness, and black or dark gray in color. Because graphite is a porous substance, many bearings are impregnated with wax, high quality linseed oil or resin during the secondary post-processing process. It makes the surface of the bearing smooth and prevents any difficulty with water or gas penetrating the outer surface of the graphite. The porosity of the graphite is reduced by the wax, resin or oil, making it less sensitive to internal damage and tearing. Graphite bronze plate bearings are durable, but like other bearings or load-bearing components, they will need to be replaced at some point. Because of the various advantages of graphite material, including its dimensional stability, it is widely used in corrosive and abrasive applications. Professional graphite bronze plate bearing manufacturer in China. Graphite Filled Bronze Bushings, Graphite Filled Bronze Bushings
Why graphite alloy is the best material for graphite bronze plate bearing?
Why graphite alloy is the best material for graphite bronze plate bearing? Graphite is one of the two most commonly used dry lubricants in industry today. Graphite has unique qualities that make it a good choice for bushings when typical sleeve bushing materials are not an option because of the potential for pump upset. Graphite alloy is a graphite-metal alloy that gains the strength and thermal conductivity of metal while benefiting from the frictional properties of graphite. It is a homogeneous, solid, self-lubricating bushing and bearing material made of molten metal, graphite and carbon. It is also used to make oil-impregnated graphite bronze plate bearings, improving performance in a wide range of applications. Graphite fill bronze is perfect for underwater and high temperature bearings and bushings as well as applications where oil, grease, plain carbon bearings and plastic bearings have failed. Graphite bronze plate bearings are available in both conventional and custom sizes. Graphite plugged bronze materials combine the self-lubricating properties of graphite with the strength and wear resistance of metal. The metal impregnation process also minimizes expansion and reduces oxidation at extremely high temperatures. Graphite Alloy Bearings Plate Graphite Alloy Bearings and Bushings Applications Graphite bronze plate bearings are used in a wide range of different industries. You can use our graphite self-lubricating bushings in the following ways. Graphite alloy self-lubricating bushings are used in
- Automotive industry
- Chemical industry
- Dryers
- Furnaces and ovens
- Food applications
- Metal industry
- Glass Industry
- Pumps
- Paper and pulp industry
- Semiconductor
- Textiles
No matter which industry you choose to use graphite bronze plate bearings for, we are always your best choice. Graphite Bronze Plate Benefits The graphite bronze plate bearing made of graphite alloy has the following advantages.
It has a low coefficient of friction
- It has no oil contamination problems
- It is non-solidifying
- It has reduced downtime
- It can be operated underwater
- It is resistant to high temperatures and dust
- It does not require external grease or oil
- It is self-lubricating
- Self-lubricating bearings
- Self-lubricating bearing
Other Industry: Bushings made of graphite bronze plate bearing have the following applications. Bushings and wear rings for centrifugal pumps and dampers in refineries and pumps used in midstream transmission activities are often made of graphite alloys. Its impact on equipment reliability is one of the reasons why it is commonly utilized in pumps. Bronze graphite bearing slide parts have tighter running clearances than metal wear parts due to their non-fouling properties. With these tighter clearances, the pump can operate more efficiently, thus saving energy. Bronze graphite bearing slide components can also withstand higher temperatures than other non-metallic wear component materials. The self-lubricating properties of the bronze graphite bearing slide components allow for improved survival of dry runs without harming the pump. As a result, the frequency of pump maintenance will be reduced.
What are the uses of graphite brass plates
and plain bearings?
What are the uses of graphite brass plates and plain bearings? You can use bronzelube.com’s graphite bushings in the following situations Graphite bronze plates and plain bearings are mandatory in situations where the use of oil or grease, even in the form of steam, is prohibited. The food, pharmaceutical and textile industries are good examples. Graphite is a dry self-lubricating material and is very efficient. Without graphite bronze plates and sliding bearings, maintenance of certain types of equipment would be almost impossible because it would be difficult to reach the moving elements. Graphite is less dense, which means you can use it where low weight bushings are needed. The use of conventional oils and greases is prohibited at temperatures between 100°C and 150°C. Graphite can be used as a bushing material in this temperature range due to its thermal stability and self-lubricating properties. Graphite is an inert material and is corrosion resistant. Carbon and graphite function well in corrosive environments where conventional lubricants are not recommended, whether dry in a corrosive environment or immersed in a corrosive fluid. graphite bronze sheet exporter, sliding bearing supplier, bronze bushing manufacturer? Due to the high demand of graphite bronze sheet and slide bearing, there are many graphite bronze sheet and slide bearing manufacturers. Graphite bronze sheet and sliding bearings are a cornerstone for various industries due to their incredible properties and advantages. China is the recognized manufacturer of graphite bronze sheet and slide bearing. You can import graphite bronze plates and plain bearings from bronzelube.com, a recognized self-lubricating bearing company in China. Main exports: Europe, USA and India,bronzelube.com is a recognized supplier of graphite bronze plates and plain bearings in China. bronzelube.com where you can get a wide range of self-lubricating parts products and exemplary services. bronzelube.com has huge production capacity to produce graphite bronze plates and plain bearings. We export self-lubricating sliders in large quantities. We have an automated production system, so you will always get enough graphite brass plates and plain bearings, even during peak seasons. In addition, we can provide you with custom-made graphite brass plates and slide bearings so that you can check the quality before placing a large shipment order. After discussing the price and availability of the products, you can deal with our customer service team. You will also be provided with pictures and detailed videos of each product. High performing self-lubricating bearing supplier
Select the Right Grade Bronze Material
Correct grade selection is crucial when building graphite bushings, and Bushing, Select the Right Bronze Plate Material. The choice of slide plate parts material can have just as much of an effect on bushing damage as the graphite grade. V slider -NAAMS standard copper alloy + graphite (inlaid)
