anti-friction flanged bushings
Flanged Bushing, Self-lubricating Bearing Bushes
Bronzelube is an integrated production and trade enterprise that aims to be the world’s recognized spare parts supplier for after-market and OEMs. DU Type Split Bearing Bushes – Flanged Type – PTFE lined, These Du Bush Bearings are widely used in the Machinery Industry. (Inside Diameter x Outside Diameter x Flange Size x Length)
Metal-Polymer Composite Self-lubricating Bushing Du Bushes Material Flange Bushing
- Steel Back + Porous Bronze Sinter + PTFE + Lead
- Sintered PTFE and Bronze on Steel Backing (Maintenance-free Material)
- Garlock Bearings Du Bushing
- Self-Lubricating Metric Flanged Du Bush
- Tin-plated steel / PTFE
- DIN 1494 / ISO 3547
- Maintentance-free
Sed porttitor lectus nibh. Vivamus magna justo, lacinia eget consectetur sed, convallis.
Can Self-Lubricating Bearings Be Run Dry In Order To Eliminate Lubricants: The self-lubricating bearing product line is ideally suited for operation in dry conditions, providing the end customer with completely maintenance-free operation. Key benefits are:
- Reduced costs through simplified design and assembly by eliminating lubricants
- Improved machine availability and efficiency, reducing downtime for regular bearing lubrication
- More environmentally friendly operation as potential contamination from lubricants is avoided
When Do Self-Lubricating Bearing Bushings Run With Lubricant: Self-lubricating bearings are also necessary when operating under boundary or edge lubrication. These conditions occur when the thickness of the lubricant film is too low to prevent metal-to-metal contact and wear between the bearing and sliding surfaces due to high loads, low speeds, and insufficient lubricant viscosity. For equipment operating at low idling speeds and during frequent start-stop operations, the self-lubricating characteristics of self-lubricating bush bearings significantly improve machine efficiency by reducing bearing wear and increasing the risk of play, noise and ultimately equipment seizure.
Bearing Buses Parts Selection
Flanged Bushings, Bushes Steel PTFE Split Flanged Size
It is cylindrical in shape.

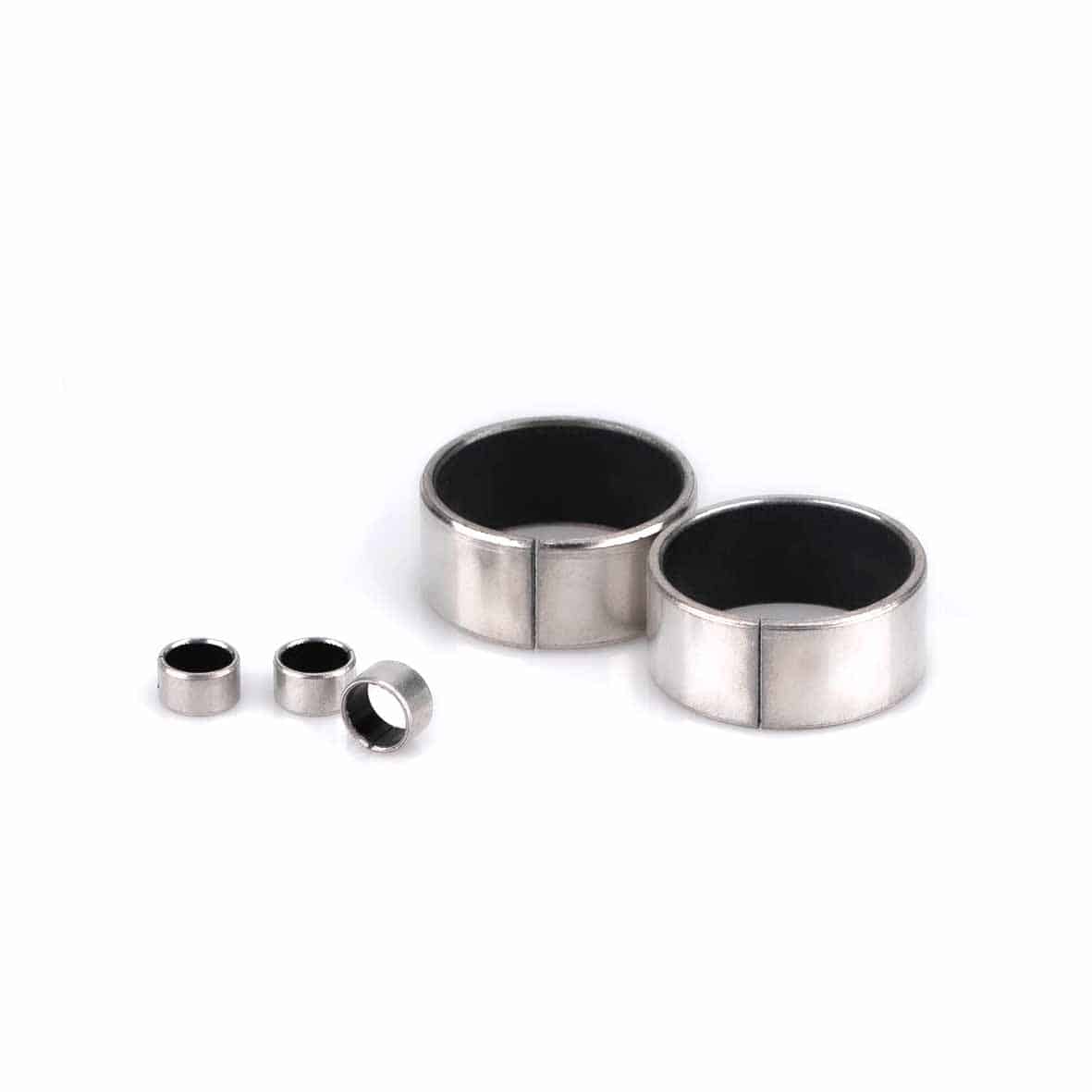

Cylindrical composite bushing
Cylindrical Bushing Shape – Self-Lubricating Metric Bushing, Low Friction Bushes
A cylinder has two flat ends in the shape of circles. These two faces are connected by a curved face that looks like a tube. If you make a flat net for a cylinder, it looks like a rectangle with a circle attached at each end.
Flange Du Bush Features
cylindrical & flange bush
DU Type Split Bearing Bushes – Flanged Type – PTFE lined. (Inside Diameter x Outside Diameter x Length) These DX Bush Bearings are widely used in the Machinery Industry. Wrapped composite sliding bearing feature:
- Bronze Bushing Solutions
- Eliminate Lubricants
- Increase Service Life
- Improve Efficiency
- Replace Roller Bearings
- Reduce Size / Weight
- Simplify Assembly
- Eliminate Corrosion
- Reduce Noise
Composite bearing material consisting of 3 bonded layers; Alloy steel support with a porous intermediate layer in sintered bronze impregnated and coated with polytetrafluoroethylene (PTFE). Lead-free.
Customized Bearing Bush
The promise of flange du bush high quality, meet your requirement.
Flanged Du Bush
Small minimum order value & quantity, fast delivery.
Choose your proper du bushes online
“Custom Quality PTFE Du Bushing Order Today! Quick Quote Available, Customer Service Available.”
Anti-friction Bearings Bushing
Tribology is the Science of Friction, Wear and Lubrication.
Learn how antifriction products and solutions for self-lubricating bearings can provide better bearing performance for your application.
Self-lubricating, anti-friction plain bearings and bushings offer many benefits in a wide range of industries and applications, including automotive, construction, energy, industrial, recreational and many more. Anti-friction bearings and bushings, PTFE and POM, are quickly becoming the industry standard for high-performance plain bearing solutions.
As customer demand and expectations for superior plain bearing performance continue to grow, the self-lubricating bearing line now includes unique anti-friction bearing types, anti-friction bearing grease!
DU Bush: Understanding its Properties and Applications
DU bush is a type of bearing material that is commonly used in a variety of industrial and mechanical applications. This material is known for its exceptional performance, durability, and longevity. In this article, we will explore the properties and applications of DU bush, and why it is a popular choice in many industries.
What is DU Bush?
DU bush is a type of composite material made from a combination of materials, including a metal or metal alloy, and a self-lubricating material. This combination provides the material with unique properties that make it ideal for use in a variety of applications.
Properties of DU Bush
DU bush has several key properties that make it an excellent choice for various industrial and mechanical applications. Some of these properties include:
- Low-Friction Performance: DU bush is known for its low-friction performance, making it ideal for use in high-load or high-speed applications. The self-lubricating material used in the construction of DU bush provides a low-friction interface, reducing wear and extending the lifespan of machinery.
- Durability: DU bush is highly durable and resistant to wear, making it less likely to fail, even under heavy loads or high-speed conditions. This durability is due to the combination of the metal or metal alloy and self-lubricating material used in its construction.
- Anti-Corrosion Properties: DU bush is resistant to corrosion, making it ideal for use in environments where moisture and corrosive materials are present. This helps to protect the components from damage and increases their lifespan.
Applications of DU Bush
DU bush is used in a variety of industries, including automotive, industrial machinery, and heavy equipment. It is often used in high-load or high-speed applications, where low-friction performance is critical to performance.
In the automotive industry, DU bush is used in engines, transmissions, and suspension systems. It is also used in industrial machinery, such as pumps, compressors, and conveyor systems. In heavy equipment, DU bush is used in cranes, excavators, and other construction equipment, helping to reduce wear and extend the lifespan of these components.
Conclusion
DU bush is a type of composite material that is commonly used in various industrial and mechanical applications. With its combination of low-friction, wear resistance, and corrosion resistance, DU bush is an excellent choice for high-load or high-speed applications. Whether you are working in the automotive, industrial machinery, or heavy equipment industry, DU bush is a reliable and cost-effective solution for improving the performance, durability, and longevity of your machinery.
Flanged DU Bush: Understanding its Properties and Applications
Flanged DU bush is a type of bearing material that is commonly used in a variety of industrial and mechanical applications. This material is known for its exceptional performance, durability, and longevity. In this article, we will explore the properties and applications of flanged DU bush, and why it is a popular choice in many industries.
What is Flanged DU Bush?
Flanged DU bush is a type of composite material made from a combination of materials, including a metal or metal alloy, and a self-lubricating material. The flange is a protruding rim that helps to secure the bush in place within a component or machinery. This combination provides the material with unique properties that make it ideal for use in a variety of applications.
Properties of Flanged DU Bush
Flanged DU bush has several key properties that make it an excellent choice for various industrial and mechanical applications. Some of these properties include:
- Low-Friction Performance: Flanged DU bush is known for its low-friction performance, making it ideal for use in high-load or high-speed applications. The self-lubricating material used in the construction of DU bush provides a low-friction interface, reducing wear and extending the lifespan of machinery.
- Durability: Flanged DU bush is highly durable and resistant to wear, making it less likely to fail, even under heavy loads or high-speed conditions. This durability is due to the combination of the metal or metal alloy and self-lubricating material used in its construction.
- Anti-Corrosion Properties: Flanged DU bush is resistant to corrosion, making it ideal for use in environments where moisture and corrosive materials are present. This helps to protect the components from damage and increases their lifespan.
- Secure Fit: The flange on the flanged DU bush provides a secure fit, ensuring that the bush stays in place within the component or machinery. This is especially important in high-load or high-speed applications, where the bush needs to be firmly secured in place.
Applications of Flanged DU Bush
Flanged DU bush is used in a variety of industries, including automotive, industrial machinery, and heavy equipment. It is often used in high-load or high-speed applications, where low-friction performance is critical to performance.
In the automotive industry, flanged DU bush is used in engines, transmissions, and suspension systems. It is also used in industrial machinery, such as pumps, compressors, and conveyor systems. In heavy equipment, flanged DU bush is used in cranes, excavators, and other construction equipment, helping to reduce wear and extend the lifespan of these components.
Conclusion
Flanged DU bush is a type of composite material that is commonly used in various industrial and mechanical applications. With its combination of low-friction, wear resistance, anti-corrosion properties, and secure fit, flanged DU bush is an excellent choice for high-load or high-speed applications. Whether you are working in the automotive, industrial machinery, or heavy equipment industry, flanged DU bush is a reliable and cost-effective solution for improving the performance, durability, and longevity of your machinery.
Steel Backed Bronze Layer PTFE Coated Flange Sleeve Bearing Oil Free DU Bushing
Flanged Steel Backed DU Split Bushes Characteristics
- Working temperature from -200o to 280o Celsius. Maximum load 250 N / mm2.
- Lubrication-free, maintenance-free. Shows low wear and tear resistance.
- High static and dynamic loading, good frictional properties with little stick-slip. Resistant to solvents, compact and lightweight.
- No water absorption, no electrical conductivity and no electrostatic effects, good pouring ability and resistance to dusty environments.
- Good buildability and resistance to dusty environments. Speed limit in oil 5 meters of surface speed per second.

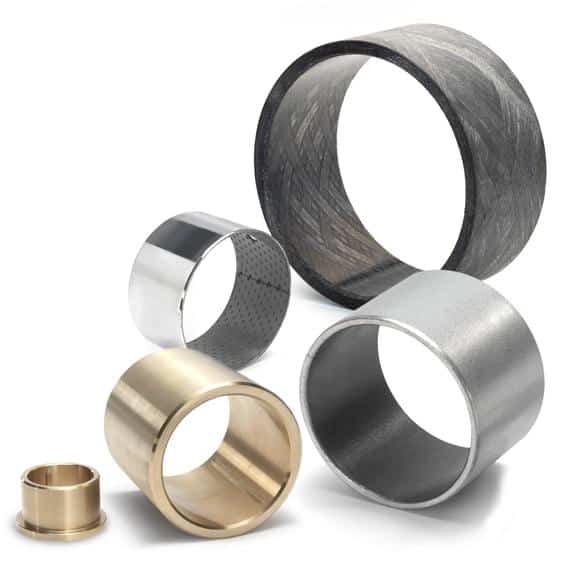

Bronze Bearing forms available in standard dimensions

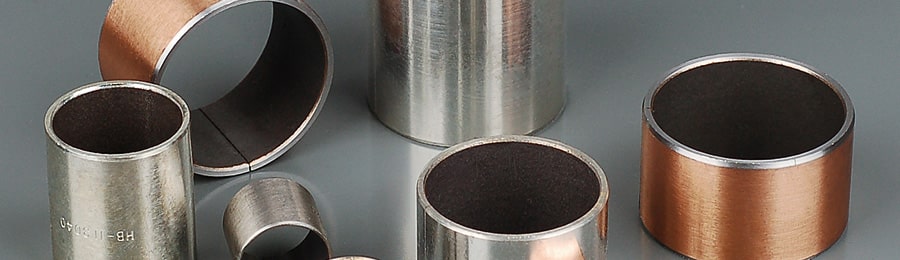

- Cylindrical PTFE bushing
- Flanged du bush
- Thrust washers
- Flanged bronze washers
- Sliding plates
Bronze Bearing forms made to order: cylindrical bushes with non-standard lengths and wall thickness, flanged bearings, customized bearing designs.
Bushing & Bearings Specialists For Manufacturing & Machining Of All Types. Free Design Assistance. Wide Variety & Selection. Expert Customer Service.
1. The mixture of modified polytetrafluoroethylene (PTFE) and lead (Pb) 0.01~0.03mm, a wear-resistant material, can form a transfer film during operation to protect the counter-grinding shaft.
2. The copper powder layer of 0.2~0.30mm improves the bonding strength of PTFE/Pb and steel plate, and has good bearing capacity and wear resistance. At the same time, copper is a good thermal conductive material, which can quickly transfer the heat generated during the operation of the bearing.
3. Low carbon steel 0.7~2.3mm, improve bearing capacity and heat transfer.
4. Copper/tin plating layer, copper plating layer 0.008mm, tin plating layer 0.005mm, so that the bearing has good corrosion resistance.
Du Flange Bushing Physical & Mechanical Properties
Items | Value | Unit |
Thermal Conductivity | 40 | W/mK |
Maximum Operating Temperature Tmax | 280 | °C |
Minimum Operating Temperature Tmin | -200 | °C |
Compressive Yield Strength | 350 | N/mm2 |
Maximum Static Load Psta,max | 250 | N/mm2 |
Maximum Dynamic Load Pdyn,max | 140 | N/mm2 |
Maximum Sliding Speed V-dry | 2.5 | m/s |
Maximum PV Factor-dry, continuous operation | 1.8 | N/mm2 * m/s |
Maximum PV Factor-dry, intermittent operation | 3.5 | N/mm2 * m/s |
Coefficient of friction f-dry | 0.02-0.25 | |
Coefficient of friction f-oil lubricated | 0.02-0.12 |
|
APPLICATION CHARACTER
1. Oil-free lubrication or less oil lubrication, suitable for occasions where refueling is impossible or difficult, and can be used without or with little maintenance;
2. Good wear resistance, small friction coefficient and long service life; 3. It can be used in the range of -195℃~+280℃;
4. Good running-in performance, low noise, no pollution; 5. Thin-walled structure, light weight, can reduce the mechanical volume;
6. A transfer film can be formed during operation, which protects the grinding shaft and does not bite the shaft;
7. The hardness of the grinding shaft is low, and the shaft without quenching and tempering treatment can be used, thereby reducing the processing difficulty of related parts;
8. No water absorption, oil absorption, small thermal expansion coefficient, good heat dissipation, stable size;
9. The back of the steel can be electroplated with various metals, so it can be used in corrosive media without rusting;
At present, it has been widely used in the sliding parts of various machinery, such as automatic mechanical equipment (telescopic, swing, sliding, bending, swinging, rotating parts) hydraulic cylinder guide sleeve, gear pump, textile machinery, vending machine, plastic molding machine, Die-casting machines, rubber machinery, tobacco machines, fitness equipment, office machinery, hydraulic trucks, automobiles, motorcycles, agricultural and forestry machinery, etc.
How do self-lubricating bush bearings extend service life?
Proprietary self-lubricating bearing constructions and cover compositions include special anti-wear additives that provide high wear resistance for extended service life. The inert nature of the fiber stainless steel self-lubricating composite bearing material and bronze graphite bronze bushing series are suitable for many corrosive environments. Bushes – Steel – – Split – Flanged … Composite bearing material consisting of 3 bonded layers; Steel backing bonded with porous sintered bronze interlay!Self-Lubricating Metric Flanged Bushing.
Specialists In Flange Bushings: Self-lubricating Du Steel Backing Sleeve Bushing, Metric Size PTFE Material, Most self-lubricating bushing bearings contain polytetrafluoroethylene (PTFE) in the sliding layer. One of the characteristics of PTFE is its extremely low coefficient of friction, which reduces bearing friction, bearing wear, and most importantly, energy consumption. As a result, the overall efficiency of the equipment and machinery increases for reduced power input and higher power output.
Self Lubricating Bush Flange Bushes Production
Our team is sensitive to the dimension requirements and is able to meet the very strict tolerance. Saves You Time & Money In Bronze Bushing Research, Design & Production Costs.
Excellent Sliding Bushing
Excellent sliding and wear behavior, for all types of movement, high load-bearing capacity, fully adaptable. Flanged Bushing, Metal-Polymer Anti-Friction Plain Bearings. is wrapped by steel backing, Sintering bronze inter layer and PTFE(Rolled composite bushing:
steel backing with PTFE sliding layer) composite anti-wear inner surface. it is of low cost, low vibration and low noise, compacted and light, widely applied in various applications.
Metal-Polymer Anti-Friction Flange Bearings
- CNC Multi-Turning & Milling Combined Machines
- CNC Lathe Machines
- CNC Milling Machine
- Stamping (Pressing) Machines
- Bending Machines
- Polishing Machines
- Continuous Furnace
High load-bearing capacity, fully adaptable.
- Injection Machines
- Surface Flat Grinding Machines
- Centerless Grinding Machines
- Ball Grinding Machines
- Mirror Lapping Machines
- Ultrasonic Cleaner
- Cutting Machine
Professional production equipment and advanced processing technology.
A wide assortment of bushings in various designs and from different materials available from stock. Du flanged bushes, PTFE lined, Steel backing, Self lubricating dry bearings Bushings are suitable for rotating, oscillating and linear movements, whereas straight (cylindrical) bushings can accommodate radial loads only and flanged bushings can accommodate radial and axial loads in one direction. Each combination of bushing design and material has characteristic properties and makes a bushing particularly suitable for certain applications.
self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds
Committed to the wolrd’s recognized parts supplier for the aftermarket parts of commercial vehicles, aricultural machinery and construction machinery. Flanged bushings are commonly found in suspension pivots in place of bearings. Some bikes also use them in shock eyelets. Du bush application
- Markets
- Agriculture
- Automotive
- Construction
- Energy
- Fluid Power
- General Industrial
- Primary Metals
- Oil & Gas
- Recreational
Metal Polymer Flanged Bush
manufactures bushings in various designs and from different materials. Therefore, we offer a wide assortment of flanged bushings available from stock. Oilless Plain Bearing Metal Dry Guide Bushes Flange Du Bushing for Automotive Chairs · After-sales Service, High-quality Flanged slide bushing PTFE, from China, premium brand, high-performance bearing solutions. Catalog Parts Flanged Bushings; Design type. Flanged Bushing. Material. Dimensions. Self-Lubricating bushings Manufacturers and Flange Bushing factory!
