Bimetal bushings locked type, also known as flange bushings, are a type of bushing designed to handle high loads and speeds in heavy-duty applications. These bushings are composed of two metal layers – a steel backing and a sintered layer of copper-based alloy – that are locked together to provide exceptional mechanical and tribological properties.

The steel backing layer provides the necessary strength and rigidity to support the bushing, while the sintered layer of copper-based alloy provides a low-friction surface that can withstand high loads and speeds. The locked type design of bimetal bushings provides additional stability and security, ensuring that the two metal layers remain tightly locked together and do not separate during operation.

One of the key advantages of bimetal bushings locked type is their exceptional wear resistance. The sintered layer of copper-based alloy provides a low-friction surface that can withstand high loads and speeds, minimizing wear and extending the life of the bushing. Additionally, the copper-based alloy layer can absorb and distribute heat, reducing the risk of overheating and damage to the bushing.

Another advantage of bimetal bushings locked type is their ability to accommodate misalignment and shaft deflection. The steel backing provides the necessary strength and rigidity to support the bushing, while the copper-based alloy layer can conform to minor deviations in the shaft or housing. This helps to prevent premature wear and failure of the bushing.

Bimetal bushings locked type are also known for their ease of installation and maintenance. They can be easily pressed or fitted into a housing or bore without the need for special tools or equipment. Additionally, they require minimal lubrication, reducing the need for frequent maintenance and lubrication intervals.

In summary, bimetal bushings locked type offer exceptional mechanical and tribological properties, making them an ideal choice for heavy-duty applications in various industries. With their exceptional wear resistance, ability to accommodate misalignment and shaft deflection, and ease of installation and maintenance, these bushings provide a reliable and cost-effective solution for many bushing applications.

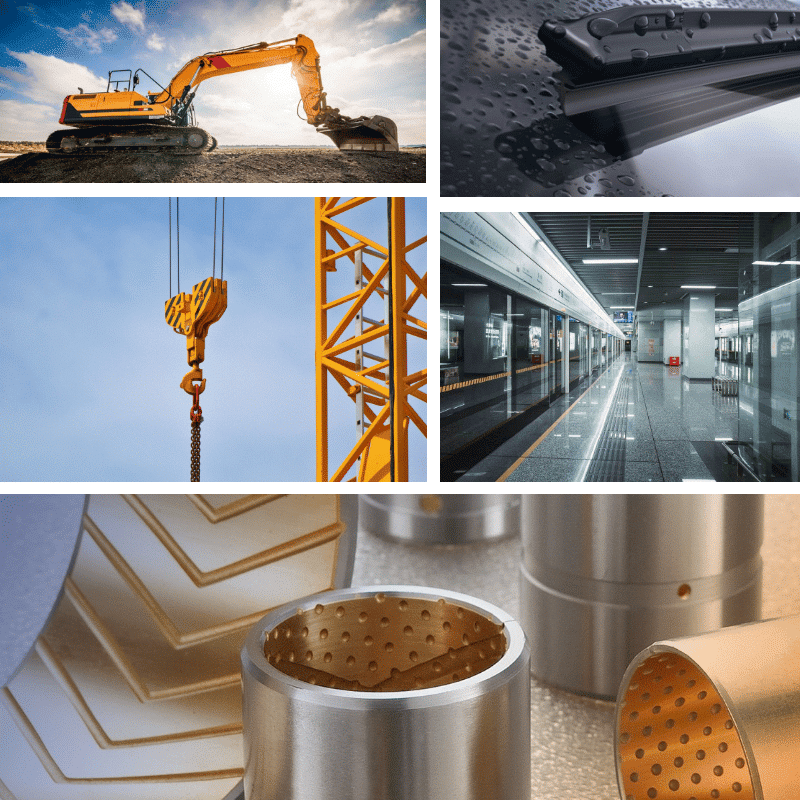

Bimetallic bearing is one of the bearing lubrication system, the product is high quality low carbon steel back as substrate, the bronze alloy on the surface, through several high temperature sintering and density and rolled copper and steel bimetallic strip coiling, suitable for medium and high impact load under bush and thrust washer and so on many kinds of USES.

What Is babbitt metal? Characteristics & applications of babbitt alloys!

Babbitt is a kind of metal that we don’t see very often in our everyday life. The melting point of this alloy is lower than that of other alloys. It contains three metals, antimony, copper and cadmium, and the rest is tin. Its name is Babbitt because its inventor is American Babbitt, and its color is white, so the combination of Babbitt alloy. It has a relatively low melting point. We all know that iron can melt close to a thousand degrees, while Babbitt alloys cannot be used at a maximum temperature of more than a hundred degrees Celsius. This characteristic has a lot to do with its composition. It is well known for its use as a bearing material. Because the tin base and lead base inside it can reduce friction very well, it is a very good bearing alloy. And its hardness is not as high as other metals, so if used as bearings, can be very good to adapt to other parts and can be better pressed into. So at present it is generally used for all kinds of generators and some large machinery, such as mining machinery used. Of course, Babbitt alloys are both hard and soft in structure. They contain both soft phase matrix and other hard metal components, such as copper and antimony, so they can be used to better support the weight, while ensuring smooth operation. In general, it is very useful in large equipment and generators, and its discovery is also very helpful and useful to our life.

Technical requirements for bushing babbitt alloy metal

In order to adapt to the working condition of the high-speed rotating mechanical shaft, the alloy bearing should meet the following requirements:

(1) good surface properties, keep the lubricating oil film on the surface to prevent stagnation and prevent the shaft from getting stuck;

(2) High strength to prevent deformation caused by static load and load fluctuation;

(3) enough hardness to prevent wear;

(4) Good adaptability to compensate for the defects in the geometric dimensions of the rotating shaft;

(5) good tolerance to absorb sludge and organic residues;

(6) good corrosion resistance.

Babbitt alloy bearing bush is now replaced by VIIPlus bimetallic bearing, bimetallic is a steel copper alloy product with low carbon steel plate as the matrix material and sintered surface of CuB10Sn10 or CuSn6Zn6Pb3 material. This product is one of the strongest bearing capacity in the double alloy bearings, and is used in the balance bridge bushing of heavy duty vehicles. It is a kind of widely used bearing with high load and low speed motion. High tin aluminum bearing is made of steel plate with AISN20Cu material rolled on the surface. The product has medium fatigue strength and bearing capacity, good corrosion resistance, good sliding performance and other characteristics. The product is commonly used as bushing of medium and small power internal combustion engine, bushing of train engines and bushing of air compressors. It is a new product to replace Babbitt alloy.
