Wrapped Bronze Bushing Projects
Completely Perforated Wrapped Bronze Bushing Supplier
“bronzelube.com” is a recognized supplier of completely perforated wrapped bronze bushings, offering a diverse range of high-quality products to meet your specific requirements. Our experienced manufacturing and design team ensures that the copper alloy bushings you receive are tailored to your needs and deliver exceptional performance.
Bronze Bushing Features

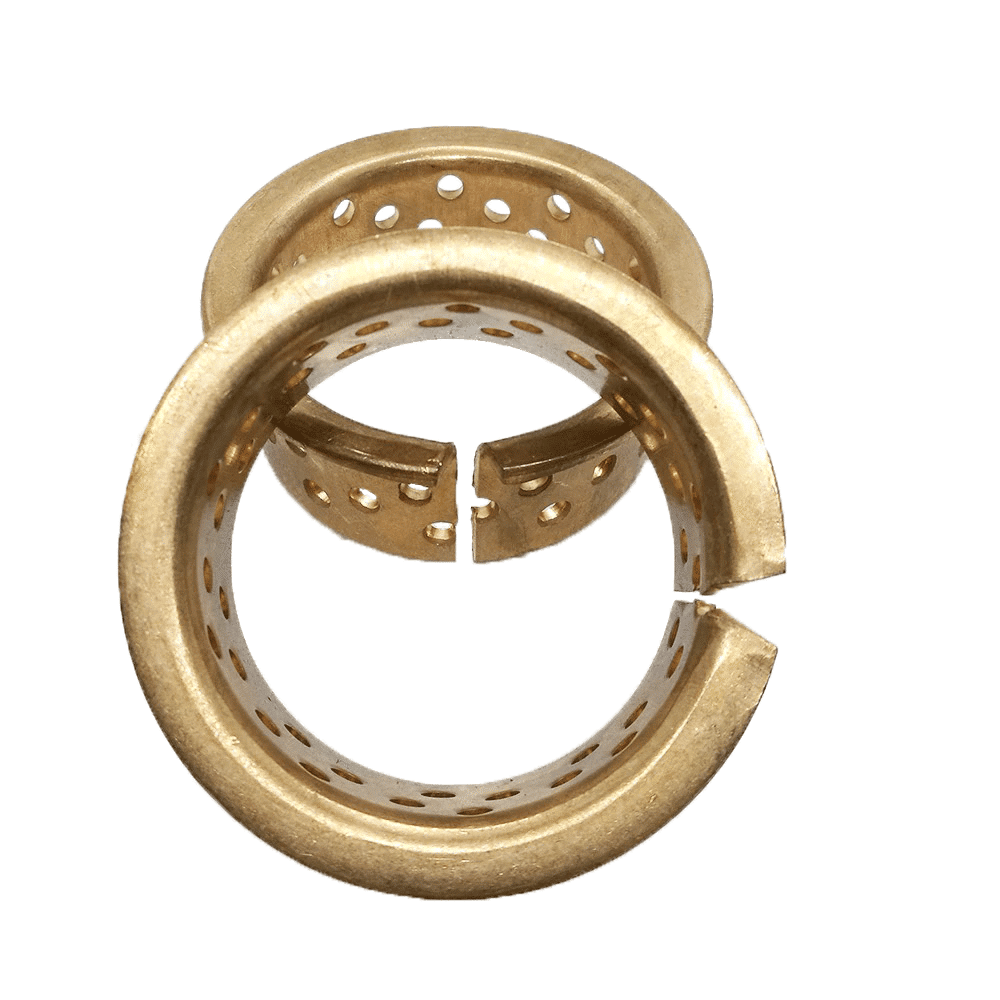

High Quality Bronze Wrapped Plain Bearings | Metric Wrapped Bronze Bushing

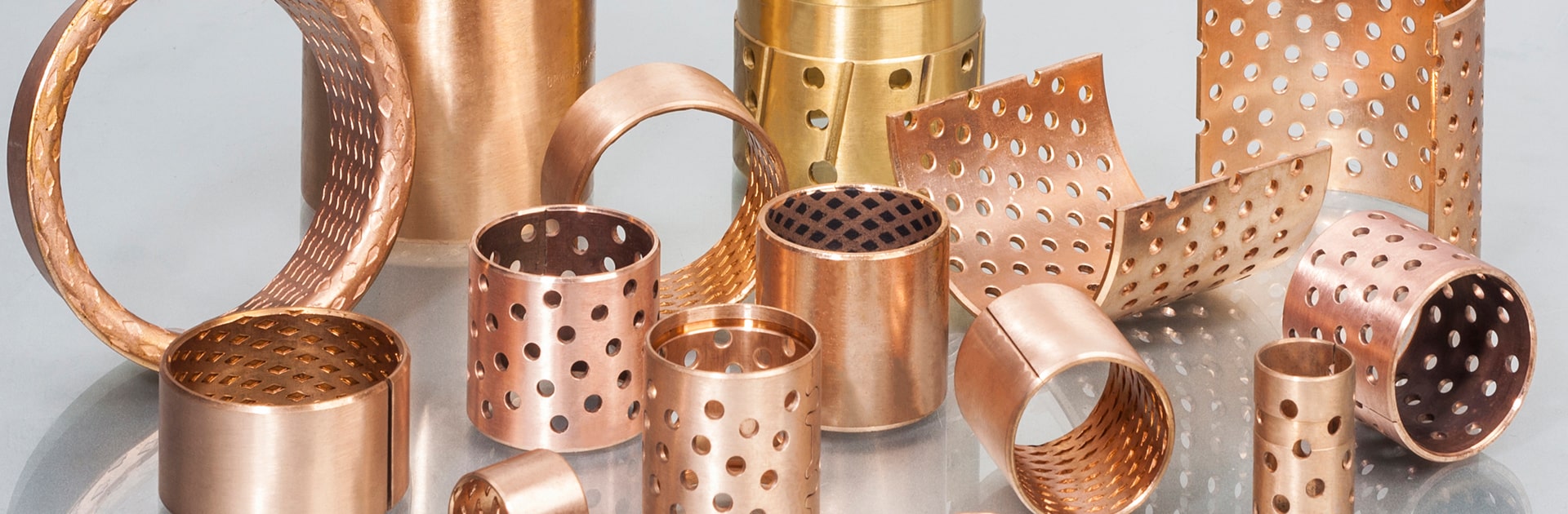

These fully wrapped bronze bearings are completely perforated on their entire surface: it is a particular structure that gives the bushings excellent lubrication, with a consequent reduction in wear and maintenance. The holes also have the objective of channeling dust and impurities, thus preserving the functionality of the bushing.
Wrapped Bronze Bushings Material: Bronze
CuSn8 Quality
The promise of order wrapped bronze bushing high quality, meet your requirement.
Wrapped Bronze Bushing
Small minimum order value & quantity, fast delivery.
Professional Design & Good Service For Wrapped Bronze Bushing
Provide best wrapped bronze bushings solution
Our wrapped bronze bushing projects cover a wide range of applications, including:
- Automotive: Suspension systems, steering components, and transmission systems.
- Industrial machinery: Pumps, compressors, hydraulic systems, and conveyors.
- Agricultural equipment: Tractors, harvesters, and irrigation systems.
- Construction machinery: Excavators, loaders, and cranes.
- Marine industry: Propulsion systems, rudders, and deck equipment.
- Aerospace: Landing gear components, actuators, and other moving parts.
- High load capacity
- Excellent performance in dirty environments
- Wide operating temperature range (-100°C to 200°C)
- Easy installation
Applications:
These bearings are widely used in:
- Forestry and agricultural machinery
- Construction equipment
- Cranes
- Trucks
- Other heavy industrial machinery
Product Description:
FB 090 and FB 092 bearings are manufactured from high-grade tin bronze (CuSn8), a material known for its outstanding bearing properties. The entire bearing surface features embossed lubrication pockets, which help build a lubricating film to reduce friction during startup and operation.Material Composition and Properties:
- Material: CuSn8 (91.3% Cu, 8.5% Sn, 0.2% P)
- Tensile strength: 450 N/mm²
- Yield strength: 250 N/mm²
- Elongation: 40%
- Hardness: 90-110 HB
- Coefficient of friction: 0.10-0.25μ
- Thermal conductivity: 60 W/m·K
Performance Characteristics:
- Maximum static load: 80-120 N/mm²
- Maximum dynamic load: 30-40 N/mm²
- Maximum sliding speed (with grease): 2.5 m/s
Installation and Maintenance:
These bearings are designed to be press-fit into housings with H7 tolerance. For optimal performance, shafts with e7 or f7 tolerance are recommended. Lubrication should be applied through the shafts or radially through the housings, and any standard grease can be used.Available Types:
- Cylindrical bearings
- Flange bearings
- Thrust washers
- Slide pads
FB 090 and FB 092 bearings are particularly suitable for applications involving high loads and relatively slow movements. Their design with lubrication pockets ensures consistent lubrication, reducing wear and extending the operational life of the bearing.For specific dimensions or custom requirements, these bearings can be made to order, providing flexibility for various industrial applications.
Phosphor Bronze Bearing CuSn8 Wrapped Bronze Bearings Bush
Phosphor bronze bearings, specifically CuSn8 wrapped bronze bearings bushes, are made from high-quality phosphor bronze alloy material, which provides excellent wear resistance, good fatigue strength, and superior corrosion resistance. These wrapped bronze bearings bushes are widely used in various industries, such as automotive, construction, agricultural machinery, and more.
Key features of CuSn8 wrapped bronze bearings bushes:
Material properties: The CuSn8 phosphor bronze alloy offers a unique combination of good mechanical properties, including high strength, ductility, and resistance to wear and corrosion, making it ideal for bearing applications.
Wrapped design: The wrapped bronze bearing is manufactured by wrapping a thin layer of CuSn8 bronze alloy around a steel or bronze core, providing a lightweight and cost-effective solution compared to solid bronze bearings.
Self-lubricating: CuSn8 wrapped bronze bearings bushes can be supplied with lubrication pockets or grooves, which store lubricant and ensure consistent lubrication during operation, reducing friction and wear.
Versatility: Phosphor bronze bearings are suitable for various applications, including high-load, high-speed, and oscillating or rotating motion. They can also withstand harsh operating environments and a wide range of temperatures.
Customizability: These bearings can be tailored to specific dimensions and shapes to meet the unique requirements of your application. Additionally, lubrication pockets or grooves can be customized according to the operating conditions and desired performance.
Long service life: The combination of CuSn8 phosphor bronze material, self-lubricating properties, and a robust wrapped design ensures a long-lasting and reliable performance, even in demanding operating conditions.
CuSn8 wrapped bronze bearings bushes provide an efficient and durable bearing solution for various applications and industries. Their unique combination of material properties, self-lubricating features, and customizability make them a popular choice for businesses seeking reliable and high-performance bearing solutions.
Our enterprise, is one of the undisputed supplier of the highly competitive order wrapped bronze bushings industry in china.
Oil-Free Bushings – Copper Alloy Straight, Standard | bronzelube.com
Copper alloy bushings with groove types are made to order for lubricated applications. To improve tribological behavior, the sliding layer can be applied with lubricating grooves or sockets for oil or grease storage and distribution. These bushings exhibit good anti-erosion behavior and impressive load capacity. Products from the bronze lubricating bushings series are applied under operating conditions such as high loads and low running speeds, making them ideal for agricultural and construction machines applications.
Bronze Wrapped Bearing
Copper Alloy Bushing Characteristics:
- Extra high load capacity
- Good lubrication properties
- Wide temperature range
- Easy to assemble
- Suitable for use with all standard greases
- Optimum performance under relatively high loads and low speeds
Copper Alloy Bushing Material and Composition:
Bronze Plain Bearings and Bronze Sleeve Bushings made of CuSn8
These Bronze Bushings utilize a bronze plate as the base material. A diamond-shaped oil hole, regularly arranged on the surface, is rolled into an economical thin-walled rolling bearing with high load-bearing capacity and excellent wear resistance.
CuSn8 Composition:
- Sn: 8%
- P: < 0.05%
- Cu: Rest
Availability:
Wrapped Bronze Bearings types made to order include cylindrical bushes with non-standard dimensions and customized bearing designs.
Bearings Assembly:
The bearings are designed to be pressed into a housing with an H7 tolerance. The inner diameter of the slide bearing will then hold an H9 tolerance.
Bearings Tolerance:
For the H9 tolerance of the slide bearing, we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing’s inner diameter should be machined up to tolerance F7.
Shapes & Forms:
Plain cylindrical bearings, flanged bearings, thrust washers, and sliding plates are available.
Range of Application:
Wrapped bronze bearings are especially suited to severe operating conditions where frequent maintenance is not possible. Common applications include:
- Agricultural vehicles
- Lifting gear
- Offshore equipment
- Excavators
Special Manufacturing:
Special dimensions are available upon request.
For questions and assistance, contact our bushing engineer at: https://bronzelube.com
Wrapped Bronze Bushing Design Supply Company
Explore our extensive selection of wrapped bronze bushings at www.bronzelube.com, offering the very best in unique or custom entirely bronze material types. We specialize in producing high-quality wrapped bronze bushings made from CuSn8P, ensuring durability and excellent performance for various applications.
Quality Wrapped Bronze Bushings Made by bronzelube.com – Order Today!
Custom Made Wrapped Bronze Bushings Material:
Bushing: Design
CuSn8P Wrapped Bronze Bushing, Made in China
Wrapped Bronze Bearing Size & Type Design:
Cylindrical & Flange
Our wrapped bronze bushings are available in various sizes and types, including cylindrical and flange designs, to cater to a wide range of applications and industries. With our custom design services, you can ensure that the bushings you receive are tailored to meet the unique requirements of your specific application.
At bronzelube.com, we are committed to providing top-quality wrapped bronze bushings and delivering exceptional customer service. If you have any questions or need assistance with selecting the right bushing for your application, our experienced team is available to help. Visit our website at www.bronzelube.com to explore our product offerings and place your order today.
Copper alloy bushing suppliers & exporters in china
Wrapped Bronze Bushing – self-lubricating
WRAPPED BRONZE BUSHING (LUBRICATED METAL) MAJOR APPLICATIONS
General industrial machinery and heavy industrial facilities
