Stroke Plate
Graphite Bronze Plate – Prompt Delivery, Global Supply, Bronze Self-Lubricating wear strips and gibs are made from.
Cam Dwell wear plates are available in two main configurations: bronze with self-lubricating graphite and steel without graphite. The bronze plates with self-lubricating graphite offer maintenance-free and long-life operation, suitable for high static and dynamic loads, with low and smooth coefficient of friction and without stick. On the other hand, the steel plates are available both with and without graphite plugs, and they are suitable for various applications, including metal stamping dies. These plates provide options for different needs in terms of lubrication and material composition.
The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer oilless bearing plate catalogs.
| Article name | Width W | Length L | Height H | Angle a | l1 | l2 | l3 | M (ISO 4762) |
| Cam Bronze Plate 125-170-45 | 125 | 170 | 45 | 20° | 90 | 45 | 85 | 4xM12 |
| Cam Bronze Plate 150-170-45 | 150 | 170 | 45 | 20° | 90 | 45 | 110 | 4xM12 |
| Cam Bronze Plate 100-150-45 | 100 | 150 | 45 | 30° | 90 | 45 | 60 | 4xM12 |
| Cam Bronze Plate 100-170-60 | 100 | 170 | 60 | 30° | 90 | 45 | 60 | 4xM12 |
| Cam Bronze Plate 125-150-45 | 125 | 150 | 45 | 30° | 90 | 45 | 85 | 4xM12 |
| Cam Bronze Plate 125-170-60 | 125 | 170 | 60 | 30° | 90 | 45 | 85 | 4xM12 |
| Cam Bronze Plate 150-150-45 | 150 | 150 | 45 | 30° | 90 | 45 | 110 | 4xM12 |
| Cam Bronze Plate 150-170-60 | 150 | 170 | 60 | 30° | 90 | 45 | 110 | 4xM12 |
Properties: bronze plate
- Technical data / Custom-made plate
| Sliding speed v: | 30 m/min |
| Base Material: | Special Brass (SO#50SP2) |
| Self-lubricating: | Yes |
| Lubricant: | Graphite |
| Surface Pressure P: | 100 N/mm² |
| P*v-value: | 200 N/mm² x m/min |
| Operating temperature: | -50°C / +450°C (max. 500°C) |
| Friction coefficient: | 0,07 |
Special brass:
High-strength brass, the chemical formula is ZCuZn25Al6Fe3Mn3, the mechanical properties are different in zinc content, and the mechanical properties are also different. The pressure processing performance has good plasticity and can withstand cold and hot processing. Overview
A variety of alloys composed of two or more elements are called special brass. For example, high-strength brass is one of the copper alloys composed of aluminum, lead, tin, manganese, nickel, iron, and silicon. High-strength brass has strong wear resistance, high-strength brass, high strength, high hardness, and strong chemical corrosion resistance. There are also excellent cutting mechanical properties. High-strength brass is often made into sheet, strip, bar, pipe, casting parts, etc.
Chemical composition
The chemical formula of high-strength brass is ZCuZn25Al6Fe3Mn3, the copper content is about 65%, and the zinc content is about 24%. Zinc can improve the strength, hardness and corrosion resistance of brass. There are three kinds of room-temperature structure of brass: brass with zinc content below 35%, the microstructure at room temperature is composed of single-phase α solid solution, called α brass;
Pressure processing performance: High-strength brass has good plasticity and can withstand hot and cold processing, but it is prone to medium temperature brittleness during hot processing such as forging. Its specific temperature range varies with the content of Zn, generally 200-700 between °C. Therefore, the temperature during hot working should be higher than 700°C.
Mechanical properties:
High-strength brass has different zinc content and different mechanical properties. For α brass, with the increase of zinc content, σb and δ both increase continuously. Therefore, copper-zinc alloys containing more than 45% zinc have no practical value. The standard high-strength brass has a Brinell hardness HB greater than 200, a compressive strength greater than 600MPa, and an elongation greater than 10%.
Brass Application:
High-strength brass is widely used. It is cast into bearing bushes and bushings. The solid-lubricated oil-free bearings (referred to as solid-lubricated bearings) mainly made of high-strength brass in China are based on high-strength and high-strength brass. , and radially embedded and arranged cylindrical polymer fillers are friction materials (generally graphite, molybdenum disulfide, polytetrafluoroethylene, engine oil, and other lubricants), and its advantages are mainly in that it makes copper alloys and non-metallic materials. The anti-friction materials have their own complementary advantages. They not only have a high bearing capacity but also break through the limit of general bearings relying on an oil film and grease lubrication to achieve oil-free lubrication. The embedded solid lubrication is easy to form a lubricating film, which plays a role in its friction and wear performance Great improvement, stable, reliable, and cost-effective. Compared with composite oil-free bearings, it has the advantages of good machinability, high precision, strong bearing capacity, and good wear resistance. This self-lubricating guide sleeve guide plate can be used in many fields such as construction machinery joints, such as excavators, mining scrapers, rotary drilling rigs, concrete pump trucks, rock drilling machinery, hoists, port cranes, etc., as well as metallurgical Mechanical continuous casting machinery, water conservancy machinery, conveying machinery, rolling mill, bottle blowing machine, film blowing machine, crosshead clamping differential for injection molding machine, tire vulcanizing machine, trailer balance beam, vacuum switch, etc.
Bronze Stroke plate size chart & list. Find your bronze wear strips “JZP” wear plate standard metric size Or “JSPW Plate”
|
Graphite plates
Trusted & Reliable Cam Dwell Wear Plates Supplier
Trusted handyman services
Graphite Prices – Find Competitive Prices – Check out the variety of configurable,
Order Graphite from certified Suppliers with immediate availabilities. Secure your supply chain by easily finding new trusted Suppliers. Request Quotes Now! Long-term Agreements.
Oil-free Bronze Plates Online Sourcing
Custom graphite plates solutions for your engineering needs.
Find good price plate products & new supplier.
The Online Shop for Bronze Graphite, for various graphite grades and plate. High quality – low prices. Reliable Service. Graphite Thrust Bearings – For High Temp Applications. We constantly strive to provide our customers with excellent service. select the right sliding bronze parts from our versatile assortment and to inquire directly online.
Switch to Oil-free Bronze Plates – Metal Brass Friction Plate
Graphite Bronze Plate- Reduced Costs & Downtime
Bronze Wear Strips – Holes and Graphite, Choose from our selection of bronze strips in a wide range of type and sizes. Personal Customer Service. Bronze wear plate, Sample Requests. Long-term Agreements. Try It For Free.
graphite Cam plates

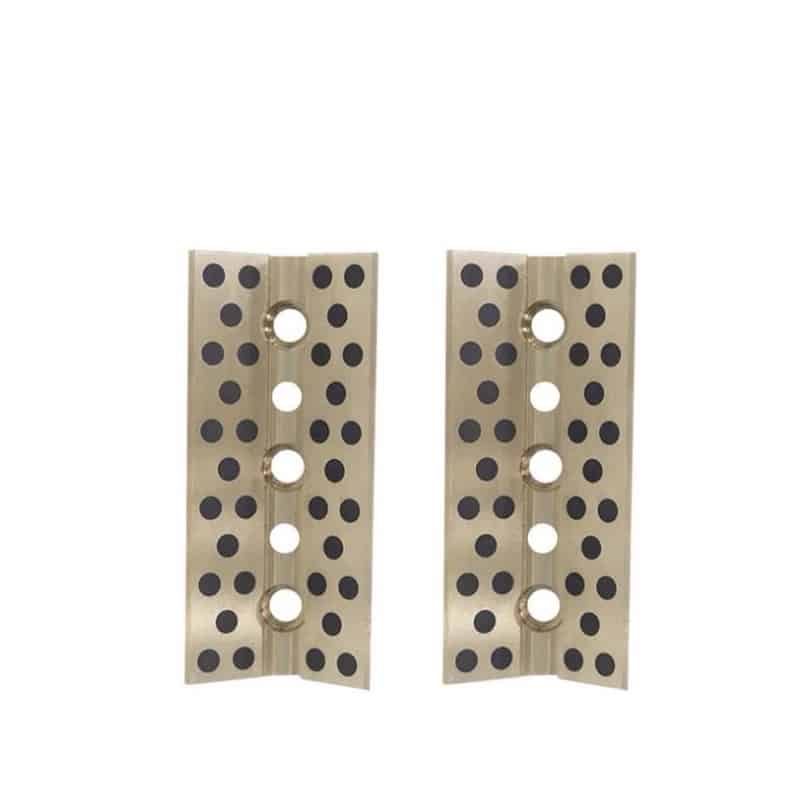

V-guide block for swash wedge U-guide block Swash wedge linear guide V-guide V-slide plate. Product Overview: The guiding mechanism to ensure the direction of movement of the mechanism in the inclined wedge, through the convex and concave two guide plates overlap to ensure the running track. Compared with ordinary guide plate, wear plate, not only has the lubrication, wear resistance, bite resistance of ordinary guide plate.
At the same time, it can restrict the movement in the left and right direction, and further improve the guiding performance with higher precision, usually a male and a female are used together.
Material: products usually have high force brass + cylindrical graphite composition, there are also pure steel and steel + cylindrical graphite products. Usually a piece of copper with a piece of steel.
Self-Lubricating Copper Slide Plate Product Features
1.Material & Product Composition. The product is divided into two pieces, the upper copper and lower steel, the upper V guide plate is made of high force brass with dot graphite, the lower V guide plate is made of steel with high frequency quenching, the hardness of the lower V plate can reach HRC55+. 2. Wear resistance. Upper guide plate graphite by oil dipping treatment, fully absorb the lubricant, to ensure that there is enough lubricant in operation. The lower guide plate is made of steel with high frequency quenching hardness up to HRC55+. Ensure the wear resistance 3. Precision & replaceability The products are tested for coloring rate when they leave the factory, and the coloring rate is more than 80%. If any one of the convex V guide plate and concave V guide plate is damaged, it can be purchased separately.
Self-Lubricating Bronze Slide Plate Oilless Plugge Graphite
How much do you know about the principle of self-lubricating bearings?
Mold standard parts and self-lubricating bearings in China! Most of the bearings used in various mechanical industries are still ball, needle and so on, only a small part of self-lubricating bearings have been used, I believe that in the near future self-lubricating bearings will be highly adaptable, wear-resistant, economic and other indisputable advantages and become the recognized products in the bearing industry. The following is part of the self-lubricating bearing application characteristics and advantages: oil-free lubrication bearing series.
1、No oil lubrication or less oil lubrication, suitable for places where it is impossible to refuel or very difficult to refuel, can be used without maintenance or less maintenance.
2、Good wear resistance, small friction coefficient, long service life.
3, there is a moderate amount of elasticity, can distribute the stress in a wider contact surface, improve the bearing capacity.
4, static and dynamic friction coefficient is similar, can eliminate the crawling at low speed, so as to ensure the working accuracy of the machinery.
5、It can make the machinery reduce vibration, reduce noise, prevent pollution and improve labor conditions.
6、The transfer film can be formed during the operation to protect the shaft of the grinding, no gnawing phenomenon.
7、The hardness requirement for the grinding shaft is low, and the shaft without tempering treatment can be used, thus reducing the processing difficulty of related parts.
8、Thin-walled structure, light weight, can reduce the volume of machinery.
9、The back of the steel can be plated with a variety of metals, can be used in corrosive media; has been widely used in a variety of machinery sliding parts, such as: printing machines, textile machines, tobacco machinery, micro-motors, automobiles, motorcycles and agricultural and forestry machinery and so on.
Boundary lubrication self-lubricating bearing series introduction
1. Good load bearing, good wear resistance.
2. Suitable for high load and low speed rotating motion, swing motion and often under load opening and closing frequent and not easy to form hydrodynamic lubrication occasions.
3. In the boundary lubrication conditions can be long-term maintenance without oil, and in the over layer of oil to make the bearing life longer.
4. The surface plastic layer can leave a certain amount of margin when processing and molding, and can be processed by itself after assembling and pressing into the seat hole to achieve better assembly size.
5.The products are mainly used in automobile chassis, metallurgical machinery, mining machinery, water conservancy machinery, construction machinery, agricultural machinery, steel rolling equipment, etc. JDB solid inlay bearing series JDB solid inlay bearing series are universal basic products, no matter high pressure, low pressure, high temperature, low temperature, oil lubrication, oil-free lubrication or water lubrication, can be adapted. The base of the product is high force brass, which doubles the hardness and more than doubles the wear resistance than the general brass bush. Widely used in: light industry machinery, heavy industry machinery, construction machinery, metallurgical machinery, conveying machinery, such as: continuous casting machine, rolling mill, injection molding machine, paper making machine, mold guide pillar, ships, machine tools, etc.
Self-lubricate Cam Plate & Slide plate
Slide plate
The slide plate is a mechanism that changes vertical motion into horizontal motion or inclined motion by using a slide plate and a self-lubricating slide plate together. It changes the vertical force of the machine tool into the inclined force.
A mechanism that changes vertical motion into horizontal or inclined motion by using a self-lubricating slide plate in conjunction with a slanting wedge.
The inclined wedge mechanism is a mechanism that changes vertical motion into horizontal motion or inclined motion by using an inclined wedge and a self-lubricating slide plate. The slanting wedge, also called active slanting wedge, acts as the force-applying body in the work; self-lubricating slide plate – the working slanting wedge, the force-applying body; the subsidiary devices – the anti-lateral block, pressure plate, guide plate (guide), anti-friction plate, spring The device that plays the role of attachment, guidance and force balance of the oblique mold, such as screws, etc.
Classification Editor Podcast
According to the attachment method of self-lubricating slide plate, the commonly used inclined wedge mechanism can be divided into 3 types.
Ordinary inclined wedge mechanism, self-lubricating slide plate attached to the lower die, called flat wedge, as shown in Figure 1.
self-lubricating slide plate is attached to the upper die, and the die goes up with the upper die after working, which is called the lifting wedge mechanism.
Slide plates are components of linear motion mechanisms. slide plate linear motion components are used in a wide variety of industries such as machine tools, semiconductor manufacturing equipment, etc. A linear bushing is a linear motion mechanism that uses a cylindrical shaft with a steel ball in a cage that rolls while making point contact with the shaft, enabling highly accurate linear motion with minimal frictional resistance. A ball screw is a device that converts the rotation of a helical shaft into a linear motion. Using motors, etc., it is also possible to change rotary motion into linear motion and linear motion into rotary motion. Linear guide is a bearing that provides smooth motion in the direction of the guide and has low friction due to the rolling motion of the steel balls. Linear guide has no propulsion, so it is used in combination with cylinder or motor, ball screw, etc. There are also single-axis actuators and single-axis robots that integrate ball screws, linear guides and motors to reduce assembly steps.
