Reliable Sleeve Bearing | Metric Size
Morbi lobortis netus ac eget at montes.

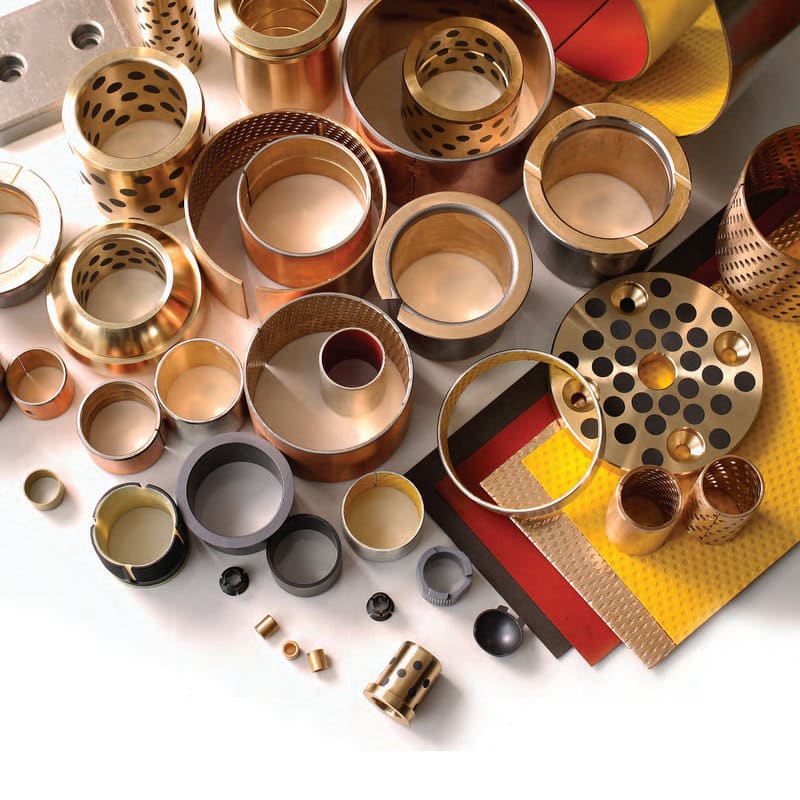

Self-lubricating Bearing Bushes Supplier
We offer self-lubricating bushes and bearings CNC precision machined in a variety of sizes. Choose your sleeve bearing size on our site for your custom fit.
A bush bearing, also known as a bushing or bush, is one classic type of independent plain bearing. Find More.
Self-lubricating and relubricable bushings
Quality Minded Bearings, Selecting the Correct Bushing
All bushing bearings production is guaranteed because it is tested twice to meet high standards: first in the factory and a second time in the our bushing bearings Quality Control Laboratory China. As a high performance bearing manufacturer in China and a global tribology solution exporter, we provide fast and efficient service to customers in many fields around the world with our authoritative professional knowledge. Our products play a role in all kinds of critical applications around the world every day, driving the continuous development and progress of the industrial world.
In the automotive industry, it is mainly used in the application of car seat bearings, to improve the comfort of car seats, and to provide gearbox tribology solutions and tribology coating solutions. With increasing demands for noise reduction, electrification, autonomous driving and comfort, automakers need to study every component of their vehicles to reduce weight and expand space. Self-lubricating bearings and surface solutions not only meet strict design, function and emission standards, but also help improve the safety and reliability of vehicles, enabling them to have better fuel economy and greatly improve customer satisfaction. We have also introduced polymer coatings as an environmentally friendly solution that can replace the high toxic levels and high cost of conventional hard chromium plating solutions.
Custom-Made Bearing & Bushing： Viiplus Offers Bushes & Parts Made Out From, Sintered Bronze (Self Lubricating), (Dry Bushes & Washers) Graphite Filled Bronze Bushes & Plates,Wrapped Bronze Bushes, Bi-Metal Bushes (Gun Metal, Phosphor Bronze, Aluminium Bronze Etc.)
Viiplus has a range of glacier style bearing bushes, split bearing bushes, flanged split bearing bushes, DU split bearings & DX split bushes.
Each bushing design and material combination has specific properties that make the bushing particularly suitable for certain applications：
- Steering system: steering support base, steering column, steering oil pump
- Variable speed system: rear output shaft, spindle, reverse shaft, clutch, pump, solenoid valve, planetary gear set, shift fork
- Seat: seat adjuster, height adjustment mechanism and seat frame
- Axle: transmission train, kingpin
- Braking system
- Hinges: door hinge, trunk, hood hinge, automatic door closing device
- Engine management: water and oil pump, tensifier wheel, pulley damper
- Wiper,
- Cabriolet roof
- Interior,
- Suspension and shock absorbers
- The control rods,
- The pedal
High Wear Resistance with Low Friction
Plain Bearing Bush From maintenance-free to requiring maintenance
Custom Bearing Bush Services, Custom Self-Lubricating Bushes Solutions.
The professional manufacture and sale of oilless lubrication bearings. The purpose of oilless lubrication bearings & development of new materials different areas. Safety Quality Assurance。High quality factory.
Find here online price details of companies selling Bearing Bushes. Get info of suppliers, manufacturers, exporters, traders of Bearing Bushes for buying in China.
High Quality Bearing Bush Manufacturers
The promise of bush bearings high quality, meet your requirement.
Bush Type Bearing
Cylindrical bushings, flanged bushings and strips are standard fabrication.
WHAT IS A BEARING & BUSHING?
Bushing Bearings are tribological components that carry a load while in contact with and moving relative to another part. The movement may be sliding or rotating. There are basically two different types of bearings: plain bearings and roller bearings. Other types include fluid bearings that support their loads on a thin layer of gas or liquid; magnetic bearings that use magnetic fields to carry their loads; hinge-like flexure bearings in which the load is supported by a bending element; and jewel bearings used in watches and clocks.
Sliding Bearing Bush Material And Bushing Type Selection Guides
BUSH AND BEARING PRODUCTION
Always tested. Always proven. Global website www.bronzelube.com
SELF-LUBRICATING BUSHING ONLINE
Customize your bearing, Plain Bearings Bushes at Good Price in China
Manufacturers of Bush Bearings, Bushing Tolerance & Bearings
A bush bearing, also known as a bearing or bush, is one classic type of independent plain bearing. It is a mechanical component which is designed to provide a bearing surface for rotary applications, reducing friction between the spinning shafts and stationary supporting elements.
high quality services – performance-based prices – simple solutions–flawless products. We offer an extensive range of sliding bearings and excellent customer service. Contact now.
Reliable & Safe Bearing Bush Manufacturers & Supplier
Find the bearing bush type for your business!
Trusted partners. Bearing bush technical solutions.
Bushings, (sometimes called plain bearings, plain bushings, or sleeve bearings) reduce friction between two surfaces sliding against each other.
Our customers look to us to provide them the bearing bushes with the highest quality, custom designed plain bearings and tolerance rings for use in an extensive range of applications.
A Variety Of Low Friction Bearing Bush Materials

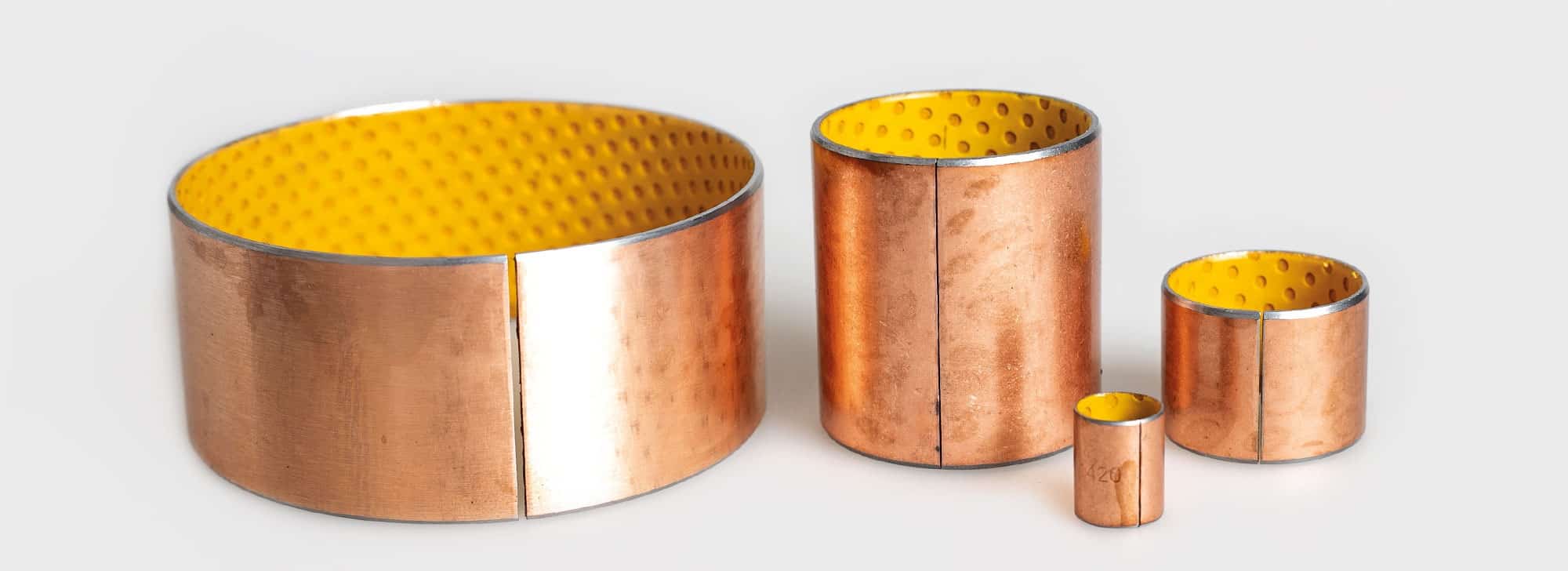

- Metal-polymer plain bearings
- Plastic plain bearing
- Composite bearing bushes
- Monometallic, bimetallic and sintered bronze plain bearings
As bearing bush manufacturers, we supply sliding bearings, tolerance rings and bearings to high volume international Original Equipment Manufacturers (OEMs) and Tier One suppliers in various industries.
High Performance Self-lubricating Bearing Bushes Sourcing Online
We create market-recognized quality plain bearing solutions. We help bearing bush stay in front. We make you satisfied.
Our unmatched bearing product inventory, industry-specific experience, and overall bearing bush technical know-how ensure you get the bushes & bearing solution and support you need.
* Our enterprise, is one of the undisputed supplier of the highly plain bearing bushing industry in china.
You can find the largest assortment Plain Bearing Bushes at www.bronzelube.com. Choose from more than 1,000 bushings sleeve and order right away.
Online shopping for Sleeve Bearing Bush – Bushings & Bush Type Bearings from a great selection at www.bronzelube.com.
Plain Bearings For Everything That Moves
We’ve been committed to continuous learning and applying that self-lubricating bearing bushing sleeve knowledge to help our customers and partners achieve greater success.
Due to vast range many standard bushes / washers are available in ready stock.
- Bushing Types: Plain bearings, sleeve bearings, linear sleeve bushings
- Materials: Bronze, composite, plastic, PTFE-lined, self-lubricating steel
Plain bearings – sometimes known as bushes, bushings or sleeves – come in a variety of materials and compositions to suit most demanding applications.
BUSHINGS TYPE
Bearing bush forms available in standard dimensions.
Bushing Bearing type made to order: cylindrical bushes, thrust washers, sliding plates, half-bearings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bearing designs.
Choose from our selection of self-lubricating bearing bushing sleeve , sleeve bearings, bush type bearings, and more. In stock and ready to ship.
Self-lubricating bushes and bearings are used where the bearing must operate without lubricant or with marginal lubricant. Our goal is to ensure that the bearing offers the best performance and maximum life in various conditions. The principle of operation of self-lubricating bearings is that, during the initial bearing break-in period, there will be a solid lubricating film created by the transfer of a small amount of material from the bearing layer. This film comes into direct contact with moving parts, protecting and lubricating mating components and extending bearing life.
- Sintered Bronze / Iron Sintered Self Lubricated Bushes / Parts
- Dry Bushes & Washers

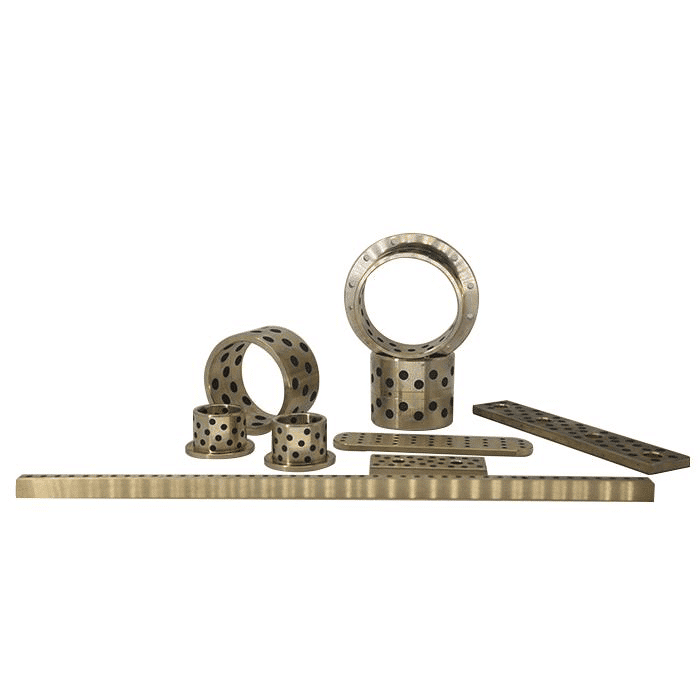

- Graphite Filled Bronze Bushes / Plates
- Wrapped Bronze Bearing
- Bimetal bushes
Self-lubricating Bearing Bush Advantages
- Elimination of Oil Holes and Grooves – No cost of machining oil holes and oil grooves required. The self-lubrication eliminates the need for an additional oil system.
- Reduction of machinery operating costs – Thanks to the maintenance-free features, the lubricating oil is drastically reduced; machinery operating costs will also decrease.
- Maintenance-Free Operation – Self-lubricating bearings solve the problem of lubrication operation and lubrication devices, which also helps reduce bearing maintenance costs.
- Simplified mechanical design and fabrication. With the above advantages, thin wall thickness, higher load and excellent wear resistance, the mechanical structure can be simplified and made more economical.
View our range of glacier style bearing bushes, split bearing bushes, flanged split bearing bushes, DU split bearings & DX split bushes. Buy online today for great prices and fast delivery.
Standard cylindrical bushing sizes
| d | D | d SHAFT
(mm) |
D HOUSING
(mm) |
f
mm. |
|||||||||||||||
| 4 | 5 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | 40 | 50 | ||||||||
| 3* | 5 | 3 | – 0.025 | 5 | + 0.010 | 0304 | 0305 | 0306 |
0,5 |
||||||||||
| – 0.037 | (H7) | – 0 | |||||||||||||||||
| 4* | 6 | 4 | – 0.025 | 6 | + 0.012 | 0404 | 0406 | 0408 | |||||||||||
| – 0.040 | (H7) | – 0 | |||||||||||||||||
| 5 | 7 | 5 | ” | 7 | + 0.015 | 0504 | 0505 | 0506 | 0508 | ||||||||||
| (H7) | – 0 | ||||||||||||||||||
| 6 | 8 | 6 | ” | 8 (H7) | 0606 | 0608 | 0610 | ||||||||||||
| 7 | 9 | 7 | – 0.025 | 9 |
(H7) |
0710 | 0712 | ||||||||||||
| – 0.040 | |||||||||||||||||||
| 8 | 10 | 8 | ” | 10 |
(H7) |
” | 0806 | 0808 | 0810 | 0812 | 0820 | ||||||||
| 9 | 11 | 9 | ” | 11 |
(H7) |
” | 0910 | ||||||||||||
| 10 | 12 | 10 | ” | 12 | + 0.018 | 1006 | 1008 | 1010 | 1012 | 1015 | 1020 | ||||||||
| (H7) | – 0 | ||||||||||||||||||
| 12 | 14 | 12 | – 0.025 | 14 |
(H7) |
” | 1206 | 1208 | 1210 | 1212 | 1215 | 1220 | 1225 | ||||||
| – 0.043 | |||||||||||||||||||
| 13 | 15 | 13 | ” | 15 |
(H7) |
” | 1310 | 1320 | |||||||||||
| 14 | 16 | 14 | ” | 16 |
(H7) |
” | 1410 | 1412 | 1415 | 1420 | 1425 | ||||||||
| 15 | 17 | 15 | ” | 17 |
(H7) |
” | 1510 | 1512 | 1515 | 1520 | 1525 | ||||||||
| 16 | 18 | 16 | ” | 18 |
(H7) |
” | 1610 | 1612 | 1615 | 1620 | 1625 | ||||||||
| 17 | 19 | 17 | ” | 19 (H7) | ” | 1710 | 1712 | 1715 | 1720 | ||||||||||
| 18 | 20 | 18 | ” | 20 | + 0.021 | 1810 | 1812 | 1815 | 1820 | 1825 | |||||||||
| (H7) | – 0 | ||||||||||||||||||
| 20 | 23 | 20 | – 0.025
– 0.046 |
23 (H7) | ” | 2010 | 2012 | 2015 | 2020 | 2025 | 2030 |
0,8 |
|||||||
| 22 | 25 | 22 | ” | 25 |
(H7) |
” | 2210 | 2212 | 2215 | 2220 | 2225 | 2230 | |||||||
| 24 | 27 | 24 | ” | 27 (H7) | ” | 2415 | 2420 | 2425 | 2430 | ||||||||||
| 25 | 28 | 25 | ” | 28 |
(H7) |
” | 2510 | 2512 | 2515 | 2520 | 2525 | 2530 | 2550 | ||||||
| 28 | 32 | 28 | ” | 32 | + 0.025 | 2815 | 2820 | 2825 | 2830 | 2840 | |||||||||
| (H7) | – 0 | ||||||||||||||||||
| 30 | 34 | 30 | ” | 34 |
(H7) |
” | 3012 | 3015 | 3020 | 3025 | 3030 | 3040 | |||||||
| 32 | 36 | 32 | – 0.025 | 36 (H7) | ” | 3220 | 3230 | 3240 | |||||||||||
| – 0.050 | 1 | ||||||||||||||||||
| 35 | 39 | 35 | ” | 39 |
(H7) |
” | 3512 | 3515 | 3520 | 3525 | 3530 | 3540 | 3550 | ||||||
| 38 | 42 | 38 | ” | 42 (H7) | ” | 3815 | 3820 | 3830 | 3840 | ||||||||||
| 40 | 44 | 40 | ” | 44 |
(H7) |
” | 4012 | 4020 | 4025 | 4030 | 4040 | 4050 | |||||||
| d | D | d SHAFT
(mm) |
D HOUSING
(mm) |
f
mm. |
|||||||||||||
| 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 95 | 100 | 115 | ||||||
| 45 | 50 | 45 – 0.025 | 50 (H7) | + 0.025 | 4520 | 4525 | 4530 | 4540 | 4550 | ||||||||
| – 0.037 | + 0 | ||||||||||||||||
| 50 | 55 | 50 ” | 55 (H7) | + 0.030 | 5020 | 5030 | 5040 | 5050 | 5060 | ||||||||
| – 0 | |||||||||||||||||
| 55 | 60 | 55 – 0.025 | 60 (H7) | ” | 5530 | 5540 | 5550 | 5560 | |||||||||
| – 0.055 | |||||||||||||||||
| 60 | 65 | 60 ” | 65 (H7) | ” | 6030 | 6040 | 6050 | 6060 | 6070 | 1.2 | |||||||
| 65 | 70 | 65 + 0.005 | 70 (H7) | ” | 6530 | 6540 | 6550 | 6560 | 6570 | ||||||||
| – 0.035 | |||||||||||||||||
| 70 | 75 | 70 ” | 75 (H7) | ” | 7040 | 7050 | 7060 | 7070 | 7080 | ||||||||
| 75 | 80 | 75 ” | 80 (H7) | ” | 7530 | 7540 | 7550 | 7560 | 7580 | ||||||||
| 80 | 85 | 80 ” | 85 (H7) | + 0.035 | 8040 | 8060 | 8080 | 80100 | |||||||||
| – 0 | |||||||||||||||||
| 85 | 90 | 85 + 0.005 | 90 (H7) | ” | 8540 | 8560 | 8580 | 85100 | |||||||||
| – 0.030 | |||||||||||||||||
| 90 | 95 | 90 ” | 95 (H7) | ” | 9040 | 9050 | 9060 | 9090 | 90100 | ||||||||
| 95 | 100 | 95 ” | 100 (H7) | ” | 9550 | 9560 | 95100 | 1,4 | |||||||||
| 100 | 105 | 100 ” | 105 (H7) | ” | 10050 | 10060 | 100115 | ||||||||||
| 105 | 110 | 105 ” | 110 (H7) | ” | 10560 | 105115 | |||||||||||
| 110 | 115 | 110 ” | 115 (H7) | ” | 11060 | 110115 | |||||||||||
| 120 | 125 | 120 ” | 125 (H7) | + 0.040 | 12060 | 120100 | |||||||||||
| – 0 | |||||||||||||||||
| 125 | 130 | 125 + 0.005 | 130 (H7) | ” | 125100 | 125115 | |||||||||||
| – 0.045 | |||||||||||||||||
| 130 | 135 | 130 ” | 135 (H7) | ” | 13060 | 130100 | |||||||||||
| 140 | 145 | 140 ” | 145 (H7) | ” | 14060 | 140100 | |||||||||||
| 150 | 155 | 150 ” | 155 (H7) | ” | 15050 | 15080 | 150100 | ||||||||||
| 160 | 165 | 160 ” | 165 (H7) | ” | 160100 | 1,6 | |||||||||||
| 180 | 185 | 180 ” | 185 (H7) | + 0.046 | 180100 | ||||||||||||
| – 0 | |||||||||||||||||
| 200 | 205 | 200 + 0 | 205 (H7) | ” | 200100 | ||||||||||||
| – 0.071 | |||||||||||||||||
| 220 | 225 | 220 ” | 225 (H7) | ” | 220100 | ||||||||||||
| 250 | 255 | 250 ” | 255 (H7) | + 0.050 | 250100 | ||||||||||||
| – 0 | |||||||||||||||||
| 300 | 305 | 300 + 0 | 305 (H7) | ” | 300100 | ||||||||||||
| – 0.081 | |||||||||||||||||
Standard bearing bush sizes (with flanges)
| d | D | d
AXEL (mm) |
D
HOUSING (mm) |
Thickness | FD
diam. flange |
“L” Bush total Width (mm) ± 0,25 | ||||||||||||||||||||||
| T1 | T2 | 4 | 5,5 | 7 | 7,5 | 8 | 9 | 9,5 | 11,5 | 12 | 16 | 16,5 | 17 | 21,5 | 26 | 32,5 | 42,5 | 52,5 | 62,5 | |||||||||
| 6 | 8 | 6 | – 0.025 | 8 (H7) | + 0.015 | 0
1.0 – 0.03 |
1.0 | 0
– 0.2 |
12 | 0603 | 0606 | 0608 | ||||||||||||||||
| – 0.037 | – 0 | -12T | -12T | -12T | ||||||||||||||||||||||||
| 8 | 10 | 8 | ” | 10 | ” | 15 | 0804 | 0806 | 0808 | |||||||||||||||||||
| -15T | -15T | -15T | ||||||||||||||||||||||||||
| 10 | 12 | 10 | ” | 12 (H7) | + 0.018 | 18 | 1006 | 1008 | 1010 | 1015 | ||||||||||||||||||
| – 0 | -18T | -18T | -18T | -18T | ||||||||||||||||||||||||
| 12 | 14 | 12 | – 0.025 | 14 | ” | 20 | 1206 | 1208 | 1210 | 1215 | ||||||||||||||||||
| – 0.043 | -20T | -20T | -20T | -20T | ||||||||||||||||||||||||
| 14 | 16 | 14 | ” | 16 | ” | 22 | 1408 | 1410 | 1415 | |||||||||||||||||||
| -22T | -22T | -22T | ||||||||||||||||||||||||||
| 15 | 17 | 15 | ” | 17 | ” | 23 | 1508 | 1510 | 1515 | |||||||||||||||||||
| -23T | -23T | -23T | ||||||||||||||||||||||||||
| 16 | 18 | 16 | ” | 18 | ” | 24 | 1608 | 1610 | 1615 | |||||||||||||||||||
| -24T | -24T | -24T | ||||||||||||||||||||||||||
| 18 | 20 | 18 | ” | 20 (H7) | + 0.021 | 26 | 1810 | 1815 | ||||||||||||||||||||
| – 0 | -26T | -26T | ||||||||||||||||||||||||||
| 20 | 23 | 20 | – 0.025 | 23 | ” | 31 | 2010 | 2015 | 2020 | |||||||||||||||||||
| – 0.046 | 1.5 | 0
– 0.03 |
1.5 | 0
– 0.2 |
-31T | -31T | -31T | |||||||||||||||||||||
| 22 | 25 | 22 | ” | 25 | ” | 33 | 2210
-33T |
2215
-33T |
2220
-33T |
|||||||||||||||||||
| 25 | 28 | 25 | ” | 28 | ” | 36 | 2510 | 2515 | 2520 | |||||||||||||||||||
| -36T | -36T | -36T | ||||||||||||||||||||||||||
| 30 | 34 | 30 | ” | 34 | ” | 2.0 | 0
– 0.03 |
2.0 | 0
– 0.2 |
42 | 3015 | 3025 | ||||||||||||||||
| -42T | -42T | |||||||||||||||||||||||||||
| 35 | 39 | 35 | ” | 39 | ” | 49 | 3515 | 3525 | ||||||||||||||||||||
| -49T | -49T | |||||||||||||||||||||||||||
| 40 | 44 | 40 | ” | 44 | ” | 54 | 4025 | |||||||||||||||||||||
| -54T | ||||||||||||||||||||||||||||
| 45 | 50 | 45 | ” | 50 | ” | 2.5 | 0
– 0.03 |
2.5 | 0
– 0.3 |
60 | 4530 | |||||||||||||||||
| -60T | ||||||||||||||||||||||||||||
| 50 | 55 | 50 | ” | 55 (H7) | + 0.030 | 65 | 5030 | 5050 | ||||||||||||||||||||
| – 0 | -65T | -65T | ||||||||||||||||||||||||||
| 60 | 65 | 60 | ” | 65 | ” | 75 | 6040 | 6060 | ||||||||||||||||||||
| -75T | -75T | |||||||||||||||||||||||||||
Standard THRUST WASHER sizes
| Nomination |
Type |
Di
+ 0,25 mm |
De
– 0,25 mm |
Sp
– 0,05 mm |
a
+0,2 mm |
I
± 0,12 mm |
| Bearing Bush Thrust Washer | TW8M | 10 | 20 | 1,5 | 1,5 | 15 |
| Bearing Bush Thrust Washer | TW10M | 12 | 24 | 1,5 | 1,5 | 18 |
| Bearing Bush Thrust Washer | TW12M | 14 | 26 | 1,5 | 2 | 20 |
| Bearing Bush Thrust Washer | TW14M | 16 | 30 | 1,5 | 2 | 23 |
| Bearing Bush Thrust Washer | TW16M | 18 | 32 | 1,5 | 2 | 25 |
| Bearing Bush Thrust Washer | TW18M | 20 | 36 | 1,5 | 3 | 28 |
| Bearing Bush Thrust Washer | TW20M | 22 | 38 | 1,5 | 3 | 30 |
| Bearing Bush Thrust Washer | TW22M | 24 | 42 | 1,5 | 3 | 33 |
| Bearing Bush Thrust Washer | TW24M | 26 | 44 | 1,5 | 3 | 35 |
| Bearing Bush Thrust Washer | TW25M | 28 | 48 | 1,5 | 4 | 38 |
| Bearing Bush Thrust Washer | TW30M | 32 | 54 | 1,5 | 4 | 43 |
| Bearing Bush Thrust Washer | TW35M | 38 | 62 | 1,5 | 4 | 50 |
| Bearing Bush Thrust Washer | TW40M | 42 | 66 | 1,5 | 4 | 54 |
| Bearing Bush Thrust Washer | TW45M | 48 | 74 | 2 | 4 | 61 |
| Bearing Bush Thrust Washer | TW50M | 52 | 78 | 2 | 4 | 65 |
| Bearing Bush Thrust Washer | TW60M | 62 | 90 | 2 | 4 | 76 |
| Nomination | STRIP TYPE | SIZES | |||
| T mm | B mm | B1 mm | L mm | ||
| Bearing Strip | 125 10 | 1,0 | 125 | 120 | 500 |
| Bearing Strip | 125 15 | 1,5 | 125 | 120 | 500 |
| Bearing Strip | 125 20 | 2,00 | 125 | 120 | 500 |
| Bearing Strip | 125 25 | 2,5 | 125 | 120 | 500 |
| Bearing Strip | 125 30 | 3,00 | 125 | 120 | 500 |
| Bearing Strip | 170 10 | 1,0 | 170 | 165 | 1000 |
| Bearing Strip | 170 15 | 1,5 | 170 | 165 | 1000 |
| Bearing Strip | 170 20 | 2,0 | 170 | 165 | 1000 |
| Bearing Strip | 170 25 | 2,5 | 170 | 165 | 1000 |
The right bush bearing solution for every application. Our control of bushing bearing factories ensures the quality of the entire manufacturing process to comply the ISO standards.
Typical applications include:
• Industrial • Agricultural
• Automotive • Marine
• Medical • Aerospace (Airbus & Boeing approved)
Industry
Automotive
Marine
Medical
Agriculture
Construction
Plain Bearing Bush， Good Quality Minded Spirits
We have the latest measurement and quality-assurance systems utilizing high- quality and precise measuring equipment
with which we conduct all necessary tests to guarantee high quality of entire production.
Join Over 500,000 Customer Enjoying Buying Self-lubricating Parts Now
Always tested. Always proven. Always Bronzelube.com
