High static load .
Standard material for general mechanical engineering! Alternative supporting bimetallic bearing backings!
- Cylindrical Bearing
- Spherical Bearing
- Radial Segment
- Thrust Washer
Maintenance-free. Self-lubricating Bimetallic Bushing. Durable
Bimetallic bearing composite material is a metal composite material consisting of a steel strip as a supporting base plate and a sintered self-lubricating bronze sliding layer. The solid lubricant (graphite or PTFE) dispersed in the sliding layer under preload makes the sliding bearing maintenance-free.
Maintenance-free and self-lubricating materials are available in different alloy variants and material thicknesses. The two-layer material construction enables compact and highly elastic plain bearing concepts to be realized and to function reliably.
The percentage content of solid lubricants as well as their particle form and distribution varies from alloy to alloy.
Bimetallic bearing composite material pile of different components
Bimetallic bearing composite material Advantages
high electrical conductivity, no electrostatic charging effect
High static and dynamic loading capacity
Can be used in radioactive environments
Suitable for dry operation, also for moderately lubricated applications
For different requirements, we choose between four different microstructures and additionally offer additional features such as type of steel backing, sliding layer with or without oil impregnation, surface structure, and additional solid lubricant deposition.

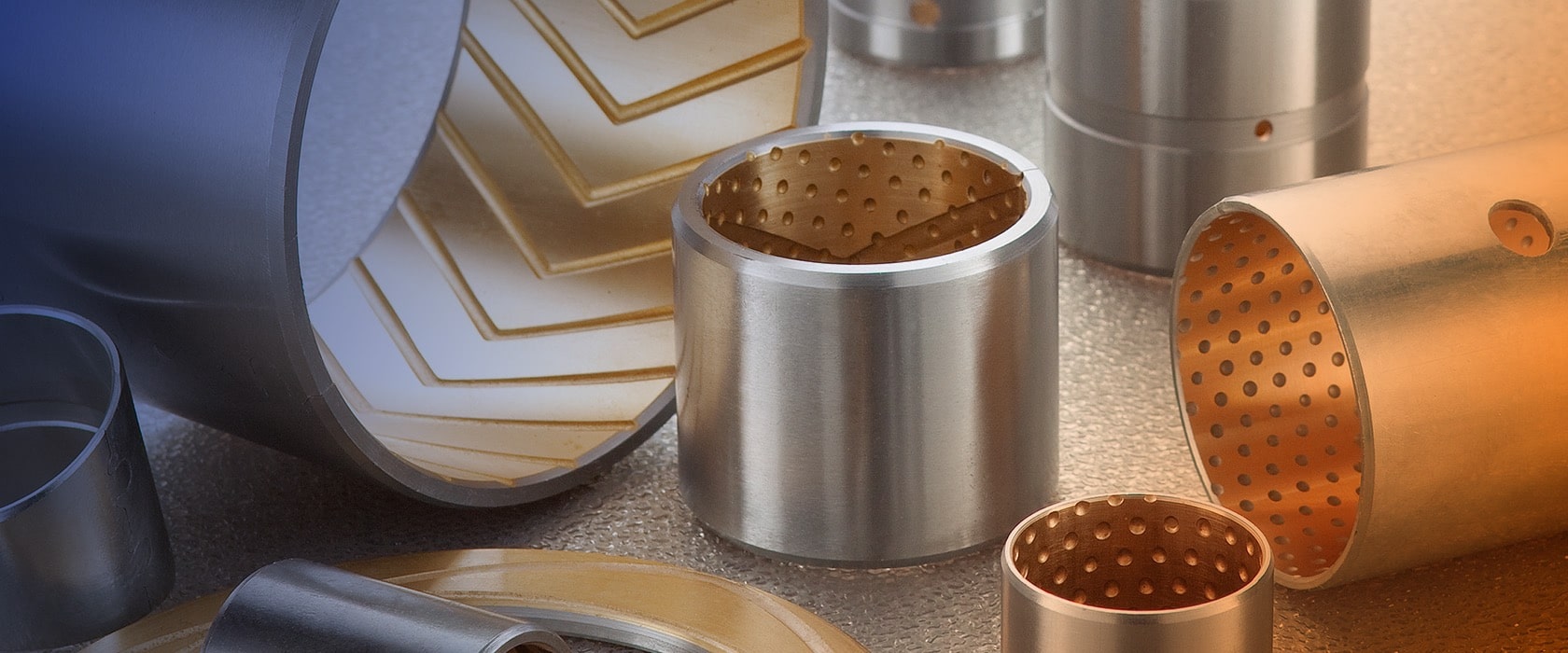

Bimetal bushings
Professional Manufacture For All Various Bushing Bearing
Steel + Bronze Alloy
Connecting Rod Bush Supply, Bimetal Bearing Bushing Manufacturer Type of Bimetal Alloy Linings. Bimetal Bushings Bearing Steel Bronze CuPb10Sn10 Bush, Engine Bearing Bush Bimetal Connecting Rod Bushing. Connecting Rod Bushing for Automotive Engine Bimetallic Bronze Steel Bearing CuPb10Sn10 Bush This bimetal bearing, the material is steel carrier with a layer of CuPb10Sn10 bronze. Normally these bearings installed on the connecting rod, which apply to automobile engines. We are happy to present a selection of bimetal bearing bushes documents for download. If you have any further questions please do not hesitate to get in touch.
Finishing from raw materials to finished bushing products
Bimetal Bushing Connecting Rod Bush Replacement
Professional R&D and production of self-lubricating bimetal bearings
Bush Bimetal Connecting Rod Bush
High Quality
The promise of bimetal bushings high quality, meet your requirement.

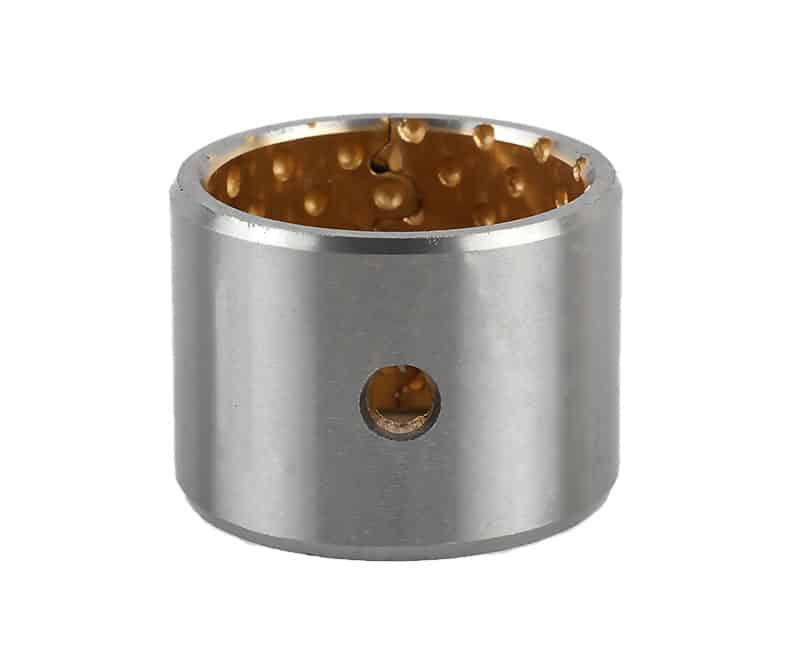

Connecting Rod Bush
Cylindrical bushings, flanged bushings and strips are standard fabrication.
Bimetal bearings & solutions
Leading bimetal bushing manufacturers – our advantages
Short time: Long-term relations with partners allow us to promptly supply the connecting rod bush for the equipment, without violating the terms of delivery. Professionalism: High qualification of specialists of our company is confirmed by the quality of bimetal bushings products and services. Optimum cost: With high quality of bushing & bearing services, we manage to offer our customers competitive prices.
Bronze Bushing Production
Design Longer Life Into Your Connecting Rod Bush.
Connecting Rod Bush at Good t Price in China.
With all the resource we have, we can definitely provide a better bearing service for our supplier partners.
Fast Delivery
Explore our connecting rod bushings solution to optimize your bearing.
Custom Service
Design Innovation Into Your Bimetal Bearing Bushes

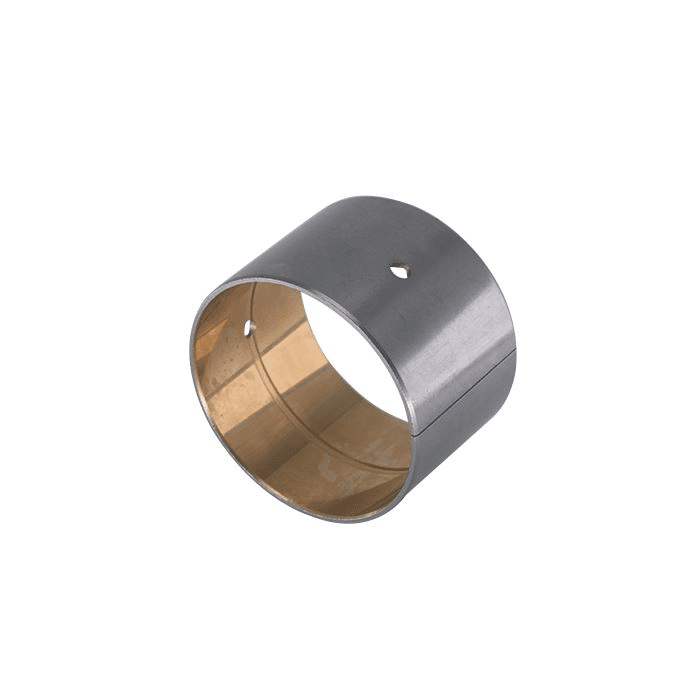

Bimetal Connecting Rod Bush- Find detailed information about Connecting Rod from www.bronzelube.com
The connecting rod is a tool that connects the piston and the crankshaft, transfers the force exerted by the piston to the crankshaft, and transforms the reciprocating motion of the piston into the rotating motion of the crankshaft.
The connecting rod group is composed of the connecting rod body, the connecting rod big head cover, the connecting rod small head bushing, the connecting rod big head bearing bush and the connecting rod bolt (or screw).
Connecting Rod Bush at Best Price in China
Connecting Rod Bush for engine are manufactured using the high quality materials.
- Material: Steel+Bronze alloy CuPb10Sn10
- Size: We can develop according to customers’ special requirement.
- Standard: CuPb10Sn10 (SAE 797)
- Working Temperature
- 150~280℃
- Outside Surface: Copper
- Used: Engine connecting rod
Quality connecting rod bush with free worldwide shipping on www.bronzelube.com
Con Rod Bush Manufacturer & Bimetal Bearing Supplier, Looking To Purchase Bimetal Bearings?
Connecting Rod bushing Manufacturers & Suppliers, Bi-metal Bush at Best Price in China! Custom Connecting Rod Bush Solution!
High quality Connecting Rod Bimetal Sleeve Bushes Steel Bronze with Lubricating Grooves from China
* Our enterprise, is one of the undisputed supplier of the highly competitive bimetal bushings industry in china.
High Quality, Good Service, Your Best Choice
Connecting rod bearing is a very key component of gasoline engine and diesel engine, which has a wide variety and a huge demand in quantity, among which the automobile engine has the largest demand.
High-Quality Bimetal Bearing Con Rod Bush To Your Specifications.
Connecting rod bearings provide rotating motion of the crank pin within the connecting rod, which transmits cycling loads applied to the piston. Connecting rod bearings are mounted in the Big end of the connecting rod. A bearing consists of two parts (commonly interchangeable).
Bimetal bushing is backed with high-quality low carbon steel with bronze alloy sintered on its surface. To effectively decrease abrasion, its alloy surface can be machined with ball-shaped oil pockets for easier oil storage. When necessary, an anti-corrosion coating can be plated on the steel back. It can be applied to conditions of mediate load with mediate or high running velocity and conditions with enormous impact load. Such as internal combustion engine bearing, connecting rod bearing, rock arm bearing, slide plate of oil gear pump and etc.
Supplier of Bimetal Bush Parts

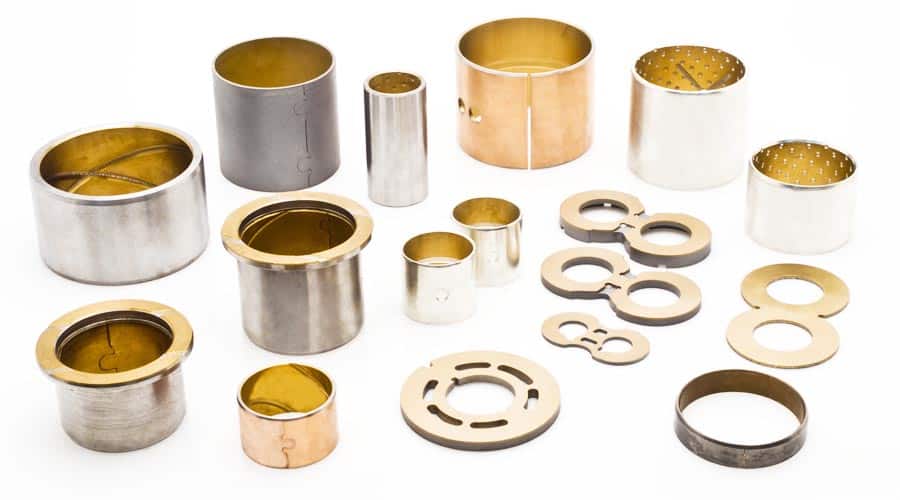

Bimetal bushings type
Bimetal bearings forms available in standard dimensions.
If you have any questions or are looking for bimetal bearings to purchase, please get in touch. Our range is vast we probably have what you are looking for in stock.
Bimetal bearings are commonly know as Con Rod Bush, Thrust Washers & Camshaft bushes / Con Rod Bearings.

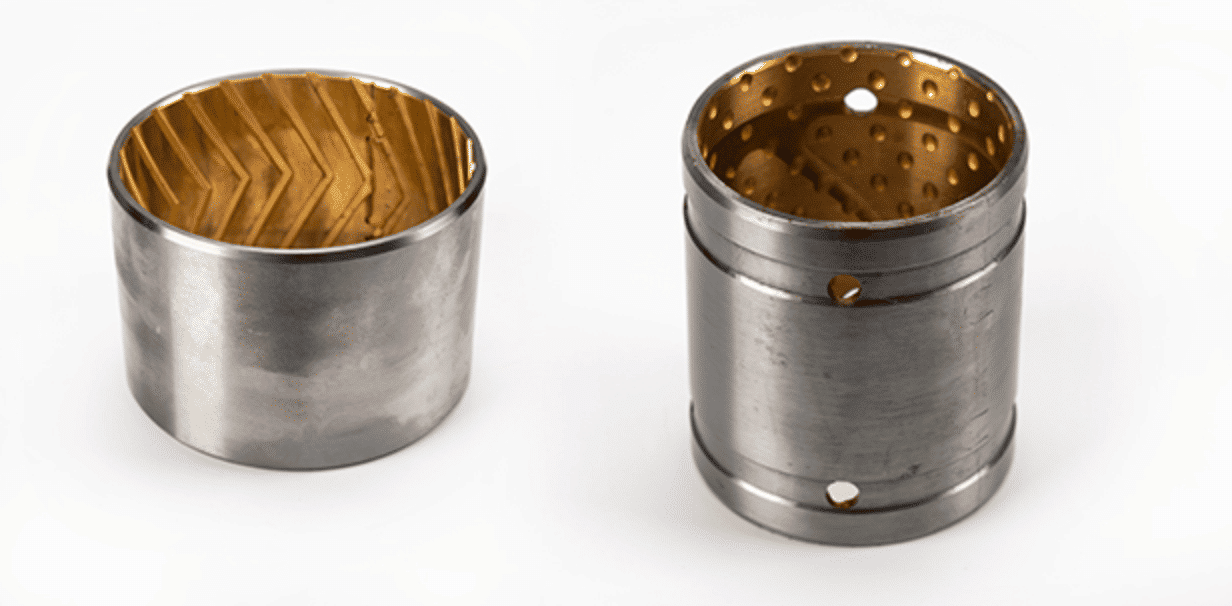

Bimetal Steel Backed Leaded Bronze Bushing
Bimetallic steel backed lead bronze coating bush suitable for oil lubricated applications. This material has a high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal pads, kingpin bearings, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors and pumps, agricultural machinery, etc.
Structure
1.Bi-metal Sintered bronze layer: Good wear resistance and excellent load carrying capacity.
2.Steel backing: Setting the foundation of the bushings,the steel backing provides exceptional stability, load carrying and heat dissipation characteristics.
Bimetal Bushing Technical
Technical Data | ||||
Bimetal Bushing | 720 Bimetal Bushing | 700 Bimetal Bushing | 20 Bimetal Bushing | |
Data | ||||
Material type | CuPb10Sn10/ CuSn6Zn6Pb3 | CuPb24Sn4 | CuPb30 | AlSn20Cu |
Hardmess of bronze alloy | 70~100HB | 45~70HB | 30~45HB | 30~40HB |
Max. dynamic Load | 65N/mm | 38N/mm | 25N/mm | 30N/mm2 |
“Mpa Sapphire” fatigue class | 125 | 115 | 105 | 105 |
Friction coenncient(oil) | 0.06~0.14 | 0.06~0.16 | 0.08~0.16 | 0.08~0.17 |
PV limit(Grease) | 2.8N/mm .M/s | 2.8N/mm .M/s | – | – |
PV limit(Oil) | 10N/mm .M/s | 10N/mm .M/s | 8N/mm .M/s | 6N/mm2.M/s |
Max. temperature | 260 C | 200 C | 170 C | 150oC |
Load limit | 150N/mm | 130N/mm | 120N/mm | 100N/mm2 |
Speed limit v max. | 5m/s | 10m/s | 15m/s | 25m/s |
Hardness of mating surface | 53 HRC | 50 HRC | 270 HB | 250 HB |
Tensile strength | 150N/mm | 150N/mm | 200N/mm | 200N/mm2 |
Standard Bimetal Bushing Size
Cylindrical Bearing, Flange Bearing.
Non-Standard Size
Cylindrical Bearing, Flange Bearing, Thrust washer, Half bushing, Wear strips, Steel combined units.
Basic Introduction
The connecting rod group is composed of the connecting rod body, the connecting rod big head cover, the connecting rod small head bushing, the connecting rod big head bearing bush and the connecting rod bolt (or screw).The connecting rod group is subjected to the action of the gas force from the piston pin and its own swing and the reciprocating inertia force of the piston group. The magnitude and direction of these forces are periodic.Therefore, the connecting rod is subjected to alternating loads such as compression and tension.The connecting rod must have sufficient fatigue strength and structural stiffness.Fatigue strength is insufficient, often will cause the connecting rod body or connecting rod bolt fracture, and then produce the whole machine damage of major accidents.If the stiffness is insufficient, it will cause the bending deformation of the rod body and the out-of-round deformation of the big end of the connecting rod, recognized to the eccentric wear of the piston, cylinder, bearing and crank pin.
Structure composition
The connecting rod body is composed of three parts, the part connected with the piston pin is called the connecting rod head;The part connected with the crankshaft is called the connecting rod head, and the connecting rod body is called the connecting rod body.
The connecting rod head is mostly of thin-walled circular structure. In order to reduce the wear between the connecting rod and the piston pin, the thin-walled bronze bushing is pressed into the hole of the connecting rod head.Drill or mill grooves in the small head and bushing to allow the spatter to enter the mating surface of the lubricated bushing and piston pin.
Connecting rod body is a long rod, in the work of the force is large, in order to prevent its bending deformation, the rod body must have enough stiffness.For this reason, the connecting rod body of the vehicle engine mostly uses Ⅰ shaped section, the flat section can minimize the mass under the condition of sufficient stiffness and strength, and the high strengthening engine has the use of H shaped section.Some engines use connecting rod small head jet oil to cool the piston, must be drilled in the longitudinal shaft hole.In order to avoid stress concentration, the connecting rod body and the small head and large head are smooth transition by large circular arc.
In order to reduce the vibration of the engine, the quality difference of the connecting rod of each cylinder must be limited to the minimum range. When the engine is assembled in the factory, it is generally grouped according to the large and small head mass of the connecting rod in grams, and the same group of connecting rod is selected for the same engine.
V type engine, the left and right two columns of the corresponding cylinder share a crank pin, connecting rod has parallel connecting rod, fork connecting rod and main and auxiliary connecting rod three types.
Damage form
The main damage forms of connecting rod are fatigue fracture and excessive deformation.The common fatigue fracture site is the three high stress areas on the connecting rod.The working condition of the connecting rod requires that the connecting rod has higher strength and anti-fatigue performance.It also requires sufficient rigidity and toughness.In the traditional processing technology of connecting rod, the material is generally used 45 steel, 40Cr or 40MnB and other tempered steel, which has higher hardness. Therefore,New connecting rod materials produced by German automobile enterprises, such as C70S6 high-carbon micro-alloy non-quenched and tempered steel, Splitasco series forged steel, Fractim forged steel and S53CV-FS forged steel, etc. (all of the above are German DIN standards).Alloy steels have high strength but are sensitive to stress concentration.Therefore, strict requirements are needed in the shape of connecting rod and excessive fillet, and attention should also be paid to the surface machining quality to improve fatigue strength. Otherwise, the application of high strength alloy steel can not achieve the desired effect.
Bimetal Wrapped Steel With Bronze – Metric Size
Product | Shaft Dia., Nominal (d) (mm) | Bearing Outside Diameter, Nominal(Do) (mm) | Bearing Length, Nominal (B) (mm) | Wall Thickness (S3) (mm) | Lube Hole Dia. (dl) (mm) |
Bimetal Bushing 1010 | 10 | 12 | 10 | 0.97 | 4 |
Bimetal Bushing 1015 | 10 | 12 | 15 | 0.97 | 4 |
Bimetal Bushing 1020 | 10 | 12 | 20 | 0.97 | 4 |
Bimetal Bushing 1210 | 12 | 14 | 10 | 0.97 | 4 |
Bimetal Bushing 1215 | 12 | 14 | 15 | 0.97 | 4 |
Bimetal Bushing 1220 | 12 | 14 | 20 | 0.97 | 4 |
Bimetal Bushing 1410 | 14 | 16 | 10 | 0.97 | 4 |
Bimetal Bushing 1415 | 14 | 16 | 15 | 0.97 | 4 |
Bimetal Bushing 1420 | 14 | 16 | 20 | 0.97 | 4 |
Bimetal Bushing 1510 | 15 | 17 | 10 | 0.97 | 4 |
Bimetal Bushing 1515 | 15 | 17 | 15 | 0.97 | 4 |
Bimetal Bushing 1520 | 15 | 17 | 20 | 0.97 | 4 |
Bimetal Bushing 1610 | 16 | 18 | 10 | 0.97 | 4 |
Bimetal Bushing 1615 | 16 | 18 | 15 | 0.97 | 4 |
Bimetal Bushing 1620 | 16 | 18 | 20 | 0.97 | 4 |
Bimetal Bushing 1810 | 18 | 20 | 10 | 0.97 | 4 |
Bimetal Bushing 1815 | 18 | 20 | 15 | 0.97 | 4 |
Bimetal Bushing 1820 | 18 | 20 | 20 | 0.97 | 4 |
Bimetal Bushing 1825 | 18 | 20 | 25 | 0.97 | 4 |
Bimetal Bushing 2010 | 20 | 23 | 10 | 1.46 | 4 |
Bimetal Bushing 2015 | 20 | 23 | 15 | 1.46 | 4 |
Bimetal Bushing 2020 | 20 | 23 | 20 | 1.46 | 4 |
Bimetal Bushing 2025 | 20 | 23 | 25 | 1.46 | 4 |
Bimetal Bushing 2210 | 22 | 25 | 10 | 1.46 | 6 |
Bimetal Bushing 2215 | 22 | 25 | 15 | 1.46 | 6 |
Bimetal Bushing 2220 | 22 | 25 | 20 | 1.46 | 6 |
Bimetal Bushing 2225 | 22 | 25 | 25 | 1.46 | 6 |
Bimetal Bushing 2410 | 24 | 27 | 10 | 1.46 | 6 |
Bimetal Bushing 2415 | 24 | 27 | 15 | 1.46 | 6 |
Bimetal Bushing 2420 | 24 | 27 | 20 | 1.46 | 6 |
Bimetal Bushing 2425 | 24 | 27 | 25 | 1.46 | 6 |
Bimetal Bushing 2430 | 24 | 27 | 30 | 1.46 | 6 |
Bimetal Bushing 2515 | 25 | 28 | 15 | 1.95 | 6 |
Bimetal Bushing 2520 | 25 | 28 | 20 | 1.95 | 6 |
Bimetal Bushing 2525 | 25 | 28 | 25 | 1.95 | 6 |
Bimetal Bushing 2530 | 25 | 28 | 30 | 1.95 | 6 |
Bimetal Bushing 2615 | 26 | 30 | 15 | 1.95 | 6 |
Bimetal Bushing 2620 | 26 | 30 | 20 | 1.95 | 6 |
Bimetal Bushing 2625 | 26 | 30 | 25 | 1.95 | 6 |
Bimetal Bushing 2630 | 26 | 30 | 30 | 1.95 | 6 |
Bimetal Bushing 2815 | 28 | 32 | 15 | 1.95 | 6 |
Bimetal Bushing 2820 | 28 | 32 | 20 | 1.95 | 6 |
Bimetal Bushing 2825 | 28 | 32 | 25 | 1.95 | 6 |
Bimetal Bushing 2830 | 28 | 32 | 30 | 1.95 | 6 |
Bimetal Bushing 2840 | 28 | 32 | 40 | 1.95 | 6 |
Bimetal Bushing 3015 | 30 | 34 | 15 | 1.95 | 6 |
Bimetal Bushing 3020 | 30 | 34 | 20 | 1.95 | 6 |
Bimetal Bushing 3025 | 30 | 34 | 25 | 1.95 | 6 |
Bimetal Bushing 3030 | 30 | 34 | 30 | 1.95 | 6 |
Bimetal Bushing 3040 | 30 | 34 | 40 | 1.95 | 6 |
Bimetal Bushing 3215 | 32 | 36 | 15 | 1.95 | 6 |
Bimetal Bushing 3220 | 32 | 36 | 20 | 1.95 | 6 |
Bimetal Bushing 3225 | 32 | 36 | 25 | 1.95 | 6 |
Bimetal Bushing 3230 | 32 | 36 | 30 | 1.95 | 6 |
Bimetal Bushing 3240 | 32 | 36 | 40 | 1.95 | 6 |
Bimetal Bushing 3520 | 35 | 39 | 20 | 1.95 | 6 |
Bimetal Bushing 3525 | 35 | 39 | 25 | 1.95 | 6 |
Bimetal Bushing 3530 | 35 | 39 | 30 | 1.95 | 6 |
Bimetal Bushing 3540 | 35 | 39 | 40 | 1.95 | 6 |
Bimetal Bushing 3550 | 35 | 39 | 50 | 1.95 | 6 |
Bimetal Bushing 3820 | 38 | 42 | 20 | 1.95 | 8 |
Bimetal Bushing 3825 | 38 | 42 | 25 | 1.95 | 8 |
Bimetal Bushing 3830 | 38 | 42 | 30 | 1.95 | 8 |
Bimetal Bushing 3840 | 38 | 42 | 40 | 1.95 | 8 |
Bimetal Bushing 3850 | 38 | 42 | 50 | 1.95 | 8 |
Bimetal Bushing 4020 | 40 | 44 | 20 | 1.95 | 8 |
Bimetal Bushing 4025 | 40 | 44 | 25 | 1.95 | 8 |
Bimetal Bushing 4030 | 40 | 44 | 30 | 1.95 | 8 |
Bimetal Bushing 4040 | 40 | 44 | 40 | 1.95 | 8 |
Bimetal Bushing 4050 | 40 | 44 | 50 | 1.95 | 8 |
Bimetal Bushing 4525 | 45 | 50 | 25 | 2.43 | 8 |
Bimetal Bushing 4530 | 45 | 50 | 30 | 2.43 | 8 |
Bimetal Bushing 4540 | 45 | 50 | 40 | 2.43 | 8 |
Bimetal Bushing 4550 | 45 | 50 | 50 | 2.43 | 8 |
Bimetal Bushing 5030 | 50 | 55 | 30 | 2.43 | 8 |
Bimetal Bushing 5040 | 50 | 55 | 40 | 2.43 | 8 |
Bimetal Bushing 5050 | 50 | 55 | 50 | 2.43 | 8 |
Bimetal Bushing 5060 | 50 | 55 | 60 | 2.43 | 8 |
Bimetal Bushing 5530 | 55 | 60 | 30 | 2.43 | 8 |
Bimetal Bushing 5540 | 55 | 60 | 40 | 2.43 | 8 |
Bimetal Bushing 5550 | 55 | 60 | 50 | 2.43 | 8 |
Bimetal Bushing 5560 | 55 | 60 | 60 | 2.43 | 8 |
Bimetal Bushing 6030 | 60 | 65 | 30 | 2.43 | 8 |
Bimetal Bushing 6040 | 60 | 65 | 40 | 2.43 | 8 |
Bimetal Bushing 6050 | 60 | 65 | 50 | 2.43 | 8 |
Bimetal Bushing 6060 | 60 | 65 | 60 | 2.43 | 8 |
Bimetal Bushing 6530 | 65 | 70 | 30 | 2.43 | 8 |
Bimetal Bushing 6540 | 65 | 70 | 40 | 2.43 | 8 |
Bimetal Bushing 6550 | 65 | 70 | 50 | 2.43 | 8 |
Bimetal Bushing 6560 | 65 | 70 | 60 | 2.43 | 8 |
Bimetal Bushing 7030 | 70 | 75 | 30 | 2.43 | 8 |
Bimetal Bushing 7040 | 70 | 75 | 40 | 2.43 | 8 |
Bimetal Bushing 7050 | 70 | 75 | 50 | 2.43 | 8 |
Bimetal Bushing 7060 | 70 | 75 | 60 | 2.43 | 8 |
Bimetal Bushing 7080 | 70 | 75 | 80 | 2.43 | 8 |
Bimetal Bushing 7530 | 75 | 80 | 30 | 2.43 | 9.5 |
Bimetal Bushing 7540 | 75 | 80 | 40 | 2.43 | 9.5 |
Bimetal Bushing 7550 | 75 | 80 | 50 | 2.43 | 9.5 |
Bimetal Bushing 7560 | 75 | 80 | 60 | 2.43 | 9.5 |
Bimetal Bushing 8040 | 80 | 85 | 40 | 2.43 | 9.5 |
Bimetal Bushing 8050 | 80 | 85 | 50 | 2.43 | 9.5 |
Bimetal Bushing 8060 | 80 | 85 | 60 | 2.43 | 9.5 |
Bimetal Bushing 8080 | 80 | 85 | 80 | 2.43 | 9.5 |
Bimetal Bushing 8530 | 85 | 90 | 30 | 2.43 | 9.5 |
Bimetal Bushing 8550 | 85 | 90 | 50 | 2.43 | 9.5 |
Bimetal Bushing 8560 | 85 | 90 | 60 | 2.43 | 9.5 |
Bimetal Bushing 8580 | 85 | 90 | 80 | 2.43 | 9.5 |
Bimetal Bushing 85100 | 85 | 90 | 100 | 2.43 | 9.5 |
Bimetal Bushing 9050 | 90 | 95 | 50 | 2.43 | 9.5 |
Bimetal Bushing 9060 | 90 | 95 | 60 | 2.43 | 9.5 |
Bimetal Bushing 9080 | 90 | 95 | 80 | 2.43 | 9.5 |
Bimetal Bushing 90100 | 90 | 95 | 100 | 2.43 | 9.5 |
Bimetal Bushing 9560 | 95 | 100 | 60 | 2.43 | 9.5 |
Bimetal Bushing 9580 | 95 | 100 | 80 | 2.43 | 9.5 |
Bimetal Bushing 9590 | 95 | 100 | 90 | 2.43 | 9.5 |
Bimetal Bushing 95100 | 95 | 100 | 100 | 2.43 | 9.5 |
Bimetal Bushing 10060 | 100 | 105 | 60 | 2.43 | 9.5 |
Bimetal Bushing 10080 | 100 | 105 | 80 | 2.43 | 9.5 |
Bimetal Bushing 10090 | 100 | 105 | 90 | 2.43 | 9.5 |
Bimetal Bushing 100100 | 100 | 105 | 100 | 2.43 | 9.5 |
Bimetal Bushing 10560 | 105 | 110 | 60 | 2.43 | 9.5 |
Bimetal Bushing 10580 | 105 | 110 | 80 | 2.43 | 9.5 |
Bimetal Bushing 105100 | 105 | 110 | 100 | 2.43 | 9.5 |
Bimetal Bushing 11060 | 110 | 115 | 60 | 2.43 | 9.5 |
Bimetal Bushing 11080 | 110 | 115 | 80 | 2.43 | 9.5 |
Bimetal Bushing 110100 | 110 | 115 | 100 | 2.43 | 9.5 |
Bimetal Bushing 11550 | 115 | 120 | 50 | 2.43 | 9.5 |
Bimetal Bushing 11580 | 115 | 120 | 80 | 2.43 | 9.5 |
Bimetal Bushing 12050 | 120 | 125 | 50 | 2.43 | 9.5 |
Bimetal Bushing 12060 | 120 | 125 | 60 | 2.43 | 9.5 |
Bimetal Bushing 120100 | 120 | 125 | 100 | 2.43 | 9.5 |
Bimetal Bushing 125100 | 125 | 130 | 100 | 2.43 | 9.5 |
Bimetal Bushing 13060 | 130 | 135 | 60 | 2.43 | 9.5 |
Bimetal Bushing 130100 | 130 | 135 | 100 | 2.43 | 9.5 |
Bimetal Bushing 13560 | 135 | 140 | 60 | 2.43 | 9.5 |
Bimetal Bushing 13580 | 135 | 140 | 80 | 2.43 | 9.5 |
Bimetal Bushing 14060 | 140 | 145 | 60 | 2.43 | 9.5 |
Bimetal Bushing 14080 | 140 | 145 | 80 | 2.43 | 9.5 |
Bimetal Bushing 140100 | 140 | 145 | 100 | 2.43 | 9.5 |
Bimetal Bushing 15060 | 150 | 155 | 60 | 2.43 | 9.5 |
Bimetal Bushing 15080 | 150 | 155 | 80 | 2.43 | 9.5 |
Bimetal Bushing 150100 | 150 | 155 | 100 | 2.43 | 9.5 |
