Bushing design

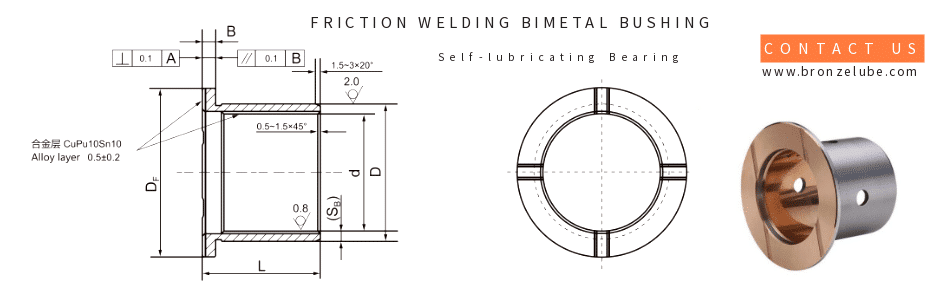

Flange friction welding bimetal bushing
Gleitlager Buchsen Material: CuPb10Sn10
- Steel Backing and Leaded Bronze Overlay
- Steel + CuPb10Sn10 with indents
- Provides opportunities for new solutions to bimetal bearing problems. Contact us to start customizing your friction welding bimetal bushing solution
High Quality
The promise of order bimetal bushing high quality, meet your requirement.
Bimetal Bush
Small minimum order value & quantity, fast delivery.
BIMETAL BUSHING DESIGN
The Connection Type of Bimetal Bushings
- Straight Joint
- Butterfly Joint
- Grooves designed
FRICTION WELDING SOLUTIONS FOR THE CONSTRUCTION AND AGRICULTURE INDUSTRIES
Flanged Bimetal Bushings,Bimetallic Flanged Bush,Flanged Bi metal Bushing,Welding Flange bimetal bush,Bimetallic Bush Bearing,flange steel bronze bushing bearing. Friction Welding Bimetal Bushing & Flange Bushings Direct from China Manufacturers, The friction welding bimetal bushings material and dimensions are standard. CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu、CuSn8Ni
Bimetallic Bearing Bush Application Field
- Engineering machinery: chassis running mechanism roller bushings, towing pulley bushings, tensioner bushings;
- Automobile industry: balance shaft bushing, steel pin bushing, steering knuckle main axle bushing, connecting rod bushing, valve rocker arm bushing, camshaft bushing, differential bushing, gearbox bushing, internal combustion engine main bushing , Thrust washer; And plunger pump side piece, gear pump side piece, etc.

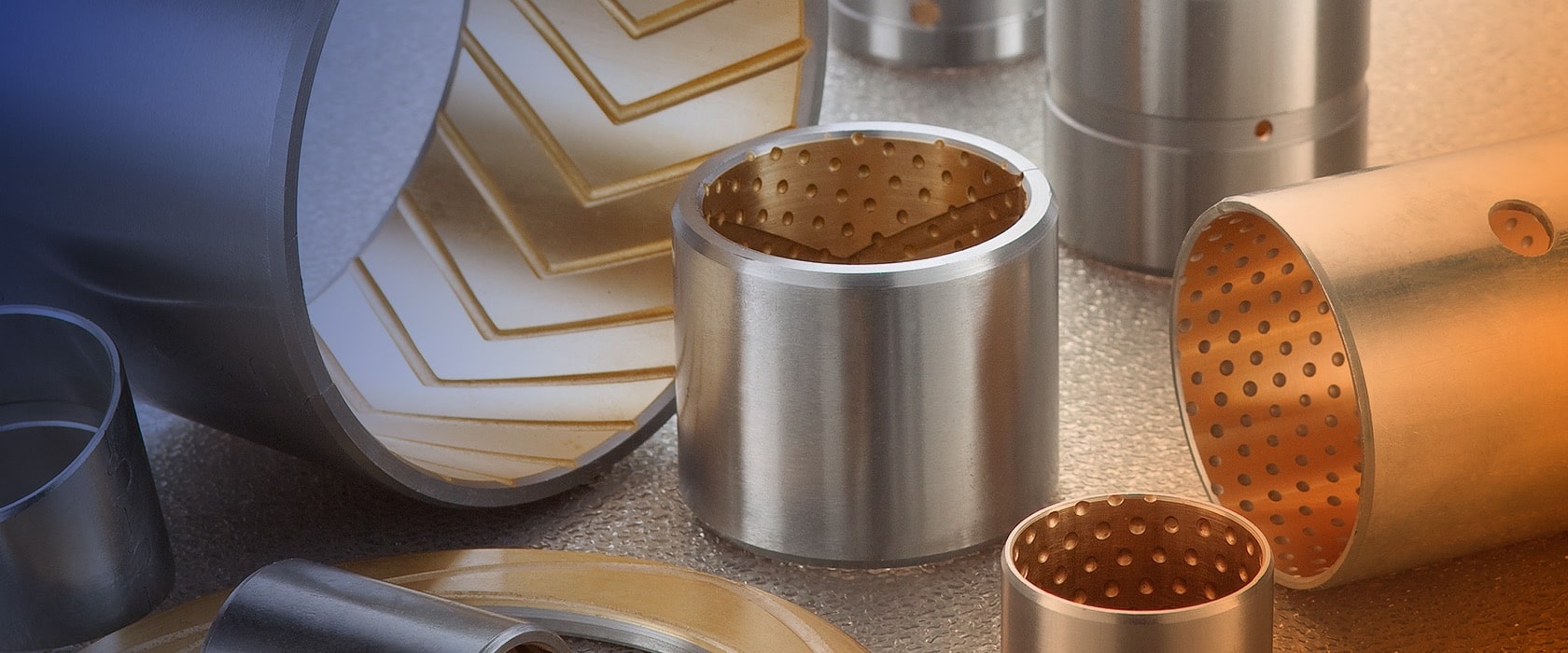

Bimetal Bushing Structure
1.Bi-metal Sintered bronze layer: good wear resistance and excellent bearing capacity.
2. Steel Backing: By laying the foundation of the bushings, the steel support provides exceptional stability, bearing capacity and heat dissipation.
Bimetal Bushing Material
Steel back, Bimetal Bushing,lead-free, RoHS compliant For lubrication applications.
The bimetallic bearing is made of high quality low carbon steel with the surface sintered with lead-tin bronze alloy CuSn10Pb10.Rolled spherical oil holes on the surface of the alloy facilitate oil storage and effectively reduce wear.The steel back can be plated with anticorrosive coating as required.Suitable for medium load, medium to high speed, and bearing with large impact load, used for rolling bearing, thrust gasket, internal combustion engine piston pin bush.
Special Gleitlager Buchsen Manufacturer
Through our internal modern production, we can produce Bi-metal bushings buchsen products for you in a short time according your drawings or size.Please contact us for a quotation or more information.www.bronzelube.com
Bimetal Bushing Characteristics
- Suitable for high loads
- Multiple areas of us (universal bearing)
- Long life
- Wide temperature range
Bimetal Bushing Properties
| GENERAL | Unit | Value | |
| Maximum load, p | Static
Dynamic |
N/mm2
N/mm2 |
300
140 |
| Operating temperature | Min
Max greased Max oil lubricated |
°C
°C °C |
– 40
150 250 |
Oil Lubricated |
|||
| Maximum sliding speed, U | m/s | 2.5 | |
| Maximum pU factor | N/mm2 x m/s | 2.8 | |
| Coefficient of friction | Greased
Oil |
0.05 – 0.12
0.04 – 0.12 |
Operating Performance |
|
| Dry | Poor |
| Oil lubricated | Good |
| Grease lubricated | Very Good |
| Water lubricated | Poor |
| Process fluid lubricated | Poor |
Bearing forms made to order: Cylindrical bushes and sliding plates with non-standard dimensions, RoHS customized bearing designs.
Bimetal Bushing Application
Metal bimetal steel backed Bushing is widely used in automotive applications, such as compressor, steering gear, power steering, pedal bearing, kingpin bushing, tailgate pivot, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery and so on.
Bimetal bushings – High-Quality Factory Products – www.bronzelube.com
Bimetallic self-lubricating bearing used high quality low-carbon steel plate as base, sintered porous bronze as its surface, suitable
for rotatory oscillating, reciprocating movements on the conditions of high load.low speed, low friction, well wear resistance, long
lifetime and better prevent from holding-on.The bronze layer surface can be machined with various of grooves, oil pockets in
terms of different work condition.The product is widely used in mining machinery, automobile, building machinery, agriculture equipment, rolling steel industry etc.
Bimetal Lead-Free Gleitlager Buchsen
We can add lubrication slots and holes to the plain bearing bushing.The plain bearing bushing is made to DIN ISO 3547.The length of the standard bushing can be shortened.We also manufacturer the bushing according to the size you define.A half shell is also available.
Bimetal Bushings Feature
Lead bronze bushing material with bronze and bimetal liner suitable for oil lubricated applications. This material has a high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bushes, pin bushings, tailgate pins, mechanical transmission and lifting devices, hydraulic motors and pumps, agricultural machines etc.
Bimetallic bearing containing spherical oil holes or grooves
- Easy to assemble and lubricate, easy to maintain
- Good fatigue strength, wear resistance and corrosion resistance
- Oil groove or oil hole can be designed as required
- Can supply straight sleeve, flanging, gasket and other styles
- Standard or non-standard bearings can be supplied on request
- DIN 1494 / ISO3547
According to the technical data of bimetallic bearing materials
The bushing is pressed into the assembly hole and is thus adequately secured.The mandrel must be used as a press-in guide to avoid damage to the bushing and to maintain bearing clearance.
