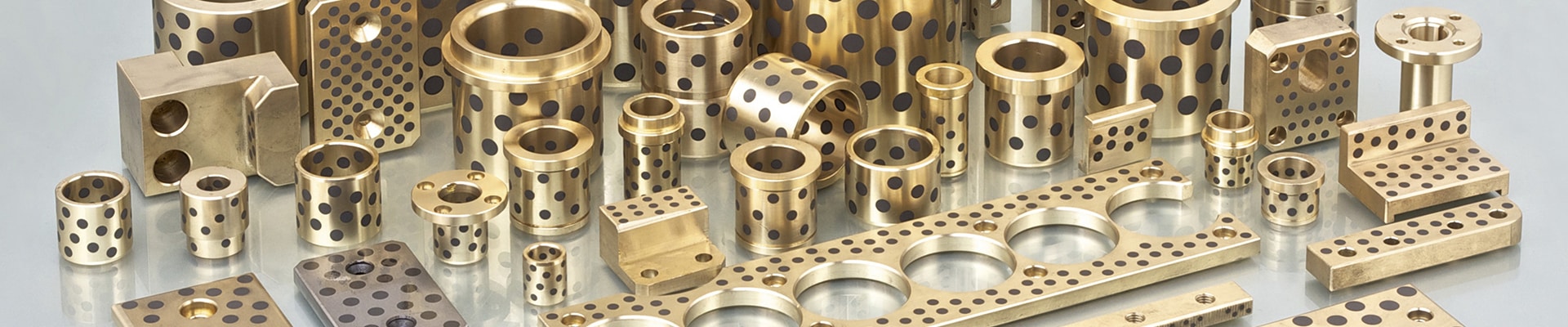

Bronze Self Lube Wear Plates Guide Bar， Bronze Graphite
W
e are one stop manufacture from raw material to finished bronze graphite guide bar products.
Self-Lubricating Guide Bushes – Mould & Die Solution, Self-Lubricating Bushings For Guide Pins Can Save Time And Money In The Design, Construction And Operation Of Injection Molds. Their Built-In Lubrication Makes Them Ideal For Any Application Where The Parts Being Molded Prohibit The Use Of External Lubricants, Such As Medical, Electronic And Food-Related Products. Aluminum Bronze Self-Lubricating Wear Strips And Gibs Are Made From ASTM-C95400 Continuous Cast Aluminum Bronze With Self-Lubricating Graphite Plugs. Self-Lubricating Guide Systems Die Components Here You Will Find All The Self-Lubricating Guide Systems. Graphite Filled Bronze Wear Plate, Get A Quote Now And Save Up To 40% Off Your Graphite Impregnated Sleeve Bearing & Plate Rates! Click Here To Find Your Sleeve Bearing Type And Enjoy a Discount For Your Parts. In Our Production, We Can Use A Wide Range Of Bearing Materials To Completely Fulfill Your Specific Needs.
Graphite Bronze Guide Plates
Self-Lubricating and Maintenance-Free Bearing bronze wear plate
Bronze Guide Bar Wear Plate features copper material with graphite and customized self-lubricating bearings. Request a quote or catalog for details on our bushing prices. We are a leading manufacturer in China, supplying precision-engineered bronze wear plate solutions for industries such as rail, mining, and energy. Our ability to design and manufacture high-quality bronze wear plates gives us a competitive advantage. These plates are machined to specific shapes and include counter-bores. Our solid self-lubricating wear plate materials, made from high-strength metal with built-in lubricants, offer excellent load-bearing capacity and reduced friction, leading to lower maintenance costs for bearings and machinery.
Graphite Bronze Wear Plates, Bronze self-lubricating oilless guide plates made from high-quality bronze with graphite. Available in various dimensions and thicknesses.
Product Quality Index
Energy Generation
Beyond the Basics: A Deep Dive into Graphite Impregnated Bronze Guide Bars, Plates & Blocks
In the demanding world of industrial machinery, friction and wear are constant enemies. Traditional lubrication methods, while effective, come with their own set of challenges: constant maintenance, potential contamination, and limitations in extreme environments. Enter graphite impregnated bronze, a remarkable self-lubricating material transforming how we design and maintain wear components like guide bars, guide plates, slide plates, and blocks.
But what exactly is it, and why is it often the superior choice? This article goes beyond the surface level to explore the science, benefits, and applications of these advanced bronze components.
What Exactly IS Graphite Impregnated Bronze?
At its core, graphite-impregnated bronze is a composite material. It combines the inherent strength, machinability, and corrosion resistance of a bronze alloy base with the exceptional low-friction properties of solid graphite lubricant. This isn’t just a surface coating; the graphite is integrated throughout the material or strategically placed within it.
There are two primary methods for creating these components:
-
Sintering: Fine bronze powder and graphite powder are mixed, pressed into the desired shape (or near-net shape), and heated (sintered) below the melting point of bronze. This fuses the bronze particles, trapping the graphite within the porous structure. This method is excellent for smaller, complex shapes and offers uniform graphite distribution.
-
Plugging (Solid Lubricant Inserts): A solid bronze casting or wrought bar (made from alloys like C93200, C95400, C86300, etc.) is machined to the final shape. Then, specific patterns of holes or grooves are drilled or milled into the wear surfaces, and solid graphite plugs are pressed or bonded into these cavities. This method allows for precise control over the lubricant placement and percentage, often used for larger components or high-load applications.
The result? A component that provides its own lubrication at the point of contact.
Why Choose Graphite Impregnated Bronze? The Deeper Benefits
The advantages go far beyond simply “not needing grease.” Let’s break down the key benefits:
-
True Self-Lubrication (How it Works): As the component moves against a mating surface, microscopic amounts of graphite transfer from the bronze component (either from the pores in sintered parts or the plugs) onto the mating surface. This creates an extremely low-friction graphite transfer film. This film effectively separates the metal surfaces, drastically reducing the coefficient of friction and preventing metal-to-metal contact, galling, and seizure. This process is continuous as long as graphite is available.
-
Exceptional Wear Resistance: The bronze base provides the structural integrity and resistance to deformation under load. The graphite’s lubricating action minimizes abrasive and adhesive wear. This synergy results in significantly longer component life compared to plain bronze or even hardened steel in unlubricated or poorly lubricated conditions.
-
High Load Capacity: Bronze alloys, particularly aluminum bronzes (like C95400) or high-strength yellow brasses (like C86300), offer excellent compressive strength and load-bearing capabilities. The embedded graphite doesn’t significantly compromise this strength, allowing these components to be used in demanding, high-pressure applications.
-
Reduced Maintenance & Downtime: This is often the most significant economic driver. Eliminating the need for regular greasing or oiling schedules saves labor costs, lubricant costs, and, crucially, reduces machine downtime associated with maintenance activities.
-
Wide Operating Temperature Range: Graphite remains an effective lubricant from cryogenic temperatures up to around 450°C (840°F) in air, far exceeding the capabilities of most oils and greases. Bronze alloys also maintain good properties over a reasonably wide temperature range.
-
Clean Operation: No messy grease or oil drips means a cleaner working environment, ideal for industries like food processing, textiles, or packaging where contamination is a major concern.
-
Resistance to Contamination: Unlike grease, which can attract and trap dirt, dust, and debris (forming an abrasive paste), the solid graphite lubricant is less susceptible. This makes it ideal for dirty or dusty environments found in construction, mining, or agriculture.
Contrasting Logic: Graphite Bronze vs. Traditional Solutions
To truly appreciate the value, let’s compare graphite-impregnated bronze wear components against common alternatives using a table:
| Feature | Graphite Impregnated Bronze | Plain Bronze (e.g., C93200) w/ Grease | Steel (e.g., 1045) w/ Grease | Rolling Element Bearings |
| Lubrication Need | Self-Lubricating (None required) | Required (Periodic) | Required (Periodic) | Required (Sealed/Periodic) |
| Maintenance Level | Very Low | Moderate | Moderate | Low to Moderate |
| Wear Resistance | Excellent (Low friction film) | Good (if well lubricated) | Good (if well lubricated) | Very Good (Point/Line contact) |
| Load Capacity | Good to Very High (Depends on alloy/design) | Good | Very High | High (but sensitive to shock) |
| Contamination Risk | Low (No fluid lubricant to trap debris) | High (Grease attracts dirt) | High (Grease attracts dirt) | Moderate (Seals can fail) |
| Temp. Range | Wide (-200°C to ~450°C) | Limited by Grease | Limited by Grease | Limited by Grease/Seals |
| Shock Load Handling | Excellent (Full surface contact) | Good | Good | Poor (Point/Line contact) |
| Complexity | Simple (Often direct replacement) | Simple | Simple | Higher (Requires housing) |
| Initial Cost | Moderate to High | Low to Moderate | Low | Moderate to High |
| Lifetime Cost | Often Lowest (Due to reduced maintenance/life) | Moderate | Moderate | Moderate |
Key Takeaway: While plain bronze or steel might be cheaper initially, the total cost of ownership for graphite-impregnated bronze is often significantly lower due to dramatically reduced maintenance, longer life, and prevention of costly downtime, especially in challenging operating conditions.
Focus on Specific Components: Applications & Advantages
Let’s look at the specific components mentioned:
-
Graphite Impregnated Bronze Guide Bars & Guide Plates: These are essential for providing precise linear motion and alignment in machinery like presses, molds, and automation systems. Self-lubrication is critical here, ensuring smooth, stick-slip-free movement without the need for external lubrication lines or frequent manual greasing, which can be difficult in enclosed spaces. The wear resistance ensures dimensional stability and accuracy over long periods.
-
Graphite Impregnated Bronze Slide Plates: Used in applications where large surfaces slide against each other, often under significant pressure (e.g., die sets, heavy equipment pivots, bridge expansion joints). The graphite provides a low-friction bearing surface across the entire contact area, distributing the load effectively and preventing galling. Their ability to handle contamination is a major plus in outdoor or dirty environments.
-
Graphite Impregnated Bronze Blocks & Plates (General Wear Parts): These serve as versatile wear surfaces, thrust washers, gibs, or custom components in countless industrial applications. The ability to machine them from standard plugged stock or create custom sintered parts allows engineers to integrate self-lubrication into virtually any design where sliding friction is a concern.
Material Considerations: Choosing the Right Bronze and Graphite
Not all graphite-impregnated bronze is created equal. Key factors include:
-
Bronze Alloy:
-
Tin Bronzes (e.g., C93200 SAE 660): Good general-purpose bearing properties, good machinability. Suitable for moderate loads and speeds.
-
Aluminum Bronzes (e.g., C95400, C95900): Higher strength, hardness, and wear resistance. Good corrosion resistance. Ideal for higher loads, slower speeds, and slightly more corrosive environments.
-
Manganese Bronzes (e.g., C86300 SAE 430B): Very high strength and hardness. Excellent for heavy loads, low speeds, and high-impact applications. More difficult to machine.
-
-
Graphite Type & Percentage/Pattern: The type of graphite and, critically for plugged bronze, the percentage of the surface area covered by graphite plugs and their pattern, are carefully engineered based on the load, speed, and operating environment to ensure optimal lubricant film formation and component life.
Conclusion: The Smart Choice for Demanding Applications
Graphite-impregnated bronze guide bars, guide plates, slide plates, and blocks represent a significant advancement over traditional wear materials requiring external lubrication. By integrating solid graphite lubricant directly into the robust bronze matrix, these components offer:
-
Elimination of manual lubrication needs
-
Drastically reduced maintenance and downtime
-
Extended component life through superior wear resistance
-
Reliable performance in extreme temperatures and contaminated environments
-
Cleaner operation
While the initial component cost might be higher than plain bronze or steel, the long-term savings in maintenance, lubricant, downtime, and component replacement often make graphite-impregnated bronze the most economical and reliable solution for demanding industrial applications. When specifying wear components, taking a deeper look at this self-lubricating technology can unlock significant performance and cost benefits.
Oil Free Slide Plates by www.bronzelube.com – Select, configure, order.
“Oilles wear plate sleeve bearing is a well sold product of our company. it’s also named cast slide plate, oilless guide bushes, slide plate, die guide components,graphite plugged wear plates, mould die component, oiles slide pad, wear plates, bronze graphite guide bar and etc..” Die Components Supplier, Mold Components and Other plugged graphite parts products on request. They are manufactured from a variety of Bronze Alloys, including: C95400 Aluminum Bronze, C93200 Bearing Bronze and C86300 Manganese Bronze. Made to order plugged graphite c86300 manganese bronze bushings.
Technical Data of guide bar oilless plate base material:
| Material | CuZn25Al5Mn4Fe3 | CuSn5Pb5Zn5 | CuAl10Ni5Fe5 | CuSn12 | CuZn32Al5Ni3 |
| Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
| HB hardness | >210 | >70 | >150 | >95 | >280 |
| Tensile strength N/mm2 | >750 | >200 | >600 | >260 | >540 |
| Yeild strength N/mm2 | >450 | >90 | >260 | >150 | >450 |
| Elongation % | >12 | >15 | >10 | >8 | >0.3 |
| Coefficient of linear expansion | 1.9×10-5/°C | 1.8×10-5/°C | 1.6×10-5/°C | 1.8×10-5/°C | 1.8×10-5/°C |
| Max. temp. | -40~+300 | -40~+400 | -40~+400 | -40~+400 | -40~+150 |
| Max. load N/mm2 | 100 | 60 | 50 | 70 | 150 |
| Max. speed (Dry) m/min | 15 | 10 | 20 | 10 | 15 |
| Max. PV N/mm2*m/min (Lubrication) | 200 | 60 | 60 | 80 | 200 |
| Compression deformation 300N/mm2 | <0.01mm | <0.05mm | <0.04mm | <0.05mm |
The Power of Precision: A Deep Dive into Bronze Bushings & Wear Plates with Graphite Plugs
In the intricate dance of machinery, smooth, reliable movement is paramount. Yet, friction and wear constantly challenge engineers and maintenance teams. While traditional lubrication offers a solution, it often brings baggage: regular maintenance schedules, potential contamination, and limitations in certain environments. This is where bronze components embedded with solid graphite plugs – specifically bushings and wear plates – emerge as a superior, self-lubricating solution.
This article focuses specifically on these plugged bronze components, exploring their construction, unique advantages, material options, and critical applications where they truly shine.
What Exactly Are Graphite-Plugged Bronze Bushings & Wear Plates?
Unlike sintered graphite bronze (where powders are mixed and fused), these components start with a solid bronze base material. This base can be cast or wrought from various bronze alloys chosen for specific properties like strength, hardness, and corrosion resistance.
The key differentiator is the manufacturing process:
-
Machining the Base: The chosen bronze alloy is machined to the precise dimensions of the required bushing or wear plate.
-
Creating Lubricant Reservoirs: Strategically placed holes or grooves are meticulously machined into the sliding/bearing surfaces of the component. The pattern, size, and density of these reservoirs are crucial design elements.
-
Inserting Graphite Plugs: Solid plugs made of compressed, high-purity graphite are pressed firmly into these machined cavities. These plugs become integral, permanent parts of the component.
The result is a robust bronze structure housing its own solid lubricant, ready to perform right out of the box.
The Mechanism: Solid Lubrication in Action
How does it work without grease or oil?
As the graphite-plugged bronze component moves against its mating surface (e.g., a shaft rotating within a bushing, or a slide moving across a wear plate), microscopic particles of graphite are transferred from the plugs onto both surfaces. This creates an extremely slick, low-friction graphite transfer film.
This solid film effectively separates the metal surfaces, preventing direct metal-to-metal contact. This dramatically reduces:
-
Coefficient of Friction: Enabling smoother, more efficient movement.
-
Adhesive Wear (Galling/Seizure): Preventing surfaces from welding together under pressure.
-
Abrasive Wear: Minimizing damage from surface roughness or minor contaminants.
This lubrication is continuous as long as movement occurs and graphite is available in the plugs.
Why Choose Graphite-Plugged Bronze? The Compelling Advantages
The benefits extend far beyond simple convenience:
-
True Maintenance-Free Operation: This is the primary driver. No need for grease fittings, lubrication lines, or periodic manual greasing. This directly translates to reduced labor costs, lubricant expenses, and significantly less machine downtime.
-
Ideal for Difficult Lubrication Scenarios: As noted, these components excel where “the oil film is difficult to form.” This includes:
-
Reciprocating & Oscillating Motion: Frequent starts, stops, and direction changes prevent hydrodynamic oil films from establishing properly.
-
Intermittent Use: Lubricant can drain away during idle periods.
-
Slow Speeds & High Loads: Conditions where fluid lubricants get squeezed out.
-
-
Exceptional Wear and Galling Resistance: The robust bronze base handles the load, while the graphite film provides superior protection against wear, especially crucial in boundary lubrication conditions where traditional lubricants fail.
-
Cleanliness & Contamination Prevention: A massive advantage in specific industries.
-
No Oil/Grease Drips: Essential for food processing, medical devices, textiles, and electronics manufacturing where product contamination is unacceptable.
-
Reduced Debris Accumulation: Unlike sticky grease, the dry graphite doesn’t attract and trap abrasive dirt and dust, making it suitable for harsh environments (mining, agriculture, construction).
-
-
High Load Capacity: Bronze alloys, especially aluminum and manganese bronzes, offer significant compressive strength. The graphite plugs, while providing lubrication, don’t drastically compromise the overall load-bearing capability of the component.
-
Wide Temperature Range: Graphite remains an effective lubricant from very low temperatures up to ~450°C (840°F) in air, far exceeding the limits of most oils and greases.
-
Cost-Effectiveness (Total Cost of Ownership): While the initial purchase price might be higher than a standard bronze part, the elimination of lubrication systems, maintenance labor, and reduced downtime often results in a lower overall lifetime cost.
Spotlight on Components & Applications
Let’s examine the specific components and where they are used:
-
Bronze Bushings with Graphite Plugs (Guide Bushes, Oilless Bearings):
-
Function: Provide precise guidance for rotating shafts or linear guide pins.
-
Key Applications: Injection Molds (Guide Pins) are a prime example. Here, self-lubrication is vital to prevent contamination of molded parts (medical, electronic, food-grade) and reduces complex maintenance within the mold structure. They offer direct interchangeability with standard steel or bronze-plated bushings, simplifying design upgrades. Also used in casting machines, automation equipment, and general machinery.
-
Advantage: Eliminates wear and galling on expensive guide pins, ensures smooth mold operation, and saves significant time/cost in mold design, build, and operation.
-
-
Bronze Wear Plates with Graphite Plugs (Guide Plates, Slide Plates):
-
Function: Act as linear bearings, providing large, durable sliding surfaces to guide movement and distribute loads.
-
Key Applications: Automotive Dies (Die Sets), heavy machinery pivots (construction, mining equipment), bridge expansion joints, machine tool slides (gibs), presses, ship components, oil platforms. Anywhere significant sliding forces occur, especially where external lubrication is impractical or undesirable.
-
Advantage: Provide a low-friction, wear-resistant path for heavy components. Handle reciprocating and intermittent motion effectively. The graphite ensures smooth sliding even under high pressure, preventing stick-slip motion.
-
Material Matters: Customization is Key
A significant advantage is the flexibility in material selection and design:
-
Bronze Alloys: The choice of base alloy is critical and depends on the application’s demands:
-
Leaded Tin Bronzes (e.g., CuSn5Pb5Zn5 / C83600, CuSn7Pb7Zn4 / C84400, CuSn10Pb10 / C93700): Offer good machinability and conformability, suitable for general-purpose bushings under moderate loads where some misalignment might occur. The lead enhances machinability and embeddability but raises environmental concerns in some regions/applications.
-
Tin Bronzes (e.g., CuSn12 / C91700): Higher strength and wear resistance than leaded varieties, good for higher loads and speeds.
-
Aluminum Bronzes (e.g., C95400, C95900): Excellent strength, hardness, wear resistance, and corrosion resistance, especially to saltwater. Ideal for heavy loads, demanding environments, and wear plates.
-
Manganese Bronzes (e.g., C86300): Very high strength and hardness, suitable for extremely heavy loads at low speeds, high-impact applications.
-
-
Custom Designs: Manufacturers can produce special designs and materials according to your drawings and specifications. This includes non-standard dimensions, unique shapes, and specific plug patterns (density, location, size) optimized for the load, speed, and movement type of your application. Need a specific dimension for a bronze graphite sliding plate? It can likely be made.
Conclusion: The Intelligent Choice for Friction Control
Graphite-plugged bronze bushings and wear plates are more than just components; they are engineered solutions to complex friction and maintenance challenges. By embedding solid graphite lubricant directly into durable bronze alloys, they offer:
-
Reliable, maintenance-free self-lubrication.
-
Superior performance in reciprocating, intermittent, or hard-to-lubricate scenarios.
-
Enhanced wear resistance and galling prevention.
-
Clean operation crucial for sensitive industries.
-
Flexibility through customizable materials and designs.
For applications ranging from precision injection molds to heavy-duty industrial machinery, investing in graphite-plugged bronze components is often the smartest path to improved reliability, reduced operating costs, and enhanced overall performance. When specifying bushings, guide plates, or slide plates, consider the long-term benefits this advanced technology provides.
Meta Description: Discover the benefits of graphite-plugged bronze bushings and wear plates. Learn about self-lubrication, custom materials (CuSn10Pb10, CuSn12, etc.), and applications in injection molds, dies, and heavy machinery for maintenance-free operation.
Keywords: bronze bushings graphite plugs, bronze wear plate graphite plugs, self-lubricating bronze bushings, oilless bearings, graphite guide bar, bronze guide plate, bronze sliding plate, CuSn10Pb10 bronze, CuSn12 bronze, aluminum bronze wear plate, injection mold bushings, automotive die wear plates, maintenance-free bearings, custom bronze parts.
Oil-Free Precision: Your Definitive Guide to Graphite Bronze Bushings, Guide Bars & Plates
In modern industry, the demands for efficiency, reliability, and cleanliness are relentless. Traditional lubrication methods for moving parts, while necessary, often introduce complexities: routine maintenance schedules, potential contamination risks, and limitations in extreme operating conditions. Enter the world of oil-free, self-lubricating graphite bronze components – specifically bushings, guide bars, and wear plates – offering a robust and elegant solution.
If you’re searching for “graphite bronze guide plates dimensions price” or exploring options for “oil free bushing & guide bar” solutions, you understand the need for components that perform without constant intervention. This guide delves into why these materials excel, focusing on the critical aspects of precision, customization, and application-specific advantages.
The Magic Behind “Oil-Free”: How Graphite Bronze Works
At its heart, graphite-plugged bronze is a composite material engineered for self-sufficiency. It starts with a strong, durable bronze alloy base (often high-strength brass or specific copper alloys) chosen for its mechanical properties and resistance to environmental factors.
The “oil-free” capability comes from solid graphite lubricant, meticulously embedded into machined pockets or grooves on the component’s working surfaces. Here’s the process:
-
Motion Begins: As the bushing, guide bar, or plate moves against its mating surface, microscopic amounts of graphite transfer from the plugs.
-
Transfer Film Formation: This graphite builds up a highly slick, low-friction solid film on both interacting surfaces.
-
Metal Separation: This durable graphite layer prevents direct metal-to-metal contact, drastically reducing friction and wear.
-
Continuous Lubrication: As long as movement occurs, the graphite plugs replenish this lubricating film, ensuring consistent performance without needing external oil or grease.
This inherent self-lubricating nature leads directly to major benefits: eliminated lubrication routines, cleaner operation, and enhanced reliability, especially where traditional lubricants struggle (e.g., frequent starts/stops, high loads, extreme temperatures).
Precision & Customization: Getting the Perfect Fit
Off-the-shelf solutions don’t always cut it. For optimal performance and longevity, precision and customization are paramount:
-
High Precision Manufacturing: Ill-fitting components cause misalignment, uneven wear, and premature failure. Reputable manufacturers utilize advanced machining techniques to ensure graphite bronze bars, bushings, and wear plates meet tight tolerances. This guarantees perfect integration into your equipment, leading to efficient operation and reduced potential issues.
-
Standard vs. Custom Dimensions: While many standard inch, metric, and industry-specific sizes (like NAAMS for automotive tooling) are readily available, complex machinery often requires unique dimensions. We specialize in manufacturing graphite bushings & guide bars tailored to your exact needs. Whether it’s a specific inner/outer diameter, length, flange configuration, or complex plate geometry, providing your drawings or specifications allows for the creation of perfectly matched components.
Finding your specific “graphite bronze guide plates dimensions price” starts with defining your requirements. The cost is directly related to the size, complexity, chosen bronze alloy, and quantity needed.
Selecting Your Graphite Bronze Component: A Buyer’s Checklist
Choosing the right self-lubricating component involves considering several factors:
-
Base Material (Bronze Alloy):
-
Requirement: Needs to handle the load, resist corrosion, and manage heat.
-
Options: High-strength brass (like CuZnMnAlFe alloys offering tensile strength over 110,000 KSI), tin bronzes (CuSn alloys), aluminum bronzes (CuAl alloys), or other copper alloys are selected based on load capacity, corrosion resistance (e.g., saltwater for port machinery), and operating temperature needs.
-
-
Solid Lubricant (Graphite):
-
Requirement: Provide consistent low friction across the operating temperature range.
-
Consideration: The percentage, pattern, and type of graphite plugs are optimized based on expected load, speed, and whether the primary need is wear resistance or ultra-low friction.
-
-
Size and Shape:
-
Requirement: Must fit the designated space and mate correctly with other components.
-
Action: Specify required inner/outer diameters, lengths, flange details, plate dimensions, and tolerances. Provide drawings for custom shapes.
-
-
Load and Speed:
-
Requirement: The component must withstand the maximum operational forces and velocities without deformation or excessive wear.
-
Action: Clearly define the static and dynamic loads, movement speed, and type of motion (rotating, linear, oscillating) to ensure the correct bronze alloy and graphite configuration are chosen.
-
-
Operating Environment:
-
Requirement: Resistance to temperature extremes, moisture, chemicals, or abrasive contaminants.
-
Action: Specify temperature ranges, presence of corrosive elements (like salt spray in marine applications), and potential exposure to dirt or debris. This influences both the bronze alloy and graphite selection.
-
-
Maintenance Expectations:
-
Benefit: These components are designed for low-to-zero maintenance. However, periodic inspection for wear in critical applications is always good practice.
-
Application Spotlight: Where Graphite Bronze Excels
These components aren’t just theoretical marvels; they solve real-world problems:
-
Metal Stamping Dies:
-
Challenge: High forces, impact, heat generation, and the need for precise alignment. Contamination of stamped parts with lubricant is often unacceptable.
-
Solution: Bronze with self-lubricating graphite (available in standard and NAAMS sizes) provides excellent wear resistance for guide pins, bushings, and wear plates. It withstands high temperatures, reduces friction without external lube, minimizes maintenance downtime, and ensures clean part production. It’s a crucial element alongside punches, dies, springs, and stripper plates for optimal die performance.
-
-
Port Machinery (Shore Bridges, Cranes):
-
Challenge: Extreme loads, impact forces, slow or oscillating movements, and harsh, corrosive salt-spray environments. Consistent lubrication is difficult.
-
Solution: Hole-embedded graphite bushings and guide bars using high-performance copper alloy substrates (like high-strength brass or aluminum bronze) provide the necessary load-bearing capacity and corrosion resistance. The embedded graphite ensures continuous lubrication, reducing friction and wear, significantly extending service life even under these demanding conditions.
-
-
Injection Molds: Guide bushings ensure smooth, contamination-free operation, crucial for medical and food-grade parts.
-
Heavy Equipment: Pivot points, articulation joints, and slide pads benefit from the high load capacity and resistance to dirty environments.
-
Automation & Robotics: Provide precise, clean, and maintenance-free linear or rotary motion.
Beyond Bushings and Plates: A Spectrum of Solutions
Our expertise extends beyond standard components. We manufacture a wide array of copper-based parts, including:
-
Rolled Bushings & Composite Bushings
-
Self-Lubricating Plates & Gaskets
-
Copper Worm Gears, Castings, Billets, and Tubes
-
Parts made to various international standards (National, American, German, Japanese, European, Russian)
Whether you need standard products, non-standard customization based on drawings or samples, or complete system solutions, we partner with thousands of businesses to deliver reliable results.
Conclusion: The Smart Investment in Performance
Oil-free graphite bronze bushings, guide bars, and wear plates represent a significant upgrade over traditionally lubricated components in demanding applications. They offer:
-
True Self-Lubrication: Eliminating the need for grease or oil.
-
Reduced Maintenance: Lowering labor costs and downtime.
-
Enhanced Cleanliness: Preventing product and environmental contamination.
-
Superior Wear Resistance: Extending component life.
-
High Precision & Customization: Ensuring perfect fit and function.
-
Reliable Performance: Excelling in tough environments (high load, temp, corrosion).
While the initial component cost might differ from basic parts, the total cost of ownership is often far lower due to reduced upkeep and extended operational life.
Ready to explore precision oil-free solutions tailored to your needs? Contact us today for detailed product information, technical parameters, and to discuss your specific requirements for graphite bronze components.
Keywords: oil free bushing, oil free guide bar, graphite bronze guide plates, self-lubricating bronze, graphite plugged bronze, high precision bronze parts, custom bronze bushings, bronze wear plate dimensions, NAAMS components, metal stamping die components, port machinery bearings, high strength brass bushing, CuZnMnAlFe, maintenance free bearings, self-lubricating bearings manufacturer.
Oil Free Bushing & Guide Bar, Find Your Graphite Bronze Guide Plates Dimensions Price
Bushing or Bearing, what’s the difference? – Request a free quote
Self-lubricating Bearings – A Guide to Bearings & Bushings
With no moving parts, plain bearings are simple. They are usually cylindrical, although exact designs depend on movement. Read on for more technical details Maintenance Savings. We’re customizing bearings. Explore the deep benefits of graphite impregnated bronze guide bars, plates & blocks. Learn how self-lubrication works, compare vs traditional materials, and see applications. Reduce maintenance & boost performance.
Customized Service. Sleeve Bearing Strength. Endless Options. Self-Lubricating Metal Alloy Bearings and Plates!
Breathtaking design for home living.
We leverage our manufacturing expertise to provide advanced solutions for our customers. Our offerings include Cast Bronze Bar & Plate Stock (SAE 660, Bronze – C954, and Bronze – C863) with standard guide bars and self-lubricating plates. We deliver quality solutions at an affordable price, adhering to ISO 9001 and AS9100 standards. Our self-lubricating sleeve bearings, available at www.bronzelube.com, and oil-free slide plates are suitable for various dry applications, including die/mold, machinery, automation, construction, and automotive sectors. These oil-free components feature a solid lubricant embedded in key areas, allowing the metal base to bear the load while the lubricant ensures outstanding durability even in harsh environments.
Nam aliquet ante porta, gravida elit interdum, luctus porta sapien justo, at fringilla felis suscipit vestibulum.
Custom Engineering Sleeve Bearing Solutions, Custom Size Wear Plate Service, Maintenance and Design
We specialize in engineered bronze wear plates and the platforms that support them, offering exceptional local and international customer service. Our offerings include graphite-impregnated sleeve bearings, maintenance, and design support across diverse industries globally. As an OEM, our service technicians possess in-depth knowledge gained from building and assembling machines, enhancing our service capabilities. We provide interconnected, user-friendly bronze graphite wear plate components to facilitate innovation and accelerate product development, all backed by our OEM expertise.
Sed porttitor lectus nibh. Vivamus magna justo, lacinia eget consectetur sed, convallis.
Long-lasting, Innovative And High-quality Oil-free Slide Plates Solutions.
Viiplus maintains high stock levels of wrapped bronze bearings and flanged bushings, most of which are available online for immediate delivery. We ship worldwide.
Oil-Free Slide Plates – Copper Alloy
Browse our selection of Graphite Impregnated Brass – Plain & Self-Lubricating Bearings at www.bronzelube.com.
Graphite Impregnated Sleeve Bearing Services
We have extensive experience in designing graphite-plugged bronze wear plates for key manufacturing industries, including automotive, mining, aviation, rail, food processing, white goods, general manufacturing, and energy.
Bronze Wear Plates Supplier
Manufacture Oil Free provides self-lubrication without the need for grease. Discover more about Bronze Graphite Guide Bar solutions and nearby Bronze Plate suppliers.
Oilless Bearing Supplier
Switch from Graphite Bearing – Sliding Plate Solutions
Enhance Your Manufacturing Process with Graphite-Impregnated Bronze Parts! Select your oil-free slide plates and graphite bronze guide plates from a range of materials to suit your design. Discover high-precision, oil-free graphite bronze bushings, guide bars, and wear plates. Explore options for custom dimensions and material choices, including high-strength brass, for applications in metal stamping dies and port machinery. Get customized solutions tailored to your needs.
