Bronze Bushings Available Online Sourcing
Industrial Bronze Bushings – Made to Order Copper Alloys
High Performance Bearings Designed in Collaboration with Customers. Made for Your Needs. Speak to an Engineer to Learn More about Our Custom, High Quality Bronze Bearings. Bronze bushings – Request bronze bearings drawings.
Wrapped or machined bushings
Wrapped Bronze Bushing & Bearing – Excellent Supplier from China.
Saves You Time & Money In Bronze Bushings Research, Design & Production Costs. E-mail Now! We Can Economically Make Custom Bushings In Metric & Inch Size. Sliding Plates Made. Made in China. Highlights: Quick Quote Available, ISO 3547, DIN 1494, Customer Service Available.

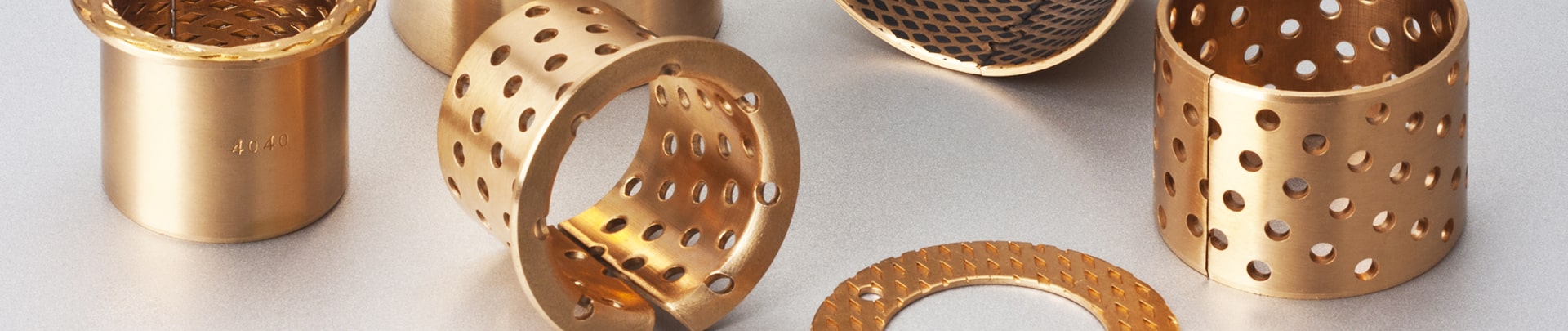

Bronze Bearings made of CuSn8 with Lubrication Indents, Bronze Bushing Lubrication

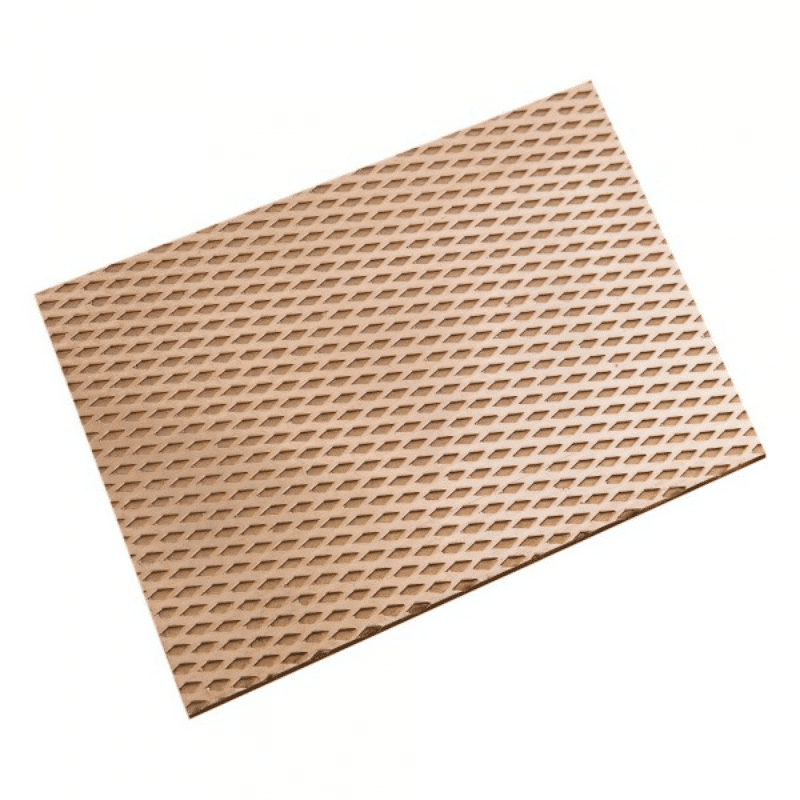

The sliding surface of wrapped bronze bushing contains diamond shaped pockets that must initially be filled with grease! Saves You Time & Money In Research, Design & Production Costs. E-mail Now! Copper Alloy Bars , Plates & Parts Specialists For Manufacturing & Machining Of All… Premium Bronze Bushings – ISO 3547 DIN 1494, Metric & Imperial Plain, Flanged, Washers… Quality China Made Manufacturing. See Our Online Catalog & Request A Quote!
Standard wrapped bronze bushings thicknesses 1.0/1.5/2.0/2.5/3.0 mm. CuSn8P Slide Bearing， Composition (standard values)
Cu 91.3 %
Sn 8.5 %
P 0.2 %

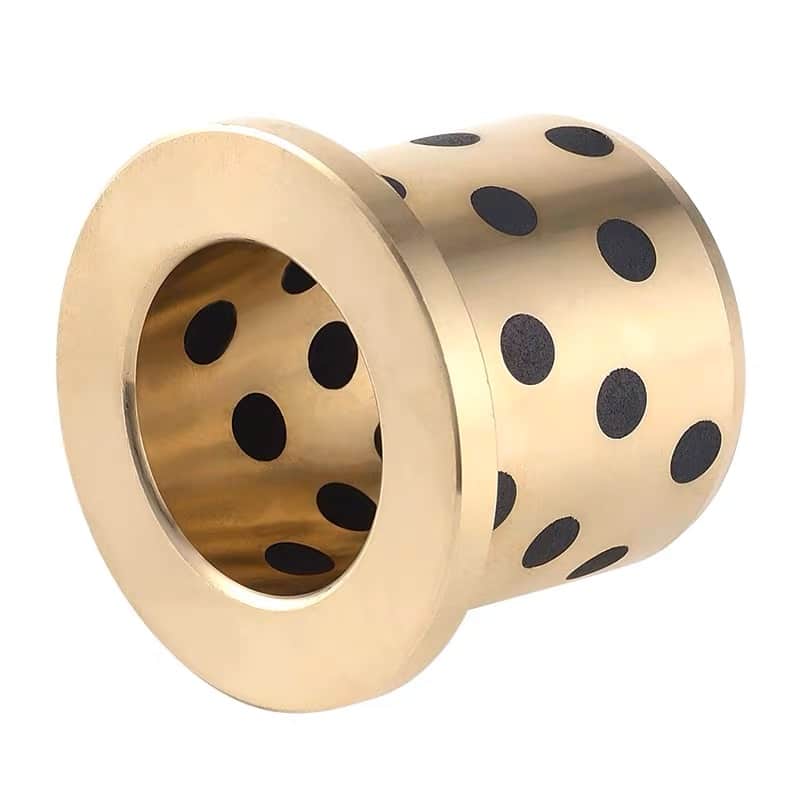

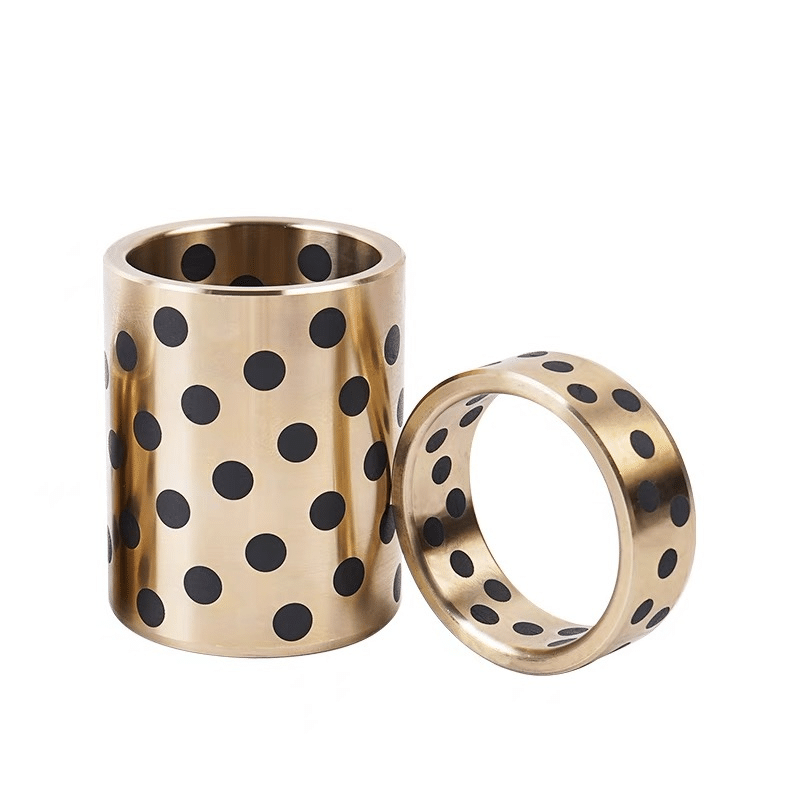

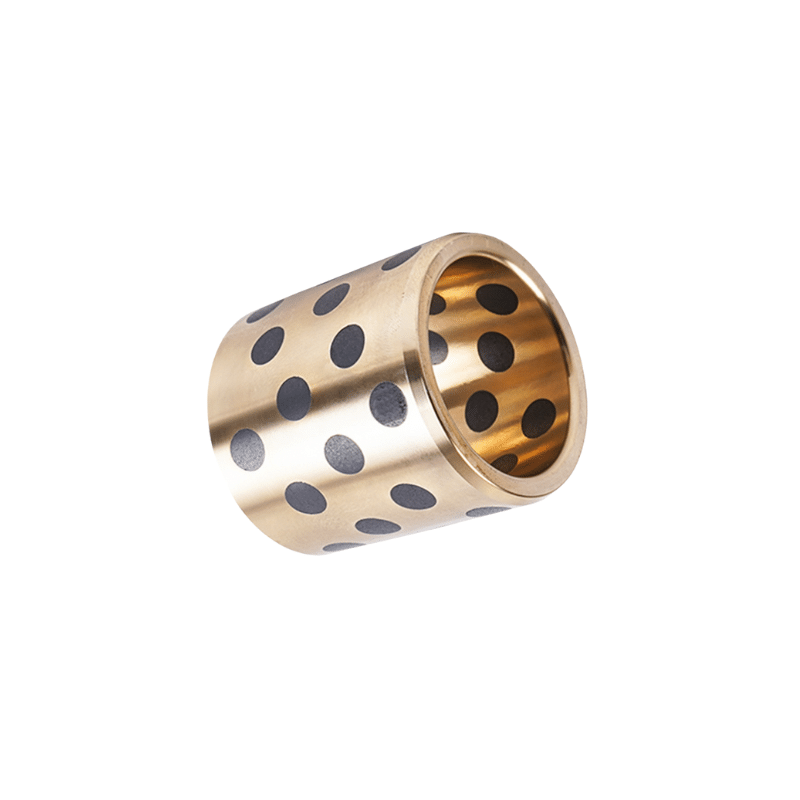

Self Lubricating Bronze Bushings According to Client’s Design
Yoga takes you into the present moment. The only place where life exists.
Wrapped bronze bushes – metric size.“Wrapped bronze bushings are made entirely of bronze, CuSn8, The bushings are produced from strips which are then wrapped and calibrated.” We are a manufacturer of bronze bushes components, The bronze bushing is manufactured with machined holes and/or grooves into which graphite is inserted.
CuSn8P standard alloy for wrapped bushings & Phosphor bronze bushings, made to order.
Bronze Bushing Material highly resistant to load, high temperature, corrosion and wear. Under heavy load, it requires a hardened shaft. Wrapped Bronze Bush Bearings· Cylindrical Bush · Flanged Bushes · Industrial Washer · Industrial Bearings · Thrust Washers. Owing to our immense years of industry experience, we are offering a huge array of Flanged Bronze Bushing. The offered cylindrical bush is meticulously tested on various quality parameters and is widely demanded in various industries. Provided cylindrical bush is manufactured by utilizing optimum quality raw material and the latest technology at our manufacturing unit. In line with international standard we provide the entire range in various customized options and at affordable prices.
Full range wrapped bronze bushing provider
Wrapped bronze bushings Lubrication pockets & holes help extend bushing service life!
Bronze bushing is a kind of wrapped self lubricating bearing.
We stand behind the quality of our wrapped bronze bushing products and flange bearings. Available ex stock. View Our Wrapped Bronze Bushing Online Catalog. Make An Inquiry.View Products.
High quality
The promise of bronze bushing high quality, meet your requirement.
Wrapped Bronze Bushings
Small minimum order value & quantity, fast delivery.
Custom Bearings Bushing – Bronze Wrapped Bearings
Breathtaking design for home living.
Solid Bronze Metal Bearings Manufacturer – All Type Bronze Bearings – bronzelube.com, Reliable Quality, Fast Delivery, OEM & Wholesale.
Nam aliquet ante porta, gravida elit interdum, luctus porta sapien justo, at fringilla felis suscipit vestibulum.
Phosphor bronze bearings factory price
Save your purchasing CuSn8P Slide Bearings budget for your project.
Our range of CuSn8 bronze bearings manufactured from CuSn8 rolled phosphor bronze alloy material is extremely versatile and well suited for a wide range of applications. These bronze bearings have been developed for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture and automotive industries. Our CuSn8 bronze range is capable of taking axial as well as radial loads and have outstanding resistance against saltwater and corrosion cracking and most importantly; are much more cost-effective than machined, roller or ball bearings.
We design Wrapped or machined bushings.
We design Wrapped Bronze Bushings or machined bushings OD up to 100 mm, Wall thickness, depending on OD. Plain bearing bushes. Benefit from our longstanding experience in application consulting: We offer custom size solutions that meet the highest requirements.
Features:
- Robust Construction
- CuSn8 Bronze bushings Compact size

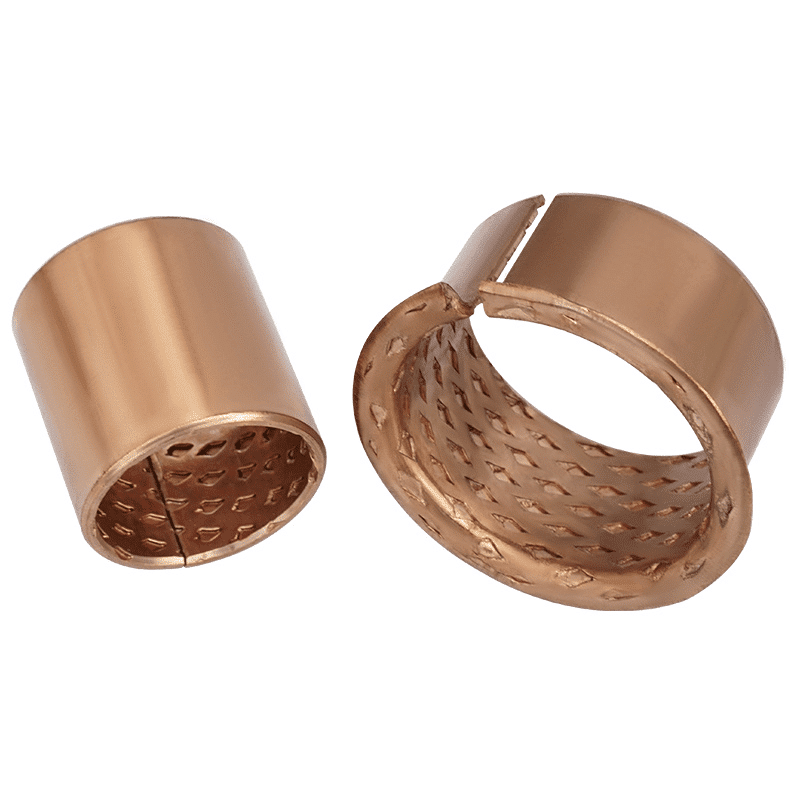

- Wrapped bronze bushing with diamond pockets

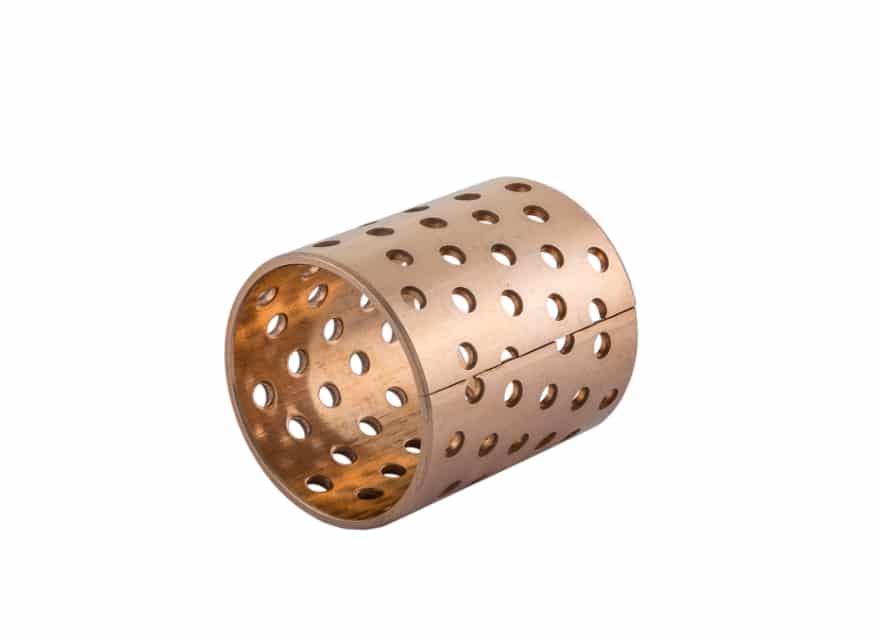

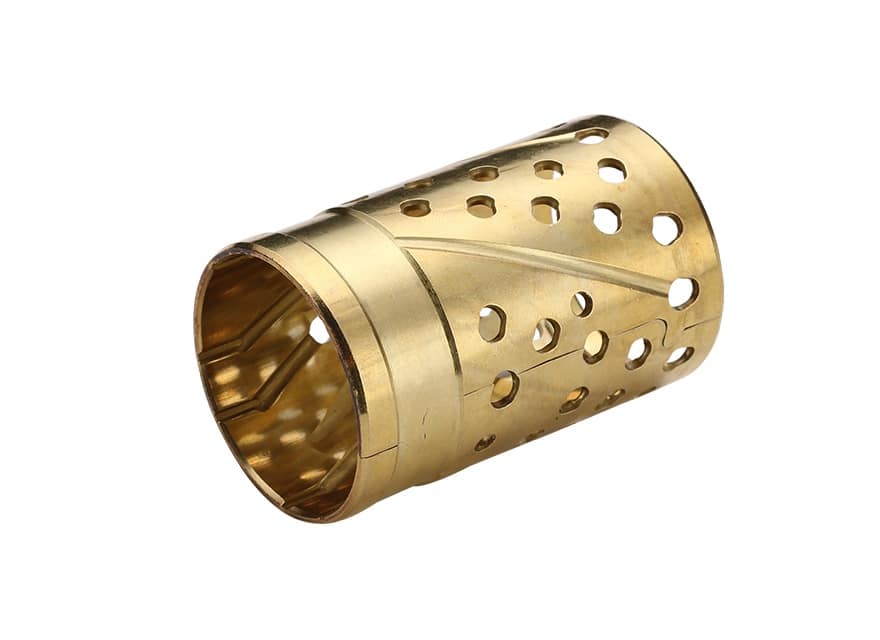

- Wrapped bronze bushing with through holes.
* Our enterprise, is one of the undisputed supplier of the highly competitive wrapped bronze bushing industry in china.
Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547 CuSn8P Slide Bearings
CuSn8P: Bronze highly resistant to load, high temperature, corrosion and wear. Under heavy load, it requires a hardened shaft. Application: Small-end bearings, joint bearings subject to impact load, standard alloy for wrapped bushings.
Bronze plain bearing lubricated
CHARACTERISTICS
- Material: bronze
- Other characteristics: lubricated Monometallic Bearing
WRAPPED BRONZE BEARING DESCRIPTION
The bronze bushing is made of high density copper alloy strip Cusn8 with special material, and the surface can be wrapped with diamond with indented inside surface and oil groove according to customer’s requirement.
BRONZE BUSHINGS TYPE
Bronze bearings forms available in standard dimensions.
the wrapped bronze bearing is made of high density tin-bronze CuSn8; its surface is perforated with oil openings at a certain angle and density; therefore, it is easier to form an oil film when the bushing works. It has good load capacity and anti-fatigue, anti-erosion and load. The products are widely applied under conditions of heavy load, but low operating speed, as in agricultural, construction and engineering machinery.
DESCRIPTION

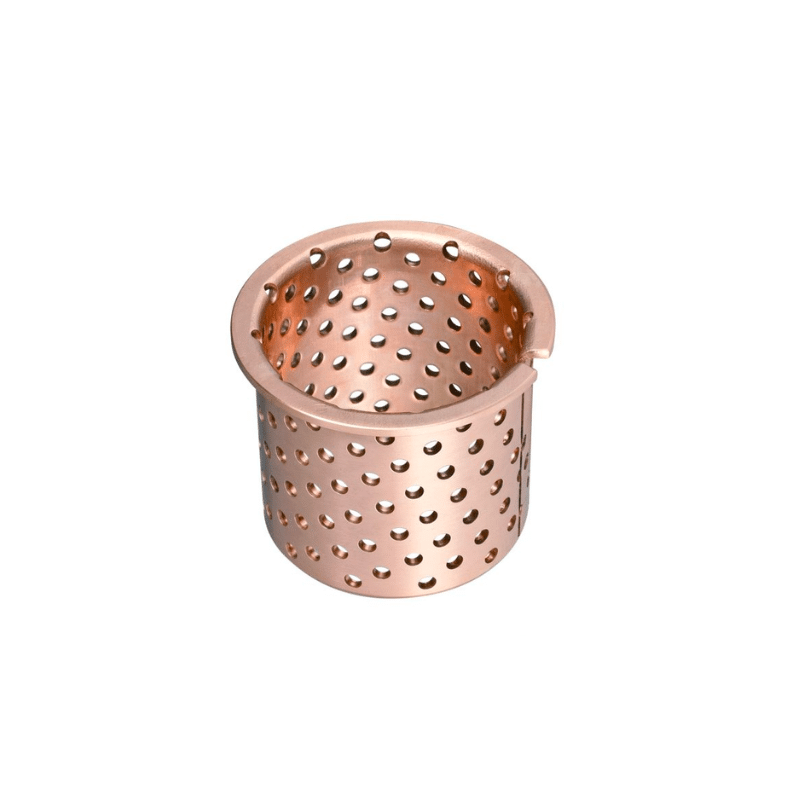

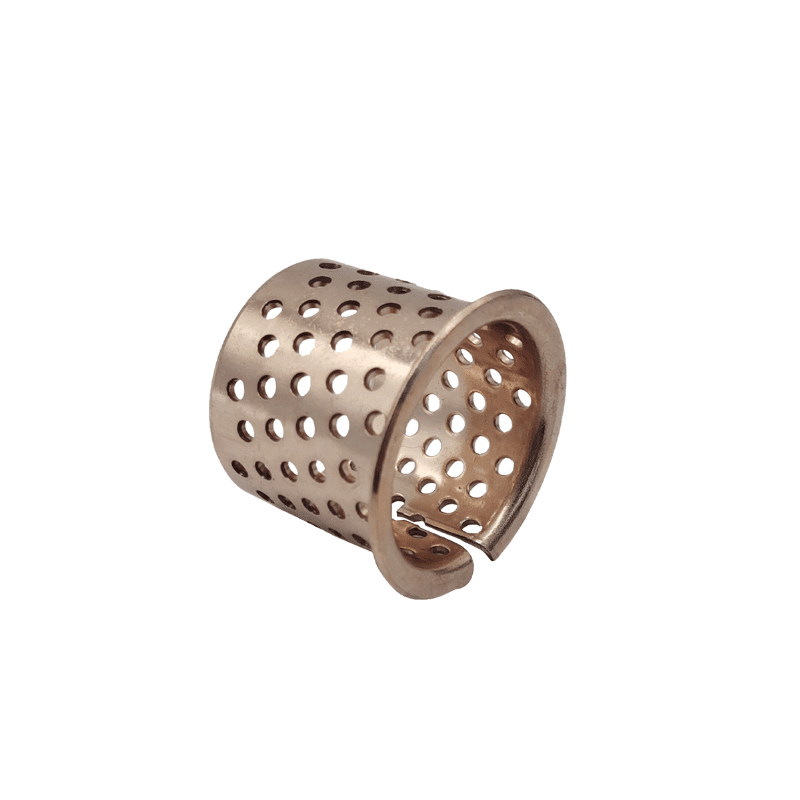

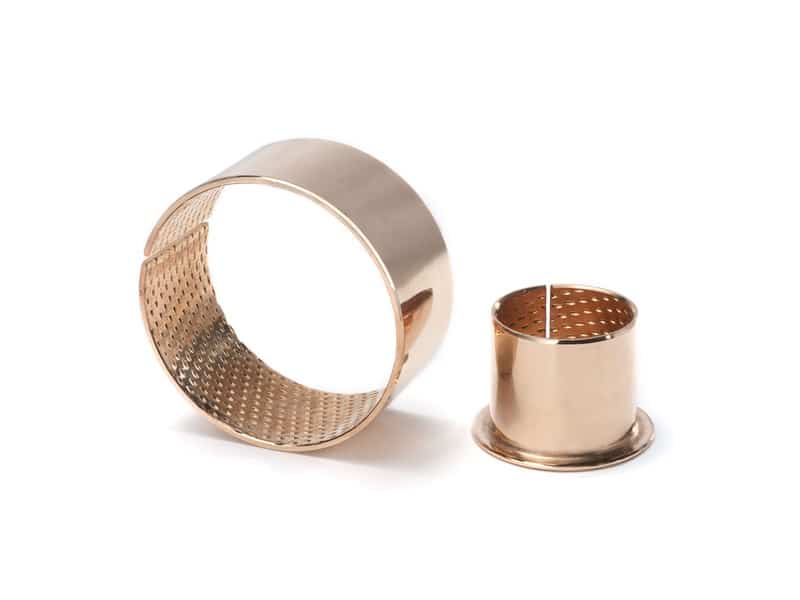

Wrapped bronze flanged bearings
Our range of wrapped bronze flanged bearings manufactured from CuSn8 rolled phosphor bronze alloy material are extremely versatile and well suited for a wide range of applications. These bronze bearings have been developed for slow speed, high load applications, especially suited for oscillating motion, and are perfect for the construction, mining/quarrying, agriculture, and automotive industries.
Wrapped bronze flanged bearings are capable of taking axial as well as radial loads and have good resistance against saltwater and corrosion cracking and most importantly; are much more cost-effective than machined, roller, or ball bearings.
The working surface is rolled with diamond-shaped indentations. On assembly or during operation the indentations can be filled with grease or oil which acts as a reservoir creating excellent long-term lubrication.
The bronze bearings are produced from phosphor bronze alloy rolled strip which is hard and has an excellent finish. The material composition is as follows:
Cu – Balance
Sn – 8.5%
P – 0.2%
We offer high stock levels of wrapped bronze bushing bearings and flanged bushings. A majority is online available for immediate deliveries. We ship worldwide.
Rolled bushings are used, on the one hand, in standard dimensions with lubrication pockets.
Chemical Composition
| Part No | Material | Cu | Sn | P | Pb | Zn |
| 090 bronze bushing | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
| 092 bronze bushing | CuSn8 | 91.3% | 8.5% | 0.2% | / | / |
Bronze bushings material
- Support material CuSn8P bronze bushings
- alternative CuSn6P bronze bushings available
Technical Parameters Bronze Bushing Tolerance Details
| Standard Dia. | O.D.Size | Housing Bore | I.D.Size | Matching Shaft Diameter |
|---|---|---|---|---|
| 10~18 | +0.065 +0.030 |
+0.018 0 |
+0.046 0 |
– 0.016 – 0.043 |
| 18~30 | +0.075 +0.035 |
+0.021 0 |
+0.052 0 |
– 0.020 – 0.020 |
| 30~50 | +0.085 +0.045 |
+0.025 0 |
+0.062 0 |
– 0.025 – 0.064 |
| 50~80 | +0.100 +0.055 |
+0.030 0 |
+0.074 0 |
– 0.030 – 0.076 |
| 80~120 | +0.120 +0.070 |
+0.035 0 |
+0.087 0 |
– 0.036 – 0.090 |
| 120~180 | +0.170 +0.100 |
+0.400 0 |
+0.100 0 |
– 0.043 – 0.106 |
| 180~250 | +0.210 +0.130 |
+0.046 0 |
+0.115 0 |
– 0.050 – 0.122 |
| 250~315 | +0.260 +0.170 |
+0.052 0 |
+0.130 0 |
– 0.056 – 0.137 |

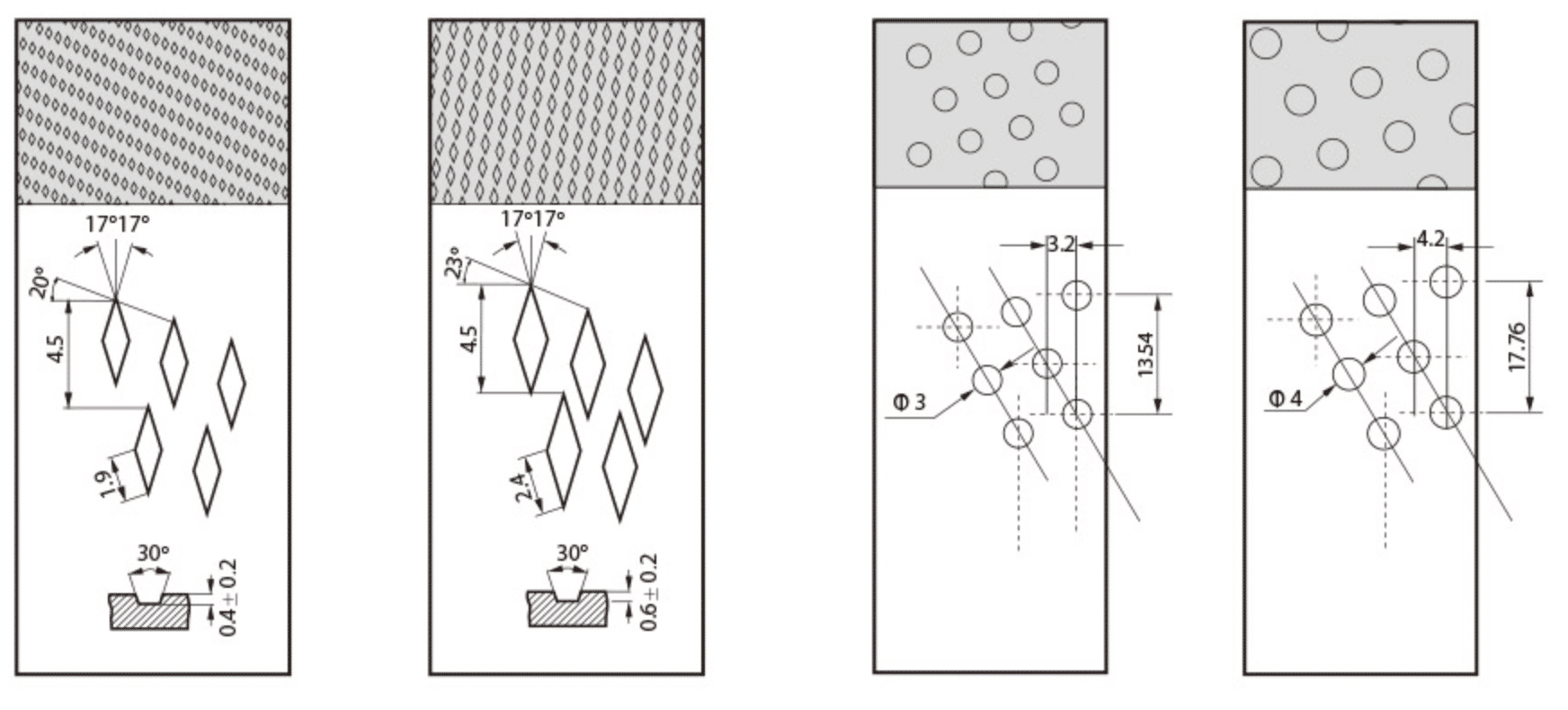

Diamond Indentations/ Oil Greasing Holes
The bronze bushings diamond indentations are an excellent lubrication depot and keeping maintenance to a minimum.
The Oil Greasing Holes have the advantage of storing more lubricants than the Diamond Indentations and therefore, the maintenance intervals can be extended.
Bronze Bushing Type made to order: cylindrical bushes with non-standard dimensions, flanged bronze bushes, sliding bearings, customized bushings designs
Material Characteristics
| Max. Load Capacity P | ||
| Static Load | N/mm2 | 120 |
| Dynamic Load | N/mm2 | 40 |
| Max. Speed V | ||
| SPLIT BRONZE BUSHINGS 090 092 SERIES | m/s | 2.0 |
| E92 | m/s | >2.5 |
| Max. PV Value | N/mm2·m/s | 2.8 |
| Tensile Strength | N/mm2·m/s | 450 |
| Yiled Point | N/mm2·m/s | 250 |
| Hardness | HB | 90-120 |
| Elongation | 40% | |
| Coefficient of Friction | μ | 0.08~0.25 |
| Operation Temperature Range | ℃ | -100~200 |
| Thermal Conductivity | W/(m · k) | 60 |
| Coefficient of Thermal HSB-2pansion | k-1 | 15×10-6 |
Bronze Bushing Industry
Agriculture machinery, truck cranes & construction machinery, suitable for impact loads
Choose from our selection of split bronze bushings, including sleeve bearings, flanged sleeve bearings, and more. In standard size stock and ready to ship.
Bronze Bushing Split Type Simple Sleeve Design Providing You With More Design Freedom
Bronze split bearings are split bushings, also called wrapped bronze bearings, straight type or without flange. Bronze bushing are wrapped of a cold formable homogenous bronze (CuSn8),particular formulation with high specific gravity. Bronze lube bushings – Sliding Bearing, Plain Bearing 090 & 092 series
APPLICATIONS.
Industrial – Mechanical handling and lifting equipment, hydraulic cylinders…
Wrapped bushes with grease pockets size chart, Price and delivery time on request
| Wrapped bushes with grease diamond pockets | Inner diameter d | Outer diameter D | Length L |
| Wrapped Bronze Bushes 10-12-10 | 10 | 12 | 10 |
| Wrapped Bronze Bushes 10-12-15 | 10 | 12 | 15 |
| Wrapped Bronze Bushes 12-14-10 | 12 | 14 | 10 |
| Wrapped Bronze Bushes 12-14-12 | 12 | 14 | 12 |
| Wrapped Bronze Bushes 12-14-15 | 12 | 14 | 15 |
| Wrapped Bronze Bushes 12-14-20 | 12 | 14 | 20 |
| Wrapped Bronze Bushes 14-16-10 | 14 | 16 | 10 |
| Wrapped Bronze Bushes 14-16-15 | 14 | 16 | 15 |
| Wrapped Bronze Bushes 14-16-20 | 14 | 16 | 20 |
| Wrapped Bronze Bushes 14-16-25 | 14 | 16 | 25 |
| Wrapped Bronze Bushes 15-17-10 | 15 | 17 | 10 |
| Wrapped Bronze Bushes 15-17-15 | 15 | 17 | 15 |
| Wrapped Bronze Bushes 15-17-25 | 15 | 17 | 25 |
| Wrapped Bronze Bushes 16-18-10 | 16 | 18 | 10 |
| Wrapped Bronze Bushes 16-18-15 | 16 | 18 | 15 |
| Wrapped Bronze Bushes 16-18-20 | 16 | 18 | 20 |
| Wrapped Bronze Bushes 16-18-25 | 16 | 18 | 25 |
| Wrapped Bronze Bushes 18-20-10 | 18 | 20 | 10 |
| Wrapped Bronze Bushes 18-20-15 | 18 | 20 | 15 |
| Wrapped Bronze Bushes 18-20-20 | 18 | 20 | 20 |
| Wrapped Bronze Bushes 18-20-25 | 18 | 20 | 25 |
| Wrapped Bronze Bushes 20-23-10 | 20 | 23 | 10 |
| Wrapped Bronze Bushes 20-23-12 | 20 | 23 | 12 |
| Wrapped Bronze Bushes 20-23-15 | 20 | 23 | 15 |
| Wrapped Bronze Bushes 20-23-22 | 20 | 23 | 22 |
| Wrapped Bronze Bushes 20-23-20 | 20 | 23 | 20 |
| Wrapped Bronze Bushes 20-23-25 | 20 | 23 | 25 |
| Wrapped Bronze Bushes 20-23-30 | 20 | 23 | 30 |
| Wrapped Bronze Bushes 22-25-15 | 22 | 25 | 15 |
| Wrapped Bronze Bushes 22-25-20 | 22 | 25 | 20 |
| Wrapped Bronze Bushes 22-25-25 | 22 | 25 | 25 |
| Wrapped Bronze Bushes 22-25-30 | 22 | 25 | 30 |
| Wrapped Bronze Bushes 22-25-40 | 22 | 25 | 40 |
| Wrapped Bronze Bushes 25-28-15 | 25 | 28 | 15 |
| Wrapped Bronze Bushes 25-28-20 | 25 | 28 | 20 |
| Wrapped Bronze Bushes 25-28-25 | 25 | 28 | 25 |
| Wrapped Bronze Bushes 25-28-30 | 25 | 28 | 30 |
| Wrapped Bronze Bushes 28-31-15 | 28 | 31 | 15 |
| Wrapped Bronze Bushes 28-31-20 | 28 | 31 | 20 |
| Wrapped Bronze Bushes 28-31-25 | 28 | 31 | 25 |
| Wrapped Bronze Bushes 28-31-30 | 28 | 31 | 30 |
| Wrapped Bronze Bushes 30-34-15 | 30 | 34 | 15 |
| Wrapped Bronze Bushes 30-34-20 | 30 | 34 | 20 |
| Wrapped Bronze Bushes 30-34-25 | 30 | 34 | 25 |
| Wrapped Bronze Bushes 30-34-30 | 30 | 34 | 30 |
| Wrapped Bronze Bushes 30-34-40 | 30 | 34 | 40 |
| Wrapped Bronze Bushes 32-36-15 | 32 | 36 | 15 |
| Wrapped Bronze Bushes 32-36-20 | 32 | 36 | 20 |
| Wrapped Bronze Bushes 32-36-25 | 32 | 36 | 25 |
| Wrapped Bronze Bushes 32-36-30 | 32 | 36 | 30 |
| Wrapped Bronze Bushes 32-36-40 | 32 | 36 | 40 |
| Wrapped Bronze Bushes 35-39-15 | 35 | 39 | 15 |
| Wrapped Bronze Bushes 35-39-20 | 35 | 39 | 20 |
| Wrapped Bronze Bushes 35-39-25 | 35 | 39 | 25 |
| Wrapped Bronze Bushes 35-39-30 | 35 | 39 | 30 |
| Wrapped Bronze Bushes 35-39-40 | 35 | 39 | 40 |
| Wrapped Bronze Bushes 35-39-50 | 35 | 39 | 50 |
| Wrapped Bronze Bushes 40-44-20 | 40 | 44 | 20 |
| Wrapped Bronze Bushes 40-44-25 | 40 | 44 | 25 |
| Wrapped Bronze Bushes 40-44-30 | 40 | 44 | 30 |
| Wrapped Bronze Bushes 40-44-40 | 40 | 44 | 40 |
| Wrapped Bronze Bushes 40-44-50 | 40 | 44 | 50 |
| Wrapped Bronze Bushes 40-44-60 | 40 | 44 | 60 |
| Wrapped Bronze Bushes 45-50-20 | 45 | 50 | 20 |
| Wrapped Bronze Bushes 45-50-25 | 45 | 50 | 25 |
| Wrapped Bronze Bushes 45-50-30 | 45 | 50 | 30 |
| Wrapped Bronze Bushes 45-50-40 | 45 | 50 | 40 |
| Wrapped Bronze Bushes 45-50-50 | 45 | 50 | 50 |
| Wrapped Bronze Bushes 50-55-25 | 50 | 55 | 25 |
| Wrapped Bronze Bushes 50-55-30 | 50 | 55 | 30 |
| Wrapped Bronze Bushes 50-55-40 | 50 | 55 | 40 |
| Wrapped Bronze Bushes 50-55-50 | 50 | 55 | 50 |
| Wrapped Bronze Bushes 50-55-60 | 50 | 55 | 60 |
| Wrapped Bronze Bushes 55-60-25 | 55 | 60 | 25 |
| Wrapped Bronze Bushes 55-60-30 | 55 | 60 | 30 |
| Wrapped Bronze Bushes 55-60-40 | 55 | 60 | 40 |
| Wrapped Bronze Bushes 55-60-50 | 55 | 60 | 50 |
| Wrapped Bronze Bushes 55-60-60 | 55 | 60 | 60 |
| Wrapped Bronze Bushes 60-65-25 | 60 | 65 | 25 |
| Wrapped Bronze Bushes 60-65-30 | 60 | 65 | 30 |
| Wrapped Bronze Bushes 60-65-40 | 60 | 65 | 40 |
| Wrapped Bronze Bushes 60-65-50 | 60 | 65 | 50 |
| Wrapped Bronze Bushes 60-65-60 | 60 | 65 | 60 |
| Wrapped Bronze Bushes 60-65-80 | 60 | 65 | 80 |
| Wrapped Bronze Bushes 65-70-30 | 65 | 70 | 30 |
| Wrapped Bronze Bushes 65-70-40 | 65 | 70 | 40 |
| Wrapped Bronze Bushes 65-70-50 | 65 | 70 | 50 |
| Wrapped Bronze Bushes 65-70-60 | 65 | 70 | 60 |
| Wrapped Bronze Bushes 65-70-80 | 65 | 70 | 80 |
| Wrapped Bronze Bushes 70-75-40 | 70 | 75 | 40 |
| Wrapped Bronze Bushes 70-75-50 | 70 | 75 | 50 |
| Wrapped Bronze Bushes 70-75-60 | 70 | 75 | 60 |
| Wrapped Bronze Bushes 70-75-80 | 70 | 75 | 80 |
| Wrapped Bronze Bushes 75-80-30 | 75 | 80 | 30 |
| Wrapped Bronze Bushes 75-80-40 | 75 | 80 | 40 |
| Wrapped Bronze Bushes 75-80-80 | 75 | 80 | 80 |
| Wrapped Bronze Bushes 80-85-30 | 80 | 85 | 30 |
| Wrapped Bronze Bushes 80-85-40 | 80 | 85 | 40 |
| Wrapped Bronze Bushes 80-85-60 | 80 | 85 | 60 |
| Wrapped Bronze Bushes 80-85-80 | 80 | 85 | 80 |
Why Use Bronze Bushings? Bushing Material, Phosphor Bronze Bearings
Manufacturer of wrapped bronze bushing, flange bronze bushes, as well as tin bronze bearings. Wrapped Bronze Bearings Parts: Large selection of bronze sleeve bearings. Split-type sleeve bearings are available to buy online.
Bronze is a versatile and commonly used bushing material because it has many alloys and components. The most common bronze bushing materials and their uses include.
Bronze. The most common are alloys of bronze with tin, aluminum or silicon, which have high corrosion resistance, making them ideal for marine applications. Popular designs include bronze alloy graphite oil-free bushings, flanged bronze bushings, and sintered bronze bushings. Please contact us about bronze bushing and bearing materials and sizes to learn more.
Bronze bushings or bronze bearings are hard and strong, as opposed to brass bushings, which are softer and more prone to deformation. As a result, bronze bushings last longer than brass bushings. They resist shock and impact, wear and corrosion. They require an external lubricant, such as grease or oil, to reduce friction and wear during installation and operation.
Applications of bronze bushings: They are more commonly used in low-speed, high-load and heavy-duty industrial applications and machinery for steel manufacturing, food processing, injection molding, automotive machinery, earth-moving machinery, pumps and other industries.
Sed porttitor lectus nibh. Vivamus magna justo, lacinia eget consectetur sed, convallis.
Slide bearings
Browse, get a quote and order products easily in bronze slide bearing parts eCatalog
Slide bearings are also used in bearings for modern axle and brake systems, transmissions, differentials and hydraulic pumps, bronze bushing price and delivery time on request, High Precision Oil-free Slide Plates online sourcing.
