Wrapped or machined bushings

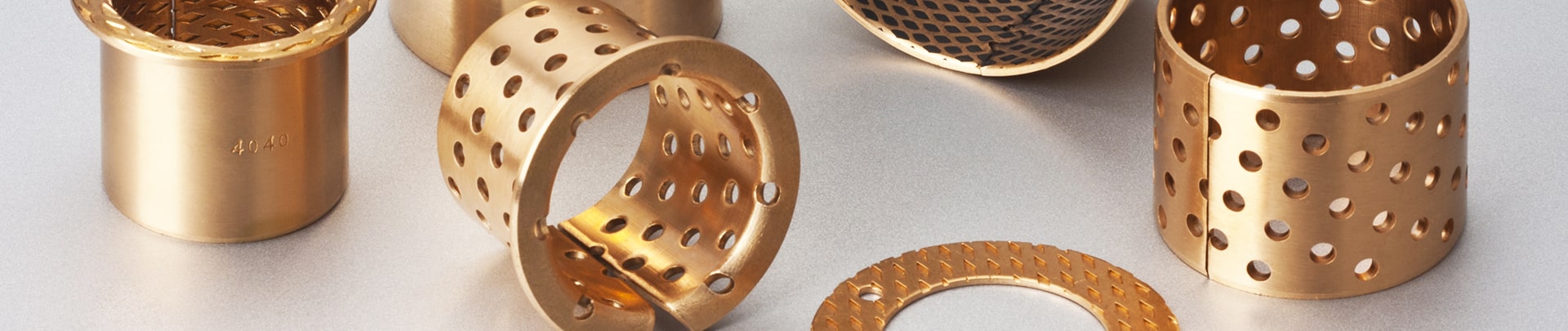

Wrapped Cylindrical Bushing & Flange Bearings – Excellent Supplier from China.
Saves You Time & Money In Bronze Bushings Research, Design & Production Costs. E-mail Now!
We offers an extensive range of bronze bearings to fulfill your needs! Wrapped bronze sliding bearing with perforations Punched Low-maintenance. Support material CuSn8P (DIN 17662) Bronze Bearings made of CuSn8 with Lubrication Indents, DIN 1494 / ISO 3547： Bronze bushes solutions – flawless bearing products – high quality bushings services – performance-based prices. These bronze bearings have been developed for low speed and high load applications, especially suitable for oscillating movements and are perfect for the construction, mining / quarry, agriculture and automotive industries.
Full range wrapped bronze bushing provider
Wrapped bronze bushings Lubrication pockets & holes help extend bushing service life!
Bronze bushing is a kind of wrapped self lubricating bearing.
- It is a low-maintenance bronze sliding bearing, primary lubrication is necessary. Oil or grease lubrication is possible. Due to lubrication pockets lubrication clearances are reduced to a minimum!
- To provide the industry with advanced technical experience, is committed to providing users with high-performance self-lubricating bearings and solutions, products with self-lubricating, low maintenance, lightweight, long life, low noise, environmental protection and other low operating cost elements, recognized by the domestic and foreign markets.
Self-Lubricating Bronze Bearing with Through Holes
Find here online price details of companies selling Bronze Bushes. Get info of suppliers, manufacturers, exporters, traders of Bronze Bushes for buying in China.
Safe & Reliable Bronze Bushes Solutions, Four Advantages of Bronze Bushes Bearing
-
Professional bronze bearings suppliers are trustworthy
- Solid bushings R&D and innovation capability
- Noble quality bushing & bearing service available
- Professional bronze bushes technical support
Top Quality
The promise of bronze bearings high quality, meet your requirement.
Wrapped Bronze Bearings
Cylindrical bushings, flanged bushings and strips are standard fabrication.
Find the bronze bearing part for your application

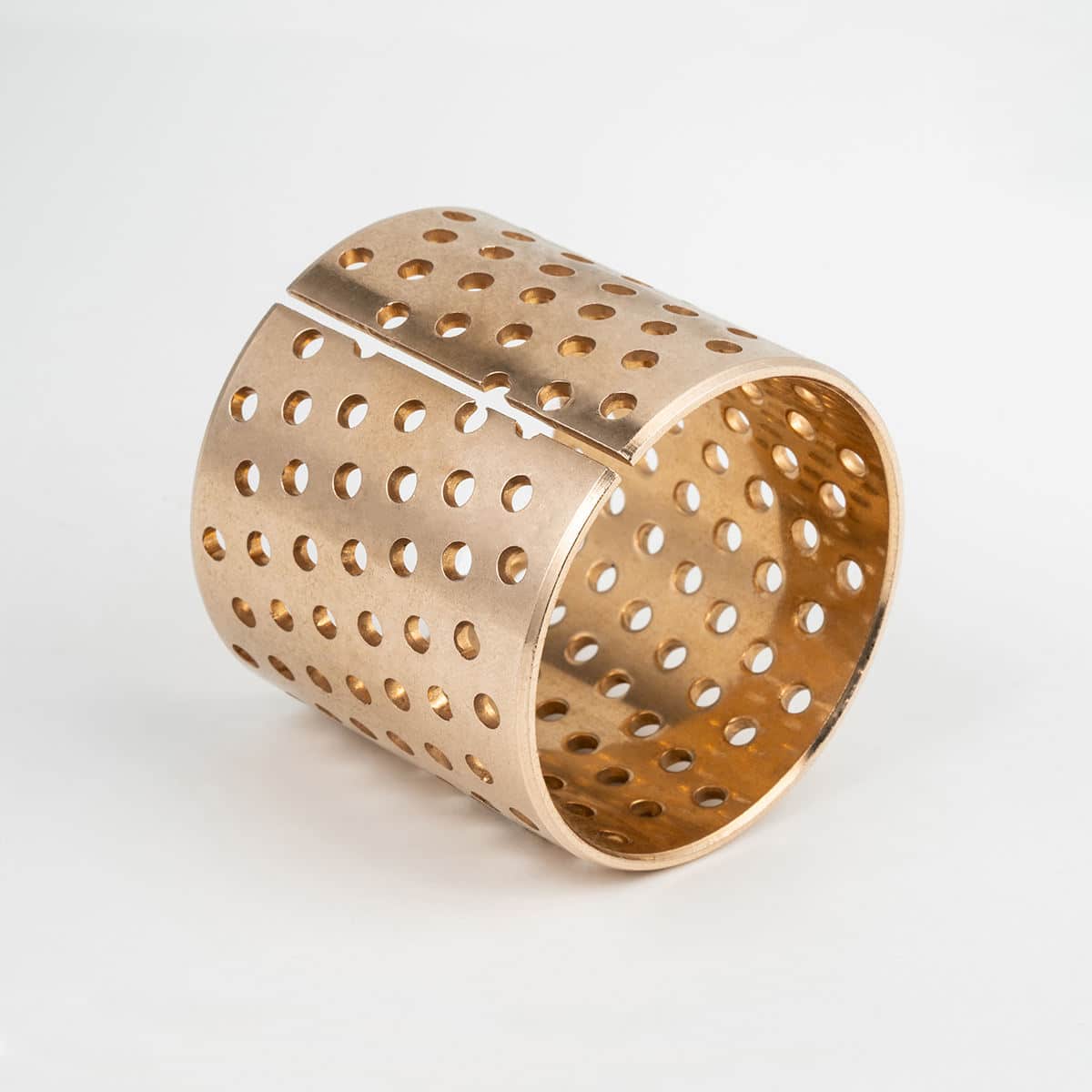

Wrapped Bronze Bearings with Through Holes
Wrapped Bronze Bearing is widely used in construction machinery, agricultural machinery and so on. The wrapped bronze bearing is used as one of the truck chassis parts. Also, it can be applied in the agricultural machinery, construction machinery, cranes, conveyors, lifts, winding engines, and the levelers, among others. In order to meet your needs for different specifications of bronze bushes products, we can rely on professional research and development team.
High strength bronze bushes material
Material: CuSn8P0.3 / CuSn6.5P0. 1
Wrapped Bronze Bearings are made completely of bronze.

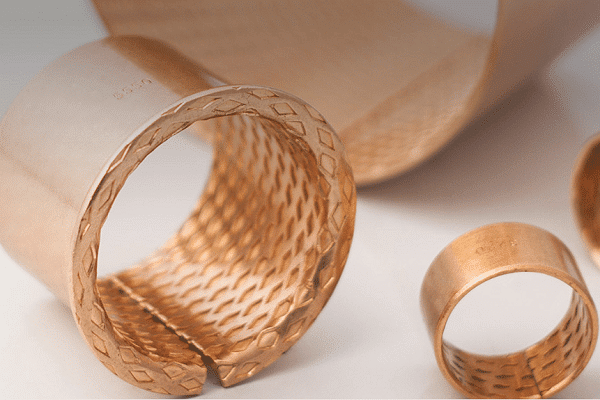

Wrapped Bronze Bearings, CuSn6.5P, CuSn8P, Diamond oil pocket
Take advantage of our experiences and quality for the of your bronze bearing products!
Design and engineering for bronze bearing bushing applications to support new concepts of machines &/or upgrading machinery. Distribution and production of finished machined bronze bushings, sliding bearing components and engineering bronze bearings. A variety materials for our bronze bushes products that give you all the options!
We design Wrapped or machined bushings.

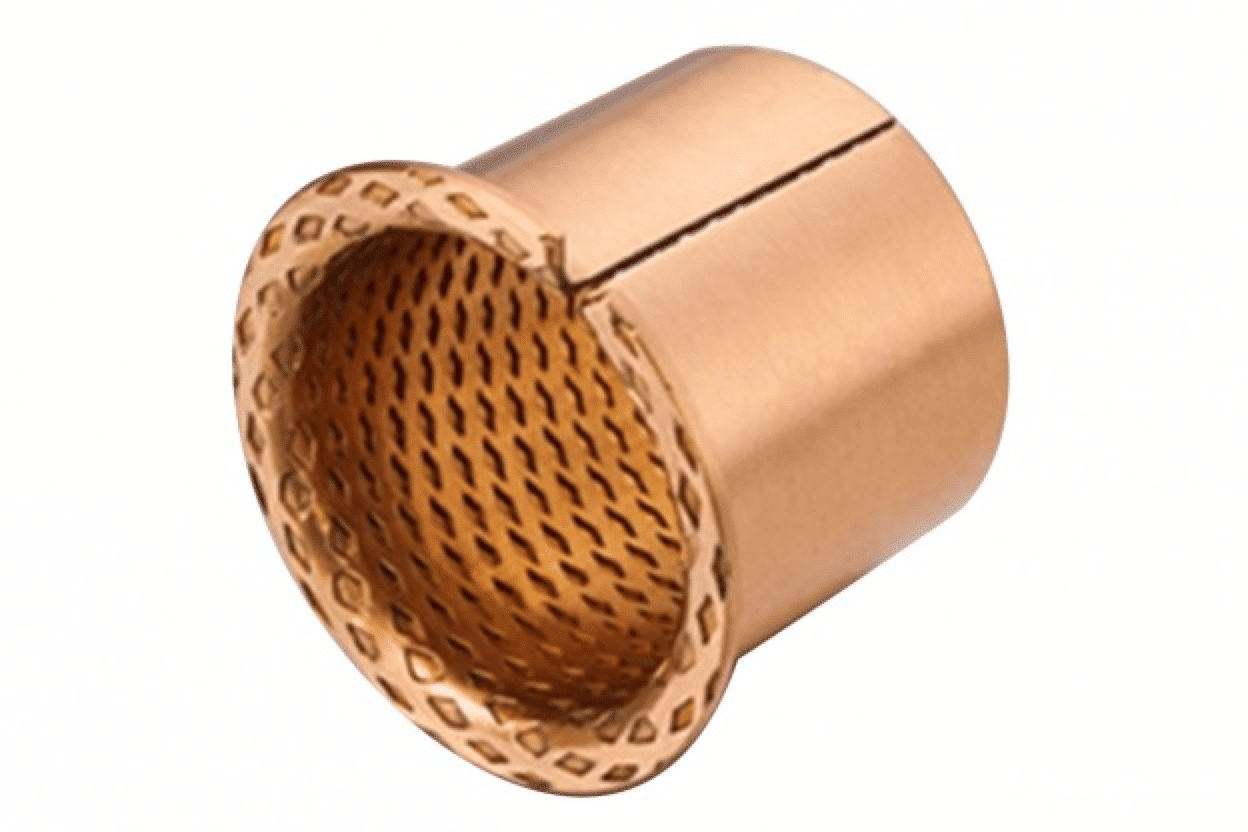

Wrapped bronze flanged bushing requiring low-maintenance
Bronze Bushing is a bronze material for the matrix, processing uniform and orderly injection hole, the rolling made of thin-walled bearings, lubricating grease after assembly, and then configure the end face seal and use. The bearing has a large amount of oil, easy installation, the advantages of small size design, and can replace the use of copper sets, can greatly reduce costs. At present the product has been used in conveyors, lifts, roll field machines, school-level machines, such as medium and low-speed occasions.
* Our enterprise, is one of the undisputed supplier of the highly competitive wrapped bronze bushing industry in china.

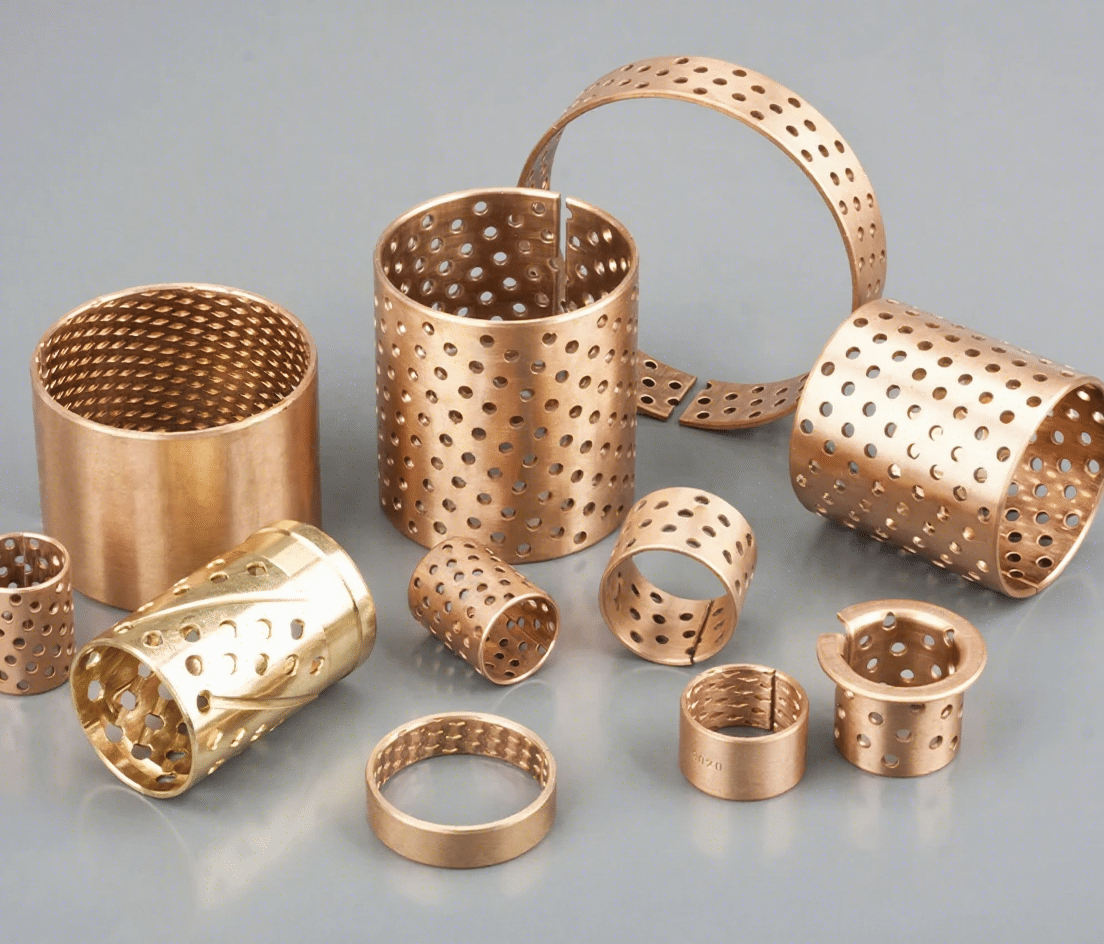

Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547
BRONZE BUSHINGS TYPE
Bronze bearings forms available in standard dimensions.
the wrapped bronze bearing is made of high density tin-bronze CuSn8; its surface is perforated with oil openings at a certain angle and density; therefore, it is easier to form an oil film when the bushing works. It has good load capacity and anti-fatigue, anti-erosion and load. The products are widely applied under conditions of heavy load, but low operating speed, as in agricultural, construction and engineering machinery.
Wrapped bronze bearing with perforations Punched Low-maintenance
DIN 1494 / ISO 3547, Price and delivery time on request
| Art. Nr. | d / D x L | Art. Nr. | d / D x L | Art. Nr. | d / D x L |
| Bronze Cylindrical Bushing 1010 | 10/12×10 | Bronze Cylindrical Bushing 1720 | 17/19×20 | Bronze Cylindrical Bushing 2528 | 25/28×28 |
| Bronze Cylindrical Bushing 1012 | 10/12×12 | Bronze Cylindrical Bushing 1725 | 17/19×25 | Bronze Cylindrical Bushing 2530 | 25/28×30 |
| Bronze Cylindrical Bushing 1015 | 10/12×15 | Bronze Cylindrical Bushing 1808 | 18/20×8 | Bronze Cylindrical Bushing 2532 | 25/28×32 |
| Bronze Cylindrical Bushing 1020 | 10/12×20 | Bronze Cylindrical Bushing 1810 | 18/20×10 | Bronze Cylindrical Bushing 2535 | 25/28×35 |
| Bronze Cylindrical Bushing 1108 | 11/13×8 | Bronze Cylindrical Bushing 1812 | 18/20×12 | Bronze Cylindrical Bushing 2540 | 25/28×40 |
| Bronze Cylindrical Bushing 1109 | 11/13×9 | Bronze Cylindrical Bushing 1815 | 18/20×15 | Bronze Cylindrical Bushing 2550 | 25/28×50 |
| Bronze Cylindrical Bushing 1110 | 11/13×10 | Bronze Cylindrical Bushing 1820 | 18/20×20 | Bronze Cylindrical Bushing 2560 | 25/28×60 |
| Bronze Cylindrical Bushing 1112 | 11/13×12 | Bronze Cylindrical Bushing 1825 | 18/20×25 | Bronze Cylindrical Bushing 2610 | 26/30×10 |
| Bronze Cylindrical Bushing 1206 | 12/14×6 | Bronze Cylindrical Bushing 1830 | 18/20×30 | Bronze Cylindrical Bushing 2612 | 26/30×12 |
| Bronze Cylindrical Bushing 1208 | 12/14×8 | Bronze Cylindrical Bushing 2008a | 20/22×8 | Bronze Cylindrical Bushing 2615 | 26/30×15 |
| Bronze Cylindrical Bushing 1210 | 12/14×10 | Bronze Cylindrical Bushing 2010a | 20/22×10 | Bronze Cylindrical Bushing 2620 | 26/30×20 |
| Bronze Cylindrical Bushing 1212 | 12/14×12 | Bronze Cylindrical Bushing 2012a | 20/22×12 | Bronze Cylindrical Bushing 2625 | 26/30×25 |
| Bronze Cylindrical Bushing 1214 | 12/14×14 | Bronze Cylindrical Bushing 2015a | 20/22×15 | Bronze Cylindrical Bushing 2630 | 26/30×30 |
| Bronze Cylindrical Bushing 1215 | 12/14×15 | Bronze Cylindrical Bushing 2020a | 20/22×20 | Bronze Cylindrical Bushing 2635 | 26/30×35 |
| Bronze Cylindrical Bushing 1216 | 12/14×16 | Bronze Cylindrical Bushing 2025a | 20/22×25 | Bronze Cylindrical Bushing 2640 | 26/30×40 |
| Bronze Cylindrical Bushing 1220 | 12/14×20 | Bronze Cylindrical Bushing 2030a | 20/22×30 | Bronze Cylindrical Bushing 2650 | 26/30×50 |
| Bronze Cylindrical Bushing 1225 | 12/14×25 | Bronze Cylindrical Bushing 2035a | 20/22×35 | Bronze Cylindrical Bushing 2810a | 28/31×10 |
| Bronze Cylindrical Bushing 1308 | 13/15×8 | Bronze Cylindrical Bushing 2040a | 20/22×40 | Bronze Cylindrical Bushing 2812a | 28/31×12 |
| Bronze Cylindrical Bushing 1309 | 13/15×9 | Bronze Cylindrical Bushing 2008b | 20/23×8 | Bronze Cylindrical Bushing 2815a | 28/31×15 |
| Bronze Cylindrical Bushing 1310 | 13/15×10 | Bronze Cylindrical Bushing 2010b | 20/23×10 | Bronze Cylindrical Bushing 2820a | 28/31×20 |
| Bronze Cylindrical Bushing 1312 | 13/15×12 | Bronze Cylindrical Bushing 2012b | 20/23×12 | Bronze Cylindrical Bushing 2825a | 28/31×25 |
| Bronze Cylindrical Bushing 1315 | 13/15×15 | Bronze Cylindrical Bushing 2015b | 20/23×15 | Bronze Cylindrical Bushing 2830a | 28/31×30 |
| Bronze Cylindrical Bushing 1410 | 14/16×10 | Bronze Cylindrical Bushing 2020b | 20/23×20 | Bronze Cylindrical Bushing 2832a | 28/31×32 |
| Bronze Cylindrical Bushing 1412 | 14/16×12 | Bronze Cylindrical Bushing 2025b | 20/23×25 | Bronze Cylindrical Bushing 2835a | 28/31×35 |
| Bronze Cylindrical Bushing 1415 | 14/16×15 | Bronze Cylindrical Bushing 2030b | 20/23×30 | Bronze Cylindrical Bushing 2840a | 28/31×40 |
| Bronze Cylindrical Bushing 1420 | 14/16×20 | Bronze Cylindrical Bushing 2035b | 20/23×35 | Bronze Cylindrical Bushing 2810b | 28/32×10 |
| Bronze Cylindrical Bushing 1422 | 14/16×22 | Bronze Cylindrical Bushing 2040b | 20/23×40 | Bronze Cylindrical Bushing 2812b | 28/32×12 |
| Bronze Cylindrical Bushing 1425 | 14/16×25 | Bronze Cylindrical Bushing 2210 | 22/25×10 | Bronze Cylindrical Bushing 2815b | 28/32×15 |
| Bronze Cylindrical Bushing 1508 | 15/17×8 | Bronze Cylindrical Bushing 2212 | 22/25×12 | Bronze Cylindrical Bushing 2820b | 28/32×20 |
| Bronze Cylindrical Bushing 1510 | 15/17×10 | Bronze Cylindrical Bushing 2215 | 22/25×15 | Bronze Cylindrical Bushing 2825b | 28/32×25 |
| Bronze Cylindrical Bushing 1512 | 15/17×12 | Bronze Cylindrical Bushing 2220 | 22/25×20 | Bronze Cylindrical Bushing 2830b | 28/32×30 |
| Bronze Cylindrical Bushing 1515 | 15/17×15 | Bronze Cylindrical Bushing 2225 | 22/25×25 | Bronze Cylindrical Bushing 2832b | 28/32×32 |
| Bronze Cylindrical Bushing 1518 | 15/17×18 | Bronze Cylindrical Bushing 2230 | 22/25×30 | Bronze Cylindrical Bushing 2835b | 28/32×35 |
| Bronze Cylindrical Bushing 1520 | 15/17×20 | Bronze Cylindrical Bushing 2235 | 22/25×35 | Bronze Cylindrical Bushing 2840b | 28/32×40 |
| Bronze Cylindrical Bushing 1525 | 15/17×25 | Bronze Cylindrical Bushing 2238 | 22/25×38 | Bronze Cylindrical Bushing 3010 | 30/34×10 |
| Bronze Cylindrical Bushing 1608 | 16/18×8 | Bronze Cylindrical Bushing 2240 | 22/25×40 | Bronze Cylindrical Bushing 3012 | 30/34×12 |
| Bronze Cylindrical Bushing 1610 | 16/18×10 | Bronze Cylindrical Bushing 2245 | 22/25×45 | Bronze Cylindrical Bushing 3015 | 30/34×15 |
| Bronze Cylindrical Bushing 1612 | 16/18×12 | Bronze Cylindrical Bushing 2250 | 22/25×50 | Bronze Cylindrical Bushing 3020 | 30/34×20 |
| Bronze Cylindrical Bushing 1615 | 16/18×15 | Bronze Cylindrical Bushing 2410a | 24/27×10 | Bronze Cylindrical Bushing 3025 | 30/34×25 |
| Bronze Cylindrical Bushing 1618 | 16/18×18 | Bronze Cylindrical Bushing 2412a | 24/27×12 | Bronze Cylindrical Bushing 3028 | 30/34×28 |
| Bronze Cylindrical Bushing 1620 | 16/18×20 | Bronze Cylindrical Bushing 2415a | 24/27×15 | Bronze Cylindrical Bushing 3030 | 30/34×30 |
| Bronze Cylindrical Bushing 1625 | 16/18×25 | Bronze Cylindrical Bushing 2420a | 24/27×20 | Bronze Cylindrical Bushing 3032 | 30/34×32 |
| Bronze Cylindrical Bushing 1708 | 17/19×8 | Bronze Cylindrical Bushing 2425a | 24/27×25 | Bronze Cylindrical Bushing 3035 | 30/34×35 |
| Bronze Cylindrical Bushing 1710 | 17/19×10 | Bronze Cylindrical Bushing 2428a | 24/27×28 | Bronze Cylindrical Bushing 3038 | 30/34×38 |
| Bronze Cylindrical Bushing 1712 | 17/19×12 | Bronze Cylindrical Bushing 2430a | 24/27×30 | Bronze Cylindrical Bushing 3040 | 30/34×40 |
| Bronze Cylindrical Bushing 1715 | 17/19×15 | Bronze Cylindrical Bushing 2432a | 24/27×32 | Bronze Cylindrical Bushing 3045 | 30/34×45 |
| Bronze Cylindrical Bushing 1718 | 17/19×18 | Bronze Cylindrical Bushing 2435a | 24/27×35 | Bronze Cylindrical Bushing 3050 | 30/34×50 |
| Bronze Cylindrical Bushing 2438a | 24/27×38 | Bronze Cylindrical Bushing 3210 | 32/36×10 | ||
| Bronze Cylindrical Bushing 2440a | 24/27×40 | Bronze Cylindrical Bushing 3212 | 32/36×12 | ||
| Bronze Cylindrical Bushing 2450a | 24/27×50 | Bronze Cylindrical Bushing 3215 | 32/36×15 | ||
| Bronze Cylindrical Bushing 2410b | 24/28×10 | Bronze Cylindrical Bushing 3218 | 32/36×18 | ||
| Bronze Cylindrical Bushing 2412b | 24/28×12 | Bronze Cylindrical Bushing 3220 | 32/36×20 | ||
| Bronze Cylindrical Bushing 2415b | 24/28×15 | Bronze Cylindrical Bushing 3225 | 32/36×25 | ||
| Bronze Cylindrical Bushing 2420b | 24/28×20 | Bronze Cylindrical Bushing 3230 | 32/36×30 | ||
| Bronze Cylindrical Bushing 2425b | 24/28×25 | Bronze Cylindrical Bushing 3235 | 32/36×35 | ||
| Bronze Cylindrical Bushing 2428b | 24/28×28 | Bronze Cylindrical Bushing 3240 | 32/36×40 | ||
| Bronze Cylindrical Bushing 2430b | 24/28×30 | Bronze Cylindrical Bushing 3245 | 32/36×45 | ||
| Bronze Cylindrical Bushing 2432b | 24/28×32 | Bronze Cylindrical Bushing 3250 | 32/36×50 | ||
| Bronze Cylindrical Bushing 2435b | 24/28×35 | Bronze Cylindrical Bushing 3410 | 34/38×10 | ||
| Bronze Cylindrical Bushing 2438b | 24/28×38 | Bronze Cylindrical Bushing 3412 | 34/38×12 | ||
| Bronze Cylindrical Bushing 2440b | 24/28×40 | Bronze Cylindrical Bushing 3415 | 34/38×15 | ||
| Bronze Cylindrical Bushing 2450b | 24/28×50 | Bronze Cylindrical Bushing 3420 | 34/38×20 | ||
| Bronze Cylindrical Bushing 2510 | 25/28×10 | Bronze Cylindrical Bushing 3425 | 34/38×25 | ||
| Bronze Cylindrical Bushing 2512 | 25/28×12 | Bronze Cylindrical Bushing 3430 | 34/38×30 | ||
| Bronze Cylindrical Bushing 2515 | 25/28×15 | Bronze Cylindrical Bushing 3435 | 34/38×35 | ||
| Bronze Cylindrical Bushing 2520 | 25/28×20 | Bronze Cylindrical Bushing 3440 | 34/38×40 | ||
| Bronze Cylindrical Bushing 2525 | 25/28×25 | Bronze Cylindrical Bushing 3445 | 34/38×45 |
| Art. Nr. | d / D x L | Art. Nr. | d / D x L | Art. Nr. | d / D x L |
| Bronze Cylindrical Bushing 3510 | 35/39×10 | Bronze Cylindrical Bushing 4530 | 45/50×30 | Bronze Cylindrical Bushing 7560 | 75/80×60 |
| Bronze Cylindrical Bushing 3512 | 35/39×12 | Bronze Cylindrical Bushing 4535 | 45/50×35 | Bronze Cylindrical Bushing 7570 | 75/80×70 |
| Bronze Cylindrical Bushing 3515 | 35/39×15 | Bronze Cylindrical Bushing 4540 | 45/50×40 | Bronze Cylindrical Bushing 7580 | 75/80×80 |
| Bronze Cylindrical Bushing 3520 | 35/39×20 | Bronze Cylindrical Bushing 4545 | 45/50×45 | Bronze Cylindrical Bushing 7590 | 75/80×90 |
| Bronze Cylindrical Bushing 3525 | 35/39×25 | Bronze Cylindrical Bushing 4550 | 45/50×50 | Bronze Cylindrical Bushing 8030 | 80/85×30 |
| Bronze Cylindrical Bushing 3530 | 35/39×30 | Bronze Cylindrical Bushing 4555 | 45/50×55 | Bronze Cylindrical Bushing 8040 | 80/85×40 |
| Bronze Cylindrical Bushing 3535 | 35/39×35 | Bronze Cylindrical Bushing 4560 | 45/50×60 | Bronze Cylindrical Bushing 8050 | 80/85×50 |
| Bronze Cylindrical Bushing 3540 | 35/39×40 | Bronze Cylindrical Bushing 5015 | 50/55×15 | Bronze Cylindrical Bushing 8060 | 80/85×60 |
| Bronze Cylindrical Bushing 3545 | 35/39×45 | Bronze Cylindrical Bushing 5020 | 50/55×20 | Bronze Cylindrical Bushing 8070 | 80/85×70 |
| Bronze Cylindrical Bushing 3550 | 35/39×50 | Bronze Cylindrical Bushing 5025 | 50/55×25 | Bronze Cylindrical Bushing 8080 | 80/85×80 |
| Bronze Cylindrical Bushing 3610 | 36/40×10 | Bronze Cylindrical Bushing 5030 | 50/55×30 | Bronze Cylindrical Bushing 8090 | 80/85×90 |
| Bronze Cylindrical Bushing 3612 | 36/40×12 | Bronze Cylindrical Bushing 5035 | 50/55×35 | Bronze Cylindrical Bushing 80100 | 80/85×100 |
| Bronze Cylindrical Bushing 3615 | 36/40×15 | Bronze Cylindrical Bushing 5040 | 50/55×40 | Bronze Cylindrical Bushing 8530 | 85/90×30 |
| Bronze Cylindrical Bushing 3620 | 36/40×20 | Bronze Cylindrical Bushing 5045 | 50/55×45 | Bronze Cylindrical Bushing 8540 | 85/90×40 |
| Bronze Cylindrical Bushing 3625 | 36/40×25 | Bronze Cylindrical Bushing 5050 | 50/55×50 | Bronze Cylindrical Bushing 8550 | 85/90×50 |
| Bronze Cylindrical Bushing 3630 | 36/40×30 | Bronze Cylindrical Bushing 5055 | 50/55×55 | Bronze Cylindrical Bushing 8560 | 85/90×60 |
| Bronze Cylindrical Bushing 3635 | 36/40×35 | Bronze Cylindrical Bushing 5060 | 50/55×60 | Bronze Cylindrical Bushing 8570 | 85/90×70 |
| Bronze Cylindrical Bushing 3640 | 36/40×40 | Bronze Cylindrical Bushing 5065 | 50/55×65 | Bronze Cylindrical Bushing 8580 | 85/90×80 |
| Bronze Cylindrical Bushing 3645 | 36/40×45 | Bronze Cylindrical Bushing 5070 | 50/55×70 | Bronze Cylindrical Bushing 8590 | 85/90×90 |
| Bronze Cylindrical Bushing 3650 | 36/40×50 | Bronze Cylindrical Bushing 5515 | 55/60×15 | Bronze Cylindrical Bushing 85100 | 85/90×100 |
| Bronze Cylindrical Bushing 3812 | 38/42×12 | Bronze Cylindrical Bushing 5520 | 55/60×20 | Bronze Cylindrical Bushing 9030 | 90/95×30 |
| Bronze Cylindrical Bushing 3815 | 38/42×15 | Bronze Cylindrical Bushing 5525 | 55/60×25 | Bronze Cylindrical Bushing 9040 | 90/95×40 |
| Bronze Cylindrical Bushing 3820 | 38/42×20 | Bronze Cylindrical Bushing 5530 | 55/60×30 | Bronze Cylindrical Bushing 9050 | 90/95×50 |
| Bronze Cylindrical Bushing 3825 | 38/42×25 | Bronze Cylindrical Bushing 5535 | 55/60×35 | Bronze Cylindrical Bushing 9060 | 90/95×60 |
| Bronze Cylindrical Bushing 3830 | 38/42×30 | Bronze Cylindrical Bushing 5540 | 55/60×40 | Bronze Cylindrical Bushing 9070 | 90/95×70 |
| Bronze Cylindrical Bushing 3835 | 38/42×35 | Bronze Cylindrical Bushing 5545 | 55/60×45 | Bronze Cylindrical Bushing 9080 | 90/95×80 |
| Bronze Cylindrical Bushing 3840 | 38/42×40 | Bronze Cylindrical Bushing 5550 | 55/60×50 | Bronze Cylindrical Bushing 9090 | 90/95×90 |
| Bronze Cylindrical Bushing 3845 | 38/42×45 | Bronze Cylindrical Bushing 5555 | 55/60×55 | Bronze Cylindrical Bushing 90100 | 90/95×100 |
| Bronze Cylindrical Bushing 3850 | 38/42×50 | Bronze Cylindrical Bushing 5560 | 55/60×60 | Bronze Cylindrical Bushing 9530 | 95/100×30 |
| Bronze Cylindrical Bushing 3855 | 38/42×55 | Bronze Cylindrical Bushing 5565 | 55/60×65 | Bronze Cylindrical Bushing 9540 | 95/100×40 |
| Bronze Cylindrical Bushing 3860 | 38/42×60 | Bronze Cylindrical Bushing 5570 | 55/60×70 | Bronze Cylindrical Bushing 9550 | 95/100×50 |
| Bronze Cylindrical Bushing 4012 | 40/44×12 | Bronze Cylindrical Bushing 6015 | 60/65×15 | Bronze Cylindrical Bushing 9560 | 95/100×60 |
| Bronze Cylindrical Bushing 4015 | 40/44×15 | Bronze Cylindrical Bushing 6020 | 60/65×20 | Bronze Cylindrical Bushing 9570 | 95/100×70 |
| Bronze Cylindrical Bushing 4020 | 40/44×20 | Bronze Cylindrical Bushing 6025 | 60/65×25 | Bronze Cylindrical Bushing 9580 | 95/100×80 |
| Bronze Cylindrical Bushing 4025 | 40/44×25 | Bronze Cylindrical Bushing 6030 | 60/65×30 | Bronze Cylindrical Bushing 9590 | 95/100×90 |
| Bronze Cylindrical Bushing 4030 | 40/44×30 | Bronze Cylindrical Bushing 6035 | 60/65×35 | Bronze Cylindrical Bushing 95100 | 95/100×100 |
| Bronze Cylindrical Bushing 4035 | 40/44×35 | Bronze Cylindrical Bushing 6040 | 60/65×40 | Bronze Cylindrical Bushing 10030 | 100/105×30 |
| Bronze Cylindrical Bushing 4040 | 40/44×40 | Bronze Cylindrical Bushing 6045 | 60/65×45 | Bronze Cylindrical Bushing 10040 | 100/105×40 |
| Bronze Cylindrical Bushing 4045 | 40/44×45 | Bronze Cylindrical Bushing 6050 | 60/65×50 | Bronze Cylindrical Bushing 10050 | 100/105×50 |
| Bronze Cylindrical Bushing 4050 | 40/44×50 | Bronze Cylindrical Bushing 6055 | 60/65×55 | Bronze Cylindrical Bushing 10060 | 100/105×60 |
| Bronze Cylindrical Bushing 4055 | 40/44×55 | Bronze Cylindrical Bushing 6060 | 60/65×60 | Bronze Cylindrical Bushing 10070 | 100/105×70 |
| Bronze Cylindrical Bushing 4060 | 40/44×60 | Bronze Cylindrical Bushing 6065 | 60/65×65 | Bronze Cylindrical Bushing 10080 | 100/105×80 |
| Bronze Cylindrical Bushing 4212 | 42/46×12 | Bronze Cylindrical Bushing 6070 | 60/65×70 | Bronze Cylindrical Bushing 10090 | 100/105×90 |
| Bronze Cylindrical Bushing 4215 | 42/46×15 | Bronze Cylindrical Bushing 6075 | 60/65×75 | Bronze Cylindrical Bushing 100100 | 100/105×100 |
| Bronze Cylindrical Bushing 4220 | 42/46×20 | Bronze Cylindrical Bushing 6080 | 60/65×80 | Bronze Cylindrical Bushing 100115 | 100/105×115 |
| Bronze Cylindrical Bushing 4225 | 42/46×25 | Bronze Cylindrical Bushing 6085 | 60/65×85 | Bronze Cylindrical Bushing 10550 | 105/110×50 |
| Bronze Cylindrical Bushing 4230 | 42/46×30 | Bronze Cylindrical Bushing 6090 | 60/65×90 | Bronze Cylindrical Bushing 10560 | 105/110×60 |
| Bronze Cylindrical Bushing 4235 | 42/46×35 | Bronze Cylindrical Bushing 6515 | 65/70×15 | Bronze Cylindrical Bushing 10570 | 105/110×70 |
| Bronze Cylindrical Bushing 4240 | 42/46×40 | Bronze Cylindrical Bushing 6520 | 65/70×20 | Bronze Cylindrical Bushing 10580 | 105/110×80 |
| Bronze Cylindrical Bushing 4245 | 42/46×45 | Bronze Cylindrical Bushing 6530 | 65/70×30 | Bronze Cylindrical Bushing 10590 | 105/110×90 |
| Bronze Cylindrical Bushing 4250 | 42/46×50 | Bronze Cylindrical Bushing 6540 | 65/70×40 | Bronze Cylindrical Bushing 105100 | 105/110×100 |
| Bronze Cylindrical Bushing 4255 | 42/46×55 | Bronze Cylindrical Bushing 6550 | 65/70×50 | Bronze Cylindrical Bushing 105115 | 105/110×115 |
| Bronze Cylindrical Bushing 4260 | 42/46×60 | Bronze Cylindrical Bushing 6560 | 65/70×60 | Bronze Cylindrical Bushing 11050 | 110/115×50 |
| Bronze Cylindrical Bushing 4412 | 44/48×12 | Bronze Cylindrical Bushing 6570 | 65/70×70 | Bronze Cylindrical Bushing 11060 | 110/115×60 |
| Bronze Cylindrical Bushing 4415 | 44/48×15 | Bronze Cylindrical Bushing 6580 | 65/70×80 | Bronze Cylindrical Bushing 11070 | 110/115×70 |
| Bronze Cylindrical Bushing 4420 | 44/48×20 | Bronze Cylindrical Bushing 6590 | 65/70×90 | Bronze Cylindrical Bushing 11080 | 110/115×80 |
| Bronze Cylindrical Bushing 4425 | 44/48×25 | Bronze Cylindrical Bushing 7020 | 70/75×20 | Bronze Cylindrical Bushing 11090 | 110/115×90 |
| Bronze Cylindrical Bushing 4430 | 44/48×30 | Bronze Cylindrical Bushing 7030 | 70/75×30 | Bronze Cylindrical Bushing 110100 | 110/115×100 |
| Bronze Cylindrical Bushing 4435 | 44/48×35 | Bronze Cylindrical Bushing 7040 | 70/75×40 | Bronze Cylindrical Bushing 110115 | 110/115×115 |
| Bronze Cylindrical Bushing 4440 | 44/48×40 | Bronze Cylindrical Bushing 7050 | 70/75×50 | Bronze Cylindrical Bushing 11550 | 115/120×50 |
| Bronze Cylindrical Bushing 4445 | 44/48×45 | Bronze Cylindrical Bushing 7060 | 70/75×60 | Bronze Cylindrical Bushing 11560 | 115/120×60 |
| Bronze Cylindrical Bushing 4450 | 44/48×50 | Bronze Cylindrical Bushing 7070 | 70/75×70 | Bronze Cylindrical Bushing 11570 | 115/120×70 |
| Bronze Cylindrical Bushing 4455 | 44/48×55 | Bronze Cylindrical Bushing 7080 | 70/75×80 | Bronze Cylindrical Bushing 11580 | 115/120×80 |
| Bronze Cylindrical Bushing 4460 | 44/48×60 | Bronze Cylindrical Bushing 7090 | 70/75×90 | Bronze Cylindrical Bushing 11590 | 115/120×90 |
| Bronze Cylindrical Bushing 4515 | 45/50×15 | Bronze Cylindrical Bushing 7530 | 75/80×30 | Bronze Cylindrical Bushing 115100 | 115/120×100 |
| Bronze Cylindrical Bushing 4520 | 45/50×20 | Bronze Cylindrical Bushing 7540 | 75/80×40 | Bronze Cylindrical Bushing 115115 | 115/120×115 |
| Bronze Cylindrical Bushing 4525 | 45/50×25 | Bronze Cylindrical Bushing 7550 | 75/80×50 | Bronze Cylindrical Bushing 12050 | 120/125×50 |
| Art. Nr. | d / D x L | Art. Nr. | d / D x L | Art. Nr. | d / D x L | Art. Nr. | d / D x L |
| Bronze Cylindrical Bushing 12060 | 120/125×60 | Bronze Cylindrical Bushing 17060 | 170/175×60 | Bronze Cylindrical Bushing 200130 | 200/205×130 | Bronze Cylindrical Bushing 240100 | 240/245×100 |
| Bronze Cylindrical Bushing 12070 | 120/125×70 | Bronze Cylindrical Bushing 17070 | 170/175×70 | Bronze Cylindrical Bushing 200140 | 200/205×140 | Bronze Cylindrical Bushing 240110 | 240/245×110 |
| Bronze Cylindrical Bushing 12080 | 120/125×80 | Bronze Cylindrical Bushing 17080 | 170/175×80 | Bronze Cylindrical Bushing 200150 | 200/205×150 | Bronze Cylindrical Bushing 240120 | 240/245×120 |
| Bronze Cylindrical Bushing 12090 | 120/125×90 | Bronze Cylindrical Bushing 17090 | 170/175×90 | Bronze Cylindrical Bushing 20560 | 205/210×60 | Bronze Cylindrical Bushing 240130 | 240/245×130 |
| Bronze Cylindrical Bushing 120100 | 120/125×100 | Bronze Cylindrical Bushing 170100 | 170/175×100 | Bronze Cylindrical Bushing 20570 | 205/210×70 | Bronze Cylindrical Bushing 240140 | 240/245×140 |
| Bronze Cylindrical Bushing 120120 | 120/125×120 | Bronze Cylindrical Bushing 170110 | 170/175×110 | Bronze Cylindrical Bushing 20580 | 205/210×80 | Bronze Cylindrical Bushing 240150 | 240/245×150 |
| Bronze Cylindrical Bushing 12550 | 125/130×50 | Bronze Cylindrical Bushing 170120 | 170/175×120 | Bronze Cylindrical Bushing 20590 | 205/210×90 | Bronze Cylindrical Bushing 25060 | 250/255×60 |
| Bronze Cylindrical Bushing 12560 | 125/130×60 | Bronze Cylindrical Bushing 170130 | 170/175×130 | Bronze Cylindrical Bushing 205100 | 205/210×100 | Bronze Cylindrical Bushing 25070 | 250/255×70 |
| Bronze Cylindrical Bushing 12570 | 125/130×70 | Bronze Cylindrical Bushing 170140 | 170/175×140 | Bronze Cylindrical Bushing 205110 | 205/210×110 | Bronze Cylindrical Bushing 25080 | 250/255×80 |
| Bronze Cylindrical Bushing 12580 | 125/130×80 | Bronze Cylindrical Bushing 170150 | 170/175×150 | Bronze Cylindrical Bushing 205120 | 205/210×120 | Bronze Cylindrical Bushing 25090 | 250/255×90 |
| Bronze Cylindrical Bushing 12590 | 125/130×90 | Bronze Cylindrical Bushing 17560 | 175/180×60 | Bronze Cylindrical Bushing 205130 | 205/210×130 | Bronze Cylindrical Bushing 250100 | 250/255×100 |
| Bronze Cylindrical Bushing 125100 | 125/130×100 | Bronze Cylindrical Bushing 17570 | 175/180×70 | Bronze Cylindrical Bushing 205140 | 205/210×140 | Bronze Cylindrical Bushing 250110 | 250/255×110 |
| Bronze Cylindrical Bushing 125115 | 125/130×115 | Bronze Cylindrical Bushing 17580 | 175/180×80 | Bronze Cylindrical Bushing 205150 | 205/210×150 | Bronze Cylindrical Bushing 250120 | 250/255×130 |
| Bronze Cylindrical Bushing 13060 | 130/135×60 | Bronze Cylindrical Bushing 17590 | 175/180×90 | Bronze Cylindrical Bushing 21060 | 210/215×60 | Bronze Cylindrical Bushing 250130 | 250/255×140 |
| Bronze Cylindrical Bushing 13070 | 130/135×70 | Bronze Cylindrical Bushing 175100 | 175/180×100 | Bronze Cylindrical Bushing 21070 | 210/215×70 | Bronze Cylindrical Bushing 250140 | 250/255×140 |
| Bronze Cylindrical Bushing 13080 | 130/135×80 | Bronze Cylindrical Bushing 175110 | 175/180×110 | Bronze Cylindrical Bushing 21080 | 210/215×80 | Bronze Cylindrical Bushing 250150 | 250/255×150 |
| Bronze Cylindrical Bushing 13090 | 130/135×90 | Bronze Cylindrical Bushing 175120 | 175/180×120 | Bronze Cylindrical Bushing 21090 | 210/215×90 | Bronze Cylindrical Bushing 26060 | 260/265×60 |
| Bronze Cylindrical Bushing 130100 | 130/135×100 | Bronze Cylindrical Bushing 175130 | 175/180×130 | Bronze Cylindrical Bushing 210100 | 210/215×100 | Bronze Cylindrical Bushing 26070 | 260/265×70 |
| Bronze Cylindrical Bushing 130120 | 130/135×120 | Bronze Cylindrical Bushing 175140 | 175/180×140 | Bronze Cylindrical Bushing 210110 | 210/215×110 | Bronze Cylindrical Bushing 26080 | 260/265×80 |
| Bronze Cylindrical Bushing 13560 | 135/140×60 | Bronze Cylindrical Bushing 175150 | 175/180×150 | Bronze Cylindrical Bushing 210120 | 210/215×120 | Bronze Cylindrical Bushing 26090 | 260/265×90 |
| Bronze Cylindrical Bushing 13570 | 135/140×70 | Bronze Cylindrical Bushing 18060 | 180/185×60 | Bronze Cylindrical Bushing 210130 | 210/215×130 | Bronze Cylindrical Bushing 260100 | 260/265×100 |
| Bronze Cylindrical Bushing 13580 | 135/140×80 | Bronze Cylindrical Bushing 18070 | 180/185×70 | Bronze Cylindrical Bushing 210140 | 210/215×140 | Bronze Cylindrical Bushing 260110 | 260/265×110 |
| Bronze Cylindrical Bushing 13590 | 135/140×90 | Bronze Cylindrical Bushing 18080 | 180/185×80 | Bronze Cylindrical Bushing 210150 | 210/215×150 | Bronze Cylindrical Bushing 260120 | 260/265×120 |
| Bronze Cylindrical Bushing 135100 | 135/140×100 | Bronze Cylindrical Bushing 18090 | 180/185×90 | Bronze Cylindrical Bushing 21560 | 215/220×60 | Bronze Cylindrical Bushing 260130 | 260/265×130 |
| Bronze Cylindrical Bushing 135120 | 135/140×120 | Bronze Cylindrical Bushing 180100 | 180/185×100 | Bronze Cylindrical Bushing 21570 | 215/220×70 | Bronze Cylindrical Bushing 260140 | 260/265×140 |
| Bronze Cylindrical Bushing 14060 | 140/145×60 | Bronze Cylindrical Bushing 180110 | 180/185×110 | Bronze Cylindrical Bushing 21580 | 215/220×80 | Bronze Cylindrical Bushing 260150 | 260/265×150 |
| Bronze Cylindrical Bushing 14070 | 140/145×70 | Bronze Cylindrical Bushing 180120 | 180/185×120 | Bronze Cylindrical Bushing 21590 | 215/220×90 | Bronze Cylindrical Bushing 27060 | 270/275×60 |
| Bronze Cylindrical Bushing 14080 | 140/145×80 | Bronze Cylindrical Bushing 180130 | 180/185×130 | Bronze Cylindrical Bushing 215100 | 215/220×100 | Bronze Cylindrical Bushing 27070 | 270/275×70 |
| Bronze Cylindrical Bushing 14090 | 140/145×90 | Bronze Cylindrical Bushing 180140 | 180/185×140 | Bronze Cylindrical Bushing 215110 | 215/220×110 | Bronze Cylindrical Bushing 27080 | 270/275×80 |
| Bronze Cylindrical Bushing 140100 | 140/145×100 | Bronze Cylindrical Bushing 180150 | 180/185×150 | Bronze Cylindrical Bushing 215120 | 215/220×120 | Bronze Cylindrical Bushing 27090 | 270/275×90 |
| Bronze Cylindrical Bushing 14560 | 145/150×60 | Bronze Cylindrical Bushing 18560 | 185/190×60 | Bronze Cylindrical Bushing 215130 | 215/220×130 | Bronze Cylindrical Bushing 270100 | 270/275×100 |
| Bronze Cylindrical Bushing 14570 | 145/150×70 | Bronze Cylindrical Bushing 18570 | 185/190×70 | Bronze Cylindrical Bushing 215140 | 215/220×140 | Bronze Cylindrical Bushing 270110 | 270/275×110 |
| Bronze Cylindrical Bushing 14580 | 145/150×80 | Bronze Cylindrical Bushing 18580 | 185/190×80 | Bronze Cylindrical Bushing 215150 | 215/220×150 | Bronze Cylindrical Bushing 270120 | 270/275×120 |
| Bronze Cylindrical Bushing 14590 | 145/150×90 | Bronze Cylindrical Bushing 18590 | 185/190×90 | Bronze Cylindrical Bushing 22060 | 220/225×60 | Bronze Cylindrical Bushing 270130 | 270/275×130 |
| Bronze Cylindrical Bushing 145100 | 145/150×100 | Bronze Cylindrical Bushing 185100 | 185/190×100 | Bronze Cylindrical Bushing 22070 | 220/225×70 | Bronze Cylindrical Bushing 270140 | 270/275×140 |
| Bronze Cylindrical Bushing 145120 | 145/150×120 | Bronze Cylindrical Bushing 185110 | 185/190×110 | Bronze Cylindrical Bushing 22080 | 220/225×80 | Bronze Cylindrical Bushing 270150 | 270/275×150 |
| Bronze Cylindrical Bushing 15060 | 150/155×60 | Bronze Cylindrical Bushing 185120 | 185/190×120 | Bronze Cylindrical Bushing 22090 | 220/225×90 | Bronze Cylindrical Bushing 28060 | 280/285×60 |
| Bronze Cylindrical Bushing 15070 | 150/155×70 | Bronze Cylindrical Bushing 185130 | 185/190×130 | Bronze Cylindrical Bushing 220100 | 220/225×100 | Bronze Cylindrical Bushing 28070 | 280/285×70 |
| Bronze Cylindrical Bushing 15080 | 150/155×80 | Bronze Cylindrical Bushing 185140 | 185/190×140 | Bronze Cylindrical Bushing 220110 | 220/225×110 | Bronze Cylindrical Bushing 28080 | 280/285×80 |
| Bronze Cylindrical Bushing 15090 | 150/155×90 | Bronze Cylindrical Bushing 185150 | 185/190×150 | Bronze Cylindrical Bushing 220120 | 220/225×120 | Bronze Cylindrical Bushing 28090 | 280/285×90 |
| Bronze Cylindrical Bushing 150100 | 150/155×100 | Bronze Cylindrical Bushing 19060 | 190/195×60 | Bronze Cylindrical Bushing 220130 | 220/225×130 | Bronze Cylindrical Bushing 280100 | 280/285×100 |
| Bronze Cylindrical Bushing 15550 | 155/160×50 | Bronze Cylindrical Bushing 19070 | 190/195×70 | Bronze Cylindrical Bushing 220140 | 220/225×140 | Bronze Cylindrical Bushing 280110 | 280/285×110 |
| Bronze Cylindrical Bushing 15560 | 155/160×60 | Bronze Cylindrical Bushing 19080 | 190/195×80 | Bronze Cylindrical Bushing 220150 | 220/225×150 | Bronze Cylindrical Bushing 280120 | 280/285×120 |
| Bronze Cylindrical Bushing 15570 | 155/160×70 | Bronze Cylindrical Bushing 19090 | 190/195×90 | Bronze Cylindrical Bushing 22560 | 225/230×60 | Bronze Cylindrical Bushing 280130 | 280/285×130 |
| Bronze Cylindrical Bushing 15580 | 155/160×80 | Bronze Cylindrical Bushing 190100 | 190/195×100 | Bronze Cylindrical Bushing 22570 | 225/230×70 | Bronze Cylindrical Bushing 280140 | 280/285×140 |
| Bronze Cylindrical Bushing 15590 | 155/160×90 | Bronze Cylindrical Bushing 190110 | 190/195×110 | Bronze Cylindrical Bushing 22580 | 225/230×80 | Bronze Cylindrical Bushing 280150 | 280/285×150 |
| Bronze Cylindrical Bushing 155100 | 155/160×100 | Bronze Cylindrical Bushing 190120 | 190/195×120 | Bronze Cylindrical Bushing 22590 | 225/230×90 | Bronze Cylindrical Bushing 29060 | 290/295×60 |
| Bronze Cylindrical Bushing 16060 | 160/165×60 | Bronze Cylindrical Bushing 190130 | 190/195×130 | Bronze Cylindrical Bushing 225100 | 225/230×100 | Bronze Cylindrical Bushing 29070 | 290/295×70 |
| Bronze Cylindrical Bushing 16070 | 160/165×70 | Bronze Cylindrical Bushing 190140 | 190/195×140 | Bronze Cylindrical Bushing 225110 | 225/230×110 | Bronze Cylindrical Bushing 29080 | 290/295×80 |
| Bronze Cylindrical Bushing 16080 | 160/165×80 | Bronze Cylindrical Bushing 190150 | 190/195×150 | Bronze Cylindrical Bushing 225120 | 225/230×120 | Bronze Cylindrical Bushing 29090 | 290/295×90 |
| Bronze Cylindrical Bushing 16090 | 160/165×90 | Bronze Cylindrical Bushing 19560 | 195/200×60 | Bronze Cylindrical Bushing 225130 | 225/230×130 | Bronze Cylindrical Bushing 290100 | 290/295×100 |
| Bronze Cylindrical Bushing 160100 | 160/165×100 | Bronze Cylindrical Bushing 19570 | 195/200×70 | Bronze Cylindrical Bushing 225140 | 225/230×140 | Bronze Cylindrical Bushing 290110 | 290/295×110 |
| Bronze Cylindrical Bushing 160110 | 160/165×110 | Bronze Cylindrical Bushing 19580 | 195/200×80 | Bronze Cylindrical Bushing 225150 | 225/230×150 | Bronze Cylindrical Bushing 290120 | 290/295×120 |
| Bronze Cylindrical Bushing 160120 | 160/165×120 | Bronze Cylindrical Bushing 19590 | 195/200×90 | Bronze Cylindrical Bushing 23060 | 230/235×60 | Bronze Cylindrical Bushing 290130 | 290/295×130 |
| Bronze Cylindrical Bushing 160130 | 160/165×130 | Bronze Cylindrical Bushing 195100 | 195/200×100 | Bronze Cylindrical Bushing 23070 | 230/235×70 | Bronze Cylindrical Bushing 290140 | 290/295×140 |
| Bronze Cylindrical Bushing 160140 | 160/165×140 | Bronze Cylindrical Bushing 195110 | 195/200×110 | Bronze Cylindrical Bushing 23080 | 230/235×80 | Bronze Cylindrical Bushing 290150 | 290/295×150 |
| Bronze Cylindrical Bushing 160150 | 160/165×150 | Bronze Cylindrical Bushing 195120 | 195/200×120 | Bronze Cylindrical Bushing 23090 | 230/235×90 | Bronze Cylindrical Bushing 30060 | 300/305×60 |
| Bronze Cylindrical Bushing 16560 | 165/170×60 | Bronze Cylindrical Bushing 195130 | 195/200×130 | Bronze Cylindrical Bushing 230100 | 230/235×100 | Bronze Cylindrical Bushing 30070 | 300/305×70 |
| Bronze Cylindrical Bushing 16570 | 165/170×70 | Bronze Cylindrical Bushing 195140 | 195/200×140 | Bronze Cylindrical Bushing 230110 | 230/235×110 | Bronze Cylindrical Bushing 30080 | 300/305×80 |
| Bronze Cylindrical Bushing 16580 | 165/170×80 | Bronze Cylindrical Bushing 195150 | 195/200×150 | Bronze Cylindrical Bushing 230120 | 230/235×120 | Bronze Cylindrical Bushing 30090 | 300/305×90 |
| Bronze Cylindrical Bushing 16590 | 165/170×90 | Bronze Cylindrical Bushing 20060 | 200/205×60 | Bronze Cylindrical Bushing 230130 | 230/235×130 | Bronze Cylindrical Bushing 300100 | 300/305×100 |
| Bronze Cylindrical Bushing 165100 | 165/170×100 | Bronze Cylindrical Bushing 20070 | 200/205×70 | Bronze Cylindrical Bushing 230140 | 230/235×140 | Bronze Cylindrical Bushing 300110 | 300/305×110 |
| Bronze Cylindrical Bushing 165110 | 165/170×110 | Bronze Cylindrical Bushing 20080 | 200/205×80 | Bronze Cylindrical Bushing 230150 | 230/235×150 | Bronze Cylindrical Bushing 300120 | 300/305×120 |
| Bronze Cylindrical Bushing 165120 | 165/170×120 | Bronze Cylindrical Bushing 20090 | 200/205×90 | Bronze Cylindrical Bushing 24060 | 240/245×60 | ||
| Bronze Cylindrical Bushing 165130 | 165/170×130 | Bronze Cylindrical Bushing 200100 | 200/205×100 | Bronze Cylindrical Bushing 24070 | 240/245×70 | ||
| Bronze Cylindrical Bushing 165140 | 165/170×140 | Bronze Cylindrical Bushing 200110 | 200/205×110 | Bronze Cylindrical Bushing 24080 | 240/245×80 | ||
| Bronze Cylindrical Bushing 165150 | 165/170×150 | Bronze Cylindrical Bushing 200120 | 200/205×120 | Bronze Cylindrical Bushing 24090 | 240/245×90 |
Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance
| Art. Nr. | d / D / D1 x L |
| Bronze Flanged Bearings 2515 | 25/28/35×15 |
| Bronze Flanged Bearings 2525 | 25/28/35×25 |
| Bronze Flanged Bearings 3020 | 30/34/45×20 |
| Bronze Flanged Bearings 3030 | 30/34/45×30 |
| Bronze Flanged Bearings 3520 | 35/39/50×20 |
| Bronze Flanged Bearings 3530 | 35/39/50×30 |
| Bronze Flanged Bearings 4025 | 40/44/55×25 |
| Bronze Flanged Bearings 4040 | 40/44/55×40 |
| Bronze Flanged Bearings 4530 | 45/50/60×30 |
| Bronze Flanged Bearings 4545 | 45/50/60×45 |
| Bronze Flanged Bearings 4550 | 45/50/60×50 |
| Bronze Flanged Bearings 5030 | 50/55/65×30 |
| Bronze Flanged Bearings 5050 | 50/55/65×50 |
| Bronze Flanged Bearings 5530 | 55/60/70×30 |
| Bronze Flanged Bearings 5550 | 55/60/70×50 |
| Bronze Flanged Bearings 6030 | 60/65/75×30 |
| Bronze Flanged Bearings 6035 | 60/65/75×35 |
| Bronze Flanged Bearings 6060 | 60/65/75×60 |
| Bronze Flanged Bearings 6530 | 65/70/80×30 |
| Bronze Flanged Bearings 6560 | 65/70/80×60 |
| Bronze Flanged Bearings 7040 | 70/75/85×40 |
| Bronze Flanged Bearings 7070 | 70/75/85×70 |
| Bronze Flanged Bearings 7540 | 75/80/90×40 |
| Bronze Flanged Bearings 7570 | 75/80/90×70 |
| Bronze Flanged Bearings 8040 | 80/85/100×40 |
| Bronze Flanged Bearings 8080 | 80/85/100×80 |
| Bronze Flanged Bearings 9050 | 90/95/110×50 |
| Bronze Flanged Bearings 9090 | 90/95/110×90 |
| Bronze Flanged Bearings 10050 | 100/105/120×50 |
| Bronze Flanged Bearings 10090 | 100/105/120×90 |
| Bronze Flanged Bearings 11050 | 110/115/130×50 |
| Bronze Flanged Bearings 11090 | 110/115/130×90 |
| Bronze Flanged Bearings 12050 | 120/125/140×50 |
| Bronze Flanged Bearings 12090 | 120/125/140×90 |
| Bronze Flanged Bearings 13060 | 130/135/155×60 |
| Bronze Flanged Bearings 13090 | 130/135/155×90 |
| Bronze Flanged Bearings 14060 | 140/145/165×60 |
| Bronze Flanged Bearings 14090 | 140/145/165×90 |
| Bronze Flanged Bearings 15060 | 150/155/180×60 |
| Bronze Flanged Bearings 15090 | 150/155/180×90 |
| Bronze Flanged Bearings 16060 | 160/165/190×60 |
| Bronze Flanged Bearings 16090 | 160/165/190×90 |
| Bronze Flanged Bearings 17060 | 170/175/200×60 |
| Bronze Flanged Bearings 17090 | 170/175/200×90 |
| Bronze Flanged Bearings 18060 | 180/185/215×60 |
| Bronze Flanged Bearings 18090 | 180/185/215×90 |
| Bronze Flanged Bearings 19060 | 190/195/225×60 |
| Bronze Flanged Bearings 19090 | 190/195/225×90 |
| Bronze Flanged Bearings 20060 | 200/205/235×60 |
| Bronze Flanged Bearings 20090 | 200/205/235×90 |
| Bronze Flanged Bearings 22560 | 225/230/260×60 |
| Bronze Flanged Bearings 22590 | 225/230/260×90 |
| Bronze Flanged Bearings 25060 | 250/255/290×60 |
| Bronze Flanged Bearings 25090 | 250/255/290×90 |
| Bronze Flanged Bearings 26060 | 265/270/305×60 |
| Bronze Flanged Bearings 26090 | 265/270/305×90 |
| Bronze Flanged Bearings 28560 | 285/290/325×60 |
| Bronze Flanged Bearings 28590 | 285/290/325×90 |
| Bronze Flanged Bearings 30060 | 300/305/340×60 |
| Bronze Flanged Bearings 30090 | 300/305/340×90 |
Professional export of oil-free bearings, composite bearings, self-lubricating bearings, oil-free sleeve, inlaid bearings, copper sleeve, dry sleeve, sliding bearings, bearing bush, bushing, guide sleeve, slide plate enterprises. The factory is located in the China now jiashan county, zhejiang jiaxing oilless bearing production base, has been committed to the self-lubricating wear-resistant plate, self-lubricating bearings, the research and development of new materials and new products in the field of popularization and application, well-equipped, advanced technology, detection means complete, and at the same time have a very skillful, working professional pre-sales and after-sales service team, It has been exported to Germany, Italy, Japan, Singapore, the United States, Canada, Taiwan, and other more than 20 countries and regions, with a good reputation at home and abroad. Bronze coil bushing, etc. Widely used in various machinery industries, such as: Printing machinery, food machinery, packaging machinery, lifting machinery, mining machinery, fitness equipment, mold, hydraulic machinery, pneumatic cylinder, oil cylinder, oil machinery, plastics machinery, restriction machinery, engineering machinery automation equipment, forging equipment, shock absorber, chemical machinery, steel rolling equipment, hydraulic machinery, machine tools, water turbine, steam turbine, injection molding machine, plastic molding machines, metallurgical equipment, Construction Machinery, Automobile, Valve, Pump Valve, Lift, Power Tools, Textile Machinery, Rubber Machinery. And according to user requirements, for the design of custom.
| Advantages | ||||
| 1. Lead-free and fully recyclable. Less expensive than a machined bushing. 2. Minimal space required. 3. Lighter in weight than machined bushing or roller bearing. 4. High stability under load, therefore particularly suitable for oscillating bearing. 5. Lubrication grooves are coined into the metal, and any shape desired is possible. 6. Grease depots for long-term lubrication. |
||||
| Flanged bushing offers the following additional advantages: | ||||
| 1. A single bushing and take both radial and axial forces. 2. A single bearing element is needed to replace both thrust washer and cylindrical bushing. 3. High stability. 4. No fixing of thrust washers. |
Technical Parameters
| Data | Code | BRONZE BEARINGS |
| Material | CuSn8P(Qsn8-0.3) | |
| Applications | Products are widely used in agricultural machinery, construction machinery, engineering machinery. | |
| Density g/cm³ | 8.8 | |
| Max Load Capacity N/mm² | 120 | |
| Max Line Speed V | Grease Lubrication m/s | 2.5 |
| PV Value Limit | Grease Lubrication N/mm²·m/s | 2.8 |
| Tensile Strength N/mm² | >460 | |
| Yield Strength N/mm² | >280 | |
| Hardness HB | 90~150 | |
| Friction Coefficient u | 0.06~0.15 | |
| Mating Axis | Hardness HRC | ≥50 |
| Roughness Ra | 0.4~1.0 | |
| Working Temperature ℃ | -40~+150 | |
| Thermal Conductivity W/mk | 58 | |
| Coefficient Of Linear Xpansion | 18.5×10-6/K | |
| In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements. | ||
These bronze bearings can be of shield machine, grilled slag machine, boring machine, and so on mining machinery and equipment to provide from the chassis agency (roller, guide wheel, drag chain wheel, when tight round, etc.), to the work device (movable arm, arm, and bucket guide sleeve, cylinder, cylinder shaft sleeve, collar, gaskets, etc.) and hydraulic drive (valve plate, backplate, friction plate, bearings, bushings, planetary gear components, etc.), As well as axle, brake system, cab, lever, seat and other parts of the use of bearings and technical solutions.
Train
Running pulley
Pumps
High temperature
Agriculture
Construction
WRAPPED BRONZE BEARING
Call us
24/7 emergency callout
