Bi-metal Self-lubricating Bearing:
Bimetal self-lubricating bearings are a fusion of two metals, offering the mechanical strength of one metal and the superior tribological (friction and wear) properties of another.
Self-lubricating: This means that the bearing has inherent properties or a design (like grooves or embedded lubricant) that reduces the need for external lubrication, recognized to longer operational life and reduced maintenance. Chinese Manufacturing:
China is a major hub for manufacturing, including the production of bimetal bearings. Several successful projects have showcased the capability of Chinese manufacturers to produce high-quality bimetal bearings and bushings. Collaborating with experienced manufacturers and suppliers from China can be a cost-effective way to source these components.
In conclusion, bimetal bearings, with their unique combination of materials, offer a perfect blend of strength and performance. Proper maintenance and the right choice of bearing material can further optimize the benefits they bring to various industrial applications.
Curabitur non nulla sit amet nisl tempus.

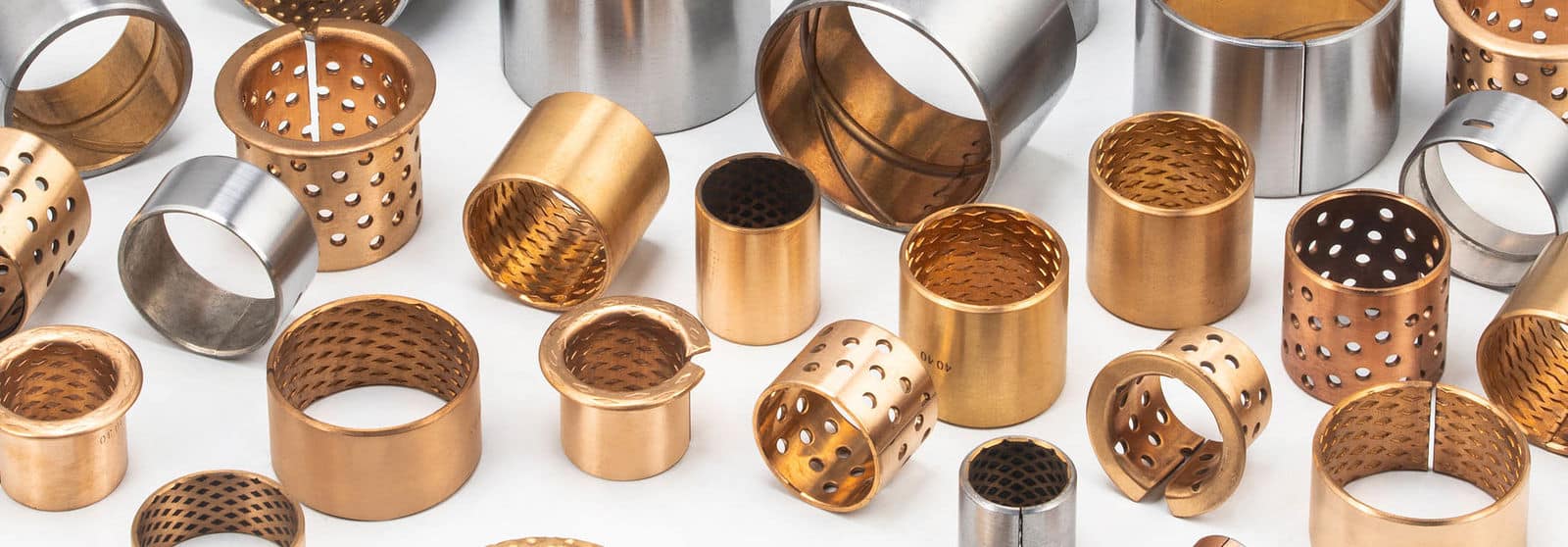

Metal Bushing (Lubricated Metal)
Normal metal bushing, cylindrical bushes, grooves, oil holes, slots, etc.wE haVE excelled in manufacturing durable, trusted dry bearings & metal bushing for products around the globe. Bimetal Plain Bearings to Standard SAE 792, Bimetal bearings bushing are an excellent choice for industrial applications that require durable and reliable bearings. With their high load-carrying capacity, low friction, and excellent wear resistance, these metal and bimetal bearings can withstand even the toughest industrial environments. Whether you’re in the construction, agriculture, automotive, or industrial equipment industry, Bimetal bearings are sure to meet your needs. Bimetal bearings offer a combination of strength (from the steel back) and performance (from the sintered layer). By selecting the right material and design, they can be tailored to meet the specific requirements of various applications.
Bushing Design
Bimetal Plain Bearings Online, Bushing Solutions, Precision Manufacturing
Providing your company with the precision and quality assurance needed for your manufacturing requirements. We understand your specialized bushing needs. The bimetallic bearing is part of the bearing lubrication system; this product features a high-quality, low-carbon steel backing as the substrate. The surface is layered with a bronze alloy, which undergoes several high-temperature sintering processes to enhance density. This process creates a rolled copper and steel bimetallic strip that is coiled, making it suitable for a variety of applications including bushings and thrust washers under medium and high impact loads. Our professional technology and design services ensure high-quality bimetal bearings and bushings, providing you with reliable plain and sleeve bearing solutions.
Metal & Bimetal Bush
This high performance plain bushing (metal plain bearing and sleeve bearings) material solves a host of problems that plague sliding parts. We offers a broad range of sizes, forms and materials in monometallic and bimetallic bearings. Our Metal and Bimetal Bushings for high loads. Bimetal bearings will most notably benefit transmissions and truck brakes as well as agricultural, mechanical handling and lifting applications. Bimetallic Material Characteristics: Steel backed bronze alloy bushingCuPb10Sn10, CuPb24Sn4, CuPb30, AISn20Cu!
Bushing Dimension
Engine Bearing – Metal, Bimetal Bearings|Steel Backed Bronze Bushings
Standard Metric Bimetal Bushing Bearings: Bimetal Bushing Sleeve Bearing With Flange, Mm, Sliding Bearing Bi-Metal Bushing Company. Bimetallic bushing bearings are produced using high-quality composite material, low carbon steel and sintered lead-bronze alloy. bronzelube.com, Steel Backed Lead Bronze bimetal self-lubricating bearing Bushing. Manufactures parts for the Your Industry. Using the high oilless bearings technology available. We have invested significant time and resources in perfecting our services to meet the unique and challenging needs in the Bearing Bushing Industry.
Top Quality
High Quality Bimetal Plain Bearing Bush for Customer’s Request.
Technology
Professional Technology&Design.
Bimetal Bearings Bearing Design
Bimetal Bearings Groove, Bimetal Bearings Design & Selection
Bimetal Bushing: As mentioned, this bushing is based on steel (for strength and rigidity) and is sintered with a lining layer that provides the actual bearing surface. Lining Layer Materials: CuPb10Sn10, CuSn6Zn6Pb3, CuPb24Sn4, CuPb30, AlSn20Cu: Bimetal Bearing Alloy Layer: This refers to the combination of two metals for the bearing, where the alloy layer provides the bearing’s main tribological properties. Benefits of Bimetal Bearings: Cost Reduction: Less maintenance and longer bearing lifespan lead to reduced operational costs. Increased Equipment Lifespan: Reduced wear and tear on equipment due to efficient bearings can increase the overall lifespan of the machinery.
Bimetal Bushing
Metal Backed BushingsSplit Gap Design
Bimetal Bearings

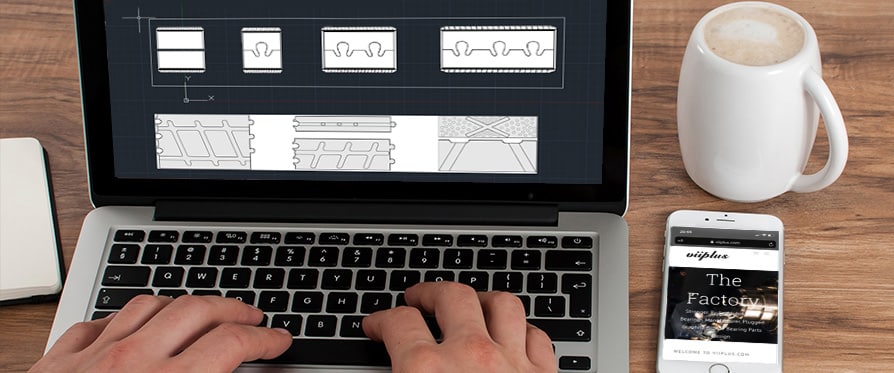

Groove TypeLubrication Design
Groove Lubrication Design
PLAIN BEARINGS AND SLEEVE BEARINGS
Bimetal Bearings Bushing Material
Bimetal plain bearings are used in a wide range of applications due to their unique structure and composition. These bearings are typically made up of two layers: a steel backing and a softer, sintered metallic layer that provides the bearing surface. Bimetal Bearing Structure: Steel Back: This acts as the support structure for the bearing. It gives the bearing its shape and provides mechanical strength. Sintered Metallic Layer: This is the layer that directly interacts with the rotating shaft. It’s usually a softer metal or metal alloy that offers good wear resistance and low friction. The choice of the sintered metallic layer largely depends on the specific application, operating conditions, and desired properties. Here are some common materials used:
Product Quality Index
Energy Generation
Bimetal Bearing Bushing Series: Low-Maintenance Composite Sliding Bearing with Steel Backing and Bronze Sliding Layer with Lubrication Grooves
Sintered Lead Bronze Rolled Bimetal Sliding Bearings
The Bimetal Bearing Bushing Series, just like its counterparts in the Bimetal Bearing Bushing range, is a true all-rounder in the grease lubrication field! The rolled composite sliding bearings consist of a steel backing and a sintered sliding layer of lead bronze with special additives. While good lubrication is still essential, the integrated lubricant reservoirs extend the intervals between re-lubrication. The Bimetal Bearing Bushing Series is highly versatile, also available in models without lubrication grooves, with lubrication grooves, or with additional holes.
Bimetal Sliding Bearings: Extremely robust, very suitable for lubricated applications
The Bimetal Sliding Bearings series bearings are among the most robust rolled composite sliding bearings. They are particularly durable and fatigue-resistant, making them the best solution for bearing impact loads and vibrations. Even under dynamic loads, the lead-free bimetal sliding bearings maintain excellent stability. Moreover, their chemical resistance and usability at high temperatures provide ideal conditions for various applications, making these bushings an extremely robust and space-saving solution.
Bimetal Bearing Bushing Overview
Partial Overview of Cylindrical Bushings in the Bimetal Bearing Bushing Series
Bimetal Bearing Bushing Series Overview:
- Steel backing with a sliding layer made of lead bronze (CuSn10Pb10).
- Standardized composite sliding bearings conforming to DIN 1494 and ISO 3547 standards.
- Available with copper-plated backing.
- Low-maintenance – requires lubrication.
- Suitable for oil and grease lubrication.
- Lead-free products available in the Bimetal Bearing Bushing Series.
- Cylindrical bushings available.
Product Advantages:
- Suitable for high-temperature environments.
- Good chemical resistance.
- Very durable and resilient.
- Suitable for impact loads and vibrations.
Applications:
- Agricultural machinery.
- Truck suspension systems.
- Lifting equipment.
- Engine bearings
Innovation in Motion: Elevate Your Machine’s Performance
Groove Type and Self-Lubricating Holes:
Many bimetal bearings have grooves or self-lubricating holes. These features help in:
- Lubrication: Grooves and holes serve as reservoirs for lubricants, ensuring a consistent supply of lubrication to the bearing surface.
- Heat Dissipation: They also help in dissipating heat generated due to friction, thus extending the life of the bearing.
- Debris Collection: The grooves can trap small particles and prevent them from causing damage to the bearing surface.
Applications:
Bimetal bearings find applications in a myriad of industries:
- Engineering: Used in heavy machinery, hydraulic systems, and various equipment.
- Automotive: Commonly found in engines, transmissions, and suspension systems.
- Others: They are used in appliances, agricultural machinery, and even in some marine applications due to their corrosion resistance.
Experience OE-Proven High-Performance Technology
Unlock the future of machinery with our cutting-edge bimetal bearings. Designed with a unique 2-layer structure, our bearings enhance the life of crankshafts in the most challenging environments, ensuring your engines and applications run longer and smoother.
Why Choose Our Bimetal Bearings and Bushings?
🔸 Extended Lifetime: The dual-layer design ensures a longer life for both bearings and associated machinery.
🔸 Unparalleled Wear Resistance: Our bearings stand up to the toughest conditions without faltering.
🔸 Superior Fatigue Life: Built for endurance, our bearings resist wear and tear, ensuring peak performance throughout their lifecycle.
🔸 Emergency Running Capability: Even in sudden, unexpected conditions, our bearings continue to perform.
🔸 Cavitation Resistance: Expertly crafted to resist bubble-induced erosion in liquid environments.
Diverse Applications Across Markets
From automotive parts to office equipment, construction machinery, and even massive infrastructure projects like hydro plants and dome stadiums, our metal-wrapped bearing polymer split bushings excel. Their strength and wear-resistance, even without lubrication, have made them the top choice across various industries.
Metal Polymer Bearing Series: Tailored for Your Needs
No matter your market, we have a bearing solution crafted just for you. Dive into our extensive range and discover the perfect fit for your application.
Quality You Can Trust
As renowned suppliers of engine bearings, bushings, thrust washers, and bimetallic strips, our commitment to quality is unwavering. We continually innovate, researching new materials and development methods. Our state-of-the-art testing equipment and rigorous quality assurance systems, backed by a dedicated QC department, ensure you receive nothing but the best.
Global Presence, Local Expertise
With a strong international footprint, we’re specialists in engine bearing applications. Whether you need engine bearings, bushings, thrust washers, or a custom solution, we’re here to help.
🌟 Elevate Your Machinery. Trust in Proven Quality. 🌟
Contact us now for a quote or sample. Dive deeper into our offerings and discover how we can drive your machinery to new heights.
Metal and Bimetal Bearings
Material: steel
Other characteristics:
self-lubricating, thin-walled bearing bushing.
DESCRIPTION
The bimetal bearing is a thin-wall and self-lubricating bearing device for dangerous situations. It is suitable for high or dynamically loaded applications where grease is difficult and unreliable. The unit comprises of steel support with a bronze bearing layer.
In addition, the framework is fit for significantly higher loads with the unbeatable possible cost. Its typical applications include water turbines, injection molding hardware, packing machinery, printing machines, construction equipment, shut-off valves, and tire molds.
Wrapped composite sliding bearing, Copper-plated or tin-plated steel-backed bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets
We are happy to serve you
STRUCTURE AND COMPOSITION
Steel Backing and Leaded Bronze Overlay
Steel + Sliding layer CuPb10Sn10 with indents
Steel copper-plated or tin-plated
Bimetal Bearings is a low-maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory.
Bimetal Plain Bearings to Standard SAE 792 Sliding layer CuPb10Sn10
Bimetal Plain Bearings to Standard SAE 792
Bimetal Bearings: Durable and Reliable Metal and Bimetal Bearings for Industrial Applications
When it comes to industrial applications that require durable and reliable bearings, Bimetal bearings from viiplus Bearings are an excellent choice. These metal and bimetal bearings are designed to withstand high loads, high speeds, and extreme temperatures, making them ideal for a wide range of industrial settings.
What are Bimetal Bearings?
Bimetal bearings are metal and bimetal bearings that are made up of a steel backing with a layer of sintered bronze or other materials on the surface. These bearings are known for their high load-carrying capacity, low friction, and excellent wear resistance, making them ideal for use in a variety of industrial applications.
Advantages of Bimetal Bearings
Bimetal bearings offer a number of advantages over other types of bearings, including:
-
High Load Capacity – Bimetal bearings can withstand high loads, making them ideal for heavy-duty applications.
-
Low Friction – Bimetal bearings have low friction, which reduces energy consumption and wear.
-
High Wear Resistance – Bimetal bearings are highly resistant to wear, ensuring longer service life.
-
Wide Temperature Range – Bimetal bearings can operate in a wide temperature range, making them suitable for use in extreme environments.
Applications of Bimetal Bearings
Bimetal bearings are widely used in a variety of industrial applications, including:
-
Construction Machinery – Bimetal bearings are used in excavators, cranes, and other construction machinery.
-
Agriculture Machinery – Bimetal bearings are used in tractors, combines, and other agriculture machinery.
-
Automotive Industry – Bimetal bearings are used in cars, trucks, and other vehicles.
-
Industrial Equipment – Bimetalbearings are used in pumps, compressors, and other industrial equipment.
Bimetal composite bearings with high quality steel backed bushings, the surface of the sinter with low friction properties of copper alloy (CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as wear-resisting sliding layer of bearing.
MATERIALS
Support material
Steel copper-plated or tin-plated
Sliding layer: CuPb10Sn10
STRUCTURE AND COMPOSITION
Steel Backed and Bronze Layer Steel + CuPb10Sn10 with indents

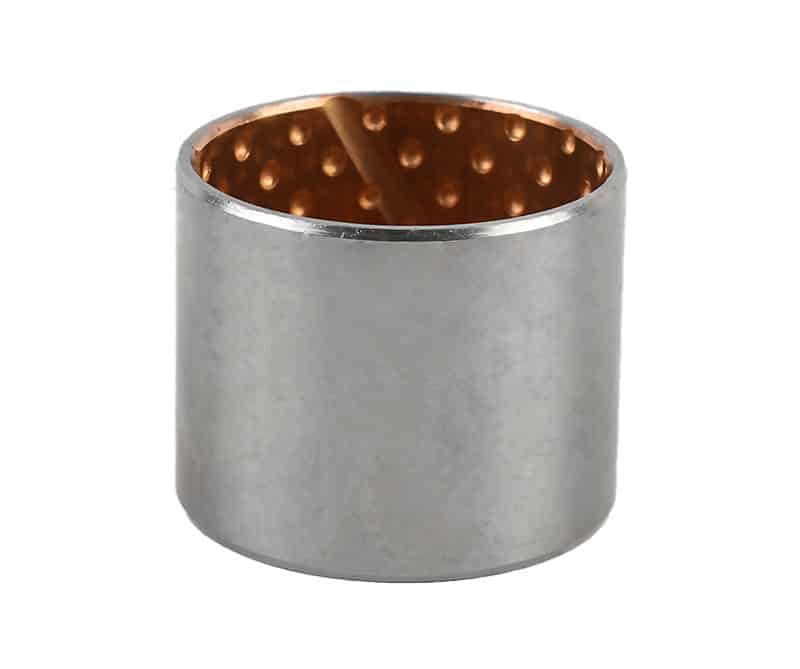

Sliding layer with lubrication indents
CuPb10Sn10 with
composition approx.:
Cu 80 %
Pb 10 %
Sn 10 %
Steel backing
Material Characteristics
| Data | Bimetal Plain Bearings to Standard SAE 792 | Bimetal strip from tin-aluminium alloy |
| Bimetal Plain Bearings Structure | ||
| Steel + CuPb10Sn10 | Steel + AlSn20Cu | |
| Corresponding Code | SAE-792(SAE797). JIS-LBC3. |
SAE-783. JIS-AJL. |
| Clevite F100. GGB-SY. Daido L10. Federal Mogul HF-2F.Glyco 66. |
Federal Mogul TR-20. Glyco 74. |
|
| Max Load Capacity P | 150N/mm2 | 100N/mm2 |
| Grease Lubrication | ||
| Max Speed V | 2.5m/s | |
| Maximum PV Value | 2.8N/mm2 · m/s | |
| Coefficient of friction u | 0.05~0.15 | |
| (Oil)Lubrication | ||
| Max Speed V | 10m/s | 25m/s |
| Maximum PV Value | 10N/mm2 · m/s | 6N/mm2 · m/s |
| 0.05~0.12 | 0.06~0.17 | |
| Max Working Temperature | ||
| Grease Lubrication | 150℃ | 150℃ |
| Lubrication | 250℃ | 250℃ |
| Alloy Hardness | 60~100HB | 30~40HB |
Bimetallic Bearings Bushings Material Characteristics
- Lubrication Design
- Split Gap Design
- Oil Hole Design
- Application
Bi-metallic bushing is formed from steel strips with sliding bronze alloy lining material. The alloy lined surface can be machined oil grooves, holes, formed Indentations etc according to different application. It is suitable for high load, lower speed oscillation & rotation movement.

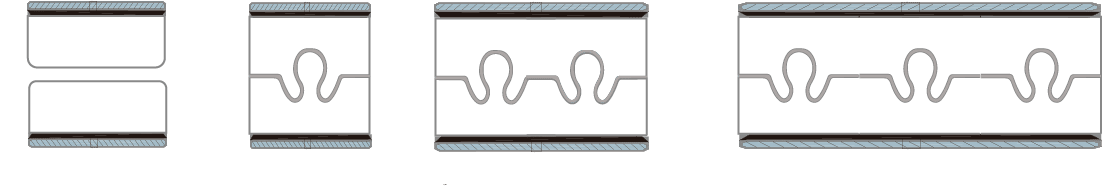

Bimetal bearing bushing buckle oil hole design
In the bimetal bearing bushings design, if the following oil hole is used, the bimetal bearing bushings product can be fully lubricated in use. If there is no special requirement, this oil hole design is also applicable.
| Oil Hole is necessary to design if bimetal bearings have lubricated sufficiently; the following oil hole design is recommended, which is also suitable for bimetal bearings series without special requirements. | |||||
| Bushing O.D. (D) | Φ14＞D ≤ 22 | Φ22＞D ≤ 40 | Φ40＞D ≤ 50 | Φ50＞D ≤ 100 | Φ100＞D ≤ 180 |
| Oil Hole Diameter (mm) | 3 | 4 | 5 | 6 | 7 |
| Oil hole location should keep away from the split gap & loading area, and in favor of oil-taking. | |||||
Bimetal bearing oil holes should be located away from joints and bearing areas and should facilitate oil intake.
Bimetal Bearings Application
THE BIMETAL BEARINGS SOLUTION PROVIDER FOR INDUSTRIAL
PROGRESS, REGARDLESS OF SHAPE OR MATERIAL
Metal and bimetal bearings are essential components for many industrial applications, as they provide support and reduce friction between moving parts. To ensure optimal performance and longevity of these bearings, it is important to choose durable and reliable materials.
Some common metals used for bearings include bronze, brass, and steel. Bronze and brass are often used for their high strength and resistance to corrosion, while steel is favored for its toughness and ability to withstand high loads. Bimetal bearings, which consist of two different metals bonded together, offer unique advantages such as improved wear resistance and compatibility with different lubricants.
In addition to selecting the appropriate material, proper lubrication and maintenance are crucial for ensuring the longevity and reliable operation of metal and bimetal bearings. Regular inspection and replacement of worn bearings can help prevent costly downtime and equipment failure.
Bimetal bearings will most notably benefit transmissions and truck brakes as well as agricultural, mechanical handling and lifting applications. Track rollers, construction machines, crane construction (impact loading)
It is one of the solid enterprises in China specializing in the production of self-lubricating bearings, bimetal bearing bushings, plain bearings, composite bearings, oil-free bearings, dry bearings and maintenance-free bearings.
To determine which bimetal bearings bushings product is best suited to your application, Select your market.
| bi-metallic bushing CuPb10Sn10 |
It has high fatigue strength, high bearing capacity, high impact resistance and wear resistance, suitable for medium to high speed applications such as gear box, rocker sleeve, main pin, transmission device, common sleeve and so on |
| bi-metallic bushing CuPb24Sn4 |
It has high anti-fatigue strength, bearing capacity and anti-impact force, and good surface sliding performance. It is suitable for medium speed and medium load. When the surface is coated with soft alloy, it can be used for high-speed internal combustion engine spindle sleeve and connecting rod sleeve. |
| bi-metallic bushing CuPb30 |
Has very good sliding performance, good bite resistance. It is a kind of special material, the surface is not suitable for processing oil groove and oil hole, generally need to be plated with soft alloy. It is suitable for high speed, medium and low load internal combustion engine spindle sleeve and connecting rod shaft sleeve. It can also be used for hydraulic pump, automatic gear box, etc. |
| bi-metallic bushing AlSn20Cu |
With moderate fatigue strength and bearing capacity, good sliding performance, the product is suitable for high-speed low-load internal combustion engine bearing bush, air compressor, refrigerator, hypoid gear box, hydraulic pump, gear box, etc. |
BIMETAL BEARING SOLUTIONS FOR LUBRICATED APPLICATIONS

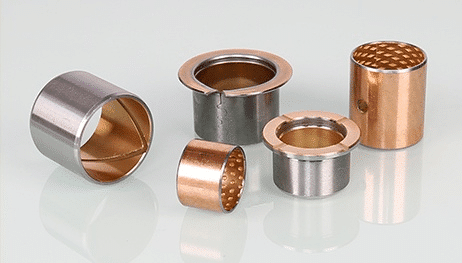

Bimetal bearings split type is available as a standard range of cylindrical wrapped bushes and thrust washers in metric sizes with or without oil holes.
Dimensions and tolerances follow ISO 3547 and standard specifications.
Non standard parts, bimetal bearings bushing material strip and special forms to order.
Always tested. Always proven.

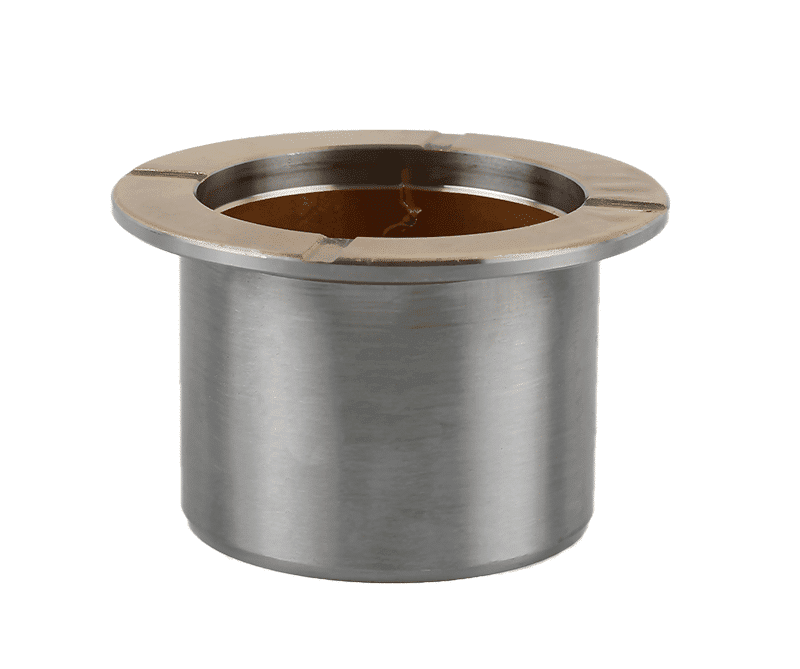

Bimetal Bearings, Flange Bimetal Bushing, Long-lasting, self-lubricating
Bimetal Plain Bearings to Standard SAE 792
Bimetal Bush Bearing Size Chart
| PM2025SY | 20 | 23 | 25 | H7 | h8 | 20.161 | 20.02 | 0.194 | 0.02 | 4 |
| PM2030SY | 20 | 23 | 30 | H7 | h8 | 20.161 | 20.02 | 0.194 | 0.02 | 4 |
| PM2215SY | 22 | 25 | 15 | H7 | h8 | 22.161 | 22.02 | 0.194 | 0.02 | 6 |
| PM2220SY | 22 | 25 | 20 | H7 | h8 | 22.161 | 22.02 | 0.194 | 0.02 | 6 |
| PM2225SY | 22 | 25 | 25 | H7 | h8 | 22.161 | 22.02 | 0.194 | 0.02 | 6 |
| PM2230SY | 22 | 25 | 30 | H7 | h8 | 22.161 | 22.02 | 0.194 | 0.02 | 6 |
| PM2515SY | 25 | 28 | 15 | H7 | h8 | 25.161 | 25.02 | 0.194 | 0.02 | 6 |
| PM2520SY | 25 | 28 | 20 | H7 | h8 | 25.161 | 25.02 | 0.194 | 0.02 | 6 |
| PM2525SY | 25 | 28 | 25 | H7 | h8 | 25.161 | 25.02 | 0.194 | 0.02 | 6 |
| PM2530SY | 25 | 28 | 30 | H7 | h8 | 25.161 | 25.02 | 0.194 | 0.02 | 6 |
| PM2815SY | 28 | 32 | 15 | H7 | h8 | 28.185 | 28.04 | 0.218 | 0.04 | 6 |
| PM2820SY | 28 | 32 | 20 | H7 | h8 | 28.185 | 28.04 | 0.218 | 0.04 | 6 |
| PM2825SY | 28 | 32 | 25 | H7 | h8 | 28.185 | 28.04 | 0.218 | 0.04 | 6 |
| PM2830SY | 28 | 32 | 30 | H7 | h8 | 28.185 | 28.04 | 0.218 | 0.04 | 6 |
| PM3015SY | 30 | 34 | 15 | H7 | h8 | 30.185 | 30.04 | 0.218 | 0.04 | 6 |
| PM3020SY | 30 | 34 | 20 | H7 | h8 | 30.185 | 30.04 | 0.218 | 0.04 | 6 |
| PM3025SY | 30 | 34 | 25 | H7 | h8 | 30.185 | 30.04 | 0.218 | 0.04 | 6 |
| PM3030SY | 30 | 34 | 30 | H7 | h8 | 30.185 | 30.04 | 0.218 | 0.04 | 6 |
| PM3040SY | 30 | 34 | 40 | H7 | h8 | 30.185 | 30.04 | 0.218 | 0.04 | 6 |
| PM3230SY | 32 | 36 | 30 | H7 | h8 | 32.185 | 32.04 | 0.224 | 0.04 | 6 |
| PM3240SY | 32 | 36 | 40 | H7 | h8 | 32.185 | 32.04 | 0.224 | 0.04 | 6 |
| PM3515SY | 35 | 39 | 15 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3520SY | 35 | 39 | 20 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3525SY | 35 | 39 | 25 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3530SY | 35 | 39 | 30 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3535SY | 35 | 39 | 35 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3540SY | 35 | 39 | 40 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3545SY | 35 | 39 | 45 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM3550SY | 35 | 39 | 50 | H7 | h8 | 35.185 | 35.04 | 0.224 | 0.04 | 6 |
| PM4020SY | 40 | 44 | 20 | H7 | h8 | 40.185 | 40.04 | 0.224 | 0.04 | 8 |
| PM4030SY | 40 | 44 | 30 | H7 | h8 | 40.185 | 40.04 | 0.224 | 0.04 | 8 |
| PM4040SY | 40 | 44 | 40 | H7 | h8 | 40.185 | 40.04 | 0.224 | 0.04 | 8 |
| PM4050SY | 40 | 44 | 50 | H7 | h8 | 40.185 | 40.04 | 0.224 | 0.04 | 8 |
| PM4060SY | 40 | 44 | 60 | H7 | h8 | 40.185 | 40.04 | 0.224 | 0.04 | 8 |
| PM4530SY | 45 | 50 | 30 | H7 | h8 | 45.225 | 45.08 | 0.264 | 0.08 | 8 |
| PM4540SY | 45 | 50 | 40 | H7 | h8 | 45.225 | 45.08 | 0.264 | 0.08 | 8 |
| PM4550SY | 45 | 50 | 50 | H7 | h8 | 45.225 | 45.08 | 0.264 | 0.08 | 8 |
| PM4560SY | 45 | 50 | 60 | H7 | h8 | 45.225 | 45.08 | 0.264 | 0.08 | 8 |
| PM5030SY | 50 | 55 | 30 | H7 | h8 | 50.23 | 50.08 | 0.269 | 0.08 | 8 |
| PM5040SY | 50 | 55 | 40 | H7 | h8 | 50.23 | 50.08 | 0.269 | 0.08 | 8 |
| PM5050SY | 50 | 55 | 50 | H7 | h8 | 50.23 | 50.08 | 0.269 | 0.08 | 8 |
| PM5060SY | 50 | 55 | 60 | H7 | h8 | 50.23 | 50.08 | 0.269 | 0.08 | 8 |
| PM5535SY | 55 | 60 | 35 | H7 | h8 | 55.23 | 55.08 | 0.276 | 0.08 | 8 |
| PM5540SY | 55 | 60 | 40 | H7 | h8 | 55.23 | 55.08 | 0.276 | 0.08 | 8 |
| PM5555SY | 55 | 60 | 55 | H7 | h8 | 55.23 | 55.08 | 0.276 | 0.08 | 8 |
| PM5560SY | 55 | 60 | 60 | H7 | h8 | 55.23 | 55.08 | 0.276 | 0.08 | 8 |
| PM6030SY | 60 | 65 | 30 | H7 | h8 | 60.23 | 60.08 | 0.276 | 0.08 | 8 |
| PM6040SY | 60 | 65 | 40 | H7 | h8 | 60.23 | 60.08 | 0.276 | 0.08 | 8 |
| PM6060SY | 60 | 65 | 60 | H7 | h8 | 60.23 | 60.08 | 0.276 | 0.08 | 8 |
| PM6540SY | 65 | 70 | 40 | H7 | h8 | 65.23 | 65.08 | 0.276 | 0.08 | 8 |
| PM6550SY | 65 | 70 | 50 | H7 | h8 | 65.23 | 65.08 | 0.276 | 0.08 | 8 |
| PM6560SY | 65 | 70 | 60 | H7 | h8 | 65.23 | 65.08 | 0.276 | 0.08 | 8 |
| PM6570SY | 65 | 70 | 70 | H7 | h8 | 65.23 | 65.08 | 0.276 | 0.08 | 8 |
| PM7040SY | 70 | 75 | 40 | H7 | h8 | 70.23 | 70.08 | 0.276 | 0.08 | 8 |
| PM7045SY | 70 | 75 | 45 | H7 | h8 | 70.23 | 70.08 | 0.276 | 0.08 | 8 |
| PM7050SY | 70 | 75 | 50 | H7 | h8 | 70.23 | 70.08 | 0.276 | 0.08 | 8 |
| PM7065SY | 70 | 75 | 65 | H7 | h8 | 70.23 | 70.08 | 0.276 | 0.08 | 8 |
| PM7080SY | 70 | 75 | 80 | H7 | h8 | 70.23 | 70.08 | 0.276 | 0.08 | 8 |
| PM7540SY | 75 | 80 | 40 | H7 | h8 | 75.23 | 75.08 | 0.276 | 0.08 | 9.5 |
| PM7560SY | 75 | 80 | 60 | H7 | h8 | 75.23 | 75.08 | 0.276 | 0.08 | 9.5 |
| PM7580SY | 75 | 80 | 80 | H7 | h8 | 75.23 | 75.08 | 0.276 | 0.08 | 9.5 |
| PM8040SY | 80 | 85 | 40 | H7 | h8 | 80.235 | 80.08 | 0.281 | 0.08 | 9.5 |
| PM8060SY | 80 | 85 | 60 | H7 | h8 | 80.235 | 80.08 | 0.281 | 0.08 | 9.5 |
| PM8075SY | 80 | 85 | 75 | H7 | h8 | 80.235 | 80.08 | 0.281 | 0.08 | 9.5 |
| PM8080SY | 80 | 85 | 80 | H7 | h8 | 80.235 | 80.08 | 0.281 | 0.08 | 9.5 |
| PM8560SY | 85 | 90 | 60 | H7 | h8 | 85.235 | 85.08 | 0.289 | 0.08 | 9.5 |
| PM9040SY | 90 | 95 | 40 | H7 | h8 | 90.235 | 90.08 | 0.289 | 0.08 | 9.5 |
| PM9070SY | 90 | 95 | 70 | H7 | h8 | 90.235 | 90.08 | 0.289 | 0.08 | 9.5 |
| PM9090SY | 90 | 95 | 90 | H7 | h8 | 90.235 | 90.08 | 0.289 | 0.08 | 9.5 |
| PM10040SY | 100 | 105 | 40 | H7 | h8 | 100.235 | 100.08 | 0.289 | 0.08 | 9.5 |
| PM10050SY | 100 | 105 | 50 | H7 | h8 | 100.235 | 100.08 | 0.289 | 0.08 | 9.5 |
| PM10060SY | 100 | 105 | 60 | H7 | h8 | 100.235 | 100.08 | 0.289 | 0.08 | 9.5 |
| PM10080SY | 100 | 105 | 80 | H7 | h8 | 100.235 | 100.08 | 0.289 | 0.08 | 9.5 |
| PM10095SY | 100 | 105 | 95 | H7 | h8 | 100.235 | 100.08 | 0.289 | 0.08 | 9.5 |
| PM12050SY | 120 | 125 | 50 | H7 | h8 | 120.24 | 120.08 | 0.294 | 0.08 | 9.5 |
| PM13560SY | 135 | 140 | 60 | H7 | h8 | 120.24 | 135.08 | 0.303 | 0.08 |
Bimetallic bearing standard

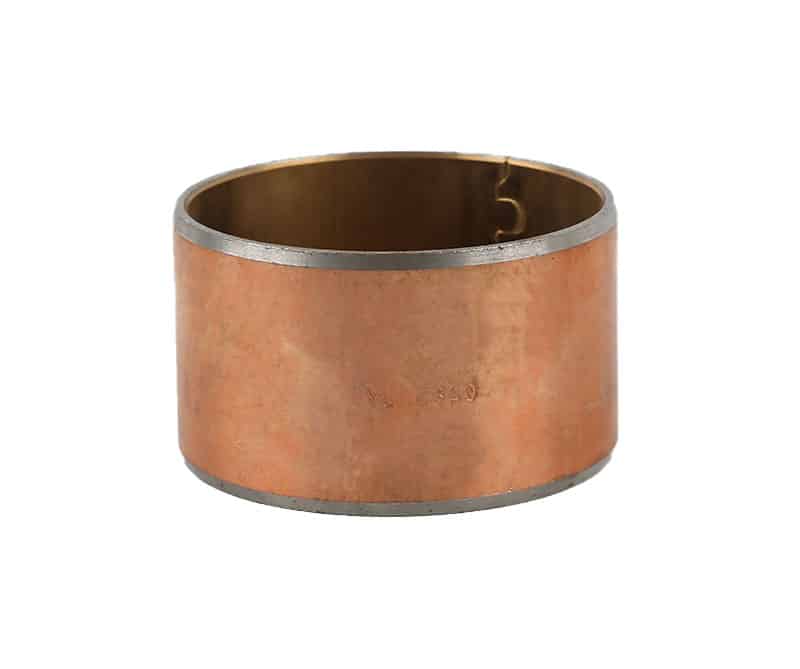

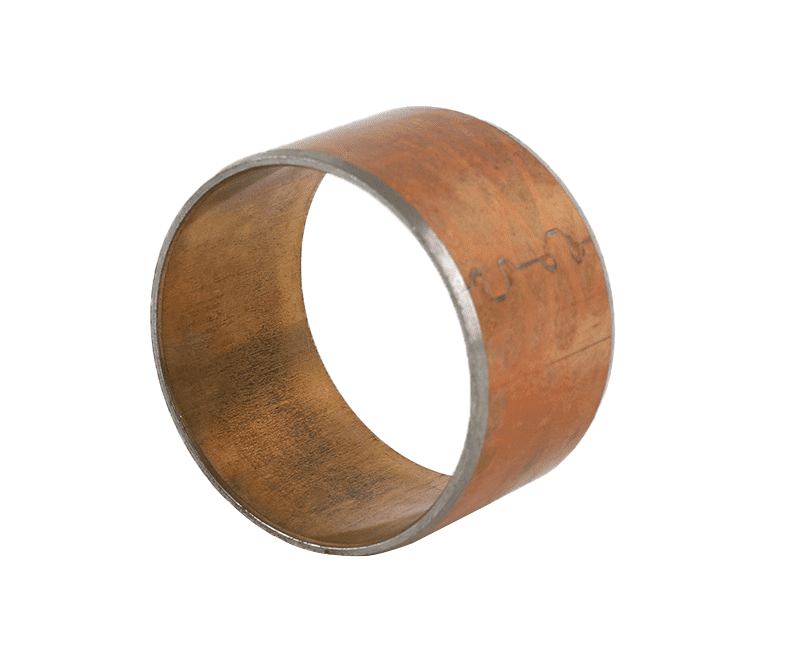

Wrapped bearing, Copper-plated or tin-plated steel/bronze, DIN 1494 / ISO 3547, Maintenance-free, With lubrication pockets
STRUCTURE AND COMPOSITION
- Steel Backing and Leaded Bronze Overlay
- Steel + CuPb10Sn10 with indents
| TOLERANCE DETAILS | |
| Housing | ØH7 |
| Bushing inner-Ø after mounting | H9 |
| Shaft tolerance | f7 or h8 |
Sliding layer with lubrication indents/CuPb10Sn10 composition approx.:
- Cu 80 %/Pb 10 %/Sn 10 %
- Steel backing
CHARACTERISTICS

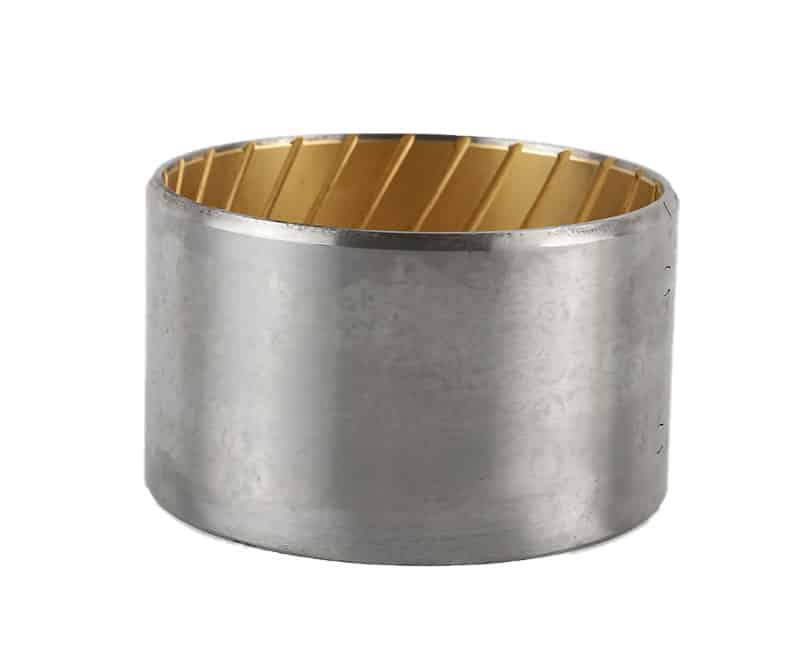

- Bimetal bearing with steel backing and bronze overlay
- Particularly suitable for high specific loads with oscillating motion and low frequency
- Applicable in rough operation conditions
- High load capacity, very good resistance to fatigue strength at higher temperatures
Bimetallic Bearing forms available in standard dimensions
- Cylindrical bushes
- Thrust washers

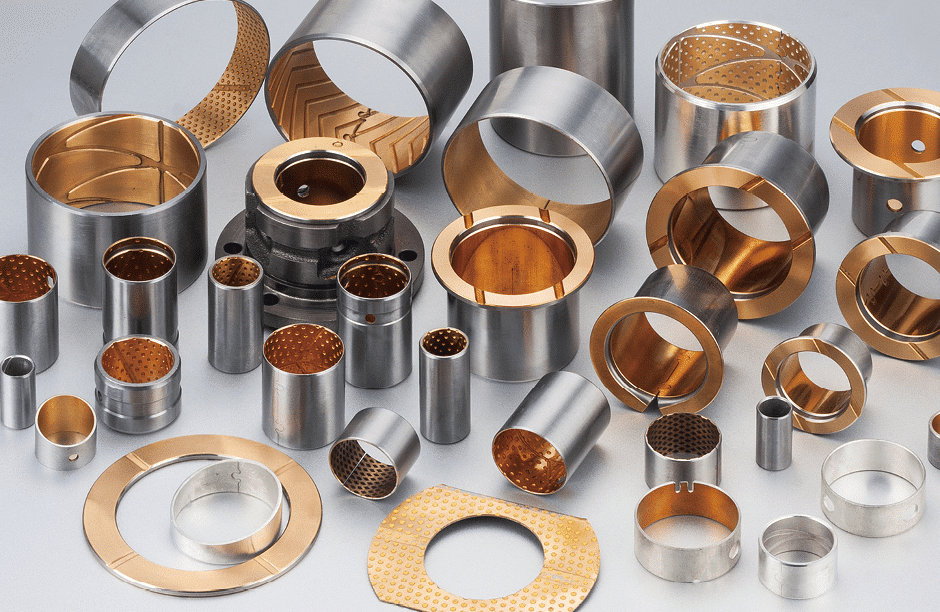

Bimetallic bearings forms made to order: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs
Flange, Washer, Sleeve
Bimetal Bushing, Bi-metal Bearing
- Steel+Bronze alloy(CuPb10Sn10)+PTFE
- Steel+Bronze alloy(CuPb10Sn10)
- Steel+Bronze alloy(CuSn4Pb24)
- Steel+Bronze alloy(CuPb24Sn)
- Steel+Bronze alloy(CuPb30)
- Steel+Alloy stage(AlSn20Cu)
- Steel+Bronze alloy(CuPb10Sn10)
POWERING DESIGNS ONE METAL BEARING AT A TIME
We offers a versatile product lineup with metal bearings CNC parts made from many types of materials for improved performance in each unique applications. Whether you need polymer, metallic or bronze bearing, or wrapped bushing, we have the experience you need to specify the right metal sleeve bushing for superior results. Our metal bushing bearings are the good choice for manufacturers in the automotive, marine, and industrial markets.
