Self-lubricated Bearing Slides

Self-lubricated Bearing Slides

Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.

Self-lubricated Bearing Slides

 Self-lubricated Bearing Slides, Self-lubricated Bearing Slides- graphite embedding- Graphite Filled Bronze Wear Plate, Graphite Embedded Bronze Wear Plate, Graphite Impregnated Bronze Wear Plate

Self-lubricated Bearing Slides

Self-lubricated Bearing Slides and Wear Plates Bronze Material CuZn25Al6Fe3Mn5+Graphite Oilless Bush; Application: agricultural machinery, crane electromotor, spring pin, steering shaft.

Manufacturer of Oilless Wear Plate – Graphite Filled Bronze Wear Plate, Graphite Embedded Bronze Wear Plate, Graphite Impregnated Bronze Wear Plate offered …

 Self-lubricated Bearing Slides, Production and delivery of plain bearing bushing and slide self-lubricating bearings, rewarding our customers with years of engineering and high quality.

Self-lubricating bearings have a reputation for quality and innovation that sets them apart from others around the world. With a long tradition of production history and demanding design standards, its aim is to remain at the forefront of plain bearing manufacturing and further develop oil-free bushings as a technology and innovation leader in the bearing industry.

We provide self-lubricated mechanical parts such as plain bearings and thrust bearings.

Lubrication of Sliding Bearing Plate: An Essential Maintenance Practice

Sliding bearing plates, also known as plain bearings or sleeve bearings, are a crucial component in many industrial machines and systems. They are used in applications where low friction and high load-carrying capacity are required. The function of these bearings is to support and guide rotating or reciprocating shafts, allowing for smooth and efficient operation of the machinery.

Lubrication of sliding bearing plates is an essential maintenance practice to ensure their proper functioning and to extend their lifespan. The purpose of lubrication is to reduce friction between the bearing surface and the shaft, and to provide a barrier to prevent contaminants from entering the bearing and causing damage.

There are two main types of lubricants used for sliding bearings: oil-based and grease-based. Oil-based lubricants are used in applications where high speed and low temperature are required, while grease-based lubricants are used in applications where high load-carrying capacity and low speed are required.

The selection of the appropriate lubricant depends on various factors, including the operating temperature, speed, and load of the machinery, as well as the type of bearing material and the presence of contaminants in the environment. A lubricant that is too thick can increase friction and reduce efficiency, while a lubricant that is too thin can cause damage to the bearing surface due to insufficient protection against contaminants.

In order to ensure proper lubrication of sliding bearing plates, it is important to follow a regular maintenance schedule. This includes checking the lubricant level and condition, and replacing it when necessary. In addition, it is important to keep the bearing housing clean and free of contaminants, as this can reduce the effectiveness of the lubricant.

To extend the lifespan of sliding bearing plates, it is also important to use the appropriate lubrication techniques. For example, in high-speed applications, the use of oil mist lubrication can be effective in reducing friction and preventing damage. In low-speed applications, the use of grease-based lubricants can provide the necessary protection against contaminants.

In conclusion, lubrication of sliding bearing plates is a critical maintenance practice that should not be overlooked. By selecting the appropriate lubricant, following a regular maintenance schedule, and using proper lubrication techniques, it is possible to ensure the proper functioning and longevity of these critical components. Proper lubrication will also help to reduce the risk of unexpected downtime and repairs, recognized to increased efficiency and cost savings for industrial operations.



metal bushings

What is self-lubrication? Self-lubrication is characterized by the ability of the bearing to transfer microscopic amounts of material to the mating surface This transfer process creates a film that provides lubrication and reduces friction over the length of the rail or shaft. Self-lubricating bearings work by having lubricant impregnated within the sliding layer of the bearing. This lubricant can either be liquid (oil) or solid lubricate. SELF-LUBRICATING is having or relating to the ability to provide its own lubricant.

Sliding Bearings

Bringing motion into play: self-lubricating plain bearings. They are used in a wide range of applications, as piston and connecting rod bushings or rocker arm pins in technologically advanced internal combustion engines. Self-lubricating plain bearings are also used in modern axles and bearings for braking systems, transmissions, differentials and hydraulic pumps, as well as in pendulum components such as booms or clamping systems on construction and agricultural machinery.

The products can be produced in different material self-lubricating bearings according to your wishes. In cooperation with you we are exclusively dedicated to new and further developments of our products. We attach great importance to modern and economical production.

Standard Self-lubricated Bearing Slides – Plugged Graphite – Select, and configure order. Bronzelube delivers punctually and offers fair prices.  Oil-Free Graphite Plate -Standard Type (Copper Alloy) – Graphite Embedded Bronze Wear Plate with Graphite Embedding. Oil-Free Slide Plate Material: Copper alloy

Self-lubricating guide slide plate manufacturer, mold copper guide plate factory direct sales, standard self-lubricating slide plate, graphite copper guide plate STW SEW STCW STZ SEZ, custom non-standard bronze self-lubricating guide plate, high force brass inlaid graphite guide plate manufacturers, custom self-lubricating slide plate, professional production of graphite copper guide plate manufacturers – ChengKai mold
Graphite copper guide plate is the use of high force brass as the substrate and set into the orderly arrangement of cylindrical polymer filler for the abrasive material graphite. Its superiority mainly lies in the fact that it makes copper alloy and non-metallic wear-reducing materials have their own complementary advantages, not only has a high load-bearing capacity but also breaks through the general brass rely on oil film grease lubrication boundary, to achieve the oil-free lubrication. The embedded solid lubrication is easy to form lubricating film, which is useful to improve the friction and wear performance and has high-cost performance in terms of stability and reliability. It has the advantages of good machinability, high precision, high load-bearing capacity, and good wear resistance.
This self-lubricating guide plate can be used in many fields such as; construction machinery joint parts, such as excavators, mining scrapers, rotary drilling rigs, concrete trucks, rock drilling machinery, winches, port cranes, etc., and metallurgical machinery continuous casting machinery, water conservancy machinery, conveying machinery, rolling mills, blowing machine film blowing machine, injection molding machine crosshead clamping differential, tire curing machine, trailer balance beam, etc..

Self lubricated slide plate

bronze graphite sliding plates

SESW and SESWT wear plates are high-quality industrial components designed to withstand the extreme wear and tear of heavy-duty applications. These wear plates come in a range of sizes to suit various industrial machinery and equipment, and are made of strong and durable aluminum bronze material.

One of the key features of these wear plates is the self-lubricating graphite that is integrated into the material. This graphite provides excellent lubrication properties, reducing friction and wear between the wear plate and the surface it comes into contact with. This, in turn, helps to extend the lifespan of the wear plate, while also reducing maintenance and repair costs for the machinery.

SESW and SESWT wear plates are highly resistant to corrosion and abrasion, making them ideal for use in harsh and demanding environments. They are capable of withstanding high temperatures, pressures, and loads, making them suitable for use in heavy machinery, such as excavators, bulldozers, and mining equipment.

The aluminum bronze material used to make these wear plates is known for its exceptional strength, toughness, and resistance to wear and tear. It is a highly durable and long-lasting material that can withstand extreme conditions and heavy usage over long periods of time.

In addition to their superior performance characteristics, SESW and SESWT wear plates are also easy to install and maintain. They can be quickly and easily installed onto the machinery, and require little to no additional maintenance beyond regular inspections and cleaning.

Overall, SESW and SESWT wear plates are a reliable and effective solution for protecting industrial machinery from wear and tear. With their superior performance characteristics and self-lubricating graphite, these wear plates provide long-lasting protection for heavy-duty applications, while also helping to reduce maintenance costs and downtime.

Here is the table of SESW and SESWT wear plates with their respective item number, thickness, width, length, and material:

Item No. Thickness (mm) Width (mm) Length (mm) Material
SESW2875 20 28 75 Bronze/Graph
SESW28100 20 28 100 Bronze/Graph
SESW28150 20 28 150 Bronze/Graph
SESW3875 20 38 75 Bronze/Graph
SESW38100 20 38 100 Bronze/Graph
SESW38150 20 38 150 Bronze/Graph
SESW4875 20 48 75 Bronze/Graph
SESW48100 20 48 100 Bronze/Graph
SESW48125 20 48 125 Bronze/Graph
SESW48150 20 48 150 Bronze/Graph
SESW48200 20 48 200 Bronze/Graph
SESW5875 20 58 75 Bronze/Graph
SESW58100 20 58 100 Bronze/Graph
SESW58150 20 58 150 Bronze/Graph
SESW7575 20 75 75 Bronze/Graph
SESW75100 20 75 100 Bronze/Graph
SESW75125 20 75 125 Bronze/Graph
SESW75150 20 75 150 Bronze/Graph
SESW75200 20 75 200 Bronze/Graph
SESWT100100 20 100 100 Bronze/Graph
SESW100100 20 100 100 Bronze/Graph
SESWT100125 20 100 125 Bronze/Graph
SESW100125 20 100 125 Bronze/Graph
SESW100150 20 100 150 Bronze/Graph
SESWT100150 20 100 150 Bronze/Graph
SESWT100200 20 100 200 Bronze/Graph
SESW100200 20 100 200 Bronze/Graph
SESWT100250 20 100 250 Bronze/Graph
SESW100250 20 100 250 Bronze/Graph
SESWT100300 20 100 300 Bronze/Graph

The list shows the various sizes and dimensions of SESW and SESWT wear plates available for industrial applications. Each item has a unique code indicating its thickness, width, and length, along with the material used, which is bronze with graphite for self-lubrication.

The thickness of all the wear plates is 20mm, and the width ranges from 28mm to 150mm, with some plates having a width of 58mm and 75mm. The length of the wear plates ranges from 75mm to 350mm.

There are two types of wear plates listed, SESW and SESWT, which are both made of the same material and have similar sizes. However, SESWT wear plates have larger dimensions and are specifically designed for heavy-duty applications that require extra protection against wear and tear.

These wear plates are ideal for use in industries such as mining, construction, and manufacturing, where heavy machinery is used in harsh and demanding environments. With their superior performance and durability, SESW and SESWT wear plates provide long-lasting protection against the high levels of wear and tear that heavy machinery is subjected to, while also reducing maintenance costs and downtime.



SEWT、STW、STWT、STLW、UTW、STS、STCW、STWH、STLST、STBW、PCWP-F、PCWPT、PCWPS、DWPT、PCSPR

Self-lubrication is a kind of sliding-bearing product made by cloth hole slotting and solid lubricant. Self-lubrication plate is made by compounding solid lubricant with a low coefficient of friction in the bearing matrix to reduce the friction force between the friction surfaces or other forms of surface damage.

Solid inlay self-lubrication bearing is in the ordinary sliding bearing (sleeve), shaft tile and slide plate, guide plate, and other parts of the friction surface of the relative mechanical movement, through a reasonable cloth hole, slot, and in its hole slot embedded with a certain shape and strength of the solid lubricant and made products. The embedded lubricant includes graphite, sulfide (molybdenum disulfide, tungsten disulfide, etc.), calcium fluoride, synthetic resin, polytetrafluoroethylene, etc. The thermal expansion coefficient of the embedded solid lubricant is greater than the expansion coefficient of the embedded substrate, and the type of embedded solid lubricant is selected according to the working condition.

Oil-Free Self-lubricated Bearing Slides-Standard Type (Copper Alloy) -Graphite Plugged Bearing by www.bronzelube.com.

Solid Lubricated bearings are siding blocks are self-lubricated bearings obtained by means of drilling orderly arranged holes in proper size on the surface of the metallic matrix of the bearings before flinging the solid lubricant with sol lubrication capability (the area of the solid lubricating applied is Usually 30% of the abrasion area). The bearings integrate the advantages of both that metallic matrix and the specially formulated lubricants and break through the
limitation of the ordinary bearings, which depend on the oil for lubrication: The solid lubricant bearings are especially suitable for oil-free, high-temperature.
high-1oad, low-speed, anti-fouling, anti-corrosion, anti-radioactivity circumstances, as well as the special circumstances in water or vacuum settings where is impossible to add oil for lubrication. This product is widely applied to the feel rolling equipment, filing equipment, water turbines, and steam turbines.
instruments and meters as well as mine machinery, vessel machinery, textile- machinery, shipbuilding industry, cosmonautics, navigation, etc. They
can be used for general engineering types of machinery too.
The base materials of solid lubricant bearings shall be determined according to the working conditions of the bearings. The commonly used material is high-strength copper, tin bronze and cast iron, etc. The filled solid lubricant is mainly graphite and addictive. Various additives are for various working conditions. Therefore, according to the working conditions of the bearings, a mix of metallic matrix and filled solid lubricant can enable the products to meet the specific requirements in various conditions with various temperatures, loads, movements, and ambient substances and meanwhile, ensure stabilized and
reliable functioning.

Features Of The Solid Lubricant Bearings & Slide Plate

1. Flexible design, simple, convenient with wide applications
The designing of an oil-feeding system is both a labor-consuming and time-consuming job. Therefore, the neglecting of the oil-feeding apparatus in the designing
of solid lubricant bearings saves the cost of the oil-feeding apparatus. Besides, for various specific circumstances, the solid lubricant bearings can be designed into
various types to meet the requirements thereof. The use of solid lubricant bearings can greatly reduce the cost of mechanical maintenance and oil.
2. Functional in absence of oil
Since the linear expansibility of solid lubricant is greater than metallic matrices, when the movement of solid lubricant bearings (SLB) starts, the lubricant is
transferred onto the parts in abrasion thus realizing the self-lubrication. Therefore, the SLBs can be used in circumstances where oiling and greasing are difficult
or impossible and they perform excellent lubrication even under low-speed and high-load circumstances.
3. Cost efficiency
The traditional mechanical design requires frequent oiling maintenance; an oil gauge check shall be performed to ensure the passage of the oil-supplying
apparatus is clear. Since the periodical oiling can cause pollution to the machines themselves as well as to the ambient surroundings, resulting in an increase
of the maintenance cost, the realization of self-lubrication can not only make the environment clean but greatly reduce the lubricating costs as well.
4. Excellent performance under high-load, low-speed circumstances
The SLBs are made of rotational cast high-strength copper as the matrix. which functions as load bearers. Besides, SLBs use specially formulated
graphite as a lubricant, ensuring excellent self-lubrication. Combining the advantages of both the matrix and lubricant, SLBs are capable of exerting their wonderful
performance in circumstances with high load and low speed.
5. In circumstances where it is difficult for the oil films to generate, such as the alternative movements, swinging movements, and frequent on-and-off, SLBs
highlights their excellent resistance to abrasion. As the principle of the arrangement of SLB lubricant is to ensure that each part of the equipment is involved in
the lubrication throughout the movement, the location of the lubricant shall be determined according to the movement direction of the parts in abrasion.
6. Excellent chemical resistance and corrosion resistance
The lubricant for SLB is formulated out of abrasion-resistant materials such as graphite and PTEE and has stabilized molecular structure. The metallic
matrix can be selected according to the various chemical resistance and corrosion resistance accordingly. Therefore, the SLB enjoys high chemical resistance
and corrosion resistance.
The cost of the products is more competitive and, compared with other products of the same kind, the SLB features in longer service hours, less
maintenance, longer replacement periods, and better performance.

JSP Plate Size chart

Self lubricated graphite sliding plate size
JSP Standard Size Self-lubricating Slide Plate
SIZE width length Distance of assembly hole Lubricating Hole
Designations W L A B C D E No.of Holes
JSP-1875 18 75 15 45 2
JSP-18100 18 100 25 50 2
JSP-18125 18 125 25 75 2
JSP-18150 18 150 25 100 2
JSP-2875 28 75 15 45 2
JSP-28100 28 100 25 50 2
JSP-28125 28 125 25 75 2
JSP-28150 28 150 25 100 2
JSP-35100 35 100 20 60 2
JSP-35150 35 150 20 55 55 3
JSP-35200 35 200 20 55 50 55 4
JSP-35250 35 250 20 70 70 70 4
JSP-35300 35 300 20 65 65 65 65 5
JSP-35350 35 350 20 80 75 75 80 5
JSP-3875 38 75 15 45 2
JSP-38100 38 100 25 50 2
JSP-38125 38 125 25 75 2
JSP-38150 38 150 25 100 2
JSP-4875 48 75 15 45 2
JSP-48100 48 100 25 50 2
JSP-48125 48 125 25 75 2
JSP-48150 48 150 25 100 2
JSP-50100 50 100 20 60 2
JSP-50150 50 150 20 55 55 3
JSP-50200 50 200 20 55 50 55 4
JSP-50250 50 250 20 70 70 70 4
JSP-50300 50 300 20 65 65 65 65 5
JSP-50400 50 400 20 90 75 75 90 5
JSP-75150 75 150 20 110 4
JSP-75200 75 200 20 80 80 6
JSP-75250 75 250 20 105 105 6
JSP-75300 75 300 20 85 90 85 8
JSP-75400 75 400 20 120 120 120 8
JSP-75500 75 500 20 115 115 115 115 10

Oilless bearing, Self-lubricated Bearing Slides Parts  Solid Embedded Graphite Self-lubricating Oil Bearing

self-lubricating slide plate, C86300 guiding elements, STW oil-free slide plates Chinese suppliers

Plain Oil-Free Self-lubricated Bearing Slides -Standard Type (Copper Alloy) – – Standard (CHINA METRIC SIZE)

Basic Information
Product type Self-lubricated Bearing Slides No groove Oil groove Oil-free Information

Product type Self-lubricated Bearing Slides Material Copper alloy Heel No groove
Oil groove Oil-free

Self-lubricated Bearing Slides Supplier, Factory Price Customize Graphite Brass Bearing Bushing Used For Stamping Mold Injection Mold Automation

Slide Plates -Standard Copper Alloy + Graphite (Embedded) plate

Self-lubricated Bearing Slides, slide plate, bronze plate with graphite. We offer free CAD downloads, short lead times, competitive pricing, and a small minimum order quantity. Catalog Download and require a complete Part Number.

Basic Information

Product type Self-lubricated Bearing Slides Heel No groove Oil groove Oil-free

China Oiles Wear Plate, Bronze Graphite Inlaid Plates

Self-lubricated Bearing Slides, Copper self-lubricating Plate, types of linear bearings.

Standard Self-lubricated Bearing Slides – Select, configure, and order.  We deliver punctually and offer fair prices.

What are the Oil-Free Self-lubricated Bearing Slides?
Through the program of the CNC machine tool, the Oil-Free Self-lubricated Bearing Slides can guide and control the linear motion, when under heavy pressure.

The Oil-Free Self-lubricated Bearing Slidesact as linear bearings for guiding and controlling. We provide various types of brass wear plates, from unfinished cast bronze plates to fully finished parts.

Graphite Bronze Plates, Self-lubricated Bearing Slides, Graphite Embedded Parts.

The Graphite Bronze Plates can be manufactured as one piece in desired dimensions up to 500kg

Self-lubricated Bearing Slides And Wear Plates

With a brass-type copper alloy created with advanced casting technology as the base, this product uses embedded solid lubricant for a high-load oil-free bearing …

Oil-Free Self-lubricated Bearing Slides

Oilless Self-lubricated Bearing Slides with Graphite Plugs, High tensile brass based / solid lubricant embedded, Oil-Free Slide Plate JSP – Standard, Copper Alloy

Customized oilless bronze graphite bushing sliding plate for sale

Plastic Mold Components, Self-lubricated Bearing Slides Oil-Free Plain Plate JSP series – Standard, Copper Alloy

Factory Bronze Bearing Sliding Plates, Brass bushing, copper graphite sliding plate

Self-lubricated Bearing Slides(Oil-free Plates) – Wear Pads

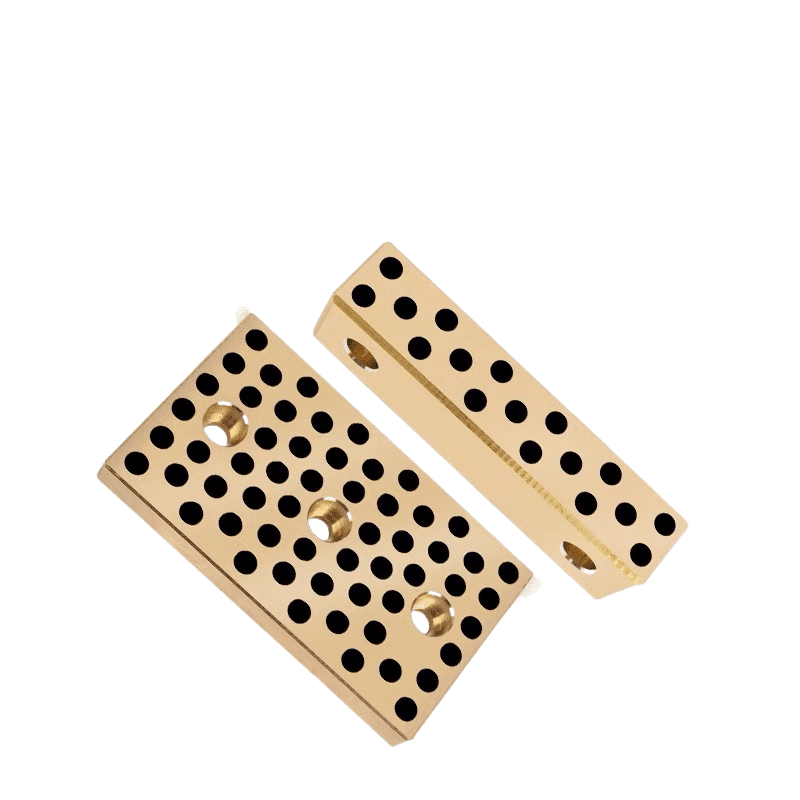

A factory specializing in the production of Oilless Wear Plate, providing Oilless Wear Plate-related products at high-quality prices, welcome to buy.

Material
CuZn25Al5Mn4Fe3 wear plate
Typical Application
consecutive casting and rolling machines, mine-exploiting equipment, ships, steam engine, etc.
Density g/cm3
8
Hardness HB
>210
Tensile Strength N/mm²
>750
Yeild strength N/mm²
>340
Elongation %
>12
Coefficient of linear expansion 10-5/℃
2.2
Heat-conducting Coefficient W(/m.k)
38~55
Flexibility Coefficient KN/mm²
100~140
Temp. Limits ℃
-40~+200
Max. Dynamic Load N/mm²
98
Max.speed m/s
Dry Lubrication 0.3; Oil Lubrication 1.0
Max.PV N/mm²*m/s
Dry Lubrication 1.65; Oil Lubrication 3.25
Friction
Dry Lubrication 0.12~0.16; Oil Lubrication 0.03~0.08
We can also develop according to customers special requests while out of this table

Bronze plate material is made with high-strength copper alloy, and the inserted solid lubricant materials are made with graphite and PTFE.

Machinery & Equipments



  • CNC machining center; CNC lathe; Normal lathe; CNC milling machine;
  • General punching machine, CNC turning center; Wire EDM, etc.
  • And we also can offer 4 or 5 axis-CNC center processes.
  • General milling machine; General drilling machine; General planning and grinding machine

Oil-Free Self-lubricated Bearing Slides Online shop

Oilless Wear Plate with Graphite Plugs Material Casting Bronze + Graphite Plugs. Features. Wear plate series bearings incorporate high-quality bearings.

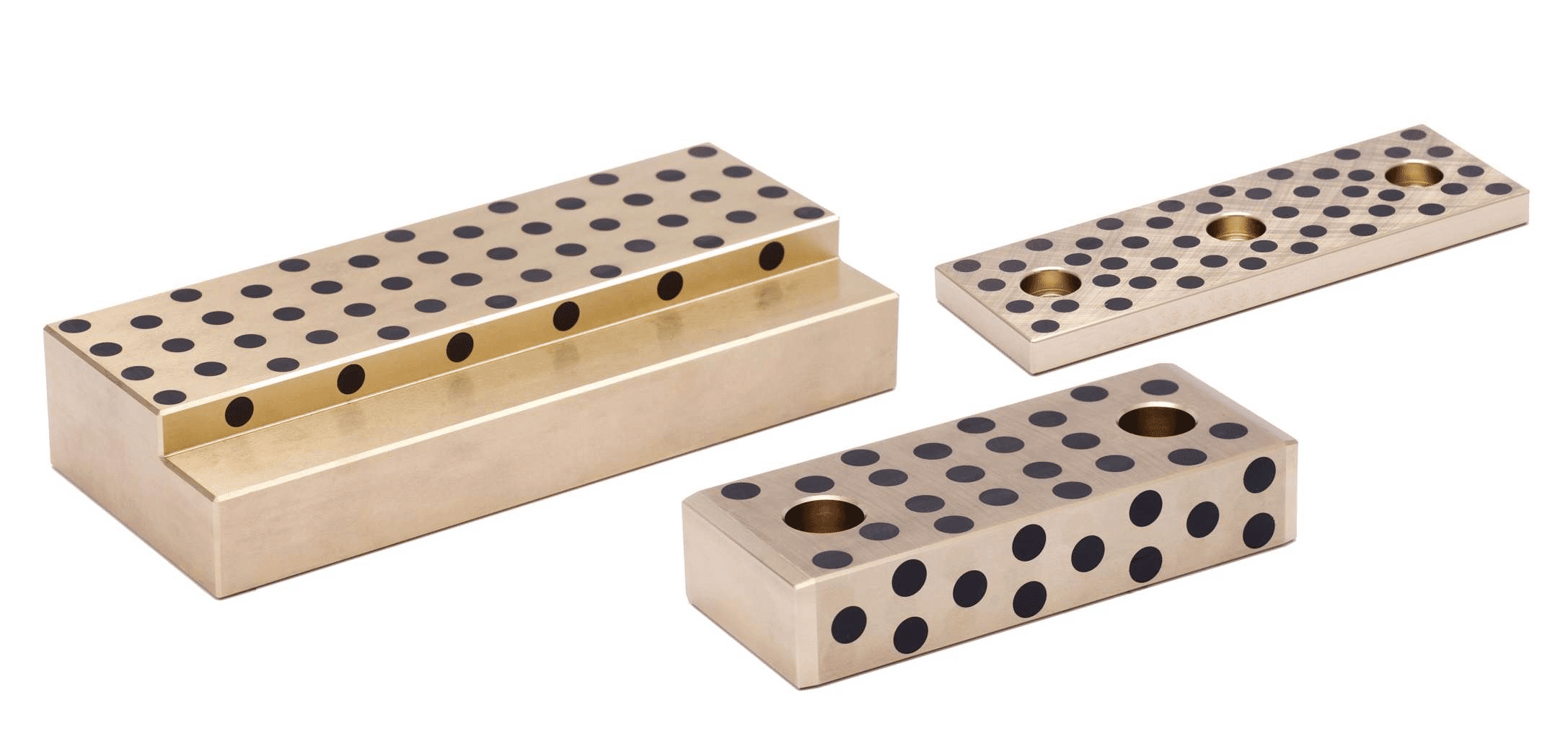

bronze with solid lubricant

Oil-Free Self-lubricated Bearing Slides Standard, Copper Alloy

According to the bushings’ working conditions, the bronze combination between the different metal basements and various solid lubricants can ensure that the product can perform under various temperatures, loads, movements and mediums as required.

Oilless bush is especially applied in oil-free high temperature, high load, low speed, contamination resistance, corruption resistance radiation resistance as well as the use under such special work conditions that cannot be lubricated, such as underwater and in vacuum space.

Self-lubricated Bearing Slides Metric Size made to order:

Self-lubricated Bearing Slides Characteristics:

1. May work without any oil for long period.
2. Extremely high load capacity, good anti-wear, and low friction.
3. Particularly appropriate for low speed and high load.
4. Suitable single-direction axial loads
5. Free design is possible on the shape and size
6. Can be used in a wide range of temperatures, from - 40℃+ 300℃

Oil-Free Self-lubricated Bearing Slides

• Product Type: Self-lubricated Bearing Slides
• Heel: No groove
• Oil Groove: Oil-free

Product Description

SESW Bronze Oilless Standard Slide Wear Plate

W1 W2 L1 L2 Catalog No. W L (SESW)
45  15 SESW 28 75
50   25 100
100 150
45  15 38 75
50   25 100
100 150
45 15 48 75
50 25 100
75 125
100 150
150 200
45 15 58 75
50 25 100
100 150
25 75 75
50 100
75 125
100 150
150 200
50 25 50 100 100
75 125
100 150
150 200
200 250
200  50 300
37.5 75 25 125 125
100 150
150 200
200 250
200  50 300
200 75 350
100 25 100 25 150 150
150 200
200 250

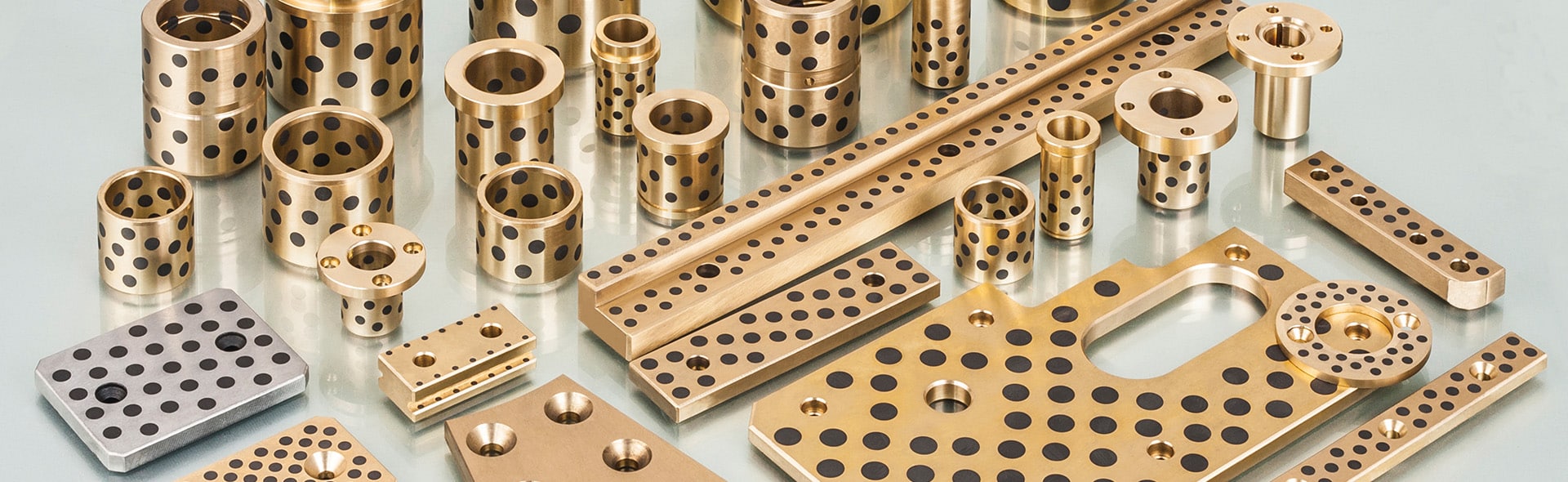

oil free bearing plate

Your expert in self-lubricating Bearing

and Bronze alloys – serving globally
