Oil-Free Flange Bush, Bronze Alloys Material: #500SP, Machine Bushes

(High Strength Brass / Copper Alloy + Solid Lubricant), Need A Quote? Could you start the process and Contact us today?

Flanged Bronze Graphite Bushing  Self lubricated Sleeve Bearing, buje autolubricado, cojinetes autolubricados

Self-Lubricating Bushes， Get the Best Price
Business Type Manufacturer, Supplier, Retailer
Size Available In Different Sizes

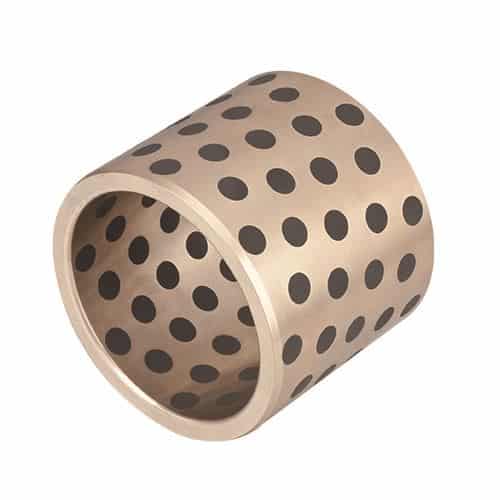

Graphite Plugged Cast Bronze Flanged Bushings, We machine self-lubricating bronze bearings according to clients’ drawings.

Characteristics and advantages

• Manual lubrication is not required
• Maintenance free
• Applications where it is difficult to add oil/grease lubricants
• Heavy loads and low speed

They are especially suited to applications where it is difficult to lubricate manually or where oil and grease lubricants cannot be used. They offer excellent lubrication in conditions of high loads and slow speeds.

The base material is always bronze or high-tensile brass manufactured in the Wisco Española foundry.

We machine all our self-lubricating bronze bearings based on clients’ designs.

Bronze graphite self-lubricating bushings ( LUB-MET, JDB, JFB, OLTEC P, BNZ…. .BG1 )
Bronze-graphite self-lubricating sliding bushings Spherical bronze-graphite bushings are made of a bronze alloy with a 20-25% porosity. The oil in the pores provides permanent lubrication of the space between the bearing and the shaft. Application advantages: oil reduces the possibility of scuffing; allows bronze graphite bushings to remain in operation for thousands of hours without wear; requires no lubrication; produces little noise. The product is used in electrical equipment, household appliances, printing machinery, machine tools, etc. Ordering: Products can be manufactured according to customer specifications. Bronze graphite bushings can be purchased on the company’s website.

Shop For Graphite Plugged Oil-free Flange Bushing At Bronzelube.Com, Supply High-Strength Brass Bearings To Your Specifications.

d E7		D r6		L													D1	t
5	+0.032 +0.020	9	+0.028 +0.019	10	12												14	2
6		10		10	12	15											16
8	+0.040 +0.025	12	+0.034 +0.023	10	12	15		20									20
10		14		10	12	15		20	25	30							22
12	+0.050 +0.032	18		10	12	15		20	25	30							25	3
13		19		10	12	15	17	20	25	30							26
14		20	+0.041 +0.028			15		20	25	30							27
15		21		10	12	15		20	25	30							28
16		22			12	15		20	25	30	35	40					29
18		24				15		20	25	30	35	40					32
20	+0.061 +0.040	30				15		20	25	30	35	40					40	5
25		35	+0.050 +0.034			15		20	25	30	35	40	50				45
30		40						20	25	30	35	40	50				50
31.5	+0.075 +0.050							20	25	30	35	40	50
35		45						20	25	30	35	40	50				60
40		50						20	25	30	35	40	50				65
45		55	+0.060 +0.041					20	25	30	35	40	50	60			70
50		60						20	25	30	35	40	50	60			75
55	+0.090 +0.060	65								30	35	40		60			80
60		75	+0.062 +0.043							30	35	40	50	60	80		90	7.5
70		85	+0.073 +0.051										50	60	80		105
75		90												60	80		110
80		100												60	80	100	120	10
90	+0.107 +0.072	110	+0.076 +0.054											60	80	100	130
100		120													80	100	150
120		140	+0.088 +0.063												80	100	170

Oil-Free bush straight type or universal use in many dry applications such as die/mold, machinery, automation, construction, and automobile. The Oil Free bush is self-lubrication and works without grease.

Plate, standard Oil-free component for metal stamping dies.
