Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Manufacturing on Demand, alternative solutions
oil free bearing
Shop a large range of flanged bearing bushings – maintenance-free self-lubricating slide bearings with dry lubricating pins at bronzelube.com. Support all your metal copper bushing and maintenance repair needs … with excellent quality, to win customers of all ages.
Brief Description
It is made of high-strength brass and solid lubricant inlaid in the substrate, suitable for use under high load.
Oil-free bearing features
It can be used without oil.
Excellent friction performance under high load and low speed.
Suitable for reciprocating, shaking, and frequent start and stop situations where oil film is difficult to form, with excellent wear resistance.
Good drug resistance and corrosion resistance.
Oil-free flange bearing size chart
| ID | OD | FLANGE | L tolerance（-0.3～-0.1） | ||||||||||||
| φd | tolerance | φD | tolerance | φF | tolerance | t | tolerance | 10 | 12 | 15 | 17 | 18 | 20 | 23 | 25 |
| 6 | 0.032 0.02 |
10 | 0.028 0.019 |
16 | 0 -0.3 |
2 | 0 -0.1 |
610 | 612 | – | – | – | – | – | – |
| 8 | 0.04 0.025 |
12 | 0.034 0.023 |
20 | 0 -0.3 |
2 | 0 -0.1 |
810 | 812 | 815 | – | – | – | – | – |
| 10 | 0.04 0.025 |
14 | 0.034 0.023 |
22 | 0 -0.3 |
2 | 0 -0.1 |
1010 | 1012 | 1015 | 1017 | – | 1020 | – | – |
| 12 | 0.05 0.032 |
18 | 0.034 0.023 |
25 | 0 -0.3 |
3 | 0 -0.1 |
1210 | 1212 | 1215 | – | – | 1220 | – | 1225 |
| 13 | 0.05 0.032 |
19 | 0.041 0.028 |
26 | 0 -0.3 |
3 | 0 -0.1 |
1310 | 1312 | 1315 | – | – | 1320 | – | 1325 |
| 14 | 0.05 0.032 |
20 | 0.041 0.028 |
27 | 0 -0.3 |
3 | 0 -0.1 |
– | – | 1415 | – | – | 1420 | – | 1425 |
| 15 | 0.05 0.032 |
21 | 0.041 0.028 |
28 | 0 -0.3 |
3 | 0 -0.1 |
1510 | 1512 | 1515 | – | – | 1520 | – | 1525 |
| 16 | 0.05 0.032 |
22 | 0.041 0.028 |
29 | 0 -0.3 |
3 | 0 -0.1 |
– | 1612 | 1615 | – | 1618 | 1620 | 1623 | 1625 |
| 18 | 0.05 0.032 |
24 | 0.041 0.028 |
32 | 0 -0.3 |
3 | 0 -0.1 |
– | – | 1815 | – | – | 1820 | – | 1825 |
| 20 | 0.061 0.04 |
30 | 0.041 0.028 |
40 | 0 -0.3 |
5 | 0 -0.1 |
– | – | 2015 | – | – | 2020 | – | 2025 |
| 25 | 0.061 0.04 |
35 | 0.05 0.034 |
45 | 0 -0.3 |
5 | 0 -0.1 |
– | – | 2515 | – | – | 2520 | – | 2525 |
| 30 | 0.061 0.04 |
40 | 0.05 0.034 |
50 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | 3020 | – | 3025 |
| 31.5 | 0.075 0.05 |
40 | 0.05 0.034 |
50 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | 3120 | – | – |
| 35 | 0.075 0.05 |
45 | 0.05 0.034 |
60 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | 3520 | – | 3525 |
| 40 | 0.075 0.05 |
50 | 0.05 0.034 |
65 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | 4020 | – | 4025 |
| 45 | 0.075 0.05 |
55 | 0.06 0.041 |
70 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 50 | 0.075 0.05 |
60 | 0.06 0.041 |
75 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 55 | 0.09 0.06 |
65 | 0.06 0.041 |
80 | 0 -0.3 |
5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 60 | 0.09 0.06 |
75 | 0.062 0.043 |
90 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 63 | 0.09 0.06 |
75 | 0.062 0.043 |
85 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 65 | 0.09 0.06 |
80 | 0.062 0.043 |
95 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 70 | 0.09 0.06 |
85 | 0.073 0.051 |
105 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 75 | 0.09 0.06 |
90 | 0.073 0.051 |
110 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 80 | 0.09 0.06 |
100 | 0.073 0.051 |
120 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 90 | 0.107 0.072 |
110 | 0.076 0.054 |
130 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 100 | 0.107 0.072 |
120 | 0.076 0.054 |
150 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 120 | 0.107 0.072 |
140 | 0.088 0.063 |
170 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 130 | 0.125 0.085 |
150 | 0.09 0.065 |
180 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 140 | 0.125 0.085 |
160 | 0.09 0.065 |
190 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 150 | 0.125 0.085 |
170 | 0.093 0.068 |
200 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
| 160 | 0.125 0.085 |
180 | 0.093 0.068 |
210 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | – |
※ After pressing in the inner diameter tolerance is for reference only.
（OIL-FREE FLANGE BEARINGS METRIC SIZE： mm）
| ID | OD | FLANGE | L Tolerance （-0.3～-0.1） | |||||||||||||
| φd | Tolerance | φD | Tolerance | φF | Tolerance | t | Tolerance | 30 | 35 | 40 | 50 | 60 | 67.5 | 80 | 100 | 120 |
| 6 | 0.032 0.02 |
10 | 0.028 0.019 |
16 | 0 -0.3 |
2 | 0 -0.1 |
– | – | – | – | – | – | – | – | – |
| 8 | 0.04 0.025 |
12 | 0.034 0.023 |
20 | 0 -0.3 |
2 | 0 -0.1 |
– | – | – | – | – | – | – | – | – |
| 10 | 0.04 0.025 |
14 | 0.034 0.023 |
22 | 0 -0.3 |
2 | 0 -0.1 |
– | – | – | – | – | – | – | – | – |
| 12 | 0.05 0.032 |
18 | 0.034 0.023 |
25 | 0 -0.3 |
3 | 0 -0.1 |
1230 | – | – | – | – | – | – | – | – |
| 13 | 0.05 0.032 |
19 | 0.041 0.028 |
26 | 0 -0.3 |
3 | 0 -0.1 |
1330 | – | – | – | – | – | – | – | – |
| 14 | 0.05 0.032 |
20 | 0.041 0.028 |
27 | 0 -0.3 |
3 | 0 -0.1 |
– | – | – | – | – | – | – | – | – |
| 15 | 0.05 0.032 |
21 | 0.041 0.028 |
28 | 0 -0.3 |
3 | 0 -0.1 |
1530 | – | – | – | – | – | – | – | – |
| 16 | 0.05 0.032 |
22 | 0.041 0.028 |
29 | 0 -0.3 |
3 | 0 -0.1 |
1630 | 1635 | 1640 | – | – | – | – | – | – |
| 18 | 0.05 0.032 |
24 | 0.041 0.028 |
32 | 0 -0.3 |
3 | 0 -0.1 |
1830 | 1835 | 1840 | – | – | – | – | – | – |
| 20 | 0.061 0.04 |
30 | 0.041 0.028 |
40 | 0 -0.3 |
5 | 0 -0.1 |
2030 | 2035 | 2040 | – | – | – | – | – | – |
| 25 | 0.061 0.04 |
35 | 0.05 0.034 |
45 | 0 -0.3 |
5 | 0 -0.1 |
2530 | 2535 | 2540 | 2550 | – | – | – | – | – |
| 30 | 0.061 0.04 |
40 | 0.05 0.034 |
50 | 0 -0.3 |
5 | 0 -0.1 |
3030 | 3035 | 3040 | 3050 | – | – | – | – | – |
| 31.5 | 0.075 0.05 |
40 | 0.05 0.034 |
50 | 0 -0.3 |
5 | 0 -0.1 |
3130 | 3135 | 3140 | – | – | – | – | – | – |
| 35 | 0.075 0.05 |
45 | 0.05 0.034 |
60 | 0 -0.3 |
5 | 0 -0.1 |
3530 | 3535 | 3540 | 3550 | – | – | – | – | – |
| 40 | 0.075 0.05 |
50 | 0.05 0.034 |
65 | 0 -0.3 |
5 | 0 -0.1 |
4030 | 4035 | 4040 | 4050 | – | – | – | – | – |
| 45 | 0.075 0.05 |
55 | 0.06 0.041 |
70 | 0 -0.3 |
5 | 0 -0.1 |
4530 | 4535 | 4540 | 4550 | 4560 | – | – | – | – |
| 50 | 0.075 0.05 |
60 | 0.06 0.041 |
75 | 0 -0.3 |
5 | 0 -0.1 |
5030 | 5035 | 5040 | 5050 | 5060 | – | – | – | – |
| 55 | 0.09 0.06 |
65 | 0.06 0.041 |
80 | 0 -0.3 |
5 | 0 -0.1 |
– | – | 5540 | – | 5560 | – | – | – | – |
| 60 | 0.09 0.06 |
75 | 0.062 0.043 |
90 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | 6040 | 6050 | 6060 | – | 6080 | – | – |
| 63 | 0.09 0.06 |
75 | 0.062 0.043 |
85 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | – | 6367 | – | – | – |
| 65 | 0.09 0.06 |
80 | 0.062 0.043 |
95 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | 6560 | – | – | – | – |
| 70 | 0.09 0.06 |
85 | 0.073 0.051 |
105 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | 7050 | – | – | 7080 | – | – |
| 75 | 0.09 0.06 |
90 | 0.073 0.051 |
110 | 0 -0.3 |
7.5 | 0 -0.1 |
– | – | – | – | 7560 | – | – | – | – |
| 80 | 0.09 0.06 |
100 | 0.073 0.051 |
120 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | 8060 | – | 8080 | 80100 | – |
| 90 | 0.107 0.072 |
110 | 0.076 0.054 |
130 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | 9060 | – | 9080 | – | – |
| 100 | 0.107 0.072 |
120 | 0.076 0.054 |
150 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | 10080 | 100100 | – |
| 120 | 0.107 0.072 |
140 | 0.088 0.063 |
170 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | 12080 | 120100 | – |
| 130 | 0.125 0.085 |
150 | 0.09 0.065 |
180 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | *13080 | *130100 | – |
| 140 | 0.125 0.085 |
160 | 0.09 0.065 |
190 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | *14080 | *140100 | – |
| 150 | 0.125 0.085 |
170 | 0.093 0.068 |
200 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | *150100 | *150120 |
| 160 | 0.125 0.085 |
180 | 0.093 0.068 |
210 | 0 -0.3 |
10 | 0 -0.1 |
– | – | – | – | – | – | – | *160100 | *160120 |
Oil-free bearing, Oil-Free Plates, Oil-bearing assembly to be maintenance-free and resistant to external influences. We offer a wide range of oil-free bushings and bushings with housing. Our customers can select several materials and flange and housing designs.
JDB self-lubricating bearing graphite copper bushing Copper graphite bearing oil-free copper bushing with high force brass (ZCuZn25Al6) as the matrix, through the matrix inlaid with solid lubricant (graphite or molybdenum disulfide) as the lubricating medium to replace the traditional tin bronze copper bushing, can be used in difficult to fuel, long-term oil shortage or oil-free environment. Flange edge can play a role in positioning, also according to customer requirements in the flange edge machining positioning holes for positioning.
Can be customized according to your requirements
Bushing, Oil-Free Bearing, Centrifugal casting
High-Quality oil-free lubricants bearings To Your Specifications
Oil-Free Bearing Machine Design, Self Lubricating – Self Lubricating Bearings
Over many Years Of Quality And Service. Work in High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Increased reliability. Hi-Temp Bearing Solution. Non-galling. Run dry & keep running.
Self-lubricating slide bearings are designed for applications where external lubrication is not possible (For example excavators).
The plugged graphite is compressed and molded into bearings to ensure that the product is maintenance-free. No auxiliary lubrication of any kind is required. At the start of the operation, a film of plugged graphite is transferred to the shaft. This is acceptable for some relatively demanding environments (lubricant contamination is prohibited).
Compared with standard traditional lubricated bronze oil-free bearings, self-lubricating bearings are also ideal for environments in a wider temperature range.
Oil-free bearing Catalogs and Brochures Available
Fill out our form to get more info
Focus On Products, Bronze Bearing Material, Bronze Bearing Materials Suppliers China
Find your Tin Bronze Bearings and Bushings Parts
- Tin Bronze Bushing
- Aluminium Bronze Bushing
- Aluminium Brass Bushing
- C83600 copper alloy
|
Optional materials and corresponding technical indicators |
|||||
|
ITEM NO |
1 |
2 |
3 |
4 |
5 |
|
Bulk Material |
CuZn24Al6 |
CuSn6Zn6Pb3 |
CuSn6Zn6Pb3 |
HT-250 |
GCr15 |
|
Matrix hardness |
Hb230(Hb270) |
HB 90 |
HB 80 |
HB 210 |
HB 60 |
|
friction coefficient |
<0.16 |
<0.15 |
<0.14 |
<0.17 |
<0.17 |
|
maximun emperature |
300℃ |
350℃ |
300℃ |
400℃ |
350℃ |
|
Ultimate dynamic load |
100 N/mm2 |
60 N/mm2 |
70 N/mm2 |
60 N/mm2 |
250 N/mm2 |
|
lm/mimUltimate dynamic load |
25 N/mm2 |
15 N/mm2 |
20 N/mm2 |
15 N/mm2 |
70 N/mm2 |
|
Use limit PV values |
3.8N/mm2·m/s |
0.5 N/mm2·m/s |
0.6 N/mm2·m/s |
0.8 N/mm2·m/s |
2.5 N/mm2·m/s |
What are oil-free bearingsand how do they work?
Oil-free bearing is a self-lubricating bearing with both metal and lubricating properties. The metal substrate supports the load, and a specially formulated solid material such as graphite provides lubrication.
Oil-free bearings have the characteristics of high bearing capacity, impact resistance, high-temperature resistance, and strong self-lubrication ability.
Bronze Bearings, Bronze Material, Suppliers of bronze bearing material. Our aim is to create the greatest value for our customers.
oil-free bearing of special specifications is suitable for heavy load, low speed, reciprocating or swing, and other difficult to lubricate and form oil film, not afraid of washing and other acid occasions. Erosion and erosion of liquids. For example, some critical equipment of industrial and mining enterprises in mining environments operate under extremely harsh operating conditions. Because the equipment is heavy, the ambient temperature is high, the dust is large or the air contains acidic corrosive gases such as CO and SO2, which brings many problems to the lubrication of the equipment and serious friction and wear.
Optional oil-free bearing, with small friction coefficient, wear-resistance and corrosion resistance, oil-free self-lubrication, long service life and so on. Use it to reduce costs, reduce noise and prevent sticking and sliding.
Classification:
Metal base solid graphite plugged oil free bearing
Graphite and other composite solid lubricants are embedded in the metal matrix of high-performance solid lubrication products. The limitation of relying on oil film lubrication is broken through.

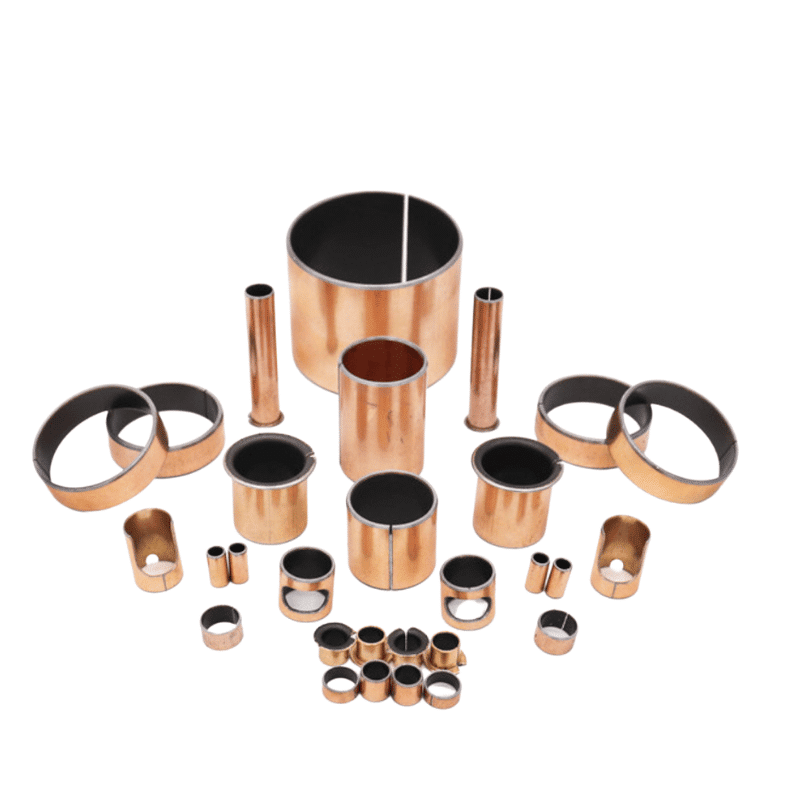

Multilayer compound oil-free bearing
It is a rolling bearing made of steel plate, sintered spherical bronze powder in the middle, and rolled with a mixture of PTFE and lead on the surface. It has the characteristics of low friction coefficient, good wear resistance, good corrosion resistance, and oil-free lubrication.
Other types of Oil-free bushes, bronze wear-resistant plate, oil-free slide plate, self-lubricating bushing, non-standard parts, bronze bearing, bimetal bearing, oil-free bearing, graphite self-lubricating friction plate, bronze self-lubricating, brass plate self-lubricating, alloy bearing, alloy inset high wear-resistant bushing.
