The Evolution of Self-Lubricating Bronze Graphite Bushing Bearings: Cost-Effectiveness Meets High Performance，C954 Aluminum Bronze Bushing
Self-lubricating bronze graphite bushing bearings have become a linchpin in the world of mechanical design and manufacturing. Initially conceptualized with two primary goals in mind—cost reduction and performance enhancement—these bearings have not only achieved their objectives but have become the industry standard, replacing more conventional products. In this blog post, we will delve into the unique attributes of self-lubricating bronze graphite bushing bearings, their impact on cost-efficiency and performance, and why they have become indispensable in various industrial applications.
Unique Construction
One of the key differentiators of self-lubricating bronze graphite bushing bearings is their unique construction. These bearings feature a unique lubricant embedded within the surface of the liner material, effectively reducing the initial coefficient of friction.
Addressing Intermittent Stick-Slip
During initial startup, some lightly loaded joints experience intermittent stick-slip or noise. This is primarily due to the momentary sticking or rubbing between the mating surfaces. The graphite inlays in the self-lubricating bronze bearings address this issue effectively. By reducing friction, these bearings nearly eliminate the typical break-in period that is common with other types of bearings.
Wear and Tear Under Control
While all bearings are fundamentally designed to minimize wear, the wear and tear in self-lubricating bronze graphite bushing bearings are highly conditioned by various factors such as speed, sliding distance, and load. Especially in cases of intermittent rotation or oscillation, radial wear is negligible over thousands of hours.
Additional Features
These bearings are often hard chrome-plated, offering excellent wear resistance and providing an added layer of protection against shaft corrosion. With the added benefit of being available in a wide range of standard and custom sizes, these bearings offer unparalleled flexibility for various applications.
Cost-Efficiency Meets Performance
The initial goal of reducing costs without compromising performance has been remarkably achieved with self-lubricating bronze graphite bushing bearings. While the performance is almost identical when compared to traditional bearing products, the long-term cost benefits, due to reduced maintenance and increased durability, make these bearings an affordable and effective choice for industrial applications.
The JDB500 series of cylindrical oilless bearings, commonly referred to as jdb bearings, utilize plugged graphite to provide self-lubricating properties. These bearings are designed for applications where lubrication can be a challenge, and they come in various standard sizes to fit different requirements.
Below is a representative size chart for the JDB500 Cylindrical Oilless Bearing:
JDB500 Cylindrical Oilless Bearing – Standard Size Chart
| Inner Diameter (d) |
Outer Diameter (D) |
Length (L) |
Reference Number |
| 10 mm |
15 mm |
20 mm |
JDB500-10-15-20 |
| 12 mm |
18 mm |
25 mm |
JDB500-12-18-25 |
| 15 mm |
20 mm |
30 mm |
JDB500-15-20-30 |
| 20 mm |
28 mm |
40 mm |
JDB500-20-28-40 |
| 25 mm |
33 mm |
50 mm |
JDB500-25-33-50 |
| … |
… |
… |
… |
(Note: This chart is a general representation and might not accurately reflect the full range of sizes available. Always refer to the manufacturer’s catalog or technical datasheet for precise specifications.)
JDB Bearings Features:
- Self-lubricating: The embedded graphite ensures smooth operation without the need for external lubrication.
- Durability: Constructed for durability, these bearings can withstand the challenges of various applications.
- Low Friction: The combination of the bearing material and graphite ensures low friction operation, minimizing wear.
- Corrosion Resistance: Often designed to resist corrosion, making them suitable for different environments.
- Versatile Application: These bearings find applications in various industries due to their self-lubricating nature.

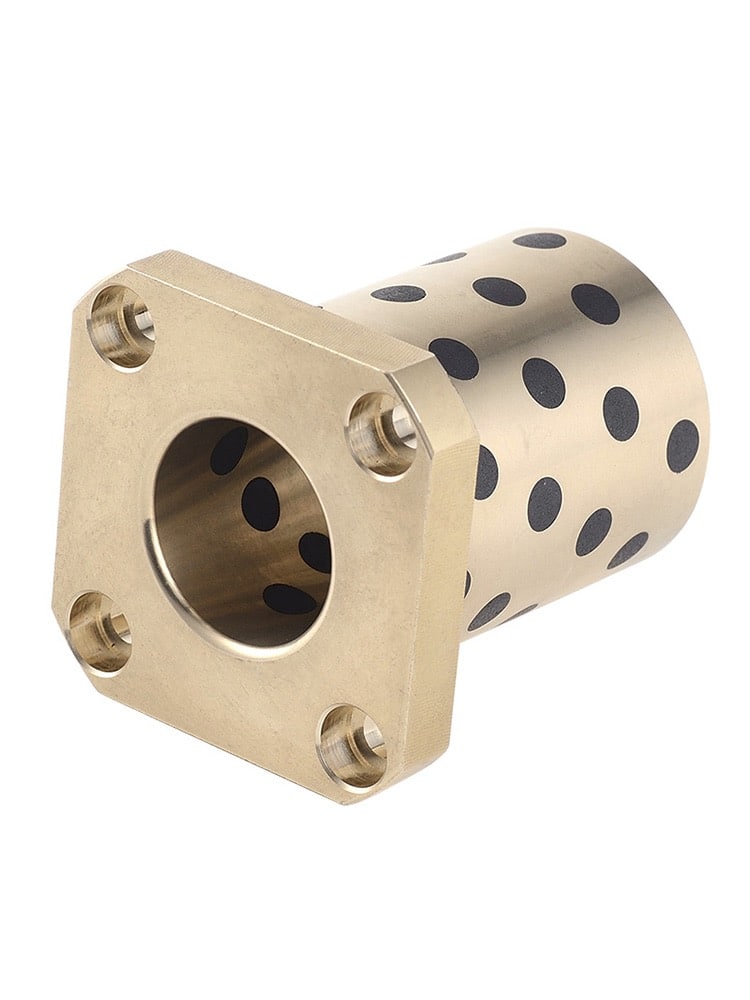

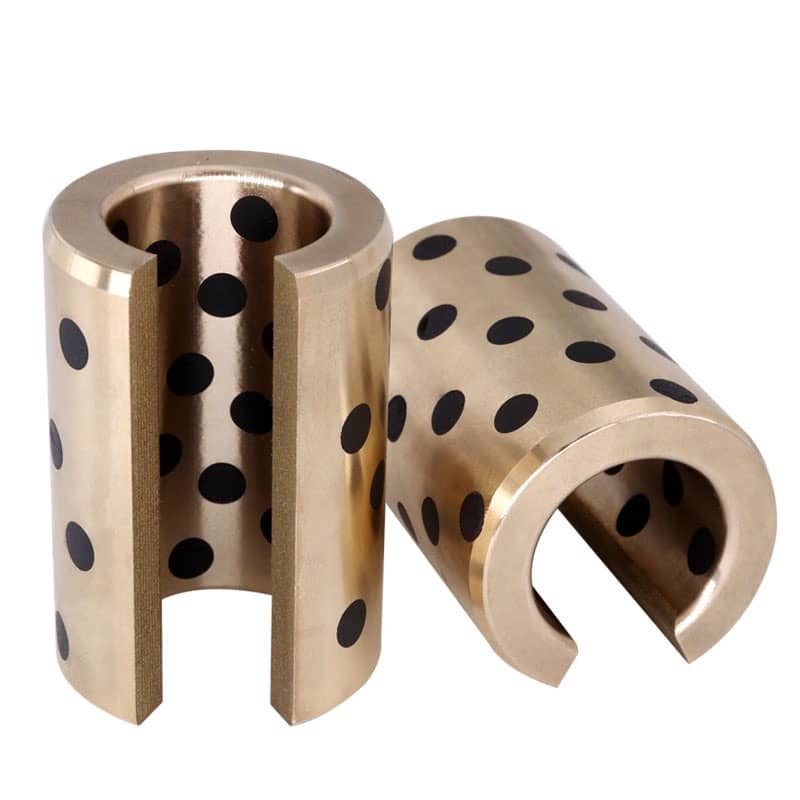

JDB Bearings, Cylindrical oilless bearings
JDB500 Cylindrical Oilless Bearings, with their plugged graphite design, are a go-to solution for applications requiring maintenance-free and reliable operation. Whether you’re in the automotive, aerospace, or industrial machinery sector, these bearings can offer superior performance with minimal upkeep. Always ensure you select the appropriate size for your application by consulting the manufacturer’s size chart and specifications.
