Iron Graphite Plate
Iron Graphite Plate
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
Application characteristics Cast iron inlay bearing/mold guide plate and bushing is a new product with HT250 as the base material embedded with solid lubricant, which is a typical material-saving product. It can greatly reduce the cost and meet the requirements of users.
Application
At present, this product has been used in automotive molds, injection molding machine mold frame and other occasions.
The iron graphite plate material provides a maintenance-free bearing solution, particularly with high load, intermittent and oscillating motion. Solid lubricants within the cast iron combine the high load capacity with wear resistance and low friction.
Self-lubricating sliding plate Guide plate, Iron Graphite Plate
An iron graphite plate is a composite material made from a combination of iron and graphite. This hybrid material possesses unique properties that make it suitable for various applications, especially in industries where both high strength and good electrical conductivity are required.
Composition: The iron graphite plate consists of a mixture of iron particles and graphite particles. The ratio of the two materials can be tailored to achieve the desired properties for specific applications. The iron provides high strength and durability, while the graphite offers excellent electrical and thermal conductivity.
Manufacturing Process: The manufacturing process for iron graphite plates typically involves powder metallurgy techniques. Iron and graphite powders are mixed together in specific proportions to achieve the desired properties. This mixture is then compacted under high pressure to form a dense plate. Afterward, the plate undergoes sintering at high temperatures to bond the particles together and create a strong, cohesive material.
Applications: Iron graphite plates have a range of applications across various industries, including:
Electrical Contacts: The plates can be used in electrical devices that require high electrical conductivity, such as switches and connectors.
Heat Sinks: The excellent thermal conductivity of graphite allows these plates to dissipate heat effectively, making them suitable for use as heat sinks in electronic devices and other heat-sensitive applications.
Friction Materials: The combination of iron’s strength and graphite’s natural lubricating properties makes these plates ideal for use in brake systems and other friction materials.
Wear-Resistant Components: Due to their high strength and durability, iron graphite plates can be used in mechanical components that experience significant wear and tear, such as bearings and bushings.
Electrodes: The high electrical conductivity of graphite, combined with the structural strength provided by iron, makes these plates suitable for use as electrodes in various electrochemical processes.
An iron graphite plate is a versatile material that combines the beneficial properties of both iron and graphite. Its unique combination of strength, electrical conductivity, and thermal conductivity makes it an ideal choice for various industrial applications.
Iron Graphite Plate with embedded solid lubricant, High-quality Iron Graphite Plate from China, China’s Solid Bronze Iron Graphite Plate product …
Cast Iron Wear Plate

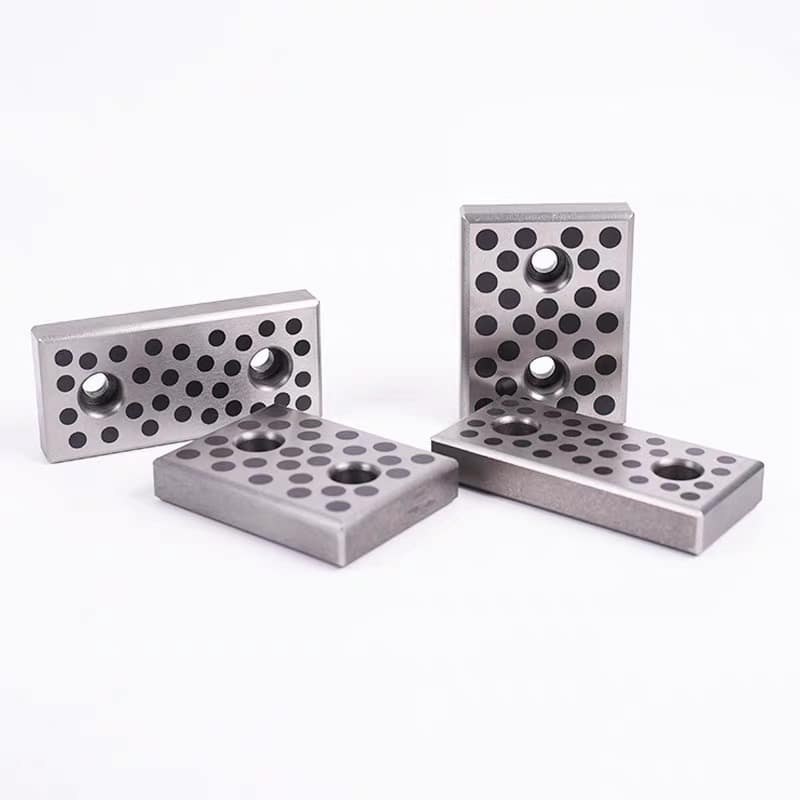

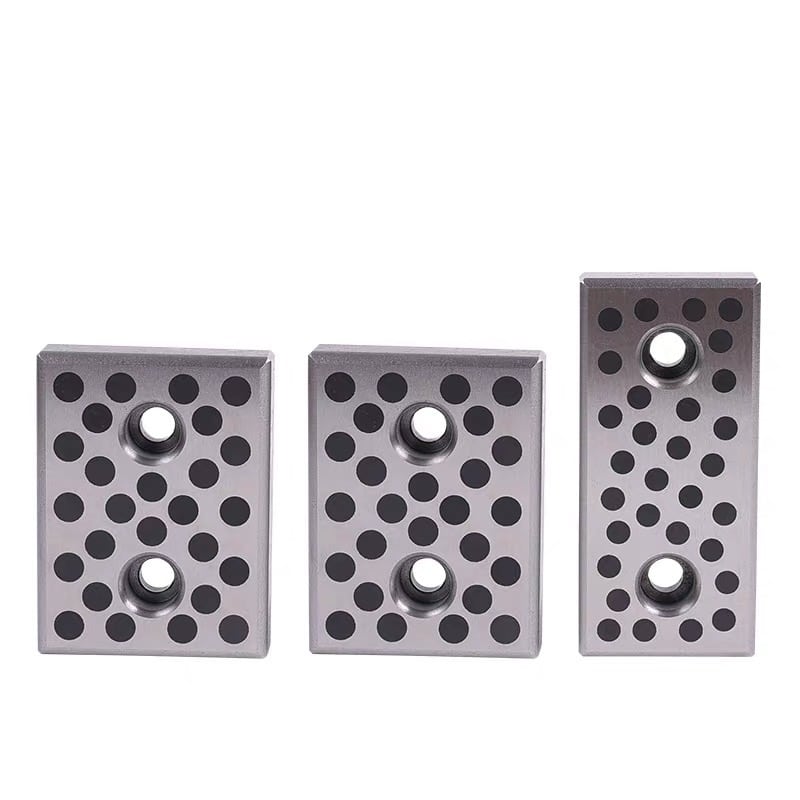

A cast iron plugged graphite wear plate, also known as a self-lubricating sliding plate or guide plate, is a specialized type of wear-resistant component designed for applications that require low friction and minimal maintenance. These plates are made of cast iron embedded with graphite plugs, which provide self-lubricating properties for smooth and efficient sliding motion.
Composition and Manufacturing Process: Cast iron plugged graphite wear plates are made from a combination of high-strength cast iron and graphite plugs. The manufacturing process typically involves casting the iron into the desired shape, followed by drilling holes in a specific pattern on the plate’s surface. Graphite plugs are then inserted into these holes and secured in place. The result is a wear plate that combines the strength and durability of cast iron with the lubricating properties of graphite.
Self-Lubricating Properties: The graphite plugs embedded in the cast iron plate act as built-in lubrication, reducing friction and wear between sliding surfaces. Graphite is a naturally slippery material, and its presence in the wear plate eliminates the need for additional lubricants or regular maintenance. As the plate wears, the graphite plugs release a thin film of lubricant, ensuring continuous lubrication and smooth sliding motion.
Applications: Cast iron plugged graphite wear plates are used in various industries and applications where sliding motion, wear resistance, and low maintenance are essential. Some common uses include:
Machine Tools: The plates are used as guide ways or slide surfaces in machine tools, including lathes, milling machines, and grinding machines, to ensure smooth and precise motion.
Presses and Stamping Equipment: The plates are used as guide surfaces in hydraulic and mechanical presses, as well as in stamping and forming equipment, to provide smooth and wear-resistant sliding motion.
Injection Molding Machines: The plates are used in the moving components of injection molding machines, such as the platens and tie-bars, to reduce friction and wear.
Heavy Machinery: Cast iron plugged graphite wear plates are used in various heavy machinery, such as construction equipment and mining machinery, to provide wear-resistant sliding surfaces that require minimal maintenance.
Automotive Components: The plates are used in automotive components, such as suspension systems and steering mechanisms, to provide wear-resistant sliding surfaces.
Cast iron plugged graphite wear plates are self-lubricating, wear-resistant components that provide smooth, low-friction sliding motion in various applications. Their unique combination of cast iron and graphite plugs makes them an ideal choice for industries requiring durable and low-maintenance sliding surfaces.
Oil Free Cast Iron Wear Plate (20mm thickness)
Slide components Oil Free for mold, and usable without the need to reapply oil.
Models: FC250 + Oil Free Solid Lubricant plate *Adding oil grooves can be ordered as optional
Solid Metal Iron Graphite Plate is made of cast iron-based metal with special lubricants embedded. The base metal withstands high load and the solid lubricant plugs provide self-lubrication.
The solid metal Iron Graphite Plate shows excellent performance without pre-lubrication under conditions of extreme high/lower temperature with low speed.
This series of Iron Graphite Plate features metallic structures with a range of various lubrication methods depending on the series. Lubrication options include oil grooves, sintered layers, solid graphite lubricants, lubricant indents, and lubricant through holes.
Iron Graphite Bearing Iron Graphite Plate
Iron Graphite Iron Graphite Plate / Solid Lubricant by China – Select, configure order. We deliver punctually and offer fair prices.
We are a professional manufacturer of various kinds of bearings in China for Iron Graphite Plate
Iron Graphite Plate from China. We offer free shipping, free CAD downloads, short lead times, competitive pricing, and a small minimum …
Type: Metallic Solid Lubricant Plain Bearings
Material: Iron
Iron Graphite Plate Technical Data
Max. Static Load
70 N/mm2
Max. Dynamic Load
10 N/mm2
Max. Speed Dry
.15 m/s
Max. Speed Hydrodynamic
.25 m/s
Max. PV
0.8 N/mm2*m/s
Tensile Strength
150 N/mm2
Coefficient of Friction
0.08 to 0.20
Temperature Range (°C)
-40°C to +400°C
Hardness
HB > 160
Iron Graphite Plate
Bearings for middle-load, middle-speed applications with superior run-in characteristics.
Base Graphite Lubricant Bush Oilless Bearing, Iron Graphite Bush, Iron Base Graphite Lubricant Bush, Oilless Bearing …
The plugged graphite series are self-lubricating bearings for middle loads composed of Iron bases and embedded solid lubricant. Two types of base materials are available: for general use for high temperatures.
Solid Iron Graphite Plate are available in metric sizes. This solid Iron Graphite Plate material is suitable for a wide range of applications. The Iron Graphite Plate is applicable for oscillating movements for applications where rotating speeds are low. … All surfaces of a solid bronze bushing are machined.
Iron Graphite Plate
Usually the use of professional production of standard parts than homemade standard parts of its fit accuracy and position accuracy will improve at least an order of magnitude, and can ensure interchangeability, improve the service life of the mold, and then promote the industry’s internal economic system, business mechanism and industrial structure and production management reform, to achieve specialization and scale production, and drive the formation and development of the mold standard parts commodity market. It can be said that without the specialization and commercialization of mold standard parts, there is no modernization of mold industry.
Mold standard parts are mold molding products produced according to China’s mold standardization system including four categories of standards, namely: mold basic standards, mold process quality standards, mold parts standards and technical standards related to mold production.
Mold standards can also be divided into ten categories according to the main classification of mold, such as stamping mold standards, plastic injection mold standards, die-casting mold standards, forging mold standards, fastener cold heading mold standards, wire drawing mold standards, cold extrusion mold standards, rubber mold standards, glass products mold and automobile punching mold standards.
