Self Lubricating Brass Plate, Oilless Sliding Materials; Plate, L-Shaped Guide Rails Slide Plate Supplier, Guide rail graphite embedded

Guide rail/Plate/Bushing parts

GRAPHITE EMBEDDED

For detailed product specifications, check with the electronic catalog.

A guide plate made from graphite, which is a part of a die, is an integral part of many industrial machines, particularly those involved in the manufacturing and assembly processes. The guide plate helps in maintaining alignment and controlling the movement of other components. Since graphite has excellent self-lubricating properties, a graphite guide plate reduces friction between moving parts, increasing the lifespan of the equipment and reducing maintenance needs.

Guide rail, plate, and bushing parts are all common components in mechanical systems. Here’s a brief explanation of each:

1. Guide Rail: A guide rail is a device or mechanism to direct products, equipment, or parts along a predetermined path. Guide rails are an integral part of many machines and systems, and they are commonly used in both linear and rotary motion applications.
2. Plate: In this context, a plate usually refers to a flat piece of metal that is used as a base or support for other parts of a mechanical system.
3. Bushing: A bushing, as previously explained, is a type of bearing that supports a shaft and reduces friction.

Wear Plates are typically made from hard materials and are used in mechanical systems where there are moving parts. Their function is to prevent wear and tear on the parts of the system that they protect, hence their name “wear plate.”

To provide a more accurate and detailed explanation, it would be helpful to have specific details about the type of die, the machine, or the system these parts are used in. However, product specifications such as size, material, load capacity, etc., are typically available in an electronic catalog provided by the manufacturer. Always make sure that the specifications of these components are suitable for your particular application before purchasing or installing them.

1. Self-Lubricating Brass Plate: This is a type of plate made from brass that’s designed to reduce friction and wear. It typically contains graphite or other lubricating materials, which are released slowly over time to provide ongoing lubrication, reducing the need for additional lubricants. These types of plates are used in various applications where high levels of friction are expected.
2. Oilless Sliding Materials: These are materials designed to provide low-friction surfaces for sliding or moving parts, without the need for additional oil or lubricants. They can include a variety of different materials, such as certain types of plastics, ceramics, or metals (like the self-lubricating brass plate mentioned above).
3. Plate L-Shaped Guide Rails: These are guide rails, used to control and direct the motion of components in machinery, which have an ‘L’ shape. This shape can provide additional stability or directionality depending on the specific application.
4. Slide Plate Supplier: This refers to a company or individual who provides slide plates, which are components designed to reduce friction and wear in sliding or moving parts of machinery. They can be made from a variety of materials, including those mentioned above.

Bronze slide rails with graphite plugs combine the durability and strength of bronze with the lubricating properties of graphite. Here’s a bit more detail:

1. Bronze Slide Rails: These are components used in various types of machinery and equipment to facilitate controlled linear motion. Made from bronze, these slide rails are durable, resist wear and corrosion, and are capable of handling significant loads. They are used in numerous industries and applications where precision movement is required.
2. Bronze with Graphite Plugs: This refers to bronze material that has been embedded with plugs of graphite. The purpose of these graphite plugs is to provide ongoing lubrication between moving parts, reducing friction and wear. As the bronze component moves against another surface, the graphite gradually wears down and releases lubricant, minimizing friction and enhancing the component’s lifespan.

So, a bronze slide rail with graphite plugs would be a component designed to facilitate smooth, controlled linear motion, while also reducing friction and wear. This design makes it ideal for use in various types of machinery and equipment, particularly in high-load, high-friction applications.

Producing various bronze components, such as wear plates and bushings, for equipment manufacturers globally. Here are some examples of bronze plates that they might manufacture:

1. Bronze Wear Plates: These are plates made of bronze that are designed to withstand high levels of friction and wear. They are often used in machinery and equipment where parts move against each other. The bronze material is resistant to wear and reduces friction, thereby extending the lifespan of the equipment.
2. Bronze Slide Plates: These are plates made of bronze that are used to facilitate controlled, low-friction motion in machinery. They are similar to wear plates but are specifically designed to aid sliding motion, often with additional features like graphite plugs for extra lubrication.

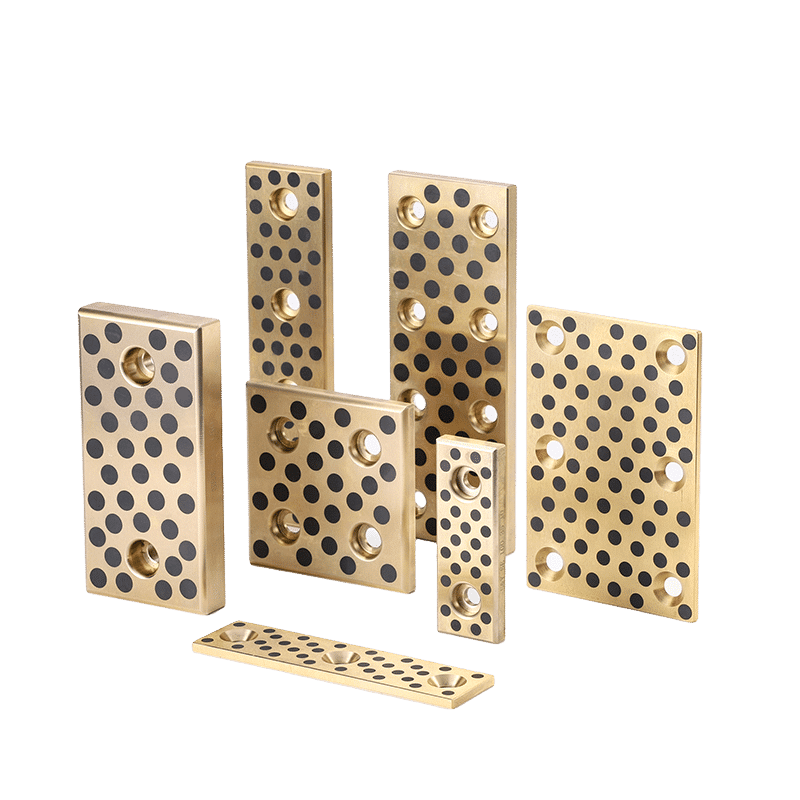

3. Bronze Graphite Plugged Plates: These are bronze plates that have been embedded with plugs of graphite. The graphite serves as a self-lubricant, providing ongoing lubrication that reduces friction and wear, increasing the lifespan of both the plate and the machinery it’s used in.
4. Oilless Bronze Plates: These are a specific type of bronze plate that are designed to operate without the need for additional oil or lubricant. They typically contain self-lubricating materials, like graphite, which provide continuous lubrication during operation.
5. Bronze Guide Plates: These are plates made of bronze that are used to guide the motion of components in machinery. They might be used in various types of equipment where precision movement is required.

Retention Wear Plate (Guide Rail) Supplier, Guide Rails, Gib Plates, and Slid Plates for the plastic injection mold. Standard parts from bronze Oil Free, bronze, C86300, and other guide rail metals, Material:- Phosphor Bronze, Finish Size Plate.

The wear components range includes a series of plates and slide rails of two types: either bronze with graphite inserts

Standard Guide Rails & Wear Pads – Plugged Graphite – Select, and configure order. Bronzelube delivers punctually and offers fair prices. Guide Rails Graphite Embedded Bronze Wear Plate with Graphite Embedding.

Slide Plate L-Shape (Gib), Slide Plate Guide Rails Supplier, Bronze Type, We are ready to accept requests or orders for special parts.

Oilless Sliding Wear Plate Graphite Plugged Bearing by www.bronzelube.com,

Machine Guide Rails Products & Suppliers

Plain Guide Rails – Standard (CHINA METRIC SIZE), Slide Plate L-Shape (Gib)

Guide rail L-shaped, slide plate, bronze plate with graphite. We offer free CAD downloads, short lead times, competitive pricing, and a small minimum order quantity. Catalog Download and require a complete Part Number.

Graphite plates Plain Guide Rails Copper Alloy … China Oiles Wear Plate, Bronze Graphite Inlaid Plates, Oilless Guide Rails, Copper self-lubricating Plates, and types of linear bearings.

Standard Guide Rails – Select, configure, and order. We deliver punctually and offer fair prices.

Customized oilless bronze graphite bushing sliding plate for sale

Factory Bronze Bearing Sliding Plates, Brass bushing, copper graphite sliding plate

High-strength copper alloy as base material, according to the use conditions by a certain percentage of its working surface machined hole and fill one solid lubricant. High-strength copper alloy provides a high load-carrying capacity and the solid lubricant can be formed at lower friction. Under dry friction conditions of our pre-designed layer of lubricating film in the bearing surface to ensure that in the shortest possible time will be transferred to the solid lubricant on the coupling member and form a valid solid lubricant film.

GUIDE RAILS Oil-bearing Graphite.

Guide rails with oil-bearing graphite are mechanical components used in various types of machinery to facilitate and control the motion of other components or equipment. They are designed to provide smooth, controlled linear motion with minimal friction and wear.

Here’s a bit more detail:

1. Guide Rails: These are components typically found in various types of machinery and equipment. They help to guide and control the movement of other components, ensuring they move smoothly along a predetermined path. They are usually made from durable materials like metal or hard plastic to withstand the strain of mechanical movement.
2. Oil-Bearing Graphite: This is a special type of graphite that’s treated with oils. When this oil-bearing graphite is used in mechanical components like guide rails, it can provide a self-lubricating function. This means that it releases small amounts of oil over time as the machinery operates, reducing friction between moving parts and prolonging the life of the equipment.

So, guide rails with oil-bearing graphite would be components designed to facilitate smooth, controlled linear motion in machinery, while also reducing friction and wear due to their self-lubricating capabilities. This makes them particularly suitable for use in high-load, high-friction applications.
