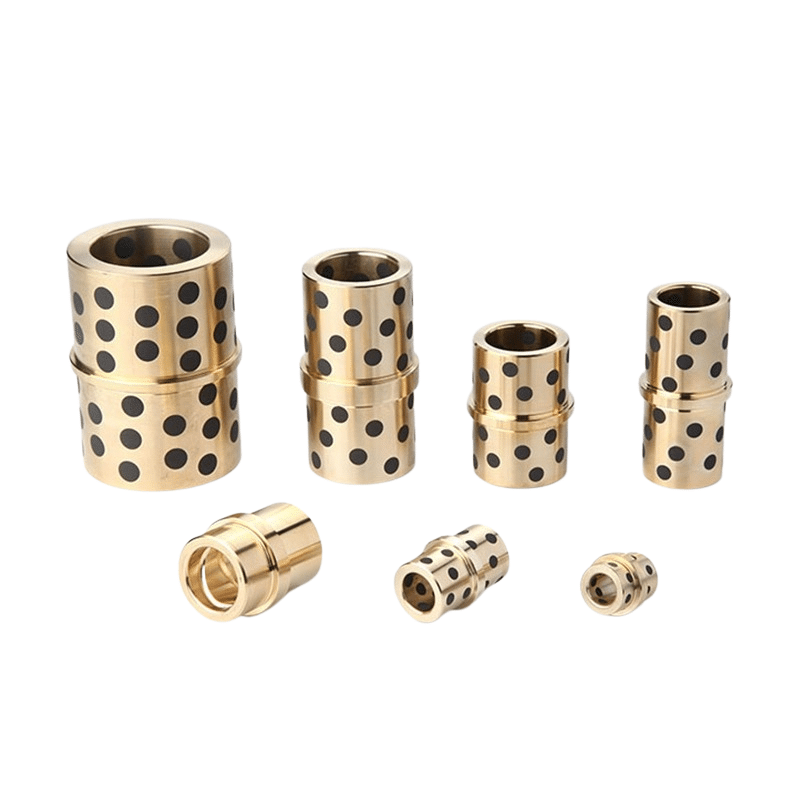

EJECTOR GUIDE BUSH
EJECTOR GUIDE BUSH
Say goodbye to the hassle of frequent lubrication maintenance. Our self-lubricating technology ensures smooth operation and reduces wear and tear, extending the lifespan of your equipment. Experience uninterrupted productivity and cost savings as you bid farewell to the need for messy lubricants and time-consuming upkeep.
The Ejector Guide Bush, specifically the Graphite Embedded EGB Bronze Bush, is a specialized component used in various mechanical and industrial applications. This type of bushing is notable for its material composition and the specific applications it serves.
Material Properties
The Graphite Embedded EGB Bronze Bush is primarily made from bronze, which is an alloy consisting mainly of copper, often combined with tin and sometimes other elements such as aluminum, manganese, nickel, or zinc. These elements enhance the alloy’s strength, corrosion resistance, and durability. The key feature of this bushing is the embedding of graphite within the bronze matrix. Graphite is a form of carbon known for its excellent lubrication properties, which is crucial in reducing wear and friction in mechanical parts.The presence of graphite in the bronze bush helps in maintaining a lubrication film even under high load and slow speed conditions. This is particularly beneficial in applications where maintenance and lubrication can be challenging. Graphite acts as a solid lubricant, reducing the dependency on external lubrication sources and enhancing the bush’s performance under harsh conditions. The combination of bronze and graphite ensures the bushing’s high load-bearing capacity, good wear resistance, and excellent self-lubricating properties.
Applications
Graphite Embedded EGB Bronze Bushes are extensively used in industries where high loads and slow movements are common. These include:
Automotive Industry: Used in components where metal-to-metal wear is a concern, such as in gears, pistons, and other moving parts where lubrication is difficult to maintain.
Manufacturing Equipment: Employed in heavy machinery and production lines, particularly in high-stress pivot points and linkages.
Aerospace: Utilized in aircraft components where reliable performance under extreme conditions is critical.
Marine Applications: Due to their corrosion resistance, these bushes are suitable for shipbuilding and equipment exposed to marine environments.
The self-lubricating feature of the Graphite Embedded EGB Bronze Bush makes it ideal for use in environments where regular maintenance is not feasible. This includes remote and inaccessible parts of machinery or components within sealed units where any lubrication leakage could be detrimental.In summary, the Graphite Embedded EGB Bronze Bush is a highly durable and efficient solution for reducing friction and wear in heavy-duty applications across various industries. Its material properties provide significant advantages in terms of maintenance reduction and performance under challenging conditions.
Ejector Guide Bushes (EGBs) play a crucial role in the injection molding and die casting industries. They guide ejector pins and ensure proper alignment during the ejection process, which is critical for the smooth and precise ejection of molded parts from the mold. When these bushes are crafted from bronze with embedded graphite, they offer numerous benefits:
Self-Lubrication: Graphite acts as a natural lubricant. When embedded in bronze, it imparts self-lubricating properties to the bushing, allowing for effective operation without external lubrication. This is especially beneficial in environments where regular lubrication is challenging or where lubricant contamination could pose issues.
Reduced Friction and Wear: The synergy between bronze and graphite creates a material with low friction characteristics, which minimizes wear on the bushing and associated moving parts, such as ejector pins. This can significantly extend the service life of the components.
High Load Capacity: Known for its strength and durability, bronze is ideal for bearing heavy loads. Enhanced with the lubricating properties of graphite, the bushing can withstand high-stress applications.
Temperature Stability: Bronze-graphite bushings can perform across a wide temperature range, making them suitable for applications requiring thermal stability.
Longevity and Durability: The integration of solid bronze and graphite increases the bushing’s longevity, as it is more resistant to the wear and tear that can degrade other materials under continuous use.
Maintenance-Free Operation: The self-lubricating nature of these bushings often means they require less maintenance than traditional bushings, reducing downtime and enhancing machinery efficiency.
Variety of Sizes and Standards: We offer a diverse range of sizes and types of ejector guide bushings to meet various industry standards and specific application needs. For example, the SEGB and SEGBK series are designed for oil-free operation with embedded solid lubricant graphite (SO#50 SP2) and are available in different flange thicknesses.
Customization: Manufacturers often allow for customization of these bushings to meet specific application demands, including tailored dimensions, tolerances, and additional features like grease grooves or flanges.
When selecting a Graphite Embedded EGB Bronze Bush, it is essential to consider the specific requirements of your application, such as load, speed, temperature range, and environmental conditions. Manufacturer datasheets and technical support are invaluable resources in making the appropriate choice.
Bronze with Graphite Type ejector guide bushings, such as the SEGB and SEGBK series, are high-precision guide bushings designed for oil-free lubrication. These products are typically used in plastic injection molding and die casting molds to ensure that ejector pins are precisely guided and maintained in alignment during the mold opening and closing process, allowing the molded parts to be smoothly ejected.
Key features of the SEGB and SEGBK series include:
Flange Thickness: The SEGB series features a flange thickness of 4 millimeters, while the SEGBK series has a flange thickness of 8 millimeters. The flange is the part of the bushing used for fixation or positioning, with different thicknesses catering to various installation requirements.
Material Composition: These bushings are made of bronze and embedded with graphite. Bronze is a copper alloy known for its strength and wear resistance. The addition of graphite provides self-lubricating properties, helping to reduce wear and extend the lifespan of the bushings.
Graphite Type: The type of graphite used is designated as SO#50 SP2, which may refer to a specific grade of graphite or a product number from a particular manufacturer, ensuring lubrication performance and wear resistance.
Designations: The designations SEGB and SEGBK may relate to the specific dimensions, design, or functionality of the bushings. These codes assist in quickly identifying and selecting the right bushing for specific applications.
Applications: These bushings are widely used in mold manufacturing, particularly in scenarios where maintenance reduction and production efficiency improvements are needed. Their self-lubricating nature makes them suitable for environments where regular lubrication may be challenging or traditional lubricants are not ideal.
Performance: Due to the combination of bronze and graphite, these bushings can operate across a wide temperature range and are suitable for high-speed and heavy-load applications.
Maintenance: The self-lubricating properties reduce the need for maintenance, helping to minimize downtime and operational costs.
When choosing SEGB or SEGBK bushings, it is important to consider the specific requirements of the mold, including the required load capacity, operating temperature, speed, and expected lifespan. Manufacturers typically provide detailed product catalogs and datasheets to help users select the appropriate product specifications based on their specific application needs.
“Oil-Free Ejector Leader Bushings” refer to a type of ejector pin guide bushing that does not require the use of lubricating oil, commonly used in plastic molds, die casting molds, or other industrial machinery. These bushings are typically made from self-lubricating materials, such as bronze filled with graphite or other solid lubricants, to reduce friction and wear, thus enabling operation without traditional lubrication.
Based on the information provided in your search results, here are some features of oil-free ejector leader bushings:
Self-Lubrication: These bushings are usually made from bronze material embedded with graphite or other solid lubricants, providing self-lubrication capabilities.
High-Temperature Performance: Some self-lubricating bronze bushings can operate at temperatures up to 450°F (approximately 232°C).
Wear Resistance: Bronze is a wear-resistant material that can withstand abrasion and maintain its shape under high compressive loads.
Reduced Maintenance: Due to their self-lubricating nature, these bushings can reduce maintenance needs and enhance the operational efficiency of machinery.
Precision: Using graphite-embedded bronze wear pads can improve the precision of machinery and reduce noise.
Environmental Suitability: Oil-free bushings are suitable for environments where oil lubrication is inappropriate, such as in food processing, medical equipment, or machinery operating in clean environments.
Customization Options: Some manufacturers offer customization services, allowing customers to tailor the bushing’s dimensions, shape, and type of lubricant according to specific needs.
Standard Sizes: Although customization is available, manufacturers typically also offer a range of standard sizes for oil-free ejector leader bushings to meet the needs of most applications.
