Plain Bearing Bushing Die Sets standard size

Quality & performance, Quick delivery, Precision Components, Quality, Performance, Economy, Precise Fit,Ease Of Assembly

Trusted Plain Bearing Bushings Solution And Innovation

Service We Deliver and Quality You Can Depend On

AA Quality Manufacturer And Innovator Of Plain Bearing Bushing Die Sets And Die Components Supplied Globally To The Metal Forming Industry.

Die Sets Bushing & Bearing Selection, Get started with Us.

Viiplusplain bearing bushing  die sets catalog included in our full line offering are both inch and metric size die sets and die components that are designed to numerous die standards.

IE SETS PRODUCTS HAVE HELPED A WIDE RANGE OF INDUSTRIES.

  • Competitive Prices

  • Reliability and Performance

  • High Quality Design & Construction

  • Outstanding Service & Support

Reliable & safe

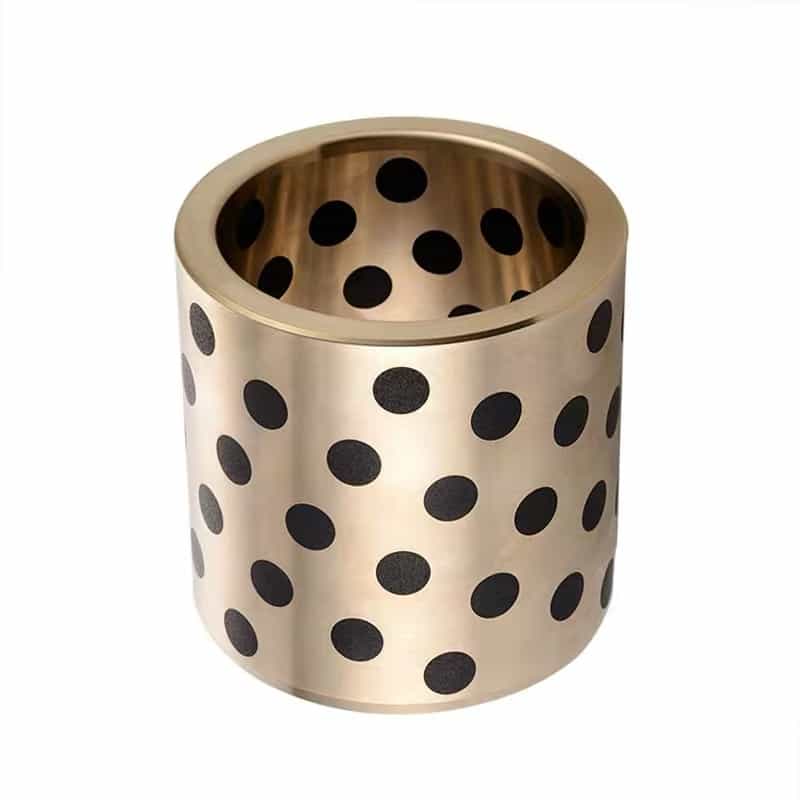

Mold/Machinery Press Fit Straight Bushings

These self-lubricating interference-fit bushings are manufactured from high quality self-lubricating aluminum bronze and are ideal for working with commercial and precision posts.

The self-lubricating bushings contain graphite plugs that are impregnated with oil. When the bushings reach 80-90 ° F due to friction between the bushing and the guide post, the oil is pulled from the plug, lubricating the wear surface. A dark streak pattern forms on the wear surface when oil and graphite are deposited into the bronze or steel grain.

This provides the lubrication necessary for continuous performance of the tool.

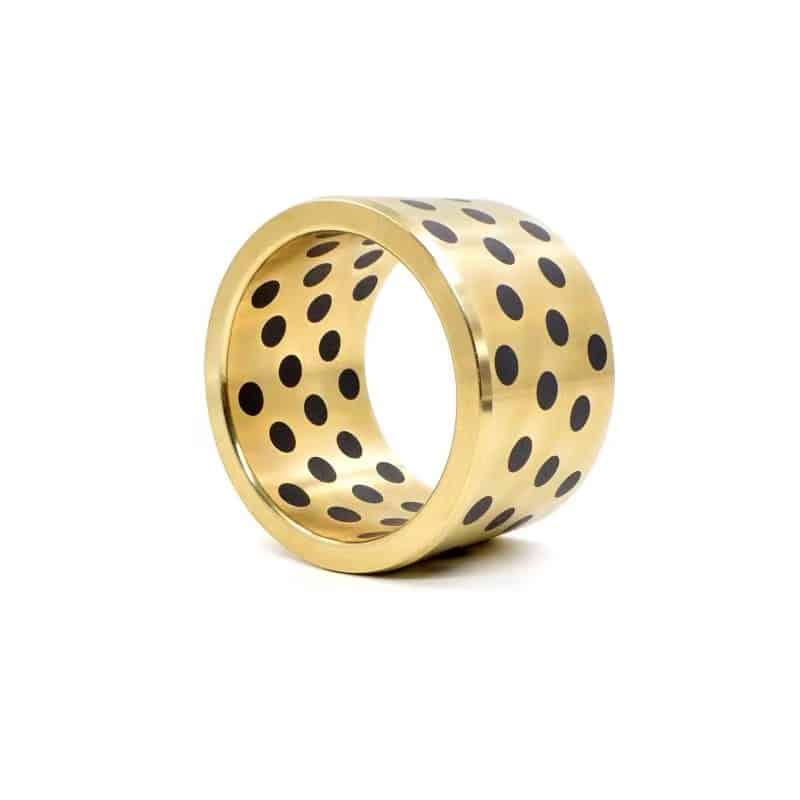

graphite plugged bushings

Learn More SELF-LUBRICATING BEARINGS

graphite plugged bronze bushing die components
solid lubricant bronze bushing die components
flange plain bearing bushing die sets
Promise of bearing quality

Oilless Bushing Exporter & Supplier  for all Branches of Industry

Shop plain bearing Bushings for Die Sets at www.bronzelube.com. We offers FREE CAD download, short lead times and competitive pricing.

  • Press Fit Straight Bushings
  • Self-Lubricating Shoulder Bushings
  • Self-Lubricating Ejector Bushings

Research & Development

Always self-lubricating,
Always long-lasting. Configurators for creating CAD data and service!

Safety & Quality

Oilless Bushing Application Assistance: For further questions or product information, please contact:

Industry Solutions

OFFERING SERVICE, QUALITY & COST EFFECTIVE SOLUTIONS

Many companies worldwide already work successfully with Viiplus plain bearing die components products. Our customers include automotive, domestic appliance and other metal working and tool-making companies.

plain bearing for automotive

AUTOMOTIVE

bushings for construction machinery

CONSTRUCTION

plain bearing for energy

ENERGY

Shop Plain Bearing Die Components at bronzelube.com, bronzelube offers FREE CAD download, short lead times and competitive pricing.

With our commitment to be the “customer-focused”supplier of choice, we have taken the lead role in creating and bringing new plain bearing bushing die compents products to customers and helping them find solutions that improve their operations.

*Viiplus is an international company, engaged in the manufacture and distribution of plain bearing bushing die sets and toolmakers’ supplies.

Our customers require quality – we want our products to meet this requirement

Our DANLY standard plain bearing die components parts provides data on all our products in all standard CAD formats.

Graphite plugged bronze bushing in stock, Graphite is mechanically forced into the holes/grooves under extreme pressure.

Custom Plain Bearing Bushing Die Sets & Components

Choosing Viiplus as a supplier means that our customers have a competitive advantage in delivering their products to market.

We have to keep safety and quality firmly in mind to fulfill our mission as the plain bearing manufacturers. We will ensure safety and quality through inheritance of our technologies, knowledge and spirit of manufacturing. This is our commitment for the future.

We provides technical support for all our plain bearing components for tool, die, mold and machine applications.

Viiplus distributes a wide selection of die and mold components.



Selection Guide for Metric Plugged Graphite Bushings

  • C95400 Aluminium bronze with graphite plugs bushings
  • C86300 Manganese bronze with graphite plugs bearings
  • C93200 Tin bronze with graphite pluggs

Completely interchangeable! Select fitting unnecessary.

Reduced Costs & Downtime.

Oilless bushing s are self-lubricating, maintenance-free, chemical resistant, universally applicable, and reduce costs by up to 40%!

Bronze Bushing Material

Our experts can help you choose the best high-performance oilless bushing material to meet your requirements and the most efficient manufacturing method.

Learn More PLAIN BEARINGS, Get in touch!

plain bearings die sets

Standard in-stock die sets are available in plain bearing style.

Our technical competence, rooted in years of experience, and our state of the art Engineering & Design equipment and software, allow us to work with you to design and develop die sets to your specifications. Contact Us Today With Any Questions Or To Request A Quote. Our Expert Will Respond To Your Request As Soon As Possible! Please Use Our Online Quote Form To Upload Your Die Set Drawings For Quotation.

Machined To Your Specifications In Any Size Or Style

Variety Of Material And Thicknesses Available

Self-Lubricating & Standard Models Inch & Metric Size

Components & Spare Parts for Die Sets.

We offer a full line of precision catalog die sets, you specify the bushing and bearings.

* DIE SET COMPONENTS · Friction Components. Friction bearing die set components offer an economical solution for standard applications.

self-lubricating bearings

Fast & Safe Shipping. Every Time. Every Where.

Components & Spare Parts for Die Sets

  • Graphite Impregnated Bronze Parts: Custom Transport Solution
  • A full range of modern warehousing services for Plugged Graphite Bushings.
  • Graphite Plugged Bronze Bushing Online Sales, In Stock, Ready To Ship &Customized Size, Fast Delivery.
  • High-quality management of all your Plugged Graphite Bushings & Flange Bushing.
  • Quick & Professional Plugged Graphite Bushings Custom Parts Services
  • Graphite Impregnated Bronze Bushing Groove Design

  • Plugged Graphite Bushings

    Safe Shipment

  • Plugged Graphite Bushings Cost Effective Solution

Graphite impregnated bronze bushing are a line of self-lubricating bushings that excel where standard lubrication is unwise, including heavy, high-temperature situations.

Die Sets
the Stable Base For Your Tools

Custom Engineering Solutions, Service, Maintenance and Graphite Impregnated Sleeve Bearing Design

Providing heavy machining, maintenance, service & design to a diverse range of industries across China and Maintenance-free bronze bearing & guide bushes, bronze with solid lubricant plugged graphite.

CAST BRONZE BEARING PRODUCTS: High Strength Brass Bronze Graphite part as attached drawing.

Overview: Any alloy consisting of more than two elements is called special brass. Such as aluminum, lead, tin, manganese, nickel, iron, silicon composed of copper alloy, high-strength brass is one of them. High strength brass has strong wear resistance, high strength brass, high hardness, strong chemical corrosion resistance. And machining mechanical properties are also very superior. High-strength brass is often made to manufacture sheet, bar, bar, pipe, casting parts, and so on.

Chemical composition: The chemical formula of high-strength brass is ZCuZn25AI6Fe3Mn3, containing about 65% copper and about 25% zinc. Aluminum improves the strength, hardness, and corrosion resistance of brass. There are three types of brass at room temperature: brass with less than 35% zinc content. The microstructure at room temperature is composed of a single-phase A solid solution and is called A brass.

gleitlagerbuchsen bronze graphite

Price and delivery time on request

  • Bronze Brass Bushing Material:Special Brass (SO#50SP2)
  • Self-lubricating:Yes
  • Lubricant:Graphite Surface
  • Pressure P:100 N/mm²
  • Sliding speed v:30 m/minP*v-value:200 N/mm² x m/min
  • Operating temperature:-50°C / +200°C (max. 300°C)
  • Friction coefficient:0,07

Our company is specialized in manufacturing and selling oil-free bearing, composite bearing, self-lubricating bearing, oil-free axle sleeve, inlaid bearing, copper sleeve, dry axle sleeve, sliding bearing, axle bush, bushing, guide sleeve, sliding plate, and can be customized according to user requirements.

Maintenance-free bronze bearing size chart equivalent and guide bushes, bronze with solid lubricant plugged graphite, SOB bushing equivalent, Sankyo oilless Alternatives

SOB 8-12-8

8

12

8

0,5

0,5

SOB 6-10-12

6

10

12

0,5

0,5

SOB 8-12-10

8

12

10

0,5

0,5

SOB 8-12-12

8

12

12

0,5

0,5

SOB 8-12-15

8

12

15

0,5

0,5

SOB 10-14-8

10

14

8

0,5

0,5

SOB 10-14-10

10

14

10

0,5

0,5

SOB 10-14-12

10

14

12

0,5

0,5

SOB 10-14-15

10

14

15

0,5

0,5

SOB 10-14-20

10

14

20

0,5

0,5

SOB 10-15-10

10

15

10

0,5

0,5

SOB 12-18-8

12

18

8

0,5

0,5

SOB 12-18-10

12

18

10

0,5

0,5

SOB 12-18-12

12

18

12

0,5

0,5

SOB 12-18-15

12

18

15

0,5

0,5

SOB 12-18-16

12

18

16

0,5

0,5

SOB 12-18-19

12

18

19

0,5

0,5

SOB 12-18-20

12

18

20

0,5

0,5

SOB 12-18-25

12

18

25

0,5

0,5

SOB 12-18-30

12

18

30

0,5

0,5

SOB 13-19-10

13

19

10

0,5

0,5

SOB 13-19-12

13

19

12

0,5

0,5

SOB 13-19-15

13

19

15

0,5

0,5

SOB 13-19-16

13

19

16

0,5

0,5

SOB 13-19-20

13

19

20

0,5

0,5

SOB 13-19-25

13

19

25

0,5

0,5

SOB 14-20-10

14

20

10

0,5

0,5

SOB 14-20-12

14

20

12

0,5

0,5

SOB 14-20-15

14

20

15

0,5

0,5

SOB 14-20-20

14

20

20

0,5

0,5

SOB 14-20-25

14

20

25

0,5

0,5

SOB 14-20-30

14

20

30

0,5

0,5

SOB 15-21-10

15

21

10

0,5

0,5

SOB 15-21-12

15

21

12

0,5

0,5

SOB 15-21-15

15

21

15

0,5

0,5

SOB 15-21-16

15

21

16

0,5

0,5

SOB 15-21-20

15

21

20

0,5

0,5

SOB 15-21-25

15

21

25

0,5

0,5

SOB 15-21-30

15

21

30

0,5

0,5

SOB 16-22-10

16

22

10

0,5

0,5

SOB 16-22-12

16

22

12

0,5

0,5

SOB 16-22-15

16

22

15

0,5

0,5

SOB 16-22-16

16

22

16

0,5

0,5

SOB 16-22-19

16

22

19

0,5

0,5

SOB 16-22-20

16

22

20

0,5

0,5

SOB 16-22-25

16

22

25

0,5

0,5

SOB 16-22-30

16

22

30

0,5

0,5

SOB 16-22-35

16

22

35

0,5

0,5

SOB 16-22-40

16

22

40

0,5

0,5

SOB 17-23-15

17

23

15

0,5

0,5

SOB 18-24-10

18

24

10

0,5

0,5

SOB 18-24-12

18

24

12

0,5

0,5

SOB 18-24-15

18

24

15

0,5

0,5

SOB 18-24-16

18

24

16

0,5

0,5

SOB 18-24-20

18

24

20

0,5

0,5

SOB 18-24-25

18

24

25

0,5

0,5

SOB 18-24-30

18

24

30

0,5

0,5

SOB 18-24-35

18

24

35

0,5

0,5

SOB 18-24-40

18

24

40

0,5

0,5

SOB 19-26-15

19

26

15

0,5

0,5

SOB 19-26-20

19

26

20

0,5

0,5

SOB 20-28-10

20

28

10

0,5

0,5

SOB 20-28-12

20

28

12

0,5

0,5

SOB 20-28-15

20

28

15

0,5

0,5

SOB 20-28-16

20

28

16

0,5

0,5

SOB 20-28-19

20

28

19

0,5

0,5

SOB 20-28-20

20

28

20

0,5

0,5

SOB 20-28-25

20

28

25

0,5

0,5

SOB 20-28-30

20

28

30

0,5

0,5

SOB 20-28-35

20

28

35

0,5

0,5

SOB 20-28-40

20

28

40

0,5

0,5

SOB 20-28-50

20

28

50

0,5

0,5

SOB 20-30-10

20

30

10

0,5

0,5

SOB 20-30-12

20

30

12

0,5

0,5

SOB 20-30-15

20

30

15

0,5

0,5

SOB 20-30-16

20

30

16

0,5

0,5

SOB 20-30-20

20

30

20

0,5

0,5

SOB 20-30-25

20

30

25

0,5

0,5

SOB 20-30-30

20

30

30

0,5

0,5

SOB 20-30-35

20

30

35

0,5

0,5

SOB 20-30-40

20

30

40

0,5

0,5

SOB 20-30-70

20

30

70

0,5

0,5

SOB 22-32-12

22

32

12

0,5

0,5

SOB 22-32-15

22

32

15

0,5

0,5

SOB 22-32-20

22

32

20

0,5

0,5

SOB 22-32-25

22

32

25

0,5

0,5

SOB 25-33-12

25

33

12

0,5

0,5

SOB 25-33-15

25

33

15

0,5

0,5

SOB 25-33-16

25

33

16

0,5

0,5

SOB 25-33-20

25

33

20

0,5

0,5

SOB 25-33-25

25

33

25

0,5

0,5

SOB 25-33-30

25

33

30

0,5

0,5

SOB 25-33-35

25

33

35

0,5

0,5

SOB 25-33-40

25

33

40

0,5

0,5

SOB 25-33-50

25

33

50

0,5

0,5

SOB 25-33-60

25

33

60

0,5

0,5

SOB 25-35-12

25

35

12

0,5

0,5

SOB 25-35-15

25

35

15

0,5

0,5

SOB 25-35-16

25

35

16

0,5

0,5

SOB 25-35-20

25

35

20

0,5

0,5

SOB 25-35-25 25 35 25 0,5 0,5
SOB 25-35-30 25 35 30 0,5 0,5
SOB 25-35-35 25 35 35 0,5 0,5
SOB 25-35-40 25 35 40 0,5 0,5
SOB 25-35-50 25 35 50 0,5 0,5
SOB 28-38-20 28 38 20 0,5 0,5
SOB 28-38-25 28 38 25 0,5 0,5
SOB 28-38-30 28 38 30 0,5 0,5
SOB 28-38-40 28 38 40 0,5 0,5
SOB 30-38-12 30 38 12 1 1
SOB 30-38-15 30 38 15 1 1
SOB 30-38-20 30 38 20 1 1
SOB 30-38-25 30 38 25 1 1
SOB 30-38-30 30 38 30 1 1
SOB 30-38-35 30 38 35 1 1
SOB 30-38-40 30 38 40 1 1
SOB 30-38-50 30 38 50 1 1
SOB 30-38-60 30 38 60 1 1
SOB 30-40-12 30 40 12 1 1
SOB 30-40-15 30 40 15 1 1
SOB 30-40-20 30 40 20 1 1
SOB 30-40-25 30 40 25 1 1
SOB 30-40-30 30 40 30 1 1
SOB 30-40-35 30 40 35 1 1
SOB 30-40-40 30 40 40 1 1
SOB 30-40-50 30 40 50 1 1
SOB 30-40-60 30 40 60 1 1
SOB 31,5-40-30 31,5 40 30 1 1
SOB 31,5-40-40 31,5 40 40 1 1
SOB 32-42-15 32 42 15 1 1
SOB 32-42-20 32 42 20 1 1
SOB 32-42-30 32 42 30 1 1
SOB 32-42-40 32 42 40 1 1
SOB 35-44-20 35 44 20 1 1
SOB 35-44-25 35 44 25 1 1
SOB 35-44-30 35 44 30 1 1
SOB 35-44-35 35 44 35 1 1
SOB 35-44-40 35 44 40 1 1
SOB 35-44-50 35 44 50 1 1
SOB 35-44-60 35 44 60 1 1
SOB 35-45-15 35 45 15 1 1
SOB 35-45-20 35 45 20 1 1
SOB 35-45-25 35 45 25 1 1
SOB 35-45-30 35 45 30 1 1
SOB 35-45-35 35 45 35 1 1
SOB 35-45-40 35 45 40 1 1
SOB 35-45-50 35 45 50 1 1
SOB 35-45-60 35 45 60 1 1
SOB 38-48-30 38 48 30 1 1
SOB 38-48-40 38 48 40 1 1
SOB 40-50-15 40 50 15 1 1
SOB 40-50-20 40 50 20 1 1
SOB 40-50-25 40 50 25 1 1
SOB 40-50-30 40 50 30 1 1
SOB 40-50-35 40 50 35 1 1
SOB 40-50-40 40 50 40 1 1
SOB 40-50-50 40 50 50 1 1
SOB 40-50-60 40 50 60 1 1
SOB 40-50-70 40 50 70 1 1
SOB 40-50-80 40 50 80 1 1
SOB 40-55-15 40 55 15 1 1
SOB 40-55-25 40 55 25 1 1
SOB 40-55-30 40 55 30 1 1
SOB 40-55-35 40 55 35 1 1
SOB 40-55-40 40 55 40 1 1
SOB 40-55-50 40 55 50 1 1
SOB 40-55-60 40 55 60 1 1
SOB 45-55-30 45 55 30 1 1
SOB 45-55-35 45 55 35 1 1
SOB 45-55-40 45 55 40 1 1
SOB 45-55-50 45 55 50 1 1
SOB 45-55-60 45 55 60 1 1
SOB 45-56-30 45 56 30 1 1
SOB 45-56-35 45 56 35 1 1
SOB 45-56-40 45 56 40 1 1
SOB 45-56-50 45 56 50 1 1
SOB 45-56-60 45 56 60 1 1
SOB 45-60-30 45 60 30 1 1
SOB 45-60-35 45 60 35 1 1
SOB 45-60-40 45 60 40 1 1
SOB 45-60-50 45 60 50 1 1
SOB 45-60-60 45 60 60 1 1
SOB 45-60-70 45 60 70 1 1
SOB 45-60-80 45 60 80 1 1
SOB 50-60-20 50 60 20 1 1
SOB 50-60-25 50 60 25 1 1
SOB 50-60-30 50 60 30 1 1
SOB 50-60-35 50 60 35 1 1
SOB 50-60-40 50 60 40 1 1
SOB 50-60-50 50 60 50 1 1
SOB 50-60-60 50 60 60 1 1
SOB 50-60-70 50 60 70 1 1
SOB 50-60-80 50 60 80 1 1
SOB 50-62-30 50 62 30 1 1
SOB 50-62-35 50 62 35 1 1
SOB 50-62-40 50 62 40 1 1
SOB 50-62-50 50 62 50 1 1
SOB 50-62-60 50 62 60 1 1
SOB 50-62-70 50 62 70 1 1
SOB 50-62-80 50 62 80 1 1
SOB 50-65-30 50 65 30 1 1
SOB 50-65-40 50 65 40 1 1
SOB 50-65-50 50 65 50 1 1
SOB 50-65-60 50 65 60 1 1
SOB 50-65-70 50 65 70 1 1
SOB 50-65-80 50 65 80 1 1
SOB 50-65-100 50 65 100 1 1
SOB 55-70-30 55 70 30 1 1
SOB 55-70-35 55 70 35 1 1
SOB 55-70-40 55 70 40 1 1
SOB 55-70-50 55 70 50 1 1
SOB 55-70-60 55 70 60 1 1
SOB 55-70-70 55 70 70 1 1
SOB 60-74-30 60 74 30 1 1
SOB 60-74-35 60 74 35 1 1
SOB 60-74-40 60 74 40 1 1
SOB 60-74-50 60 74 50 1 1
SOB 60-74-60 60 74 60 1 1
SOB 60-74-70 60 74 70 1 1
SOB 60-74-80 60 74 80 1 1
SOB 60-74-100 60 74 100 1 1
SOB 60-75-30 60 75 30 1 1
SOB 60-75-35 60 75 35 1 1
SOB 60-75-40 60 75 40 1 1
SOB 60-75-50 60 75 50 1 1
SOB 60-75-60 60 75 60 1 1
SOB 60-75-70 60 75 70 1 1
SOB 60-75-80 60 75 80 1 1
SOB 60-75-100 60 75 100 1 1
SOB 63-75-60 63 75 60 1 1
SOB 63-75-70 63 75 70 1 1
SOB 63-75-80 63 75 80 1 1
SOB 65-80-40 65 80 40 1 1
SOB 65-80-50 65 80 50 1 1
SOB 65-80-60 65 80 60 1 1
SOB 65-80-70 65 80 70 1 1
SOB 65-80-80 65 80 80 1 1
SOB 70-85-30 70 85 30 1 1
SOB 70-85-35 70 85 35 1 1
SOB 70-85-40 70 85 40 1 1
SOB 70-85-50 70 85 50 1 1
SOB 70-85-60 70 85 60 1 1
SOB 70-85-70 70 85 70 1 1
SOB 70-85-80 70 85 80 1 1
SOB 70-85-100 70 85 100 1 1
SOB 70-90-50 70 90 50 1 1
SOB 70-90-60 70 90 60 1 1
SOB 70-90-70 70 90 70 1 1
SOB 70-90-80 70 90 80 1 1
SOB 70-90-100 70 90 100 1 1
SOB 75-90-50 75 90 50 1 1
SOB 75-90-60 75 90 60 1 1
SOB 75-90-70 75 90 70 1 1
SOB 75-90-80 75 90 80 1 1
SOB 75-90-100 75 90 100 1 1
SOB 75-95-60 75 95 60 1 1
SOB 75-95-70 75 95 70 1 1
SOB 75-95-80 75 95 80 1 1
SOB 75-95-100 75 95 100 1 1
SOB 80-96-20 80 96 20 1 1
SOB 80-96-40 80 96 40 1 1
SOB 80-96-50 80 96 50 1 1
SOB 80-96-60 80 96 60 1 1
SOB 80-96-70 80 96 70 1 1
SOB 80-96-80 80 96 80 1 1
SOB 80-96-100 80 96 100 1 1
SOB 80-96-120 80 96 120 1 1
SOB 80-100-40 80 100 40 1 1
SOB 80-100-50 80 100 50 1 1
SOB 80-100-60 80 100 60 1 1
SOB 80-100-70 80 100 70 1 1
SOB 80-100-80 80 100 80 1 1
SOB 80-100-100 80 100 100 1 1
SOB 80-100-120 80 100 120 1 1
SOB 80-100-140 80 100 140 1 1
SOB 85-100-25 85 100 25 1 1
SOB 85-100-60 85 100 60 1 1
SOB 85-100-80 85 100 80 1 1
SOB 90-110-30 90 110 30 1 1
SOB 90-110-50 90 110 50 1 1
SOB 90-110-60 90 110 60 1 1
SOB 90-110-70 90 110 70 1 1
SOB 90-110-80 90 110 80 1 1
SOB 90-110-90 90 110 90 1 1
SOB 90-110-100 90 110 100 1 1
SOB 90-110-120 90 110 120 1 1
SOB 100-115-100 100 115 100 1,5 1,5
SOB 100-120-40 100 120 40 1,5 1,5
SOB 100-120-50 100 120 50 1,5 1,5
SOB 100-120-60 100 120 60 1,5 1,5
SOB 100-120-70 100 120 70 1,5 1,5
SOB 100-120-80 100 120 80 1,5 1,5
SOB 100-120-90 100 120 90 1,5 1,5
SOB 100-120-100 100 120 100 1,5 1,5
SOB 100-120-120 100 120 120 1,5 1,5
SOB 100-120-140 100 120 140 1,5 1,5
SOB 110-130-50 110 130 50 1,5 1,5
SOB 110-130-70 110 130 70 1,5 1,5
SOB 110-130-80 110 130 80 1,5 1,5
SOB 110-130-100 110 130 100 1,5 1,5
SOB 110-130-120 110 130 120 1,5 1,5
SOB 120-140-70 120 140 70 1,5 1,5
SOB 120-140-80 120 140 80 1,5 1,5
SOB 120-140-90 120 140 90 1,5 1,5
SOB 120-140-100 120 140 100 1,5 1,5
SOB 120-140-120 120 140 120 1,5 1,5
SOB 120-140-140 120 140 140 1,5 1,5
SOB 125-145-100 125 145 100 1,5 1,5
SOB 125-145-120 125 145 120 1,5 1,5
SOB 130-150-80 130 150 80 1,5 1,5
SOB 130-150-100 130 150 100 1,5 1,5
SOB 130-150-130 130 150 130 1,5 1,5
SOB 140-160-100 140 160 100 1,5 1,5
SOB 140-160-140 140 160 140 1,5 1,5
SOB 150-170-100 150 170 100 1,5 1,5
SOB 150-170-150 150 170 150 1,5 1,5
SOB 160-180-80 160 180 80 1,5 1,5
SOB 160-180-100 160 180 100 1,5 1,5
SOB 160-180-150 160 180 150 1,5 1,5
SOB 170-190-100 170 190 100 1,5 1,5
SOB 170-190-150 170 190 150 1,5 1,5
SOB 180-200-100 180 200 100 1,5 1,5
SOB 180-200-150 180 200 150 1,5 1,5
SOB 190-210-100 190 210 100 1,5 1,5
SOB 190-210-150 190 210 150 1,5 1,5
SOB 200-230-150 200 230 150 1,5 1,5
SOB 200-230-200 200 230 200 1,5 1,5

Choose your Inner diameter, Flanged bush, self-lubricating equivalent, Sankyo oilless Alternatives, Price and delivery time on request!

SOBF 8-12-10 8 12 10 20 2 0,5
SOBF 8-12-12 8 12 12 20 2 0,5
SOBF 8-12-15 8 12 15 20 2 1
SOBF 10-14-10 10 14 10 22 2 1
SOBF 10-14-12 10 14 12 22 2 1
SOBF 10-14-15 10 14 15 22 2 1
SOBF 10-14-17 10 14 17 22 2 1
SOBF 10-14-20 10 14 20 22 2 1
SOBF 12-18-10 12 18 10 25 3 1
SOBF 12-18-12 12 18 12 25 3 1
SOBF 12-18-15 12 18 15 25 3 1
SOBF 12-18-20 12 18 20 25 3 1
SOBF 12-18-25 12 18 25 25 3 1
SOBF 12-18-30 12 18 30 25 3 1
SOBF 13-19-10 13 19 10 26 3 1
SOBF 13-19-12 13 19 12 26 3 1
SOBF 13-19-15 13 19 15 26 3 1
SOBF 13-19-20 13 19 20 26 3 1
SOBF 13-19-25 13 19 25 26 3 1
SOBF 13-19-30 13 19 30 26 3 1
SOBF 14-20-15 14 20 15 27 3 1
SOBF 14-20-20 14 20 20 27 3 1
SOBF 14-20-25 14 20 25 27 3 1
SOBF 15-21-10 15 21 10 28 3 1
SOBF 15-21-12 15 21 12 28 3 1
SOBF 15-21-15 15 21 15 28 3 1
SOBF 15-21-20 15 21 20 28 3 1
SOBF 15-21-25 15 21 25 28 3 1
SOBF 15-21-30 15 21 30 28 3 1
SOBF 16-22-12 16 22 12 29 3 1
SOBF 16-22-15 16 22 15 29 3 1
SOBF 16-22-18 16 22 18 29 3 1
SOBF 16-22-20 16 22 20 29 3 1
SOBF 16-22-23 16 22 23 29 3 1
SOBF 16-22-25 16 22 25 29 3 1
SOBF 16-22-30 16 22 30 29 3 1
SOBF 16-22-35 16 22 35 29 3 1
SOBF 16-22-40 16 22 40 29 3 1
SOBF 18-24-15 18 24 15 32 3 1
SOBF 18-24-20 18 24 20 32 3 1
SOBF 18-24-25 18 24 25 32 3 1
SOBF 18-24-30 18 24 30 32 3 1
SOBF 18-24-35 18 24 35 32 3 1
SOBF 18-24-40 18 24 40 32 3 1
SOBF 20-30-15 20 30 15 40 5 1
SOBF 20-30-20 20 30 20 40 5 1
SOBF 20-30-25 20 30 25 40 5 1
SOBF 20-30-30 20 30 30 40 5 1
SOBF 20-30-35 20 30 35 40 5 1
SOBF 20-30-40 20 30 40 40 5 1
SOBF 25-35-15 25 35 15 45 5 1
SOBF 25-35-20 25 35 20 45 5 2
SOBF 25-35-25 25 35 25 45 5 2
SOBF 25-35-30 25 35 30 45 5 2
SOBF 25-35-35 25 35 35 45 5 2
SOBF 25-35-40 25 35 40 45 5 2
SOBF 25-35-50 25 35 50 45 5 2
SOBF 30-40-20 30 40 20 50 5 2
SOBF 30-40-25 30 40 25 50 5 2
SOBF 30-40-30 30 40 30 50 5 2
SOBF 30-40-35 30 40 35 50 5 2
SOBF 30-40-40 30 40 40 50 5 2
SOBF 30-40-50 30 40 50 50 5 2
SOBF 31,5-40-20 31,5 40 20 50 5 2
SOBF 31,5-40-30 31,5 40 30 50 5 2
SOBF 31,5-40-35 31,5 40 35 50 5 2
SOBF 31,5-40-40 31,5 40 40 50 5 2
SOBF 35-45-20 35 45 20 60 5 2
SOBF 35-45-25 35 45 25 60 5 2
SOBF 35-45-30 35 45 30 60 5 2
SOBF 35-45-35 35 45 35 60 5 2
SOBF 35-45-40 35 45 40 60 5 2
SOBF 35-45-50 35 45 50 60 5 2
SOBF 40-50-20 40 50 20 65 5 2
SOBF 40-50-25 40 50 25 65 5 2
SOBF 40-50-30 40 50 30 65 5 2
SOBF 40-50-35 40 50 35 65 5 2
SOBF 40-50-40 40 50 40 65 5 2
SOBF 40-50-50 40 50 50 65 5 2
SOBF 45-55-30 45 55 30 70 5 2
SOBF 45-55-35 45 55 35 70 5 2
SOBF 45-55-40 45 55 40 70 5 2
SOBF 45-55-50 45 55 50 70 5 2
SOBF 45-55-60 45 55 60 70 5 2
SOBF 50-60-30 50 60 30 75 5 2
SOBF 50-60-35 50 60 35 75 5 2
SOBF 50-60-40 50 60 40 75 5 2
SOBF 50-60-50 50 60 50 75 5 2
SOBF 50-60-60 50 60 60 75 5 2
SOBF 55-65-40 55 65 40 80 5 2
SOBF 55-65-60 55 65 60 80 5 2
SOBF 60-75-40 60 75 40 90 7,5 3
SOBF 60-75-50 60 75 50 90 7,5 3
SOBF 60-75-80 60 75 80 90 7,5 3
SOBF 65-80-60 65 80 60 95 7,5 3
SOBF 70-85-50 70 85 50 105 7,5 3
SOBF 70-85-80 70 85 80 105 7,5 3 1
SOBF 75-90-60 75 90 60 110 7,5 3 1
SOBF 80-100-60 80 100 60 120 10 3 1
SOBF 80-100-80 80 100 80 120 10 3 1

Oilless Bushing Specifications:

Standard Chemical Composition (%) Mechanical Property Uses
KS JIS ASTM Cu Zn Al Fe Mn Sn Ni Pb Si TS(n/m²) E(%) HB
HBsC1 HBsC1 8A 55.0-60.0 R 0.5-1.5 0.1-1.5 0.1-1.5 1.0 max 1.0 max 0.4 max 0.1 max 413 min 20 min 90 Machinery part, Propellor, Hub
HBsC2 HBsC2 8B 55.0-60.0 R 0.5-2.0 0.1-3.5 0.1-3.5 1.0 max 1.0 max 0.4 max 0.1 max 490 min 18 min 100 Marine Parts, gear, Bush, Bearings
HBsC3 HBsC3 8C 60.0-65.0 R 3.0-7.5 2.0-5.0 2.5-5.0 0.5 max 0.5 max 0.2 max 0.1 max 637 min 15 min 165 Cyclinder Parts, Worm Gear, Cap
HBsC4 HBsC4 SAE430B 60.0-65.0 R 3.0-7.5 2.0-5.0 2.5-5.0 0.2 max 0.5 max 0.2 max 0.1 max 755 min 12 min

GRAPHITE IMPREGNATED OILLESS BRONZE BUSHING WORKING PRINCIPLE & ADVANTAGES

The working principle of a graphite impregnated bronze bushing and copper sleeve :Generally solid lubricant accounts for 20-30% of friction surface, graphite and copper set of self-lubricating bearing lubrication principle is in the process of sliding friction of shaft and bearing, part of the graphite particles transferred to the shaft and the bearing friction on the surface, formed a relatively stable layer of solid lubricant membrane, prevent the shaft and bearing directly adhesive wear. This reasonable combination of metal alloy and non-metal wear reducing materials of their respective performance advantages, complementary, that is, with the metal’s high bearing capacity, but also get the wear reducing material lubrication performance. Therefore, it is especially suitable for no refueling, less refueling, high temperature, high load or water environment.

The application of graphite impregnated bronze bushing: Self-lubricating bearing, is the copper sleeve as a metal matrix friction surface to develop an orderly arrangement, the size of the appropriate holes, and embedded graphite or molybdenum disulfide as a solid lubricant, a self-lubricating product. At present, the graphite impregnated bronze bushing has been widely used in construction machinery, metallurgical machinery, mining machinery, locomotive support, steel rolling equipment, Marine machinery, die equipment, textile machinery, gas turbine and other low-speed heavy-duty, high-speed light load and other occasions.

  • Graphite Impregnated Bronze Bushing Online Order; Graphite Impregnated Bronze Bushing Stock Size & Ready For Ship

Tailored Service.
Large Machining Capacity.
Infinite Possibilities.

Engineering Sleeve Bushing Solution and Design. The Graphite impregnated bush material has thermostable, inoxidizability, wear-resisting, self-lubrication merit.

It is based on high strength copper alloy of special techniques. The solid lubricant is by certain angle, density and special formula, and then is processed exactly. The bronze graphite bearings parts is widely applied to casting machine, mining machinery, shipping, steam turbine, Injection machinery and automobile mounding, etc.

Advantages of graphite plugged bronze bushings:
  1. Good bearing capacity and good wear resistance;
  2. Suitable for high load & low speed under the rotation movement, swing movement and often under the load open and close frequent and difficult to form hydrodynamic lubrication occasions;
  3. Under the condition of boundary lubrication, the bearing can be maintained without refueling for a long time, while the bearing can have a longer service life with refueling in the upper layer;
  4. The surface plastic layer can be left with a certain margin during the processing and forming, and can be processed by ourselves after the assembly is pressed into the seat hole, so as to achieve a better assembly s*Graphite Impregnated Oilless Bronze Bushing Supply Company. Customized Design Service: Metric Graphite Impregnated Oilless Bronze Bushing Customized Size!ize.

*Graphite Impregnated Oilless Bronze Bushing Supply Company. Customized Design Service: Metric Graphite Impregnated Oilless Bronze Bushing Customized Size!

Explore More Custom-made Plain Bearing Components For Die Sets

Will You Be The Next To Join Our Satisfied Clients? Looking forward to a whole range of new die components online.

Solutions-Focussed

Design,Selection & Installation

We believe that the best solutions are reached through a sound understanding of the problem, with small to very large sleeve oilless bearing bushing & wear plate machining capacity.
