Phosphor Bronze Bearing Material: An In-depth Look at Its Technical Aspects and Applications

In the world of mechanical engineering, the significance of high-performance materials cannot be overstated. One such material is phosphor bronze, specifically when used in the manufacture of bearings. This article delves into the technical characteristics and applications of phosphor bronze bearings, with a particular focus on the 090 and 092 series bronze bushing bearings and the concept of Tin Bronze Bushings.Superior Heat Resistance: These bushings can maintain their structural integrity under high temperatures, making them suitable for applications with high thermal conditions.

solid bronze bushings The traditional and robust bushing materia

C544 Phosphor Bronze Bushing/Bearing

C54400 Alloy, C544 Phosphor Bronze Bushing

Self-Lubricating: The graphite plugs provide continual lubrication to the mating parts, reducing maintenance needs and enhancing component longevity. C54400, also known as C544 Phosphor Bronze, is a specific type of bronze alloy frequently used for manufacturing bushings or bearings due to its excellent wear resistance and anti-corrosion properties. Customization: These bushings/bearings can be custom-made as per client drawings and specifications, ensuring a perfect fit for the application. The customization can include variations in the inner and outer diameters, length, shape, and surface finish. The C54400 Phosphor Bronze Graphite Plugged Bushing is a specialized bushing crafted from phosphor bronze alloy C54400 and embedded with graphite plugs. This bushing leverages the superior properties of C54400 phosphor bronze and the self-lubricating characteristics of graphite to deliver high performance in various applications. The graphite plugs are embedded in the bearing surface, providing self-lubricating properties to the bushing.

  • Product Description: The C544 Phosphor Bronze B-2 Bushing is a precision component manufactured from a specific phosphor bronze alloy known as C54400. It is also known as “Free-Cutting Phosphor Bronze” due to its machinability.

  • Material Composition: The alloy consists of copper, combined with 0.01–0.35% phosphorus and 0.50–11.00% tin, enhancing both corrosion resistance and wear resistance.

  • Applications: C54400 Phosphor Bronze Bushings are ideal for various industrial applications, including construction machinery, automotive components, agriculture machinery, transmissions, and more.

C54400 Alloy, C544 Phosphor Bronze bushing

C54400 Phosphor Bronze Graphite Plugged Bushing, High Load Carrying Capacity: The bushings can bear heavy loads effectively, making them ideal for various heavy-duty applications.

85%

Product Quality Index

92%

Energy Generation

Phosphor Bronze: A Prime Material for Bearings

specializing in Phosphor Bronze, A Detailed Exploration of C54400 Alloy: The Backbone of Phosphor Bronze Bushing Bearings

Phosphor Bronze is a type of bronze alloy that includes additions of tin and phosphorous. This alloy is acclaimed for its strength, resilience, and excellent resistance to wear and fatigue, making it a preferred material for bearing production. Bronze alloys, particularly Phosphor Bronze, have earned a solid reputation for their excellent mechanical properties and corrosion resistance. Among these alloys, the C54400, or C544 Phosphor Bronze, has become a favored choice for creating bushing bearings. In this article, we delve into the attributes and applications of C54400 alloy and its importance in bushing bearings.

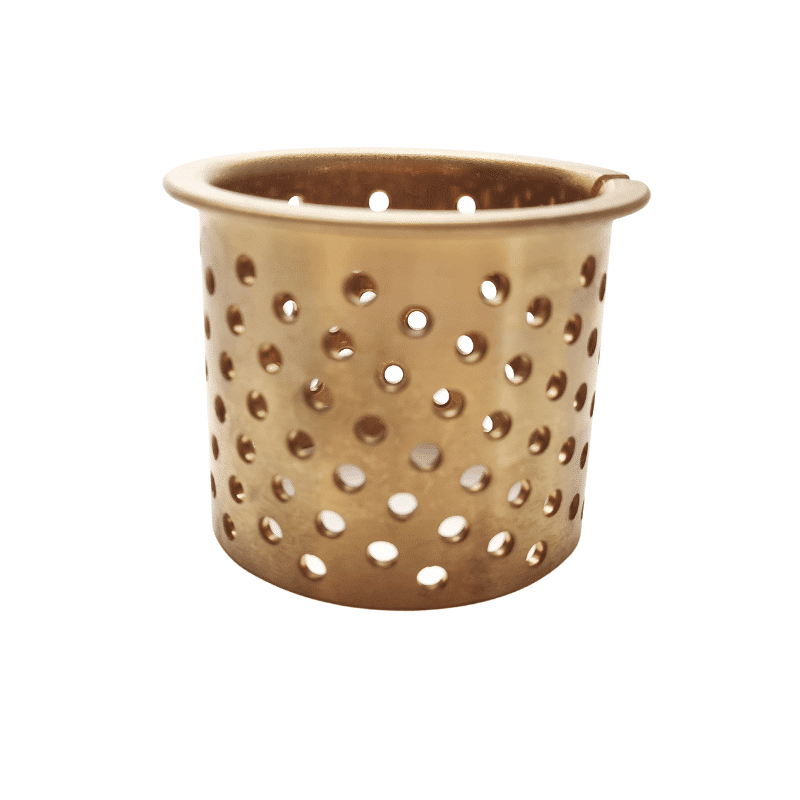

FLANGE Bronze Bearing: CuSn8 with Grease Reservoirs
CuSn8P glidlager bushes - metric Bushings, bronze plain bearing material CuSn8 with lubrication pockets

C54400 Alloy: C544 Phosphor Bronze Bushing Bearings

C54400, also known as Phosphor Bronze Grade B, is a unique alloy consisting primarily of copper, tin, and phosphorus. The typical elemental breakdown includes about 88.2% copper, 4% tin, and 0.25% phosphorus. Its precise composition may vary slightly depending on the manufacturing process and source.

The alloy is renowned for its high strength, durability, and superior machinability compared to other bronze alloys. The addition of phosphorus not only improves stiffness and toughness but also enhances the alloy’s wear resistance and fine particle size during machining, which makes it ideal for manufacturing intricate parts with excellent surface finishes. The combination of strength, durability, and machinability makes C54400 a prime choice for manufacturing bushing bearings. Bearings made from this alloy are known for their excellent resistance to wear and corrosion, making them particularly well-suited to harsh, high-stress environments.

Phosphor Bronze, Applications: Industrial – Selecting Bronze Bearing Materials

Advantages of Bronze Bushing Bearings,Standard Tolerance for Bronze Bearing

  • The standard tolerance for bronze bearings is in accordance with DIN 1494 / ISO 3547, which helps in maintaining consistent quality and performance across the bearings. Utilizing bronze bearings also contributes to significant copper savings and reduced machining hours.

    VIIPLUS CHINA, for instance, provides high-quality self-lubricating products for various industries worldwide. The company also offers electronic samples of all products and models, alongside non-standard products to meet diverse customer needs.

  • Advantages of Bronze Bushing Bearings

    Bronze bushing bearings offer numerous benefits, including light weight, low cost, and high load capacity. The friction surface can be processed to feature various points and pits for storing grease, extending the refueling time by five times compared to traditional copper sets. These bearings are particularly suited to rough friction surfaces and are available in various forms, such as straight sets, thrust washers, flanged bushings, skateboards, and steel sleeve assemblies.

  • Phosphor bronze, particularly the tin bronze alloy CuSn8, plays a pivotal role in the production of durable and high-performance bearings. The technical characteristics and application areas of these bearings highlight their significance in numerous industries, particularly those involving high-load and low-speed conditions. As technology advances, we can anticipate even more innovative uses and improvements for these essential components.

  • Bushing bearings are crucial mechanical components that reduce friction between rotating parts, typically in a high-load, low-speed scenario. The high wear resistance of C544 Phosphor Bronze bushing bearings allows them to handle these high-stress conditions for prolonged periods, thus extending the service life of the machinery they are used in.

    The fine particle size achieved during the machining of C54400 also results in a smooth bearing surface, further reducing friction and enhancing the efficiency of the mechanical systems where these bushings are employed.

  • Applications of C544 Phosphor Bronze Bushing Bearings

    C544 Phosphor Bronze bushing bearings find wide use across various industries due to their unique properties. Their high wear resistance, coupled with excellent corrosion resistance, makes them a suitable choice for marine applications, where parts are frequently exposed to harsh saline environments.

    They are also commonly used in the automotive and aerospace industries, where high-strength, durable components are paramount. In manufacturing machinery, C544 bushing bearings play a crucial role in reducing friction and ensuring the smooth operation of various moving parts.

    Furthermore, due to their enhanced machinability, C544 Phosphor Bronze bushing bearings can be custom-made to fit specific requirements, further expanding their applicability across diverse fields.

    C54400 Phosphor Bronze is a high-strength, durable, and highly machinable alloy that has proven itself to be an excellent material for manufacturing bushing bearings. Its outstanding wear and corrosion resistance have made it a popular choice in a range of industries, ensuring the smooth operation of machinery and equipment. As industries continue to evolve and demand high-performance materials, the role of C54400 Phosphor Bronze bushing bearings is expected to become even more prominent.

  • C54400 Alloy, C544 Phosphor Bronze Key Features:

    High Wear Resistance: C54400 phosphor bronze bushings can withstand prolonged friction and have a long service life.

    Superior Corrosion Resistance: The alloy composition enables the bushings to resist corrosion in a variety of environmental conditions.

    Excellent Machinability: Known as “Free-Cutting Phosphor Bronze,” C54400 alloy is easy to cut and shape, facilitating custom design.

    Effective Load Bearing: The bushings can effectively bear and distribute loads, reducing wear on associated mechanical components.

discover Phosphor bronze, Tin Bronze – Bearing Bronze Supplier
