Large Flange Bushings: Custom-Made Bronze Parts with Graphite Solid Lubricating (MoS2)

Large diameter bronze bushings are specialized components used in heavy-duty industrial applications.

Large flange bushings crafted from bronze are integral components in numerous industrial applications. Their superior properties and adaptable lubrication options make them ideal for demanding mechanical environments. This blog post delves into the intricacies of large flange bushings made of bronze, highlighting their material and design, lubrication options, key features, benefits, and common applications.

Large Diameter Bearings Material and Design

Large flange bushings are predominantly made from bronze alloys, known for their excellent wear resistance, superb thermal conductivity, and inherent self-lubricating properties. The distinctive flange design features an extended lip on one end, which increases the contact surface area and promotes more uniform load distribution across the bushing.

Large Diameter Bearings Lubrication Options

Bronze flange bushings boast a variety of lubrication methodologies:

  • Self-lubricating: Many of these bushings are designed to be self-lubricating, featuring embedded lubricants within the bronze material or a lubricant film applied to the surface.
  • Oil or Grease Lubrication: Traditional lubrication methods, such as oil or grease, enhance the sliding properties, reduce wear, and protect against corrosion.
  • Graphite Plugs: Some bushings are equipped with graphite plugs, which improve the self-lubrication capability. This feature is particularly beneficial in settings where regular maintenance is challenging.

Key Features and Benefits

  • High Load Capacity: These bushings are capable of supporting high static and dynamic loads, making them suitable for heavy-duty applications.
  • Low Friction: The low coefficient of friction, ranging typically from 0.04 to 0.2, reduces energy consumption and enhances operational efficiency.
  • Wide Temperature Range: These bushings are operational across extreme temperatures, from -415°F to 1,100°F, accommodating a variety of industrial processes.
  • Corrosion and Chemical Resistance: The robust nature of bronze provides resistance against corrosion and many chemical exposures, ideal for harsh environmental conditions.
  • Low Maintenance: Thanks to their self-lubricating features, many of these bushings require minimal maintenance, which can significantly reduce upkeep costs.

Large Diameter Bearings Applications

Large flange bushings find applications across diverse sectors due to their robust characteristics:

  • Industrial Machinery: From production lines to heavy machinery, these bushings ensure smooth operations under high loads.
  • Automotive Components: Utilized in various auto parts, they enhance the durability and efficiency of vehicles.
  • Hydraulic Equipment: Essential in hydraulics for stable, low-friction operations.
  • Agricultural Machinery: In farming equipment, these bushings withstand harsh conditions and heavy usage.
  • High Load, Low Speed Applications: Ideal for scenarios where equipment must perform under great stress without high velocity.

Large Diameter Bearings Flange Bushings

When choosing a large flange bushing made of bronze for specific industrial applications, consider the expected load, speed, temperature, and environmental conditions. Referring to manufacturer specifications and expert guidelines will ensure the correct selection and optimal use of these sophisticated components. Whether upgrading existing machinery or designing new equipment, integrating high-quality bronze bushings with solid lubricants like graphite or MoS2 can lead to significantly improved performance and reliability.

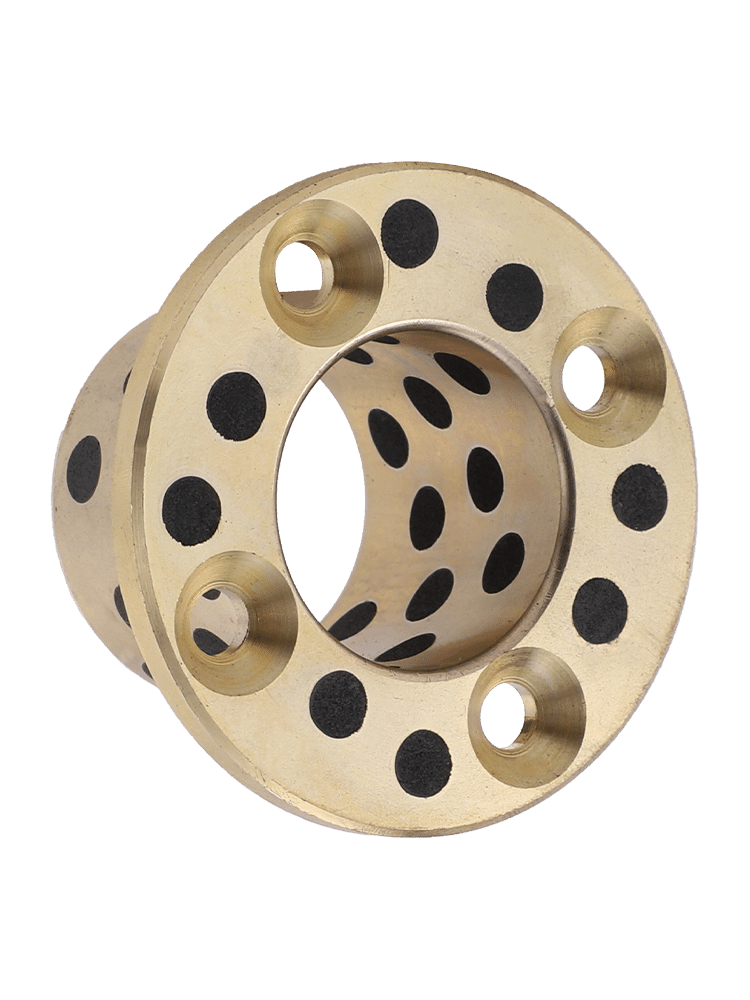

High Strength Brass Bearings With Graphite

Large flange bushings for all applications

Large flange graphite bushings for all applications

Customized large flange bushing and Large Diameter Bearings components are essential for various high-demand mechanical engineering applications, including crane construction, press dies, mold making, wind turbines, and offshore applications.

Large Diameter Bearings Material Options: Common bronze alloys used include:

Leaded Tin Bronze (C93200): Excellent wear resistance and machinability

Aluminum Bronze (C95400): High strength and corrosion resistance

High Leaded Tin Bronze (C94500): Superior machinability, good for low-speed, high-load applications

Manganese Bronze (C86300): High strength and hardness

Large Diameter Bearings Size and Definition:

Large diameter bronze bushings are generally characterized by an outer diameter that exceeds 20 inches (approximately 50 cm). Certain manufacturers have the capability to produce bushings with diameters up to 3 meters, accommodating a wide range of industrial applications.

Large Diameter Bearings Manufacturing Process:

The production of these sizable bushings frequently employs centrifugal casting. This method entails pouring molten bronze into a mold that is spinning rapidly. The centrifugal force helps ensure a uniform and dense structure throughout the bushing, resulting in superior mechanical properties that are well-suited for heavy-duty applications.

Customization: We can produce large bronze bushings according to specific customer requirements, including custom alloys and dimensions

Large Flange Bushings Custom Made Parts

Large Flange bushings for all applications

Here’s a brief overview of the considerations for each application:

  • 1. Crane Construction
    For crane construction, flange bushings need to withstand heavy loads and resist wear under frequent movement. Materials such as hardened steel or reinforced bronze alloys are often used. The design must accommodate axial and radial loads, with customization in flange diameter and thickness to meet specific requirements.

    2. Press Dies and Mold Making
    In press dies and mold making, flange bushings are subject to high pressure and cyclic stress. Materials like high-grade tool steel or nickel-based alloys might be selected for their strength and fatigue resistance. Customized bushings can also include surface treatments or coatings to minimize wear and corrosion.

    3. Wind Turbines
    Wind turbine applications require bushings that can handle dynamic loads and operate reliably in variable weather conditions. Customized flange bushings for this application are typically made from materials with excellent corrosion resistance and durability, such as stainless steel or advanced composites. Design considerations include low friction properties and resistance to environmental elements.

    4. Offshore Applications
    For offshore platforms and equipment, flange bushings must withstand harsh marine environments. Materials like bronze with high corrosion resistance or duplex stainless steels are common choices. The design of these bushings often includes features to prevent seawater ingress and cope with high saline environments.

    5. General Considerations
    Material Selection: Based on the specific environmental conditions and mechanical requirements, materials are chosen for their strength, wear resistance, and corrosion resistance.

  • Custom Dimensions: Tailoring the outer diameter, inner diameter, flange size, and thickness to fit the specific assembly or space constraints.

    Surface Treatments: Depending on the application, surface treatments like galvanizing, anodizing, or applying anti-corrosion coatings might be necessary.

    Maintenance Features: Designing for ease of maintenance and replacement, including options for lubrication channels or self-lubricating materials to reduce downtime.

    Customized flange bushings are critical for ensuring the reliability and efficiency of machinery in demanding applications, and each component must be precisely engineered to meet the unique demands of its intended use.
