How Big Size Bronze Bushes Excel in Heavy Duty Applications

Cannabis for a better life

Heavy-duty applications demand components that are both durable and reliable. Discover how large-sized bronze bushings excel over other bushing materials in challenging environments. Heavy-duty applications require durable and reliable components. Learn how big size bronze bushes can outperform other bushing materials in these tough environments.

Bronze Bushes – Metric Size

bronze bushings plugged graphite

Bronze bushes, also known as bronze bearings, are essential components in various industries due to their self-lubricating and wear-resistant properties. They are available in various sizes, including large or big sizes, and metric measurements are used for standardization purposes.

Cylindrical or Flanged Bushing

Oilless Bushing spb

Bronze bushes consist of a cylindrical or flanged shape made from bronze, an alloy of copper and tin. They are widely used in applications where durability, low friction, and resistance to wear are crucial, such as heavy machinery, automotive, and industrial equipment.

Large Size Bronze Bearings

NAAMS (North American Automotive Metric Standards) flange bushing graphite

Extra Large Bronze Bushing – Imperial, Specifically designed for heavy-duty applications, offer several advantages

Big Size Bronze Bushes: The Superior Choice for Heavy-Duty Applications

Beautifully crafted leather products.

Heavy-duty applications in industries such as construction, mining, and marine engineering demand components that can withstand harsh conditions and operate reliably for extended periods. Big size bronze bushes have emerged as the ideal solution for these demanding environments due to their exceptional durability, high load capacity, and resistance to wear and corrosion.

Extra large bronze bushings, measured using the imperial system (inches), are designed to handle heavy-duty applications that require exceptional load-bearing capacity and robustness. These bushings are typically used in industries such as mining, shipbuilding, and heavy machinery manufacturing, where durability and performance are crucial.

phosphor bronze bearing lubrication
Bronze Parts in Metal Rolling Mills
cast bronze cnc bearing

The Advantages of Big Size Bronze Bushes in High-Temperature Applications

High-temperature applications demand robust materials. Discover why big size bronze bushes are an excellent choice for high-temperature environments and how they can improve your application’s performance.

Extra large bronze bushings measured using the imperial system offer exceptional load-bearing capacity, low friction, and resistance to wear, corrosion, and heat, making them ideal for heavy-duty applications in various industries. Their ease of installation and low maintenance requirements further contribute to their popularity and effectiveness in demanding environments.

Understanding the Key Features of Big Size Bronze Bushes

Discover the essential features of big size bronze bushes and why they are important for your application. Big size bronze bush, Product Features. Learn how to choose the right bronze bush for your needs.

Extra Large Bronze Bushing – ID 2000mm: Extra large bronze bushings, such as those with an inner diameter (ID) of 2000mm, are specifically designed for applications that require exceptional load-bearing capacity and robustness. With their large size and unique properties, these bushings can be used in various heavy-duty applications, such as industrial machinery, shipbuilding, and mining equipment. When selecting an extra large bronze bushing measured in the imperial system, consider factors such as the type of application, load capacity, operating temperature, and environmental conditions. Ensure that the chosen bushing meets the specific requirements of your application in terms of size, material, and design to optimize performance and durability.

flange groove bronze bearings
BRASS BUSH GROOVE BEARINGS SAE 660 Bronze Bearings Grooved and Flanged Flange OD

Browse Our Big size bronze bushes.

Big size bronze bushes offer a range of benefits that make them the superior choice for heavy-duty applications. With high load capacity, exceptional wear and corrosion resistance, self-lubricating properties, high thermal conductivity, and customizable design options, bronze bushes can outperform other bushing materials in the toughest environments. By choosing bronze bushes for your heavy-duty applications, you can ensure reliable performance and extended component life, ultimately resulting in significant cost savings and increased productivity. Extra large bronze bushings are ideal for heavy-duty applications in various industries, offering exceptional load-bearing capacity, low friction, and resistance to wear, corrosion, and heat. Their ease of installation and low maintenance requirements further contribute to their popularity and effectiveness in demanding environments.

Large bronze bushings, designed for heavy-duty use, are integral to various machinery and industrial sectors such as construction equipment, hydroelectric projects, offshore marine operations, and the nuclear industry. These bushings are engineered to bear significant loads and high pressures, leveraging bronze for its durability and anti-corrosion properties. The performance of these large bronze bushings hinges on their design, manufacturing process, and lubrication strategies, with the selection of the bronze alloy significantly influencing their ultimate characteristics. Leaded tin bronze (C93200) and aluminum bronze (C95400) are among the common alloys chosen for these bushings. Some bushings incorporate a blend of bronze and graphite, enhancing wear resistance and minimizing friction, making them ideal for even the most rigorous tasks. Crafting bushings with diameters up to 3 meters is a sophisticated process that requires specialized expertise and meticulous attention to detail. Custom manufacturers excel in creating bushings tailored to meet precise requirements, ensuring they deliver peak performance and extended service life.

Extra Large Bronze Bushing: An Overview

Bronze bushings are essential components used in a wide range of applications, from automotive and aerospace to industrial machinery and heavy-duty equipment. They are designed to provide low friction, high load capacity, and long-lasting performance in demanding environments. Two common bronze bushing materials are CuAl10Ni6Fe5 and CuZn25Al5Mn4Fe3 (CuZn25Al5), which offer unique characteristics to meet different requirements.

  1. CuAl10Ni6Fe5: CuAl10Ni6Fe5, also known as aluminum bronze, is a high-strength alloy with excellent wear resistance, corrosion resistance, and good thermal conductivity. Its composition includes copper, aluminum, nickel, and iron. This material is suitable for applications where high load capacity, resistance to wear, and resistance to fatigue are critical.

  2. CuZn25Al5Mn4Fe3 (CuZn25Al5): CuZn25Al5Mn4Fe3, commonly known as manganese bronze, is a high-strength, low-friction alloy that exhibits excellent wear and corrosion resistance. Its composition comprises copper, zinc, aluminum, manganese, and iron. This material is ideal for applications requiring low friction, good mechanical strength, and resistance to corrosion.

Bronze Bearing and Bushing Terms:

  • RG7: RG7 is another designation for the CuSn7Zn4Pb7 bronze alloy. It has high wear resistance, good sliding properties, and excellent machinability, making it suitable for various bearing applications.

  • CuSn7Zn4Pb7: This tin bronze alloy, also known as C93200 or SAE 660, is widely used in bearing and bushing applications. It offers good wear resistance, low friction, and high load capacity. It is suitable for medium to heavy loads, especially in applications where lubrication is inadequate or intermittent.

  • C93200: This is the UNS (Unified Numbering System) designation for the CuSn7Zn4Pb7 alloy, also known as SAE 660 or RG7.

Bronze Bearing and Bushing Applications: Bronze bushings are commonly used in various industries for their low friction, high load capacity, and excellent wear resistance. Typical applications include:

  • Automotive: transmission and suspension components

  • Aerospace: landing gear and actuation systems

  • Industrial machinery: gearboxes, pumps, and motors

  • Heavy-duty equipment: construction and mining equipment, agricultural machinery, and marine applications

Extra-large bronze bushings made from materials like CuAl10Ni6Fe5 and CuZn25Al5Mn4Fe3 offer excellent wear resistance, low friction, and high load capacity for a wide range of applications. The choice of material depends on the specific requirements of the application, such as the need for corrosion resistance, strength, or thermal conductivity.

Extra Large Bronze Bushing Material for Heavy Duty Applications

Bronze bushings are essential components in various heavy-duty applications, such as construction equipment, mining machinery, agricultural machinery, and transportation equipment. These bushings are designed to provide excellent wear resistance, low friction, and extended service life under demanding conditions. In heavy-duty applications, extra-large bronze bushings are often required to withstand high loads and pressures while maintaining their performance and reliability.

Several bronze alloy materials can be used for manufacturing extra-large bronze bushings suitable for heavy-duty applications. Some of the most commonly used materials include:

  1. C93200 (SAE 660) Bearing Bronze: C93200, also known as SAE 660, is a high-strength, general-purpose bearing bronze alloy. It contains approximately 83% copper, 7% tin, and 7% lead, with traces of zinc and other elements. This alloy offers excellent wear resistance, good machinability, and superior load-carrying capacity, making it a popular choice for heavy-duty bushings.

  2. C95400 Aluminum Bronze: C95400 is an aluminum bronze alloy that contains approximately 85% copper, 11% aluminum, and 3% iron. This alloy offers exceptional strength, high wear resistance, and excellent corrosion resistance. Its high load-carrying capacity, combined with good fatigue resistance, makes it an ideal choice for heavy-duty applications.

  3. C86300 Manganese Bronze: C86300 is a high-strength manganese bronze alloy that contains approximately 63% copper, 25% zinc, 6% aluminum, and 3% manganese. This alloy offers excellent wear resistance, high strength, and superior corrosion resistance. C86300 is often used in heavy-duty applications where high loads and pressures are encountered.

  4. C90700 Tin Bronze: C90700, also known as SAE 65, is a tin bronze alloy that contains approximately 89% copper, 10% tin, and 1% zinc. This alloy offers high strength, excellent wear resistance, and good corrosion resistance. It is often used in applications where high loads and pressures are encountered.

  5. C95900 Aluminum Bronze: C95900 is an aluminum bronze alloy that contains approximately 81% copper, 15% aluminum, and 3% iron. This alloy offers high strength, excellent wear resistance, and superior corrosion resistance. Its high load-carrying capacity and excellent fatigue resistance make it suitable for heavy-duty applications.

When selecting the appropriate extra-large bronze bushing material for heavy-duty applications, factors such as load capacity, wear resistance, corrosion resistance, machinability, and cost should be considered. The choice of material will depend on the specific application and its requirements, as well as the availability and cost of the selected alloy.

Selecting Bronze Bearing Materials for Industrial Applications

Bronze bearing materials are widely used in various industrial applications due to their excellent self-lubricating properties, high load-carrying capacity, and resistance to wear and corrosion. To select the appropriate bronze bearing material for your specific application, consider the following factors:

  1. Load and speed: Analyze the load and speed requirements of your application to determine the best bronze material. For high-load and low-speed applications, leaded tin bronze (C93200) is suitable, whereas aluminum bronze (C95400) is more suitable for high-speed and low-load applications.

  2. Wear resistance: If your application requires a high degree of wear resistance, choose a material with high hardness and strength. Phosphor bronze (C54400) and aluminum bronze (C95400) are excellent choices for applications with high wear resistance requirements.

  3. Corrosion resistance: Assess the environment in which the bearing will operate to determine the need for corrosion resistance. Aluminum bronze (C95400) and silicon bronze (C87600) are suitable materials for applications that require superior corrosion resistance.

  4. Lubrication: For applications with limited or no external lubrication, select a bearing material with good self-lubricating properties. Leaded tin bronze (C93200) and oil-impregnated sintered bronze are ideal choices for such applications.

  5. Thermal conductivity: If your application generates significant heat, consider a bearing material with high thermal conductivity to dissipate heat effectively. Aluminum bronze (C95400) is an excellent choice for applications with high thermal conductivity requirements.

  6. Machinability: Choose a bearing material that is easy to machine if your application requires custom sizes or shapes. Leaded tin bronze (C93200) and phosphor bronze (C54400) are known for their excellent machinability.

  7. Cost-effectiveness: Balance material performance and cost to ensure that you are selecting the most cost-effective material for your application. Leaded tin bronze (C93200) is a popular choice for its relatively low cost while offering good overall performance.

In conclusion, consider the specific requirements and operating conditions of your industrial application when selecting bronze bearing materials. Popular bronze materials include leaded tin bronze (C93200), aluminum bronze (C95400), phosphor bronze (C54400), silicon bronze (C87600), and oil-impregnated sintered bronze. Evaluate factors such as load and speed, wear resistance, corrosion resistance, lubrication, thermal conductivity, machinability, and cost-effectiveness to make an informed decision.

Large Manganese Bronze Bearings for High-Speed, Heavy-Duty Applications

Manganese bronze bearings are an excellent choice for heavy-duty applications that require operation at high speeds under heavy loads. This alloy offers a unique combination of strength, wear resistance, and excellent corrosion resistance, making it suitable for demanding environments and challenging industrial applications. Here are some key features of large manganese bronze bearings:

  1. High strength: Manganese bronze is known for its high tensile and yield strength, which enables it to withstand heavy loads and resist deformation under stress. This property makes it particularly suitable for applications such as heavy machinery, construction equipment, and marine applications.

  2. Wear resistance: Manganese bronze exhibits good wear resistance due to the presence of manganese and other alloying elements. This helps to reduce friction and wear on the bearing surfaces, increasing the service life of the component.

  3. Corrosion resistance: Manganese bronze offers excellent corrosion resistance, particularly in marine environments, where exposure to saltwater and other corrosive elements is common. This characteristic makes manganese bronze bearings suitable for applications in marine, offshore, and other corrosive environments.

  4. High-speed operation: Large manganese bronze bearings are designed to operate at high speeds while maintaining their structural integrity and performance. The alloy’s excellent wear resistance and strength contribute to its ability to perform under these demanding conditions.

  5. Self-lubricating properties: Manganese bronze bearings exhibit self-lubricating properties, which help to reduce the need for external lubrication, especially in environments where lubrication can be challenging to maintain.

  6. Durability and longevity: Due to their excellent wear resistance, corrosion resistance, and strength, large manganese bronze bearings offer extended service life and low maintenance requirements. This makes them ideal for heavy-duty applications where long-term reliability is crucial.

Large manganese bronze bearings are an ideal choice for heavy-duty applications that require operation at high speeds under heavy loads. Their high strength, wear resistance, corrosion resistance, self-lubricating properties, and durability make them a reliable and long-lasting solution for demanding industrial environments.

Solid Bronze Bushings: A Comprehensive Guide

Everything You Need to Know About Bronze Bushings

Identifying and Solving Bronze Bushing Wear Issues

Bronze bushings are a popular choice for many industrial applications.

oilless cast bronze bearings with graphite plugs bearing with graphite plugs
High Load Capacity

Bronze bushes are known for their ability to handle high loads, making them suitable for heavy-duty applications where other materials may fail. This is due to the high tensile strength and excellent mechanical properties of bronze, which allows it to maintain its structural integrity even under extreme pressure.

Oil groove bronze bearings
Wear Resistance

The nature of heavy-duty applications often involves constant friction between moving parts. Bronze bushes exhibit low friction and excellent wear resistance, which minimizes the rate of wear and extends the service life of the component. This superior wear resistance can also reduce maintenance costs and downtime, recognized to increased productivity and cost savings for businesses.

GREASE BUSHING Grooved and Flanged Flange SAE 660 Bronze Bearings
Corrosion Resistance:

Heavy-duty environments often expose components to moisture, chemicals, or other corrosive substances. Bronze bushes are inherently resistant to corrosion, which helps them maintain their performance and structural integrity over time. This resistance to corrosion is especially valuable in marine applications or any other environment with high humidity or exposure to saltwater.

bronze bushing C932 bearings with oil grooves or CuZn25Al5 graphite
Self-lubricating Properties

Some bronze bushes are designed with self-lubricating properties, which can further reduce friction and wear between moving parts. This can be achieved by incorporating lubricant-filled grooves or embedding solid lubricant plugs within the bushing. These self-lubricating features minimize the need for additional lubrication, simplifying maintenance and reducing the risk of contamination from external sources.

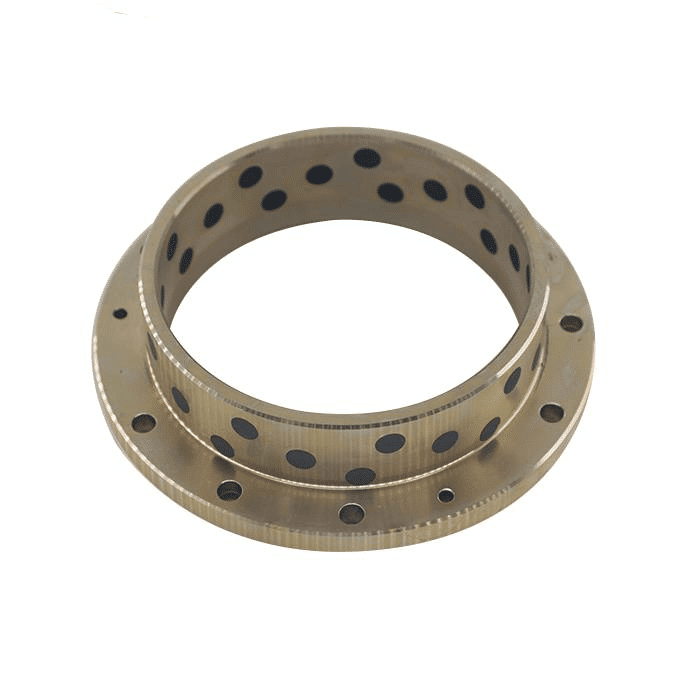

cast bronze bearing
High Thermal Conductivity

Bronze has high thermal conductivity, which allows it to dissipate heat effectively. In heavy-duty applications where high temperatures are common, this characteristic helps prevent overheating and premature component failure, ensuring reliable performance even in the most challenging conditions.

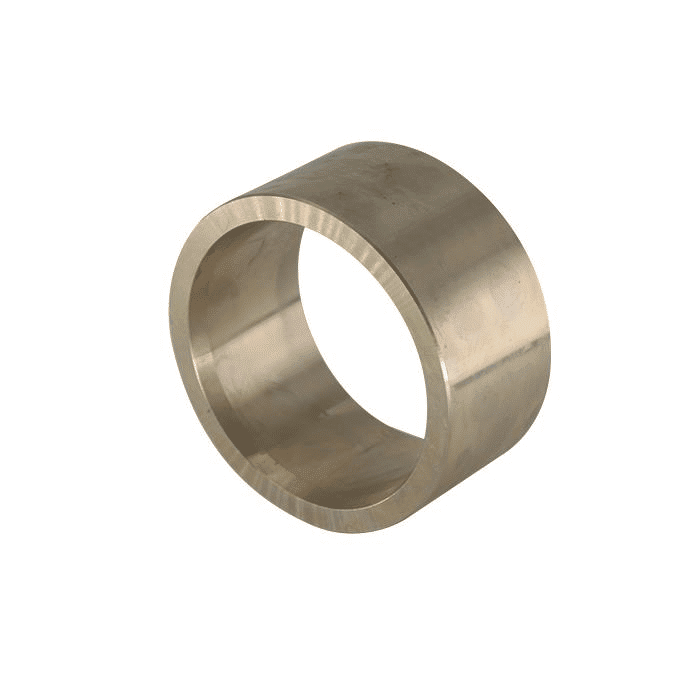

cast bronze bushings
Customizable Design

Bronze bushes can be customized to meet the specific requirements of a particular application. This includes adjusting the size, shape, and material composition of the bushing to optimize its performance and ensure a perfect fit with other components. This adaptability makes bronze bushes suitable for a wide range of heavy-duty applications across various industries.

Large size bronze bearings, specifically designed for heavy-duty applications, offer several advantages, including:

  • High Load Capacity: Large size bronze bearings are capable of supporting heavy loads, making them ideal for use in heavy-duty machinery, construction equipment, and transportation vehicles.
  • Low Friction: The self-lubricating property of bronze bearings reduces friction between moving parts, minimizing wear and tear on components and contributing to longer service life.
  • Corrosion Resistance: Bronze is resistant to corrosion, which makes these bearings ideal for use in harsh environments or applications exposed to water, salt, or chemicals.
  • Heat Resistance: Bronze bearings have excellent heat resistance properties, allowing them to maintain their shape and structure even under high temperatures.
  • Easy Installation: Due to their simple design and standard metric measurements, large size bronze bearings can be easily installed and replaced in various applications.
  • Low Maintenance: Bronze bearings require minimal maintenance and lubrication, reducing downtime and maintenance costs.

When selecting large size bronze bearings, consider factors such as the type of application, load capacity, operating temperature, and environmental conditions. Make sure to choose the appropriate size, material, and design to ensure optimal performance and durability in your specific application. Large size bronze bearings are a reliable and cost-effective solution for heavy-duty applications that require high load capacity, low friction, and resistance to wear, corrosion, and heat. Their ease of installation and low maintenance requirements make them a popular choice in various industries.

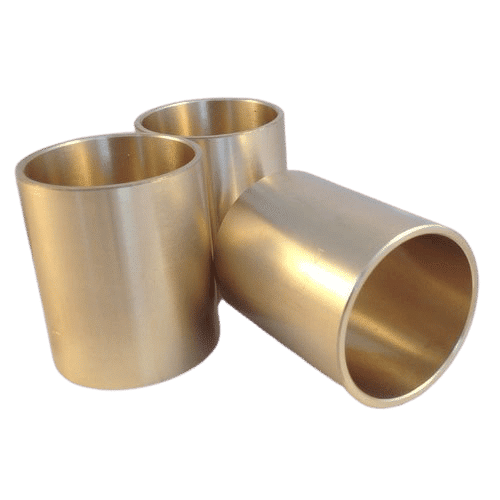

bronze bearing bush
