Guided Ejector Bushings in Injection Molding Machines

Guided ejector bushings are crucial components in injection molding machines, designed to guide and align ejector pins during the ejection process. These bushings ensure that molded parts are ejected smoothly and accurately, minimizing the risk of damage to the parts and the mold.

Material Options for Guided Ejector Bushings

Solid Bronze:

  • Advantages: Known for their durability, solid bronze bushings prevent galling to leader pins, facilitate smooth operation, and extend the lifespan of ejection components.
  • Applications: Best suited for settings where high wear resistance is essential and lubrication may be challenging.
  • Examples: VIIPLUS Company offers solid bronze flange guided ejector bushings with internal grease grooves to enhance smooth operations. Progressive Components provides solid bronze bushings that are engineered to outperform traditional steel bushings.

Graphite Plugged:

  • Advantages: Graphite plugged bushings feature embedded graphite plugs for self-lubrication, eliminating the need for additional greasing and making them ideal for high-load and high-temperature applications.
  • Applications: Ideal for environments where regular lubrication is impractical, such as in high-temperature conditions.
  • Examples: We provides graphite plugged bushings that ensure alignment and minimize wear on ejection components. viiplus offers guided ejector bushings made from solid aluminum bronze with self-lubricating graphite, available in various industry-standard sizes.

Key Features and Benefits

  • Alignment and Support: These bushings guarantee that ejector pins are kept straight and properly aligned during ejection, crucial for preserving the quality of the molded parts and the integrity of the mold.
  • Material Versatility: The availability of materials like solid bronze and graphite-plugged bronze allows customization to meet specific needs related to wear resistance and lubrication.
  • Extended Component Life: By reducing friction and wear, these bushings help prolong the life of ejection components, enhancing both efficiency and cost-effectiveness.

Selection Criteria

When choosing guided ejector bushings, consider these factors:

  • Size and Shape of the Mold Cavity: Ensure the bushings fit the specific dimensions and requirements of the mold.
  • Complexity of the Ejection Process: Select the appropriate bushing type (straight, angled, or stepped) based on the ejection process complexity.
  • Environmental Conditions: Opt for materials that can withstand the operational conditions, such as high temperatures or the need for self-lubrication.

In conclusion, guided ejector bushings made from solid bronze and graphite-plugged materials provide significant benefits in terms of durability, alignment, and lubrication, proving essential in the injection molding industry.

High Strength Brass Bearings With Graphite

GUIDE BUSH BRONZE

Guided Ejector Bushings Precision Tooling And Parts.

Made of solid aluminum bronze either with or without self-lubricating graphite,Our guided ejector bushings come in a variety of industry standard sizes. Bronze w/Graphite！

Custom Washer Manufacturer

Thrust Bearings and Custom Washer

custom bronze washer with groove using CNC precision machining:

  1. Tin Bronze Alloys:
    The C90000 series alloys are tin bronzes that could be suitable for a custom washer:
  • C90300: 88% Cu, 8% Sn, 4% Zn
    Tensile strength: 40,000 psi, Yield strength: 18,000 psi, Elongation: 20%
  • C90500: 88% Cu, 10% Sn, 2% Zn
    Tensile strength: 40,000 psi, Yield strength: 18,000 psi, Elongation: 20%

These alloys offer a good balance of strength and ductility for machining.

  1. CuSn10 Bronze:
    Material code: CC480K
    Key properties:
  • Tensile strength: 495-516 MPa
  • Yield strength: 373-385 MPa
  • Elongation: 16-22%
  • Hardness: 159-160 HV10

This alloy provides excellent wear and corrosion resistance, making it suitable for washers.

  1. Aluminum Bronze:
    Material code: CW307G / CA104
    Composition: 8.5-11% Al, 4-6% Ni, 3-5% Fe, balance Cu
    Key properties:
  • Tensile strength: 680-740 MPa
  • Yield strength: 320-400 MPa
  • Hardness: 170-210 HB

Aluminum bronze offers high strength and excellent corrosion resistance, ideal for demanding applications.When selecting an alloy for CNC machining a custom bronze washer with groove, consider factors like:

The specific alloy choice will depend on the washer’s intended application and performance requirements. CNC machining allows for precise creation of custom groove patterns and tight tolerances with these bronze alloys.

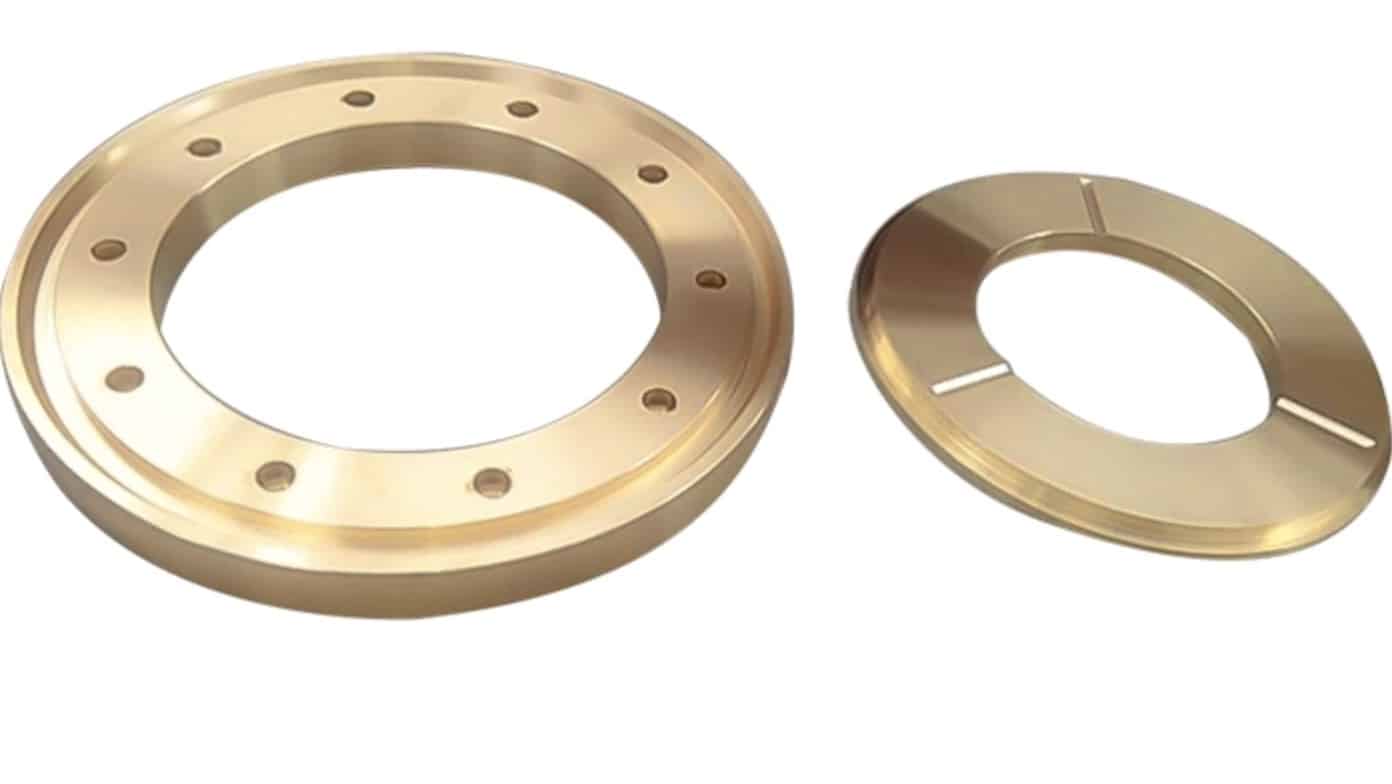

CuAl10Ni5F4 bronze bearing custom parts

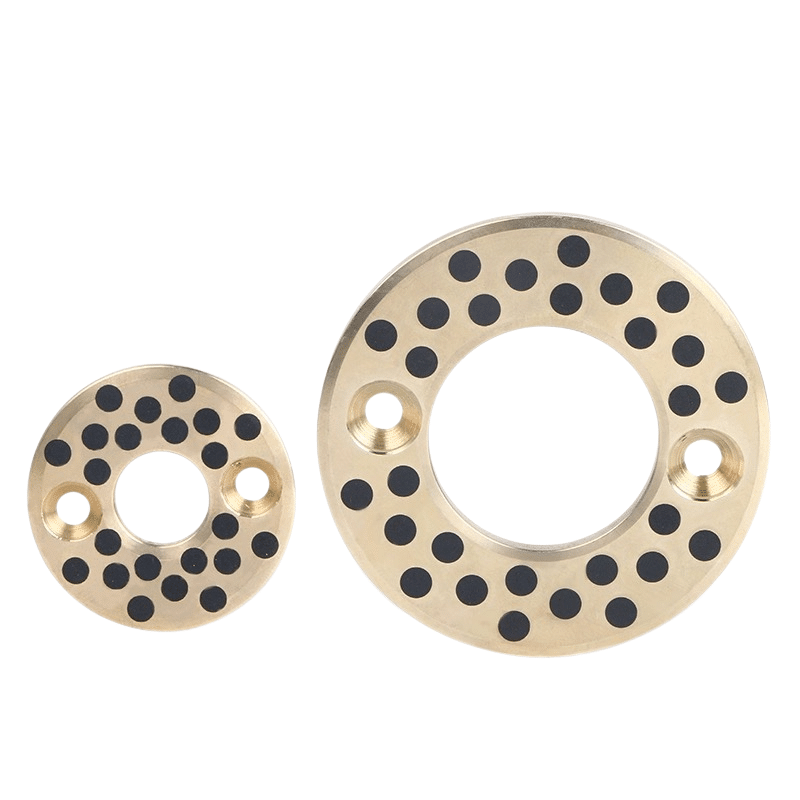

Graphite Plugged Bronze Washer
Pb2 : ALU BRONZE WASHER Bearing
Oversized Plain Bearing Thrust Washer Large Diameter Bronze Bearings
