Why are there so many different bearing materials?
Bearing Materials – Chrome Steels, Stainless Steels, and Plastics
Bearing Material Consulting and Design: Crafting Each Bearing with Precision
Our approach to bearing design centers on bespoke solutions, tailoring each component to meet specific application needs. Here’s an overview of our plain bearing designs and materials:
Plain Bearing Basics: Plain bearings, also known as sliding bearings, operate on sliding friction. These bearings function smoothly, reliably, and quietly, particularly under liquid lubrication where the sliding surface is shielded by a lubricating oil film. This setup minimizes friction loss and surface wear while absorbing vibrations. However, they typically exhibit higher initial friction resistance. The supported shaft section is termed the journal, and the corresponding components are called the bearing bush, often lined with a friction-reducing material for enhanced performance.
Common Applications and Materials: Plain bearings are ideal for high-speed and light-load scenarios. They are made from various materials including:
- Bearing alloy (Babbitt alloy or white metal)
- Wear-resistant cast iron
- Copper and aluminum-based alloys
- Powder metallurgy materials
- Plastics (like phenolic plastics, nylon, PTFE)
- Rubber
- Hardwood
- Carbon-graphite
Design and Function: These bearings are designed to absorb and transfer forces between moving parts, maintaining positional accuracy and facilitating the conversion of motion types. They generally possess a self-lubricating capability, crucial for reducing maintenance.
Material Categories:
- Metallic: Early 21st-century designs often used three-layer composite bearings, combining a carbon steel base with a sintered spherical copper powder layer and a top layer of PTFE for lubrication.
- Non-Metallic: Plastic bearings, crafted from high-performance engineering plastics, often undergo modifications for enhanced self-lubrication through additives like fibers or special lubricants.
Manufacturing Materials:
- Metal Materials: Includes white metals (tin, lead, antimony alloys), bronze, and other metal alloys known for their wear resistance, thermal conductivity, and compatibility with lubricants.
- Porous Metal Materials: Utilized in low-impact, medium to low-speed conditions due to their inherent self-lubricating properties.
- Non-Metallic Materials: Such as phenolic plastics and nylon, these materials offer good compressive strength and wear resistance, suitable for varied lubrication conditions including oil and water.
Material Evolution: The development of bearing materials has been driven by the need to meet diverse industrial demands and optimize performance versus cost, especially in high-volume production. Recent advancements have expanded the application scope of dry-running plain bearings through innovative material use.
In summary, our bearing designs integrate a range of materials, each selected to maximize bearing performance and life span across various applications, from industrial machinery to sophisticated devices. Each bearing is a testament to our commitment to innovation and quality.
Sliding Bushings and Bearings: Comprehensive Applications and Insights
Sliding bushings and bearings are extensively utilized across various applications, primarily for their smooth, reliable, and noiseless operational characteristics. Here is a detailed description of sliding bushings and bearings, including their applications, materials, structure, and supplier information.
Applications of Sliding Bushings and Bearings: Sliding bushings and bearings are employed in multiple industries, including:
-
Automotive Industry:
- Door hinges
- Seat adjustment mechanisms
- Engine and transmission components
-
Industrial Machinery:
- Pumps and compressors
- Conveyor systems
- Packaging machinery
-
Aerospace:
- Aircraft control systems
- Landing gear
-
Marine Industry:
- Propeller shafts
- Rudder systems
-
Construction Equipment:
- Excavators
- Loaders
-
Agricultural Machinery:
- Tractors
- Harvesters
-
Renewable Energy:
- Wind turbines
- Solar tracking systems
-
Medical Equipment:
- Medical instruments
- Diagnostic devices
Main Features of Sliding Bearings: Sliding bearings operate under liquid lubrication, characterized by:
- Smooth, reliable, and noise-free operation: The lubricating oil film reduces friction loss and surface wear, and has some vibration damping capabilities.
- Suitable for high-speed, light-load conditions.
Materials Used in Sliding Bearings: Sliding bearing materials are diverse and include:
- Bearing alloys (such as Babbitt alloy): Known for excellent wear resistance, high plasticity, and good thermal conductivity, suitable for high-load and high-speed conditions.
- Wear-resistant cast iron: Used for medium-load and speed applications.
- Copper and aluminum-based alloys: Noted for their wear resistance and thermal conductivity.
- Powder metallurgy materials: Offer self-lubricating properties, suitable for stable, non-impact loads, and medium to low-speed conditions.
- Plastics (such as nylon, PTFE): Have high compressive strength and wear resistance, can be lubricated with oil and water, and also exhibit self-lubricating properties.
- Rubber and hardwood: Used for special application conditions.
Structure and Manufacturing Materials: Sliding bearings are categorized into non-metallic and metallic bearings:
- Non-Metallic Bearings: Primarily plastic bearings, usually made from high-performance engineering plastics.

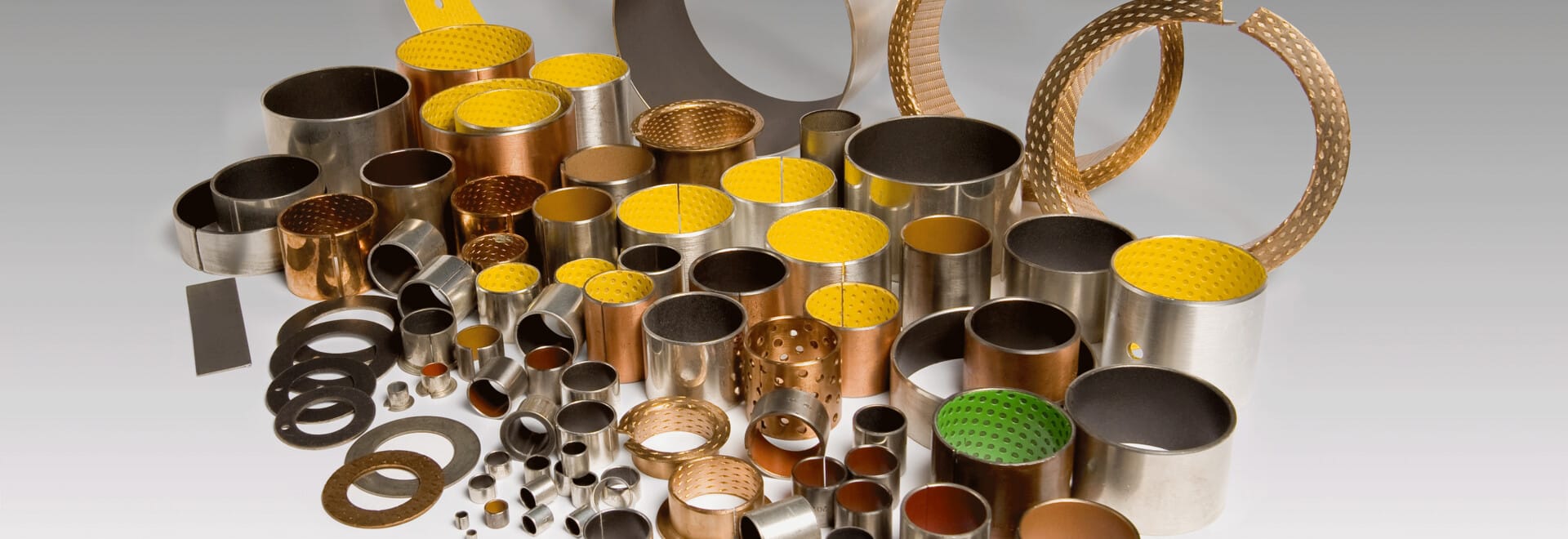

- Metal Bearings: Commonly include three-layer composite bearings, typically with a carbon steel base. A layer of spherical copper powder is sintered onto the steel plate, followed by a layer of PTFE lubricant.
High-Quality Bushing Manufacturers: Top-quality bushing manufacturers offer a variety of sliding bearing sizes suited to diverse applications and operating environments. They provide maintenance-free sliding bushing solutions. Suppliers typically offer high-quality bearings and bushing parts at competitive prices, along with customized solutions from concept to product, providing expert support to meet manufacturing needs.
Conclusion: Due to their varied material choices and excellent performance, sliding bushings and bearings are widely used across many industries. Selecting the appropriate materials and structures can significantly enhance bearing performance and lifespan, meeting the diverse needs of different applications.
The variety of bearing materials reflects their unique properties tailored to specific applications and requirements. Here’s how different factors influence the selection of bearing materials:
-
Load Capacity and Wear Resistance:
- Bearing Alloys (Babbitt): Known for excellent wear resistance, high plasticity, and good running-in performance, ideal for high-speed and high-load applications.
- Bronze and Aluminum Alloys: Provide good wear resistance, suitable for medium-load applications.
-
Corrosion Resistance:
- Stainless Steel: High chromium content creates a protective chromium oxide film, offering excellent corrosion resistance.
- Plastic Bearings: Materials like PTFE and nylon are chemically resistant and suitable for corrosive environments.
-
Lubrication Needs:
- Self-Lubricating Materials: Porous metals and certain plastics can be pre-impregnated with lubricants, enabling maintenance-free operation.
- Oil-Lubricated Bearings: Traditional materials such as bronze and cast iron are commonly used with oil to minimize friction and wear.
-
Cost and Availability:
- Carbon Alloy Steels: Popular due to their balance of cost, availability, and performance, used in components like bearing cages and washers.
- Plastics: Preferred for their cost-effectiveness and manufacturing ease, especially in low friction and noise applications.
-
Special Performance Requirements:
- Ceramics: Suitable for high-speed and high-temperature applications because of their low density, high hardness, and excellent thermal stability.
- Composite Bearings: Mix different materials to achieve optimal properties, such as metal for strength and polymer for reduced friction.
-
Environmental and Operational Conditions:
- High-Temperature Applications: Materials like ceramics and specific high-performance plastics withstand extreme temperatures.
- Wet or Humid Environments: Stainless steel and some plastics are chosen for their resistance to rust and corrosion.
Conclusion: The diverse range of bearing materials ensures they meet the specific demands of various applications. By carefully selecting the right material, manufacturers can guarantee that bearings operate reliably, efficiently, and cost-effectively under specific conditions. This tailored approach enhances the performance and lifespan of bearings across numerous industries.
