C95400 aluminum bronze
Bearings and Bushings for the Future: Precision and Customization: Our company, in bearing engineering with decades of experience, designs and develops high-precision self-lubricating bronze bearings & plain bushes. We offer a wide array of sliding bearings tailored to meet specific needs. Renowned for our expertise in custom bronze bushing and slide plate solutions, we provide an expansive selection of bushing metal alloys. Contact us today to benefit from unparalleled services at competitive prices.
C95400 aluminum bronze
C954 Bronze Bushing – Custom Cut to Size Options
Premium Bronze Bushings – Large Range Of Sizes
If you’re seeking top-quality bronze bearings, look no further. We provide custom machining services tailored to your requirements, offering a wide range of bronze options including the esteemed C954 aluminum bronze. This material is used across many applications – from bearings and architecture to marine settings – due to its exceptional strength and corrosion resistance. We prioritize convenience for our customers. Therefore, we provide a free cut-to-size option, ensuring you get the right size of bronze for your specific task. Our vast product offerings are tailored towards fulfilling your industrial component needs efficiently. We supply C954 bronze bearings which are self-lubricating, eliminating the need for grease. Their self-lubricating nature significantly extends the lifespan of your equipment. We also stock flanged cast bronze bushings which can further improve the durability and efficiency of your machinery. Our brass bushings and bearings are of premium quality and are available at everyday low prices. If you need a flanged bronze bushing, we have them ready for purchase. And to make it even better, you can buy directly from our factory through our website, bronzelube.com. This platform has been designed to facilitate easy sourcing and purchasing for global buyers. We also supply oilless, self-lubricating bronze bushings/bearings that are graphite impregnated for superior performance.
core business metrics
The C95400 aluminum bronze bearings we offer are designed for high impact resistance and wear-resistance, making them perfect for challenging environments. They are also known for their high machining quality. Invest in our aluminum bronze C954 bearings and bushings today for optimal performance, durability, and quality.
Standard, ASTM B505 – C95400,Delivery from Stock
– CuAl10Ni5Fe4, CW307G bronze or custom parts
We custom C95400 bronze bushing and slide plate tailored to your needs.

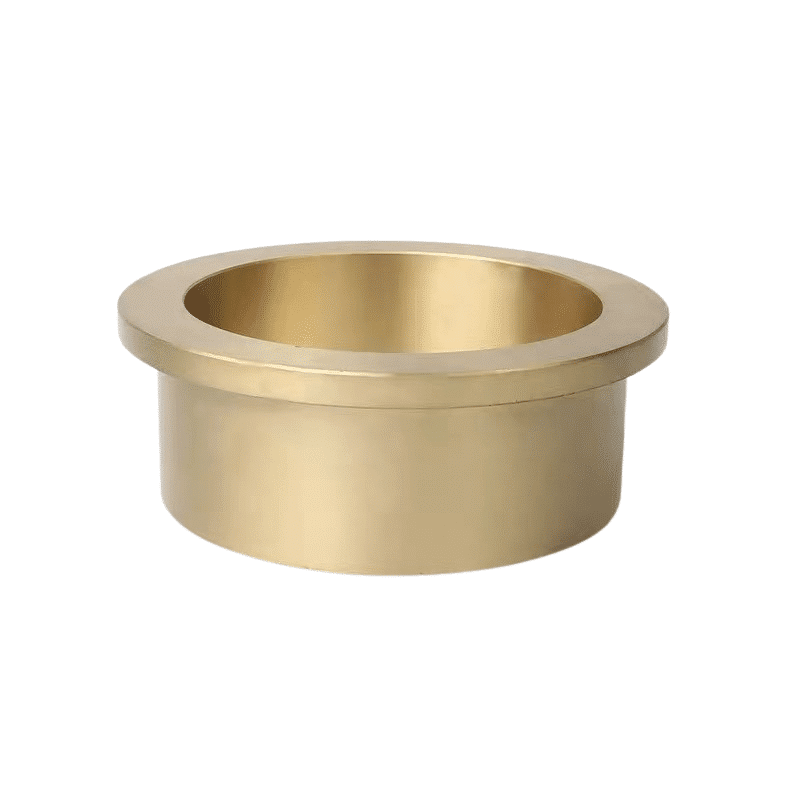

C95400 aluminum bronze bearing and bushing
Aluminum bronze is a type of bronze in which aluminum is the main alloying metal added to copper, in contrast to standard bronze (copper and tin). The C95400 aluminum bronze, also known as C954, is a commonly used type of aluminum bronze. It’s also frequently referred to as 9C, and is the most popular, all-purpose aluminum bronze alloy.
C95400 aluminum bronze is renowned for its superior strength and corrosion resistance compared to other bronze alloys. It also has high wear and abrasion resistance, making it a great choice for bearings and bushings.
A bearing is a machine element that constrains relative motion to only the desired motion, and reduces friction between moving parts. Bearings in C95400 aluminum bronze can be beneficial in heavy load, high friction operations.
On the other hand, a bushing is a type of bearing in the form of a straight or flanged cylindrical lining designed to reduce friction and wear within a hole, or encase a rod or shaft. Bushings manufactured from C95400 aluminum bronze provide strong resistance against corrosive substances and high temperatures, and they are commonly used in various types of machinery.
C95400 aluminum bronze bearings and bushings can be found in a variety of applications, including aircraft landing gear, struts, gears and worm gears, machine parts, spindles, shafts, bearings and bushings, and valve components. They’re particularly useful in situations that require a combination of strength, corrosion resistance, and wear resistance.
It’s important to note that while C95400 aluminum bronze has many desirable properties, it might not be the best choice for all applications. For instance, other types of bronze might be better suited to applications that require high tensile strength, excellent machining properties, or very low friction. Always consult with a material expert or engineer to select the right material for your specific needs.
CuAl10Fe5Ni5 bronze slide plate
CuAl10Fe5Ni5 bronze is an aluminum-nickel-bronze alloy, typically composed of approximately 10% aluminum, 5% iron, 5% nickel, and the balance being copper. This alloy is often referred to as nickel aluminum bronze and is widely appreciated for its impressive combination of strength, corrosion resistance, and toughness.
A part made from CuAl10Fe5Ni5 bronze, such as a slide plate, would have specific beneficial properties due to this unique composition. Slide plates are used in various applications to provide a surface for other components to move or “slide” against with minimized friction. Here are some advantages:
Strength and Hardness: This bronze alloy is known for its high strength and hardness, which would make a slide plate resistant to deformation under high loads.
Corrosion Resistance: CuAl10Fe5Ni5 bronze has excellent corrosion resistance, especially in marine environments. This makes it ideal for use in applications exposed to harsh or corrosive conditions.
Wear Resistance: Slide plates need to withstand friction without wearing down quickly. The toughness and hardness of CuAl10Fe5Ni5 bronze make it resistant to wear, and therefore ideal for slide plate applications.
Anti-galling properties: The alloy’s anti-galling properties help prevent it from scratching or scuffing against similar materials under friction.
Heat Resistance: This alloy can maintain its properties at relatively high temperatures, providing stability in a variety of operational environments.
Slide plates made of CuAl10Fe5Ni5 bronze are commonly used in heavy-duty machinery, shipbuilding, and other engineering applications where components are subject to high stress, friction, and possibly corrosive conditions. However, as with any material choice, the suitability of CuAl10Fe5Ni5 bronze will depend on the specific requirements of the application. Consultation with a materials expert or engineer is advisable when selecting materials for specific uses.
CuAl10Fe5Ni5 bronze, also known as nickel aluminum bronze, is a strong, hard, and corrosion-resistant alloy widely used in manufacturing heavy-duty parts. A slide plate made from this alloy is particularly beneficial in high-stress and high-friction environments, making it an ideal choice for spreaders in custom lifting equipment used for container handling.
Spreaders are a type of lifting equipment specifically designed for lifting containers. The lifting process can exert considerable pressure and friction on the equipment, thus requiring parts such as slide plates to be made from strong, wear-resistant materials like CuAl10Fe5Ni5 bronze.
In addition to supplying slide plates, we also provide crane bronze bearings made from the same durable material. These bearings ensure smooth operation of cranes, reducing friction between moving parts and extending the service life of the equipment.
Please feel free to contact us for more information about our CuAl10Fe5Ni5 bronze slide plates and bronze bearings for cranes. We’re committed to providing high-quality components that enhance the performance and longevity of your lifting equipment.
Cual10ni5fe4 equivalent material, aluminum bronze bearing and bushing
Saves You Time & Money In Research, Design & Production Costs. E-mail Now! C954 Bronze Bushing , Bronze Plates & Bronze Parts Specialists For Manufacturing & Machining Of All Types. Free Design Assistance. Wide Variety & Selection. Expert Customer Service. Product Spotlight: C954 Aluminum Bronze Bushing. Bronze Bearing: Our large stock of bronze for sale is available in various shapes and alloys with the option to order full sizes and custom lengths. Small minimum orders, and fast delivery nationwide. Buy bronze online or contact us for a quote. A Broad Range of Inch and Metric Sizes, including Bushing Sizes. Made In China. Highlights: Quick Quote Available, Customer Service Available.
2.0966 Germany Bronze – equivalent grades, c63000 bronze
Shop by Bronze Bushing Material, Shape and Alloys. Premium C954 Bronze Bushings – Large Range Of Sizes. Quality Bronze Bearing Parts Made Manufacturing From China. See Our Online Catalog & Request A Quote! Bearings & Cast Materials Made To The Highest Standards. The Price of Bronze Depends on One Key Factor: When shopping for bronze material, you may notice variations in price. The biggest factor in the differences in the price of bronze is the amount of copper in the alloy. Online offers a wide range of bronze alloys and several shapes to make it easy for you to find the right bronze material for your project.
C95400 aluminum bronze, CuAl10Ni5Fe4, 2.0966 DIN bronze parts, CuAl10Ni5Fe4, C63000
C63000, AMS4590 and other Aluminium Bronzes, CuAl10Ni5Fe4, CuAl11Ni5Fe5 bronze bushing self-lubricating bearings.
Cual10ni5fe4 Expert advice, service awareness and fair prices. High Strength And High Wear Resistance Bronze Bearing. Download Catalogue. Make An Enquiry. Highlights: Offering Good Service, Custom Bearing Available. Aluminum bronze bearing C95400 aluminum bronze, also known as C954, is the most popular and versatile aluminum bronze alloy. It has high yield and tensile strengths, good ductility and weldability, and exceptional resistance to wear, fatigue and impact or overload deformation.
Brass, Bronze & Copper Alloys – Bronze Bearings and Wear Plate
Aluminum Bronze Bearings
Aluminum bronze bearings are characterized by high mechanical values, even at low and high temperatures. Excellent corrosion and seawater resistance, very durable. Suitable for applications in corrosive environments.Products of Bronze Casting Metal Products, Inc. C 954 aluminum bronze alloy is characterized by its extremely high load capacity and wear resistance. In addition to these properties, both alloys maintain their mechanical values even at high temperatures (up to about 300°C.) C954 corresponds to ASTM B505 C95400, both continuous casting alloys. c954 can be used in straight bushings, flanges and custom bearings; according to EN 1982, C954 corresponds to CuAl10Fe2-C (CC331G).
Applications: Industrial – Selecting Bronze Bearing Materials
Product Details
C954 copper alloy C954 copper alloy C954 copper alloy C954 copper alloy supplier C95400 copper alloy C95400 copper alloy copper alloy
Similar or Equivalent Specification
| CDA | ASTM | SAE | AMS | Federal | Military | Other |
|---|---|---|---|---|---|---|
| C95400 | B505 B505M |
J461 J462 |
QQ-C-390, G5; QQ-B-671, Class 3 |
MIL-B-16033, Class 3 | Aluminum Bronze 9C |
Chemical Composition
| Cu% | Fe% | Ni%1 | Al% | Mn% | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chemical Composition according to ASTM B505/B505M-18
1Ni value includes Co.
Note: Cu + Sum of Named Elements, 99.5% min. Unless otherwise noted, single values represent maximums.
|
|||||||||||
| 83.00 min |
3.00- 5.00 |
1.50 | 10.00- 11.50 |
0.50 | |||||||
| Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
| Min83.0 | – | 10.5-11.5 | 3.0-5.0 | 0.5 | 1.5 | – | – | – | – |
ALLOY 954 copper ALLOY
Aluminum bronze is a copper-based ALLOY of ALLOY 954 high strength standard. Continuous ingots produce C95400 C95500 C95900 standard-sized wheels, tubes, and rectangles. Aluminum with iron and nickel in the C95500 acts as a booster in these alloys. All aluminum bronze is heat-treated to further increase tensile strength.
Main products: Copper-nickel-zinc alloy (white copper/zinc white copper)/high strength copper-nickel-tin alloy/phosphor bronze alloy/ti-copper alloy/copper-nickel-silicon alloy/iron-nickel alloy/stainless steel foil/titanium alloy/copper-tin zinc alloy and so on.
2. Hardness values in mechanical properties are for reference only.
【CDA954 copper alloy 】 product characteristics
C954 copper alloy
The high-quality aluminum nickel-iron copper alloy produces high strength alloy properties, stiffness, and specific mechanical properties that are rare to see in the general population, which is widely used in the manufacturing of bearings, sleeves, valve seats, fasteners, and structures in the mechanical, shipping and aviation fields.
Category: Copper alloy materials
Name: Aluminum bronze
C95400 bronze bearings
Features:
Excellent seawater corrosion resistance;
High strength High hardness
Good wear resistance;
Handle at 400°C ambient temperature in a stable mechanical property.
【C954 copper alloy 】 parameter specifications
Copper rod diameter φ 3.0mm-200mm
Copper plate thickness 1.0 1.5 2.0 3.0 4.0 5.0 6.0 8.0 10 12 15 16 20-200mm
Copper sleeve: large size copper sleeve can be customized according to customer requirements.
The above specifications are spot, special size can be customized! To map customized brass tube red copper tube tin bronze tube, price concessions.
American copper alloy
C954 copper alloy application
Aluminum content generally does not exceed 11.5%, sometimes also adds the appropriate amount of iron, nickel, manganese, and other elements, to further improve the performance. Aluminum bronze can be strengthened by heat treatment, its strength is higher than tin bronze, and its resistance to high-temperature oxidation is better.
High strength good wear resistance used for high strength screw, nut, copper sleeve, sealing ring, and wear-resistant parts, C95400 outstanding feature is its good wear resistance.
C954 copper alloy, copper alloy
1. Copper bushing: brass bar, tin bronze bar, copper bar, bronze bar, phosphorus copper bar, lead brass bar, and so on;
3. Copper bearing: phosphorus copper bushing and so on;
5. Copper pipe: brass pipe, red copper pipe, tin bronze pipe, beryllium copper pipe, cup copper pipe, and so on;
The difference between:
1. Different elements.
Tin bronze: Bronze with tin as the main alloying element.
Aluminum bronze: Copper-based alloy with aluminum as the main alloying element.
2, tin content is different.
Tin bronze: tin content generally between 3 to 14%.
Aluminum bronze: generally not more than 11.5% aluminum content.
3. Different uses.
Tin bronze: mainly used for making elastic components and wear-resistant parts.
Several aluminum bronzes are designed to harden with heat treatment. Aluminum bronze is used in applications where corrosion resistance and/or wear resistance are needed. In the case of tin bronzes, also many alloys from 1 % tin to well over 10 % with some other metals, such as phosphorus.
Aluminum bronze: heat treatment can be strengthened, its strength is higher than tin bronze, high-temperature oxidation resistance is also better. It is mainly used as a screw, nut, copper sleeve, sealing ring and so on.
The main difference is that the main elements are different. Tin bronze is bronze with tin as the main alloying element, while aluminum bronze is copper-based alloy with aluminum as the main alloying element.
1, tin bronze generally contains 3 ~ 14% tin, mainly used for making elastic components and wear-resistant parts, tin content of deformation tin bronze is not more than 8%, sometimes added phosphorus, lead, zinc and other elements.
2, the aluminum content of aluminum bronze is generally not more than 11.5%, and sometimes the appropriate amount of iron, nickel, manganese, and other elements are added to further improve the performance. Aluminum bronze can be strengthened by heat treatment, its strength is higher than tin bronze, and its resistance to high-temperature oxidation is better. It is mainly used as a screw, nut, copper sleeve, sealing ring, and so on.
3, tin bronze alloy has high mechanical properties, wear reduction performance and corrosion resistance, easy cutting, brazing and welding performance, small shrinkage coefficient, no magnetic.
4, aluminum bronze contains iron, manganese aluminum bronze has high strength and wear resistance, after quenching, tempering can improve the hardness, has good high-temperature corrosion resistance and oxidation resistance in the atmosphere, fresh water, and seawater corrosion resistance is very good, machinability is acceptable, can be welded not easy brazing, hot state under pressure processing is good.
5, tin bronze casting shrinkage is the smallest, non-ferrous metal alloy used to make the complex shape and outline clear, casting air-tightness requirements is not high, widely used in steam boiler and vessel parts, phosphorous bronze has good mechanical properties, wearing parts can be used as a high precision machine tools and elastic parts, lead-tin bronze are commonly used as wear-resistant parts and sliding bearing, Zinc-containing tin bronze can be used as high airtightness castings.
6, aluminum bronze has high strength, hardness and wear resistance, is used to make gear billet thread parts, aluminum bronze has good corrosion resistance, aluminum bronze under the action of impact does not produce sparks, can be used to manufacture no spark tool material, with excellent rigidity and stability, thermal conductivity as mould materials on the tensile, won’t produce sticky mold when rolling stainless steel plate heat exchanger, Scratch the workpiece and other advantages.
Special aluminum bronze; It mainly refers to the aluminum bronze with more than 11.5% and less than 15% aluminum content. Except for aluminum, the element composition of ordinary aluminum bronze is not much different from that of ordinary aluminum bronze. Because of the difference in aluminum content, special aluminum bronze has higher strength and hardness than alloy steel. Widely used in force structure parts, transmission parts, etc., because of its good corrosion resistance, compression and wear resistance, also used in high-speed train transmission shaft gear.
Special tin bronze; Zinc is largely dissolved in copper-tin alloys, and the amount of zinc added in deformed tin bronze is generally less than 4%. Zinc can improve the fluidity of the alloy, reduce the crystallization temperature range, and reduce reverse segregation.
Listed in the current Chinese national standards in the zinc tin bronze brand QSn4-3, has good elasticity, abrasion resistance and anti magnetic, can under cold and hot pressure processing, easy to welding and brazing, machinability is good, in the air and water, seawater corrosion resistance, good for all kinds of elastic element and pipe accessories, chemical equipment, resistance, high magnetic components and parts, etc.
