C92610

Bearings and Bushings for the Future: Precision and Customization: Our company, in bearing engineering with decades of experience, designs and develops high-precision self-lubricating bronze bearings & plain bushes. We offer a wide array of sliding bearings tailored to meet specific needs. Renowned for our expertise in custom bronze bushing and slide plate solutions, we provide an expansive selection of bushing metal alloys. Contact us today to benefit from unparalleled services at competitive prices.

C92610

Explore Other Alloys, Suggested Searches: Copper Brass Bronze Copper Nickel

Bearing Bushing, Search Our Material Alloy

Enhancing Power Station Performance with Gunmetal C92610 Alloy and Oilless Bushing Graphite Inserts， Straight Linear Plain Bearings, Guide bushes bronze, maintenance-free, C92610 Gunmetal, Graphite Plugged type

Configurable components for productive, efficient, and cost saving solutions， Metallic, Lubricant Impregnated Brass, 500 SP1 Series, Metric, Shop Oil-Free Universal Guide Bushings – Straight, Bronze with Graphite Embedded， Straight type, Custom Machined Bushings & Metal Casting Products, oil less bearings, gunmetal brass bushing, custom manufacturing

C92610 Alloy: The guide bushes are radially and axially applicable. The bearing elements are maintenance-free and wear-resistant. The graphite inserts provide life-long! In the realm of power generation, efficiency and reliability are paramount. Power stations, especially those reliant on turbines, demand components that can withstand extreme conditions while maintaining peak performance. In this blog post, we delve into the importance of utilizing advanced materials like Gunmetal C92610 alloy and oilless bushing graphite inserts to optimize the functionality of crucial components in power stations, particularly stage turbines and control valves.

Gunmetal C92610 Alloy: Gunmetal C92610 alloy, a copper-based material, has garnered significant attention in industrial applications due to its exceptional properties. Comprising copper, tin, and zinc, this alloy offers remarkable strength, corrosion resistance, and thermal conductivity. These attributes make it an ideal choice for components operating in demanding environments like power stations.

In power stations, where temperature differentials and mechanical stress are prevalent, employing Gunmetal C92610 alloy brings several benefits. Its high strength-to-weight ratio ensures structural integrity under heavy loads, while its resistance to corrosion prolongs component lifespan, reducing maintenance requirements and downtime. Moreover, its superior thermal conductivity aids in efficient heat dissipation, crucial for components exposed to high temperatures in power generation processes.

Oilless Bushing Graphite Inserts: Control valves and crosshead guide bushes are integral to the operation of stage turbines in power stations. These components experience substantial friction and wear during operation, necessitating materials that can withstand such conditions. Oilless bushing graphite inserts offer a solution by combining the self-lubricating properties of graphite with the structural support of metal.

Graphite inserts provide a solid lubrication mechanism, reducing friction and minimizing wear on moving parts. This not only enhances the longevity of components but also contributes to smoother operation and increased efficiency. Additionally, the absence of oil lubrication eliminates the risk of contamination in critical systems, ensuring consistent performance and reliability.

Optimizing Power Station Performance: By incorporating Gunmetal C92610 alloy and oilless bushing graphite inserts into power station components such as stage turbines and control valves, operators can achieve significant improvements in performance and reliability. These advanced materials offer durability, corrosion resistance, and lubrication properties essential for prolonged operation under demanding conditions.

Furthermore, the enhanced efficiency resulting from reduced friction and wear translates into tangible benefits such as lower maintenance costs, increased uptime, and improved overall productivity. In an industry where every percentage point of efficiency matters, the utilization of high-performance materials becomes a strategic investment in long-term operational success.

Conclusion: In the dynamic landscape of power generation, where reliability and efficiency are paramount, the choice of materials for critical components can significantly impact performance outcomes. Gunmetal C92610 alloy and oilless bushing graphite inserts represent innovative solutions tailored to the rigorous demands of power station applications.

By harnessing the strength, corrosion resistance, and lubrication properties of these advanced materials, power station operators can optimize the functionality of stage turbines, control valves, and other crucial components, ultimately enhancing operational efficiency and reliability. Embracing technological advancements in material science is key to staying ahead in an industry vital for powering our modern world.

For the C92610 alloy, Special oilless bushes Graphite Insert Type

  • Tradename: Gunmetal
  • Designation: C92610
  • Type: Cast
  • Class: Bronzes, specifically part of the Copper-Tin-Lead Alloys (Leaded Tin Bronzes) group

This alloy is typically used for its excellent sliding and bearing properties, providing both strength and wear resistance. It is well-suited for applications such as bearings, bushings, and similar components where these properties are critical.

For special oilless bushes made of C92610 alloy with a graphite insert, you’ll need to consider the tolerance levels for the inner diameter (ID) and outer diameter (OD) to ensure proper fit and function in your application. Here’s how you might specify these bushes:

Specifications for Special Oilless Bushes with Graphite Inserts (C92610 Alloy):

Inner Diameter (ID): F7 tolerance

Outer Diameter (OD): m6 tolerance

Tolerance Details: F7 Tolerance for ID:

This tolerance ensures a looser fit, which is ideal for parts that need easier assembly or for accommodating larger temperature differences. It allows for higher clearance and is commonly used in sliding fits where precision is not as critical but smooth motion is still necessary.

m6 Tolerance for OD:

This tolerance offers a close sliding fit, ensuring that the bush will have minimal clearance when inserted into a mating component. It’s typically used where precision is important but some movement between the parts is still acceptable.

Additional Specifications: Material: C92610 Gunmetal (Copper-Tin-Lead Alloy with Leaded Tin Bronzes)

Insert Type: Graphite Inserts for Power Station

Purpose: Graphite inserts are used to enhance the self-lubricating properties of the bushings. They are especially useful in applications where regular lubrication is difficult or undesirable. The graphite provides consistent lubrication, reducing wear and extending the life of the bushing under high load and temperature conditions.

Applications:

These special oilless bushes are ideal for high-load applications where maintenance can be challenging. They are commonly used in industrial machinery, automotive components, and heavy equipment where durability and reliability are paramount.

When ordering or specifying these bushes, ensure that all dimensional and material requirements are clearly communicated to the manufacturer to avoid any misalignment with the application’s needs.

Chemical Composition of C92610 Alloy:

Element Minimum (%) Maximum (%)
Copper (Cu) Rem (See note 1 & 2) –
Lead (Pb) 0.30 1.5
Tin (Sn) 9.5 10.5
Zinc (Zn) 1.7 2.8
Iron (Fe) – 0.15
Nickel (Ni) – 1.0 (Includes Co, see note 3)
Manganese (Mn) – 0.03
Silicon (Si) – 0.005
Other elements – 0.005

Notes:

  1. Copper (Cu) Calculation: In determining the minimum copper content, copper may be calculated as Cu + Ni.
  2. Total Composition: The sum of copper plus all named elements must be a minimum of 99.3%.
  3. Nickel (Ni) Content: The nickel value includes cobalt.

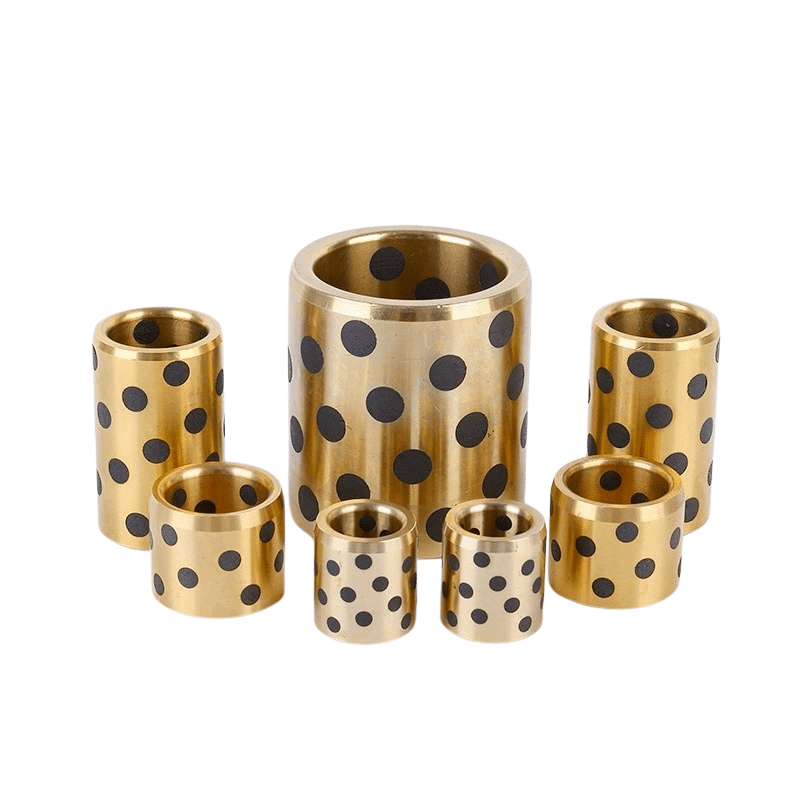

Special oilless bushes Graphite Insert Type

C92610 Guide Bushes Bronze with Graphite

C92610 is a specific designation for a type of gunmetal alloy. Gunmetal is a type of bronze alloy primarily composed of copper, tin, and sometimes other elements such as zinc or lead. The C92610 alloy, also known as Leaded Tin Bronze C92610, typically contains copper as the primary component along with tin and lead.

HEADED GUIDE BUSH (BRONZE) WITH CENTERING PLUG AND GRAPHITE INSERTS

Each alloy designation, such as C92610, corresponds to a specific composition and set of properties defined by standards organizations like the American Society for Testing and Materials (ASTM) or the Society of Automotive Engineers (SAE). These alloys are commonly used in various industrial applications, including machinery components, bearings, bushings, and valves, due to their excellent machinability, wear resistance, and corrosion resistance properties.

An oilless bushing, also known as a self-lubricating bushing or bearing, is a type of bearing designed to operate without the need for external lubrication. These bushings are commonly used in machinery and equipment where conventional lubrication methods may not be practical or feasible.

Oilless bushings typically utilize solid lubricants embedded within the material or incorporated as a lining on the bearing surface. Graphite is a commonly used solid lubricant in oilless bushings due to its low friction properties and ability to withstand high temperatures.

The design of oilless bushings allows for smooth operation and reduced maintenance requirements compared to traditional lubricated bearings. They are suitable for applications where contamination from lubricants must be avoided, or where maintenance intervals need to be extended.

Oilless bushings find wide application in various industries, including automotive, aerospace, industrial machinery, and power generation. In power stations, oilless bushings are often used in critical components such as turbine control valves and crosshead guide bushes, where reliability and performance are essential. By eliminating the need for external lubrication and providing inherent lubrication properties, oilless bushings contribute to efficient and reliable operation in demanding environments.

The C92610 alloy, also known as Gunmetal, is part of the Leaded Tin Bronzes family, classified under the Copper-Tin-Lead Alloys. This material is well-regarded for its sliding and bearing properties, making it ideal for applications requiring excellent wear resistance and reliable mechanical strength.

If you’re looking for alternatives to C92610 that maintain similar characteristics, here are a few suggestions:

  1. C93200 (SAE 660 Bearing Bronze): This is another popular leaded tin bronze alloy, commonly used in bearing applications. It provides excellent machinability, good hardness, and wear resistance, and has reasonable strength and corrosion resistance.
  2. C93700 (High-Leaded Tin Bronze): Known for its high lead content, this alloy offers superior machinability and wear resistance. It is suitable for moderate loads and speeds in bearing applications.
  3. C93400: Similar to C93200 but with a slightly higher lead content, which enhances its compatibility and reduces wear, especially in scenarios where there is a lack of perfect lubrication.

These alternatives should provide similar performance in terms of strength, wear resistance, and bearing properties. When choosing a substitute, consider the specific conditions of your application, such as load, speed, lubrication, and environmental factors.

Providing Brass, Bronze, and Specialty Copper Alloys, Copper Alloy Machining Services

Aluminium Bronzes (AB1, AB2, C95210, C95810, C95400)

  • Properties: High strength, excellent corrosion and wear resistance, and good fatigue resistance.
  • Applications: Bearings, gears, valve components, and undersea hardware.

Copper-Manganese-Aluminium Alloys (CMA1, C95710)

  • Properties: Good resistance to corrosion and wear, strength similar to aluminium bronzes.
  • Applications: High-strength applications including aerospace components and marine hardware.

Copper Tin Alloys (CT1, CT2, C90250, C91700)

  • Properties: Good corrosion resistance, moderate strength.
  • Applications: General marine and industrial applications.

Die Casting and Sand Casting Bronzes (DCB1, DCB3, SCB1, SCB3, SCB6)

  • Properties: Good fluidity and castability, variable strength depending on composition.
  • Applications: Statuary, bearings, gear parts, and general bronze castings.

Gunmetals and Leaded Bronzes (G1, LG1, LG2, LG4, C92610, C92410, C93200, C93500, C93700)

  • Properties: Excellent machinability, good wear resistance.
  • Applications: Bushings, bearings, and general applications in environments where lubrication is poor.

High Tensile Brasses (HTB1, HTB3, C86300, C86500)

  • Properties: High strength, good corrosion resistance.
  • Applications: Structural applications requiring high strength and good corrosion resistance.

Phosphor Bronzes (PB1, PB2, PB4, C90710, C90810)

  • Properties: Excellent fatigue resistance, good elasticity, and corrosion resistance.
  • Applications: Electrical components, springs, fasteners.

Silicon Bronzes (C87300, C87800)

  • Properties: High strength, excellent corrosion resistance, and good thermal conductivity.
  • Applications: Plumbing fittings, marine hardware, and pole line hardware.

Pressure and Sand Casting Brasses (PCB1, C83700, C85210, C85310, C85400, C85710)

  • Properties: Good machinability and strength, excellent castability.
  • Applications: Decorative items, low-stress fittings, and general cast components.

Custom Alloy Manufacturing to Meet Specific Standards: BS 1400 and AS 1565

In the realm of materials engineering, the ability to tailor alloys to meet specific customer specifications is crucial for a wide range of industrial applications. This customization ensures that the materials not only meet the required mechanical and chemical properties but also align with regulatory standards. Two such standards that frequently guide the custom manufacture of alloys are BS 1400 and AS 1565. Understanding these standards and their applications in alloy manufacturing can provide valuable insights into the customization process.

British Standard BS 1400

BS 1400 is a British Standard that specifies requirements for copper alloy castings including the compositions, mechanical properties, and corresponding casting methods. This standard covers a variety of alloys used in manufacturing processes that require high precision and reliability. Alloys under BS 1400 are commonly used in applications such as marine engineering, general engineering, bearings, and gears.

The standard ensures that each alloy type, from leaded bronzes to aluminum bronzes, meets stringent requirements for tensile strength, elongation, and hardness. For example, specifications under BS 1400 help manufacturers create alloys that possess excellent wear resistance, corrosion resistance, and strength, making them ideal for heavy-duty applications.

Australian Standard AS 1565

On the other side of the globe, AS 1565 is an Australian Standard that sets out specifications for copper and copper alloy castings, which are intended for general engineering applications. Similar to BS 1400, AS 1565 details the composition and mechanical properties required for each type of alloy. This standard ensures that alloys used in Australia meet the high expectations for quality and performance in sectors such as mining, automotive, and construction.

AS 1565 focuses on ensuring that the alloys have good castability and mechanical properties that can withstand the harsh conditions often seen in Australia’s industrial environments. It includes specifications for a range of alloys, including phosphor bronzes, gunmetals, and high tensile brasses, each tailored for specific applications based on their mechanical strengths and resistance to wear and corrosion.

Custom Manufacturing of Alloys

Manufacturing alloys to meet BS 1400 or AS 1565 standards involves a meticulous process of selecting base metals, calculating alloy compositions, and controlling the casting process. Custom alloy manufacturing allows clients to request modifications to standard alloy compositions or mechanical properties to better suit specific applications. This can involve adjusting elements like tin, zinc, or lead levels within the alloy to enhance certain properties such as tensile strength or elasticity.

The process typically begins with a consultation to understand the client’s needs, followed by the design of the alloy using sophisticated software to predict alloy behaviors under various conditions. Once designed, small batches of the alloy may be produced for testing and approval by the client before full-scale production commences.

Conclusion

The ability to manufacture custom alloys according to specific standards like BS 1400 and AS 1565 is invaluable in today’s industrial landscape. It ensures that the materials not only meet global standards but are also optimized for specific applications, enhancing efficiency and reliability in industries that depend on high-quality metals. This tailored approach helps industries meet their precise engineering requirements, drive innovation, and maintain competitiveness in the global market.



Below is a comprehensive chart that outlines key characteristics and typical applications for various bronze and brass bushing materials as defined by standards BS 1400 and AS 1565. This chart will help in selecting the right alloy for specific applications based on their properties and suitability for different engineering needs.

Material Alloy Type Key Characteristics Typical Applications
AB1 Aluminium Bronze Aluminium Bronze High strength, excellent wear and corrosion resistance Marine hardware, aerospace components, pump parts
AB2 Aluminium Bronze Aluminium Bronze High strength, good fatigue resistance Bearings, bushings, valve components
CMA1 Copper-Manganese-Aluminium Copper-Manganese-Aluminium High resistance to wear, excellent durability Electrical components, marine conditions
CT1 Copper Tin Copper Tin Good corrosion resistance, moderate strength General industrial and marine applications
CT2 Copper Tin Copper Tin Good resistance to seawater, formability Architectural, marine hardware
DCB1 Die Casting Bronze Die Casting Bronze High strength, good castability Decorative castings, automotive components
DCB3 Die Casting Bronze Die Casting Bronze Excellent machinability, wear resistance Bearings, gears, heavy load components
G1 Gunmetal Gunmetal Good corrosion resistance, strength Valves, pump fittings, general engineering
HTB1 High Tensile Brass High Tensile Brass High strength, corrosion resistance Structural applications, marine fittings
HTB3 High Tensile Brass High Tensile Brass Excellent strength, good machinability Naval and general hardware, decorative fittings
LB2 Leaded Bronze Leaded Bronze Good machinability, wear resistance Bearings, general industrial applications
LB4 Leaded Bronze Leaded Bronze Good compatibility, easy to machine Bushings, bearings in medium speed applications
LB5 Leaded Bronze Leaded Bronze Excellent wear resistance, high load capacity Heavy duty bearings, bushings
LG1 Leaded Gunmetal Leaded Gunmetal Good corrosion resistance, machinability General engineering parts, bearings, gears
LG2 Leaded Gunmetal Leaded Gunmetal Excellent machinability, good pressure tightness Water fittings, pump bodies, valves
LG4 Leaded Gunmetal Leaded Gunmetal High wear resistance, good casting properties Bearings, bushings, general marine components
LPB1 Leaded Phosphor Bronze Leaded Phosphor Bronze High fatigue resistance, good load carrying capacity Marine environment applications, electrical connectors
PB1 Phosphor Bronze Phosphor Bronze Excellent durability, low coefficient of friction Electrical connectors, springs, bearings
PB2 Phosphor Bronze Phosphor Bronze Good corrosion resistance, high fatigue strength Industrial bearings, bushings, aerospace components
PB4 Phosphor Bronze Phosphor Bronze High strength, excellent wear resistance Heavy load bearings, general engineering
PCB1 Pressure Die Casting Brass Pressure Die Casting Brass Good strength, excellent fluidity High volume parts, fittings, decorative components
SCB1 Sand Casting Brass Sand Casting Brass Good strength, corrosion resistance General sand casting applications, ornamental items
SCB3 Sand Casting Brass Sand Casting Brass High tensile strength, good machinability Functional hardware, architectural fittings
SCB6 Sand Casting Brass Sand Casting Brass Excellent durability, corrosion resistance Industrial valves, pump casings, marine fittings

This chart is a useful guide for engineers and buyers when selecting materials for bronze bushings, ensuring that the chosen material meets both the performance requirements and standards specifications.
