Slotted Bushing- (Without Any Lubrication)
Cannabis for a better life
Cylindrical bushes, slotted versions, flange bushes, and slotted flange bushes without lubrication are all types of plain bearings used in various mechanical applications. Each type serves a specific purpose, providing low friction and smooth motion between moving parts.
Cylindrical Bushes
Cylindrical bushes are plain bearings with a cylindrical shape. They are commonly used in linear or rotary motion applications, providing support and reducing friction between two moving surfaces. These bushes are typically made from materials such as bronze, steel, or plastic, depending on the specific requirements of the application.
Bushes Flange
Slotted cylindrical bushes are a variation of standard cylindrical bushes, featuring slots or grooves on their inner surface. The slots allow for better distribution of load and improved heat dissipation. These bushes do not require additional lubrication, as they are often made from self-lubricating materials like oil-impregnated sintered bronze or composite materials with embedded solid lubricants.
Slotted Cylindrical Bushes (Without Any Lubrication):
Beautifully crafted leather products.
Flange bushes are cylindrical bushes with a flange on one end. The flange provides additional support and stability to the bearing, making them suitable for axial and radial loads. Flange bushes are used in a variety of applications, including automotive, industrial, and marine equipment.

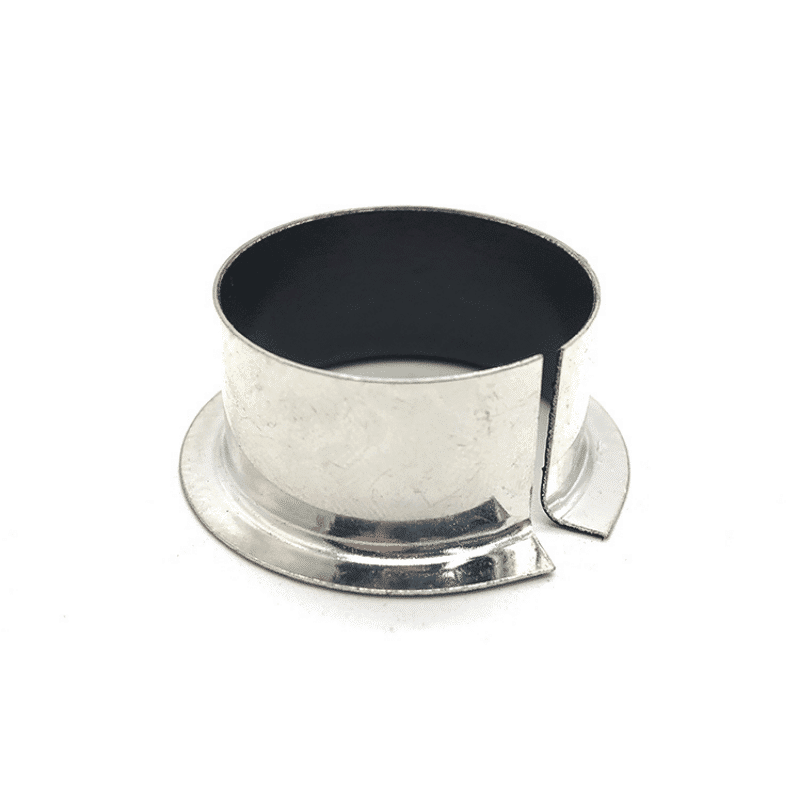

Slotted flange bushes combine the features of slotted cylindrical bushes and flange bushes. These bearings have slots on the inner surface and a flange at one end, offering improved load distribution, heat dissipation, and stability. Like slotted cylindrical bushes, slotted flange bushes do not require additional lubrication, as they are made from self-lubricating materials.
Types of plain bearings
Types of plain bearings are used in various industries and applications to provide low friction and smooth motion between moving parts. They offer a cost-effective and low-maintenance solution compared to more complex bearing systems. Main Characteristics:
Self-lubricating and maintenance-free bearings are ready to install and perfectly suited for lower sliding speeds. They have low wear and a low friction coefficient, preventing stick-slip issues. These bearings are ideal for circular, swiveling, and partially axial movements. They can handle extremely high bearing loads, do not absorb moisture, and exhibit high corrosion resistance.
Bushing Construction:
These bearings are constructed with a tin-plated steel back (including edges) to provide strength and corrosion resistance. A multi-porous bronze layer is sintered onto the steel back, which serves as a base for the sliding surface. The sliding surface is made of a PTFE-lead compound, which ensures low friction and self-lubricating properties.
In summary, these self-lubricating and maintenance-free bearings are designed for easy installation and long-lasting performance in various applications. Their low friction and wear characteristics make them suitable for a range of motion types, while their robust construction ensures high load capacity and corrosion resistance.
Browse Bushing Surface:
The surface of these bearings is tin-plated and PTFE-coated, providing excellent corrosion resistance and low friction properties. These bearings are available in both inch and metric sizes to suit various applications.
Recommended Mounting Tolerances:
For optimal performance, it is crucial to follow the recommended mounting tolerances. The housing bore should have an H7 tolerance, while the shaft tolerance should be as follows:
- For shaft diameters up to 55mm (or equivalent in inches), use an f7 tolerance.
- For shaft diameters above 55mm (or equivalent in inches), use an h8 tolerance.
By adhering to these mounting tolerances, you can ensure proper fit and performance of the bearings in their respective applications.
Cylindrical bushes are commonly used in engineering and industrial applications as a type of bearing or sleeve. They are designed to reduce friction between two surfaces and provide support to rotating or sliding shafts.
Benefits of Cylindrical Bushes:
- Low Friction: Cylindrical bushes provide low friction between the shaft and the bushing, resulting in less wear and tear.
- High Load Capacity: They are capable of withstanding high loads and can support heavy machinery.
- Durability: Cylindrical bushes are made of durable materials, such as bronze or plastic, which can withstand harsh environments and last a long time.
- Easy to Install: They are easy to install and require minimal maintenance.
Uses of Cylindrical Bushes:
Cylindrical bushes are used in a variety of applications, including:
- Automotive Industry: They are used in engines, transmissions, and suspension systems.
- Industrial Machinery: They are used in manufacturing equipment, conveyor systems, and packaging machinery.
- Agricultural Machinery: They are used in tractors, combines, and other farming equipment.
- Construction Equipment: They are used in excavators, bulldozers, and other heavy equipment.
Choosing the Right Cylindrical Bush:
When choosing a cylindrical bush for your application, there are several factors to consider, including:
- Material: Choose a material that is compatible with your application’s environment and operating conditions.
- Size: Select the right size based on the diameter of the shaft and the bore of the bush.
- Load Capacity: Determine the maximum load the bushing will need to support and choose one with an appropriate load rating.
- Lubrication: Choose a bushing that is self-lubricating or one that can be easily lubricated.
In summary, cylindrical bushes provide low friction, high load capacity, durability, and are easy to install. They are used in various industries, and choosing the right one involves considering factors such as material, size, load capacity, and lubrication.
Slotted flange bushes are a type of mechanical component that is widely used in various industrial applications. These bushes are designed to fit into a housing or a bore, and they have a flange on one end that provides additional support and stability. The other end of the bush is slotted, which allows for easy installation and removal of the bush from the housing or bore.
Advantages of Slotted Flange Bushes
Slotted flange bushes offer several advantages, including:
- Easy installation and removal: The slotted end of the bush makes it easy to install and remove the bush from the housing or bore.
- Self-lubricating: Slotted flange bushes are typically made from materials that are self-lubricating, which reduces the need for additional lubrication.
- Reduced friction: Slotted flange bushes are designed to reduce friction between moving parts, which can help to prolong the life of the components and reduce wear and tear.
Applications of Slotted Flange Bushes
Slotted flange bushes are used in a wide range of applications, including:
- Automotive industry: Slotted flange bushes are commonly used in the automotive industry to reduce friction and wear between moving parts.
- Aerospace industry: Slotted flange bushes are also used in the aerospace industry to provide support and stability to various components.
- Industrial machinery: Slotted flange bushes are used in a wide range of industrial machinery, including pumps, valves, and conveyors.
Maintenance Tips for Slotted Flange Bushes
To ensure the optimal performance of slotted flange bushes, it is important to follow these maintenance tips:
- Regular cleaning: Slotted flange bushes should be regularly cleaned to remove dirt and debris that can cause friction and wear.
- Lubrication: Slotted flange bushes should be lubricated regularly to reduce friction and prolong the life of the components.
- Inspection: Slotted flange bushes should be inspected regularly for signs of wear or damage, and replaced as necessary.
Selecting the Right Slotted Flange Bushes
When selecting slotted flange bushes, it is important to consider the following factors:
- Material: Slotted flange bushes are typically made from materials such as bronze, brass, or plastic. The material selected will depend on the specific application.
- Size: Slotted flange bushes are available in various sizes, and it is important to select the right size to ensure a proper fit.
- Load capacity: The load capacity of the slotted flange bush should be considered to ensure that it can handle the required load.
In conclusion, slotted flange bushes are versatile components that offer several advantages and are widely used in various industries. Proper maintenance and selection of the right type can help to ensure optimal performance and longevity of these components.
Slotted bushes without lubrication are a type of bearing used in machinery to reduce friction and wear between moving parts. They are designed to work without the need for lubrication, which can reduce maintenance requirements and costs.
Slotted bushes without lubrication are made of self-lubricating materials, such as sintered bronze or plastic, that are impregnated with lubricating oil. This oil is released slowly and evenly as the bushing wears, providing a consistent level of lubrication over time.
One of the unique features of slotted bushes without lubrication is their ability to maintain their performance over a wide range of temperatures and operating conditions. They can withstand high speeds, heavy loads, and exposure to dirt, dust, and moisture without losing their effectiveness.
To get the most out of your slotted bushes without lubrication, it’s important to follow some best practices. First, make sure the bushings are properly installed and aligned with the mating parts. Second, avoid using excessive force or pressure, which can damage the bushings and cause premature wear. Finally, periodically inspect the bushings for signs of wear or damage and replace them as needed.
In summary, slotted bushes without lubrication can offer many benefits to machinery performance, including reduced friction and wear, lower maintenance costs, and improved reliability. By following best practices and properly maintaining these bushings, you can maximize their effectiveness and extend their lifespan.
Cylindrical and slotted bushes are crucial components used in the manufacturing process to enhance efficiency, minimize downtime, and ensure the quality of finished products.
Cylindrical bushes are hollow tubes with a smooth, uniform exterior surface that are typically used to reduce friction between two moving parts. They are commonly utilized in machines where the movement of one component may cause wear or damage to another. Cylindrical bushes act as a buffer between these parts, absorbing shock and minimizing the impact of movement. This helps to prolong the life of the machine, reduce maintenance requirements, and prevent costly repairs.
On the other hand, slotted bushes have a groove running along their length, which makes them particularly useful for applications where axial movement is required. The groove allows for the movement of the shaft or component, while still maintaining a snug fit to prevent lateral movement. This results in more precise and accurate positioning of parts, which is essential in manufacturing operations where even small deviations from tolerances can cause significant problems.
Overall, the use of cylindrical and slotted bushes in manufacturing is crucial for optimizing production processes, reducing downtime, and ensuring product quality. By reducing wear and tear on machine components, these bushes can help extend the lifespan of equipment and minimize the need for repairs or replacements. Furthermore, their ability to maintain precise positioning and prevent lateral movement can improve the accuracy and consistency of manufacturing operations, leading to higher-quality products and greater customer satisfaction.
Self-lubricating tin-plated steel back bushings with a multi-porous bronze layer and a sliding surface made of PTFE-lead compound has a range of advantages and applications. Some of the benefits of using these bushings include:
- Self-Lubrication: The PTFE-lead compound provides an excellent self-lubricating property, which reduces friction and wears between the moving parts. This feature allows the bushings to operate smoothly without requiring additional lubrication.
- Corrosion Resistance: The tin-plated steel back of the bushings provides excellent resistance to corrosion, making them suitable for use in harsh environments.
- High Load Capacity: The multi-porous bronze layer has a high load-carrying capacity, which makes these bushings suitable for heavy-duty applications.
- Low Noise and Vibration: The self-lubricating property of these bushings reduces noise and vibration, making them suitable for use in applications that require a quiet operation.
The applications of self-lubricating tin-plated steel back bushings with a multi-porous bronze layer and a sliding surface made of PTFE-lead compound are widespread across various industries, including:
- Automotive Industry: These bushings are used in various automotive applications, including suspension systems, steering linkages, and throttle linkages.
- Industrial Machinery: These bushings are used in a wide range of industrial machinery, including hydraulic cylinders, gearboxes, and conveyor systems.
- Aerospace Industry: These bushings are used in aircraft landing gear and flap actuation systems.
- Marine Industry: These bushings are used in marine equipment, including steering systems, rudder bearings, and propeller shafts.
Compared to other materials used in cylindrical and slotted bushes, self-lubricating tin-plated steel back bushings with a multi-porous bronze layer and a sliding surface made of PTFE-lead compound have several advantages. These bushings provide excellent wear resistance, high load-carrying capacity, low friction, and low noise and vibration. Additionally, their self-lubricating property reduces the need for additional lubrication, making them more cost-effective and easier to maintain than other materials.
