Vulcanizing Machine Bronze Nut Parts Services, C954 Hex Nuts, C95400 aluminum bronze solutions made in China
Bronze nuts are mechanical components made from bronze, a copper-based alloy. They are commonly used in various applications where corrosion resistance, strength, and durability are required. Supply Vulcanizing machine mold bronze nut， Oversize Material bronze bushing, and large size bronze parts. Vulcanizing press is a kind of machine for vulcanizing all kinds of rubber and plastic products, which has the functions of timer locking, automatic pressure replenishment, automatic temperature control, automatic timing and alarm at the time. Vulcanizing machine is divided into three forms: electric heating, steam heating and heat-conducting oil heating.
Conforms to continuous cast specification ASTM B505 and centrifugal cast specification ASTM B271.

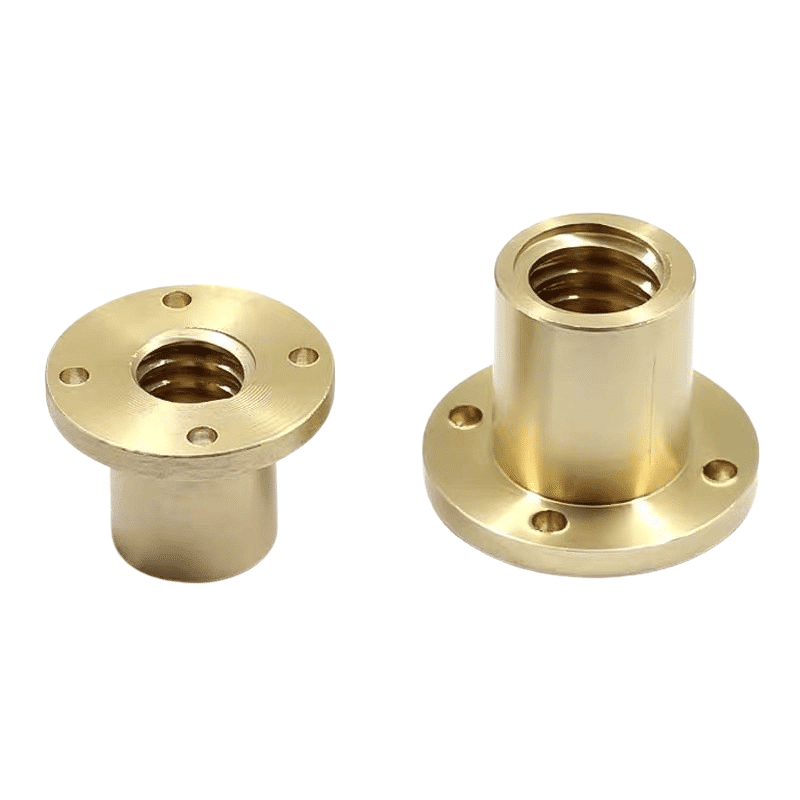

Bronze Nuts come in a variety of sizes. They come complete with self-lubricating graphite and are made of C954 bronze.
Copper Bushing, Copper Bushing Manufacturer, Copper Sliding Plate, Tin Bronze Bushing, Aluminum Bronze Bushing，Vulcanizing press is suitable for vulcanizing all kinds of rubber products, and it is the hot pressing equipment for pressing and molding all kinds of thermosetting plastics. The mold adjusting mechanism is an important part of the vulcanizing press. The mold adjusting mechanism realizes the lifting and lowering of the upper pallet by the rotation of the mold adjusting stud and the thread payment of the mold adjusting nut of the vulcanizing press.
C95400 Aluminum Bronze is a remarkable alloy that combines exceptional strength, corrosion resistance, and durability. Its unique properties make it an ideal choice for applications that require reliable performance in challenging environments. From large hold-down screws and nuts to a wide range of other components, C95400 Aluminum Bronze continues to be a trusted material in various industries where quality and reliability are paramount.
Typical Uses for C954 Aluminum Bronze Nuts
The flange screw is directly suspended from the bottom of the crossbeam of the vulcanizer, the external thread of the flange screw engages with the internal thread of the center hole of the upper pallet, the inner circle of the big gear is fixed with the external circle of the upper part of the flange screw, and the output shaft of the mould adjusting motor fixed in the frame is fixed with the mould adjusting pinion, which engages with the big gear of the mould adjusting pinion. There is at least one vertical guide bar fixed on the front and rear of the upper pallet, and there is a positioning sleeve fixed on the frame with which the guide bar passes through the positioning sleeve. When adjusting the mold, the mold adjusting motor drives the mold adjusting pinion gear, which drives the mold adjusting gear to rotate, thus driving the flange screw to rotate, and under the action of the guide bar, the upper pallet is lifted vertically to realize the adjustment of the height of the upper model.
Aluminum c954 Bronze Nuts Parts Oversize
Our company casts and produces vulcanizing machine mold adjusting nut, vulcanizing machine copper sleeve, vulcanizing machine mold adjusting nut material is mainly aluminum bronze, aluminum bronze is bronze containing aluminum generally does not exceed 11.5% of copper alloy, sometimes also add the right amount of iron, nickel, manganese and other elements to further improve performance. Aluminum bronze bronze sets can be heat-treated and strengthened, its strength is higher than tin bronze bronze sets, high temperature oxidation resistance is also better.
C954 hex nuts are a type of fastening component made from C95400 aluminum bronze, an alloy known for its high strength, excellent corrosion resistance, and wear resistance. Here’s a brief overview:
-
Material Properties:
- Composition: C95400 aluminum bronze typically contains copper, aluminum, and small amounts of other elements such as iron and nickel.
- Strength: This alloy is characterized by its high tensile strength and hardness, making it suitable for demanding applications.
-
Applications:
- Industrial Use: C954 hex nuts are used in heavy-duty machinery and equipment, where durability and resistance to wear are crucial.
- Marine: Due to their excellent corrosion resistance, these nuts are also used in marine environments.
-
Advantages:
- Corrosion Resistance: C95400 aluminum bronze is highly resistant to seawater and other corrosive environments.
- Wear Resistance: The alloy’s hardness makes it ideal for applications where friction and wear are concerns.
-
Standards:
- Specification: C95400 is governed by ASTM B505 and is often used in accordance with specific industry standards for hex nuts.
For sourcing C954 hex nuts, suppliers specializing in aluminum bronze components or industrial fasteners are good places to start.
C95400 Alloy, C954 Aluminum Bronze Parts- Bronze nuts
Aluminum bronze nuts containing iron and manganese elements have high strength and wear resistance, quenched and tempered to improve hardness, good high-temperature corrosion resistance and oxidation resistance, good corrosion resistance in the atmosphere, fresh water and seawater, machinability, can be welded and not easy to fiber welding, good pressure processing in the hot state.
Alum bronze c954
C95400 Aluminum Bronze, also known by C954, is the most popular, all purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability and exceptional resistance to wear, fatigue and deformation under shock or overload.
Aluminum bronze has good cutting and grinding properties, can be welded, and is easily formed by hot work. The alloy is mainly used in the manufacture of brackets, gears, bushings, bushings, receiver nozzles, flanges, rocker arms, guide valves, pump rods, cams, fixed nuts and other high-strength and wear-resistant structural parts. With high strength and wear resistance, it is widely used in high voltage electrical appliances and marine industry. Quenching and tempering treatment can further improve the strength, wear resistance and oxygen resistance.
