Graphite fill is a great choice for enhancing the performance and longevity of mechanical components, particularly in applications where traditional lubricants may not be as effective. Here’s a breakdown of the benefits and considerations of using graphite fill:

1. Self-Lubricating Properties: Graphite is a natural lubricant, which means it can reduce friction and wear without the need for an external lubricating oil.
2. Suitable for Intermittent Use: In applications where the machinery is not constantly in motion, graphite fill can maintain the lubrication between uses, which is not always possible with oil-based lubricants that may evaporate or degrade over time.
3. Low-Speed Environments: In situations where the rotational speed (RPM) is low, it can be difficult for an oil film to form and maintain lubrication. Graphite fill can bridge this gap by providing a solid lubricating layer.
4. High-RPM Applications: Even at high speeds, graphite can be beneficial. It ensures that there is lubrication during the critical periods of startup and shutdown when the risk of wear is the highest. It also helps during sudden shock loads, which can damage components if not properly lubricated.
5. Compatibility with Groove Styles and Drilled Holes: The versatility of graphite fill allows it to be used in a variety of mechanical designs, including different groove styles and parts with drilled holes.
6. Maintenance Reduction: Since graphite provides a form of permanent lubrication, it can reduce the need for frequent maintenance and lubrication cycles, which can save time and resources.
7. Environmental Considerations: Graphite is a dry lubricant, which means it doesn’t attract dirt and debris the way some oil-based lubricants can, making it a good choice for environments where cleanliness is important.
8. Heat Resistance: Graphite has good thermal conductivity, which can help dissipate heat away from moving parts, reducing the risk of overheating.

When using graphite fill, it’s important to consider the following:

• Compatibility with Materials: Ensure that the graphite fill is compatible with the materials of the parts it will be in contact with to avoid any chemical reactions that could degrade the components.
• Application Method: The method of applying the graphite fill should be considered to ensure an even and effective distribution.
• Reapplication: Over time, the graphite fill may wear away and need to be reapplied to maintain optimal performance.

In summary, graphite fill is a versatile and reliable option for lubrication in a wide range of mechanical applications, offering benefits in both low-speed and high-RPM environments. It’s a solid choice for improving the efficiency and lifespan of bushings and other mechanical components.

The Indispensable Role of Bronze Graphite Bushing and Slide Plate in Cement Mill: An Insight into Spare Parts of Cement Mill and Cement Plant Equipment

As the world becomes increasingly industrialized, the construction sector is experiencing massive growth. As a result, the demand for cement has skyrocketed. However, this rapid increase in production has also placed unprecedented pressure on cement mills. The heavy loads, dust, and high temperatures associated with cement mills require robust, efficient, and durable components to keep operations running smoothly. In this context, the role of bronze graphite bushing and slide plate has become pivotal. They’re not just mere spare parts of a cement mill or cement plant equipment but key components that ensure seamless and efficient operations.

What is Bronze Graphite Bushing?

Bronze graphite bushings, also known as self-lubricating bushings, are essential components of industrial machinery, especially in highly demanding environments such as cement mills. These bushings are constructed from bronze—a durable and robust alloy—and are embedded with graphite plugs. This unique composition delivers incredible benefits.

These bushings offer excellent resistance to wear and tear and high temperatures, ensuring extended operational life for cement mill machinery. Additionally, their self-lubricating properties minimize friction and ensure smoother operations. This ultimately results in reduced maintenance costs, less downtime, and improved productivity.

The Role of Slide Plate in Cement Mill

Slide plates, another crucial component of cement mills, perform the vital task of supporting and aligning the rotating parts of the machinery. Given the intense conditions within a cement mill, these components need to be made from materials that can withstand high loads and temperatures while maintaining optimal performance.

The bronze graphite slide plates play an indispensable role in this aspect. The bronze component gives the slide plates their strength and durability, while the embedded graphite ensures self-lubrication and minimal friction. This combination not only guarantees a longer lifespan for the machinery but also ensures greater efficiency and reduced maintenance costs.

Ensuring Longevity and Efficiency of Cement Mills

While many may overlook the importance of these seemingly minor components, their role in cement mills’ overall functionality is undeniable. Whether it’s the bronze graphite bushing ensuring seamless and frictionless movement of parts or the slide plates providing proper alignment and support, their contributions are paramount.

Maintaining a constant supply of high-quality spare parts like these is critical in ensuring uninterrupted operations. By reducing the wear and tear of the moving parts, bronze graphite bushings and slide plates significantly lower the total cost of ownership of cement mill equipment. They also minimize the need for lubrication maintenance, further reducing costs and downtime.

Final Thoughts

In an industry as demanding as cement production, every minute of downtime can result in significant financial losses. As such, investing in high-quality, durable, and efficient components like bronze graphite bushing and slide plates is a necessity, not an option. These elements contribute significantly to the overall performance, longevity, and efficiency of cement mills, making them invaluable components in the cement production process.

In a world increasingly focused on efficiency and sustainability, the role of such robust components will only become more significant. As technology continues to advance, we look forward to the development of even more durable, efficient, and sustainable components for cement mills. Until then, bronze graphite bushings and slide plates will continue to be the unsung heroes of the cement industry.

The Advantages of Graphite-Based Bearing Bushings for Lubrication

Introduction

Bearing bushings, also known as plain or sleeve bearings, are essential components in various mechanical systems. They provide support, reduce friction, and ensure the smooth operation of rotating or sliding parts in machines. Over the years, a range of materials has been used to manufacture bearing bushings, but graphite-based materials have gained significant attention due to their unique properties. In this article, we will discuss the advantages of using graphite-based bearing bushings for lubrication in various applications.

1. Self-Lubricating Properties

Graphite is a naturally occurring form of carbon with a unique crystalline structure that gives it excellent lubricating properties. This structure allows graphite to form layers that easily slide against one another, reducing friction between the mating surfaces. This self-lubricating property eliminates the need for external lubricants, reducing maintenance costs and ensuring uninterrupted operation in various applications.

2. High Temperature Resistance

Graphite-based bearing bushings can withstand high temperatures without losing their lubricating properties. This makes them ideal for use in high-temperature applications such as furnaces, kilns, and engines. As a result, they offer improved performance and extended service life compared to other bearing materials that may degrade or fail under extreme heat.

3. Chemical Resistance

Graphite is chemically inert and resistant to most chemicals, acids, and alkalis. This makes it suitable for use in harsh environments or applications where exposure to corrosive substances is a concern. Graphite-based bearing bushings can maintain their performance and integrity even when exposed to aggressive chemicals, ensuring long-lasting and reliable operation.

4. Low Coefficient of Friction

The low coefficient of friction of graphite makes it an excellent material for bearing bushings. This property results in reduced wear and tear on both the bushing and the mating surfaces, prolonging the life of the mechanical system. Furthermore, the low friction reduces energy consumption and improves overall system efficiency.

5. Environmental Friendliness

Graphite-based bearing bushings are environmentally friendly as they do not require additional lubricants, which can potentially contaminate the environment. This makes them an ideal choice for industries seeking to minimize their environmental impact.

6. Versatility

Graphite-based bearing bushings can be used in a wide range of applications due to their unique combination of properties. From automotive to aerospace, heavy machinery to home appliances, graphite bushings provide reliable, low-maintenance solutions for various industries.

Conclusion

Graphite-based bearing bushings offer numerous advantages over traditional bearing materials, including self-lubrication, high temperature and chemical resistance, low friction, environmental friendliness, and versatility. These properties make them an ideal choice for numerous applications across different industries. By choosing graphite-based bearing bushings, manufacturers and end-users can benefit from reduced maintenance costs, improved performance, and extended service life, ultimately contributing to greater overall efficiency and sustainability.

The term “600S1 CuSn5Zn5Pb5 graphite bearing” refers to a specific type of bearing material.

The material composition of CuSn5Zn5Pb5 refers to a bronze alloy, which contains 5% each of tin, zinc, and lead. This type of alloy is commonly used for bearings due to its good wear resistance, high load-carrying capacity, and excellent machinability.

The addition of graphite to the material provides additional lubrication properties, which helps to reduce friction and wear between the bearing and the surface it is in contact with.

Overall, the 600S1 CuSn5Zn5Pb5 graphite bearing is a high-performance bearing material commonly used in applications with heavy loads and high speeds, such as in automotive engines, industrial machinery, and other heavy-duty applications.

600S2 CuAl10Ni5Fe5 is a type of bronze alloy that contains copper (Cu), aluminum (Al), nickel (Ni), and iron (Fe). This type of bronze is commonly used in manufacturing bearings and bushings because it has excellent wear resistance and high strength.

Graphite bearings are self-lubricating bearing containing graphite as a lubricant. Graphite is an excellent lubricant because it has a low coefficient of friction and can withstand high temperatures without breaking down.

So, a 600S2 CuAl10Ni5Fe5 bronze graphite bearing is a type of bearing made from the 600S2 bronze alloy and contains graphite as a lubricant. This type of bearing would be suitable for applications with high strength and wear resistance, and where self-lubricating properties would be beneficial.

A Detailed Look at CuZn25Al6FeMn3 Bronze Graphite Bushings and Slide Plates: The Maintenance-Free Solution for High-Strength Applications

In industrial machinery, durability, strength, and efficiency are not just desired characteristics, they are a requirement. Particularly in heavy-load environments such as cement plants, the demand for maintenance-free yet robust bearings is greater than ever. Responding to this need, we introduce the CuZn25Al6FeMn3 bronze graphite bushings and slide plates.

Unleashing the Power of CuZn25Al6FeMn3

CuZn25Al6FeMn3, a cast Copper-Zinc-Manganese Alloy, offers one of the highest yield strengths among all cast Copper Alloys. It comes with the added advantage of being reasonably priced, making it an appealing choice for numerous industrial applications.

The secret of its strength lies in its unique material composition. The fusion of copper, zinc, manganese, aluminum, iron, and a small percentage of other elements results in an alloy that can handle extreme conditions, loads, and temperatures. It also provides exceptional wear and corrosion resistance, essential for the prolonged operational life of machinery.

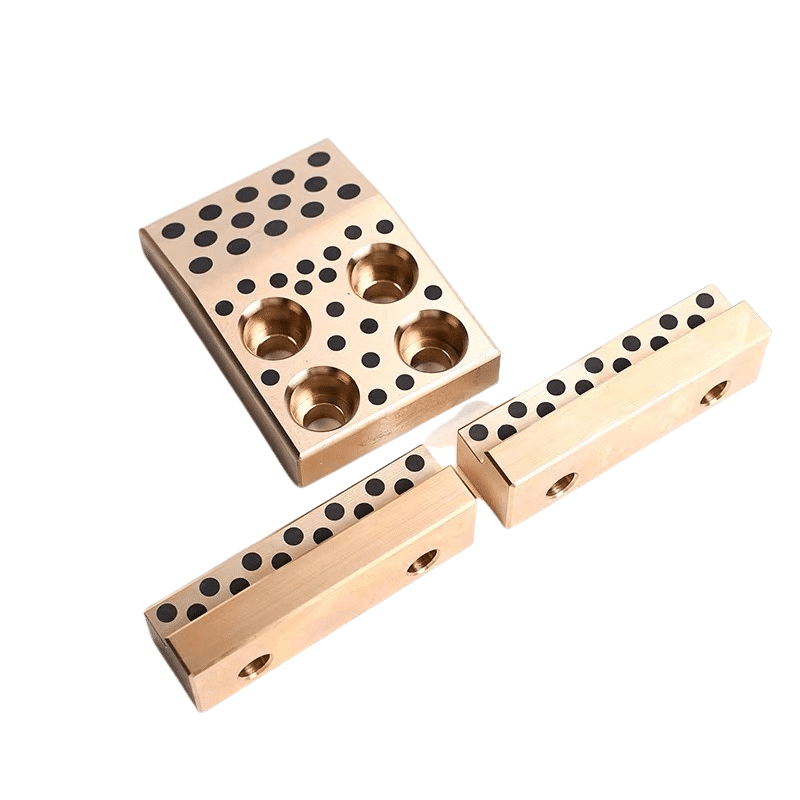

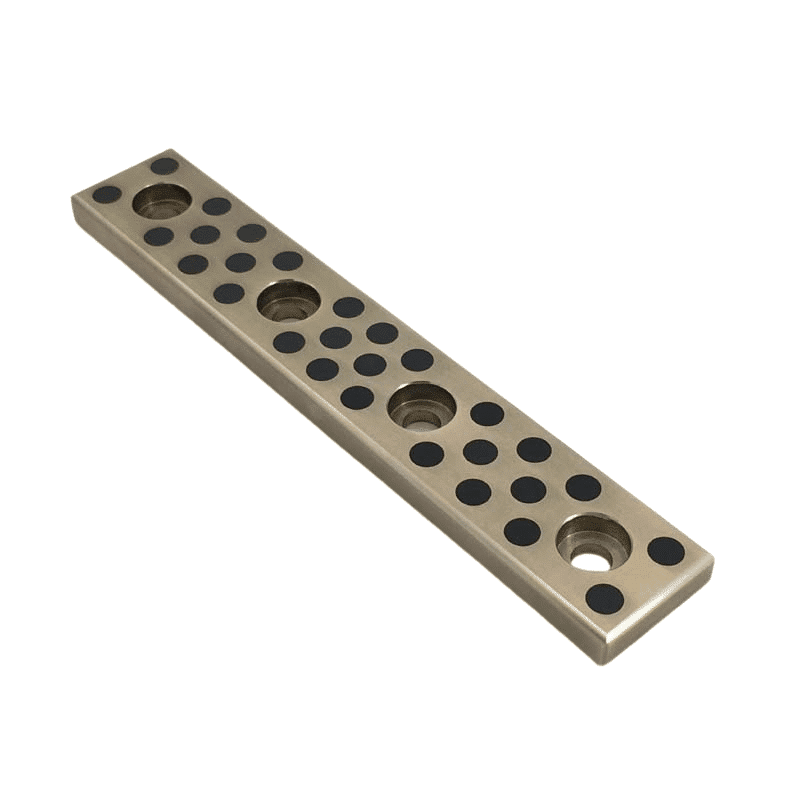

CuZn25Al6FeMn3 Bronze Graphite Bushings and Slide Plates

When combined with graphite to manufacture bushings and slide plates, the CuZn25Al6FeMn3 alloy comes into its own. The resultant product is a high-strength brass bronze plugged graphite bushing or slide plate that can perform exceptionally well under demanding conditions.

The material composition, Brass/Bronze + Graphite, offers several advantages. The brass/bronze component ensures high strength and corrosion resistance, while the graphite plugs provide self-lubrication. This eliminates the need for regular lubrication, significantly reducing maintenance costs and downtime.

A Maintenance-Free Solution

One of the main selling points of these CuZn25Al6FeMn3 bronze graphite bushings and slide plates is their maintenance-free nature. The graphite plugs embedded in the bushings and slide plates constantly lubricate the component. This continuous self-lubrication helps reduce friction, wear, and heat generation, resulting in smoother operation and an extended lifespan.

Being maintenance-free doesn’t mean they compromise on performance. Quite the contrary. These components can operate under high load, at high speeds, and even in high-temperature conditions, making them ideal for heavy-duty applications such as in cement mills.

Custom-Made for Your Needs

Recognizing the unique requirements of different industries and applications, CuZn25Al6FeMn3 bronze graphite bushings and slide plates can be custom-made to meet your specific needs. Manufacturers in China offer customization options, allowing you to choose the size, shape, and even the composition of the graphite plugs, ensuring you get the optimal solution for your specific application.

Final Thoughts

The CuZn25Al6FeMn3 bronze graphite bushings and slide plates represent an evolution in industrial components. Offering superior strength, longevity, and the ability to self-lubricate, these components are truly maintenance-free. They present a robust solution for high-strength applications, improving overall efficiency and productivity, while reducing the total cost of ownership. Undoubtedly, they are set to redefine how we perceive and use bearings in heavy-load applications.

Unraveling the Capabilities of C93700 Bronze Bushing and Slide Plate: A High-Lead Tin Bronze Marvel

In the realm of industrial machinery and equipment, material selection plays a critical role in ensuring performance, longevity, and overall efficiency. One such material that is gaining significant attention is the C93700 bronze, a high-lead tin bronze that combines excellent lubricity, wear resistance, and corrosion resistance, making it an ideal choice for manufacturing bushing parts and slide plates.

Introduction to C93700 Bronze

C93700 bronze is a high-lead tin bronze, as per American specifications. This unique bronze alloy offers a mix of superior properties that make it an excellent choice for bi-metal casting materials. Its main characteristics include excellent lubrication performance, good wear resistance, and superior corrosion resistance.

The C93700 bronze aligns with the Japanese standard LBC3, the British standard LB2, the German standard G-CuPb10Sn10, and the American standard LBC32. The universal recognition and acceptance of this material highlight its effectiveness and superiority in various applications.

C93700 Bronze Bushings: A Cut Above

The use of C93700 bronze for manufacturing bushing parts is advantageous due to the material’s inherent properties. The superior lubricity ensures that the movement between parts is smooth and effortless, reducing wear and tear, and increasing the service life of the components.

Meanwhile, the alloy’s high wear resistance ensures that the bushings can withstand harsh operating conditions without significant wear. This is especially beneficial in industries like mining and construction, where equipment frequently operates under heavy loads.

Lastly, the excellent corrosion resistance of C93700 bronze bushings means they can reliably function in environments where corrosion is a major concern, such as chemical processing or marine applications.

C93700 Bronze Slide Plates: Durable and Efficient

Slide plates made from C93700 bronze offer similar benefits. They are designed to handle immense pressure and high temperatures, characteristics typical of many industrial applications. The slide plates’ superior wear resistance ensures that they don’t wear out quickly despite continuous movement.

Moreover, the superior lubricity offered by C93700 bronze means that the slide plates require less lubrication, reducing maintenance costs and downtime. The excellent corrosion resistance of this material further extends the operational life of these components, making them a cost-effective choice in the long run.

Final Thoughts

The C93700 bronze, with its unique mix of superior lubricity, wear resistance, and corrosion resistance, provides an effective solution for manufacturing high-performance bushing parts and slide plates. By choosing these components, industries can improve their operational efficiency, reduce maintenance costs, and enhance the longevity of their machinery.

In an increasingly demanding industrial environment, the C93700 bronze stands out as a reliable and high-performance material. As we continue to seek ways to increase efficiency and reduce operational costs, it is materials like C93700 bronze that will pave the way for a more sustainable and efficient future.
