Explore Plain Bearing Types – Quality & Durability Assured
Ball Bearings Supplier – Four Point Contact Ball Bearings: These bearings are engineered to manage axial loads effectively in both directions while offering a high load carrying capacity. Designed to endure limited radial loads based on their axial load profile, four point contact ball bearings also require less axial space compared to double row angular contact ball bearings. Moreover, they feature a split type design for increased versatility.
Your Source for High-Quality Plain Bearings – Multiple Types Available!
Plain Bearings Made From Self-Lubricating Metal
Discover Bearings – Super precision
ball bearings
Bearing Distributors: We provide a comprehensive selection of bushings and bearings along with exceptional customer service. Explore our wide range of sliding bearings designed to fulfill all your requirements. Discover our super-precision, high-capacity, universally matchable single-row angular contact ball bearings! In the intricate realm of rotating machinery, bearings are crucial for seamless and efficient performance. Deep groove ball bearings, known for their versatility and durability, are among the types we specialize in. As a recognized distributor of deep groove bearings, we are dedicated to delivering top-quality products tailored to your specific needs, ensuring your machinery operates at its best. High-quality bearings available—contact us online for the best quote. Browse our products. Your Trusted Deep Groove Bearing Distributor: Promoting Uninterrupted Operations and Maximum Efficiency.
Super-Precision Bearing Supplier
A Wide Range of Sizes Available: Rolling bearings facilitate the rotation or oscillation of machine parts—like axles, vehicle axles, or wheels—by minimizing friction and efficiently transmitting loads between components. These bearings are designed for high precision and low friction, enabling high-speed operations while decreasing noise, heat, energy use, and wear. They are cost-effective, typically interchangeable, and conform to national or international dimensional standards. Bearing Supplier – Wholesale Bearings, Supplier of Thrust Bearings – Supplier of Ball Bearings, Specializing in the Development and Manufacturing of High-Precision Bearings.
Distributor of Angular Contact Ball Bearings
Single Row Angular Contact Ball Bearings: Single row angular contact ball bearings are designed to support axial loads in one direction only. This type of bearing typically requires adjustment in relation to another bearing. The bearing rings feature high and low shoulders and are non-separable.
Single row angular contact ball bearings are packed with numerous steel balls, enhancing their load-carrying capacity. They can only support axial loads in one direction and generally need to be adjusted relative to a second bearing. These bearings are distinguished by their non-separable ring design.
Supplier of Super-Precision Bearings

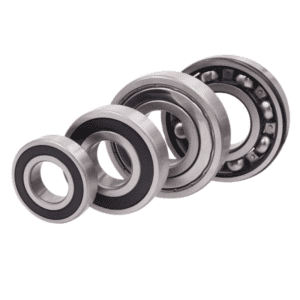

Deep Groove Ball Bearings: Deep groove ball bearings are the most commonly utilized type of bearing and are known for their versatility. Rolling bearings facilitate the rotation or oscillation of machine parts—such as shafts, axles, or wheels—minimizing friction and effectively transferring loads between components. These bearings are engineered for high precision and low friction, allowing for high-speed operations while reducing noise, heat, energy usage, and wear. Rolling bearings are cost-effective and typically interchangeable, adhering to national or international dimensional standards. Your Trusted Supplier of Deep Groove Ball Bearings.
Distributor of Angular Contact Ball Bearings
We provide a comprehensive selection of deep groove ball bearings, catering to both basic and advanced application needs. Explore our extensive assortment of rolling bearings, accessories, and services tailored to enhance your specific performance requirements. Our double row angular contact ball bearings feature a design similar to two single row bearings arranged back-to-back, yet they require less axial space. These bearings can handle both radial and axial loads in either direction and are capable of withstanding overturning moments.
Double Row Angular Contact Ball Bearings: Efficient in space and robust in function, these bearings manage radial and axial loads effectively and accommodate overturning moments.
Single Row Angular Contact Ball Bearings: Specialized for supporting axial loads in one direction, necessitating adjustment relative to another bearing.
Your go-to industrial distributor for bushings and a full range of angular contact ball bearings.
Plain bearings type, Bronze with collar, maintenance-free
Self-lubricating plain bearings come in various types, and they are engineered to reduce friction and extend the life of machinery with minimal or no need for external lubrication. The specific type chosen depends on the application requirements, such as operating conditions, load capacity, and maintenance considerations.
Guide bushings bronze, maintenance-free
Plain Bearings Made From Self-Lubricating Metal
Custom Plain Bearing Parts Services and Self-lubricating Bushing Prototyping！

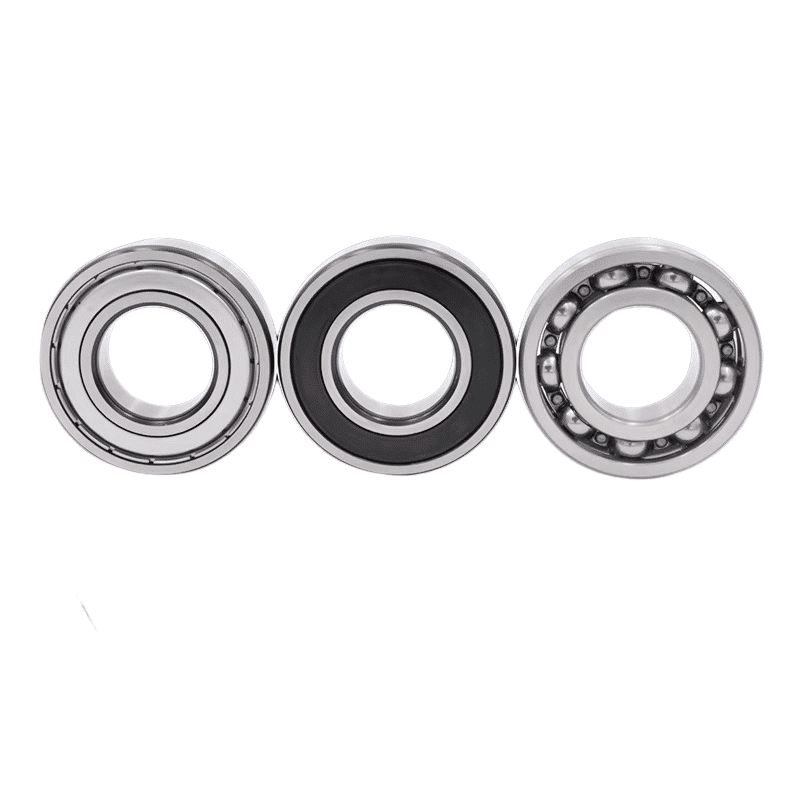

Understanding Deep Groove Bearings
Deep groove ball bearings, characterized by their deep, uninterrupted raceway grooves, are capable of supporting radial loads, axial loads, or a combination of both. Their design allows them to handle higher speeds than other bearing types, making them a popular choice across a variety of applications.
Your Trusted Deep Groove Bearing Distributor
As a trusted deep groove bearing distributor, we carry an extensive range of deep groove bearings in various sizes, materials, and configurations. Our inventory includes options suitable for diverse operating conditions and applications, ensuring we can provide the perfect solution for your needs.
Quality Products
We understand the critical role bearings play in your operations, and we are committed to supplying only the highest quality products. All the deep groove bearings we distribute are sourced from reputable manufacturers and undergo rigorous quality checks. Our customers can be confident in the durability, reliability, and performance of our products.
Exceptional Customer Service
Our dedication to customer satisfaction extends beyond the provision of quality products. We strive to ensure a seamless and enjoyable purchasing experience. Our experienced and knowledgeable team is ready to assist you with bearing selection, troubleshooting, and maintenance advice, ensuring you get the most out of your bearings.
Fast and Reliable Delivery
We understand that time is of the essence in your operations. That’s why we’re committed to providing fast and reliable delivery services. Our extensive inventory and efficient logistics network ensure your deep groove bearings reach you when you need them, minimizing downtime and maintaining your operational efficiency.
Conclusion
As your deep groove bearing distributor, we are not merely a supplier; we are a partner dedicated to supporting your success. With an extensive range of high-quality bearings, exceptional customer service, and reliable delivery, we are well-positioned to cater to all your deep groove bearing needs. Contact us today and discover the difference working with a trusted deep groove bearing distributor can make.
Is your equipment performing at 100%? Meet your specific performance needs with our wide range of products, technologies, services and flexible business models. How to choose the right bearing for your business
Choosing the right bearing requires following the right process. Here you can find the right selection, configuration and application as well as detailed guidance on proper mounting.
ID 10-100 MM DOUBLE-ROW ANGULAR CONTACT BALL BEARINGS 10 – 100 mm Double Row Angular Contact Ball Bearings, Steel
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speeds (RPM) | Mass (kg) |
Abutment and Fillet Dimensions (mm) | ||||||||||
| Part | Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Grease | Oil | da | Da | ra | |||
| Number | d | D | B | rsmin | Cr | C0r | 2RZ, ZZ | 2RS | Open | approx. | min | max | max | max |
| 5200 | 10 | 30 | 14 | 0.6 | 7.81 | 4.47 | 24000 | 17000 | 24000 | 0.051 | 14.4 | 15.5 | 25.6 | 0.6 |
| 5201 | 12 | 32 | 16 | 0.6 | 10.52 | 5.80 | 22000 | 1500 | 22000 | 0.058 | 16.4 | 17.0 | 27.6 | 0.6 |
| 5202 | 15 | 35 | 16 | 0.6 | 11.67 | 6.98 | 18000 | 14000 | 18000 | 0.066 | 19.4 | 20.0 | 30.6 | 0.6 |
| 5302 | 42 | 19 | 1.0 | 16.01 | 9.30 | 16000 | 12000 | 16000 | 0.130 | 20.6 | 23.5 | 36.4 | 1.0 | |
| 5203 | 17 | 40 | 18 | 0.6 | 14.65 | 9.03 | 16000 | 12000 | 16000 | 0.100 | 21.4 | 23.0 | 35.6 | 0.6 |
| 5303 | 47 | 22 | 1.0 | 22.11 | 13.21 | 14000 | 11000 | 14000 | 0.180 | 22.6 | 25.5 | 41.4 | 1.0 | |
| 5204 | 20 | 47 | 21 | 1.0 | 19.60 | 12.43 | 14000 | 10000 | 14000 | 0.160 | 25.6 | 27.5 | 41.4 | 1.0 |
| 5304 | 52 | 22 | 1.1 | 23.96 | 14.55 | 13000 | 9000 | 13000 | 0.220 | 27.0 | 29.5 | 45.0 | 1.0 | |
| 5205 | 25 | 52 | 21 | 1.0 | 21.30 | 14.66 | 12000 | 8500 | 12000 | 0.180 | 30.6 | 32.5 | 46.4 | 1.0 |
| 5305 | 62 | 25 | 1.1 | 31.47 | 21.12 | 11000 | 7500 | 11000 | 0.350 | 32.0 | 35.5 | 55.0 | 1.0 | |
| 5206 | 30 | 62 | 24 | 1.0 | 29.55 | 21.20 | 10000 | 7500 | 10000 | 0.290 | 35.6 | 38.5 | 56.4 | 1.0 |
| 5306 | 72 | 30 | 1.1 | 43.08 | 29.69 | 9000 | 6300 | 9000 | 0.520 | 37.0 | 39.5 | 65.0 | 1.0 | |
| 5207 | 35 | 72 | 27 | 1.1 | 39.03 | 28.67 | 9000 | 6300 | 9000 | 0.440 | 42.0 | 45.0 | 65.0 | 1.0 |
| 5307 | 80 | 35 | 1.5 | 51.01 | 36.13 | 8500 | 6000 | 8500 | 0.740 | 44.0 | 44.5 | 71.0 | 1.5 | |
| 5208 | 40 | 80 | 30 | 1.1 | 46.82 | 35.49 | 8000 | 5600 | 8000 | 0.570 | 47.0 | 48.0 | 73.0 | 1.0 |
| 5308 | 90 | 37 | 1.5 | 62.32 | 45.16 | 7500 | 5000 | 7500 | 0.930 | 49.0 | 50.5 | 81.0 | 1.5 | |
| 5209 | 45 | 85 | 30 | 1.1 | 50.08 | 40.53 | 7500 | 5300 | 7500 | 0.630 | 52.0 | 52.5 | 78.0 | 1.0 |
| 5309 | 100 | 40 | 1.5 | 74.66 | 55.40 | 6700 | 4800 | 6700 | 1.250 | 54.0 | 91.0 | 91.0 | 1.5 | |
| 5210 | 50 | 90 | 30 | 1.1 | 52.99 | 43.30 | 7000 | 4800 | 7000 | 0.650 | 57.0 | 57.5 | 83.0 | 1.0 |
| 5310 | 110 | 44 | 2.0 | 87.96 | 66.67 | 6000 | 4300 | 6000 | 1.700 | 61.0 | 61.5 | 99.5 | 1.0 | |
| 5211 | 55 | 100 | 33 | 1.5 | 58.94 | 49.40 | 6300 | 4500 | 6300 | 0.910 | 63.0 | 63.0 | 91.0 | 1.5 |
| 5311 | 120 | 49 | 2.0 | 109.49 | 84.15 | 5300 | 3800 | 5300 | 2.650 | 66.0 | 68.0 | 109.0 | 2.0 | |
| 5212 | 60 | 110 | 37 | 1.5 | 72.10 | 61.36 | 5600 | 4000 | 5600 | 1.200 | 68.5 | 68.5 | 101.0 | 1.5 |
| 5312 | 130 | 54 | 2.1 | 125.18 | 97.84 | 5000 | — | 5000 | 2.800 | 72.0 | 73.0 | 118.0 | 2.0 | |
| 5213 | 65 | 120 | 38 | 1.5 | 83.76 | 76.47 | 4800 | 3600 | 4800 | 1.750 | 74.0 | 76.0 | 111.0 | 1.5 |
| 5313 | 140 | 59 | 2.1 | 143.74 | 114.06 | 4500 | — | 4500 | 4.100 | 77.0 | 78.5 | 128.0 | 2.0 | |
| 5214 | 70 | 125 | 40 | 1.5 | 91.57 | 84.03 | 4500 | — | 4500 | 1.900 | 79.0 | 82.0 | 116.0 | 1.5 |
| 5314 | 150 | 64 | 2.1 | 159.32 | 128.37 | 4300 | — | 4300 | 5.050 | 82.0 | 84.0 | 138.0 | 2.0 | |
| 5215 | 75 | 130 | 41 | 1.5 | 99.51 | 92.41 | 4500 | — | 4500 | 2.100 | 84.0 | 84.0 | 121.0 | 1.5 |
| 5315 | 160 | 68 | 2.1 | 175.50 | 141.20 | 4000 | — | 4000 | 5.560 | 87.0 | 88.5 | 148.0 | 2.0 | |
| 5216 | 80 | 140 | 44 | 2.0 | 105.80 | 95.30 | 4300 | — | 4300 | 2.680 | 91.0 | — | 129.0 | 2.0 |
| 5316 | 170 | 68 | 2.1 | 192.70 | 156.30 | 3800 | — | 3800 | 6.890 | 92.0 | — | 158.0 | 2.0 | |
| 5217 | 85 | 150 | 49 | 2.0 | 124.30 | 110.90 | 3800 | — | 3800 | 3.380 | 96.0 | — | 139.0 | 2.0 |
| 5317 | 180 | 73 | 3.0 | 208.30 | 176.50 | 3600 | — | 3600 | 8.420 | 99.0 | — | 166.0 | 2.5 | |
| 5218 | 90 | 160 | 52 | 2.0 | 130.30 | 120.80 | 3600 | — | 3600 | 4.230 | 101.0 | — | 149.0 | 2.0 |
| 5318 | 190 | 73 | 3.0 | 208.60 | 180.40 | 3400 | — | 3400 | 9.320 | 104.0 | — | 176.0 | 2.5 | |
| 5219 | 95 | 170 | 56 | 2.1 | 160.20 | 145.80 | 3200 | — | 3400 | 4.980 | 107.0 | — | 158.0 | 2.0 |
| 5319 | 200 | 78 | 3.0 | 241.20 | 215.90 | 3200 | — | 3200 | 11.060 | 109.0 | — | 186.0 | 2.5 | |
| 5220 | 100 | 180 | 60 | 2.1 | 178.20 | 166.30 | 3200 | — | 3200 | 6.130 | 112.0 | — | 168.0 | 2.0 |
| 5320 | 215 | 83 | 3.0 | 255.30 | 255.10 | 2800 | — | 2800 | 13.530 | 114.0 | — | 201.0 | 2.5 | |
ID 10-100 mm Steel Four Point Contact Ball Bearing, QJ Series
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speed (RPM) | Mass (kg) |
Abutment and Fillet Dimensions (mm) | |||||||
| Part | Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Oil | da | Da | ra | |
| Number | d | D | B | rsmin | Cr | C0r | Open | approx. | min | max | max |
| QJ205 | 25 | 52 | 15 | 1.0 | 27.1 | 21.2 | 22000 | 0.16 | 30.6 | 46.4 | 1.0 |
| QJ305 | 62 | 17 | 1.1 | 42.5 | 30.1 | 20000 | 0.29 | 32.0 | 55.0 | 1.0 | |
| QJ206 | 30 | 62 | 16 | 1.0 | 37.5 | 30.5 | 19000 | 0.24 | 36.0 | 56.0 | 1.0 |
| QJ306 | 72 | 19 | 1.1 | 53.0 | 41.5 | 17000 | 0.42 | 37.0 | 65.0 | 1.0 | |
| QJ207 | 35 | 72 | 17 | 1.1 | 41.0 | 61.5 | 16000 | 0.35 | 42.0 | 65.0 | 1.0 |
| QJ307 | 80 | 21 | 1.5 | 64.0 | 51.0 | 15000 | 0.57 | 44.0 | 71.0 | 1.5 | |
| QJ208 | 40 | 80 | 18 | 1.1 | 56.0 | 49.0 | 15000 | 0.45 | 47.0 | 73.0 | 1.0 |
| QJ308 | 90 | 23 | 1.5 | 78.0 | 64.0 | 14000 | 0.78 | 49.0 | 81.0 | 1.5 | |
| QJ209 | 45 | 85 | 19 | 1.1 | 63.0 | 56.0 | 14000 | 0.52 | 52.0 | 78.0 | 1.0 |
| QJ309 | 100 | 25 | 1.5 | 100.0 | 83.0 | 12000 | 1.05 | 50.8 | 91.0 | 1.5 | |
| QJ210 | 50 | 90 | 20 | 1.1 | 65.5 | 61.0 | 13000 | 0.59 | 57.0 | 83.0 | 1.0 |
| QJ310 | 110 | 27 | 2.0 | 118.0 | 100.0 | 11000 | 1.35 | 60.0 | 100.0 | 2.0 | |
| QJ211 | 55 | 100 | 21 | 1.5 | 85.0 | 83.0 | 11000 | 0.77 | 64.0 | 91.0 | 1.5 |
| QJ311 | 120 | 29 | 2.0 | 137.0 | 118.0 | 10000 | 1.75 | 65.0 | 110.0 | 2.0 | |
| QJ212 | 60 | 110 | 22 | 1.5 | 96.5 | 93.0 | 10000 | 0.99 | 69.0 | 101.0 | 1.5 |
| QJ312 | 130 | 31 | 2.1 | 156.0 | 137.0 | 9000 | 2.15 | 72.0 | 118.0 | 2.0 | |
| QJ213 | 65 | 120 | 23 | 1.5 | 110.0 | 112.0 | 9500 | 1.20 | 74.0 | 111.0 | 1.5 |
| QJ313 | 140 | 33 | 2.1 | 176.0 | 156.0 | 8500 | 2.70 | 77.0 | 128.0 | 2.0 | |
| QJ214 | 70 | 125 | 24 | 1.5 | 120.0 | 122.0 | 9000 | 1.30 | 68.3 | 116.0 | 1.5 |
| QJ314 | 150 | 35 | 2.1 | 200.0 | 180.0 | 8000 | 3.15 | 82.0 | 138.0 | 2.0 | |
| QJ215 | 75 | 130 | 25 | 1.5 | 125.0 | 132.0 | 8500 | 1.45 | 84.0 | 121.0 | 1.5 |
| QJ315 | 160 | 37 | 2.1 | 187.0 | 320.0 | 7500 | 3.90 | 87.0 | 148.0 | 2.0 | |
| QJ216 | 80 | 140 | 26 | 2.0 | 146.0 | 156.0 | 8000 | 1.85 | 90.0 | 130.0 | 2.0 |
| QJ316 | 170 | 39 | 2.1 | 202.0 | 360.0 | 7000 | 4.60 | 92.0 | 158.0 | 2.0 | |
| QJ217 | 85 | 150 | 28 | 2.0 | 156.0 | 173.0 | 7500 | 2.20 | 95.0 | 140.0 | 2.0 |
| QJ317 | 180 | 41 | 3.0 | 250.0 | 255.0 | 6700 | 5.34 | 99.0 | 166.0 | 2.5 | |
| QJ218 | 90 | 160 | 30 | 2.0 | 186.0 | 200.0 | 7000 | 2.75 | 100.0 | 150.0 | 2.0 |
| QJ318 | 190 | 43 | 3.0 | 285.0 | 305.0 | 6300 | 6.40 | 104.0 | 176.0 | 2.5 | |
| QJ219 | 95 | 170 | 32 | 2.1 | 212.0 | 232.0 | 6700 | 3.35 | 107.0 | 158.0 | 2.0 |
| QJ319 | 200 | 45 | 3.0 | 305.0 | 340.0 | 6000 | 7.40 | 109.0 | 186.0 | 2.5 | |
| QJ220 | 100 | 180 | 34 | 2.1 | 236.0 | 265.0 | 6300 | 4.00 | 112.0 | 168.0 | 2.0 |
| QJ320 | 215 | 47 | 3.0 | 345.0 | 400.0 | 5600 | 9.30 | 114.0 | 201.0 | 2.0 | |
Your Trusted Distributor of Single Row Angular Contact Ball Bearings: Enhancing Performance and Efficiency
When it comes to precision, efficiency, and load management in machinery, single row angular contact ball bearings play a crucial role. As a recognized bearing distributor, we provide an extensive range of these specialized bearings, designed to meet various operational demands and enhance your machinery’s performance.
Understanding Single Row Angular Contact Ball Bearings
Single row angular contact ball bearings are uniquely designed to handle both radial and axial loads in one direction. Unlike other types of ball bearings, these bearings have asymmetrical designs, with the raceway of the inner ring shoulder being smaller than that of the outer ring. This design allows for the accommodation of a larger number of balls, resulting in higher load-carrying capacity.
Bearing Characteristics
High Load Carrying Capacity
The unique design of the single row angular contact ball bearings, specifically the smaller inner ring shoulder, allows for more balls to be fitted in the bearing. This increase in the number of balls enhances the load-carrying capacity, making these bearings perfect for applications requiring the handling of heavy loads.
Excellent Running Performance
These bearings are designed for high-speed applications. Their ability to handle both radial and axial loads efficiently makes them suitable for applications that require fast acceleration and deceleration.
Easy Mounting
One of the significant advantages of single row angular contact ball bearings is their ease of mounting. The bearings come as universal mating sets, and no adjustments or preload is required to achieve the correct internal clearance, simplifying the installation process and saving time.
Your Reliable Bearing Distributor
As a reputable bearing distributor, we pride ourselves on supplying high-quality single row angular contact ball bearings. Our bearings are sourced from reliable manufacturers, ensuring durability and optimum performance.
Beyond providing top-notch products, we are committed to delivering exceptional customer service. Our team is ready to guide you in selecting the most suitable bearings for your specific needs and provide advice on maintenance and troubleshooting.
Conclusion
In the world of machinery, every component counts, and the right bearings can significantly enhance the performance and efficiency of your operations. Whether you’re looking for superior load-carrying capacity, excellent running performance, or ease of mounting, single row angular contact ball bearings offer a remarkable solution. As your trusted bearing distributor, we’re here to ensure you get the most from your machinery with our quality bearings. Contact us today to explore our range of single row angular contact ball bearings.
Your Reliable Distributor of ID 10-17 mm Single Row Deep Groove Ball Bearings: Enhancing Your Machinery’s Efficiency and Performance
In the complex world of rotating equipment and machinery, the importance of high-quality bearings cannot be overstated. Single Row Deep Groove Ball Bearings, particularly those with an inner diameter (ID) of 10-17 mm, are critical components in many applications due to their ability to handle both radial and axial loads. As a recognized distributor of these bearings, we’re committed to delivering top-quality products that meet your specific operational requirements.
Understanding ID 10-17 mm Single Row Deep Groove Ball Bearings
Single Row Deep Groove Ball Bearings are versatile, self-retaining bearings with solid outer rings, inner rings, and ball and cage assemblies. These bearings are simple in design, robust in operation, and easy to maintain, making them a popular choice for many applications.
The 10-17 mm ID range is particularly beneficial in applications where space is a constraint, and high-speed rotation is required. These bearings are compact yet powerful, capable of handling heavy loads while maintaining excellent performance.
Your Trusted Distributor of Single Row Deep Groove Ball Bearings
As a reputed distributor of single row deep groove ball bearings, we offer an extensive inventory of bearings in various sizes, including the 10-17 mm ID range. These bearings are sourced from reliable manufacturers and undergo rigorous quality checks, ensuring that you receive the best quality product every time.
Exceptional Service and Fast Delivery
Beyond providing top-quality products, we pride ourselves on our customer service. Our experienced team is available to assist you in selecting the right bearings for your specific applications, offering advice on installation, maintenance, and troubleshooting.
Understanding the importance of time in your operations, we are committed to providing fast and reliable delivery services. With our efficient logistics network, you can trust that your bearings will be delivered when you need them, minimizing downtime and ensuring your operations run smoothly.
Conclusion
Investing in quality bearings, such as the ID 10-17 mm single row deep groove ball bearings, can greatly enhance the efficiency and performance of your machinery. As your trusted bearing distributor, we’re dedicated to providing you with high-quality bearings, exceptional customer service, and timely delivery. Reach out to us today to find the right bearings for your needs.
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speeds (RPM) | Mass (kg) |
|||||||
| Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Grease | Oil | |||
| Part Number | d | D | B | rsmin | Cr | C0r | RS, 2RZ, Z, ZZ | 2RS | Open, Z | approx. |
| 61800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.93 | 34000 | 24000 | 40000 | 0.01 |
| 61900 | 22 | 6 | 0.3 | 2.70 | 1.27 | 32000 | 22000 | 38000 | 0.01 | |
| 6000 | 26 | 8 | 0.3 | 4.75 | 1.97 | 30000 | 22000 | 36000 | 0.02 | |
| 6200 | 30 | 9 | 0.6 | 5.40 | 2.39 | 24000 | 18000 | 30000 | 0.03 | |
| 6300 | 35 | 11 | 0.6 | 8.52 | 3.50 | 22000 | 17000 | 26000 | 0.05 | |
| 61801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 32000 | 20000 | 38000 | 0.01 |
| 61901 | 24 | 6 | 0.3 | 2.91 | 1.46 | 30000 | 20000 | 36000 | 0.01 | |
| 16001 | 28 | 7 | 0.3 | 5.10 | 2.37 | 28000 | – | 32000 | 0.02 | |
| 6001 | 28 | 8 | 0.3 | 5.40 | 2.39 | 28000 | 18000 | 32000 | 0.02 | |
| 6201 | 32 | 10 | 0.6 | 7.28 | 3.10 | 22000 | 17000 | 28000 | 0.04 | |
| 6301 | 37 | 12 | 1.0 | 10.10 | 4.20 | 20000 | 16000 | 24000 | 0.06 | |
| 61802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 28000 | 17000 | 34000 | 0.01 |
| 61902 | 28 | 7 | 0.3 | 4.36 | 2.26 | 26000 | 17000 | 30000 | 0.02 | |
| 16002 | 32 | 8 | 0.3 | 5.85 | 2.85 | 24000 | – | 28000 | 0.03 | |
| 6002 | 32 | 9 | 0.3 | 5.85 | 2.85 | 24000 | 15000 | 28000 | 0.03 | |
| 6202 | 35 | 11 | 0.6 | 8.06 | 3.75 | 20000 | 14000 | 24000 | 0.05 | |
| 6302 | 42 | 13 | 1.0 | 11.90 | 5.45 | 17000 | 13000 | 20000 | 0.08 | |
| 61803 | 17 | 26 | 5 | 0.3 | 2.63 | 1.57 | 26000 | 15000 | 30000 | 0.01 |
| 61903 | 30 | 7 | 0.3 | 4.65 | 2.58 | 24000 | 15000 | 28000 | 0.02 | |
| 16003 | 35 | 8 | 0.3 | 6.80 | 3.35 | 22000 | – | 26000 | 0.03 | |
| 6003 | 35 | 10 | 0.3 | 6.80 | 3.35 | 22000 | 13000 | 26000 | 0.04 | |
| 6203 | 40 | 12 | 0.6 | 9.95 | 4.80 | 17000 | 12000 | 20000 | 0.07 | |
| 6303 | 47 | 14 | 1.0 | 14.30 | 6.65 | 15000 | 11000 | 18000 | 0.11 | |
| Snap Ring Groove Dimensions (mm) | Snap Ring Dimensions (mm) |
Abutment and Fillet Dimensions (mm) | |||||||||||
| Part | a | b | D1 | y0 | y1s | D2 | f | da | Da | ra | Dx | CY | |
| Number | max | min | max | max | min | max | max | min | max | max | max | min | max |
| 61800 | – | – | – | – | – | – | – | 12.0 | 12.0 | 17.0 | 0.3 | – | – |
| 61900 | 1.05 | 0.80 | 20.80 | 0.20 | 0.20 | 24.80 | 0.70 | 12.0 | 12.5 | 20.0 | 0.3 | 25.5 | 1.5 |
| 6000 | 1.35 | 0.87 | 24.50 | 0.20 | 0.30 | 28.70 | 0.84 | 12.0 | 14.0 | 24.0 | 0.3 | 29.4 | 1.9 |
| 6200 | 2.06 | 1.35 | 28.17 | 0.40 | 0.50 | 34.70 | 1.12 | 14.0 | 16.0 | 26.0 | 0.6 | 35.5 | 2.9 |
| 6300 | 2.06 | 1.35 | 33.17 | 0.40 | 0.50 | 39.70 | 1.12 | 14.0 | 16.5 | 31.0 | 0.6 | 40.5 | 2.9 |
| 61801 | – | – | – | – | – | – | – | 14.0 | 14.0 | 19.0 | 0.3 | – | – |
| 61901 | 1.05 | 0.80 | 22.80 | 0.20 | 0.20 | 26.80 | 0.70 | 14.0 | 14.5 | 22.0 | 0.3 | 27.5 | 1.5 |
| 16001 | – | – | – | – | – | – | – | 14.0 | – | 26.0 | 0.3 | – | – |
| 6001 | 1.35 | 0.87 | 26.50 | 0.20 | 0.30 | 30.70 | 0.84 | 14.0 | 15.5 | 26.0 | 0.3 | 31.4 | 1.9 |
| 6201 | 2.06 | 1.35 | 30.15 | 0.40 | 0.50 | 36.70 | 1.12 | 16.0 | 17.0 | 28.0 | 0.6 | 37.5 | 2.9 |
| 6301 | 2.06 | 1.35 | 34.77 | 0.40 | 0.50 | 41.30 | 1.12 | 17.0 | 18.0 | 32.0 | 1.0 | 42.0 | 2.9 |
| 61802 | – | – | – | – | – | – | – | 17.0 | 17.0 | 22.0 | 0.3 | – | – |
| 61902 | 1.30 | 0.95 | 26.70 | 0.25 | 0.30 | 30.80 | 0.85 | 17.0 | 17.0 | 26.0 | 0.3 | 31.5 | 1.8 |
| 16002 | – | – | – | – | – | – | – | 17.0 | – | 30.0 | 0.3 | – | – |
| 6002 | 2.06 | 1.35 | 30.15 | 0.40 | 0.30 | 36.70 | 1.12 | 17.0 | 19.0 | 30.0 | 0.3 | 37.5 | 2.9 |
| 6202 | 2.06 | 1.35 | 33.17 | 0.40 | 0.50 | 39.70 | 1.12 | 19.0 | 20.5 | 31.0 | 0.6 | 40.5 | 2.9 |
| 6302 | 2.06 | 1.35 | 39.75 | 0.40 | 0.50 | 46.30 | 1.12 | 20.0 | 22.5 | 37.0 | 1.0 | 47.0 | 2.9 |
| 61803 | – | – | – | – | – | – | – | 19.0 | 19.0 | 24.0 | 0.3 | – | – |
| 61903 | 1.30 | 0.95 | 28.70 | 0.25 | 0.30 | 32.80 | 0.85 | 19.0 | 19.5 | 28.0 | 0.3 | 33.5 | 1.8 |
| 16003 | – | – | – | – | – | – | – | 19.0 | – | 33.0 | 0.3 | – | – |
| 6003 | 2.06 | 1.35 | 33.17 | 0.40 | 0.30 | 39.70 | 1.12 | 19.0 | 21.5 | 33.0 | 0.3 | 40.5 | 2.9 |
| 6203 | 2.06 | 1.35 | 38.10 | 0.40 | 0.50 | 44.60 | 1.12 | 21.0 | 23.5 | 36.0 | 0.6 | 45.5 | 2.9 |
| 6303 | 2.46 | 1.35 | 44.60 | 0.40 | 0.50 | 52.70 | 1.12 | 22.0 | 25.5 | 42.0 | 1.0 | 53.5 | 3.3 |
Your Go-to Distributor for ID 20-35 mm Single Row Deep Groove Ball Bearings: Meeting Your Industrial Needs with Quality and Precision
When it comes to powering industrial machinery and applications, single row deep groove ball bearings are a cornerstone. Especially those with an inner diameter (ID) of 20-35 mm offer unique capabilities in handling both radial and axial loads, making them an integral part of many industrial processes. As a recognized distributor in the bearings industry, we ensure you receive the best quality bearings tailored to your specific operational needs.
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speeds (RPM) | Mass (kg) |
|||||||
| Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Grease | Oil | |||
| Part Number | d | D | B | rsmin | Cr | C0r | RS, 2RZ, Z, ZZ | 2RS | Open, Z | approx. |
| 61804 | 20 | 32 | 7 | 0.3 | 4.03 | 2.47 | 22000 | 13000 | 26000 | 0.02 |
| 61904 | 37 | 9 | 0.3 | 6.40 | 3.70 | 19000 | 12000 | 22000 | 0.04 | |
| 16004 | 42 | 8 | 0.3 | 7.90 | 4.45 | 18000 | – | 20000 | 0.05 | |
| 6004 | 42 | 12 | 0.6 | 9.95 | 5.05 | 18000 | 11000 | 20000 | 0.07 | |
| 6204 | 47 | 14 | 1.0 | 13.50 | 6.65 | 15000 | 11000 | 18000 | 0.11 | |
| 6304 | 52 | 15 | 1.1 | 16.80 | 7.90 | 14000 | 10000 | 17000 | 0.15 | |
| 61805 | 25 | 37 | 7 | 0.3 | 4.50 | 3.15 | 18000 | 10000 | 22000 | 0.02 |
| 61905 | 42 | 9 | 0.3 | 7.05 | 4.55 | 16000 | 10000 | 19000 | 0.04 | |
| 16005 | 47 | 8 | 0.3 | 8.85 | 5.60 | 15000 | – | 18000 | 0.06 | |
| 6005 | 47 | 12 | 0.6 | 11.90 | 6.55 | 15000 | 9500 | 18000 | 0.08 | |
| 6205 | 52 | 15 | 1.0 | 14.80 | 7.85 | 13000 | 9000 | 15000 | 0.13 | |
| 6305 | 62 | 17 | 1.1 | 23.40 | 11.60 | 11000 | 8000 | 13000 | 0.24 | |
| 61806 | 30 | 42 | 7 | 0.3 | 4.70 | 3.65 | 15000 | 9000 | 18000 | 0.02 |
| 61906 | 47 | 9 | 0.3 | 7.28 | 5.00 | 14000 | 8500 | 17000 | 0.05 | |
| 16006 | 55 | 9 | 0.3 | 11.90 | 7.35 | 13000 | – | 15000 | 0.09 | |
| 6006 | 55 | 13 | 1.0 | 13.80 | 8.30 | 13000 | 8000 | 15000 | 0.12 | |
| 6206 | 62 | 16 | 1.0 | 20.30 | 11.30 | 11000 | 7500 | 13000 | 0.20 | |
| 6306 | 72 | 19 | 1.1 | 29.60 | 16.00 | 9500 | 6700 | 12000 | 0.35 | |
| 61807 | 35 | 47 | 7 | 0.3 | 4.90 | 4.10 | 14000 | 7500 | 16000 | 0.03 |
| 61907 | 55 | 10 | 0.6 | 10.80 | 7.80 | 12000 | 7500 | 15000 | 0.08 | |
| 16007 | 62 | 9 | 0.3 | 13.00 | 8.15 | 11000 | – | 13000 | 0.11 | |
| 6007 | 62 | 14 | 1.0 | 16.80 | 10.30 | 11000 | 6700 | 13000 | 0.15 | |
| 6207 | 72 | 17 | 1.1 | 27.00 | 15.30 | 9500 | 6300 | 11000 | 0.28 | |
| 6307 | 80 | 21 | 1.5 | 35.10 | 19.20 | 8500 | 6000 | 10000 | 0.46 | |
| Snap Ring Groove Dimensions (mm) | Snap Ring Dimensions (mm) |
Abutment and Fillet Dimensions (mm) | |||||||||||
| Part | a | b | D1 | y0 | y1s | D2 | f | da | Da | ra | Dx | CY | |
| Number | max | min | max | max | min | max | max | min | max | max | max | min | max |
| 61804 | 1.30 | 0.95 | 30.70 | 0.25 | 0.30 | 34.80 | 0.85 | 22.0 | 22.0 | 30.0 | 0.3 | 35.5 | 1.8 |
| 61904 | 1.70 | 0.95 | 35.70 | 0.25 | 0.30 | 39.80 | 0.85 | 22.0 | 24.0 | 35.0 | 0.3 | 40.5 | 2.3 |
| 16004 | – | – | – | – | – | – | – | 22.0 | – | 40.0 | 0.3 | – | – |
| 6004 | 2.06 | 1.35 | 39.75 | 0.40 | 0.50 | 46.30 | 1.12 | 24.0 | 25.5 | 38.0 | 0.6 | 47.0 | 2.9 |
| 6204 | 2.46 | 1.35 | 44.60 | 0.40 | 0.50 | 52.70 | 1.12 | 25.0 | 26.5 | 42.0 | 1.0 | 53.5 | 3.3 |
| 6304 | 2.46 | 1.35 | 49.73 | 0.40 | 0.50 | 57.90 | 1.12 | 26.5 | 28.0 | 45.5 | 1.0 | 58.5 | 3.3 |
| 61805 | 1.30 | 0.95 | 35.70 | 0.25 | 0.30 | 39.80 | 0.85 | 27.0 | 27.0 | 35.0 | 0.3 | 40.5 | 1.8 |
| 61905 | 1.70 | 0.95 | 40.70 | 0.25 | 0.30 | 44.80 | 0.85 | 27.0 | 28.5 | 40.0 | 0.3 | 45.5 | 2.3 |
| 16005 | – | – | – | – | – | – | – | 27.0 | – | 45.0 | 0.3 | – | – |
| 6005 | 2.06 | 1.35 | 44.60 | 0.40 | 0.50 | 52.70 | 1.12 | 29.0 | 30.0 | 43.0 | 0.6 | 53.5 | 2.9 |
| 6205 | 2.46 | 1.35 | 49.73 | 0.40 | 0.50 | 57.90 | 1.12 | 30.0 | 32.0 | 47.0 | 1.0 | 58.5 | 3.3 |
| 6305 | 3.28 | 1.90 | 59.61 | 0.60 | 0.50 | 67.70 | 1.70 | 31.5 | 36.0 | 55.5 | 1.0 | 68.5 | 4.6 |
| 61806 | 1.30 | 0.95 | 40.70 | 0.25 | 0.30 | 44.80 | 0.85 | 32.0 | 32.0 | 40.0 | 0.3 | 45.5 | 1.8 |
| 61906 | 1.70 | 0.95 | 45.70 | 0.25 | 0.30 | 49.80 | 0.85 | 32.0 | 34.0 | 45.0 | 0.3 | 50.5 | 2.3 |
| 16006 | – | – | – | – | – | – | – | 32.0 | – | 53.0 | 0.3 | – | – |
| 6006 | 2.08 | 1.35 | 52.60 | 0.40 | 0.50 | 60.70 | 1.12 | 35.0 | 36.5 | 50.0 | 1.0 | 61.5 | 2.9 |
| 6206 | 3.28 | 1.90 | 59.61 | 0.60 | 0.50 | 67.70 | 1.70 | 35.0 | 38.5 | 57.0 | 1.0 | 68.5 | 4.6 |
| 6306 | 3.28 | 1.90 | 68.81 | 0.60 | 0.50 | 78.60 | 1.70 | 36.5 | 42.5 | 65.5 | 1.0 | 80.0 | 4.6 |
| 61807 | 1.30 | 0.95 | 45.70 | 0.25 | 0.30 | 49.80 | 0.85 | 37.0 | 37.0 | 45.0 | 0.3 | 50.5 | 1.8 |
| 61907 | 1.70 | 0.95 | 53.70 | 0.25 | 0.50 | 57.80 | 0.85 | 39.0 | 39.0 | 51.0 | 0.6 | 58.5 | 2.3 |
| 16007 | – | – | – | – | – | – | – | 37.0 | – | 60.0 | 0.3 | – | – |
| 6007 | 2.08 | 1.90 | 59.61 | 0.60 | 0.50 | 67.70 | 1.70 | 40.0 | 41.5 | 57.0 | 1.0 | 68.5 | 3.4 |
| 6207 | 3.28 | 1.90 | 68.81 | 0.60 | 0.50 | 78.60 | 1.70 | 41.5 | 44.5 | 65.5 | 1.0 | 80.0 | 4.6 |
| 6307 | 3.28 | 1.90 | 76.81 | 0.60 | 0.50 | 86.60 | 1.70 | 43.0 | 47.0 | 72.0 | 1.5 | 88.0 | 4.6 |
Reliable Supplier of ID 40-60 mm Single Row Deep Groove Ball Bearings: Powering Your Heavy-Duty Industrial Machinery
In the diverse world of machinery and rotating equipment, high-quality bearings are fundamental to seamless operation. Single Row Deep Groove Ball Bearings, especially those with an inner diameter (ID) of 40-60 mm, are a vital component in an array of heavy-duty applications, due to their capability to manage both radial and axial loads effectively. As a dedicated distributor of these bearings, we strive to deliver top-tier products that meet your distinctive operational needs.
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speeds (RPM) | Mass (kg) |
|||||||
| Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Grease | Oil | |||
| Part Number | d | D | B | rsmin | Cr | C0r | RS, 2RZ, Z, ZZ | 2RS | Open, Z | approx. |
| 61808 | 40 | 52 | 7 | 0.3 | 6.35 | 5.55 | 12000 | 6700 | 14000 | 0.03 |
| 61908 | 62 | 12 | 0.6 | 13.80 | 10.00 | 11000 | 6300 | 13000 | 0.11 | |
| 16008 | 68 | 9 | 0.3 | 13.80 | 10.20 | 10000 | – | 12000 | 0.13 | |
| 6008 | 68 | 15 | 1.0 | 17.80 | 11.50 | 10000 | 6000 | 12000 | 0.19 | |
| 6208 | 80 | 18 | 1.1 | 32.50 | 19.00 | 8500 | 5600 | 10000 | 0.37 | |
| 6308 | 90 | 23 | 1.5 | 42.30 | 24.00 | 7500 | 5300 | 9000 | 0.64 | |
| 61809 | 45 | 58 | 7 | 0.3 | 6.63 | 6.15 | 11000 | 6000 | 13000 | 0.04 |
| 61909 | 68 | 12 | 0.6 | 14.10 | 10.90 | 9500 | 5600 | 12000 | 0.13 | |
| 16009 | 75 | 10 | 0.6 | 16.50 | 10.80 | 9000 | – | 11000 | 0.17 | |
| 6009 | 75 | 16 | 1.0 | 22.10 | 15.20 | 9000 | 5300 | 11000 | 0.24 | |
| 6209 | 85 | 19 | 1.1 | 35.10 | 21.60 | 7500 | 5300 | 9000 | 0.42 | |
| 6309 | 100 | 25 | 1.5 | 55.30 | 32.00 | 6700 | 4800 | 8000 | 0.83 | |
| 61810 | 50 | 65 | 7 | 0.3 | 6.76 | 6.80 | 9500 | 5300 | 11000 | 0.05 |
| 61910 | 72 | 12 | 0.6 | 14.60 | 11.80 | 9000 | 5300 | 11000 | 0.14 | |
| 16010 | 80 | 10 | 0.6 | 16.80 | 11.40 | 8500 | – | 10000 | 0.18 | |
| 6010 | 80 | 16 | 1.0 | 22.90 | 16.60 | 8500 | 4800 | 10000 | 0.26 | |
| 6210 | 90 | 20 | 1.1 | 37.10 | 23.20 | 7100 | 4800 | 8500 | 0.46 | |
| 6310 | 110 | 27 | 2.0 | 65.00 | 38.50 | 6000 | 4300 | 7500 | 1.06 | |
| 61811 | 55 | 72 | 9 | 0.3 | 9.04 | 8.80 | 8500 | 4800 | 10000 | 0.08 |
| 61911 | 80 | 13 | 1.0 | 16.50 | 14.00 | 8000 | 4500 | 9500 | 0.19 | |
| 16011 | 90 | 11 | 0.6 | 19.40 | 16.30 | 7500 | – | 9000 | 0.26 | |
| 6011 | 90 | 18 | 1.1 | 29.60 | 21.20 | 7500 | 4500 | 9000 | 0.38 | |
| 6211 | 100 | 21 | 1.5 | 46.20 | 29.30 | 6300 | 4300 | 7500 | 0.62 | |
| 6311 | 120 | 29 | 2.0 | 74.10 | 45.00 | 5600 | 4000 | 6700 | 1.37 | |
| 61812 | 60 | 78 | 10 | 0.3 | 11.90 | 11.40 | 8000 | 4500 | 9500 | 0.10 |
| 61912 | 85 | 13 | 1.0 | 19.40 | 16.30 | 7500 | 4300 | 9000 | 0.19 | |
| 16012 | 95 | 11 | 0.6 | 20.00 | 17.50 | 7100 | – | 8500 | 0.28 | |
| 6012 | 95 | 18 | 1.1 | 30.70 | 23.20 | 7100 | 4000 | 8500 | 0.41 | |
| 6212 | 110 | 22 | 1.5 | 55.30 | 36.00 | 5600 | 3800 | 7100 | 0.78 | |
| 6312 | 130 | 31 | 2.1 | 85.20 | 52.00 | 5300 | 3600 | 6300 | 1.72 | |
| Snap Ring Groove Dimensions (mm) | Snap Ring Dimensions (mm) |
Abutment and Fillet Dimensions (mm) | |||||||||||
| Part | a | b | D1 | y0 | y1s | D2 | f | da | Da | ra | Dx | CY | |
| Number | max | min | max | max | min | max | max | min | max | max | max | min | max |
| 61808 | 1.30 | 0.95 | 50.70 | 0.25 | 0.30 | 54.80 | 0.85 | 42.0 | 42.0 | 50.0 | 0.3 | 55.5 | 1.8 |
| 61908 | 1.70 | 0.95 | 60.70 | 0.25 | 0.50 | 64.80 | 0.85 | 44.0 | 46.0 | 58.0 | 0.6 | 65.5 | 2.3 |
| 16008 | – | – | – | – | – | – | – | 37.0 | – | 60.0 | 0.3 | – | – |
| 6008 | 2.49 | 1.90 | 64.82 | 0.60 | 0.50 | 74.60 | 1.70 | 45.0 | 47.5 | 63.0 | 1.0 | 76.0 | 3.8 |
| 6208 | 3.28 | 1.90 | 76.81 | 0.60 | 0.50 | 86.60 | 1.70 | 46.5 | 50.5 | 73.5 | 1.0 | 88.0 | 4.6 |
| 6308 | 3.28 | 2.70 | 86.79 | 0.60 | 0.50 | 96.50 | 2.46 | 48.0 | 53.0 | 82.0 | 1.5 | 98.0 | 5.4 |
| 61809 | 1.30 | 0.95 | 56.70 | 0.25 | 0.30 | 60.80 | 0.85 | 47.0 | 47.5 | 56.0 | 0.3 | 61.5 | 1.8 |
| 61909 | 1.70 | 0.95 | 66.70 | 0.25 | 0.50 | 70.80 | 0.85 | 49.0 | 50.0 | 64.0 | 0.6 | 72.0 | 2.3 |
| 16009 | – | – | – | – | – | – | – | 49.0 | – | 71.0 | 0.6 | – | – |
| 6009 | 2.49 | 1.90 | 71.83 | 0.60 | 0.50 | 81.60 | 1.70 | 50.0 | 53.5 | 70.0 | 1.0 | 83.0 | 3.8 |
| 6209 | 3.28 | 1.90 | 81.81 | 0.60 | 0.50 | 91.60 | 1.70 | 51.5 | 55.5 | 78.5 | 1.0 | 93.0 | 4.6 |
| 6309 | 3.28 | 2.70 | 96.80 | 0.60 | 0.50 | 106.50 | 2.46 | 53.0 | 61.5 | 92.0 | 1.5 | 108.0 | 5.4 |
| 61810 | 1.30 | 0.95 | 63.70 | 0.25 | 0.30 | 67.80 | 0.85 | 52.0 | 52.5 | 63.0 | 0.3 | 68.5 | 1.8 |
| 61910 | 1.70 | 0.95 | 70.70 | 0.25 | 0.50 | 74.80 | 0.85 | 54.0 | 55.0 | 68.0 | 0.6 | 76.0 | 2.3 |
| 16010 | – | – | – | – | – | – | – | 54.0 | – | 76.0 | 0.6 | – | – |
| 6010 | 2.49 | 1.90 | 76.81 | 0.60 | 0.50 | 86.60 | 1.70 | 55.0 | 58.5 | 75.0 | 1.0 | 88.0 | 3.8 |
| 6210 | 3.28 | 1.90 | 86.79 | 0.60 | 0.50 | 96.50 | 2.46 | 56.5 | 60.0 | 83.5 | 1.0 | 98.0 | 5.4 |
| 6310 | 3.28 | 2.70 | 106.81 | 0.60 | 0.50 | 116.60 | 2.46 | 59.0 | 68.0 | 101.0 | 2.0 | 118.0 | 5.4 |
| 61811 | 1.70 | 0.95 | 70.70 | 0.25 | 0.30 | 74.80 | 0.85 | 57.0 | 59.0 | 70.0 | 0.3 | 76.0 | 2.3 |
| 61911 | 2.10 | 1.30 | 77.90 | 0.40 | 0.50 | 84.40 | 1.22 | 60.0 | 61.5 | 75.0 | 1.0 | 86.0 | 2.9 |
| 16011 | – | – | – | – | – | – | – | 59.0 | – | 86.0 | 0.6 | – | – |
| 6011 | 2.87 | 2.70 | 86.79 | 0.60 | 0.50 | 96.50 | 2.46 | 61.5 | 64.0 | 83.5 | 1.0 | 98.0 | 5.0 |
| 6211 | 3.28 | 2.70 | 96.80 | 0.60 | 0.50 | 106.50 | 2.46 | 63.0 | 66.5 | 92.0 | 1.5 | 108.0 | 5.4 |
| 6311 | 4.06 | 3.10 | 115.21 | 0.60 | 0.50 | 129.70 | 2.82 | 64.0 | 72.5 | 111.0 | 2.0 | 131.5 | 6.5 |
| 61812 | 1.70 | 1.30 | 792.20 | 0.40 | 0.30 | 82.70 | 1.12 | 62.0 | 64.0 | 76.0 | 0.3 | 84.0 | 2.2 |
| 61912 | 2.10 | 1.30 | 82.90 | 0.40 | 0.50 | 89.40 | 1.12 | 65.0 | 66.0 | 80.0 | 1.0 | 91.0 | 2.9 |
| 16012 | – | – | – | – | – | – | – | 64.0 | – | 91.0 | 0.6 | – | – |
| 6012 | 2.87 | 2.70 | 91.82 | 0.60 | 0.50 | 101.60 | 2.46 | 66.5 | 69.0 | 88.5 | 1.0 | 103.0 | 5.0 |
| 6212 | 3.26 | 2.70 | 106.81 | 0.60 | 0.50 | 116.60 | 2.46 | 68.0 | 74.5 | 102.0 | 1.5 | 118.0 | 5.4 |
| 6312 | 4.06 | 3.10 | 125.22 | 0.60 | 0.50 | 139.70 | 2.82 | 71.0 | 79.0 | 119.0 | 2.0 | 141.5 | 6.5 |
Leading Distributor of ID 65-100 mm Single Row Deep Groove Ball Bearings: Providing Powerful Solutions for Your Heavy Machinery
As the wheels of industry continue to turn, the demand for high-quality, durable, and efficient bearings grows. Single Row Deep Groove Ball Bearings, specifically those with an inner diameter (ID) of 65-100 mm, play a crucial role in an array of heavy-duty machinery and large-scale applications due to their ability to handle substantial radial and axial loads. As a dedicated distributor of these robust bearings, our goal is to deliver exceptional products tailored to meet your unique operational requirements.
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speeds (RPM) | Mass (kg) |
|||||||
| Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Grease | Oil | |||
| Part Number | d | D | B | rsmin | Cr | C0r | RS, 2RZ, Z, ZZ | 2RS | Open, Z | approx. |
| 61813 | 65 | 85 | 10 | 0.6 | 12.40 | 12.70 | 7500 | 4000 | 8500 | 0.13 |
| 61913 | 90 | 13 | 1.0 | 17.40 | 16.10 | 7100 | 4000 | 8500 | 0.22 | |
| 16013 | 100 | 11 | 0.6 | 22.50 | 19.60 | 6700 | – | 8000 | 0.30 | |
| 6013 | 100 | 18 | 1.1 | 31.90 | 25.20 | 6700 | 4000 | 8000 | 0.44 | |
| 6213 | 120 | 23 | 1.5 | 58.50 | 40.50 | 5300 | 3600 | 6300 | 1.00 | |
| 6313 | 140 | 33 | 2.1 | 97.50 | 60.00 | 4800 | 3400 | 6000 | 2.11 | |
| 61814 | 70 | 90 | 10 | 0.6 | 12.40 | 13.20 | 6700 | 3800 | 8000 | 0.13 |
| 61914 | 100 | 16 | 1.0 | 23.80 | 21.20 | 6300 | 3600 | 7500 | 0.35 | |
| 16014 | 110 | 13 | 0.6 | 29.10 | 25.00 | 6000 | – | 7100 | 0.44 | |
| 6014 | 110 | 20 | 1.1 | 39.70 | 31.00 | 6000 | 3600 | 7100 | 0.61 | |
| 6214 | 125 | 24 | 1.5 | 63.70 | 45.00 | 5000 | 3400 | 6300 | 1.09 | |
| 6314 | 150 | 35 | 2.1 | 111.00 | 68.00 | 4500 | 3200 | 5300 | 2.57 | |
| 61815 | 75 | 95 | 10 | 0.6 | 12.70 | 14.30 | 6300 | – | 7500 | 0.15 |
| 61915 | 105 | 16 | 1.0 | 24.40 | 22.60 | 6000 | – | 7100 | 0.36 | |
| 16015 | 115 | 13 | 0.6 | 30.20 | 27.00 | 5600 | – | 6700 | 0.46 | |
| 6015 | 115 | 20 | 1.1 | 41.60 | 33.50 | 5600 | 3400 | 6700 | 0.65 | |
| 6215 | 130 | 25 | 1.5 | 68.90 | 49.50 | 4800 | 3200 | 5600 | 1.19 | |
| 6315 | 160 | 37 | 2.1 | 119.00 | 77.00 | 4300 | 2800 | 5000 | 3.08 | |
| 61816 | 80 | 100 | 10 | 0.6 | 13.00 | 15.00 | 6000 | 3400 | 7100 | 0.15 |
| 61916 | 110 | 16 | 1.0 | 25.00 | 24.00 | 5600 | 3200 | 6700 | 0.39 | |
| 16016 | 125 | 14 | 0.6 | 35.10 | 31.50 | 5300 | – | 6300 | 0.62 | |
| 6016 | 125 | 22 | 1.1 | 49.40 | 40.00 | 5300 | 3200 | 6300 | 0.87 | |
| 6216 | 140 | 26 | 2.0 | 72.80 | 55.00 | 4500 | 3000 | 5300 | 1.42 | |
| 6316 | 170 | 39 | 2.1 | 130.00 | 86.50 | 4000 | 2800 | 4800 | 3.67 | |
| 61817 | 85 | 110 | 13 | 1.0 | 19.50 | 20.80 | 5600 | 3200 | 6700 | 0.26 |
| 61917 | 120 | 18 | 1.1 | 32.00 | 29.60 | 5300 | 3000 | 6300 | 0.55 | |
| 16017 | 130 | 14 | 0.6 | 35.80 | 33.50 | 5000 | – | 6000 | 0.65 | |
| 6017 | 130 | 22 | 1.1 | 52.00 | 43.00 | 5000 | 3000 | 6000 | 0.92 | |
| 6217 | 150 | 28 | 2.0 | 87.10 | 64.00 | 4300 | 2800 | 5000 | 1.76 | |
| 6317 | 180 | 41 | 3.0 | 140.00 | 97.00 | 3800 | 2600 | 4500 | 4.28 | |
| 61818 | 90 | 115 | 13 | 1.0 | 19.50 | 22.00 | 5300 | 3000 | 6300 | 0.28 |
| 61918 | 125 | 18 | 1.1 | 33.20 | 31.50 | 5000 | 2800 | 6000 | 0.59 | |
| 16018 | 140 | 16 | 1.0 | 43.60 | 39.00 | 4800 | – | 5600 | 0.87 | |
| 6018 | 140 | 24 | 1.5 | 60.50 | 50.00 | 4800 | 2800 | 5600 | 1.19 | |
| 6218 | 160 | 30 | 2.0 | 101.00 | 73.50 | 4000 | 2600 | 4800 | 2.18 | |
| 6318 | 190 | 43 | 3.0 | 151.00 | 108.00 | 3600 | 2400 | 4300 | 4.98 | |
| 61819 | 95 | 120 | 13 | 1.0 | 19.90 | 22.80 | 5000 | 2800 | 6000 | 0.30 |
| 61919 | 130 | 18 | 1.1 | 33.80 | 33.50 | 4800 | 2800 | 5600 | 0.60 | |
| 16019 | 145 | 16 | 1.0 | 44.90 | 41.50 | 4500 | – | 5300 | 0.90 | |
| 6019 | 145 | 24 | 1.5 | 63.70 | 54.00 | 4500 | 2600 | 5300 | 1.23 | |
| 6219 | 170 | 32 | 2.1 | 114.00 | 82.00 | 3800 | 2600 | 4500 | 2.64 | |
| 6319 | 200 | 45 | 3.0 | 159.00 | 118.00 | 3000 | 2400 | 3600 | 5.76 | |
| 61820 | 100 | 125 | 13 | 1.0 | 19.60 | 23.00 | 4800 | 2800 | 5600 | 0.31 |
| 61920 | 140 | 20 | 1.1 | 43.00 | 42.00 | 4500 | 2600 | 5300 | 0.83 | |
| 16020 | 150 | 16 | 1.0 | 46.20 | 44.00 | 4300 | – | 5300 | 0.95 | |
| 6020 | 150 | 24 | 1.5 | 63.70 | 54.00 | 4300 | 2600 | 5300 | 1.29 | |
| 6220 | 180 | 34 | 2.1 | 127.00 | 93.00 | 3600 | 2400 | 4300 | 3.17 | |
| 6320 | 215 | 47 | 3.0 | 173.00 | 141.00 | 2800 | 2200 | 3400 | 7.04 | |
| Snap Ring Groove Dimensions (mm) | Snap Ring Dimensions (mm) |
Abutment and Fillet Dimensions (mm) | |||||||||||
| Part | a | b | D1 | y0 | y1s | D2 | f | da | Da | ra | Dx | CY | |
| Number | max | min | max | max | min | max | max | min | max | max | max | min | max |
| 61813 | 1.70 | 1.30 | 82.90 | 0.40 | 0.50 | 89.40 | 1.12 | 69.0 | 69.0 | 81.0 | 0.6 | 91.0 | 2.5 |
| 61913 | 2.10 | 1.30 | 87.90 | 0.40 | 0.50 | 94.40 | 1.12 | 70.0 | 71.5 | 85.0 | 1.0 | 96.0 | 2.9 |
| 16013 | – | – | – | – | – | – | – | 69.0 | – | 96.0 | 0.6 | – | – |
| 6013 | 2.87 | 2.70 | 96.80 | 0.60 | 0.50 | 106.50 | 2.46 | 71.5 | 73.0 | 93.5 | 1.0 | 108.0 | 5.0 |
| 6213 | 4.06 | 3.10 | 115.21 | 0.60 | 0.50 | 129.70 | 2.82 | 73.0 | 80.0 | 112.0 | 1.5 | 131.5 | 6.5 |
| 6313 | 4.90 | 3.10 | 135.23 | 0.60 | 0.50 | 149.70 | 2.82 | 76.0 | 85.5 | 129.0 | 2.0 | 152.0 | 7.3 |
| 61814 | 1.70 | 1.30 | 87.90 | 0.40 | 0.50 | 94.40 | 1.12 | 74.0 | 74.5 | 86.0 | 0.6 | 96.0 | 2.5 |
| 61914 | 2.50 | 1.30 | 97.90 | 0.40 | 0.50 | 104.40 | 1.12 | 75.0 | 77.5 | 95.0 | 1.0 | 106.0 | 3.3 |
| 16014 | – | – | – | – | – | – | – | 74.0 | – | 106.0 | 0.6 | – | – |
| 6014 | 2.87 | 2.70 | 106.81 | 0.60 | 0.50 | 116.60 | 2.46 | 76.5 | 80.5 | 103.5 | 1.0 | 118.0 | 5.0 |
| 6214 | 4.06 | 3.10 | 120.22 | 0.60 | 0.50 | 134.70 | 2.82 | 78.0 | 84.0 | 117.0 | 1.5 | 136.5 | 6.5 |
| 6314 | 4.90 | 3.10 | 145.24 | 0.60 | 0.50 | 159.70 | 2.82 | 81.0 | 92.0 | 139.0 | 2.0 | 162.0 | 7.3 |
| 61815 | 1.70 | 1.30 | 92.90 | 0.40 | 0.50 | 99.40 | 1.12 | 79.0 | 79.5 | 91.0 | 0.6 | 101.0 | 2.5 |
| 61915 | 2.50 | 1.30 | 102.60 | 0.40 | 0.50 | 110.70 | 1.12 | 80.0 | 82.0 | 100.0 | 1.0 | 112.0 | 3.3 |
| 16015 | – | – | – | – | – | – | – | 79.0 | – | 111.0 | 0.6 | – | – |
| 6015 | 2.87 | 2.70 | 111.81 | 0.60 | 0.50 | 121.60 | 2.46 | 81.5 | 85.5 | 108.5 | 1.0 | 123.0 | 5.0 |
| 6215 | 4.06 | 3.10 | 125.22 | 0.60 | 0.50 | 139.70 | 2.82 | 83.0 | 90.0 | 122.0 | 1.5 | 141.5 | 6.5 |
| 6315 | 4.90 | 3.10 | 155.22 | 0.60 | 0.50 | 169.70 | 2.82 | 86.0 | 98.5 | 149.0 | 2.0 | 172.0 | 7.3 |
| 61816 | 1.70 | 1.30 | 97.90 | 0.40 | 0.50 | 104.40 | 1.12 | 84.0 | 84.5 | 96.0 | 0.6 | 106.0 | 2.5 |
| 61916 | 2.50 | 1.30 | 107.60 | 0.40 | 0.50 | 115.70 | 1.12 | 85.0 | 87.5 | 105.0 | 1.0 | 117.0 | 3.3 |
| 16016 | – | – | – | – | – | – | – | 84.0 | – | 121.0 | 0.6 | – | – |
| 6016 | 2.87 | 3.10 | 120.22 | 0.60 | 0.50 | 134.70 | 2.82 | 86.5 | 91.0 | 118.5 | 1.0 | 136.5 | 5.3 |
| 6216 | 4.90 | 3.10 | 135.23 | 0.60 | 0.50 | 149.70 | 2.82 | 89.0 | 95.5 | 131.0 | 2.0 | 152.0 | 7.3 |
| 6316 | 5.69 | 3.50 | 163.65 | 0.60 | 0.50 | 182.90 | 3.10 | 91.0 | 104.5 | 159.0 | 2.0 | 185.0 | 8.4 |
| 61817 | 2.10 | 1.30 | 107.60 | 0.40 | 0.50 | 115.70 | 1.12 | 90.0 | 90.5 | 105.0 | 1.0 | 117.0 | 2.9 |
| 61917 | 3.30 | 1.30 | 117.60 | 0.40 | 0.50 | 125.70 | 1.12 | 91.5 | 94.5 | 113.5 | 1.0 | 127.0 | 4.1 |
| 16017 | – | – | – | – | – | – | – | 89.0 | – | 126.0 | 0.6 | – | – |
| 6017 | 2.87 | 3.10 | 125.22 | 0.60 | 0.50 | 139.70 | 2.82 | 91.5 | 96.0 | 123.5 | 1.0 | 141.5 | 5.3 |
| 6217 | 4.90 | 3.10 | 145.24 | 0.60 | 0.50 | 159.70 | 2.82 | 94.0 | 102.0 | 141.0 | 2.0 | 162.0 | 7.3 |
| 6317 | 5.69 | 3.50 | 173.66 | 0.60 | 0.50 | 192.90 | 3.10 | 98.0 | 110.5 | 167.0 | 2.5 | 195.0 | 8.4 |
| 61818 | 2.10 | 1.30 | 112.60 | 0.40 | 0.50 | 120.70 | 1.12 | 95.0 | 95.5 | 110.0 | 1.0 | 122.0 | 2.9 |
| 61918 | 3.30 | 1.30 | 122.60 | 0.40 | 0.50 | 130.70 | 1.12 | 96.5 | 98.5 | 118.5 | 1.0 | 132.0 | 4.1 |
| 16018 | – | – | – | – | – | – | – | 95.0 | – | 135.0 | 1.0 | – | – |
| 6018 | 3.71 | 3.10 | 135.23 | 0.60 | 0.50 | 149.70 | 2.82 | 98.0 | 103.0 | 132.0 | 1.5 | 152.0 | 6.1 |
| 6218 | 4.90 | 3.10 | 155.22 | 0.60 | 0.50 | 169.70 | 2.82 | 99.0 | 107.5 | 151.0 | 2.0 | 172.0 | 7.3 |
| 6318 | 5.69 | 3.50 | 183.64 | 0.60 | 0.50 | 202.90 | 3.10 | 103.0 | 117.0 | 177.0 | 2.5 | 205.0 | 8.4 |
| 61819 | 2.10 | 1.30 | 117.60 | 0.40 | 0.50 | 125.70 | 1.12 | 100.0 | 101.5 | 115.0 | 1.0 | 127.0 | 2.9 |
| 61919 | 3.30 | 1.30 | 127.60 | 0.40 | 0.50 | 135.70 | 1.12 | 101.5 | 103.5 | 123.5 | 1.0 | 137.0 | 4.1 |
| 16019 | – | – | – | – | – | – | – | 100.0 | – | 140.0 | 1.0 | – | – |
| 6019 | 3.71 | 3.10 | 140.23 | 0.60 | 0.50 | 154.70 | 2.82 | 103.0 | 108.5 | 137.0 | 1.5 | 157.0 | 6.1 |
| 6219 | 5.69 | 3.50 | 163.65 | 0.60 | 0.50 | 182.90 | 3.10 | 106.0 | 114.0 | 159.0 | 2.0 | 185.0 | 8.4 |
| 6319 | 5.69 | 3.50 | 193.65 | 0.60 | 0.50 | 212.90 | 3.10 | 1108.0 | 123.5 | 187.0 | 2.5 | 215.0 | 8.4 |
| 61820 | 2.10 | 1.30 | 122.60 | 0.40 | 0.50 | 130.70 | 1.12 | 105.0 | 105.5 | 120.0 | 1.0 | 132.0 | 2.9 |
| 61920 | 3.30 | 1.90 | 137.60 | 0.60 | 0.50 | 145.70 | 1.70 | 106.5 | 111.0 | 133.5 | 1.0 | 147.0 | 4.7 |
| 16020 | – | – | – | – | – | – | – | 105.0 | – | 145.0 | 1.0 | – | – |
| 6020 | 3.71 | 3.10 | 145.24 | 0.60 | 0.50 | 159.70 | 2.82 | 108.0 | 112.5 | 142.0 | 1.5 | 162.0 | 6.1 |
| 6220 | 5.69 | 3.50 | 173.66 | 0.60 | 0.50 | 192.90 | 3.10 | 111.0 | 121.5 | 169.0 | 2.0 | 195.0 | 8.4 |
| 6320 | — | — | — | — | — | — | — | 113.0 | 133.0 | 202.0 | 2.5 | — | — |
Leading Supplier of ID 105-160 mm Single Row Deep Groove Ball Bearings: Engineered for High Performance in Heavy-duty Applications
Industrial efficiency and high-performance machinery are rooted in the quality of their core components. Single Row Deep Groove Ball Bearings, particularly those with an inner diameter (ID) of 105-160 mm, are integral to an array of heavy-duty industrial machinery. They excel at handling considerable radial and axial loads while maintaining high rotation speeds. As your committed distributor, we strive to provide you with superior bearings that match your unique requirements and ensure the seamless operation of your equipment.
| Dimensions (mm) | Basic Load Ratings (kN) | Limiting Speeds (RPM) | Mass (kg) |
|||||||
| Bore | Outer Diameter | Width | Minimum Chamfer | Dynamic Load | Static Load |
Grease | Oil | |||
| Part Number | d | D | B | rsmin | Cr | C0r | RS, 2RZ, Z, ZZ | 2RS | Open, Z | approx. |
| 61821 | 105 | 130 | 13 | 1.0 | 19.80 | 23.90 | 4800 | 2600 | 5600 | 0.32 |
| 61921 | 145 | 20 | 1.1 | 44.20 | 44.00 | 4300 | — | 5300 | 0.86 | |
| 6021 | 160 | 26 | 2.0 | 76.10 | 66.00 | 4000 | 2400 | 4800 | 1.58 | |
| 6221 | 190 | 36 | 2.1 | 140.00 | 105.00 | 3400 | 2200 | 4000 | 3.79 | |
| 6321 | 225 | 49 | 3.0 | 184.00 | 154.00 | 2600 | 2000 | 3200 | 8.09 | |
| 61822 | 110 | 140 | 16 | 1.0 | 28.10 | 32.50 | 4300 | 2400 | 5300 | 0.50 |
| 61922 | 150 | 20 | 1.1 | 43.60 | 45.00 | 4300 | 2400 | 5000 | 0.89 | |
| 6022 | 170 | 28 | 2.0 | 85.20 | 73.50 | 3800 | 2200 | 4500 | 1.94 | |
| 6222 | 200 | 38 | 2.1 | 151.00 | 118.00 | 2800 | 2200 | 3400 | 4.45 | |
| 6322 | 240 | 50 | 3.0 | 205.00 | 179.00 | 2400 | — | 3000 | 9.51 | |
| 61824 | 120 | 150 | 16 | 1.0 | 28.90 | 35.50 | 4000 | 2200 | 4800 | 0.54 |
| 61924 | 165 | 22 | 1.1 | 55.30 | 57.00 | 3800 | — | 4500 | 1.21 | |
| 6024 | 180 | 28 | 2.0 | 88.40 | 80.00 | 3600 | 2200 | 4300 | 2.08 | |
| 6224 | 215 | 40 | 2.1 | 155.00 | 131.00 | 2600 | 2000 | 3200 | 5.29 | |
| 6324 | 260 | 55 | 3.0 | 208.00 | 186.00 | 2200 | 1800 | 2800 | 12.50 | |
| 61826 | 130 | 165 | 18 | 1.1 | 37.00 | 44.00 | 3600 | 2000 | 4300 | 0.76 |
| 61926 | 180 | 24 | 1.5 | 65.00 | 67.50 | 3400 | — | 4000 | 1.57 | |
| 6026 | 200 | 33 | 2.0 | 112.00 | 101.00 | 3000 | 1900 | 3600 | 3.26 | |
| 6226 | 230 | 40 | 3.0 | 167.00 | 146.00 | 2400 | — | 3000 | 5.96 | |
| 6326 | 280 | 58 | 4.0 | 229.00 | 216.00 | 2200 | — | 2600 | 15.20 | |
| 61828 | 140 | 175 | 18 | 1.1 | 38.50 | 48.00 | 3400 | 1900 | 4000 | 0.83 |
| 61928 | 190 | 24 | 1.5 | 66.50 | 72.00 | 3200 | – | 3800 | 1.67 | |
| 6028 | 210 | 33 | 2.0 | 111.00 | 109.00 | 2800 | 1800 | 3400 | 3.48 | |
| 6228 | 250 | 42 | 3.0 | 166.00 | 150.00 | 2200 | 1700 | 2800 | 7.68 | |
| 6328 | 300 | 62 | 4.0 | 253.00 | 246.00 | 2000 | – | 2400 | 18.50 | |
| 61830 | 150 | 190 | 20 | 1.1 | 48.80 | 61.00 | 3200 | 1800 | 3800 | 1.15 |
| 61930 | 210 | 28 | 2.0 | 88.40 | 93.00 | 2600 | 1700 | 3200 | 3.01 | |
| 6030 | 225 | 4 | 2.1 | 126.00 | 126.00 | 2600 | 1700 | 3000 | 4.24 | |
| 6230 | 270 | 45 | 3.0 | 176.00 | 168.00 | 2100 | – | 2600 | 10.00 | |
| 6330 | 320 | 65 | 4.0 | 276.00 | 285.00 | 1800 | – | 2200 | 22.70 | |
| 61832 | 160 | 200 | 20 | 1.1 | 49.40 | 64.00 | 2600 | 1700 | 3200 | 1.23 |
| 61932 | 220 | 28 | 2.0 | 92.30 | 98.00 | 2600 | 1600 | 3000 | 2.71 | |
| 6032 | 240 | 25 | 1.5 | 143.00 | 143.00 | 2400 | – | 2800 | 4.20 | |
| 6232 | 290 | 48 | 3.0 | 186.00 | 186.00 | 1900 | – | 2400 | 12.80 | |
| 6332 | 340 | 68 | 4.0 | 278.00 | 287.00 | 1700 | – | 2000 | 26.20 | |
| Snap Ring Groove Dimensions (mm) | Snap Ring Dimensions (mm) |
Abutment and Fillet Dimensions (mm) | |||||||||||
| Part | a | b | D1 | y0 | y1s | D2 | f | da | Da | ra | Dx | CY | |
| Number | max | min | max | max | min | max | max | min | max | max | max | min | max |
| 61821 | 2.10 | 1.30 | 127.60 | 0.40 | 0.50 | 135.70 | 1.12 | 110.0 | 110.5 | 125.0 | 1.0 | 137.0 | 2.9 |
| 61921 | 3.30 | 1.90 | 142.60 | 0.60 | 0.50 | 150.70 | 1.70 | 111.5 | 116.0 | 138.5 | 1.0 | 152.0 | 4.7 |
| 6021 | 3.71 | 3.10 | 155.22 | 0.60 | 0.50 | 169.70 | 2.82 | 114.0 | 120.0 | 151.0 | 2.0 | 172.0 | 6.1 |
| 6221 | 5.69 | 3.50 | 183.64 | 0.60 | 0.50 | 202.90 | 3.10 | 116.0 | 127.5 | 179.0 | 2.0 | 205.0 | 8.4 |
| 6321 | — | — | — | — | — | — | — | 118.0 | 138.0 | 212.0 | 2.5 | — | — |
| 61822 | 2.50 | 1.90 | 137.60 | 0.60 | 0.50 | 145.70 | 1.70 | 115.0 | 117.0 | 135.0 | 1.0 | 147.0 | 3.9 |
| 61922 | 3.30 | 1.90 | 147.60 | 0.60 | 0.50 | 155.70 | 1.70 | 116.5 | 121.0 | 143.5 | 1.0 | 157.0 | 4.7 |
| 6022 | 3.71 | 3.50 | 163.65 | 0.60 | 0.50 | 182.90 | 3.10 | 119.0 | 124.5 | 161.0 | 2.0 | 185.0 | 6.4 |
| 6222 | 5.69 | 3.50 | 193.65 | 0.60 | 0.50 | 212.90 | 3.10 | 121.0 | 134.0 | 189.0 | 2.0 | 215.0 | 8.4 |
| 6322 | — | — | — | — | — | — | — | 123.0 | 147.0 | 227.0 | 2.5 | — | — |
| 61824 | 2.50 | 1.90 | 147.60 | 0.60 | 0.50 | 155.70 | 1.70 | 125.0 | 127.0 | 145.0 | 1.0 | 157.0 | 3.9 |
| 61924 | 3.70 | 1.90 | 161.80 | 0.60 | 0.50 | 171.50 | 1.70 | 126.5 | 132.0 | 158.5 | 1.0 | 173.0 | 5.1 |
| 6024 | 3.71 | 3.50 | 173.66 | 0.60 | 0.50 | 192.90 | 3.10 | 129.0 | 134.5 | 171.0 | 2.0 | 195.0 | 6.4 |
| 6224 | — | — | — | — | — | — | — | 131.0 | 146.0 | 204.0 | — | — | — |
| 6324 | — | — | — | — | — | — | — | 133.0 | 161.0 | 247.0 | 2.5 | — | — |
| 61826 | 3.30 | 1.90 | 161.80 | 0.60 | 0.50 | 171.50 | 1.70 | 136.5 | 138.0 | 158.5 | 1.0 | 173.0 | 4.7 |
| 61926 | 3.70 | 1.90 | 176.80 | 0.60 | 0.50 | 186.50 | 1.70 | 138.0 | 144.0 | 172.0 | 1.5 | 188.0 | 5.1 |
| 6026 | 5.69 | 3.50 | 193.65 | 0.60 | 0.50 | 212.90 | 3.10 | 139.0 | 148.5 | 191.0 | 2.0 | 215.0 | 8.4 |
| 6226 | — | — | — | — | — | — | — | 143.0 | 157.0 | 217.0 | 2.5 | — | — |
| 6326 | — | — | — | — | — | — | — | 146.0 | 175.0 | 264.0 | 3.0 | — | — |
| 61828 | 3.30 | 1.90 | 171.80 | 0.60 | 0.50 | 181.50 | 1.70 | 146.5 | 148.5 | 168.5 | 1.0 | 183.0 | 4.7 |
| 61928 | 3.70 | 1.90 | 186.80 | 0.60 | 0.50 | 196.50 | 1.70 | 148.0 | 153.5 | 182.0 | 1.5 | 198.0 | 5.1 |
| 6028 | – | – | – | – | – | – | – | 149.0 | 158.5 | 201.0 | 2.0 | – | – |
| 6228 | – | – | – | – | – | – | – | 153.0 | 171.5 | 237.0 | 2.5 | – | – |
| 6328 | – | – | – | – | – | – | – | 156.0 | 187.0 | 284.0 | 3.0 | – | – |
| 61830 | 3.30 | 1.90 | 186.80 | 0.60 | 0.50 | 196.50 | 1.70 | 156.5 | – | 183.5 | 1.0 | 198.0 | 4.7 |
| 61930 | – | – | – | – | – | – | – | 159.0 | 166.0 | 201.0 | 2.0 | – | – |
| 6030 | – | – | – | – | – | – | – | 161.0 | 170.0 | 214.0 | 2.0 | – | – |
| 6230 | – | – | – | – | – | – | – | 163.0 | 186.0 | 247.0 | 2.5 | – | – |
| 6330 | – | – | – | – | – | – | – | 166.0 | 203.0 | 304.0 | 3.0 | – | – |
| 61832 | 3.30 | 1.90 | 196.80 | 0.60 | 0.50 | 206.50 | 1.70 | 166.5 | 170.5 | 193.5 | 1.0 | 208.0 | 4.7 |
| 61932 | – | – | – | – | – | – | – | 169.0 | 176.0 | 211.0 | 2.0 | – | – |
| 6032 | – | – | – | – | – | – | – | 171.0 | 181.5 | 229.0 | 2.0 | – | – |
| 6232 | – | – | – | – | – | – | – | 173.0 | 202.0 | 277.0 | 2.5 | – | – |
| 6332 | – | – | – | – | – | – | – | 176.0 | – | 324.0 | 3.0 | – | – |
Super-precision bearings manufacturer, Super-Precision Bearings, Find The Right Deep Ball Bearing
Four point contact ball bearings are essentially radial single row angular contact ball bearings with raceways specially crafted to handle axial loads from both directions. They can support a specific radial load (load ratio) when subjected to a given axial load. Notably, these bearings are of a separable design, meaning the outer ring with the ball and cage assembly can be independently mounted from the two inner ring halves.
These bearings include grooved shoulders on both halves of the inner ring, which, when used alongside cylindrical roller bearings, enhance oil flow. The recessed parts also facilitate disassembly, making maintenance and replacement tasks more straightforward.
About Us
Super-precision angular contact ball bearings
We manufacture super-precision angular contact ball bearings suitable for shaft diameters ranging from 6 to 360 mm. Given the diverse application requirements, our lineup includes bearings from four ISO dimension series, available in multiple executions. This extensive variety allows for their integration into nearly any machine tool application, as well as other scenarios where precision bearings are essential. Our broad selection of designs and variants ensures that these bearings can meet the specific demands of various high-precision tasks, accommodating a wide range of operating conditions and performance requirements. Whether for specialized machinery or general precision applications, our bearings offer the reliability and accuracy needed for optimal functionality.
